Doggy Hat

by MikeTheMaker in Circuits > Arduino

2151 Views, 8 Favorites, 0 Comments

Doggy Hat

Screen Shot 2020-06-01 at 8.44.33 PM.png

The plush toy dog has become an automated hat. A servo motor with cardboard lever arm moves the head randomly, controlled by a battery powered Arduino Uno.

No stuffed animals were injured during the construction of this project.

Supplies

Standard servo motor

Arduino Uno

(4) AA batteries

Battery container for 4 AA batteries

Cardboard

Velcro

Glue

doggy hat - 5.jpg

In a room with no small children present, remove the stuffing from a plush dog.

doggy hat - 1.jpg

Cut two strips of cardboard, long enough to reach from the body of the dog to the end of the dog's mouth.

doggy hat - 2.jpg

Glue the two strips of cardboard together and fasten them to the servo motor horn.

doggy hat - 3.jpg

Attach the cardboard lever to the servo motor.

doggy hat - 4.jpg

Find a suitable box (this one was about 8 inches by 8 inches by 2 inches) and cut a space that corresponds to the head shape of the intended user.

doggy hat - 6.jpg

Insert the motor/lever arm into the stuffed (well. . . not stuffed now) animal.

doggy hat - 7.jpg

Add hook & loop tape to the bottom of the motor.

doggy hat - 8.jpg

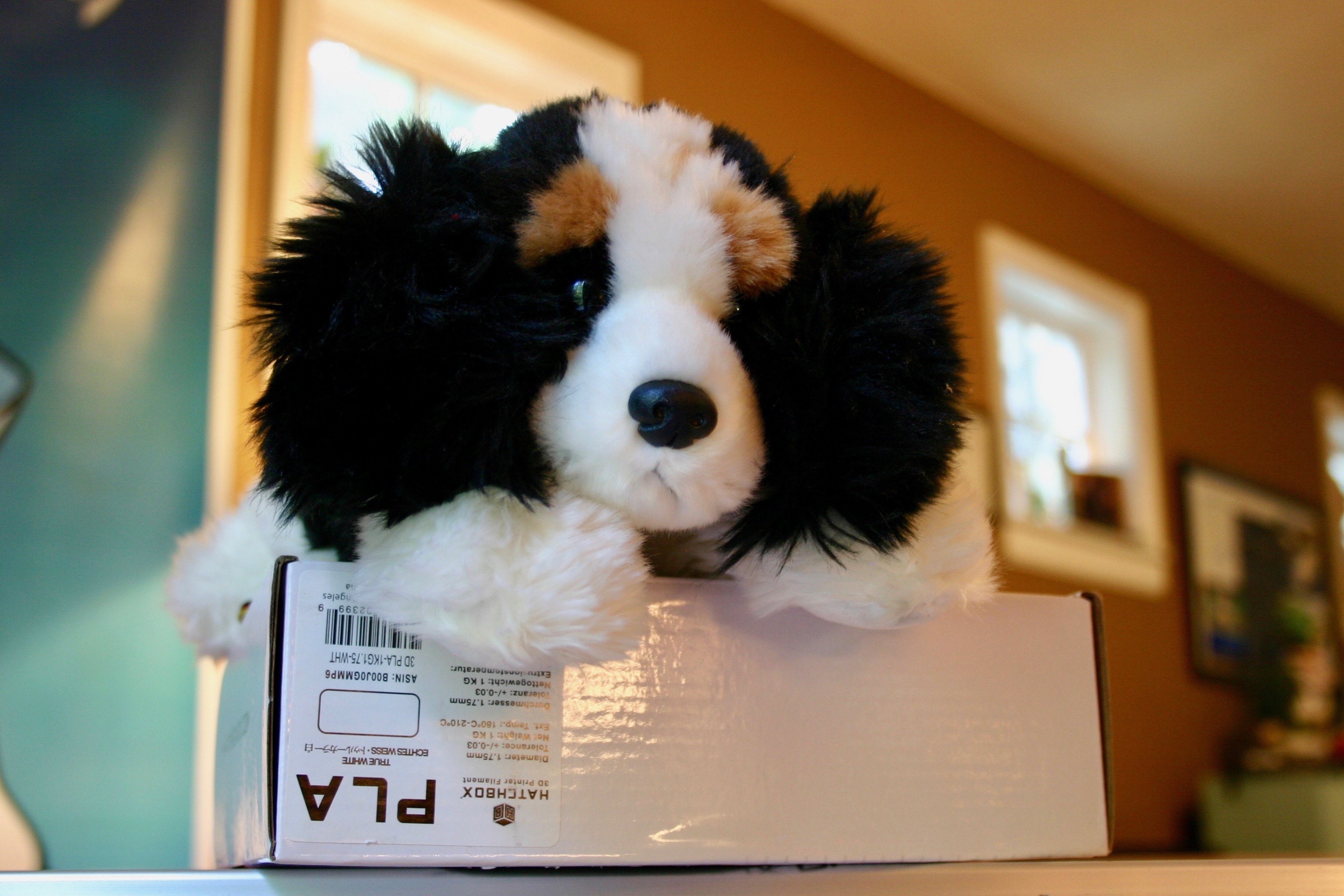

Using the tape, stick the dog to the top of the box. Let the head hang over the front a bit.

doggy hat - 9.jpg

Program the Arduino with this sketch. Connect the wiring according to this schematic.

Downloads

doggy hat - 10.jpg

Attach the Arduino and the battery box using the hook & loop tape.

doggy hat - 11.jpg
doggy hat - 12.jpg

Be certain that the battery box protrudes over the edge so that the on/off switch is reachable.

Turn the switch on, place the hat on your head and your dog will be the life of the party!
