These sunglasses are a nod to Back to the Future 2 where Doc Brown comes back from the future to get Marty. The glasses from the movie look pretty cool but weren't functional. This take is a sleeker design and fully functional. You don't need many materials to make these cool sunglasses.
Supplies
PET sheet at least 420mm wide (16") .25mm thick
8% Window tint film
3D printed bow
Strong double-sided tape
All STLs can be found here: https://jasonwinfield.nz/my-stls/
Trim Out Glasses
![step1_instuctable.png](/proxy/?url=https://content.instructables.com/F47/I2A0/L7AHKB6I/F47I2A0L7AHKB6I.png&filename=step1_instuctable.png)
- Create an SVG from the provided STL (TEMPLATEFLAT.stl) this can be done with Meshmixer (check the video for details).
- Print and cut this template out on paper. Tape the template to your PET sheet, and cut the sheet with some sharp scissors.
Tint PET
![trimfilmInstuctable.png](/proxy/?url=https://content.instructables.com/FX5/6675/L7AHKB90/FX56675L7AHKB90.png&filename=trimfilmInstuctable.png)
![applytint.png](/proxy/?url=https://content.instructables.com/F1K/5WC2/L7AHKBOV/F1K5WC2L7AHKBOV.png&filename=applytint.png)
![sprayPET.png](/proxy/?url=https://content.instructables.com/FMI/IZ05/L7AHKBOW/FMIIZ05L7AHKBOW.png&filename=sprayPET.png)

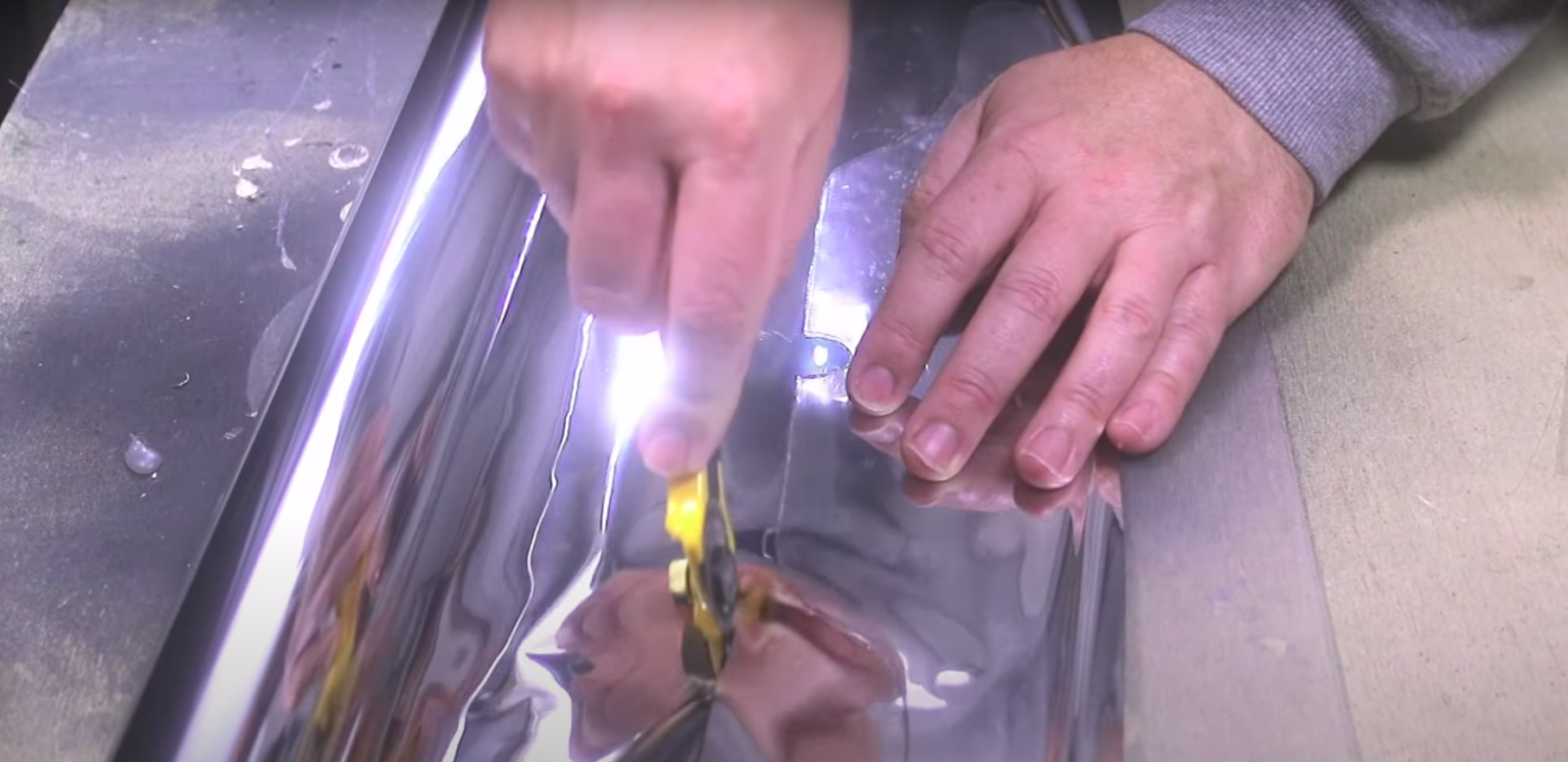

- Place the film under the cutout PET sheet for size and trim your film.

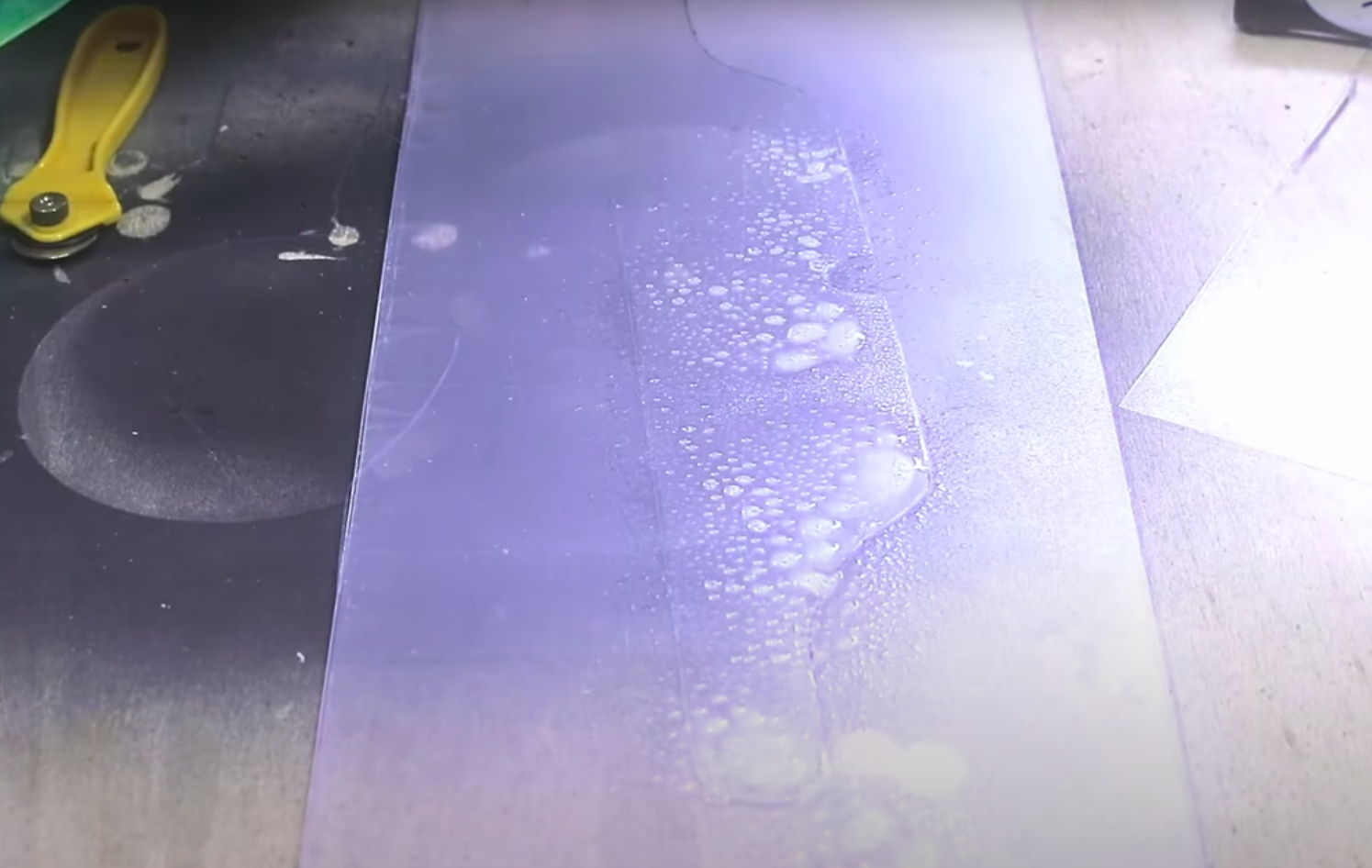

- Spray the PET sheet with detergent and water.
- Peel the backing off the tint and spray this with soapy water also.

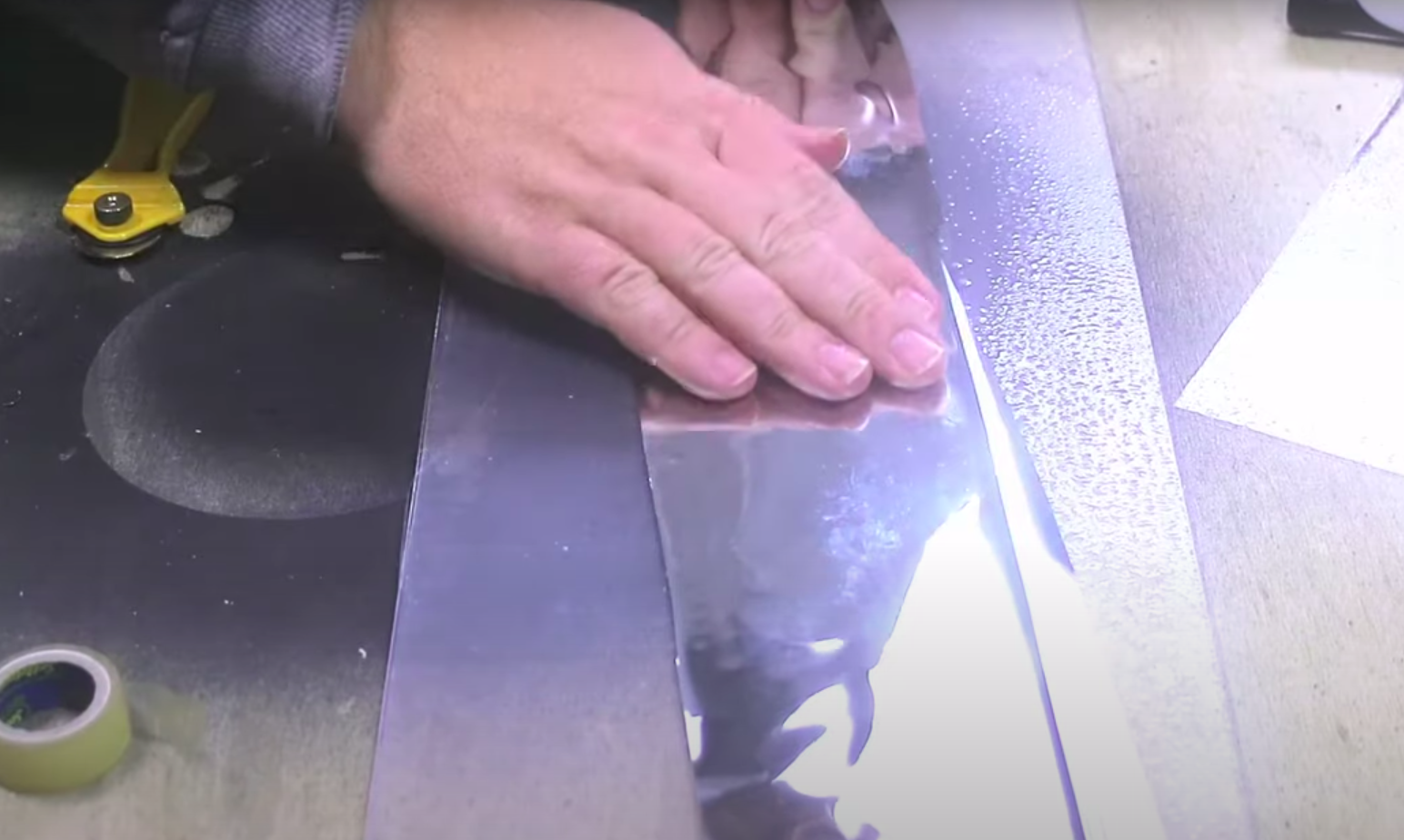

- Place the tint on the PET sheet and squeeze out the air bubble with your palm and plastic scrapper like an old credit card.
Prepare Bow
![trimofftape.png](/proxy/?url=https://content.instructables.com/FU6/GDUB/L7AHKC36/FU6GDUBL7AHKC36.png&filename=trimofftape.png)
![applytape.png](/proxy/?url=https://content.instructables.com/F3S/JEQT/L7AHKC37/F3SJEQTL7AHKC37.png&filename=applytape.png)
![glasses3.JPG](/proxy/?url=https://content.instructables.com/F3N/L8EB/L7AHKCFM/F3NL8EBL7AHKCFM.jpg&filename=glasses3.JPG)

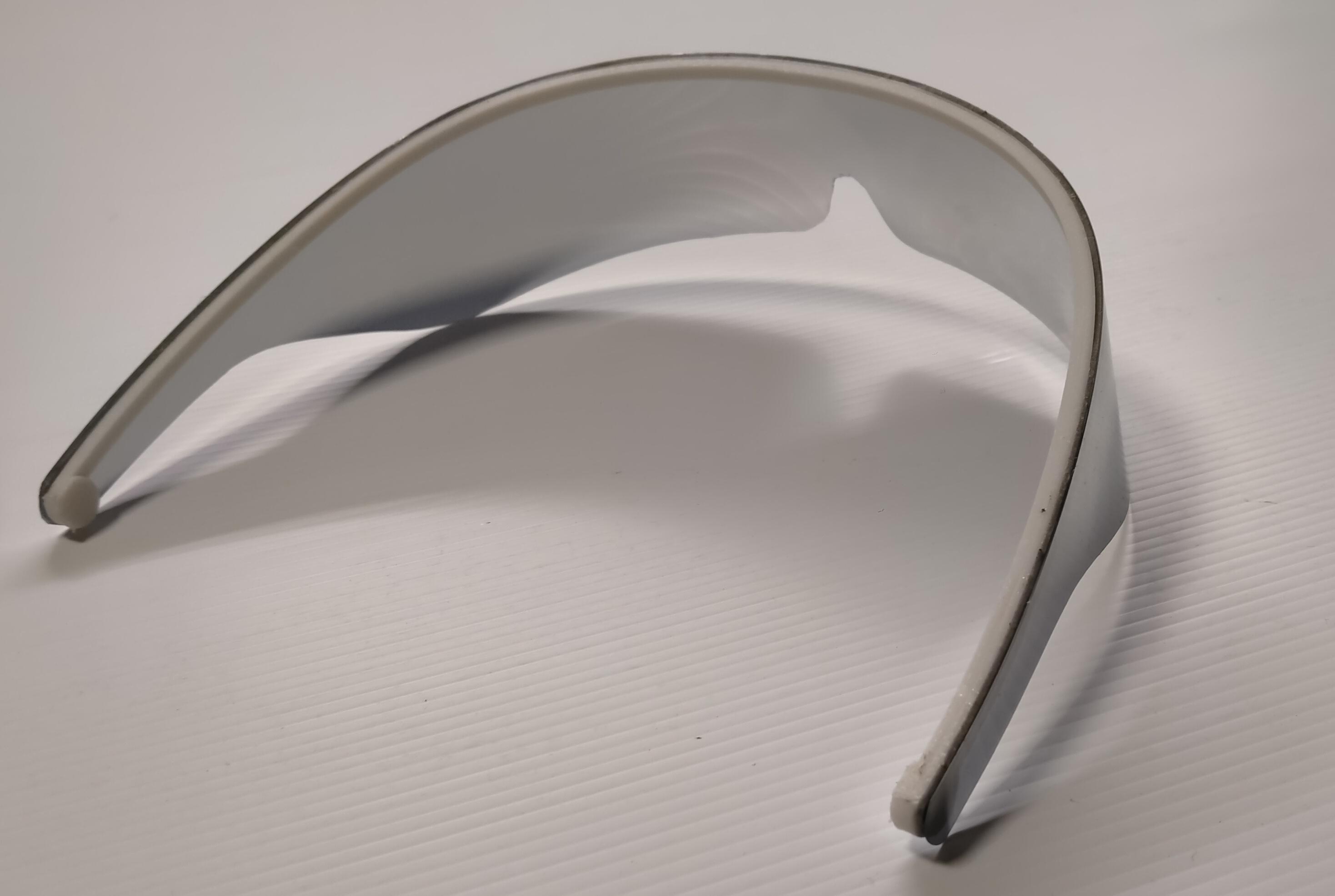

The glasses are held together by a PLA bow. Print the attached STL with 100% infill. If you do not have access to a 3D printer you could possibly make the bow out of something else like a wire coat hanger. The print takes about 45 min so you should be able to get it printed very cheaply.
- Apply tape to the outside edge of the bow.
- Trim off the excess.
Marry PET and Bow
![marry.png](/proxy/?url=https://content.instructables.com/FBC/SE39/L7AHKC5Q/FBCSE39L7AHKC5Q.png&filename=marry.png)
Carefully roll the bow across the top edge of the PET sheet
Enjoy
![glasses2.jpg](/proxy/?url=https://content.instructables.com/FWX/X9K5/L7AHKCEV/FWXX9K5L7AHKCEV.jpg&filename=glasses2.jpg)
![glasses1.jpg](/proxy/?url=https://content.instructables.com/F9L/H8W4/L7AHKCEW/F9LH8W4L7AHKCEW.jpg&filename=glasses1.jpg)
You are all done. The glasses are fully functional.
