Diy Vintage Led Lamp From Glass Brick
by DIY_Marius_electro in Living > Decorating
1518 Views, 18 Favorites, 0 Comments
Diy Vintage Led Lamp From Glass Brick
![IMG-20221013-WA0002.jpg](/proxy/?url=https://content.instructables.com/FNY/QRGT/L9MSJ707/FNYQRGTL9MSJ707.jpg&filename=IMG-20221013-WA0002.jpg)
![Diy vintage led lamp from glass brick](/proxy/?url=https://content.instructables.com/F1L/SKRU/L9MSJ73I/F1LSKRUL9MSJ73I.jpg&filename=Diy vintage led lamp from glass brick)
You can see how I made this project and why
The Story
![IMG-20221012-WA0010.jpg](/proxy/?url=https://content.instructables.com/F9G/ZZZT/L9MSJ70F/F9GZZZTL9MSJ70F.jpg&filename=IMG-20221012-WA0010.jpg)
I had a lot of brick glass in my attic,and thinked a lot how to recycle them and give a new life.The best idea seems to make a led lamp like this,unic and 100% original project.

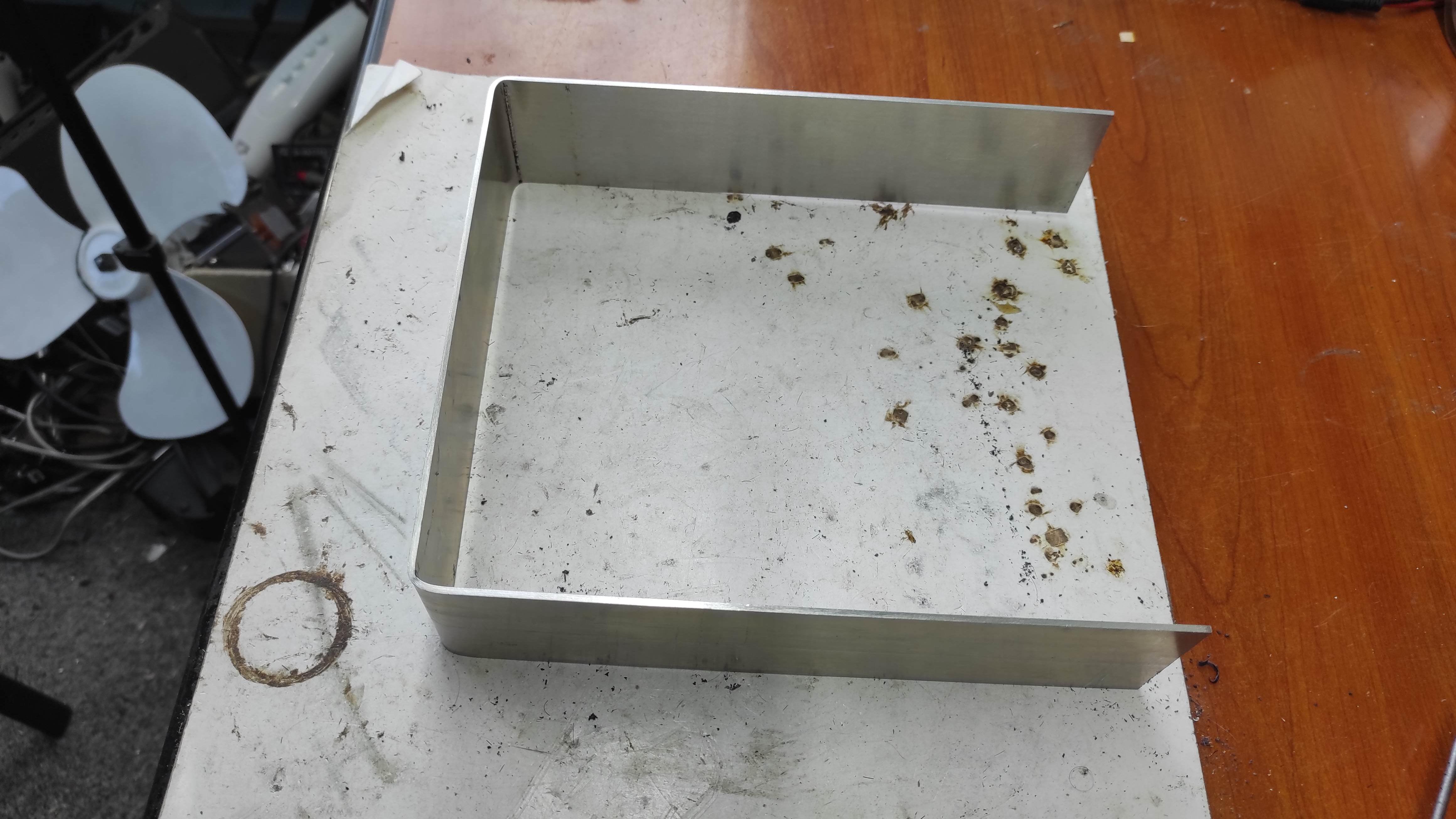

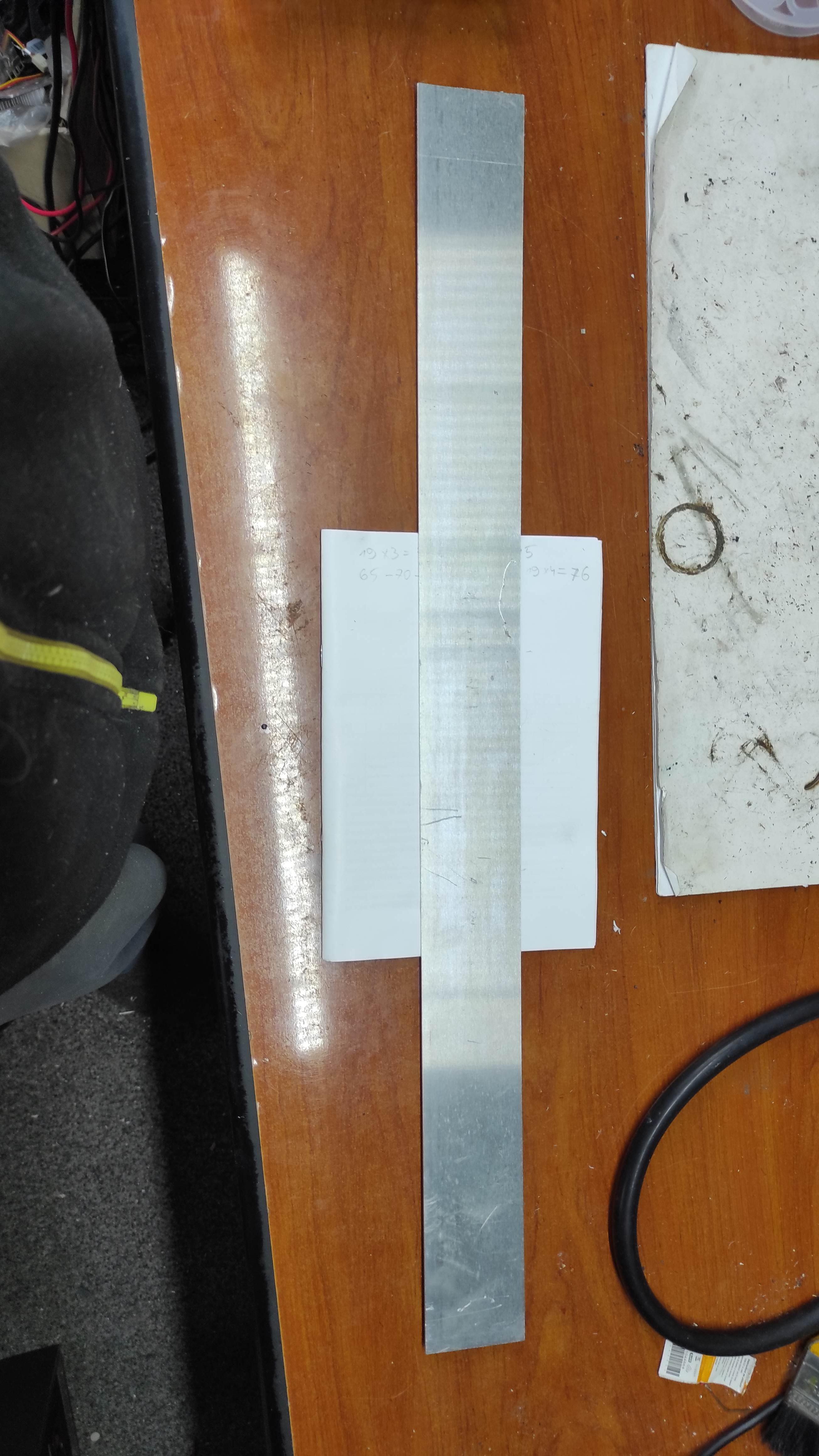

Aluminium Foil
![IMG_20220926_144405.jpg](/proxy/?url=https://content.instructables.com/FDI/YH14/L9MSJ7QN/FDIYH14L9MSJ7QN.jpg&filename=IMG_20220926_144405.jpg)
![IMG_20220927_171722.jpg](/proxy/?url=https://content.instructables.com/FNI/2HWM/L9MSJ7QM/FNI2HWML9MSJ7QM.jpg&filename=IMG_20220927_171722.jpg)
I took an aluminium foil of 2mm thickness and cut of 3 sides of a brick and 2+2 cm to round the brick
Wood Stand
![IMG_20221012_142848.jpg](/proxy/?url=https://content.instructables.com/FVL/VYPY/L9MSJ70M/FVLVYPYL9MSJ70M.jpg&filename=IMG_20221012_142848.jpg)
I made the stand from wood cut 17x22cm ,polish and aply varnish
Build the Lamp
![IMG-20221012-WA0012.jpg](/proxy/?url=https://content.instructables.com/FQC/T6HG/L9MSJ70C/FQCT6HGL9MSJ70C.jpg&filename=IMG-20221012-WA0012.jpg)
![IMG-20221012-WA0009.jpg](/proxy/?url=https://content.instructables.com/FKW/DW21/L9MSJ70E/FKWDW21L9MSJ70E.jpg&filename=IMG-20221012-WA0009.jpg)
I bend the aluminium foil around the brick,and make two holes for the screws.after that I glued the led strip inside the aluminium foil.U can see in the video.I will make improved version with coloured leds and remote.
Electronic Part
![IMG_20221012_142736.jpg](/proxy/?url=https://content.instructables.com/FI4/E6BM/L9MSJ70N/FI4E6BML9MSJ70N.jpg&filename=IMG_20221012_142736.jpg)
![IMG_20221012_142806.jpg](/proxy/?url=https://content.instructables.com/F0W/GWIH/L9MSJ70K/F0WGWIHL9MSJ70K.jpg&filename=IMG_20221012_142806.jpg)
![IMG_20221012_142752.jpg](/proxy/?url=https://content.instructables.com/F6M/KPZP/L9MSJ70L/F6MKPZPL9MSJ70L.jpg&filename=IMG_20221012_142752.jpg)
![FVLVYPYL9MSJ70M.jpg](/proxy/?url=https://content.instructables.com/FMK/LRIC/L9MSJ9G4/FMKLRICL9MSJ9G4.jpg&filename=FVLVYPYL9MSJ70M.jpg)
I made the schematic of this electronic part,make a lot of tests and after that I made space in the wood to hide the modul,and made all the conection amd mount the conector for 12power supply.
Final Product
![IMG-20221012-WA0014.jpg](/proxy/?url=https://content.instructables.com/F51/OXNG/L9MSJ70A/F51OXNGL9MSJ70A.jpg&filename=IMG-20221012-WA0014.jpg)
![IMG-20221012-WA0015.jpg](/proxy/?url=https://content.instructables.com/FGX/LC9G/L9MSJ70B/FGXLC9GL9MSJ70B.jpg&filename=IMG-20221012-WA0015.jpg)
![IMG-20221012-WA0013.jpg](/proxy/?url=https://content.instructables.com/FWR/BVEW/L9MSJ70D/FWRBVEWL9MSJ70D.jpg&filename=IMG-20221012-WA0013.jpg)
![IMG-20221012-WA0011.jpg](/proxy/?url=https://content.instructables.com/F8X/IL8F/L9MSJ70G/F8XIL8FL9MSJ70G.jpg&filename=IMG-20221012-WA0011.jpg)
![IMG-20221012-WA0008.jpg](/proxy/?url=https://content.instructables.com/FLN/48DD/L9MSJ70H/FLN48DDL9MSJ70H.jpg&filename=IMG-20221012-WA0008.jpg)
![IMG-20221012-WA0024.jpg](/proxy/?url=https://content.instructables.com/FF3/3JLV/L9MSJ70I/FF33JLVL9MSJ70I.jpg&filename=IMG-20221012-WA0024.jpg)
![IMG_20221013_115418.jpg](/proxy/?url=https://content.instructables.com/F35/KA36/L9MSJ70J/F35KA36L9MSJ70J.jpg&filename=IMG_20221013_115418.jpg)
![vz4.jpeg](/proxy/?url=https://content.instructables.com/FBF/T57C/L9MSJ70O/FBFT57CL9MSJ70O.jpg&filename=vz4.jpeg)
![vz3.jpeg](/proxy/?url=https://content.instructables.com/F5R/7RGX/L9MSJ70P/F5R7RGXL9MSJ70P.jpg&filename=vz3.jpeg)
![vz2.jpeg](/proxy/?url=https://content.instructables.com/FSX/X32D/L9MSJ70Q/FSXX32DL9MSJ70Q.jpg&filename=vz2.jpeg)
![vz1.jpeg](/proxy/?url=https://content.instructables.com/FZ9/WKXF/L9MSJ70R/FZ9WKXFL9MSJ70R.jpg&filename=vz1.jpeg)
Now I put everything together and I admire the result of my work.I hope that u like it and I hope to inspire you to make a project like this.Pls like the video,put a good coment and subscribe on yt to support my channel.TNX
