This is simple mobile projector can be make with only a cardboard box and magnifying glass
It can project the mobile screen on the wall and make it over 30 inches wide
Its just a fun project because it small resolution and normal brightness make it difficult to see but it works well if place too close to the white wall
Supplies
Cardboard box
magnifying glass
Smartphone
Cutting Cardboard
![(0).00_00_19_05.Still003.jpg](/proxy/?url=https://content.instructables.com/FOL/UW7U/K891L3U4/FOLUW7UK891L3U4.jpg&filename=(0).00_00_19_05.Still003.jpg)
![(0).00_00_25_28.Still004.jpg](/proxy/?url=https://content.instructables.com/FIX/LRVL/K891L3U8/FIXLRVLK891L3U8.jpg&filename=(0).00_00_25_28.Still004.jpg)
![(0).00_00_29_17.Still005.jpg](/proxy/?url=https://content.instructables.com/FGQ/8F3F/K891L3U9/FGQ8F3FK891L3U9.jpg&filename=(0).00_00_29_17.Still005.jpg)
![(0).00_00_40_23.Still006.jpg](/proxy/?url=https://content.instructables.com/FZ5/TQXE/K891L3UA/FZ5TQXEK891L3UA.jpg&filename=(0).00_00_40_23.Still006.jpg)
![(0).00_00_42_18.Still007.jpg](/proxy/?url=https://content.instructables.com/FPI/QYT3/K891L3UD/FPIQYT3K891L3UD.jpg&filename=(0).00_00_42_18.Still007.jpg)
![(0).00_00_46_10.Still008.jpg](/proxy/?url=https://content.instructables.com/FDV/U2X2/K891L3UE/FDVU2X2K891L3UE.jpg&filename=(0).00_00_46_10.Still008.jpg)
![(0).00_00_54_10.Still009.jpg](/proxy/?url=https://content.instructables.com/F8T/CEFA/K891L3UF/F8TCEFAK891L3UF.jpg&filename=(0).00_00_54_10.Still009.jpg)

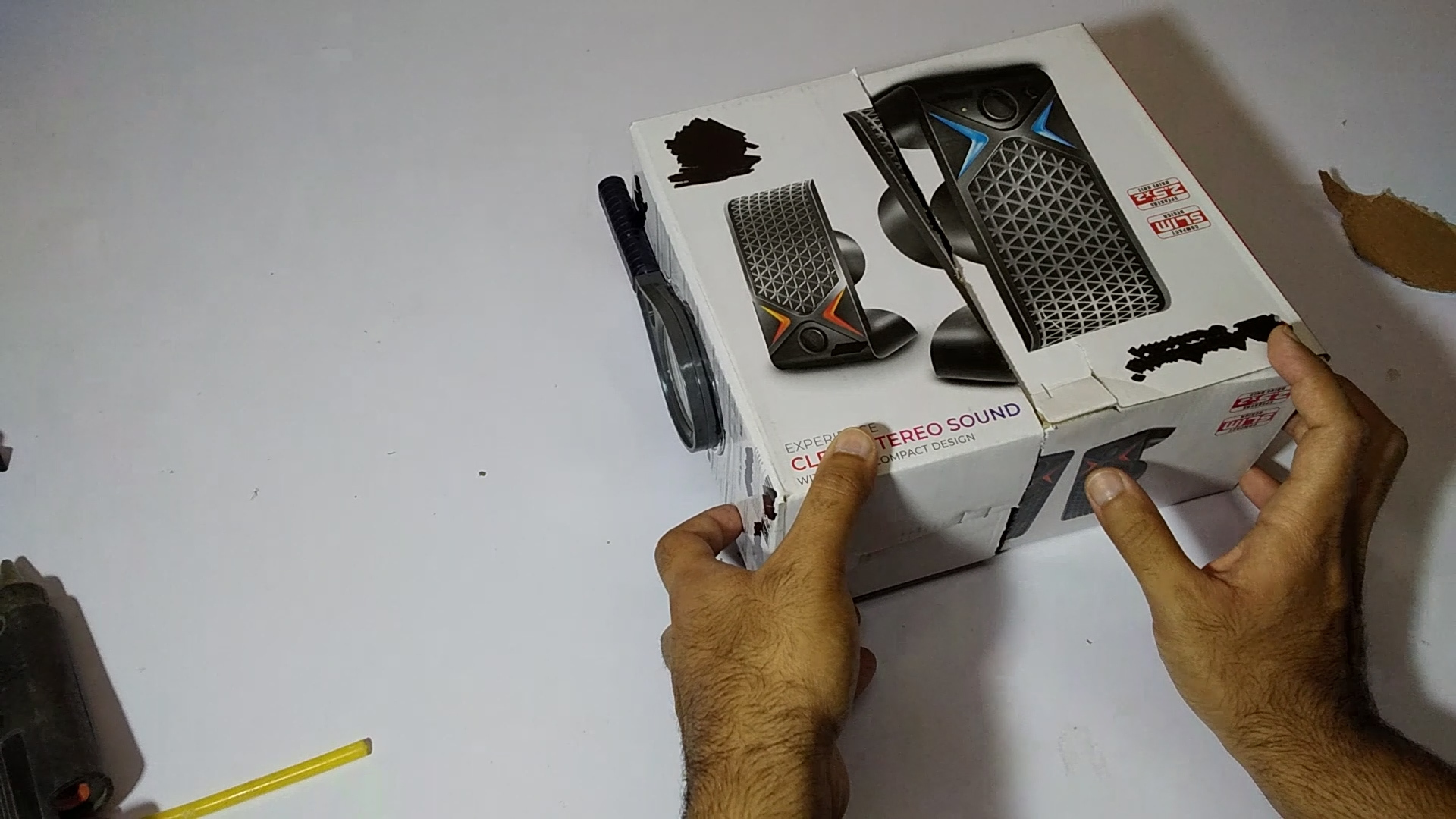

Cut out the box from center to make it a two pieces so one pieces can slide into other pieces to adjust the focal lense and make it focus on the projection
after cutting the box staple the pieces to connect them so it doesn't go out of shape
bend the one pieces so it can slide in other easily
Putting the Magnifying Glass
![(0).00_00_59_16.Still010.jpg](/proxy/?url=https://content.instructables.com/FFV/HQDW/K891L3UH/FFVHQDWK891L3UH.jpg&filename=(0).00_00_59_16.Still010.jpg)
![(0).00_01_00_24.Still011.jpg](/proxy/?url=https://content.instructables.com/FKC/KSZS/K891L3UI/FKCKSZSK891L3UI.jpg&filename=(0).00_01_00_24.Still011.jpg)
![(0).00_01_06_23.Still012.jpg](/proxy/?url=https://content.instructables.com/F7I/3PO9/K891L3UM/F7I3PO9K891L3UM.jpg&filename=(0).00_01_06_23.Still012.jpg)
![(0).00_01_18_23.Still013.jpg](/proxy/?url=https://content.instructables.com/F1E/QZG8/K891L3UQ/F1EQZG8K891L3UQ.jpg&filename=(0).00_01_18_23.Still013.jpg)
![(0).00_01_21_28.Still014.jpg](/proxy/?url=https://content.instructables.com/F2D/EXZ0/K891L3VF/F2DEXZ0K891L3VF.jpg&filename=(0).00_01_21_28.Still014.jpg)
![(0).00_01_25_17.Still015.jpg](/proxy/?url=https://content.instructables.com/FFH/VXPC/K891L3VG/FFHVXPCK891L3VG.jpg&filename=(0).00_01_25_17.Still015.jpg)
![(0).00_01_34_23.Still017.jpg](/proxy/?url=https://content.instructables.com/FSE/QEE6/K891L3VI/FSEQEE6K891L3VI.jpg&filename=(0).00_01_34_23.Still017.jpg)
![(0).00_01_38_23.Still018.jpg](/proxy/?url=https://content.instructables.com/FRS/VV9T/K891L3VJ/FRSVV9TK891L3VJ.jpg&filename=(0).00_01_38_23.Still018.jpg)
![(0).00_01_41_17.Still019.jpg](/proxy/?url=https://content.instructables.com/FZP/ZX36/K891L3VK/FZPZX36K891L3VK.jpg&filename=(0).00_01_41_17.Still019.jpg)

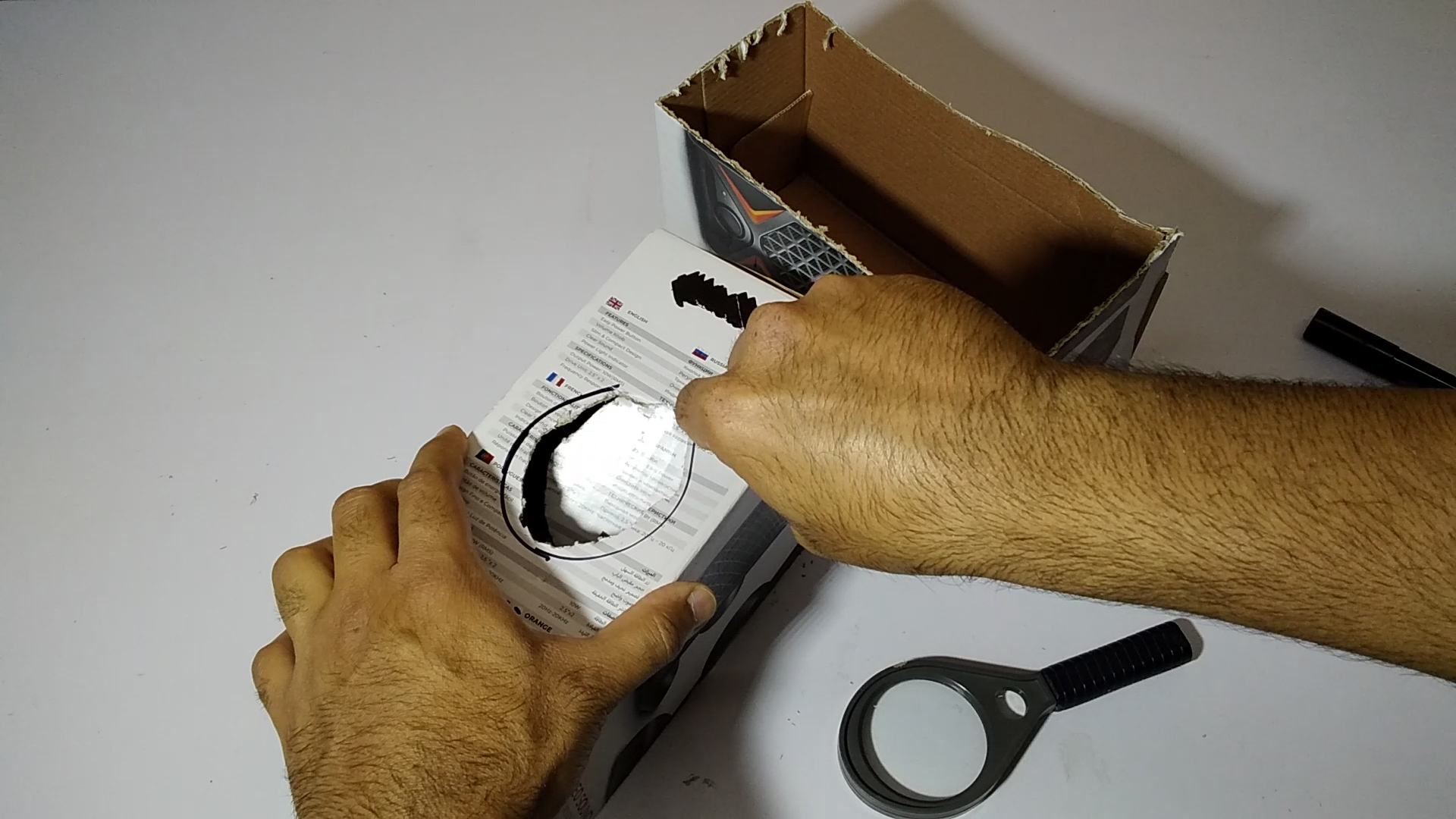

Place the magnifying glass over the box and mark out the diameter and cut out that part
place the hot glue on edges and put the magnifying glass over it
Ready to Project
![(0).00_01_27_29.Still016.jpg](/proxy/?url=https://content.instructables.com/FR5/4BC4/K891L3VH/FR54BC4K891L3VH.jpg&filename=(0).00_01_27_29.Still016.jpg)
![(0).00_01_55_16.Still020.jpg](/proxy/?url=https://content.instructables.com/FR0/GNC4/K891L3VL/FR0GNC4K891L3VL.jpg&filename=(0).00_01_55_16.Still020.jpg)
![(0).00_01_59_16.Still021.jpg](/proxy/?url=https://content.instructables.com/F6A/KDS1/K891L3VN/F6AKDS1K891L3VN.jpg&filename=(0).00_01_59_16.Still021.jpg)
![(0).00_02_07_05.Still022.jpg](/proxy/?url=https://content.instructables.com/FCC/PLL0/K891L3VO/FCCPLL0K891L3VO.jpg&filename=(0).00_02_07_05.Still022.jpg)
![(0).00_02_09_17.Still001.jpg](/proxy/?url=https://content.instructables.com/F9O/Z9NJ/K891L3VP/F9OZ9NJK891L3VP.jpg&filename=(0).00_02_09_17.Still001.jpg)
![(0).00_02_15_29.Still024.jpg](/proxy/?url=https://content.instructables.com/F2W/TD90/K891L3VR/F2WTD90K891L3VR.jpg&filename=(0).00_02_15_29.Still024.jpg)
![(0).00_02_21_18.Still025.jpg](/proxy/?url=https://content.instructables.com/F1O/XSGU/K891L3VS/F1OXSGUK891L3VS.jpg&filename=(0).00_02_21_18.Still025.jpg)
![(0).00_03_15_06.Still026.jpg](/proxy/?url=https://content.instructables.com/F5F/3S7A/K891L3VT/F5F3S7AK891L3VT.jpg&filename=(0).00_03_15_06.Still026.jpg)
![(0).00_03_43_29.Still027.jpg](/proxy/?url=https://content.instructables.com/FGY/HO7P/K891L3VU/FGYHO7PK891L3VU.jpg&filename=(0).00_03_43_29.Still027.jpg)

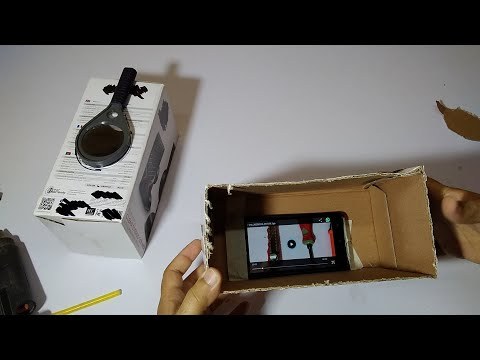

Place the brightness to full and off the auto rotation make the video on horizontla and place the phone upside down because the magnifying glass will project the projection upside down
Put masking tape on smartphone edges and secure it on the inside of the cardboard pieces which will slide into
adjust the distance by making it near to the magnifying glass and placing the projector near or far from the wall so it can project with focus.
If you like this project please vote for this tutorial and if you don't understand something please watch the video
