Diy RGB Led Lamp With Remote

I made this lamp mostly from recycled parts,from glass,metal and wood.Practically contains all 4 elements:earth,water,fire and air.U can do it if u like it.

For this project I used :

1. piece of wood 170x220mm

2.glass brick 190x190x08 mm

3.aluminium piece 56x620mm

4.rgb led kit with remote 2m

cut the wood to 170x220 ,rub with sandpaper and apply 2 layers of varnish to colour you desire

Bend the aluminium foil in 3 parts of 185mm and two equal parts for underneath the glass.After that,u put the 2 rows of rgb led strip inside the foil,and make conection with 4 wires between them.

make two holes to put the supply conectro and wires to be under the glass.Make 2 holes in the stand and in aluminium foil to catch with 2 4mm screws.

put the metal foil over the brick and conect the wires to led to pcb,and pcb to power wires.After that fix the foil to the stand with 2 screws.U can see in the video.

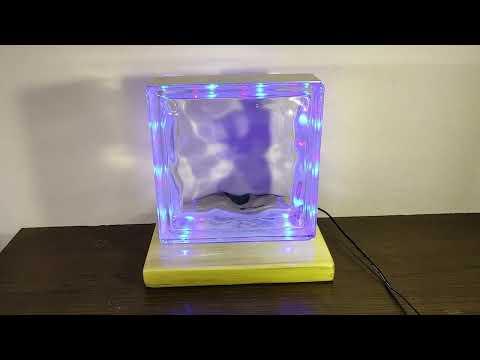

connect the lamp to power supply and play with the remote.You can use difrent colours or games of light from the remote.You can adjust the brightness also.

I hope that I've inspired you to make your version of this project,pls put a photo if you did.TNX
