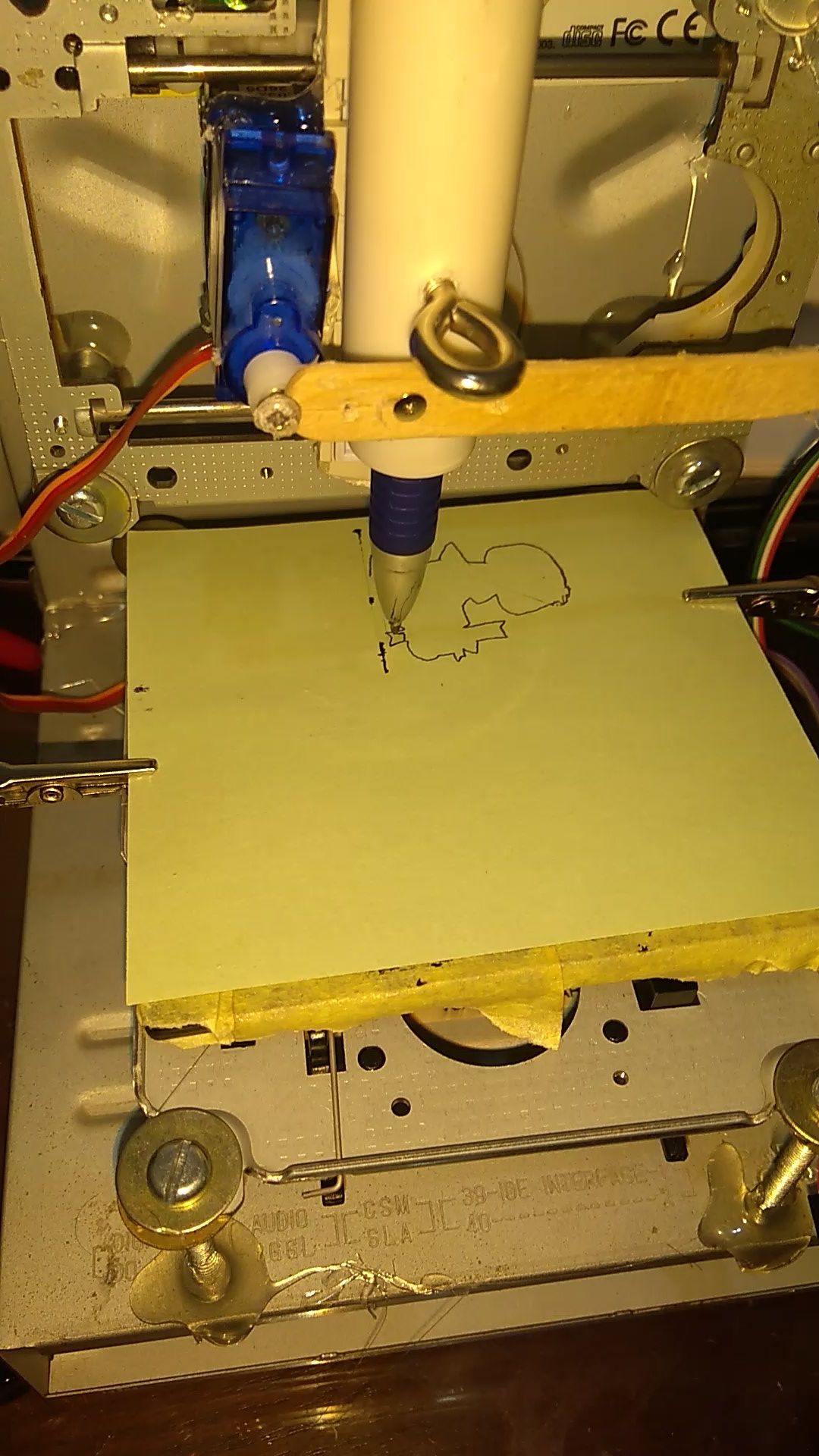

Diy Mini CNC Plotter Machine With Old DVD Motor's & ArduinoUNO

Using Old DVD Stepper Motor's

Visit YouTube Channel

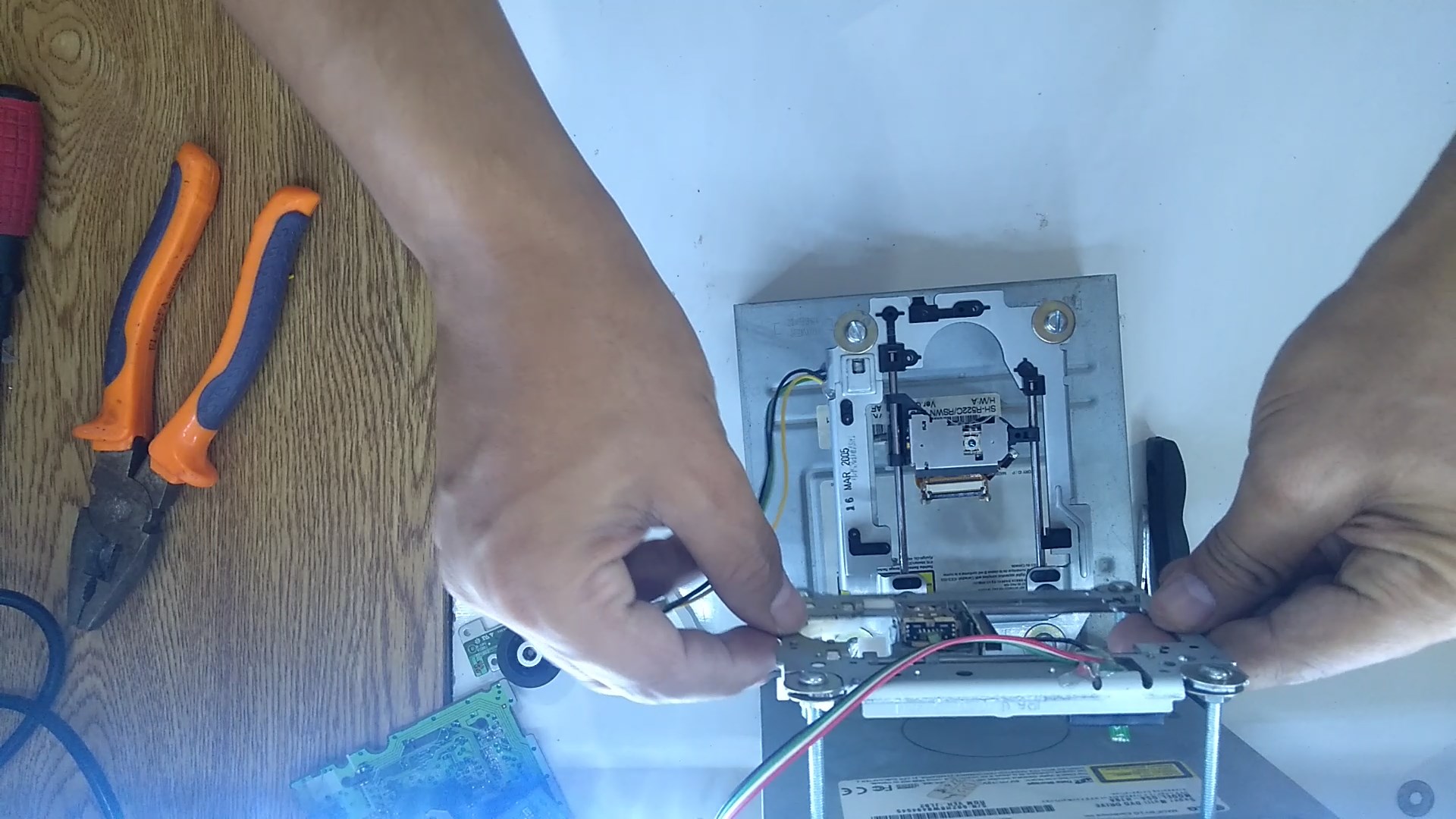

Unscrew 2 Old DVD

We will use these tow stepper motor

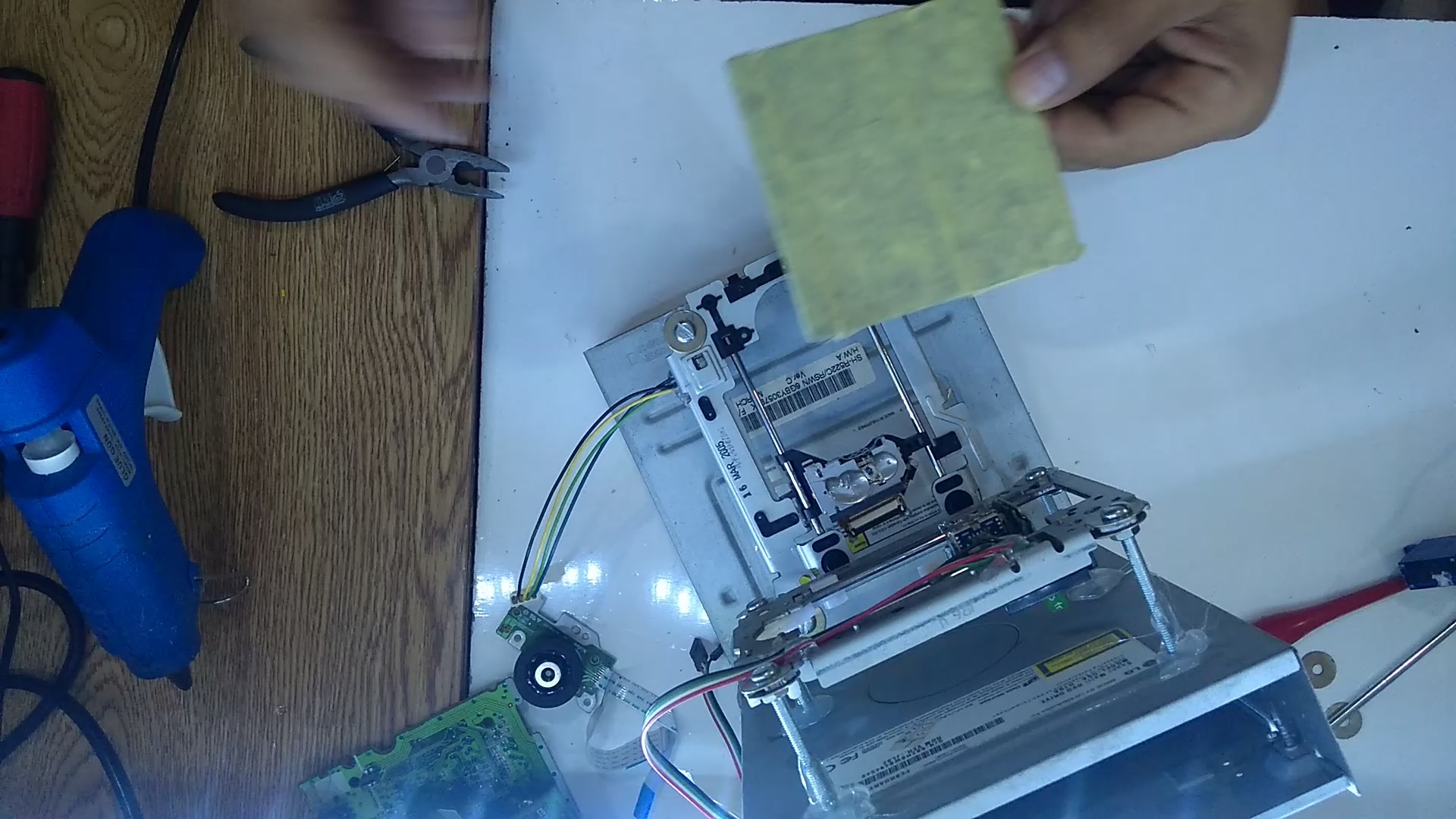

Make sure to paste the tow cover well

Connect the tow stepper motors and the servo motor to Motor shield ,

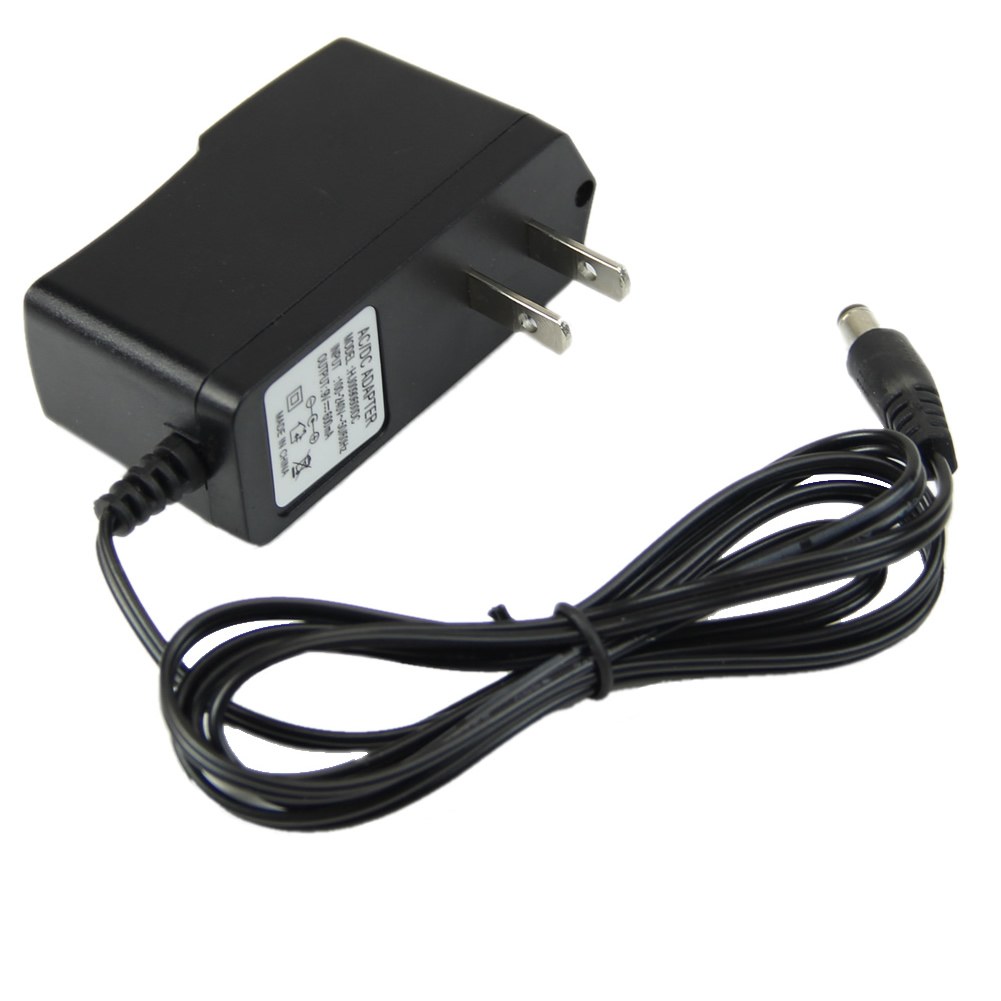

* make sure to use 9v Charger with the Motor shield .

* very 2 coil in the stepper motor are connected with one of the points in motor shield , like M3 connected to one coil and M4 connected to one coil , and the other stepper motor connected to M1 & M2 .

- Upload the code ( CNC_code.ino ) to ArduinoUNO .

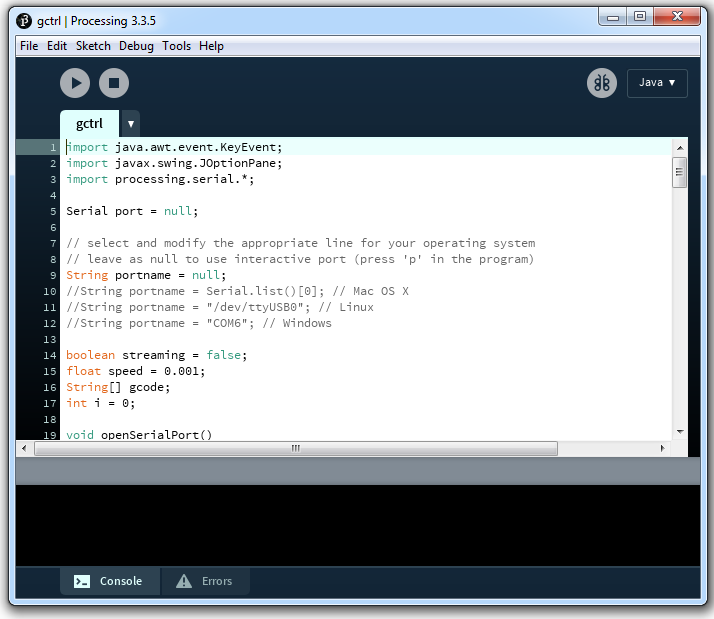

- open gctrl-master code and hit play .

- press P to select the serial port that corresponds to your arduino board .

- press G to stream a g-code file .

Download inkscape :

https://filehippo.com/download_inkscape/58148/

Code & Program's Link

http://www.mediafire.com/folder/u22c1ce082uhb/Mini_CNC_plotter_machine_with_old_DVD_Motor's_%26_ArduinoUNO
