D.i.y.: Custom-tips for Soldering-iron

by la xerra in Workshop > Tools

2610 Views, 7 Favorites, 0 Comments

D.i.y.: Custom-tips for Soldering-iron

2019-06-08 08.37.11.jpg

,

,

a lot of times the tips that come with solder-irons just dont cut it. just make your own. really a ton of material works. here i use the lid of a fish-can (although copper would be better, but i will make a quick & dirt ´knife´-tip for plastic-welding).

,

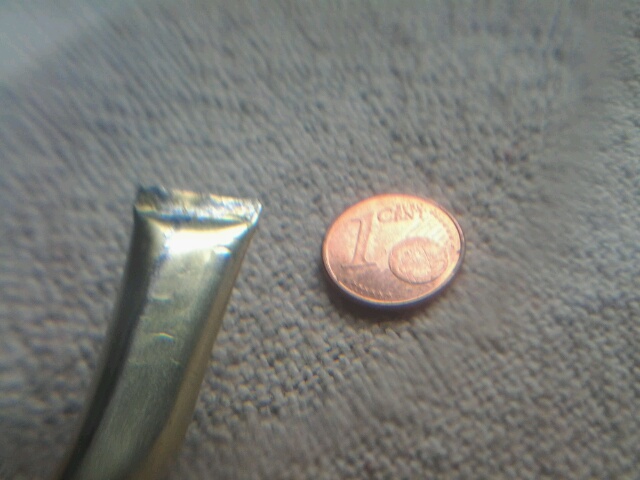

__ NOTE: photo above, right, a close-up from a new tip, see UPDATE below

,

Supplies

needed:
_ a solder-iron (nobrainer)

_ some kind of (thin) tin - (or just bang down some metal)

_ pliers

Create a Piece of ´tube´ From Some Tin

2019-06-08 08.34.28.jpg

,

,

_ cut a strip of metal-tin >

_ roll it up with pliers into a ´tube´ the size of the heating-coil of the iron >

_ flatten the end of the tube/tip; cut/file/grind in into any shape you wish >

_ connect tip with iron, ready

,

,

Done

2019-06-08 08.35.05.jpg

,

,

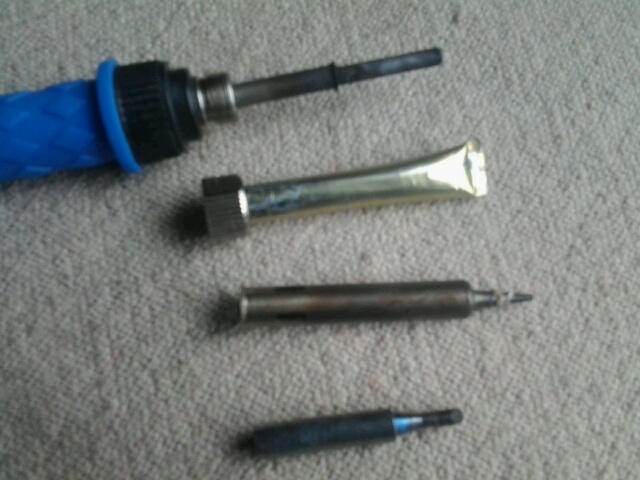

(above: parts before assembly)

thank to all.

bowing.

,

,

Update Jun/25


,

,

quick add-on. made a rather fat tip today. made of fishcan/tin. please ask if you have any questions and i´ll post additional info. tschuess.

,

,
