Distance Sensor & Sound Sensitive Sensor

If you ever need it

• Sharp 2YOA21
• I2C(Raspberry Pi 3 & Arduino Uno)
• 7" Raspberry Pi Touch Screen
• RGB LED
• Sound sensitive Sensor
• 1 LED Light
• Resistor (10K)
• +- 25 cables
• 2 Ethernet cables
• 1 Router

Software: required,

Arduino IDE

Windows 10

Visual Studio Community 2015 update 3

Universal Windows Platform installed (option comes together with the Visual Studio installer)

Windows 10 IoT Core Dashboard

For information on how to set up your Pi to be ready visit

https://developer.microsoft.com/en-us/windows/iot/...

Watch the video for the steps to connect your Raspberry Pi to your display

https://www.raspberrypi.org/blog/the-eagerly-await...

Connect your circuit in the following order

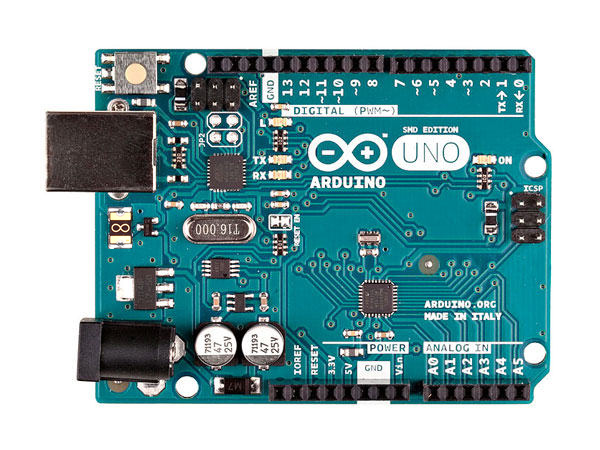

Arduino Uno to Sharp 2YOA21 Sensor

Analog Pin 0 -> Vout

5 -> VCC

Ground -> GND

Arduino Uno to RGB LED

Digital Pin 12 -> G(Green)
Digital Pin 13 -> R(Red)

Ground -> GROUND

Arduino Uno to Sound Sensitivity Sensor

Analog Pin 3 -> AO

GND -> GND

5V -> VCC

Digital Pin 2 -> DO

Arduino Uno to Red LED

Digital Pin 7 -> (-) Cathode

5V -> 10K Resistor -> (+)Anode

Attached along is the Arduino code that I have done up,

Within it includes the code for the distance sensor, the sound sensitive sensor and the how to send the data to Pi

Attached along are codes that allows you to receive data from the Arduino and display on the 7" touch screen

Do remember to install the reference WinRtXamlToolKit.Controls.Gauge.UWP from nuget otherwise your code wouldn't work!

Plug the cables in the correct places, do the code accordingly, and the device should perform exactly how you want it to!
