Disassembling a Brother MFC-J450DW Printer

by Maximous in Circuits > Electronics

38246 Views, 22 Favorites, 0 Comments

Disassembling a Brother MFC-J450DW Printer

brother printer.jpg

This is a rough guide that shows a Brother MFC-J450DW printer being disassembled for use in a later project. The printer came with the capabilities to print, scan, and fax but only printing was needed. The scanning and faxing components were removed to provide easier access to the printing internals of the machine.

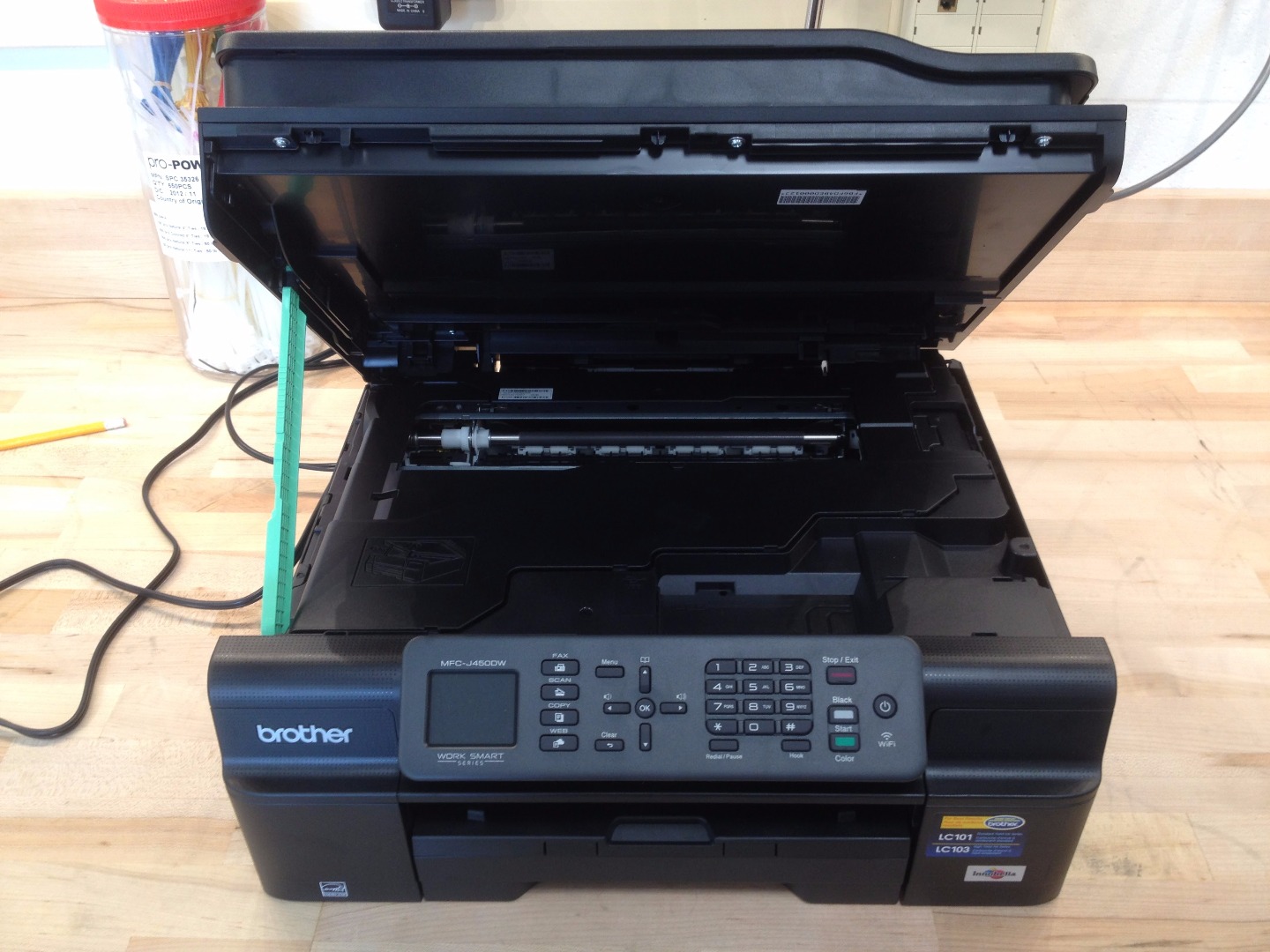

Open Lid & Remove Cover

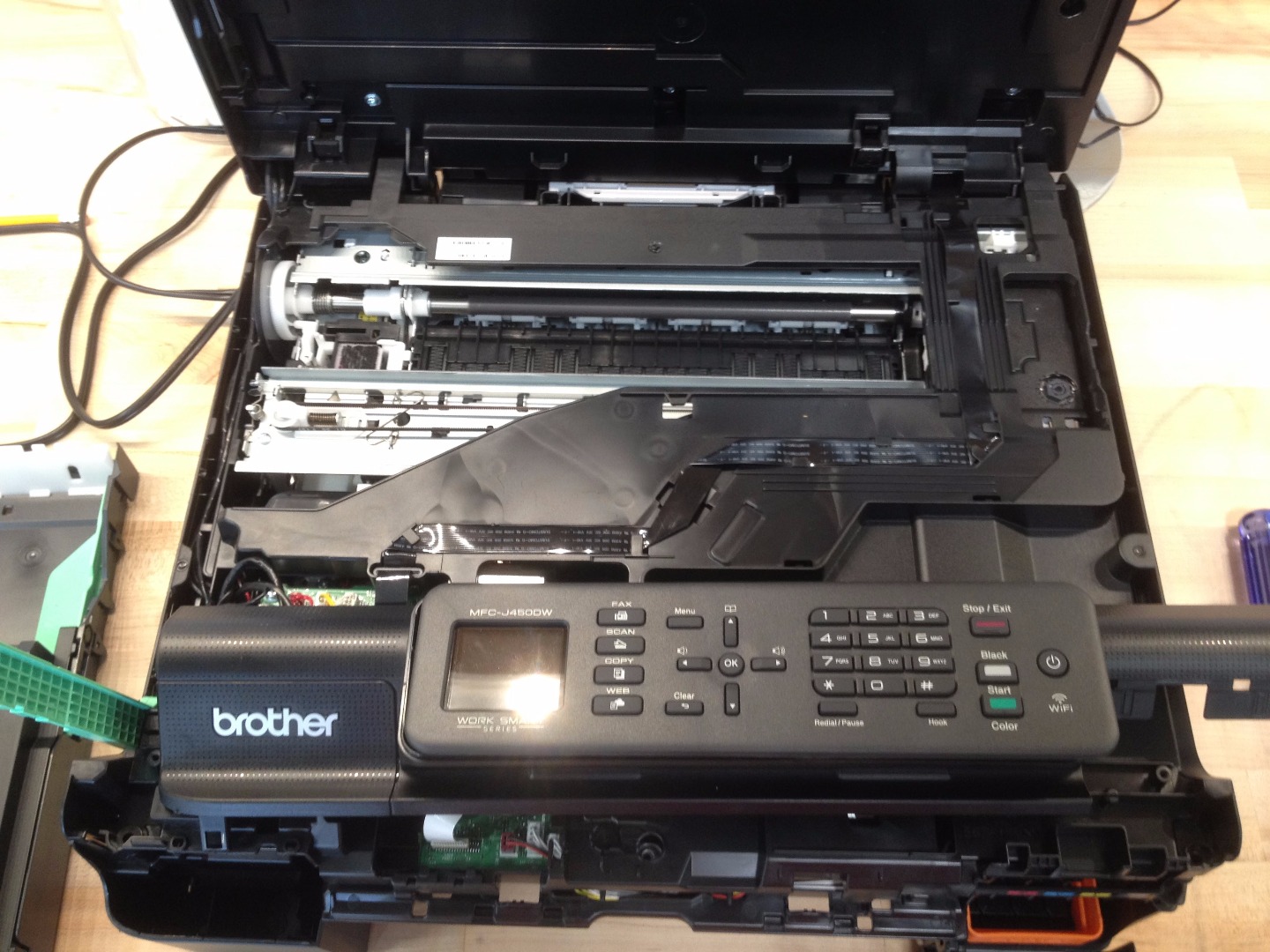

The lid of the printer was opened and the first panel was removed by a combination of unscrewing and prying.

Remove Screws

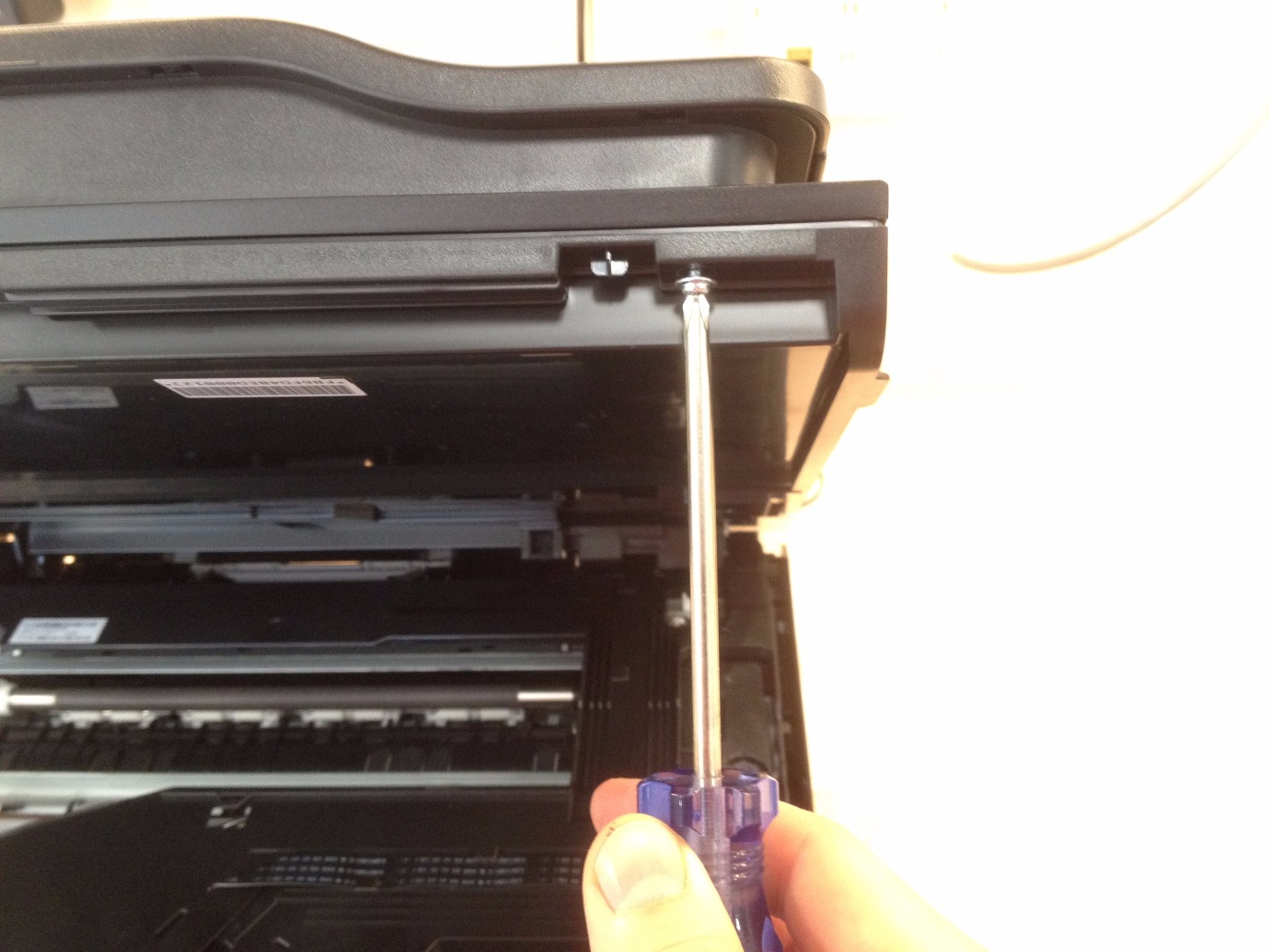

All screws above the main printing component were removed.

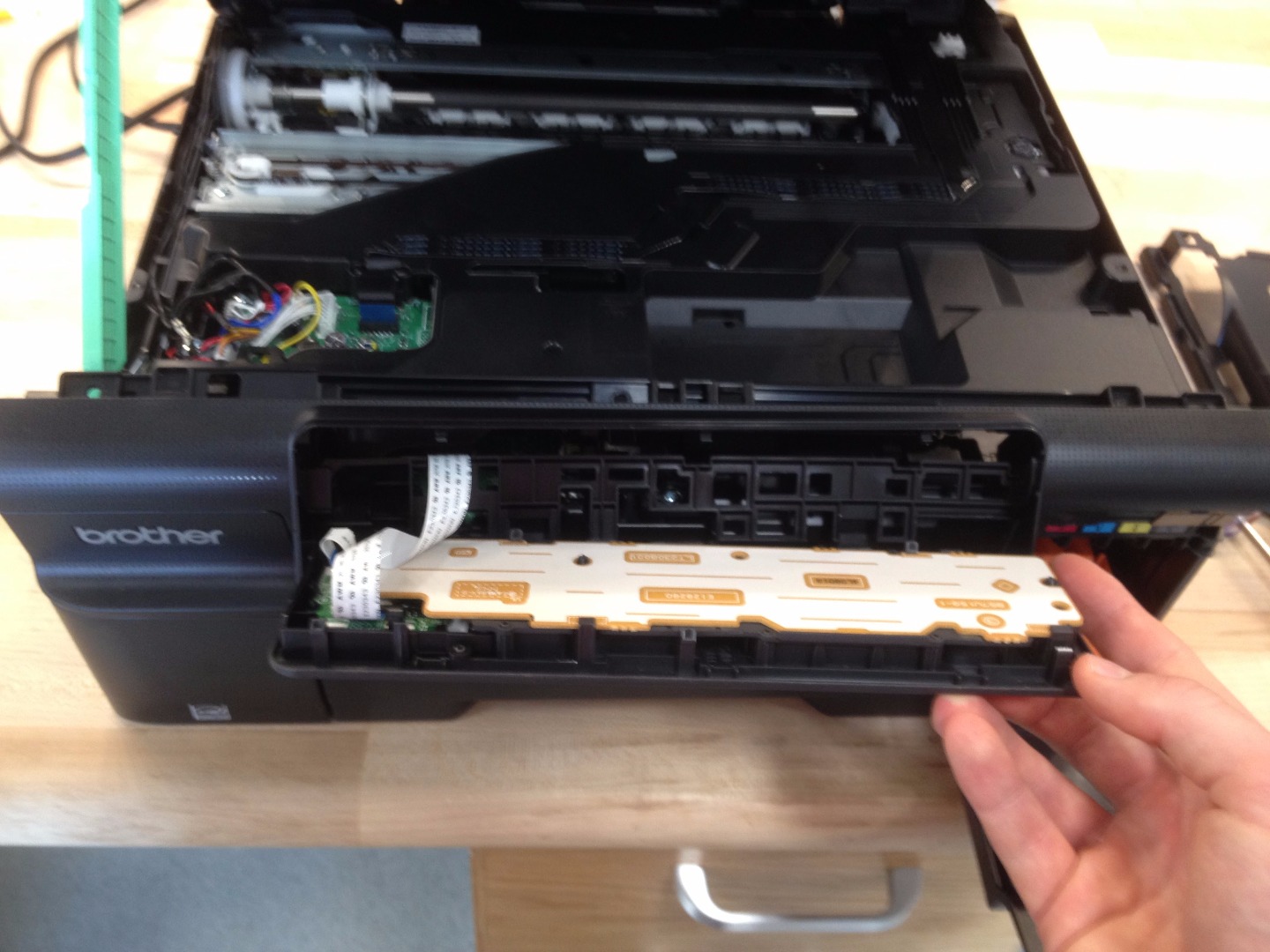

Remove Display and Buttons

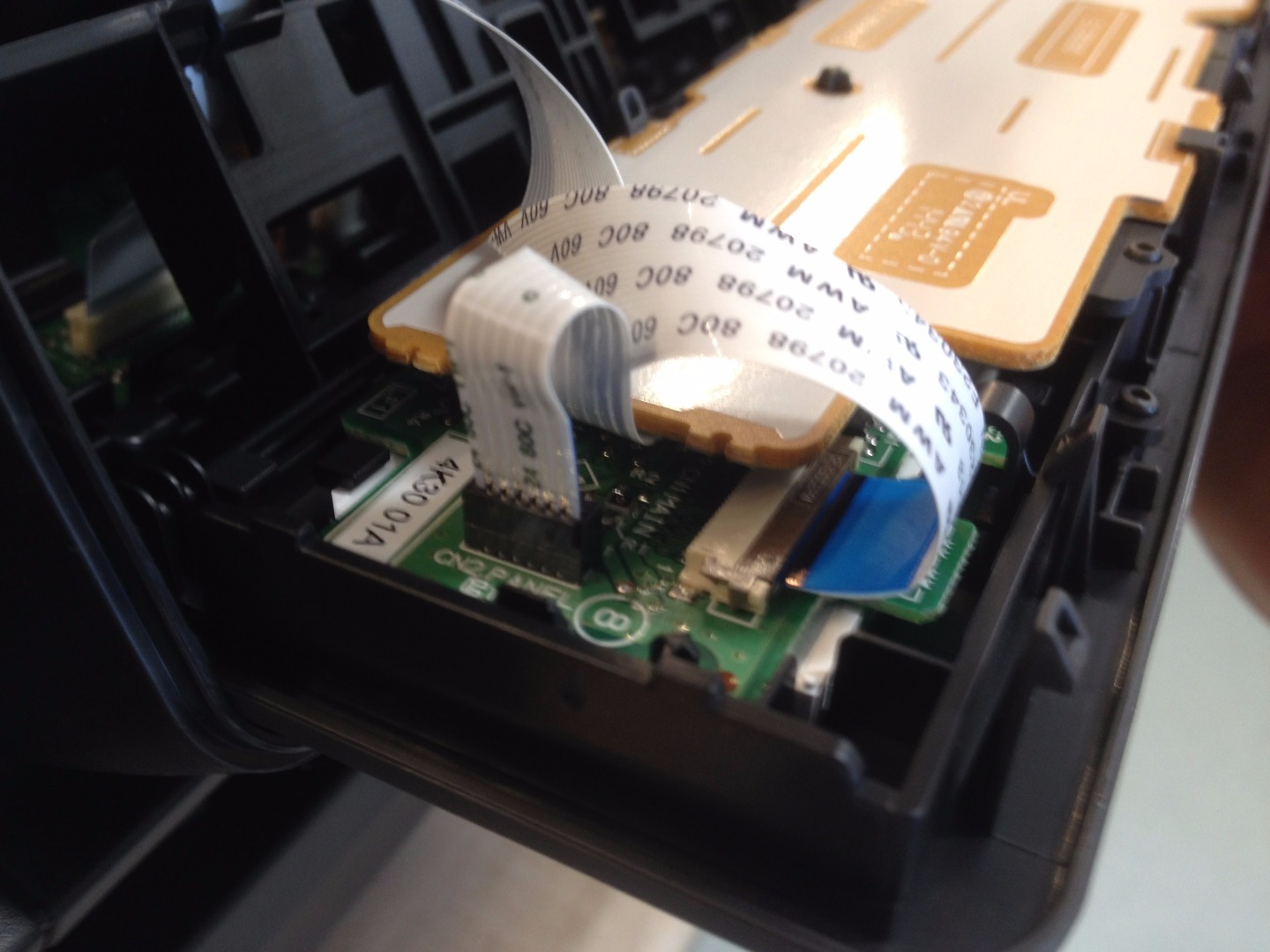

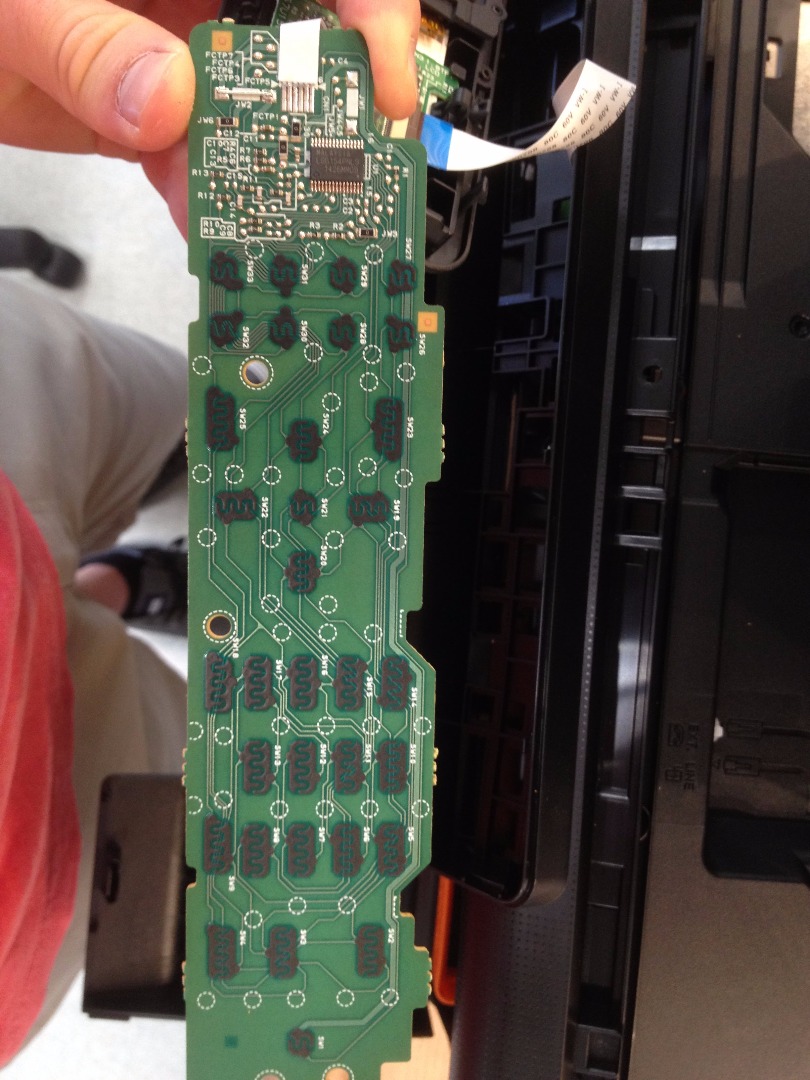

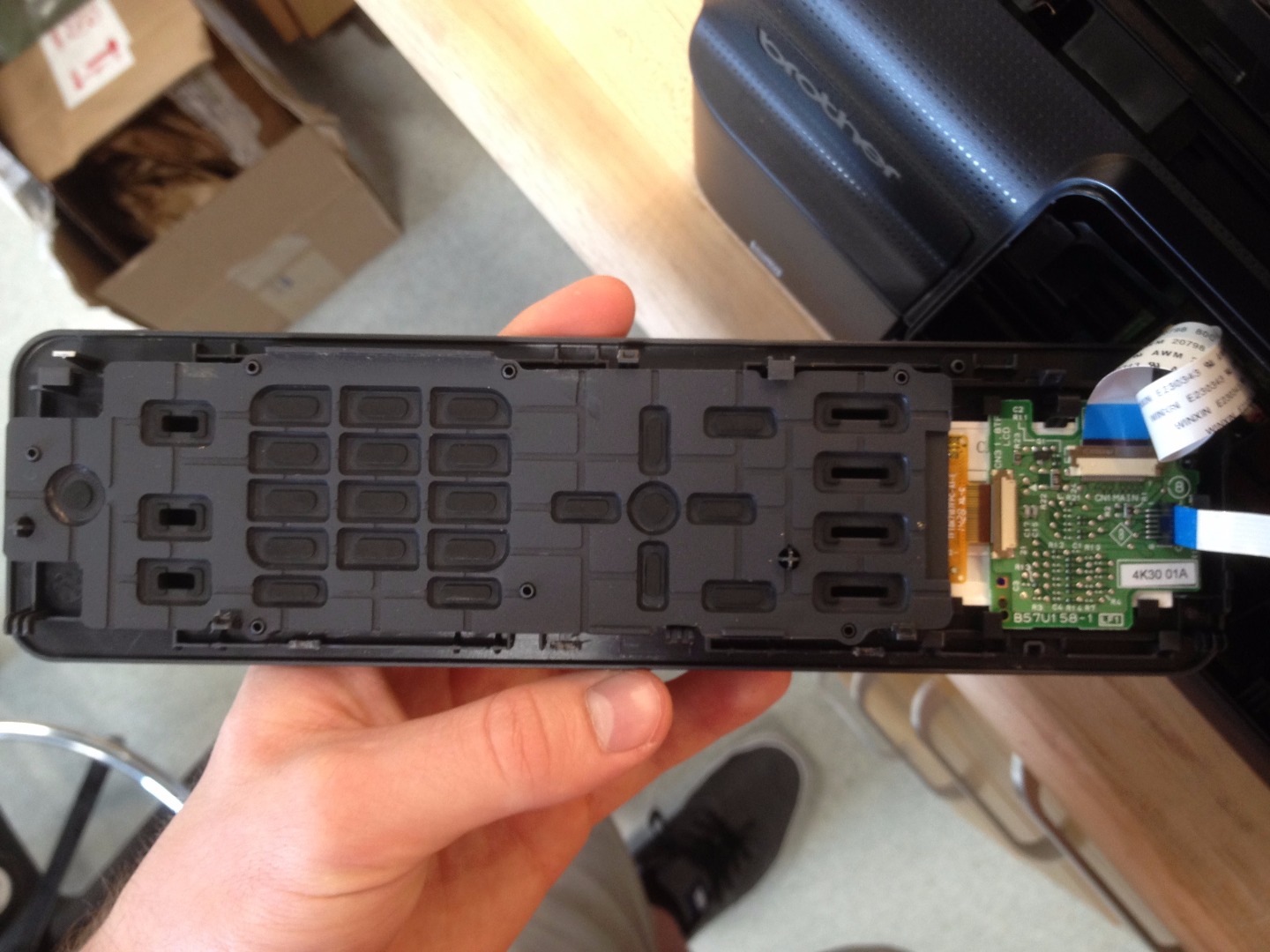

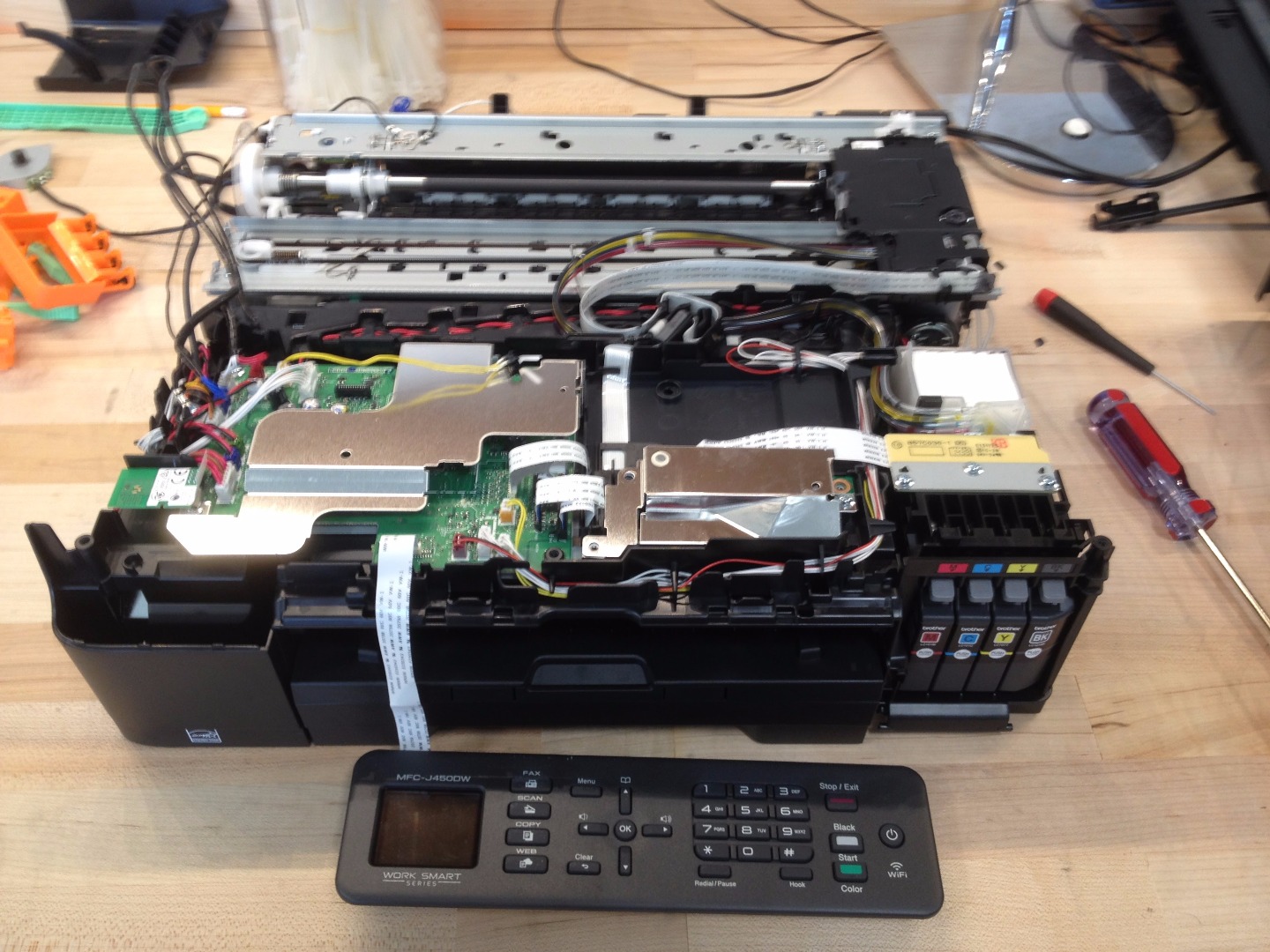

The display and buttons were pulled off of the printer. You get to see an interesting look at the capacitive buttons that are used to control the printer.

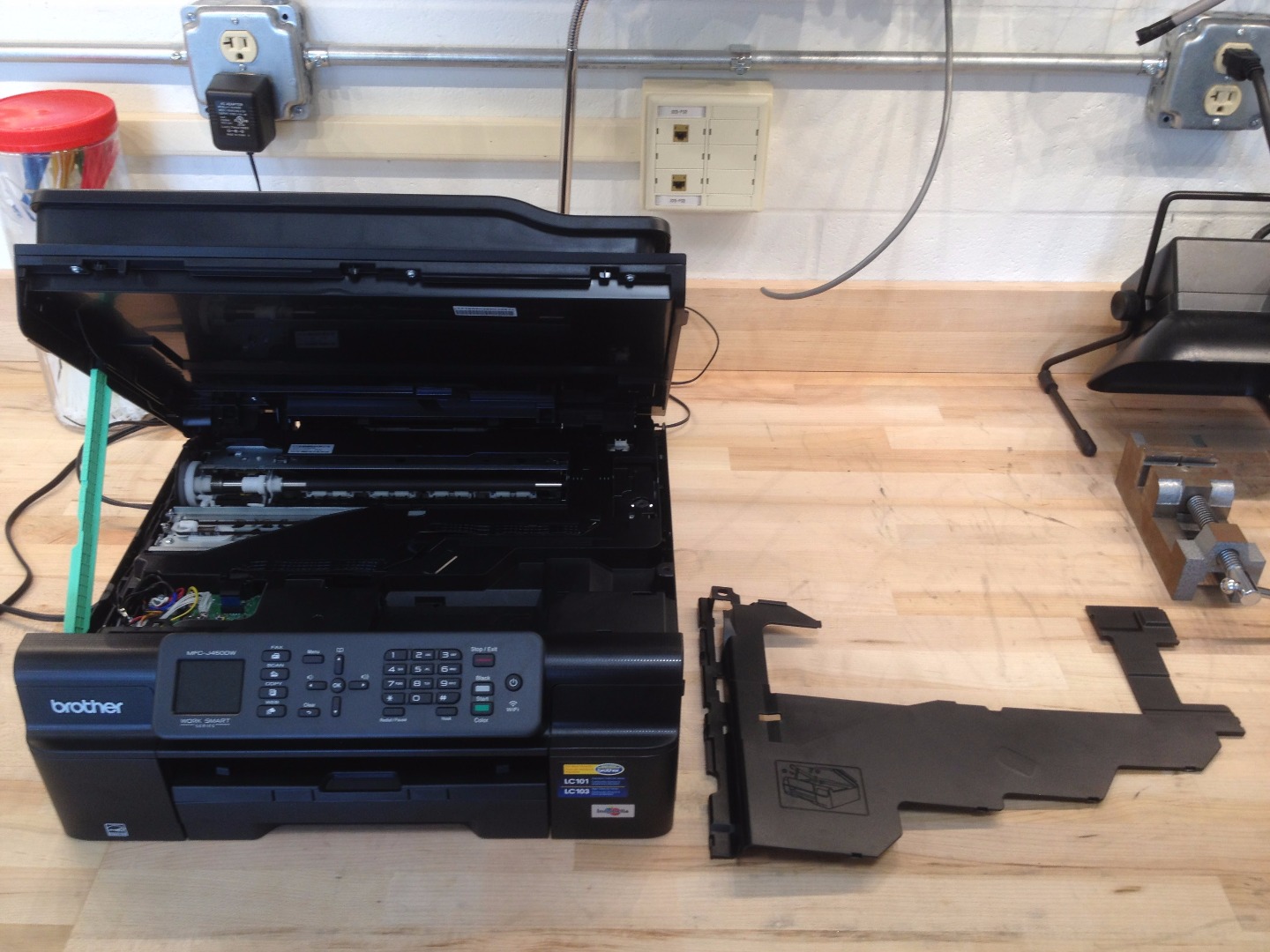

Remove Paper Tray


Pull out the paper tray for now.

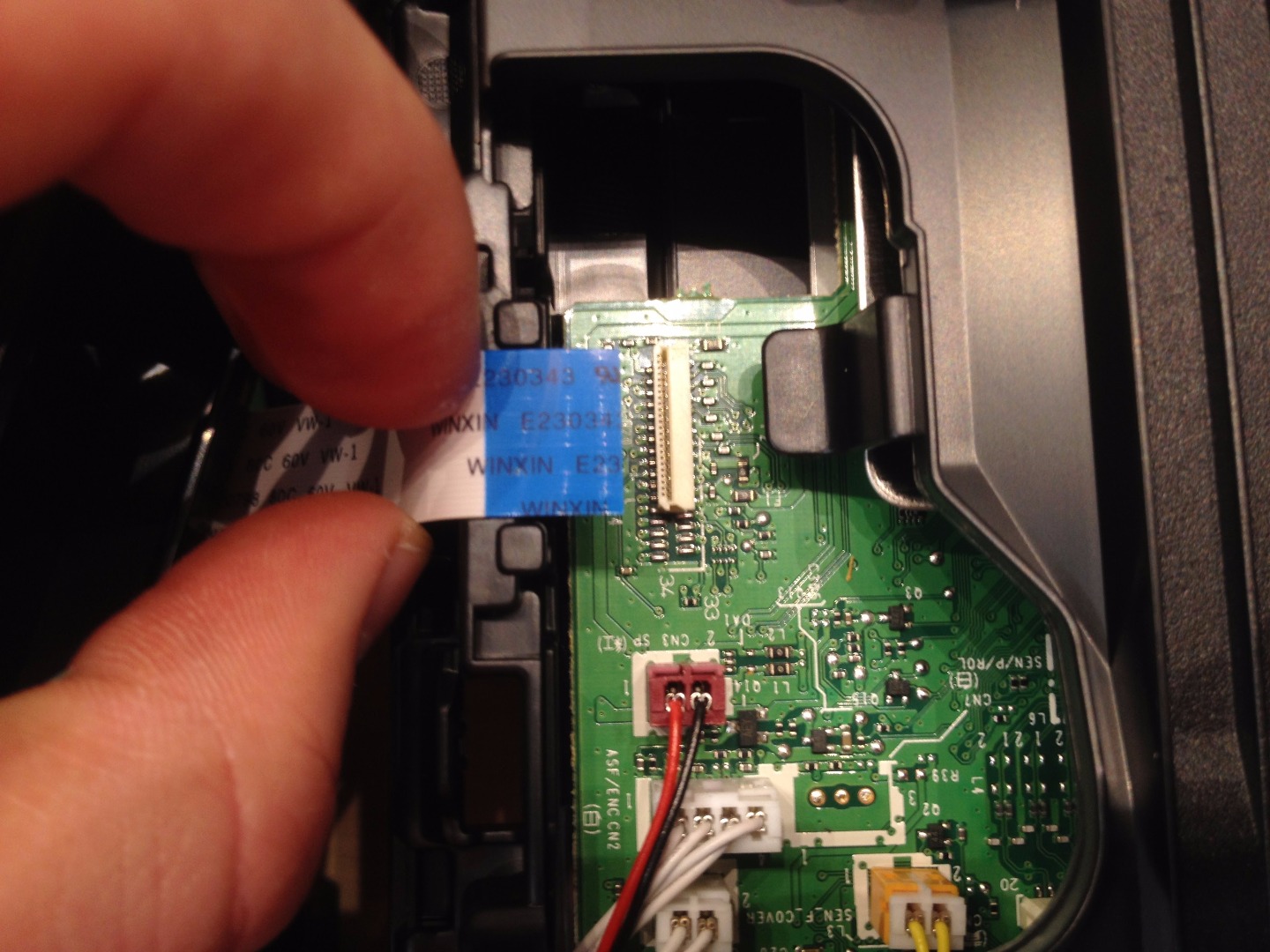

Ribbon Cables


Unplugged the ribbon cables for the front display and the scanner.

Fax Components

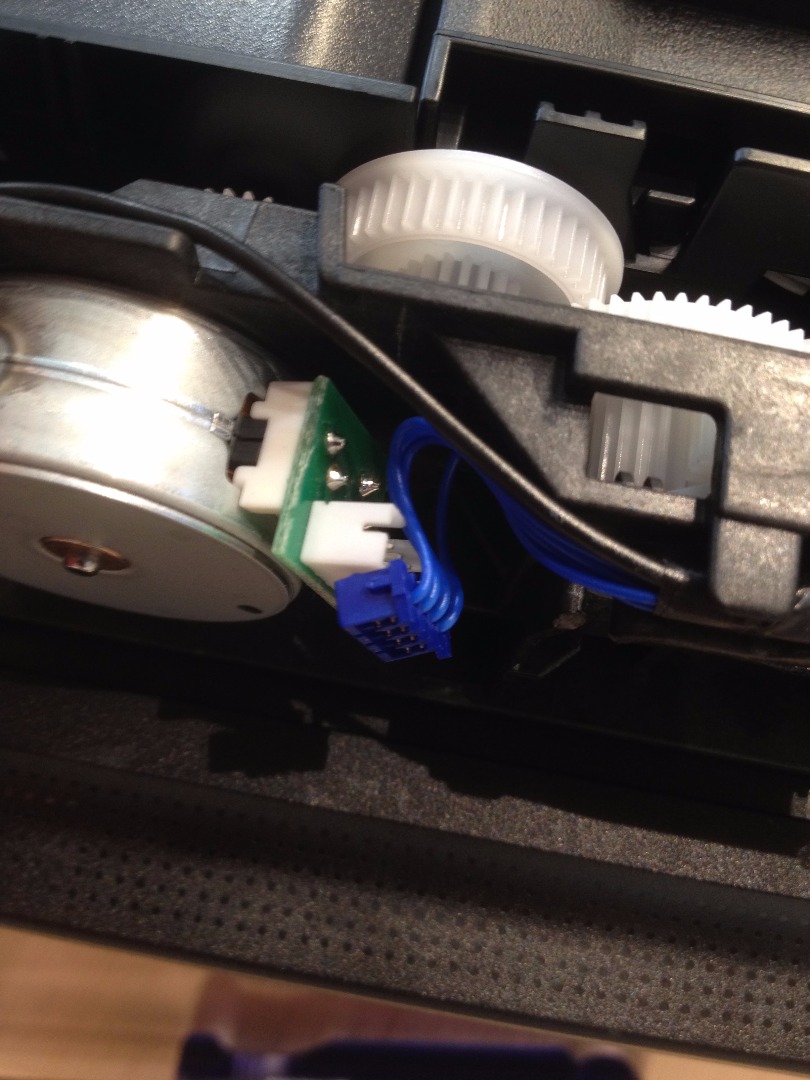

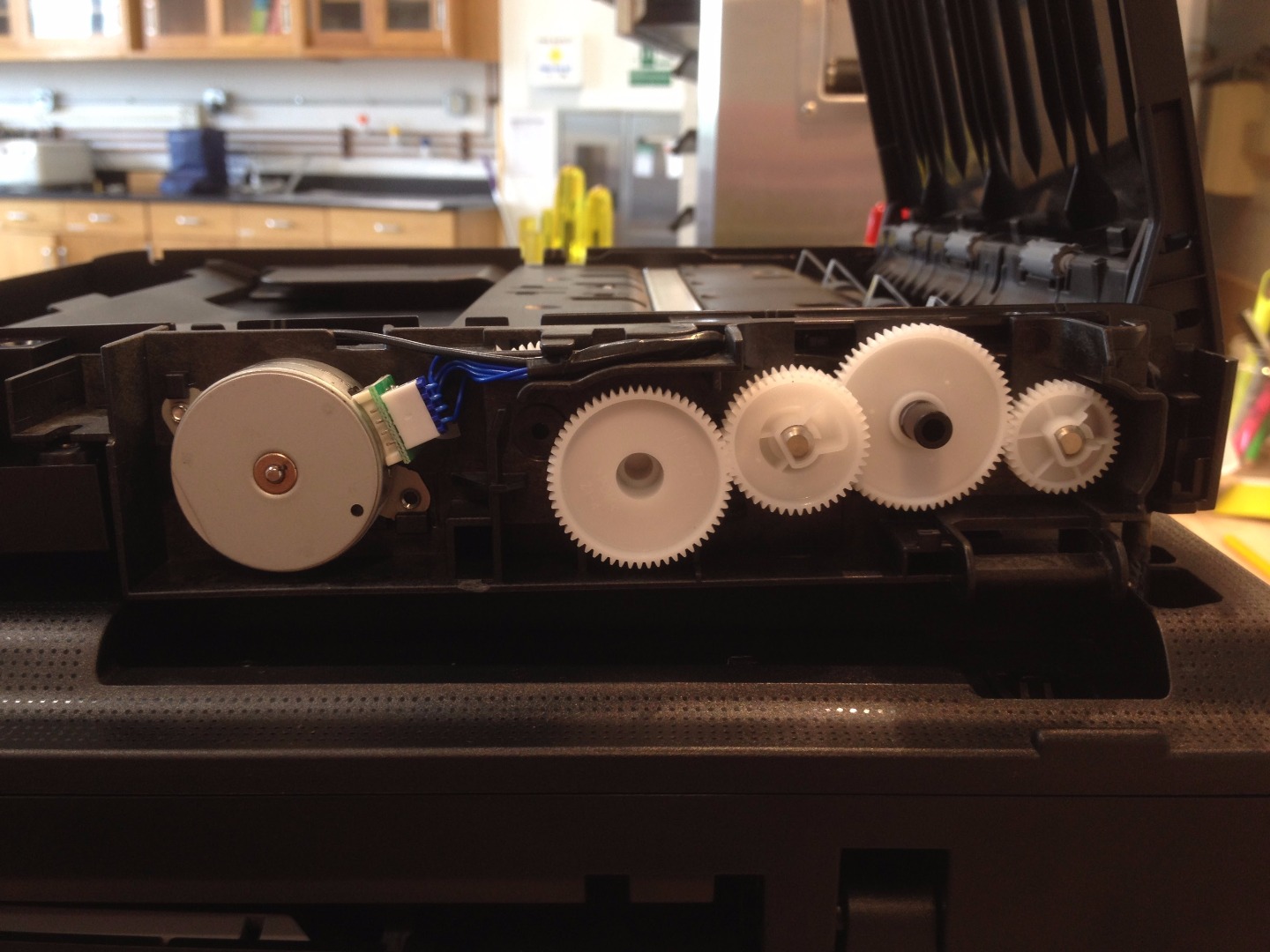

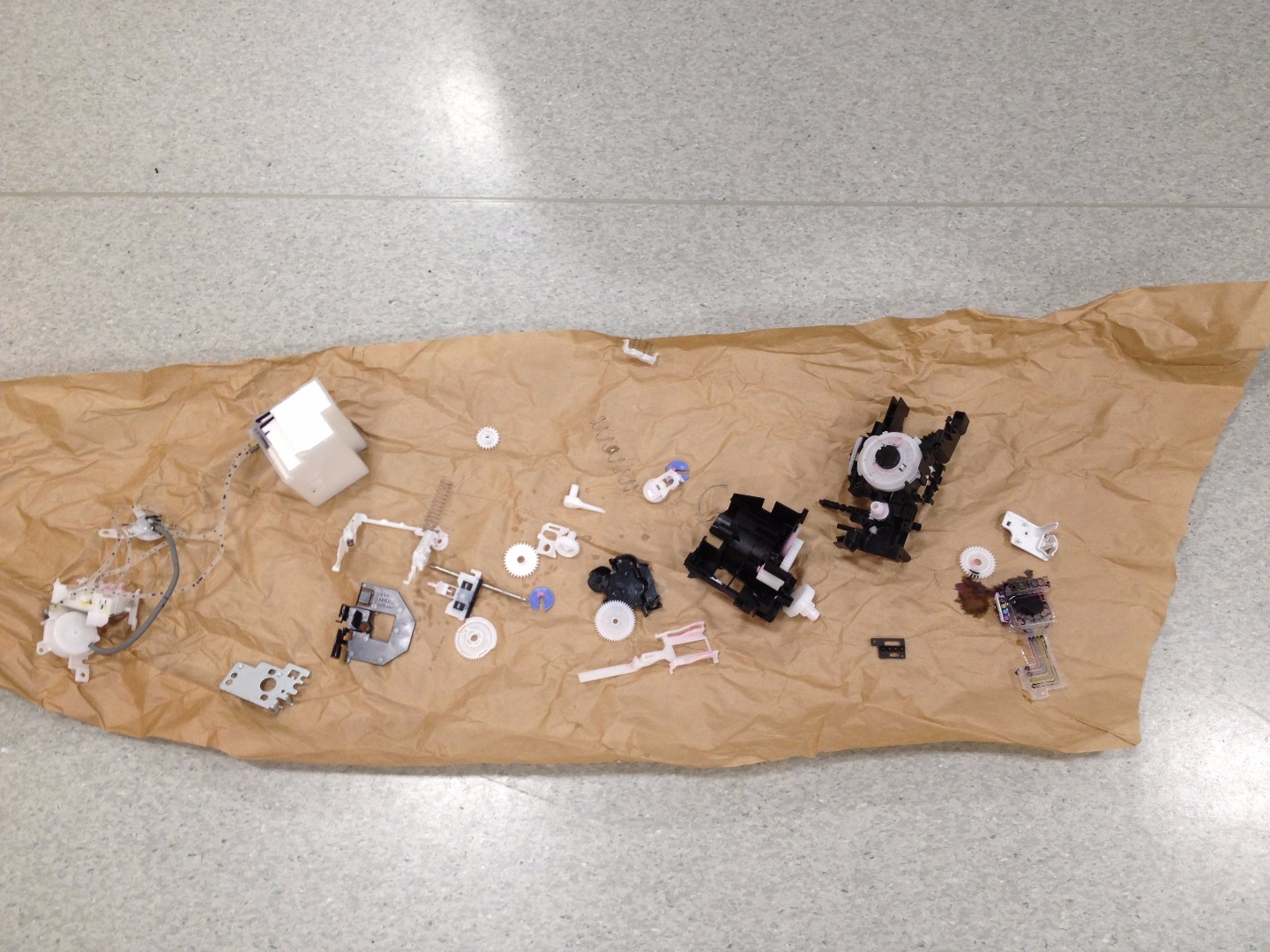

Removed all of the fax components. It is recommended that you save the gears and stepper motor. These can be used in many other projects.

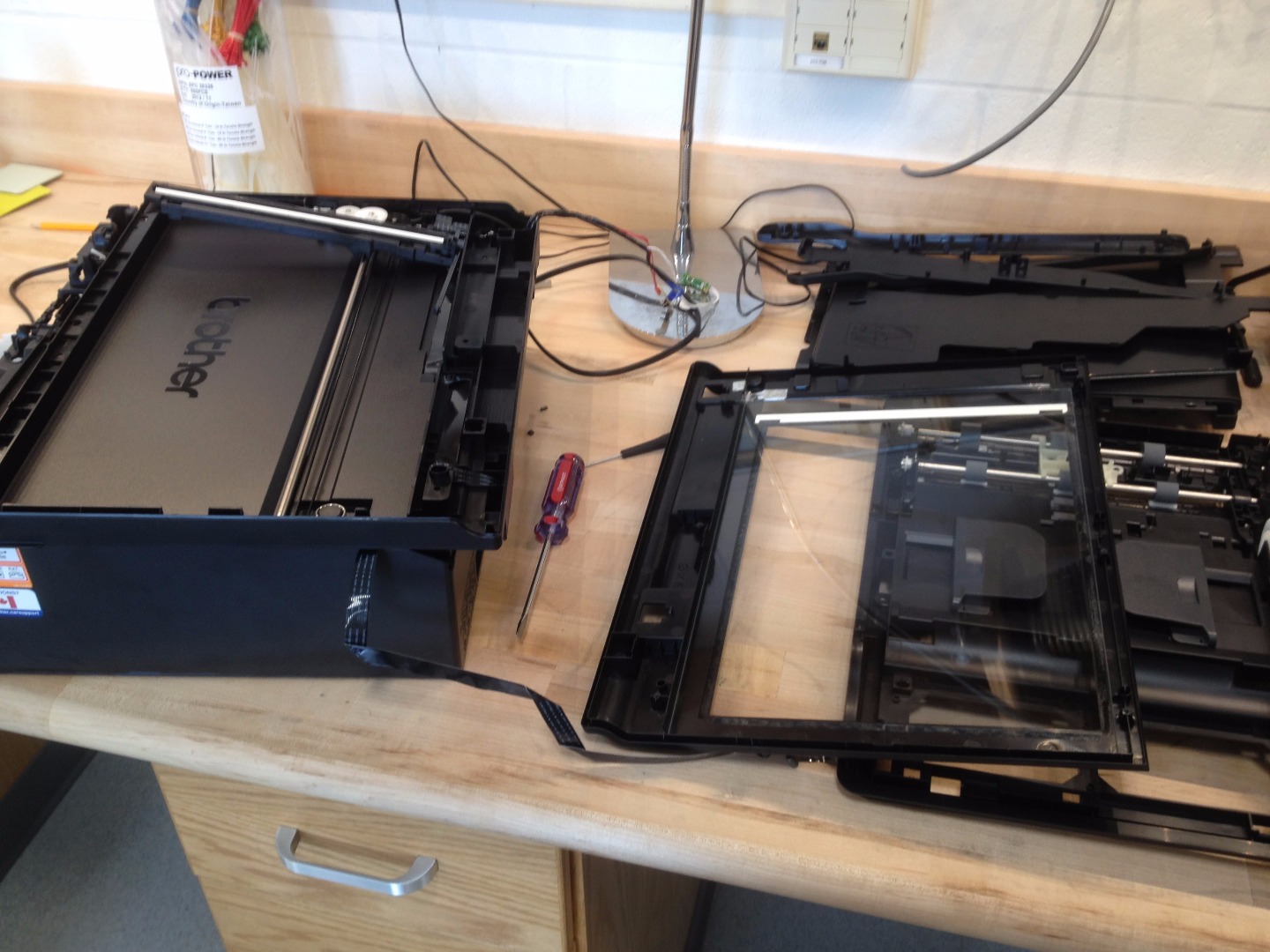

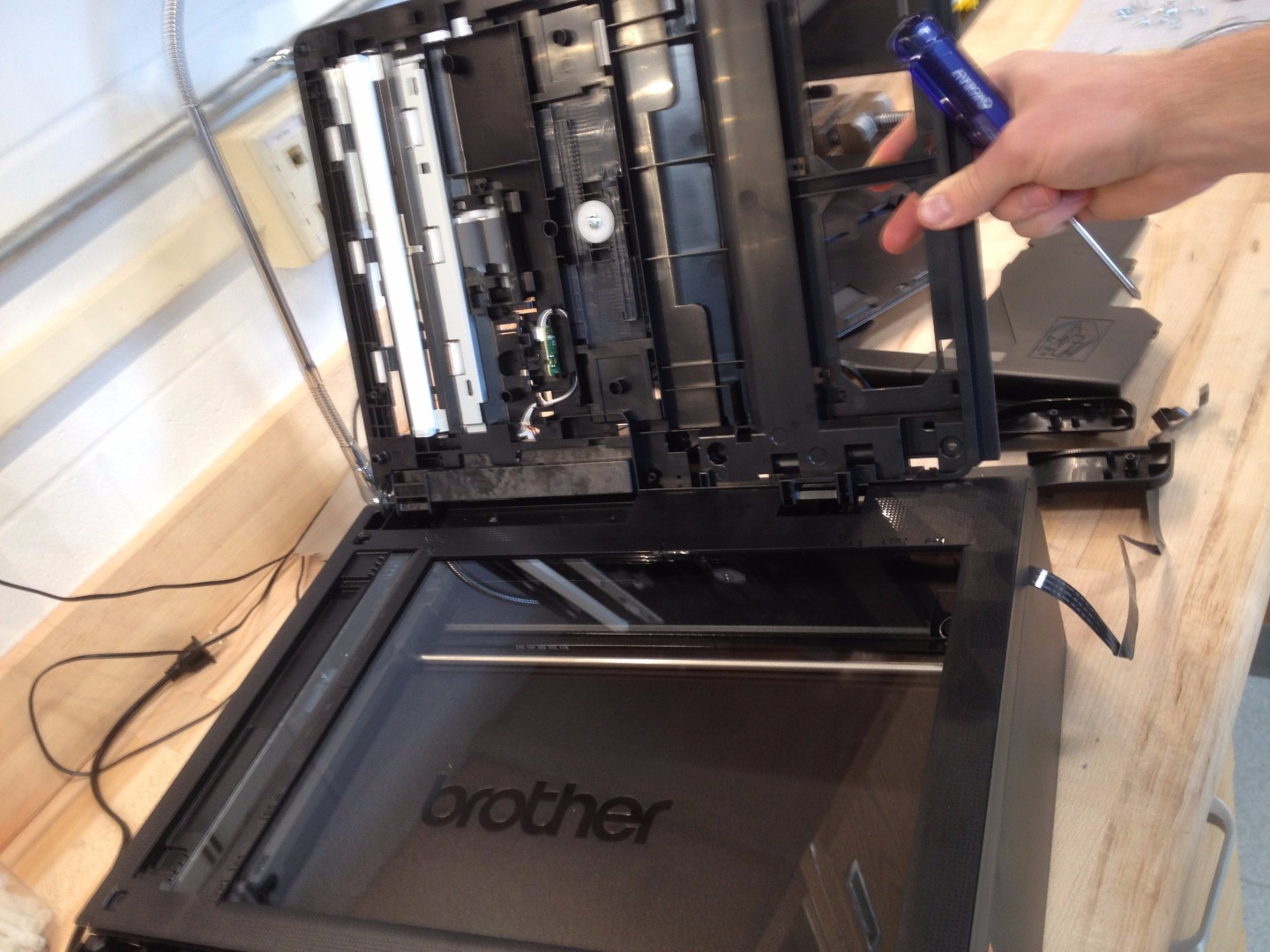

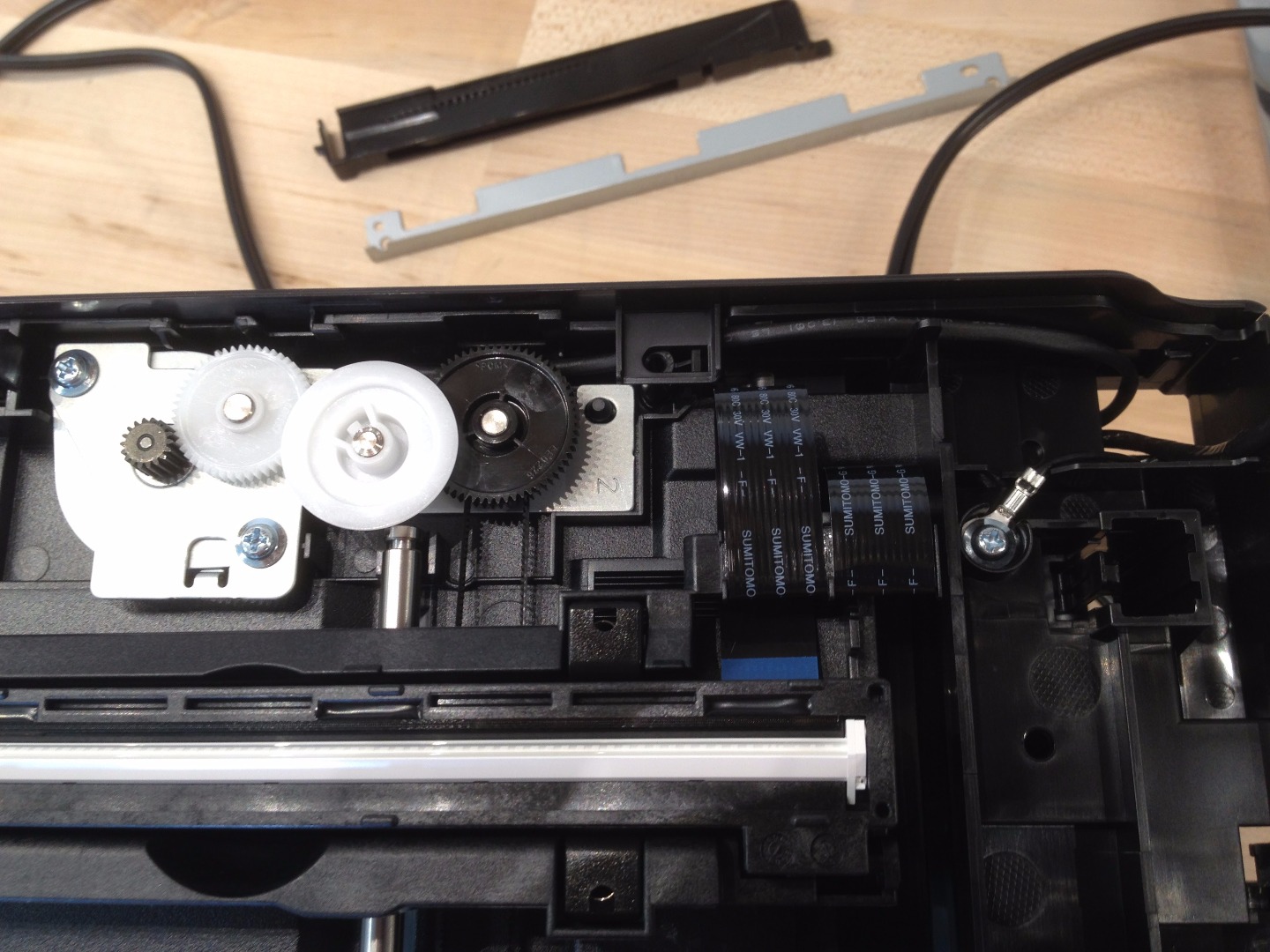

Scanner Components

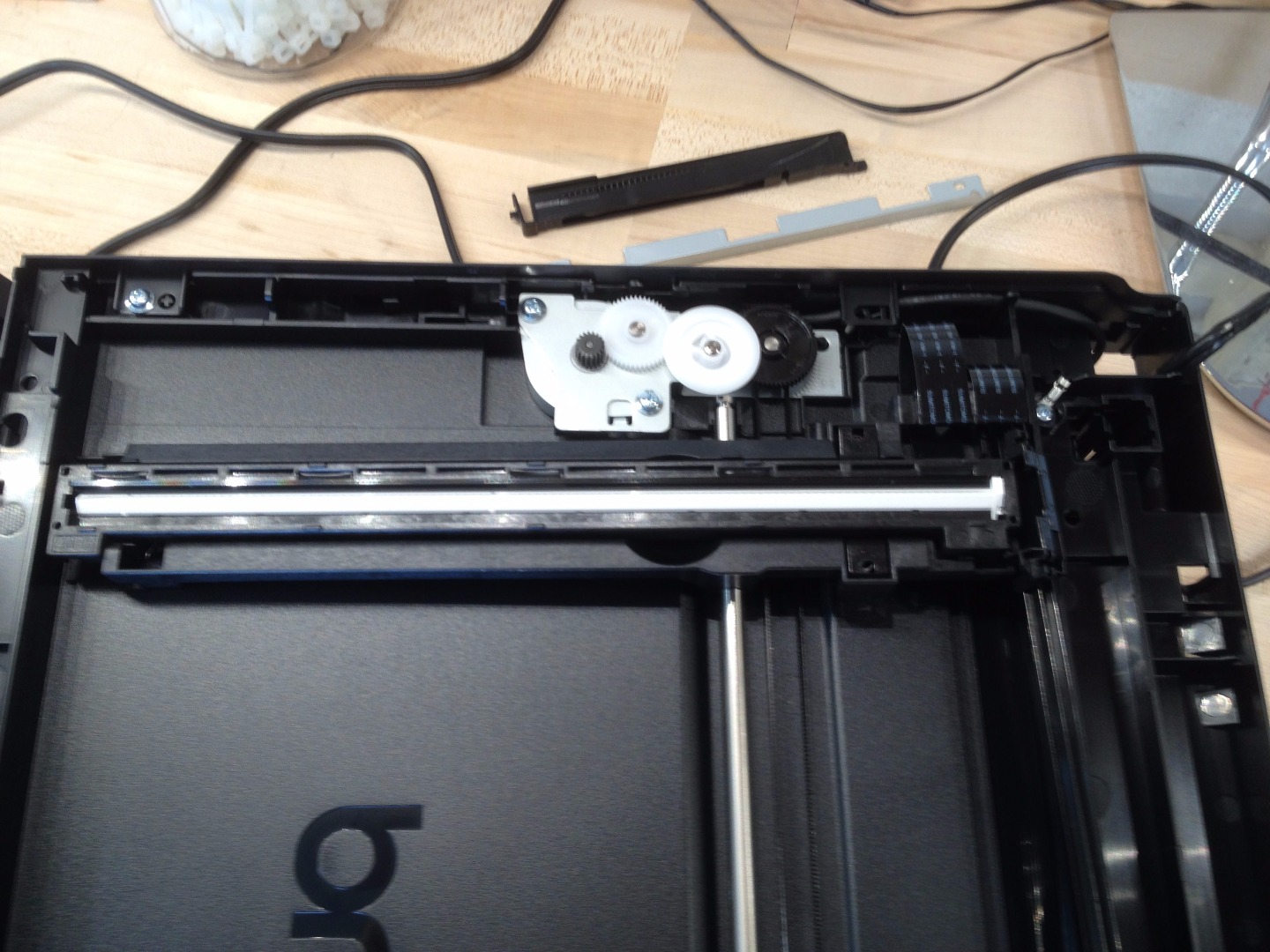

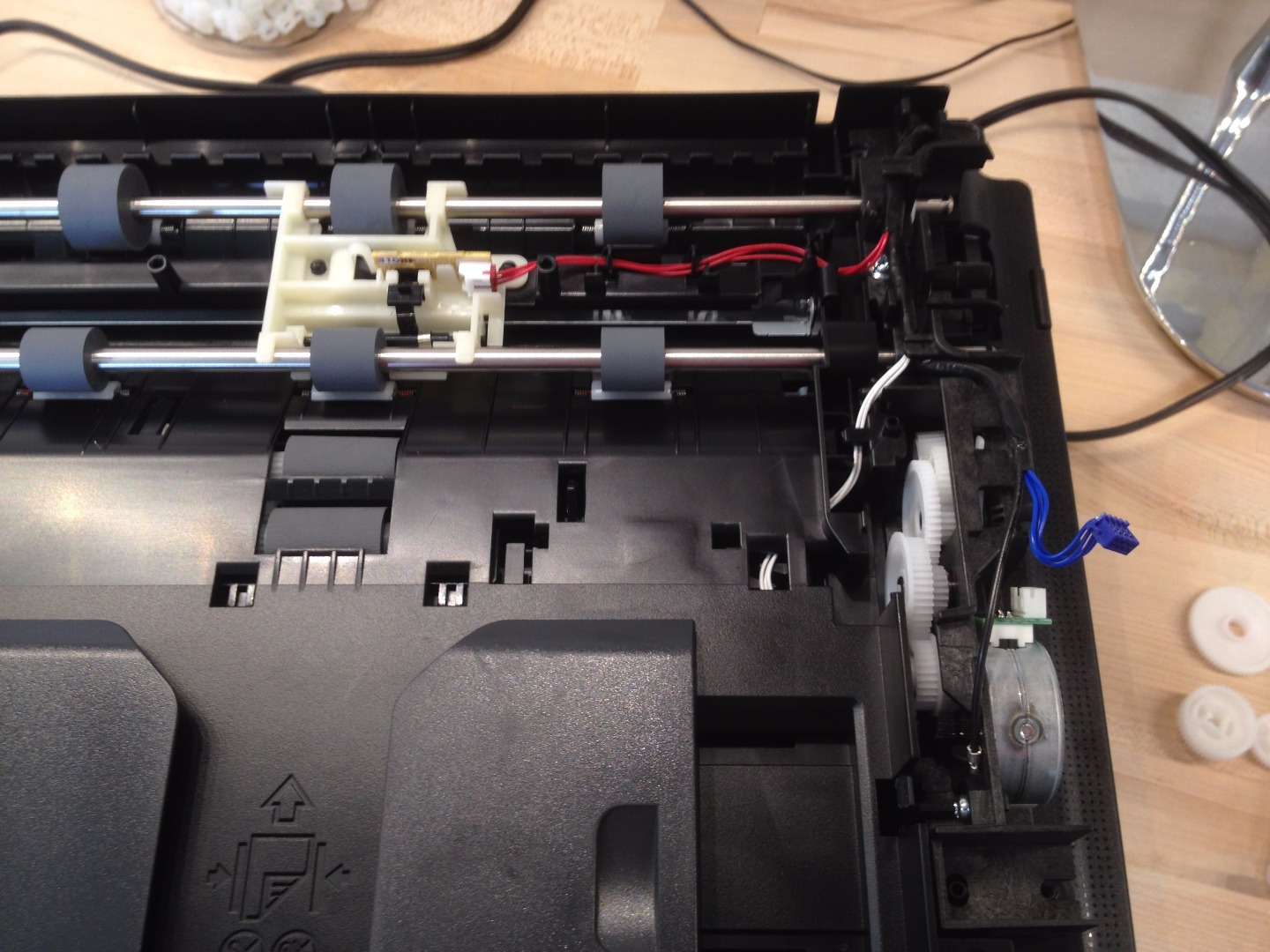

The scanner components were then removed. Better yet, another stepper motor was found!

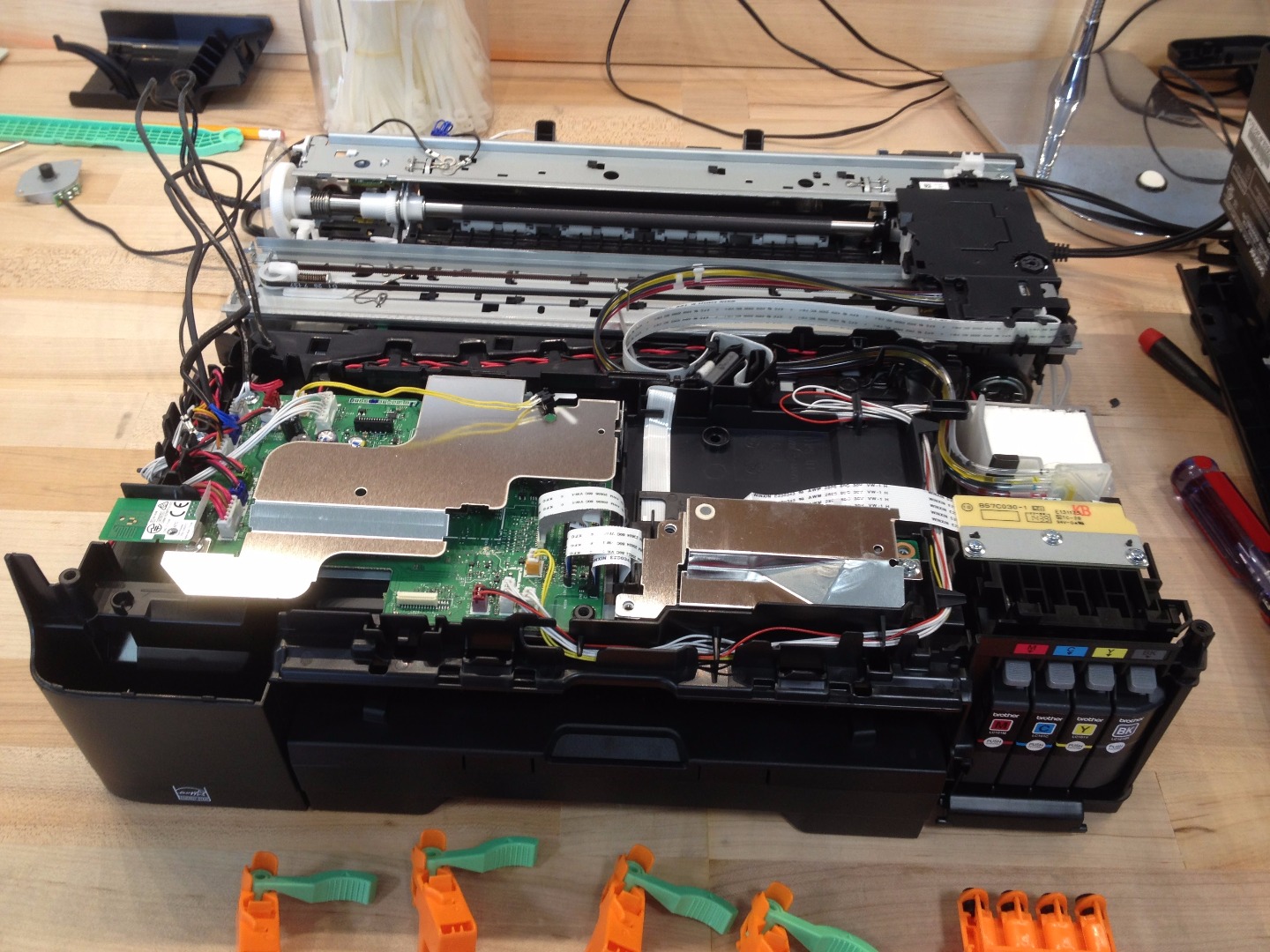

Bare Printer

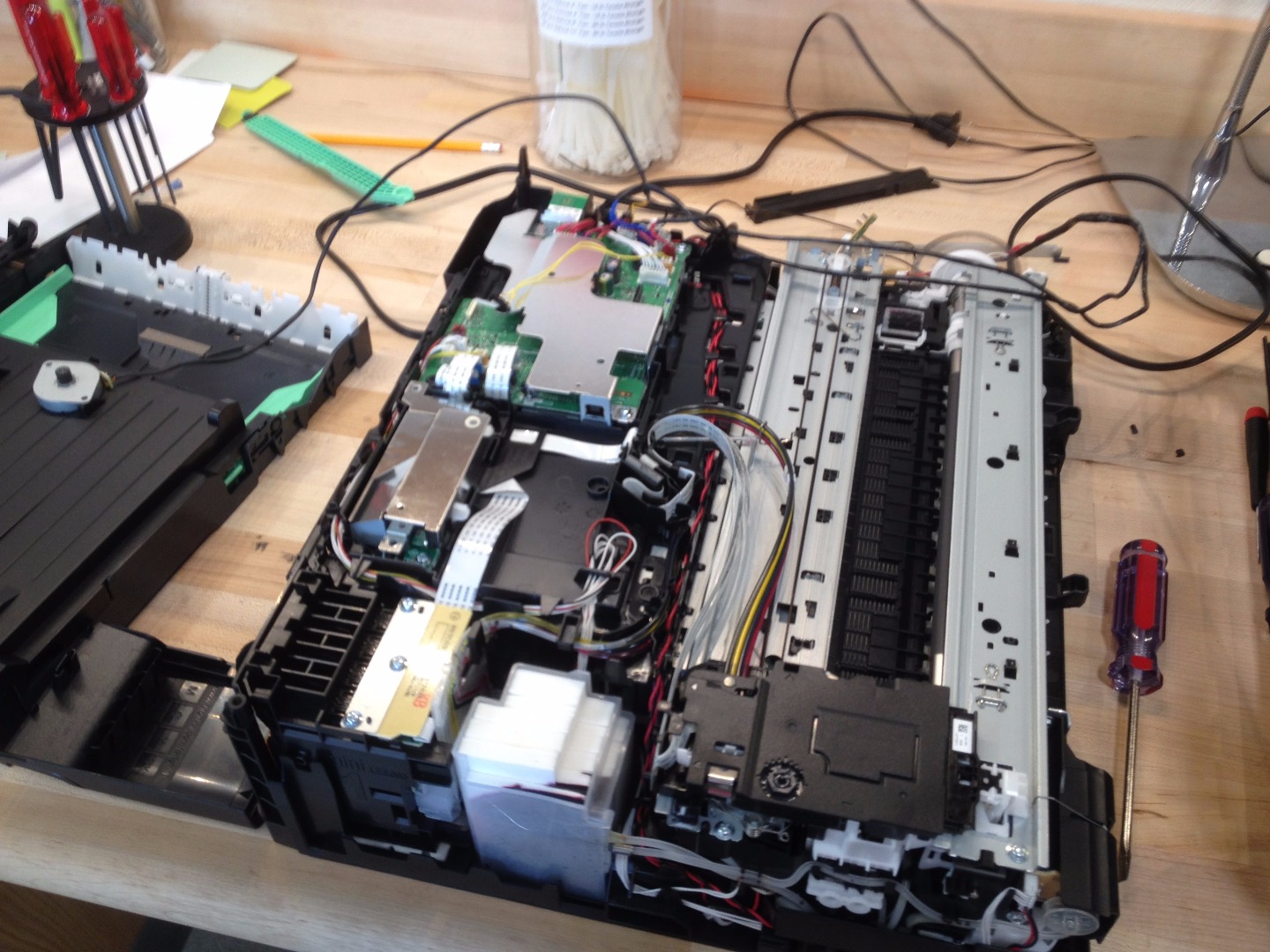

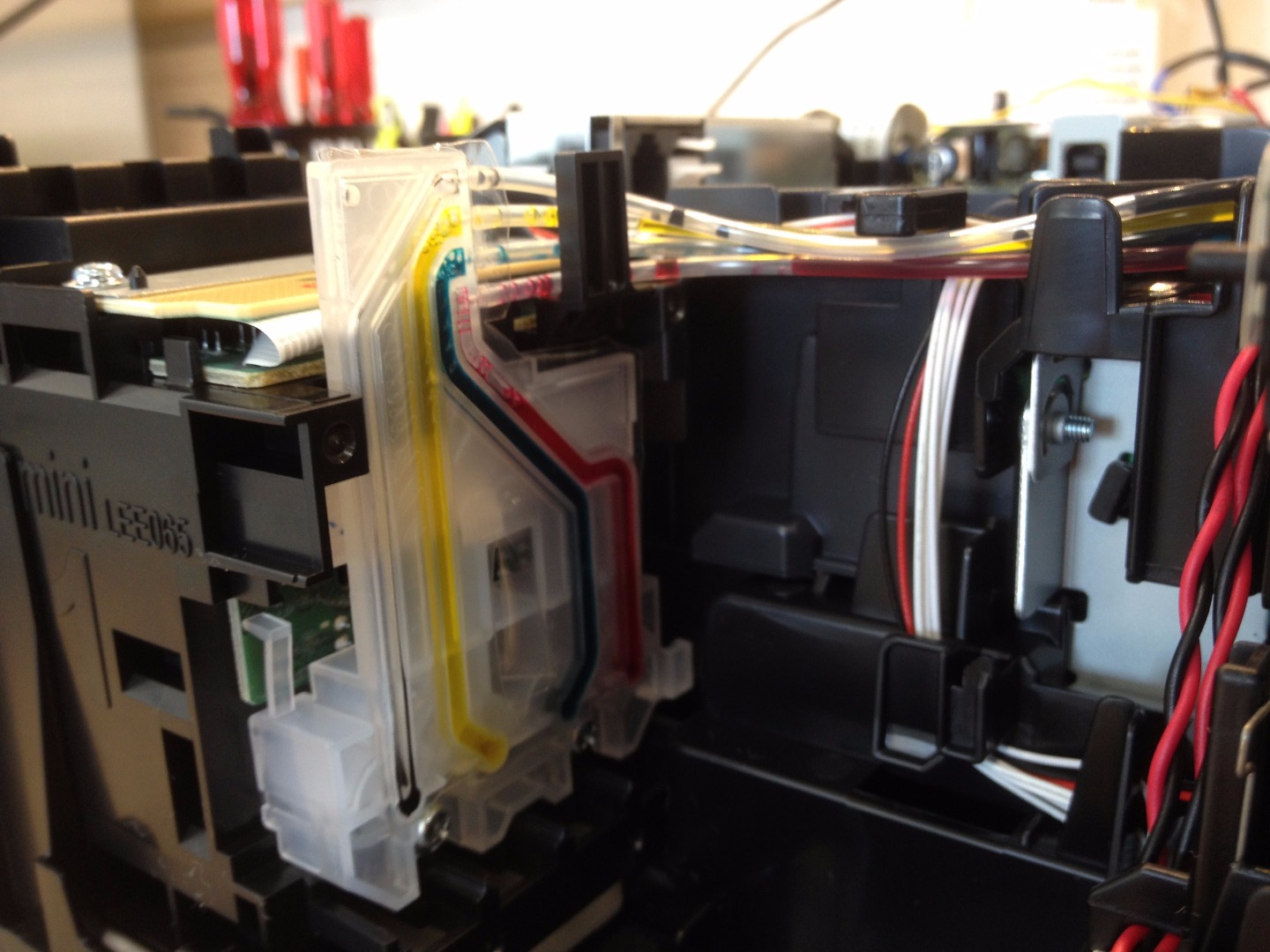

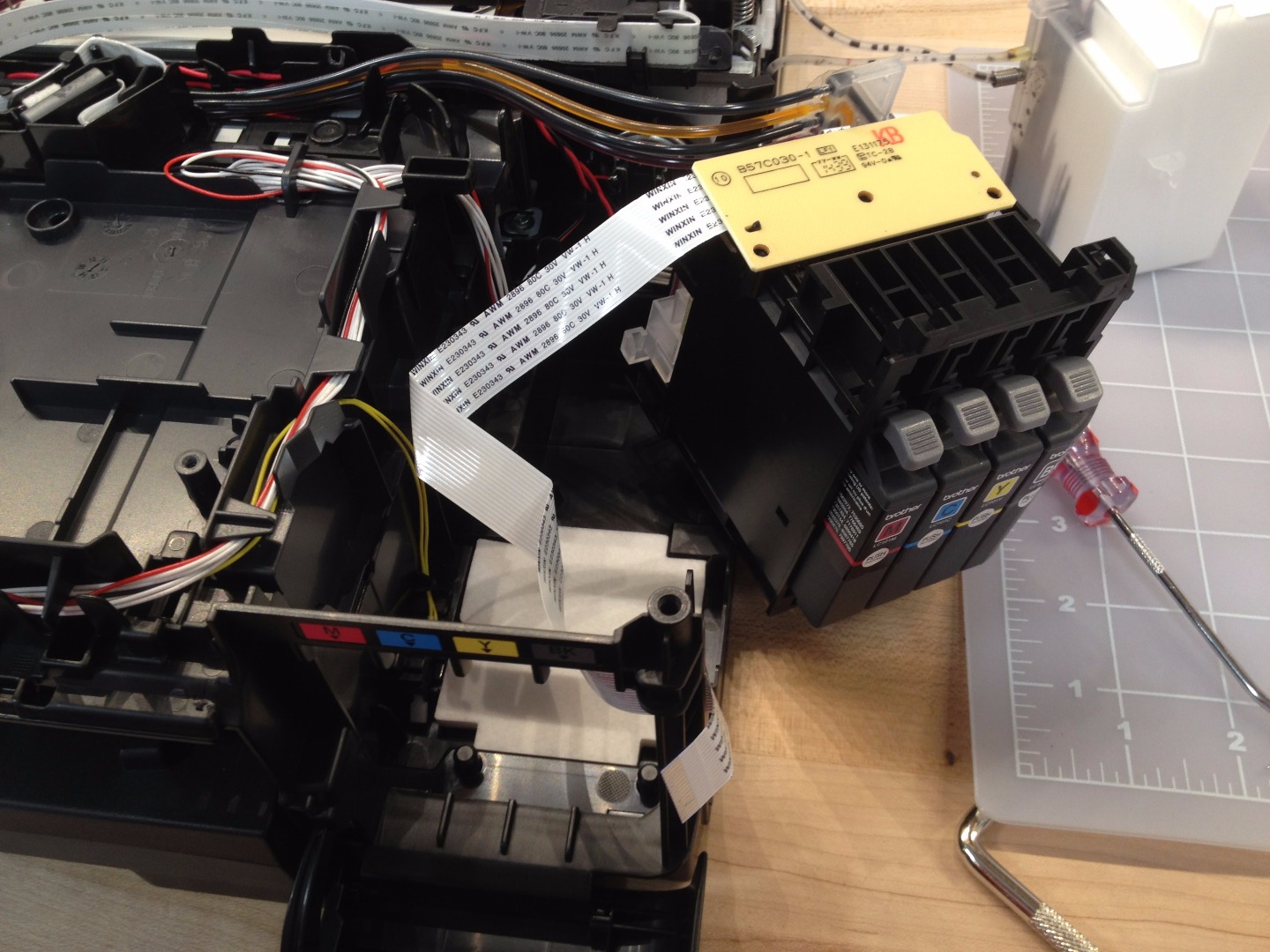

It can be seen from these pictures that the printer does not dispense ink directly from the cartridges. Instead it pumps the ink out of them and into the print head.

Uncovering Circuit Boards

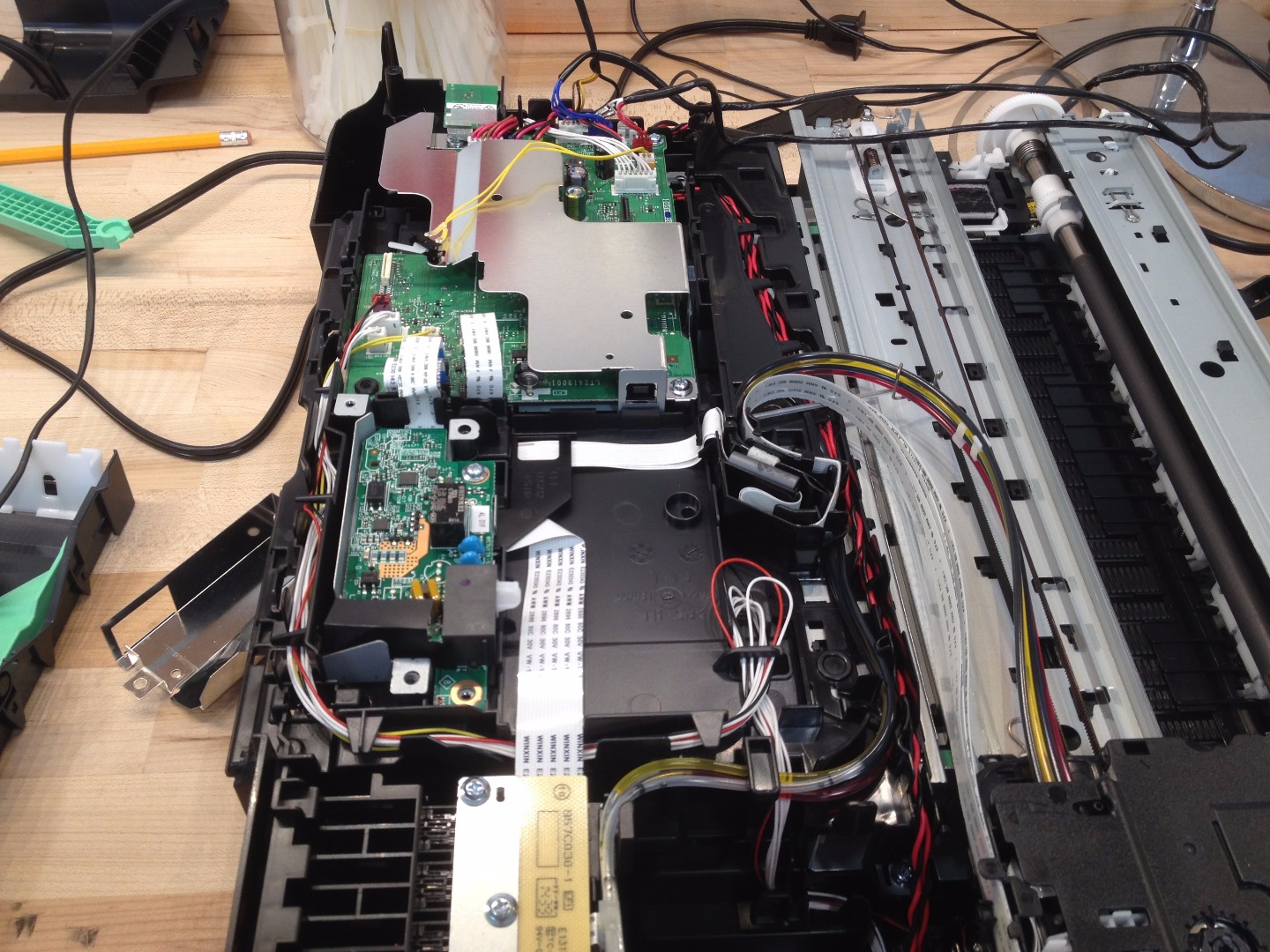

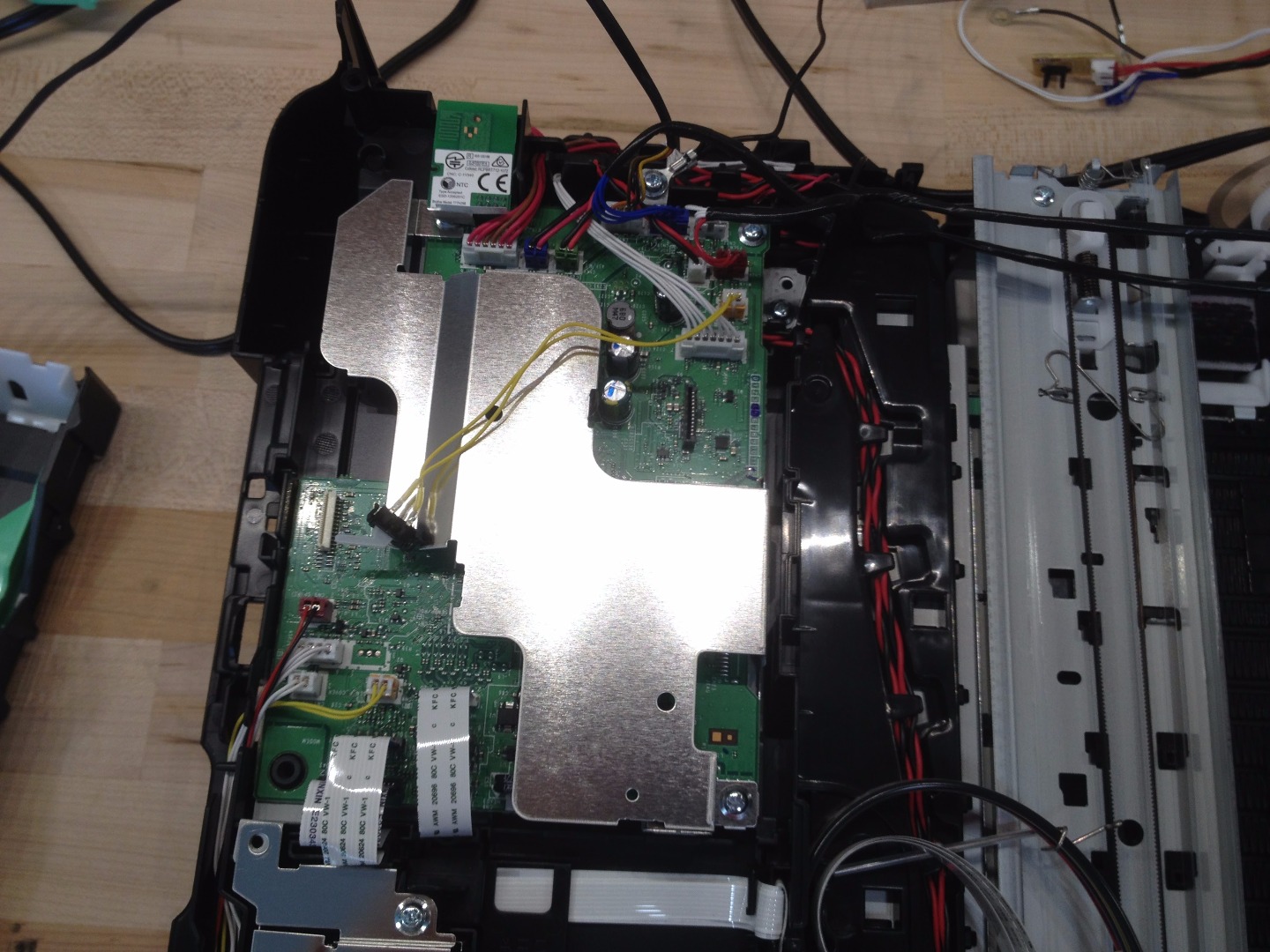

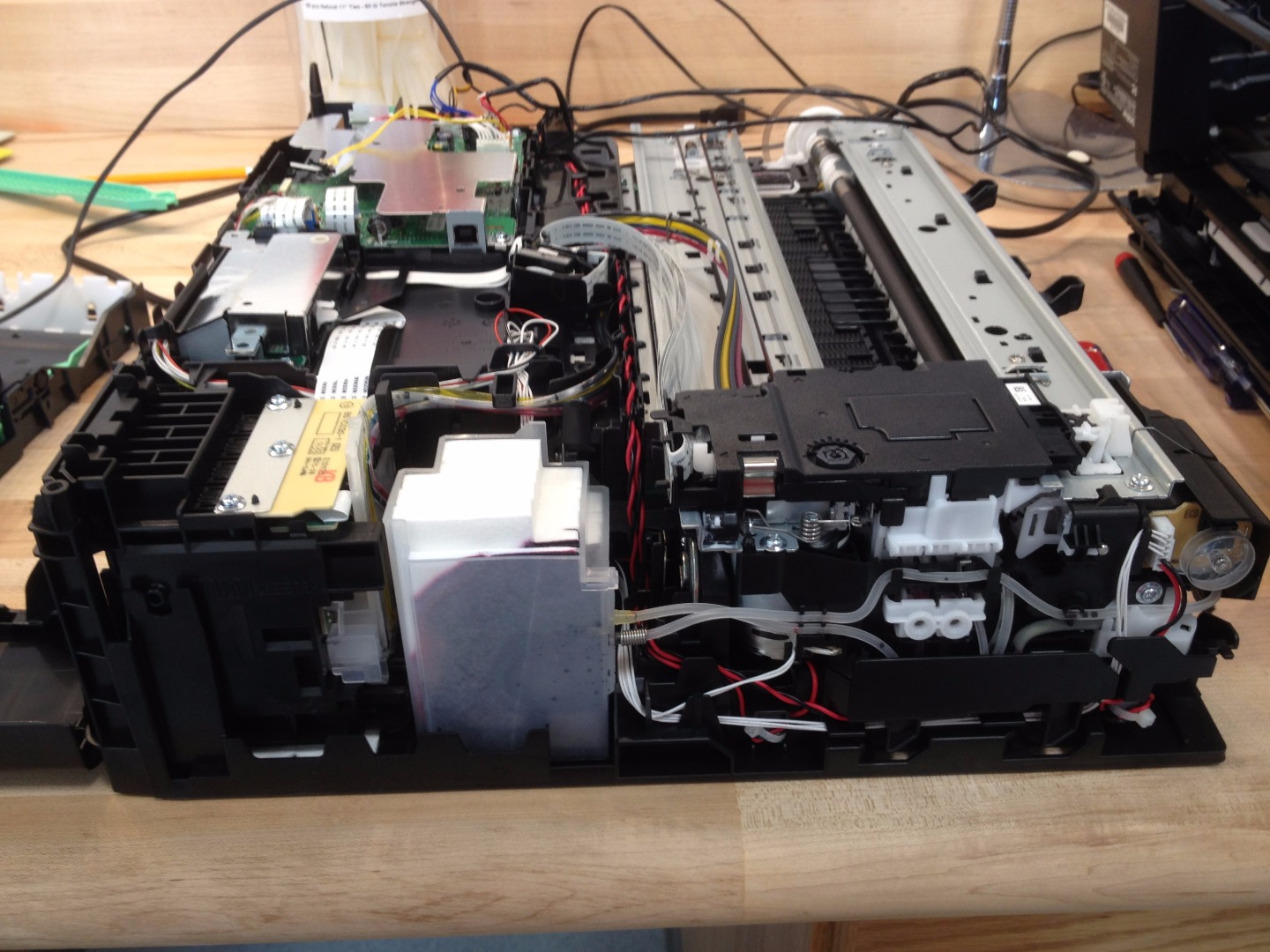

Removed some screws and exposed the circuit boards underneath.

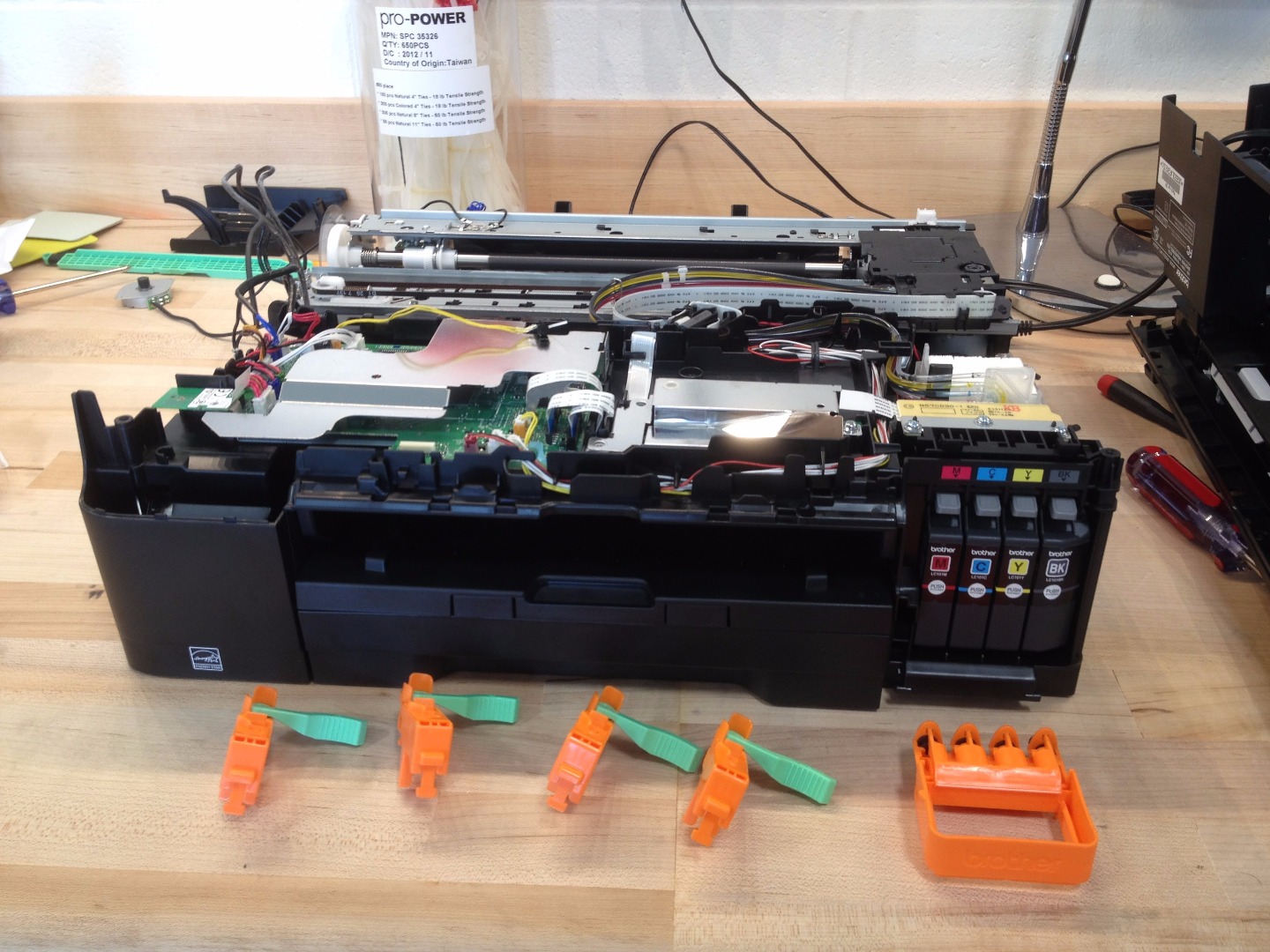

Installing Ink


Installed the ink in the printer.

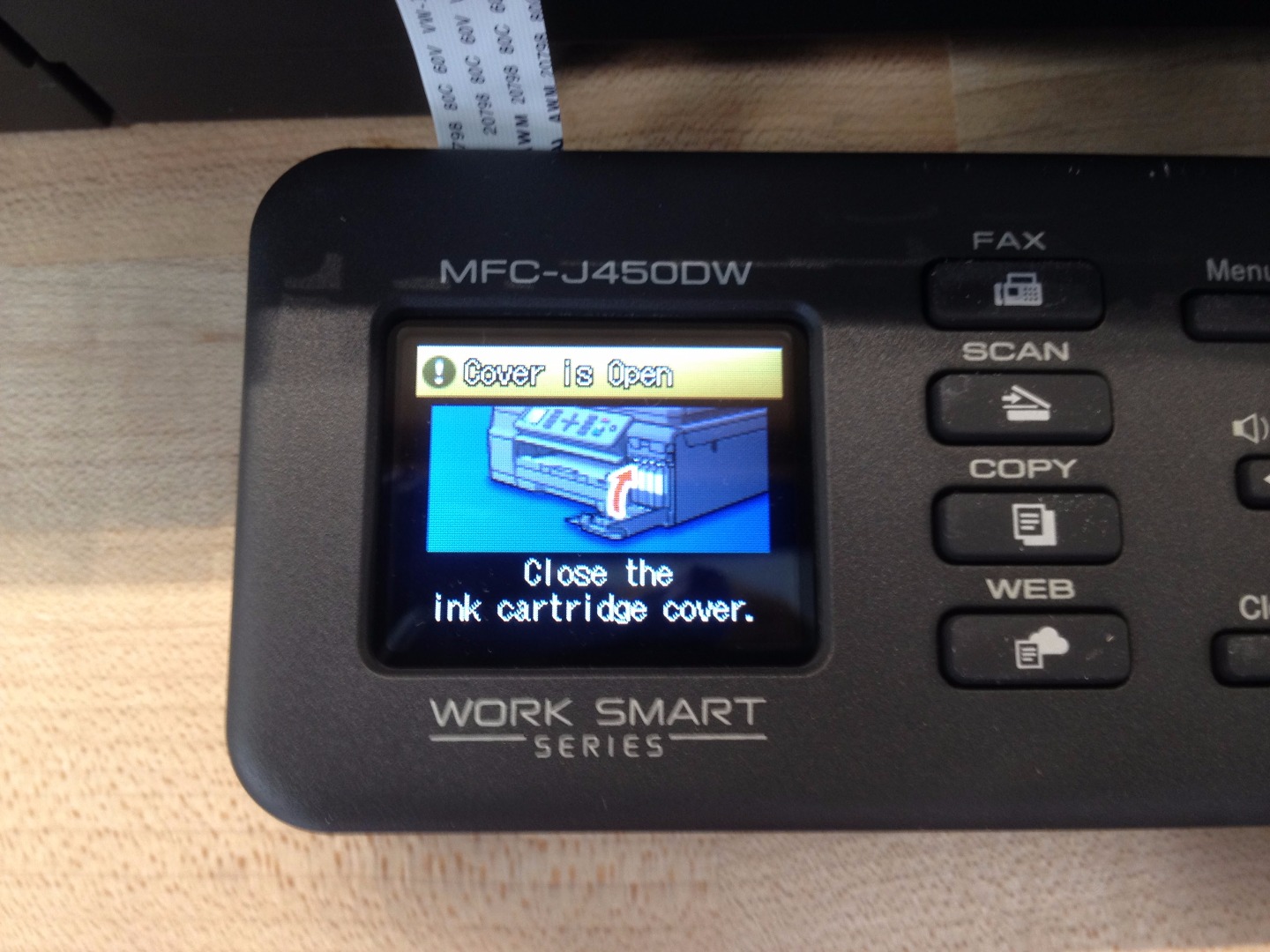

Overriding Safety

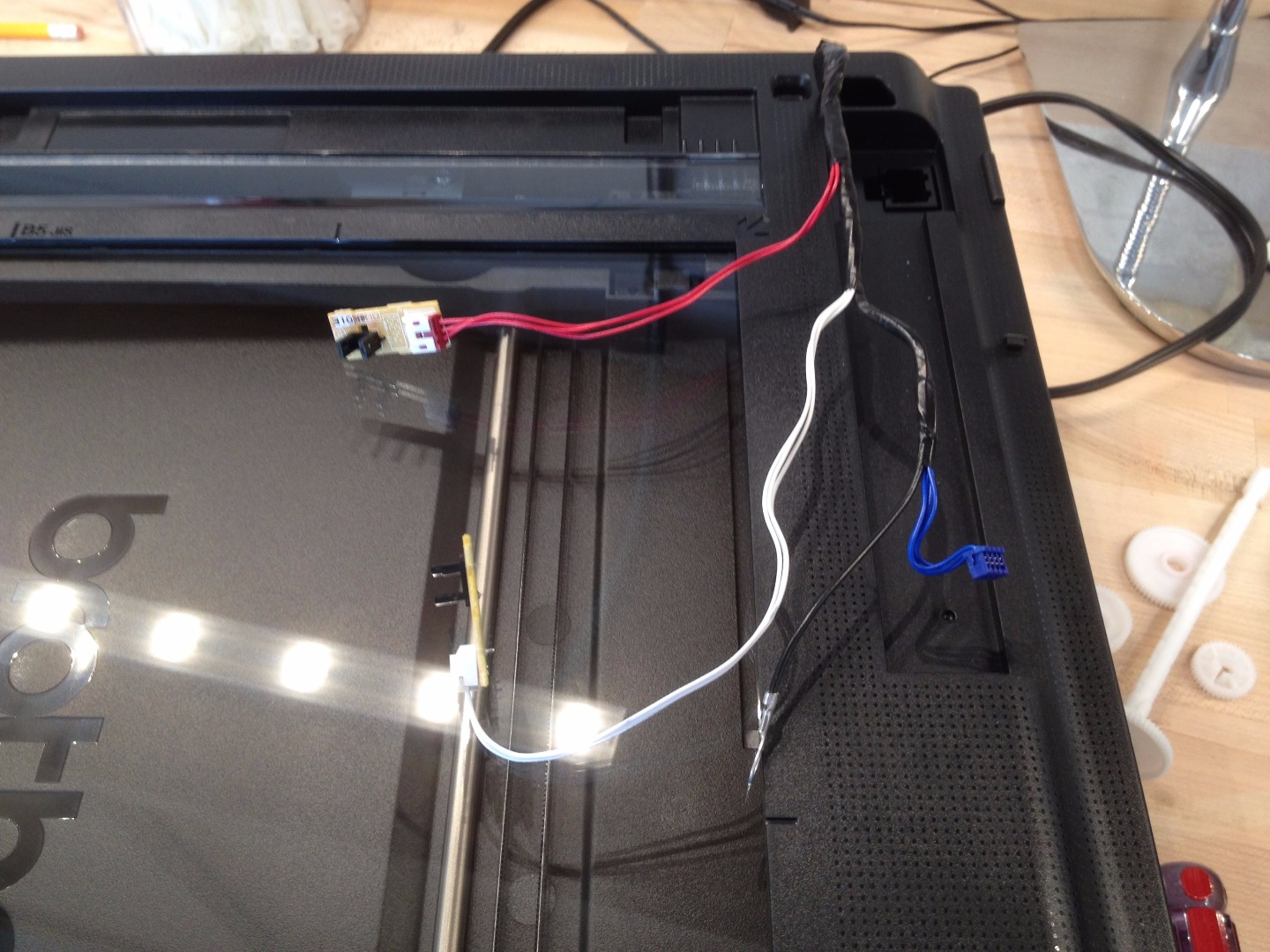

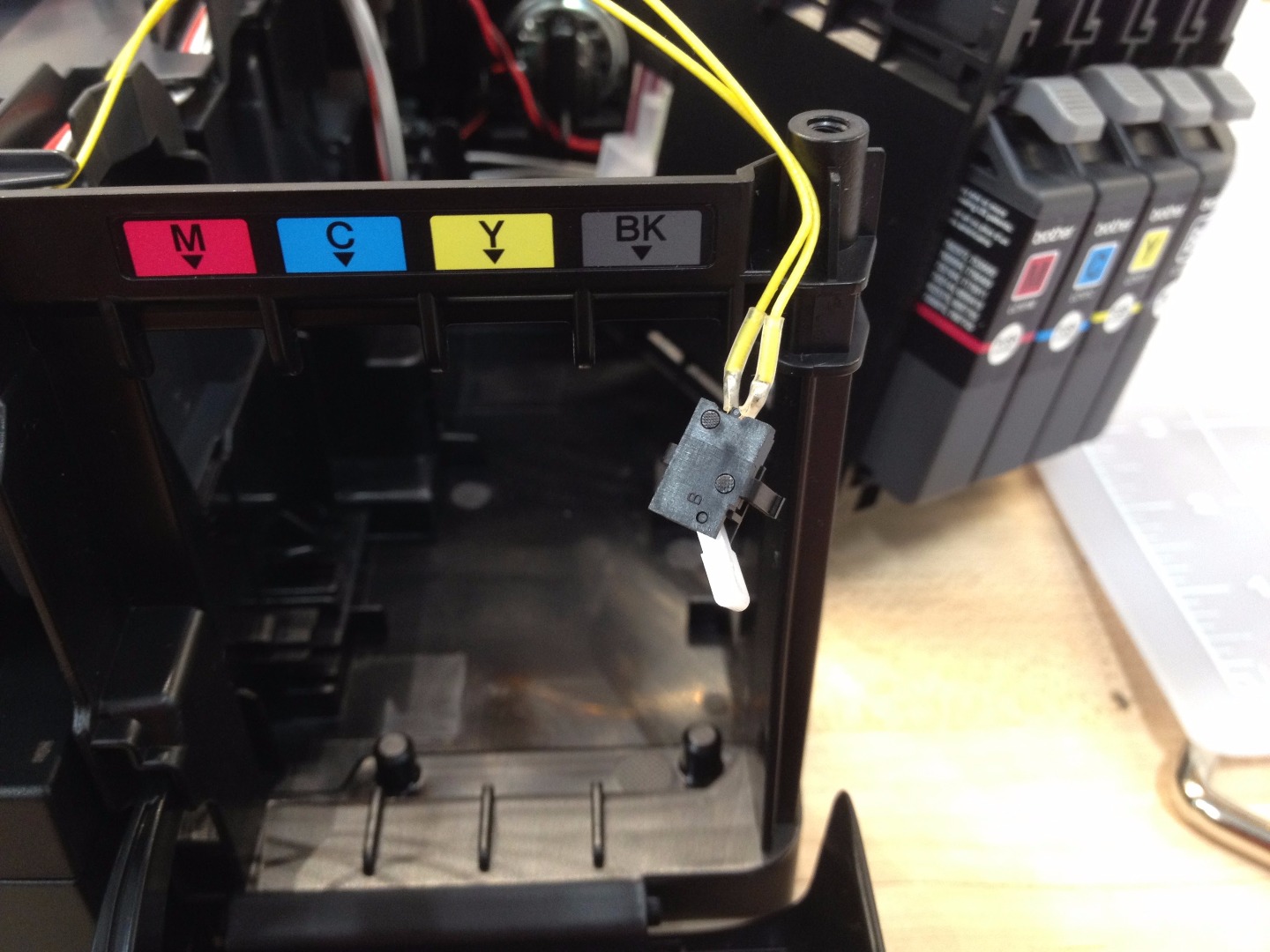

Had to tape down the safety switches to make the printer think all the covers were closed (the covers were removed entirely).

Starting Up the Printer


Started up the printer and it started cleaning the print heads automatically. After that was done, it was ready to print.

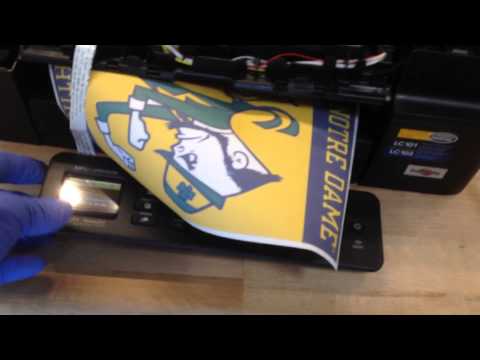

Test Print

Disassembled Printer Test

Ran a test print.

PCB Wires

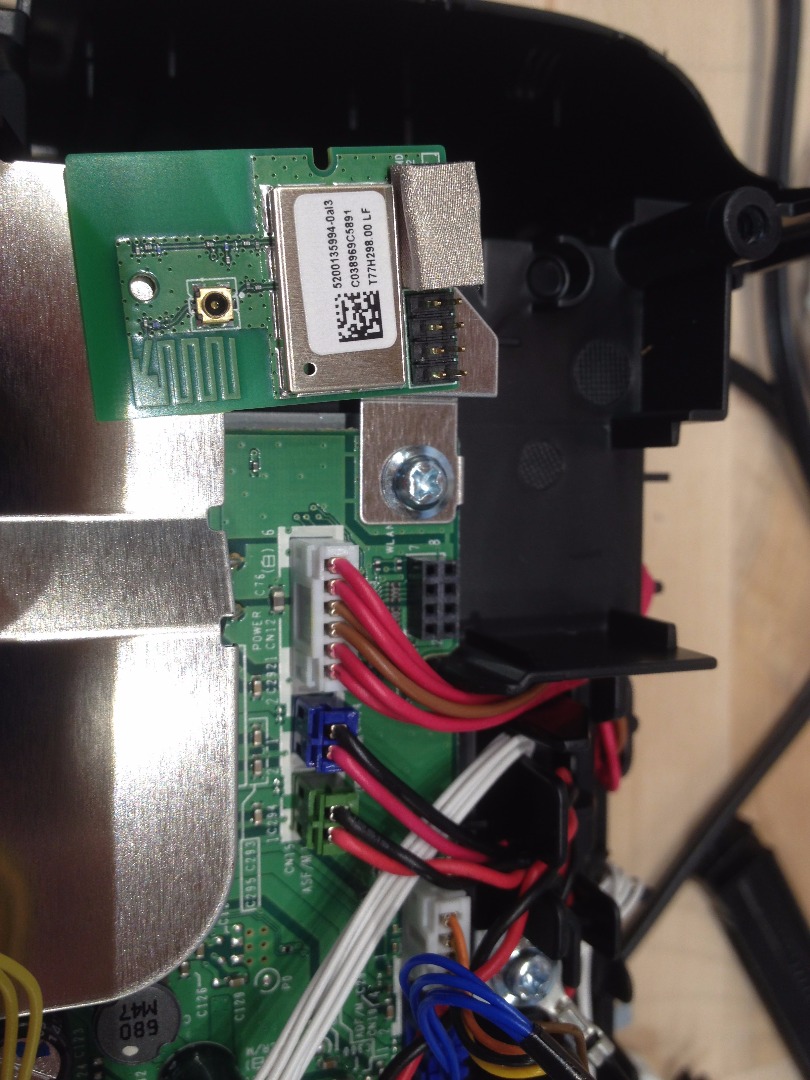

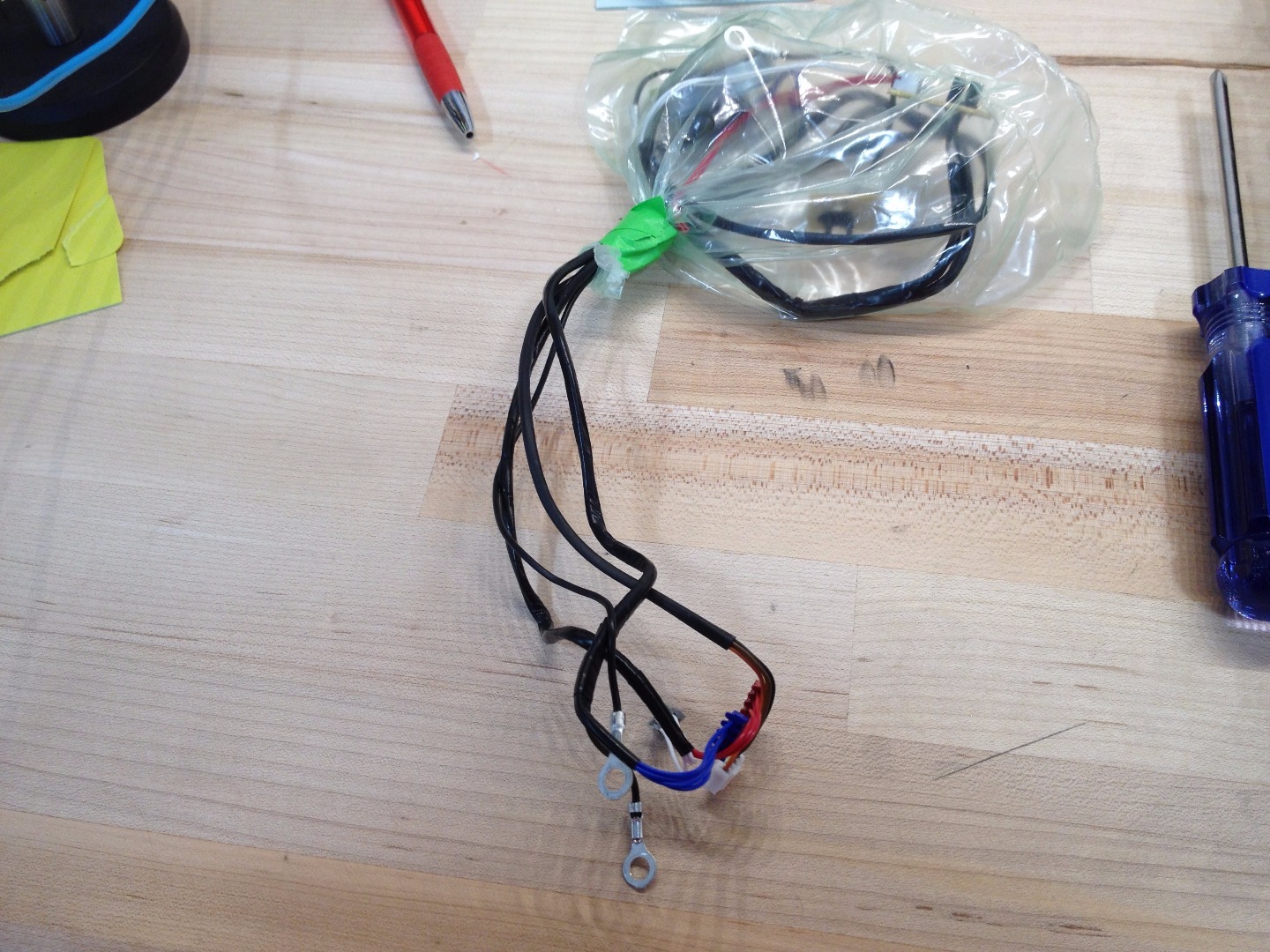

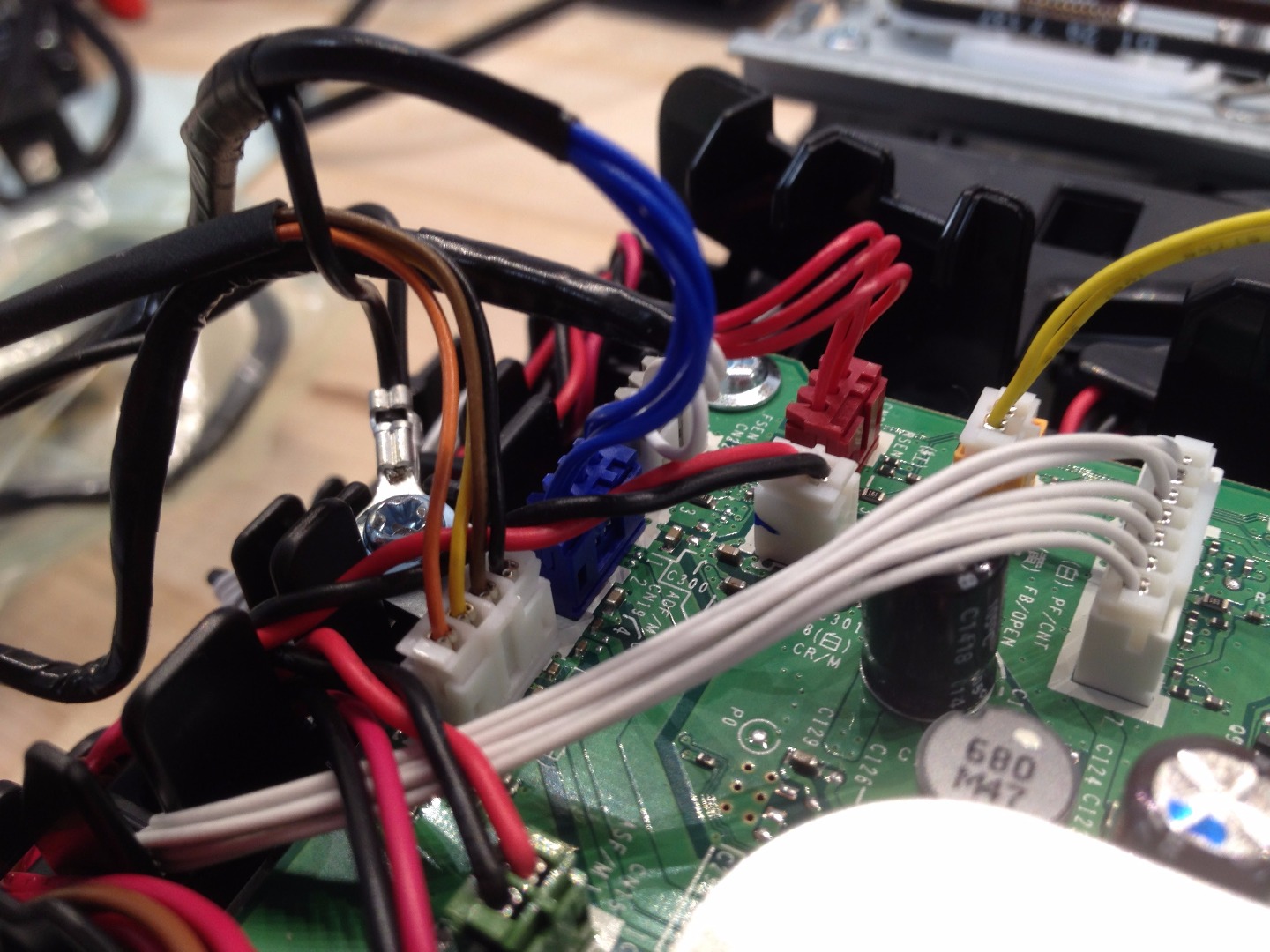

The first part of this tutorial was to show that you can remove the scanner and fax and still have a working computer. The second part will show the complete tare down of the printer. This begins by removing the wires attached to the PCB.

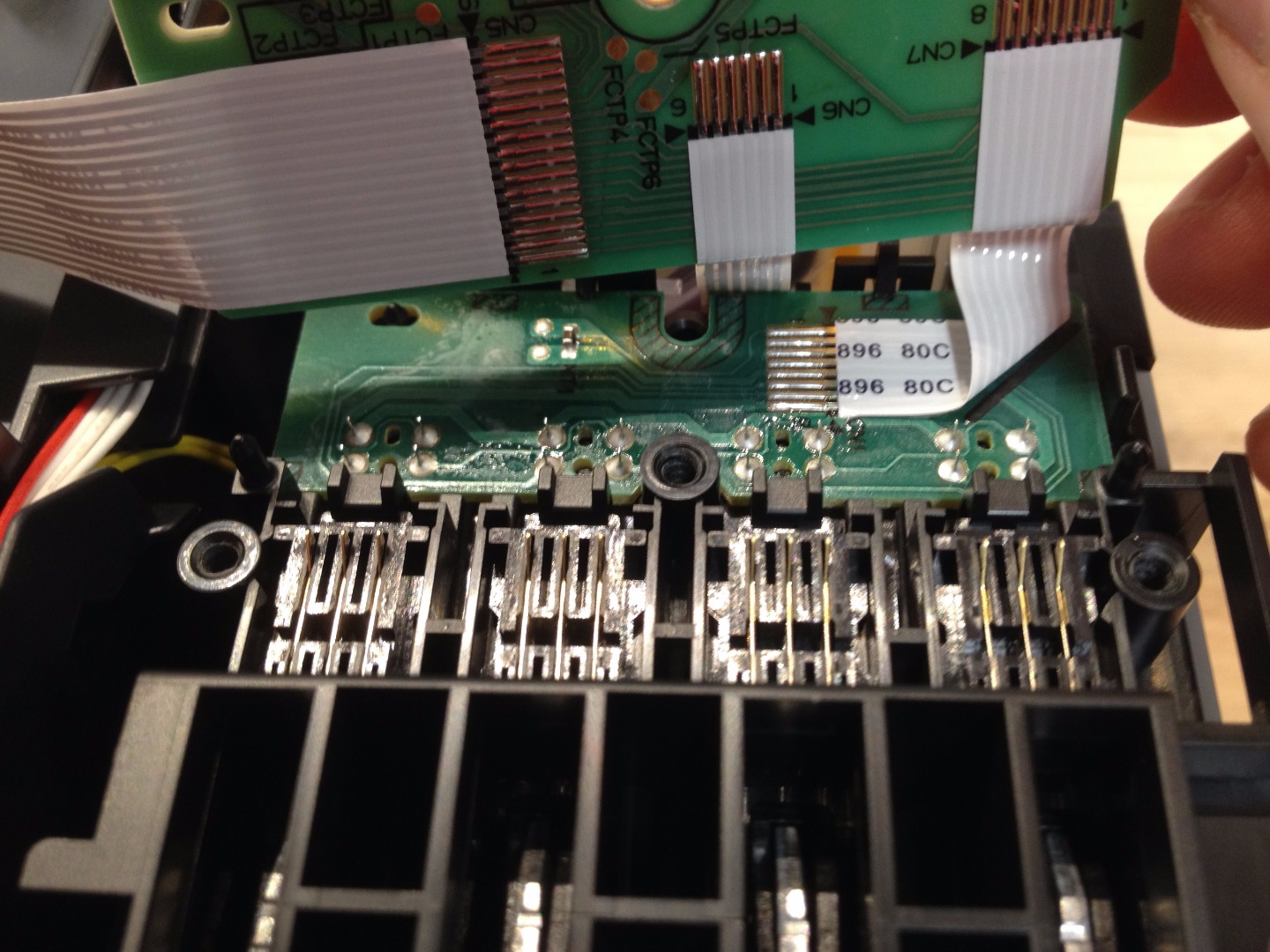

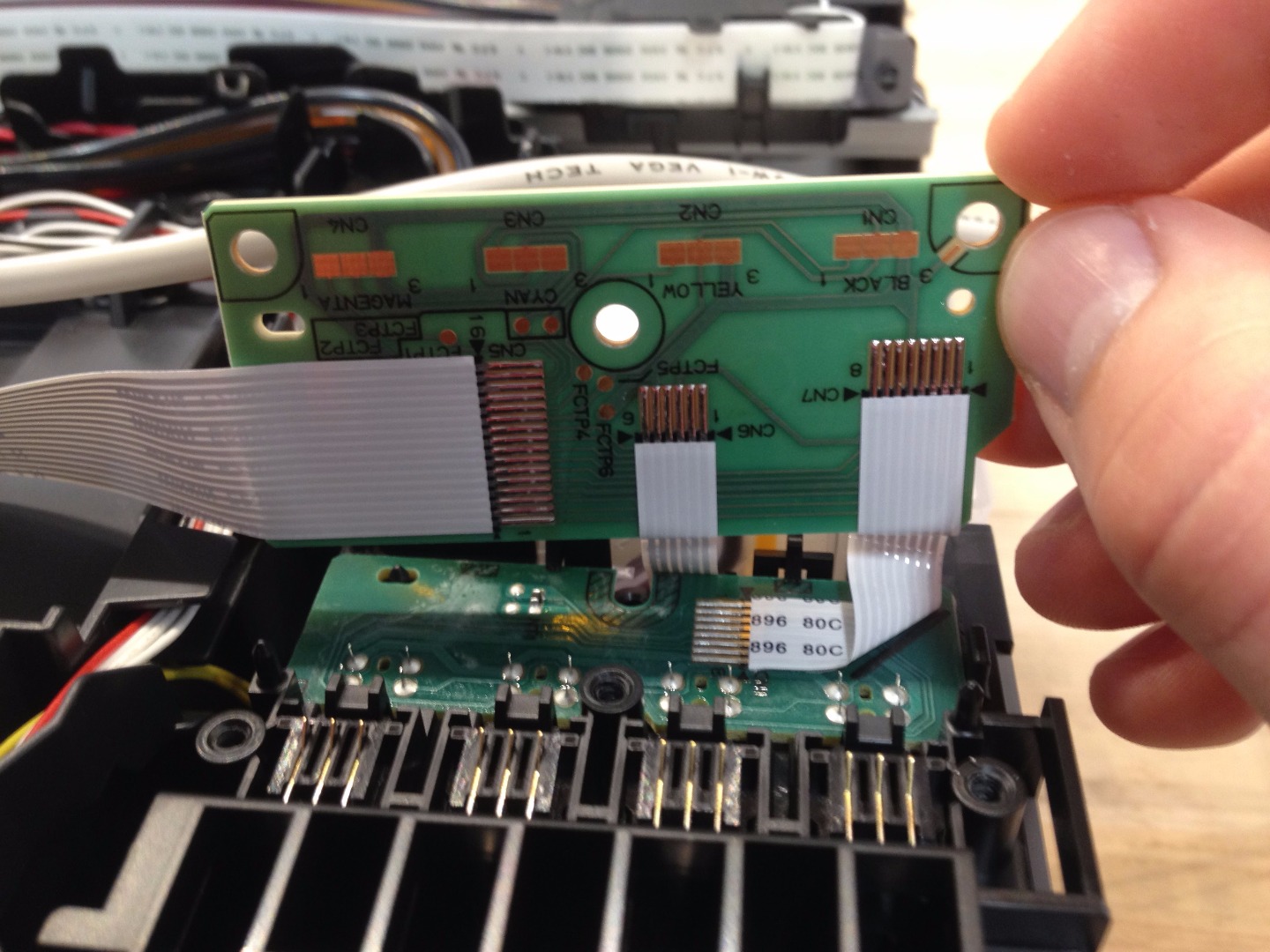

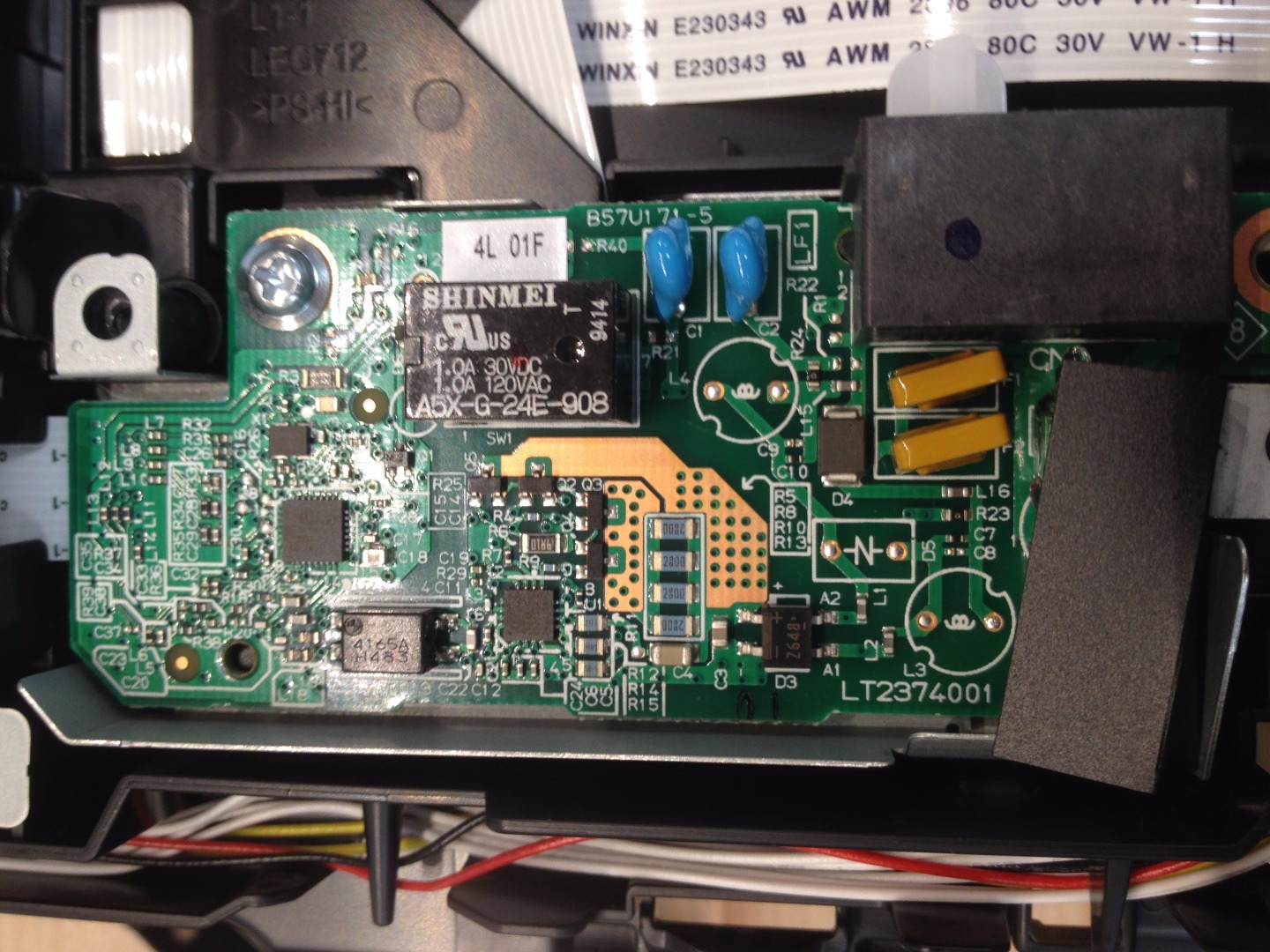

LAN and Ink Cartridge PCB

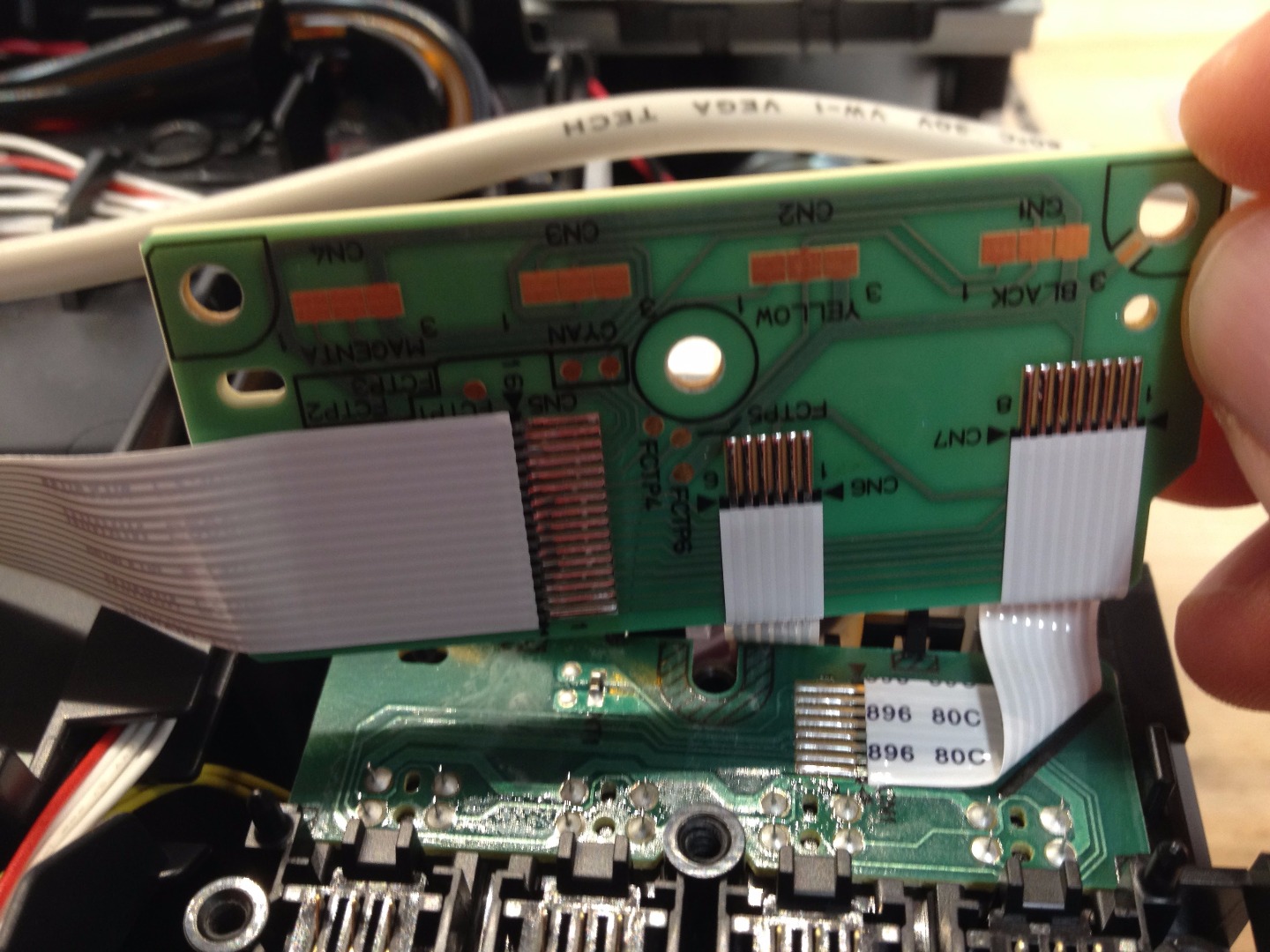

Removing the PCB for the LAN connection and ink readings.

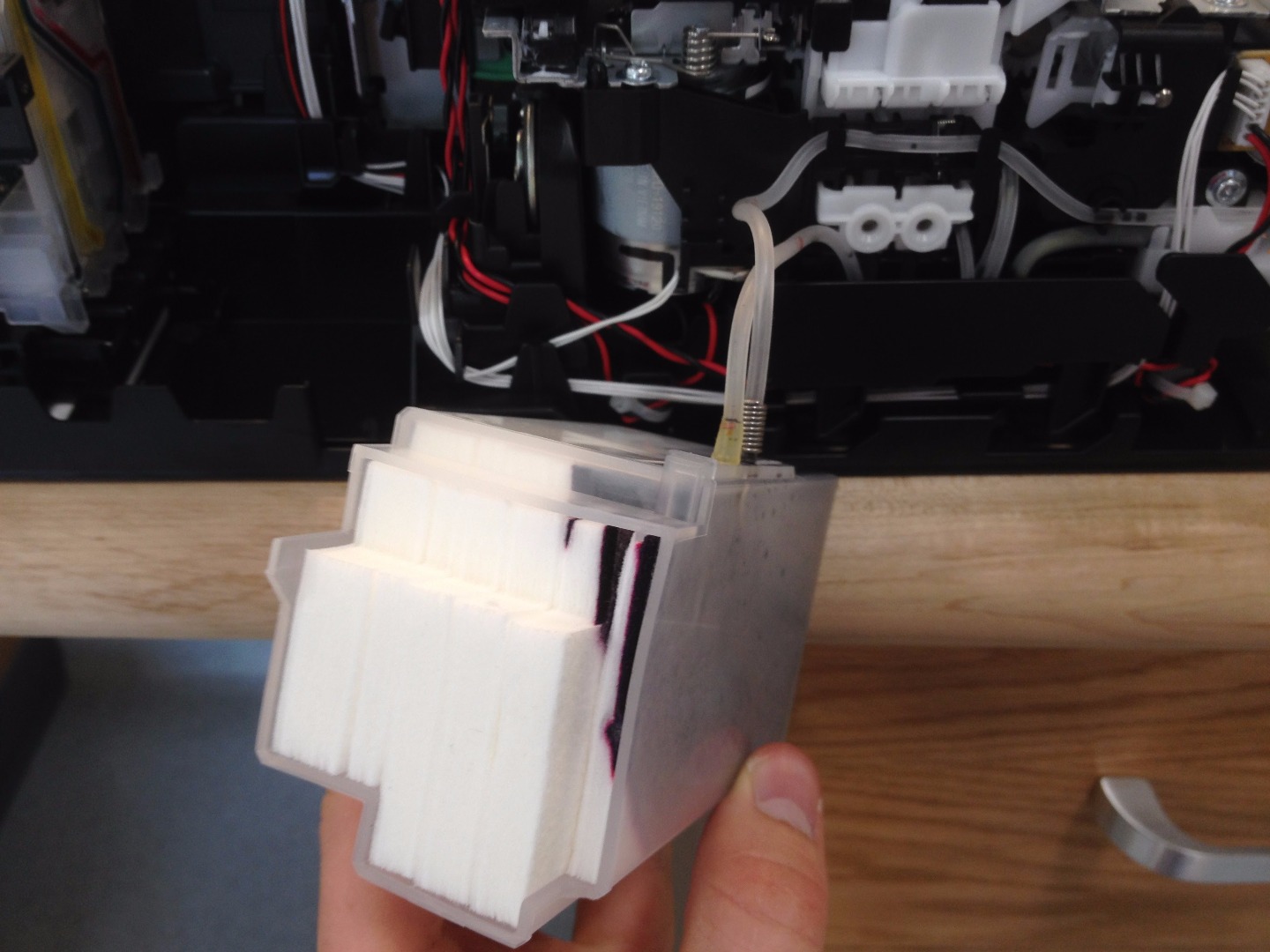

Ink Housing

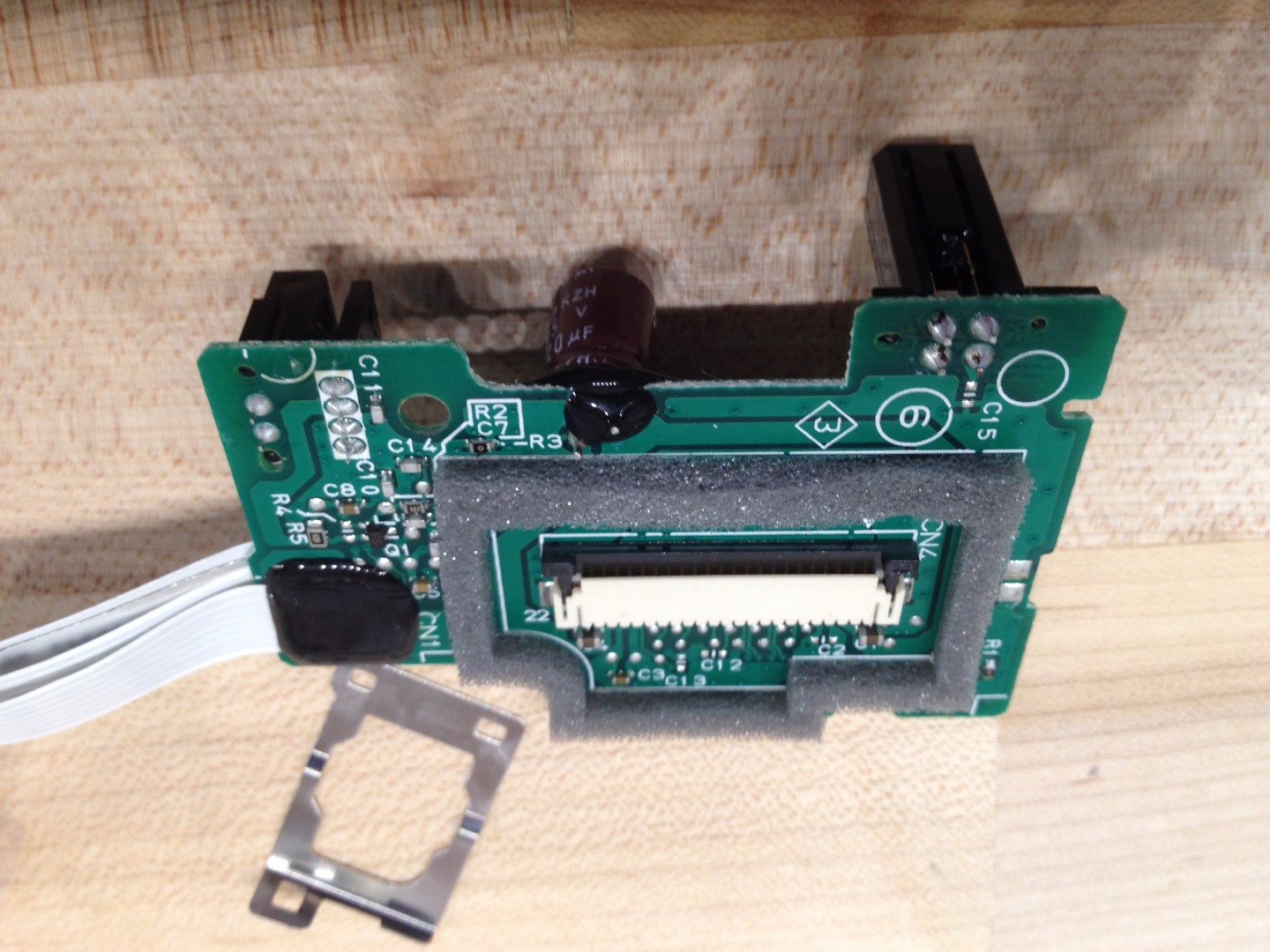

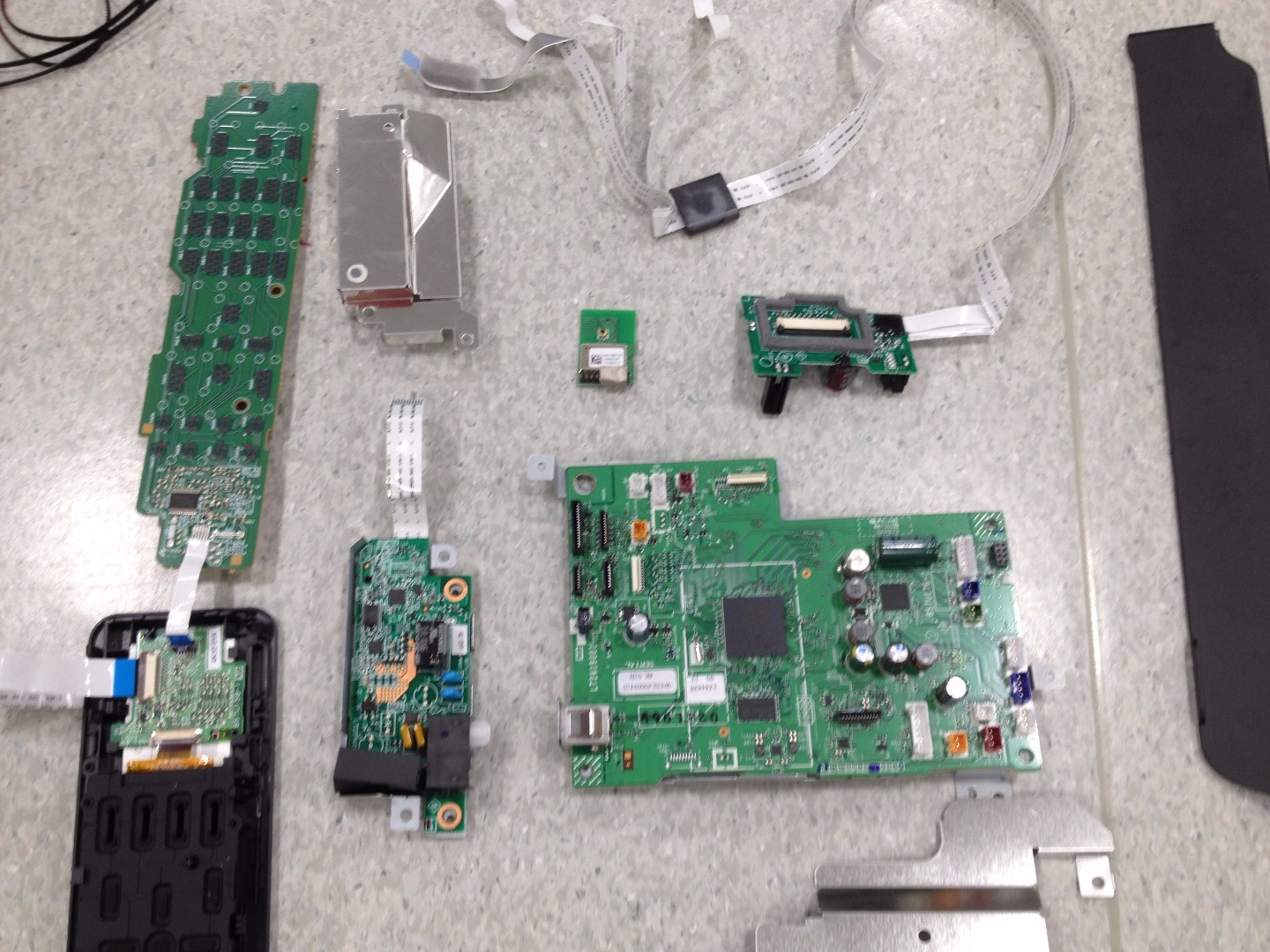

Main PCB

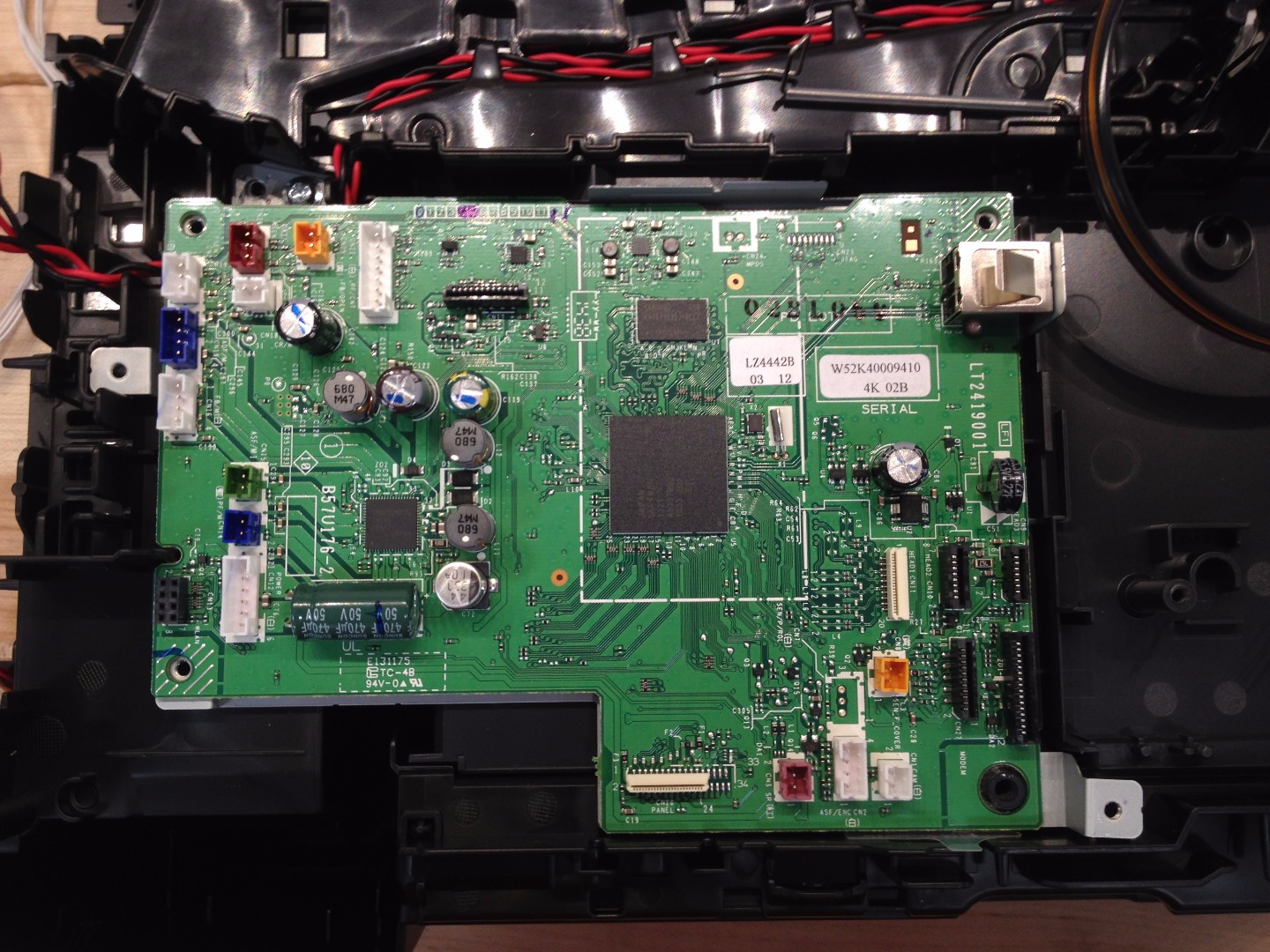

Removed the main PCB

Reveal the Print Head


Printer Speaker

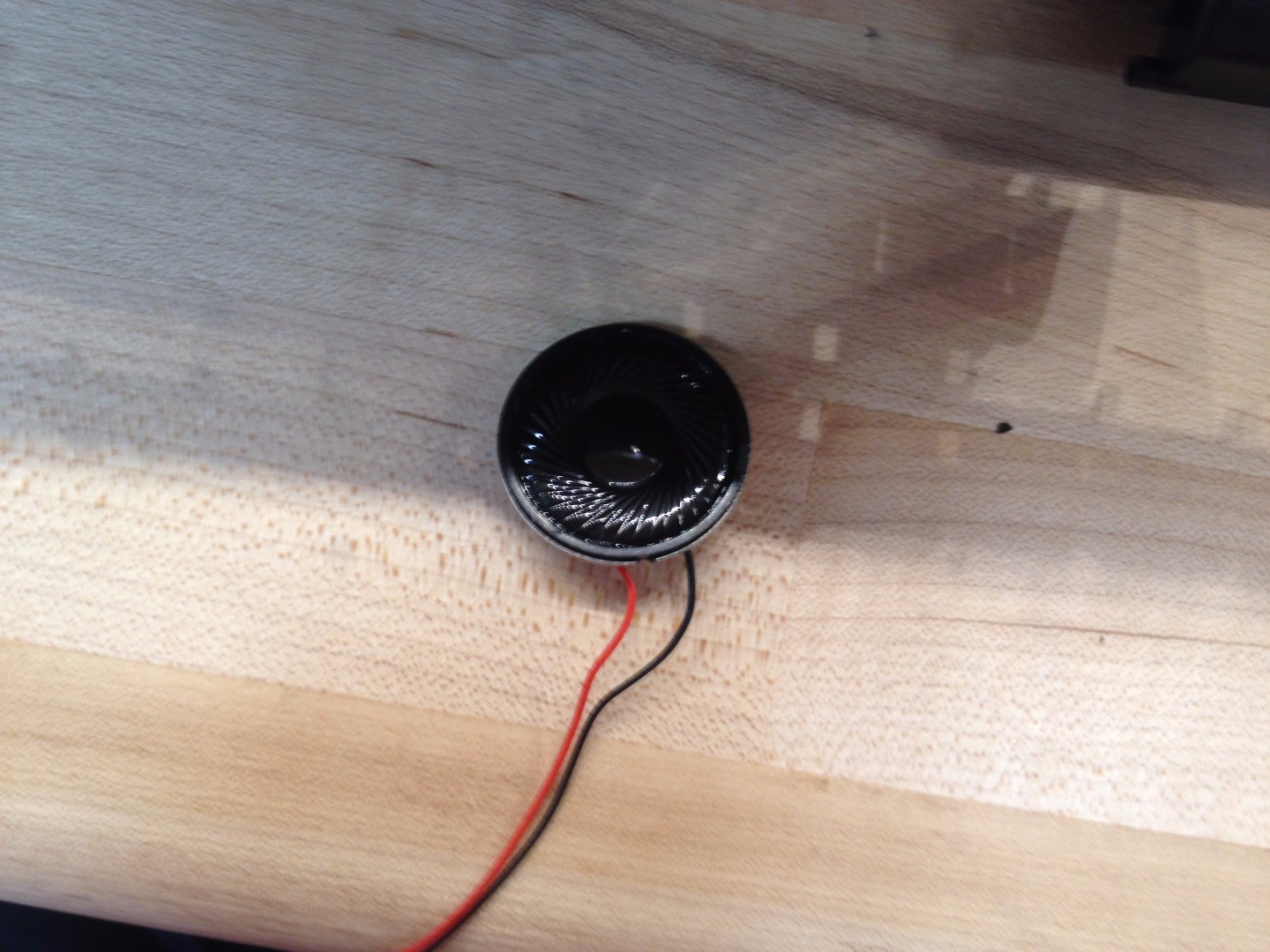

Removed the printers speaker. It has a very strong magnet built in.

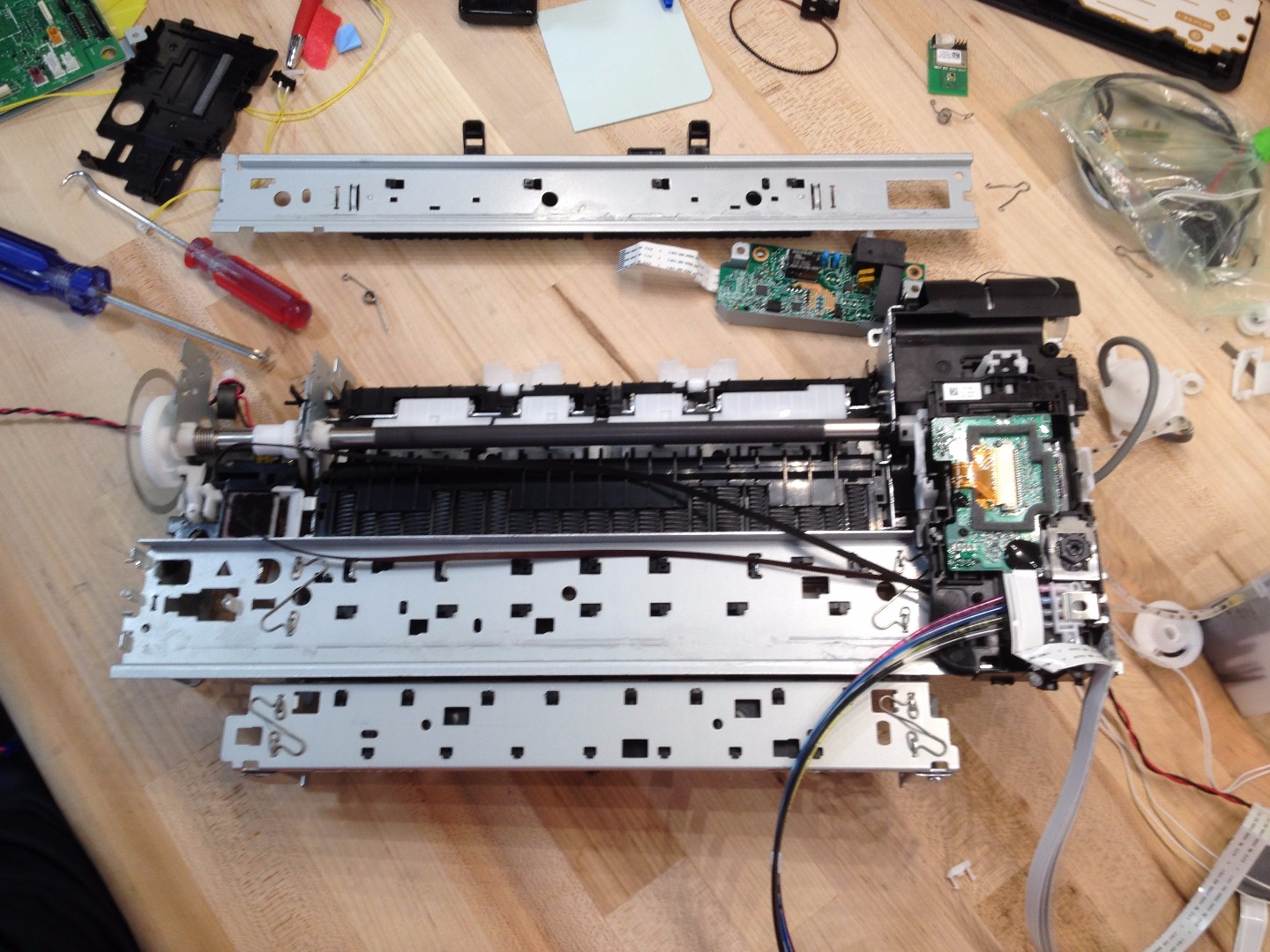

Chassis Separation

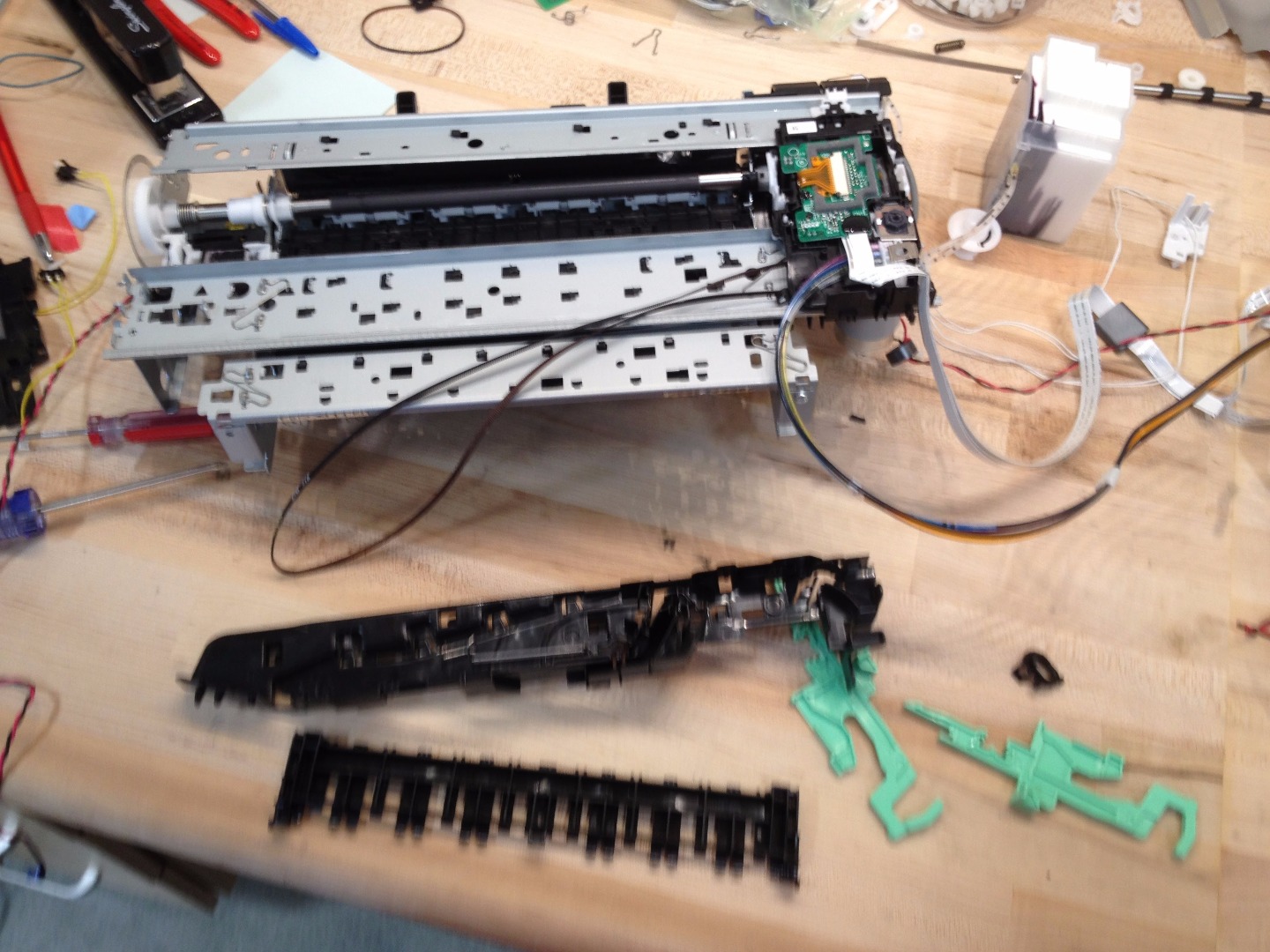

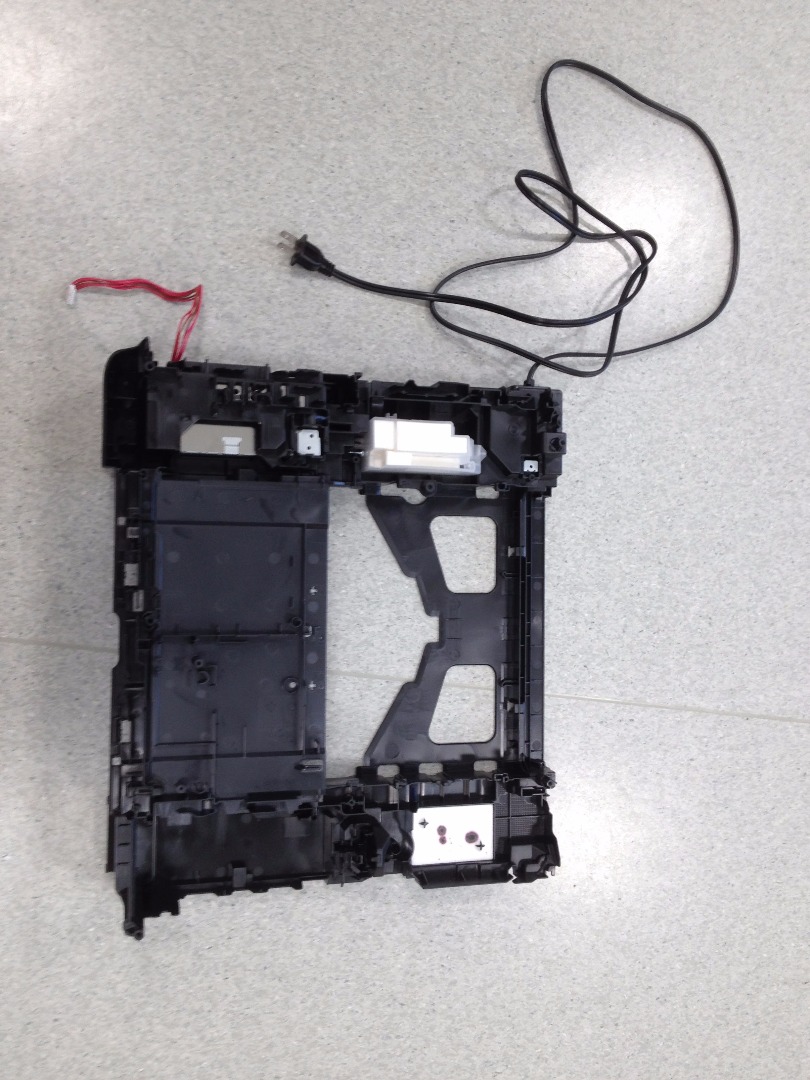

Separated the chassis from the parts responsible for printing.

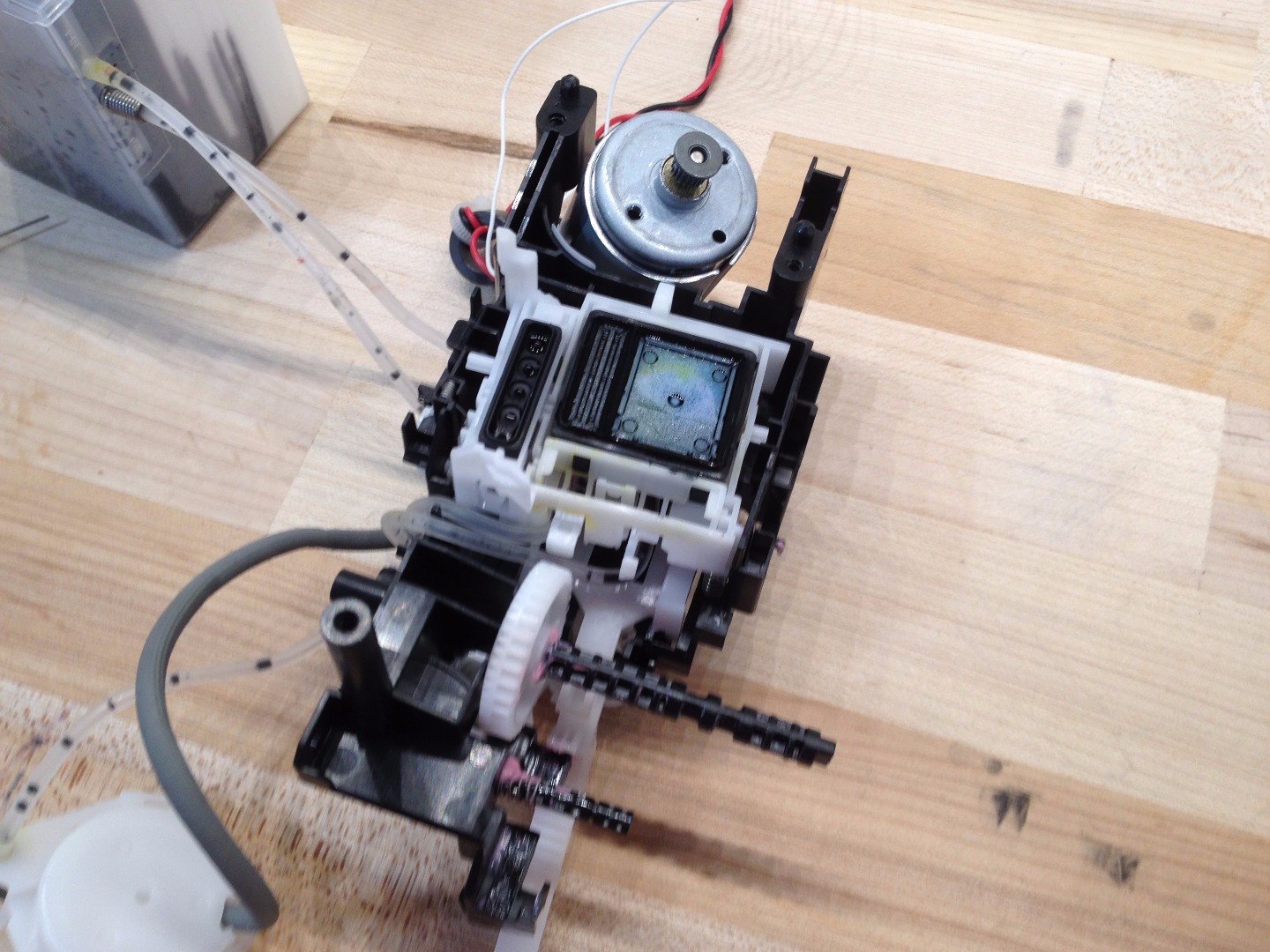

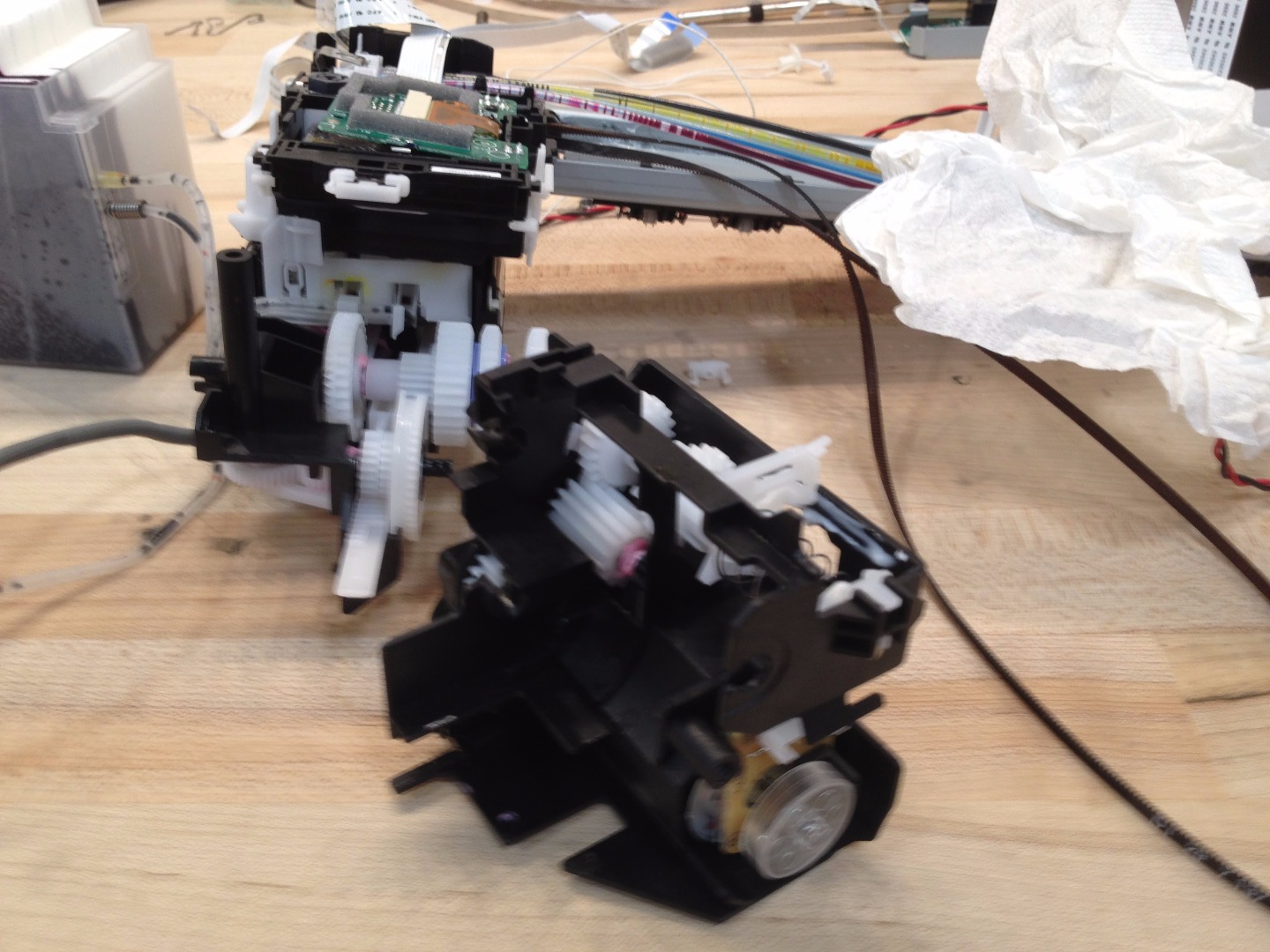

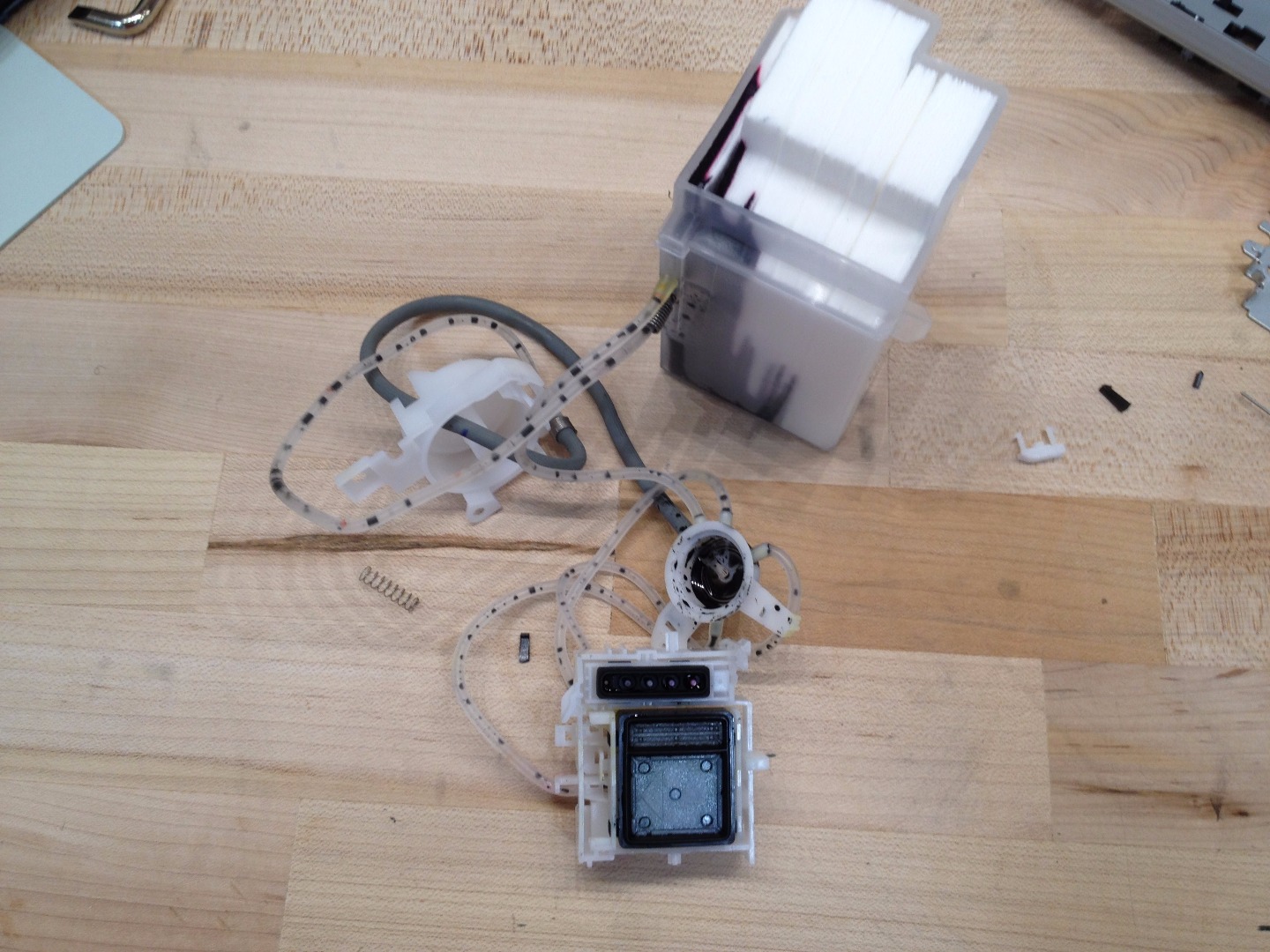

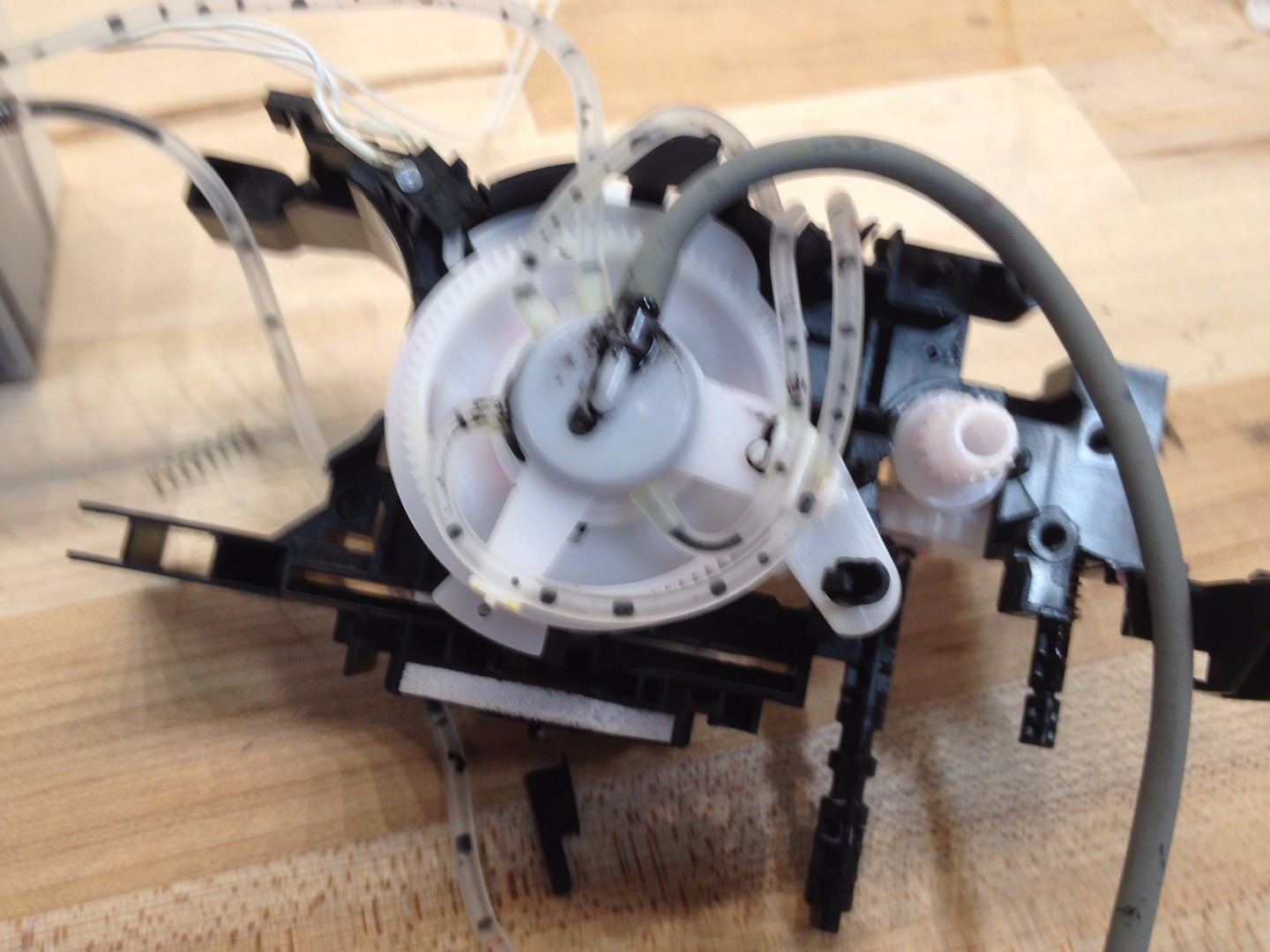

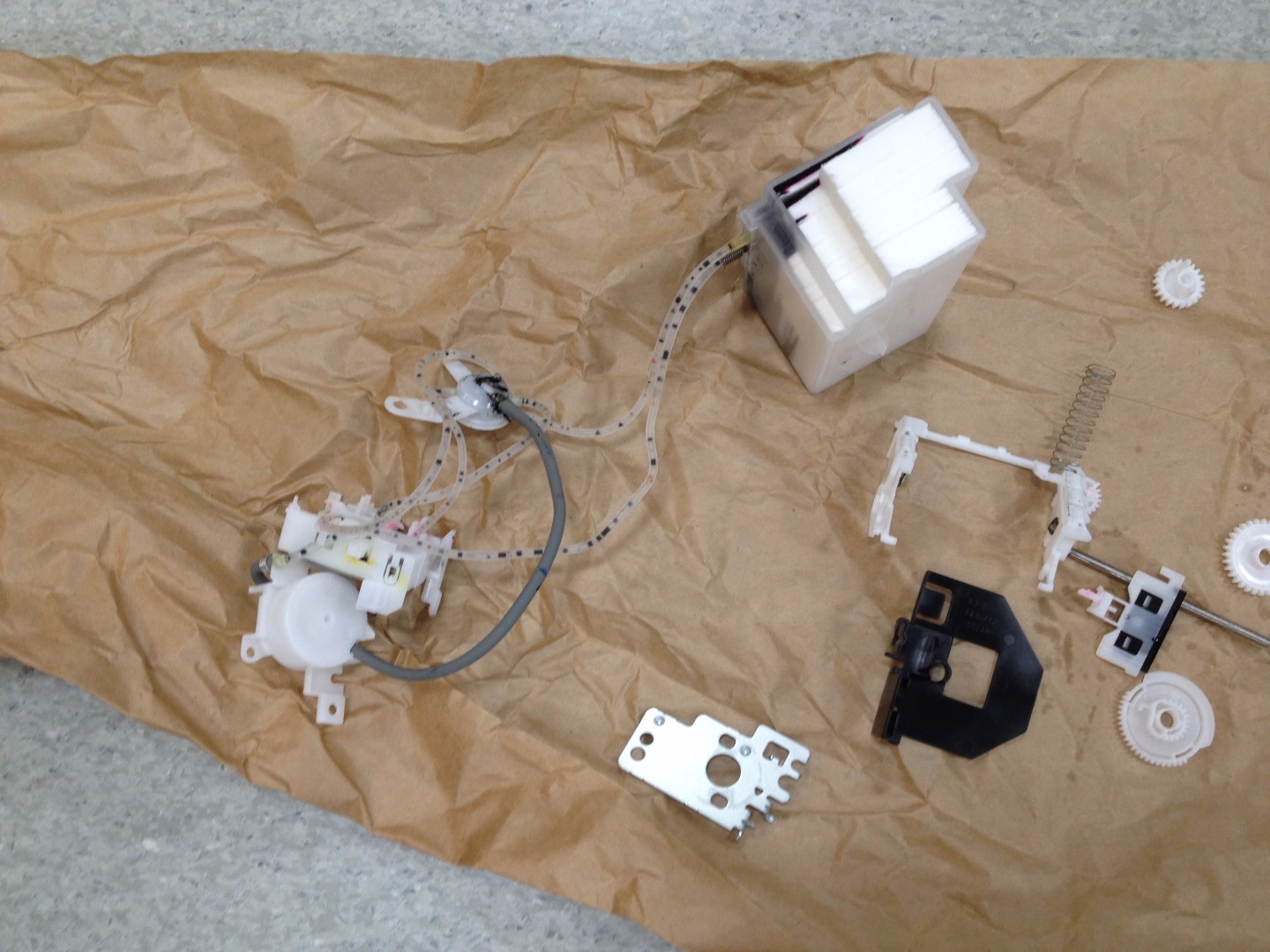

Ink Pumps


Begin to remove the ink pumps

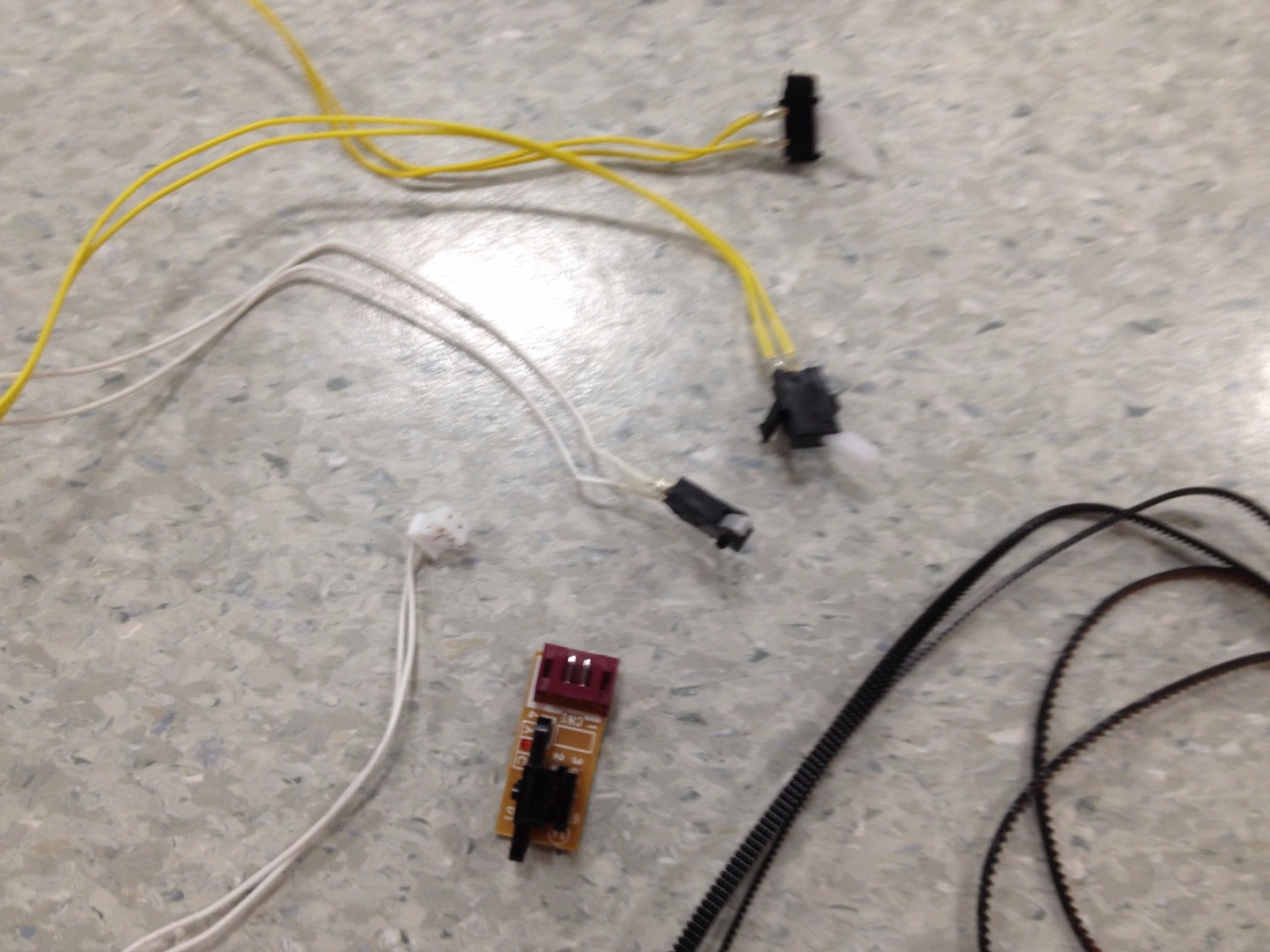

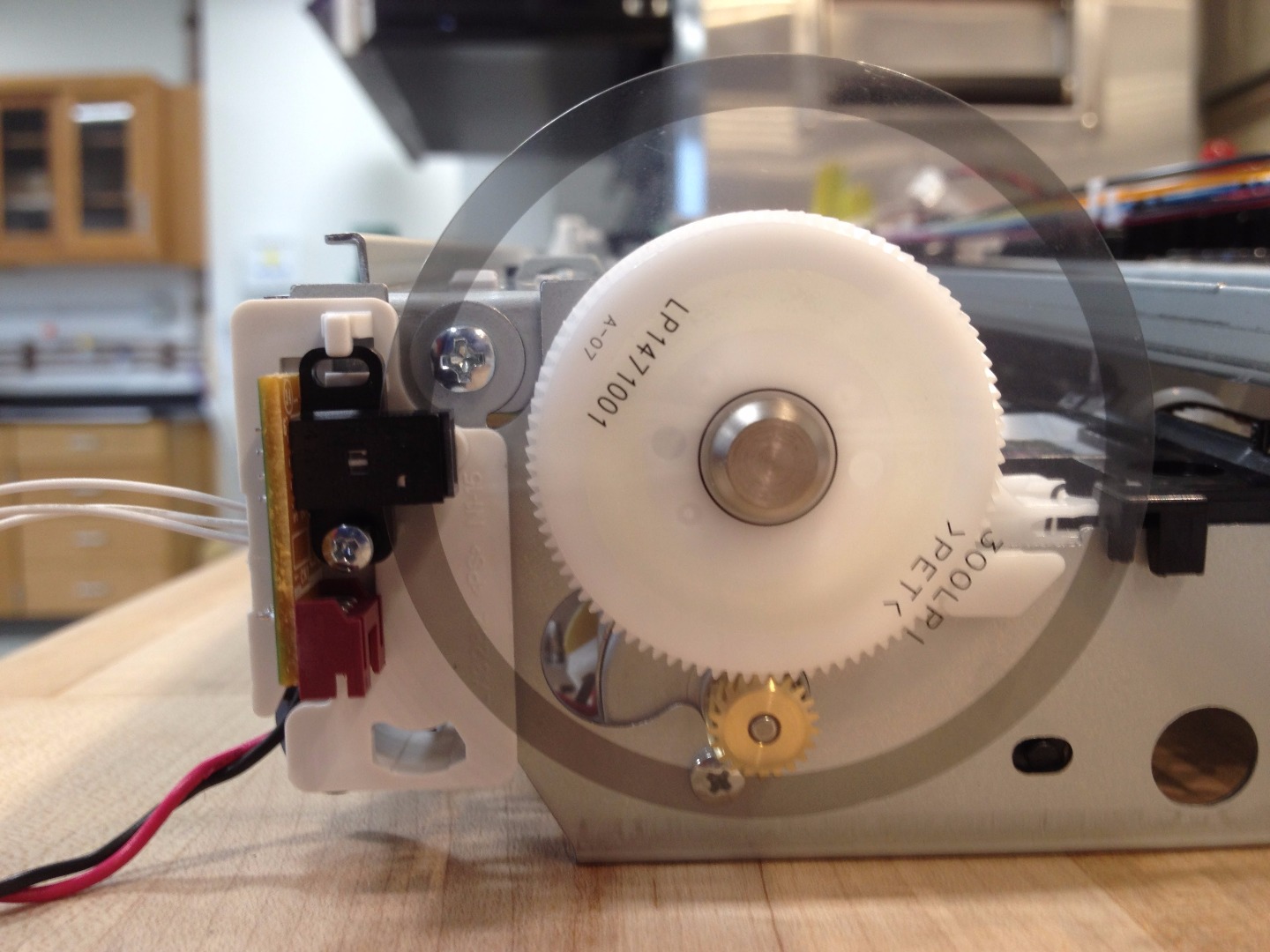

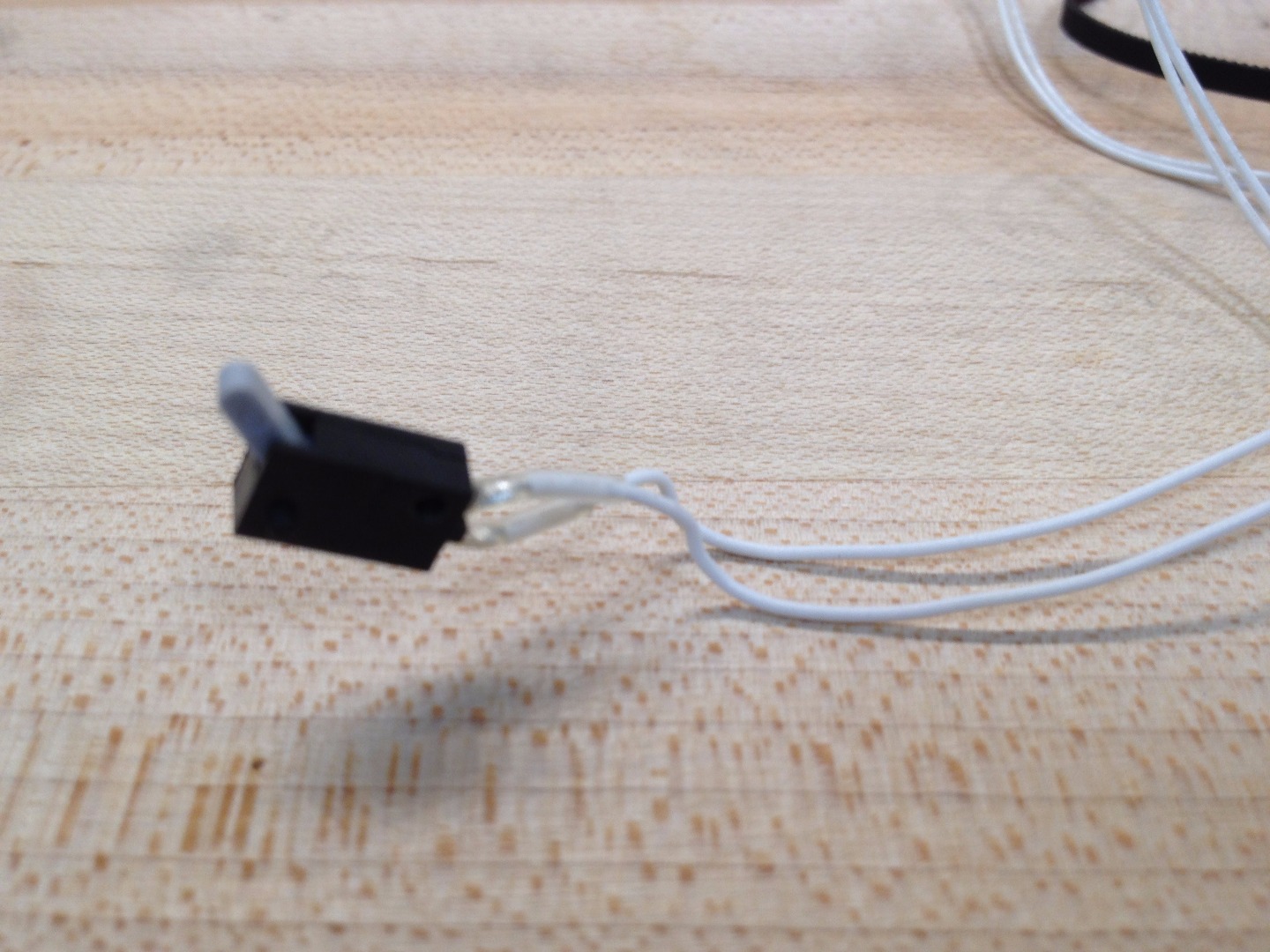

Encoder

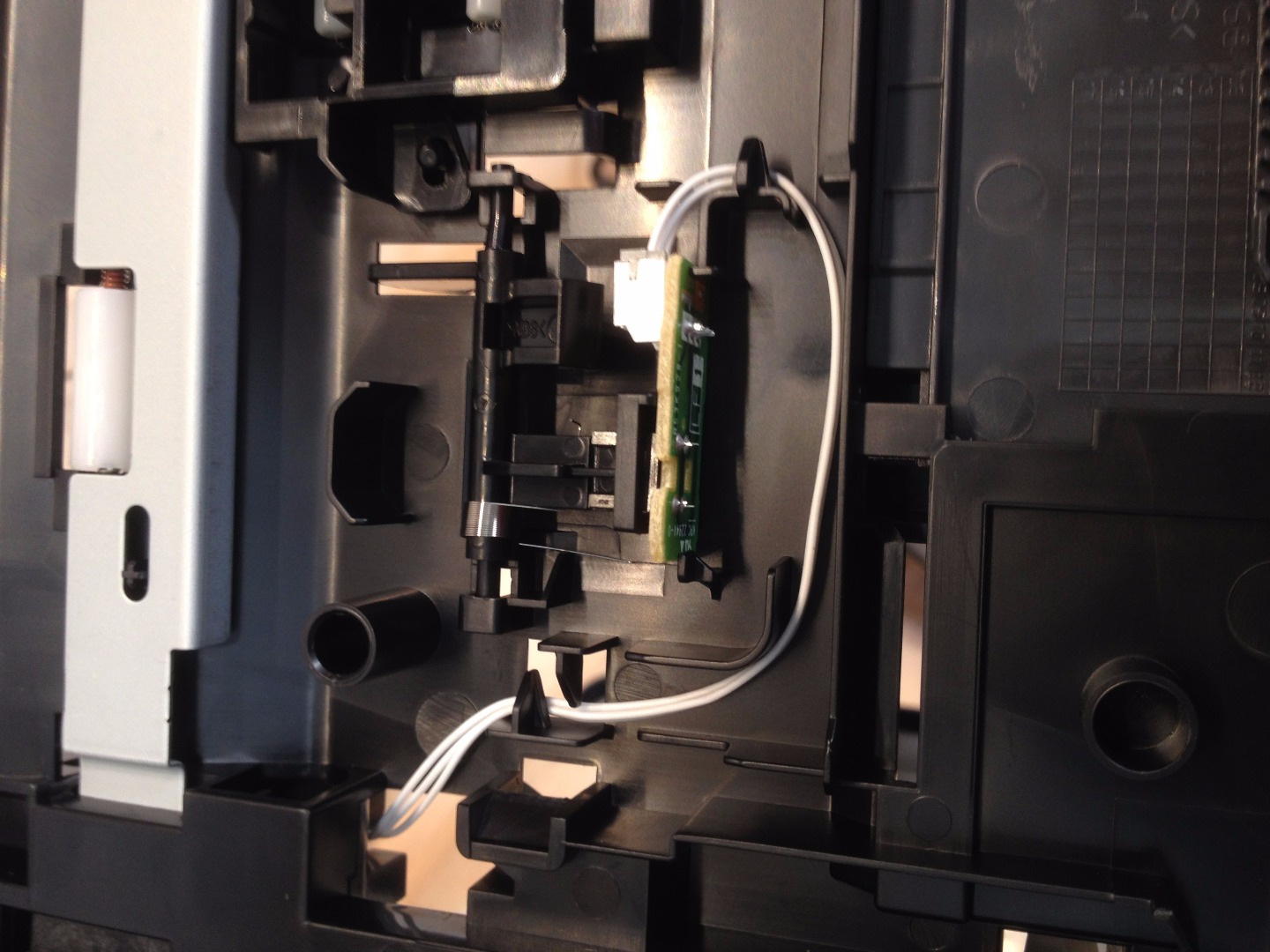

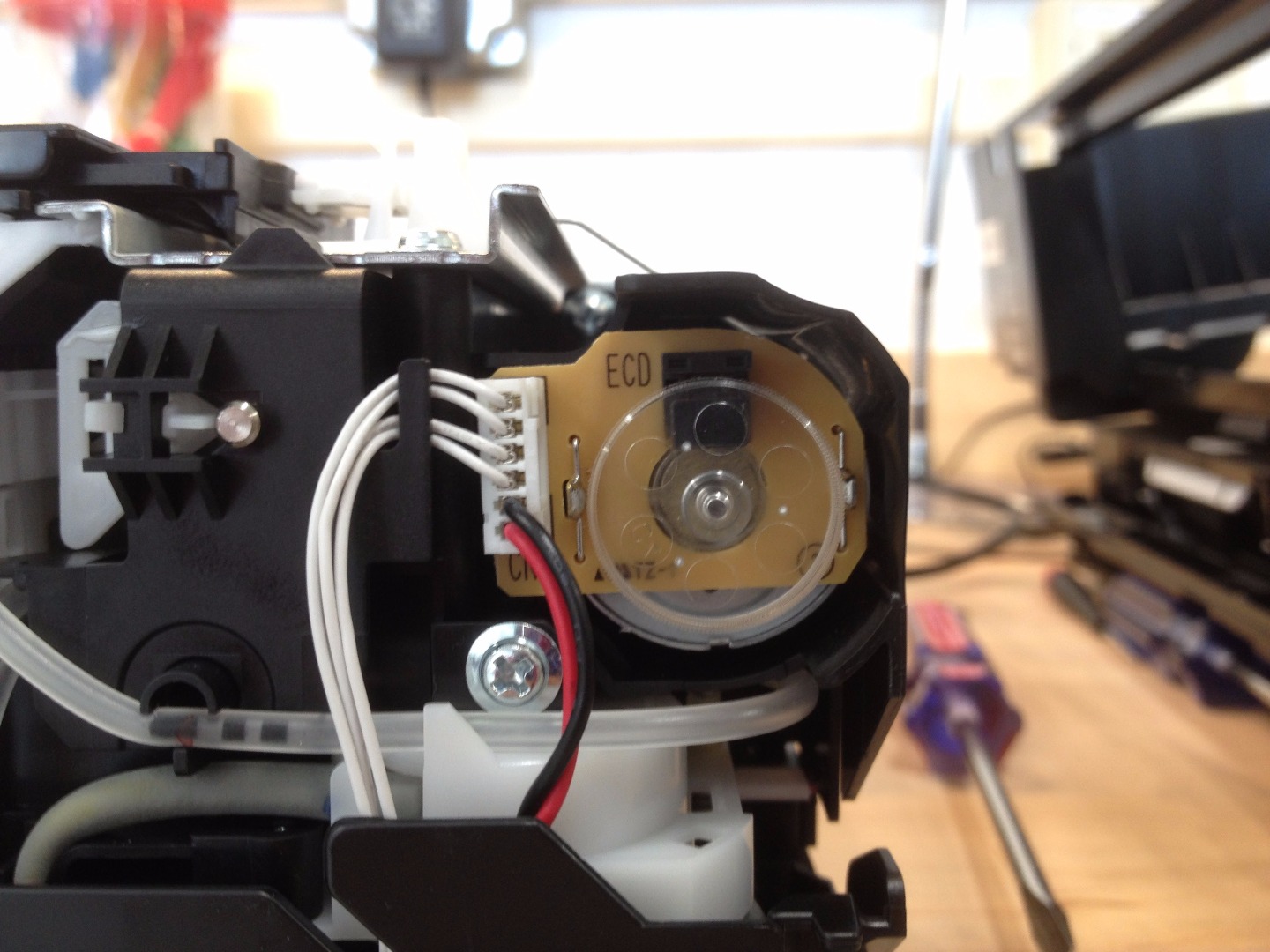

Found a small encoder.

More Framework Removed


Paper Tray Motor


Removing Bulk


Removed Motor

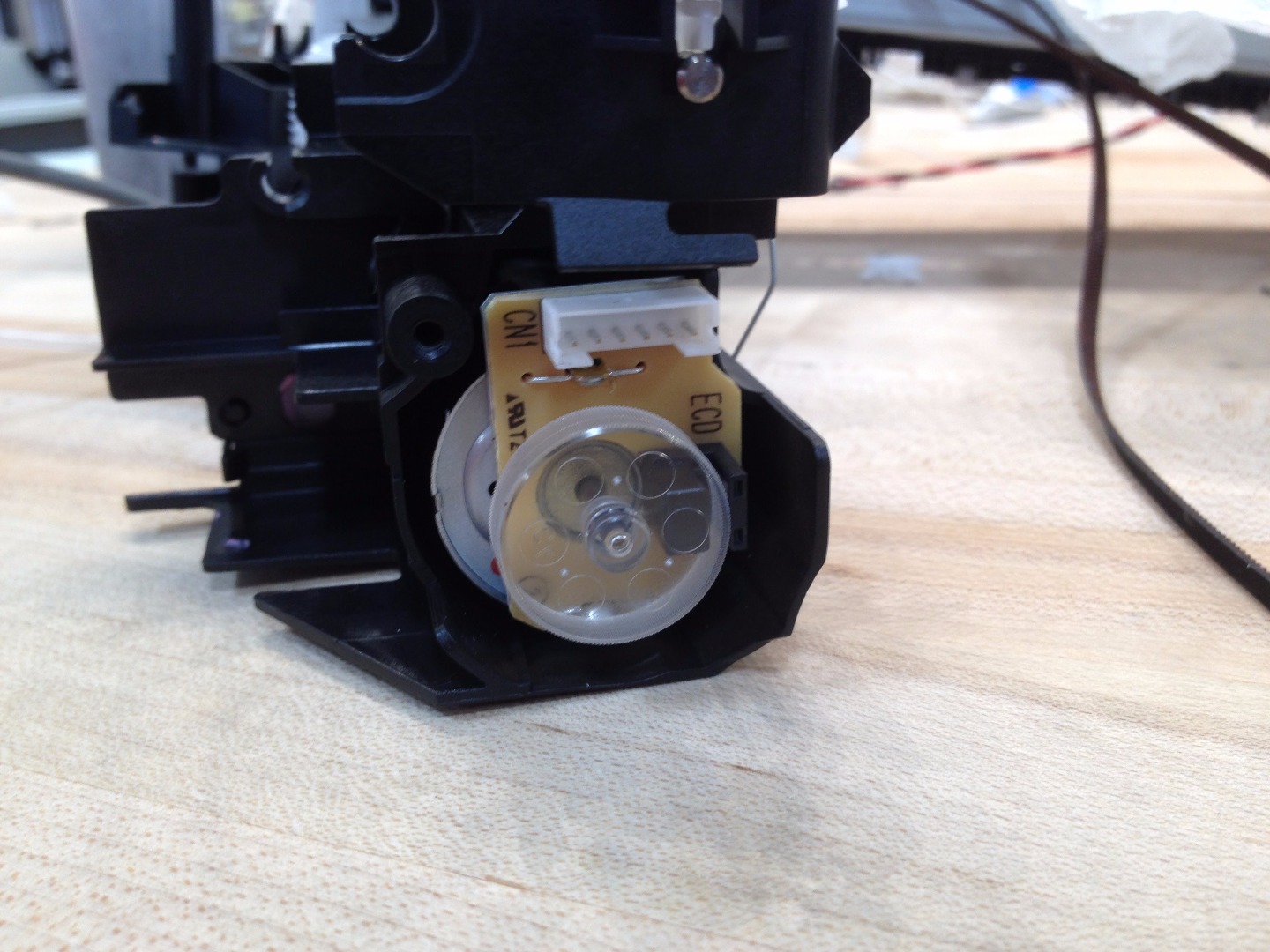

This motor has an attached encoder.

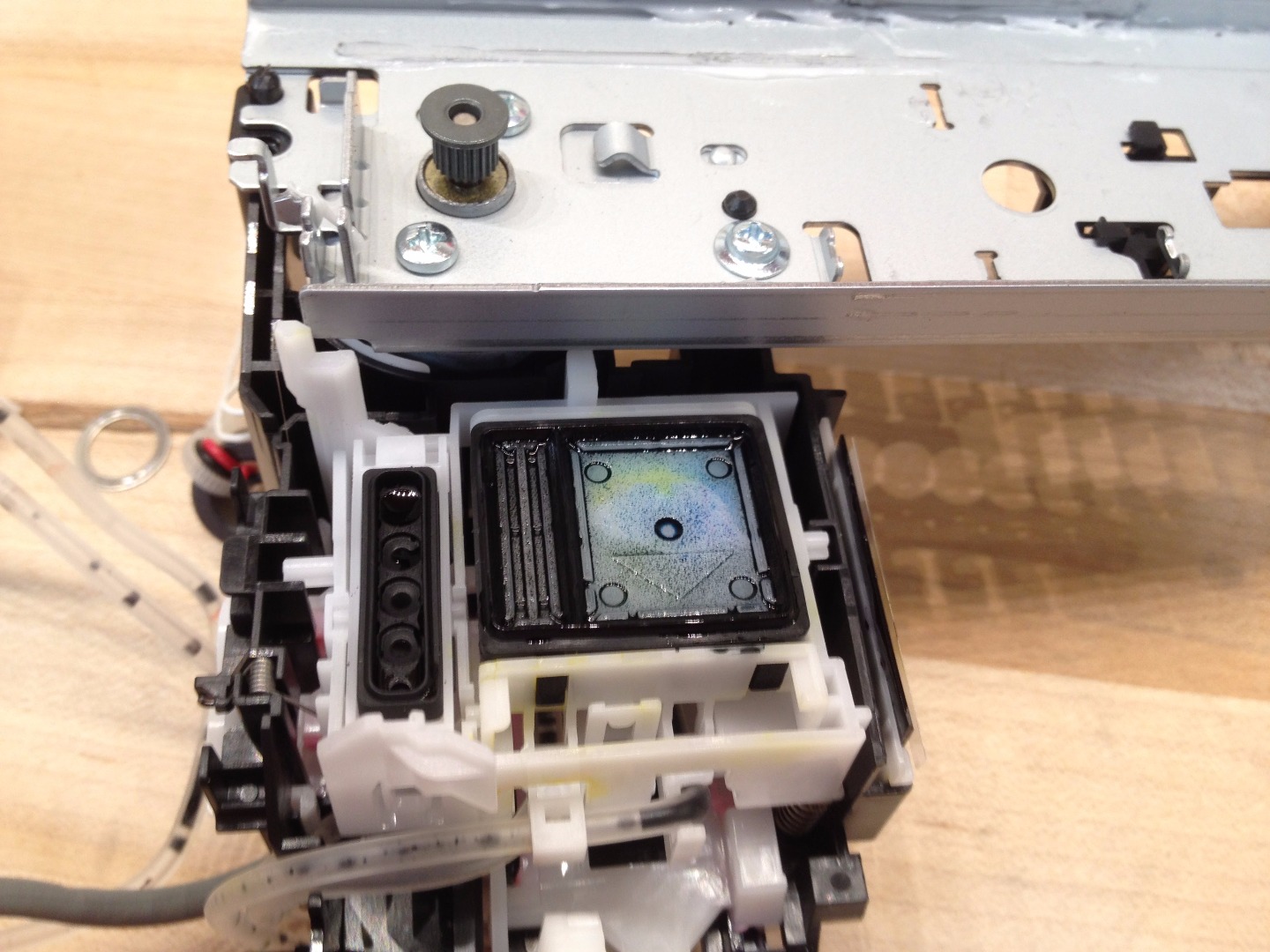

Uncovering the Print Head

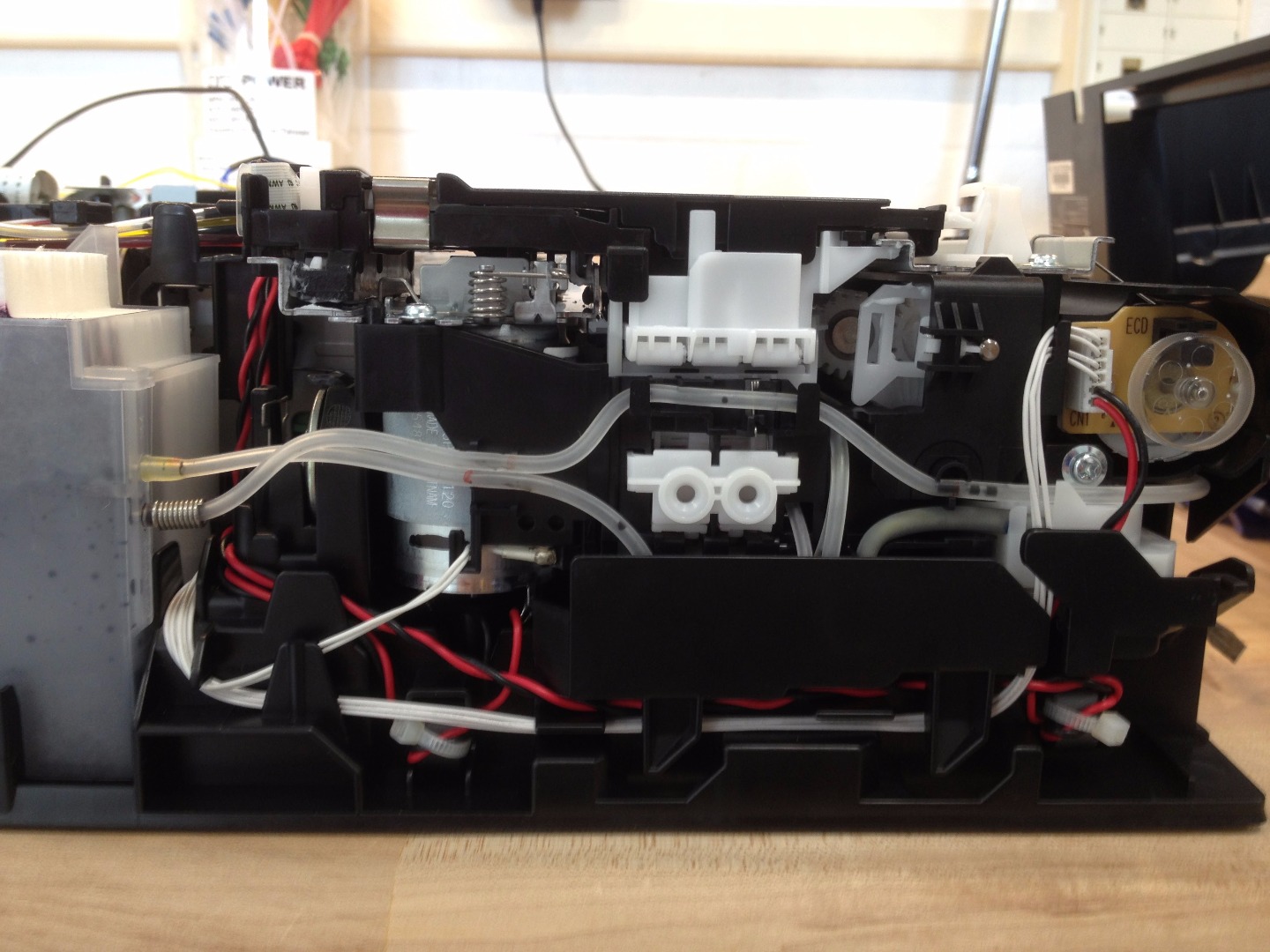

Ink Pumping System

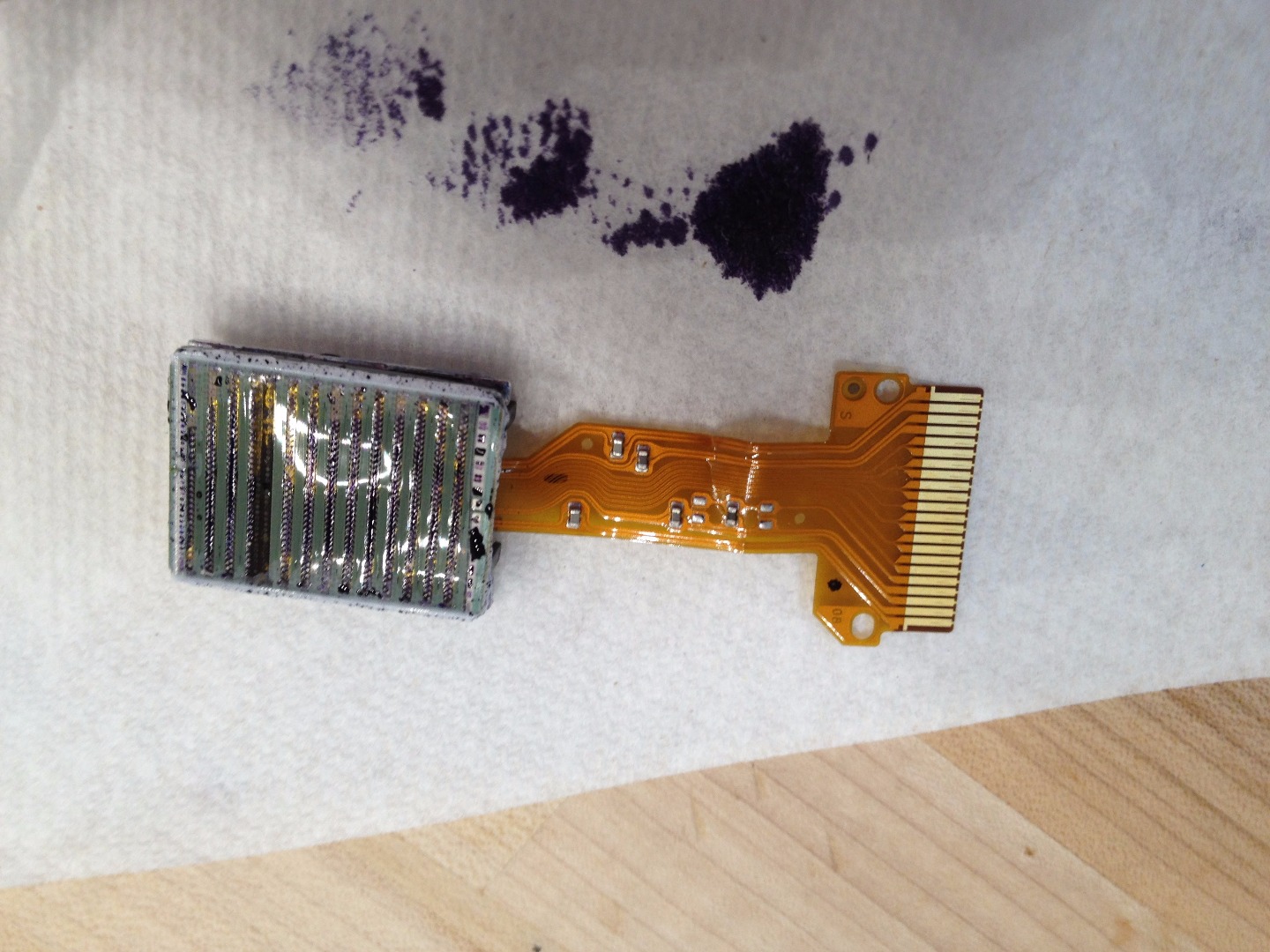

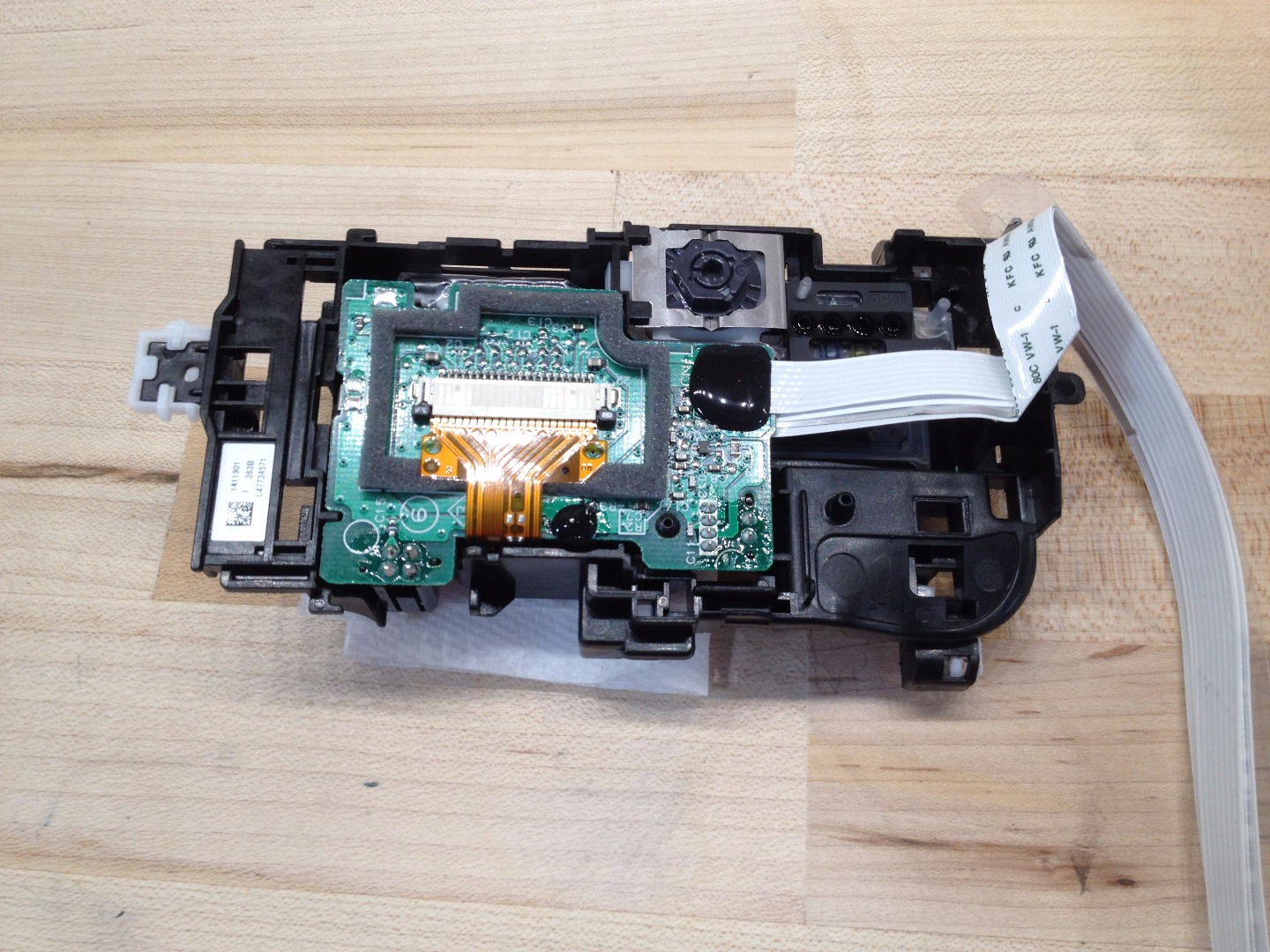

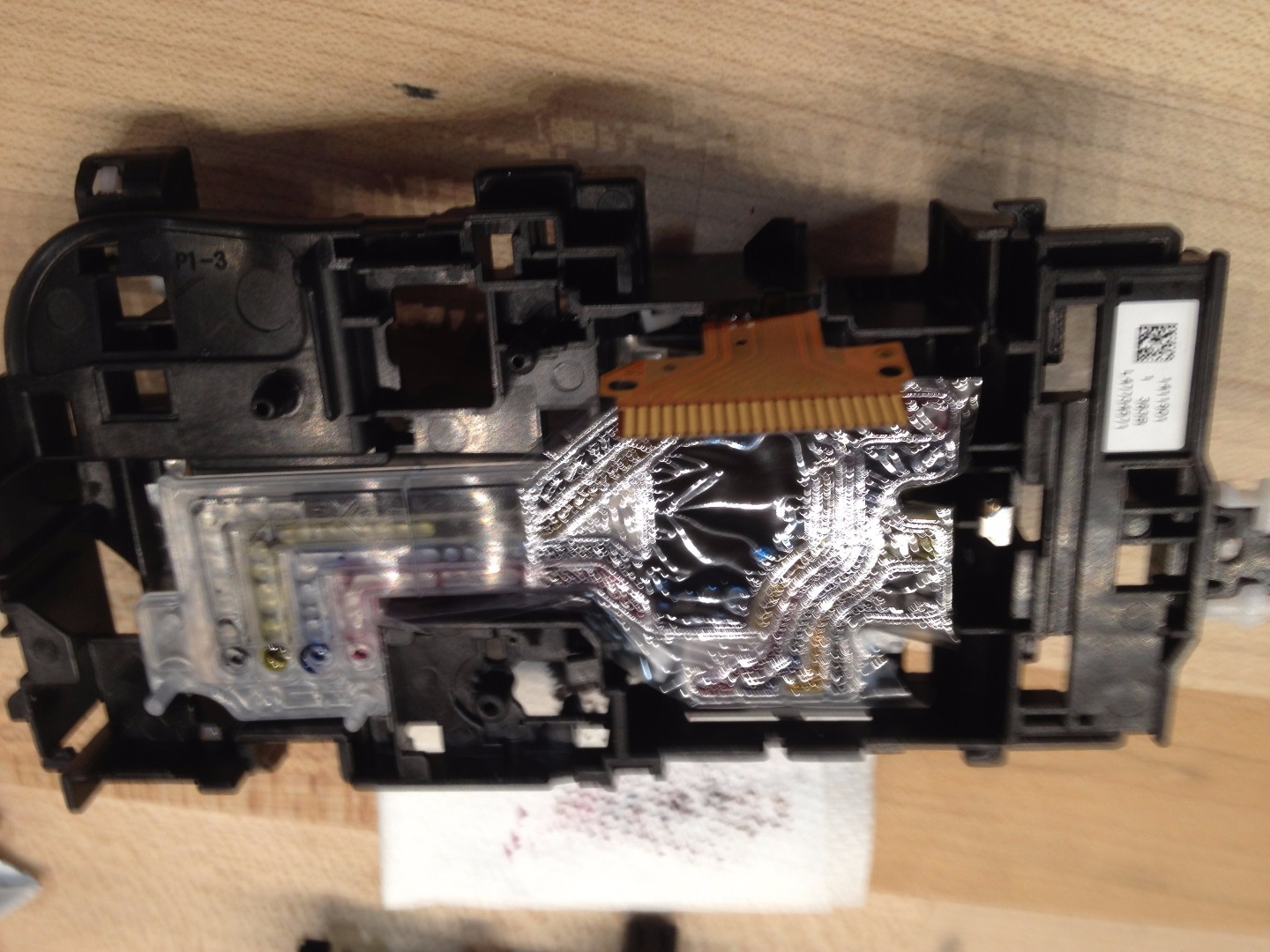

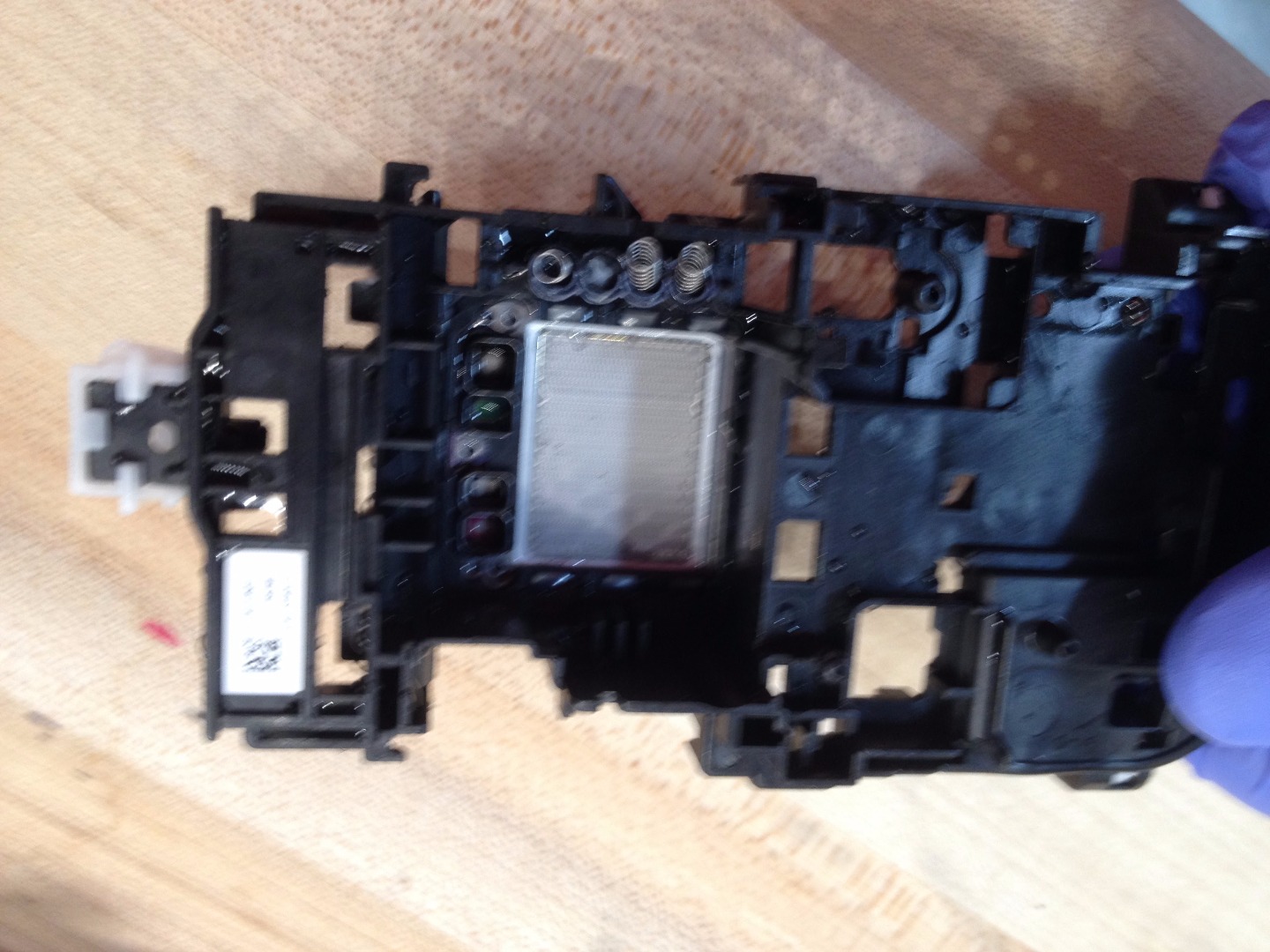

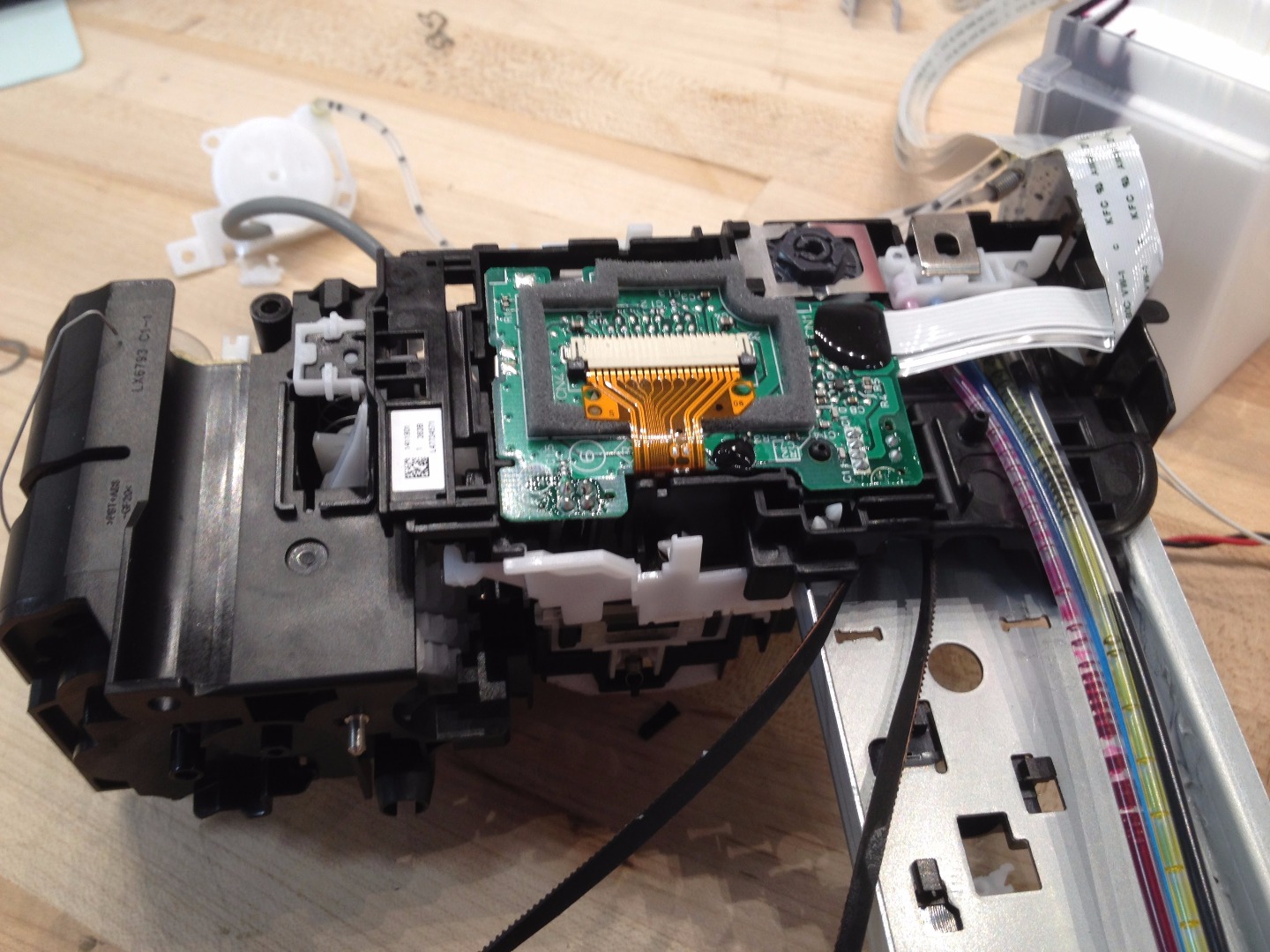

Print Head


Power Supply


Finished Deconstruction


I learned a lot about how a printer actually functions from this tare down. The hardest part was resisting the urge to break parts off. I had to keep double and triple checking to find that newly revealed screw that needed to be removed.
