Disabled Heroes Guitar

Created at Tustin High School with SolidWorks 2014 and ShopBot Buddy by Jonathan D, Kristina Barrett and Tristan Beadles.

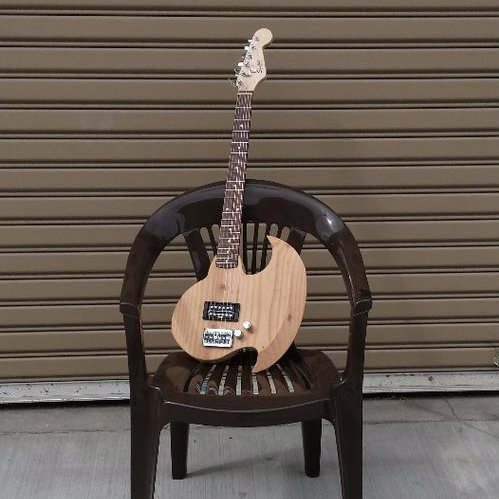

Whether coming home from war confined to a wheelchair or sitting in an armchair, this guitar allows people to sit down and play without contorting into uncomfortable positions or worrying about it bumping or not fitting within the constraints of the chair.

Solidworks Part Documents for each iteration of our guitar, with their respective pictures.

If you plan on cutting this on a CNC, the height of the guitar, when it lays on its back, is 1 1/2 inches.

What it looks like to prepare our wood for our mill. We didn't have enough wood of a high enough quality so we planed and jointed some low quality 1.5"X10" planks with wood glue. Outside of the cost of the machines, this project is actually really cheap.

If you own a ShopBot, these are the files you would use to cut the final version of our guitar, with a Straight 1/2in bit for roughing and a Ballnose 1/4in bit for finishing. Good Luck!

A STL for the final iteration of our guitar
