Dinosaur Game Hack Google Chrome Games

chrome t-rex run is a very fun game. Here we are going to make it more entertaining by using Arduino. This dino game will appear on no internet connection page.You can also do this using raspberry pi here we compare both the boards in detail Arduino vs Raspberry pi. check this article to chose to write board.

Arduino UNO

LDR (light dependent resistor)

10k ohm resistor

Servo motor

Jumper wires

breadboard

USB Cable

Google chrome on a PC

Connect every Component according to the circuit diagram or follow the below table.

Arduino Pin no.---------A0------------------9-------------------GND-----------------Vcc----

LDR------------------------First leg-------------*---------------------*-------------------second leg

Servo motor------------------*----------------yellow wire--------Brown wire-----------Red wire

10k ohm Resistor----------First Leg-----------*--------------------Second wire---------------*---------

Connect everything according to the circuit diagram. Also, use pull-down (explain in this article)

resistance.

LDR () also known as a photoconductor. It is basically a photocell that
works on photoconductivity. This is basically a resistor whose value is decrease when the intensity of light is decreases. This component is use in Street light, Camera, Light beam alarm, etc.

Dinosaur Game Hack Google chrome games
By sanjeev May 3, 2020 Arduino Projects, HOME 0 Comments

Spread the love

No internet dinosaur game (Trex run) is a fun game. This dino game will appear on no internet connection page. The second method to open this game is to put your device on Flight mode and open google chrome. Keep pressing the space bar again and again and let Trex jump to save from the cactus plant is become a boring task. Let’s try a new way to do this. Here we will make Dinosaur Game Hack in a totally different way.

Contents [hide] 1 Material Required 2 LDR (Light-dependent resistor)2.1 About LDR2.2 Structure and working2.3 LDR Connection with Arduino2.3.1 Software2.3.2 Hardware3 Servo motor3.1 Servo motor Arduino4 Final Connection5 Installation on Computer5.1 Step:- 15.2 Step:- 25.3 Step:- 36 Coding for Trex run7 Final code copy and upload on your Arduino board

Material Required

Arduino UNOLDR (light dependent resistor)10k ohm resistor serve motorJumper wiresbreadboardUSB Cable Google chrome on a PC for Dinosaur Game Hack

LDR (Light-dependent resistor)

About LDR

LDR () also known as a photoconductor. It is basically a photocell that works on photoconductivity. This is basically a resistor whose value is decreased when the intensity of light is decreased. This the component is used in Street light, Camera, Light beam alarm, etc.

Structure and working

LDR Working

The main component for the LDR is cadmium sulfide (CdS), which is used as the photoconductor and contains very few electrons when not illuminated. As soon as light falls on the sensor, the electrons are liberated and the conductivity of the material increases. When the light intensity exceeds a certain frequency, the photons absorbed by the semiconductor give band electrons the energy required to jump into the conduction band. This causes the free electrons or holes to conduct electricity and thus dropping the resistance dramatically (< 1 Kiloohm).

R = A.E^a

where E – Illumination (lux) R – Resistance (Ohms) A, a – constants

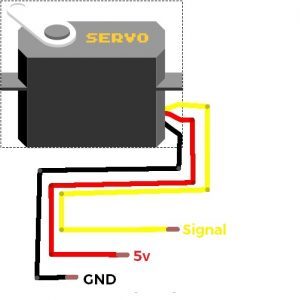

A servo motor is a close loop system, that allows for precise control of
angular position. It has 3 wires system red, brown and yellow for supply, GND, and signal.

With the help of a tape stick LDR facing toward screen leaving 1cm space from Dino Google.

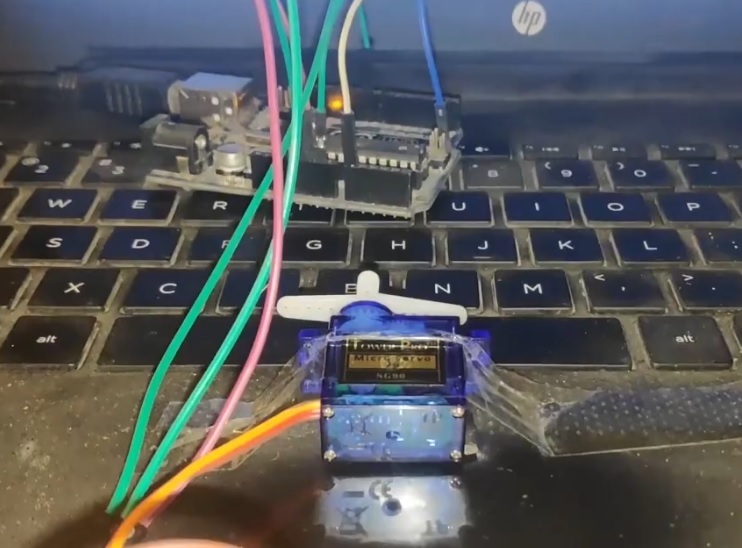

With the help of tape stick Servo motor near space bar, Such a way the shaft of motor hit the space bar.

The final output will be like this.

Copy-paste code in Arduino IDE verifies and upload the code.
