Digital and Binary Clock With Two LED Matrix and RTC
by lagsilva in Circuits > Clocks
4880 Views, 28 Favorites, 0 Comments
Digital and Binary Clock With Two LED Matrix and RTC
![Digital & Binary Clock with Two LED Matrix](/proxy/?url=https://content.instructables.com/FDC/VESQ/JBGU32NT/FDCVESQJBGU32NT.jpg&filename=Digital & Binary Clock with Two LED Matrix)
![IMG_20171224_162215128.jpg](/proxy/?url=https://content.instructables.com/FOC/C0DI/JBL5TKQN/FOCC0DIJBL5TKQN.jpg&filename=IMG_20171224_162215128.jpg)
![IMG_20171224_162218745.jpg](/proxy/?url=https://content.instructables.com/FQR/M3S6/JBL5TKQP/FQRM3S6JBL5TKQP.jpg&filename=IMG_20171224_162218745.jpg)
![IMG_20171224_162222392.jpg](/proxy/?url=https://content.instructables.com/FBV/E8SO/JBL5TKQR/FBVE8SOJBL5TKQR.jpg&filename=IMG_20171224_162222392.jpg)
![IMG_20171224_162310442.jpg](/proxy/?url=https://content.instructables.com/FB0/TMZA/JBMJUIY4/FB0TMZAJBMJUIY4.jpg&filename=IMG_20171224_162310442.jpg)
![IMG_20171224_162314125.jpg](/proxy/?url=https://content.instructables.com/FKN/QY38/JBMJUIY5/FKNQY38JBMJUIY5.jpg&filename=IMG_20171224_162314125.jpg)
![IMG_20171224_162317951.jpg](/proxy/?url=https://content.instructables.com/F29/PC64/JBMJUIY8/F29PC64JBMJUIY8.jpg&filename=IMG_20171224_162317951.jpg)
![IMG_20171224_161959116.jpg](/proxy/?url=https://content.instructables.com/FH6/CLV5/JBMJUIY9/FH6CLV5JBMJUIY9.jpg&filename=IMG_20171224_161959116.jpg)

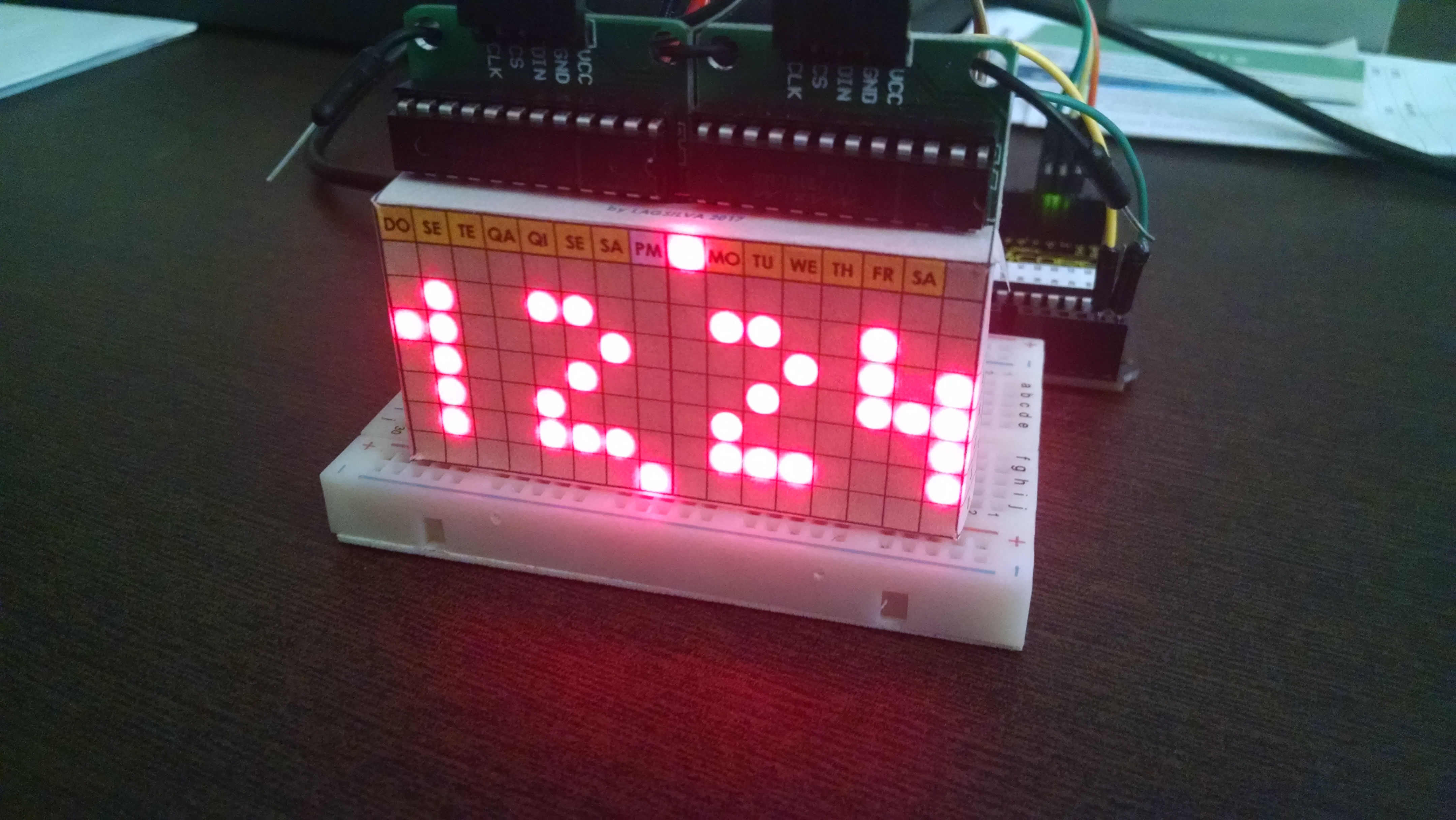

This project is about a Digital and Binary Clock using Arduino and two LED matrix with MAX72XX and RTC (Real Time Clock) including several features.
Features:
- Digital Clock
- Binary Clock
- Mode AM/PM
- Mode 24 hours (international mode)
- Time & Date (Day, Month & Weekday)
- 02 different types of fonts (conventional & stylish)
- RTC keeps the time and date when the clock is off
- The internal memory of RTC can record the operational modes
- Two digits sharing same LED display.
The operation is very simple using the Arduino's restart button.
Every time you turn on or restart the Arduino, a new clock mode is set automatically.
To make this project so simple, I dedicated a lot of creativity and ingenuity to the code to add various features.
I hope you enjoy it!!

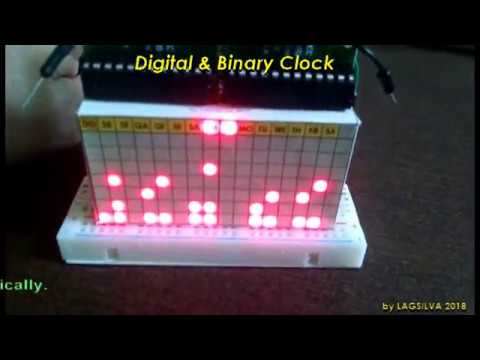

See video at: Illustrative Video
Note: If you like my project, please vote for it in the Arduino Contest and in the LED Contest! Tks!
Material List
![Arduino Uno R3.JPG](/proxy/?url=https://content.instructables.com/FTG/RJML/J3EPL4RQ/FTGRJMLJ3EPL4RQ.jpg&filename=Arduino Uno R3.JPG)
![LED Matrix with MAX7219.JPG](/proxy/?url=https://content.instructables.com/FGJ/QWYO/JBL5TKPS/FGJQWYOJBL5TKPS.jpg&filename=LED Matrix with MAX7219.JPG)
![RTC Module.JPG](/proxy/?url=https://content.instructables.com/FLV/5TLA/JBL5TKPU/FLV5TLAJBL5TKPU.jpg&filename=RTC Module.JPG)
![Breadboard - Medium Size.JPG](/proxy/?url=https://content.instructables.com/F51/JFF8/JBL5TKTA/F51JFF8JBL5TKTA.jpg&filename=Breadboard - Medium Size.JPG)

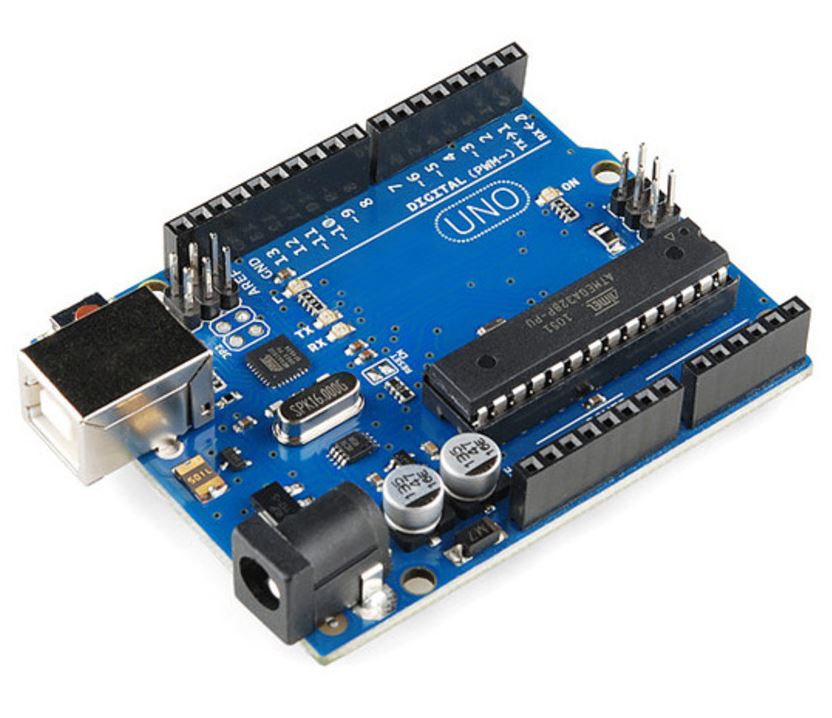

- Arduino UNO & Genuino
- DS1307 module (Real Time Clock - RTC)
- Dot LED Matrix with Maxim MAX72XX

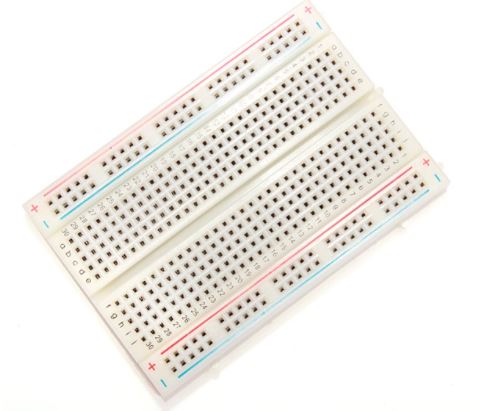

- Breadboard (medium size)
- Jumpers Wires

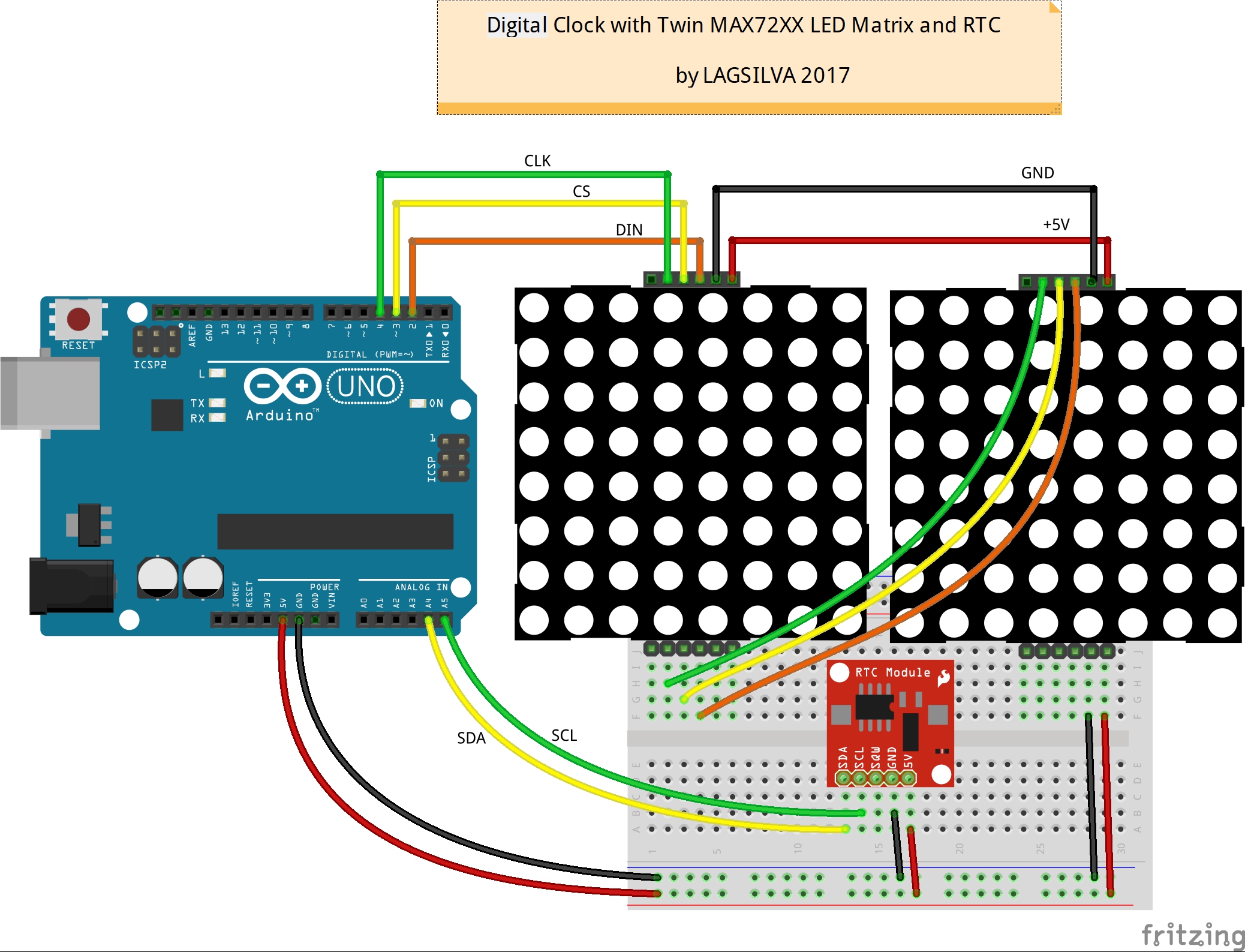

Sketch & Templates
![Sketch - Digital Clock with Twin MAX72XX LED Matrix and RTC_bb.jpg](/proxy/?url=https://content.instructables.com/FZN/SMMS/JBGU344A/FZNSMMSJBGU344A.jpg&filename=Sketch - Digital Clock with Twin MAX72XX LED Matrix and RTC_bb.jpg)
