Digital Multi Meter Safety Cover With Pet Bottle

by manishrkp in Workshop > Tools

256 Views, 2 Favorites, 0 Comments

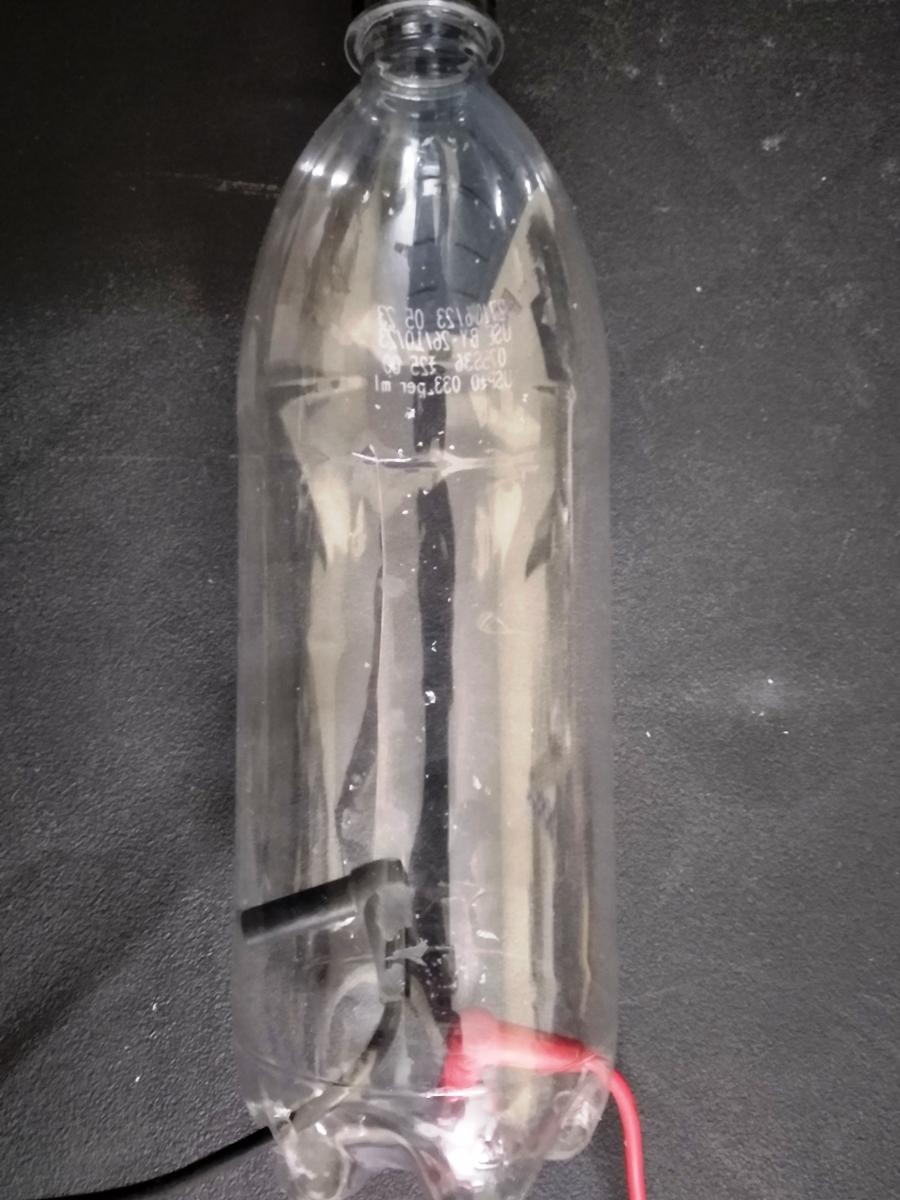

Digital Multi Meter Safety Cover With Pet Bottle


I wanted to make safety cover for my digital multi meter for preventing it from damages.

Supplies


Multi meter, suitable size empty pet bottle, drill machine with step drill, any type of snap off cutter and some material (like bubble wrap) for cushioning at back of meter.

Marking for Cuts

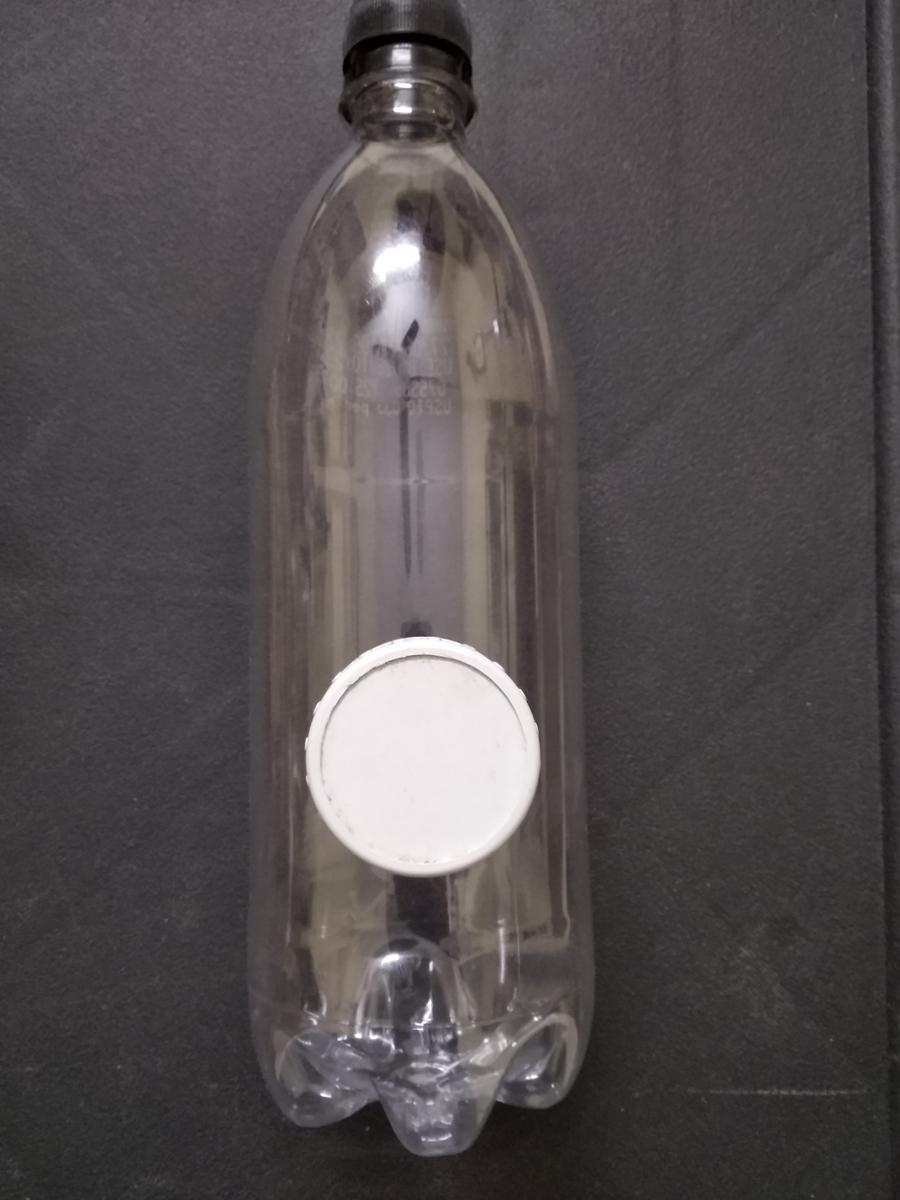

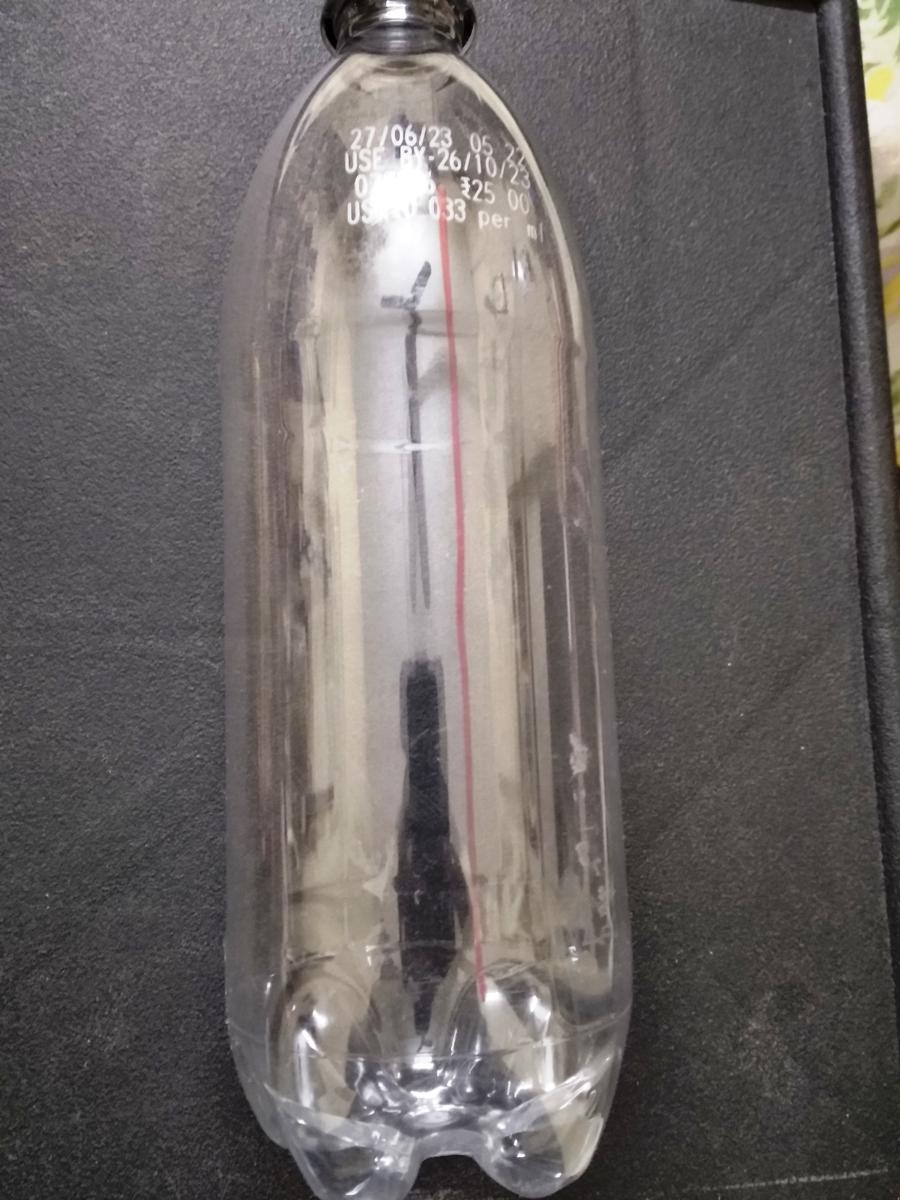

Mark pet bottle for selector knob in front, long cut in back for inserting meter and 2 side hole for test leads out.

Making Holes and Cuts

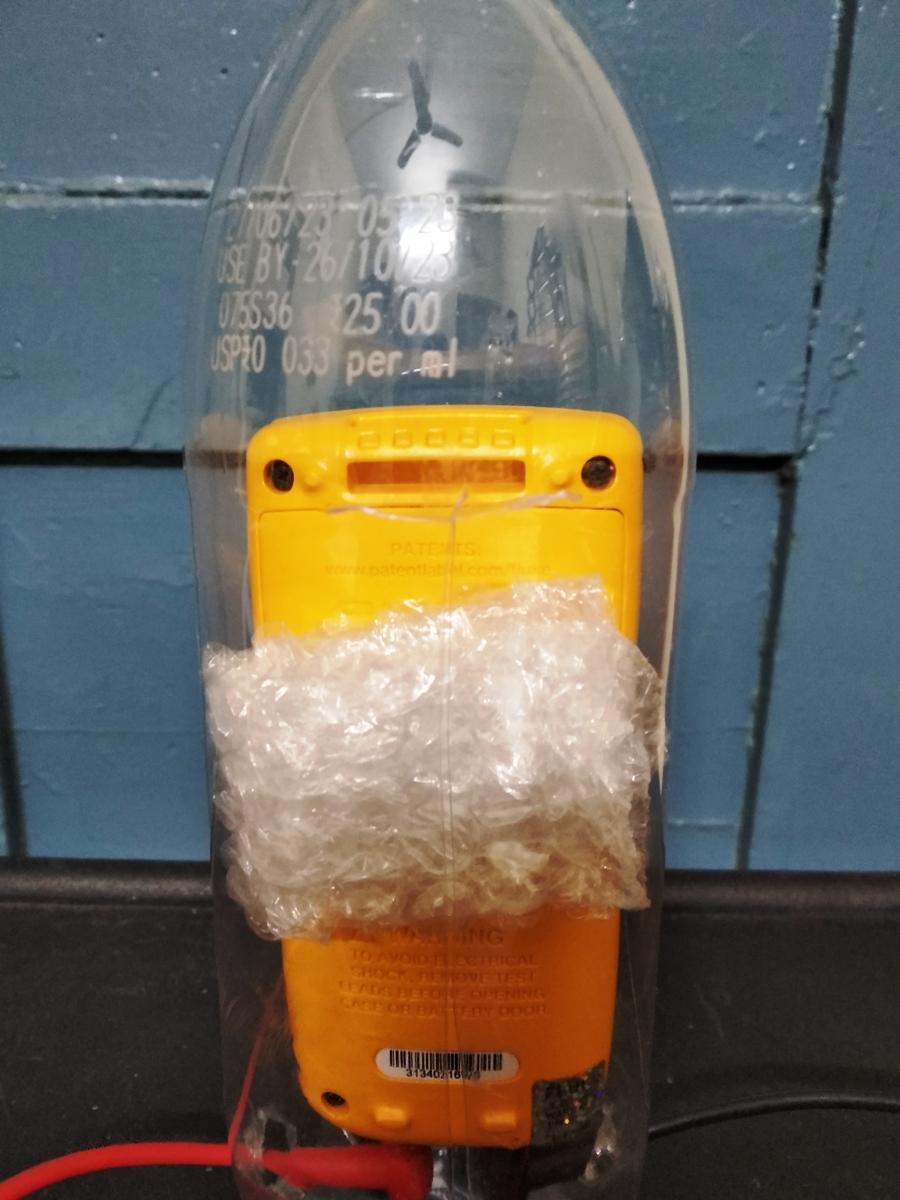

Make desired diameter holes on sides, straight cut in back. Insert test leads from holes and meter from back. Add cushion on back of meter. Lastly make circle cut for accessing selector knob of meter.

All done.
