Digital Ludo Dice With Arduino 7 Segment Display Project
by Rachna Aggarwal in Circuits > Arduino
2577 Views, 1 Favorites, 0 Comments

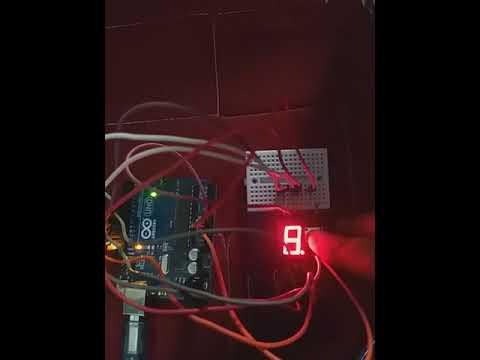

Digital Ludo Dice With Arduino 7 Segment Display Project
In this project, 7 segment display is used to display a number from 1 to 6 randomly whenever we press the push button. This is one of the coolest projects which everyone enjoys to make.
To learn how to work with 7 segment display click here: -7 segment display
Component Required
- Arduino - https://amzn.to/32jAMUA
- Breadboard - https://amzn.to/3kdp4Rt
- 7 segment display - https://amzn.to/35p4wS5
- push button - https://amzn.to/3m7yKit
- jumper wire - https://amzn.to/3iqdBxM
- 8XResistor of 220 ohm - https://amzn.to/2ZuPNRN

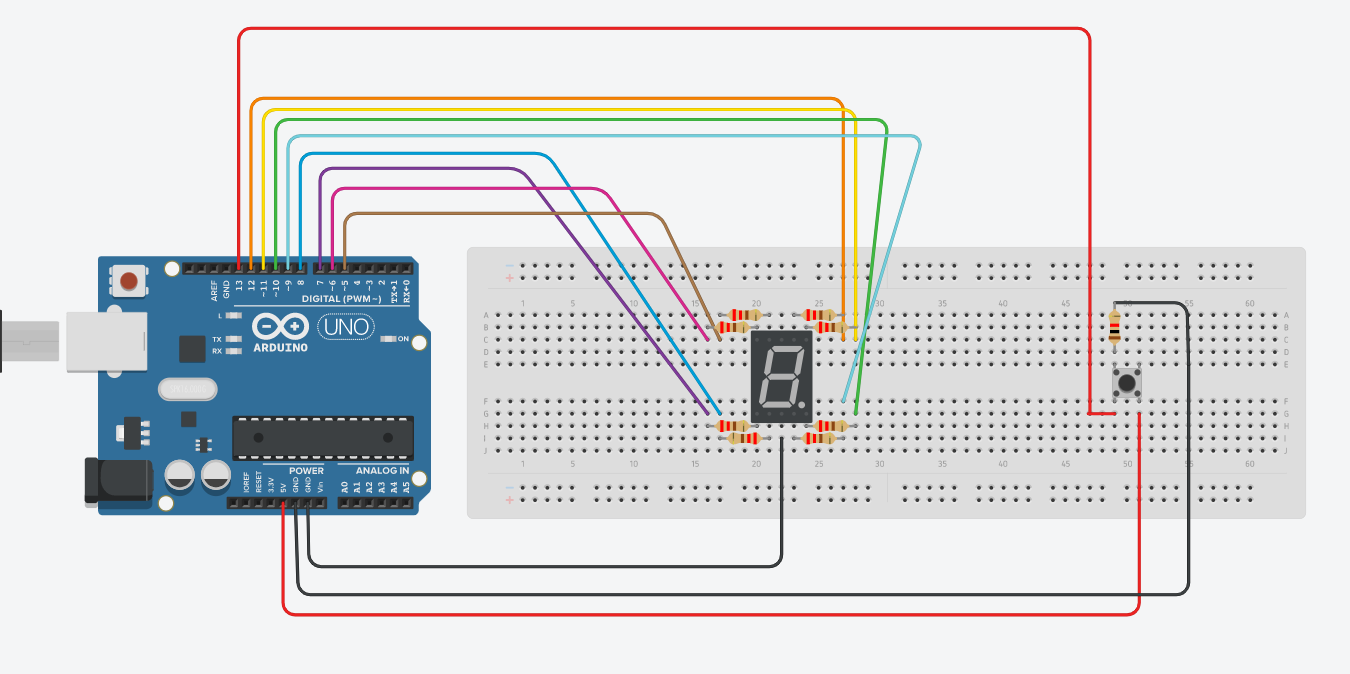

Circuit Schematic for Common Cathode 7 Segment Display
Pin 13 - - > 1 a of push button
Pin 12 - - > a TERMINAL OF 7 SEG
Pin 11 - - > b TERMINAL OF 7 SEG
Pin 10 - - > dp TERMINAL OF 7 SEG
Pin 9 - - > c TERMINAL OF 7 SEG
Pin 8 - - > d TERMINAL OF 7 SEG
Pin 7 - - > e TERMINAL OF 7 SEG
Pin 6 - - > g TERMINAL OF 7 SEG
Pin 5 - - > f TERMINAL OF 7 SEG
GND - - > - TERMINAL OF 7 SEG, 1b of push button
5v - - > 2a of push button

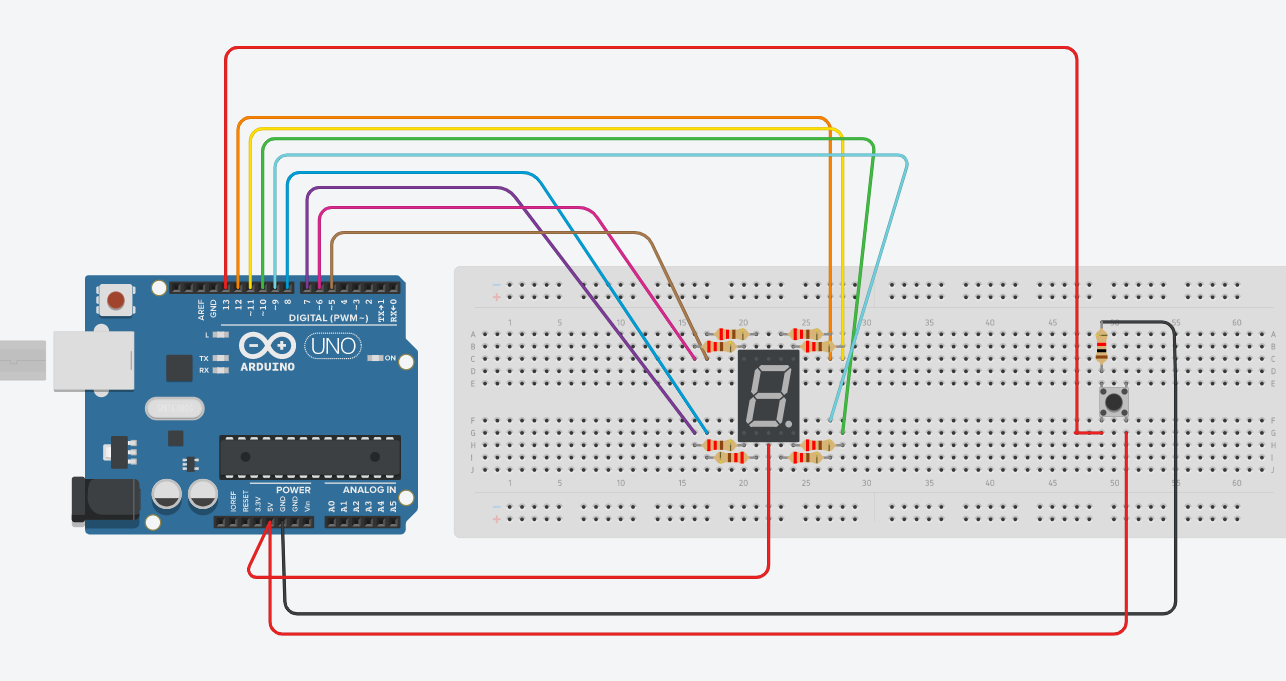

Circuit Schematic for Common Anode 7 Segment Display
Pin 13 - - > 1 a of push button
Pin 12 - - > a TERMINAL OF 7 SEG
Pin 11 - - > b TERMINAL OF 7 SEG
Pin 10 - - > dp TERMINAL OF 7 SEG
Pin 9 - - > c TERMINAL OF 7 SEG
Pin 8 - - > d TERMINAL OF 7 SEG
Pin 7 - - > e TERMINAL OF 7 SEG
Pin 6 - - > g TERMINAL OF 7 SEG
Pin 5 - - > f TERMINAL OF 7 SEG
5V - - > - TERMINAL OF 7 SEG, 2a of push button
GND - - > 1b of push button
