Diesel Fish

Diesel Fish Instructables Cut
truck shot.jpg
quick release.jpg

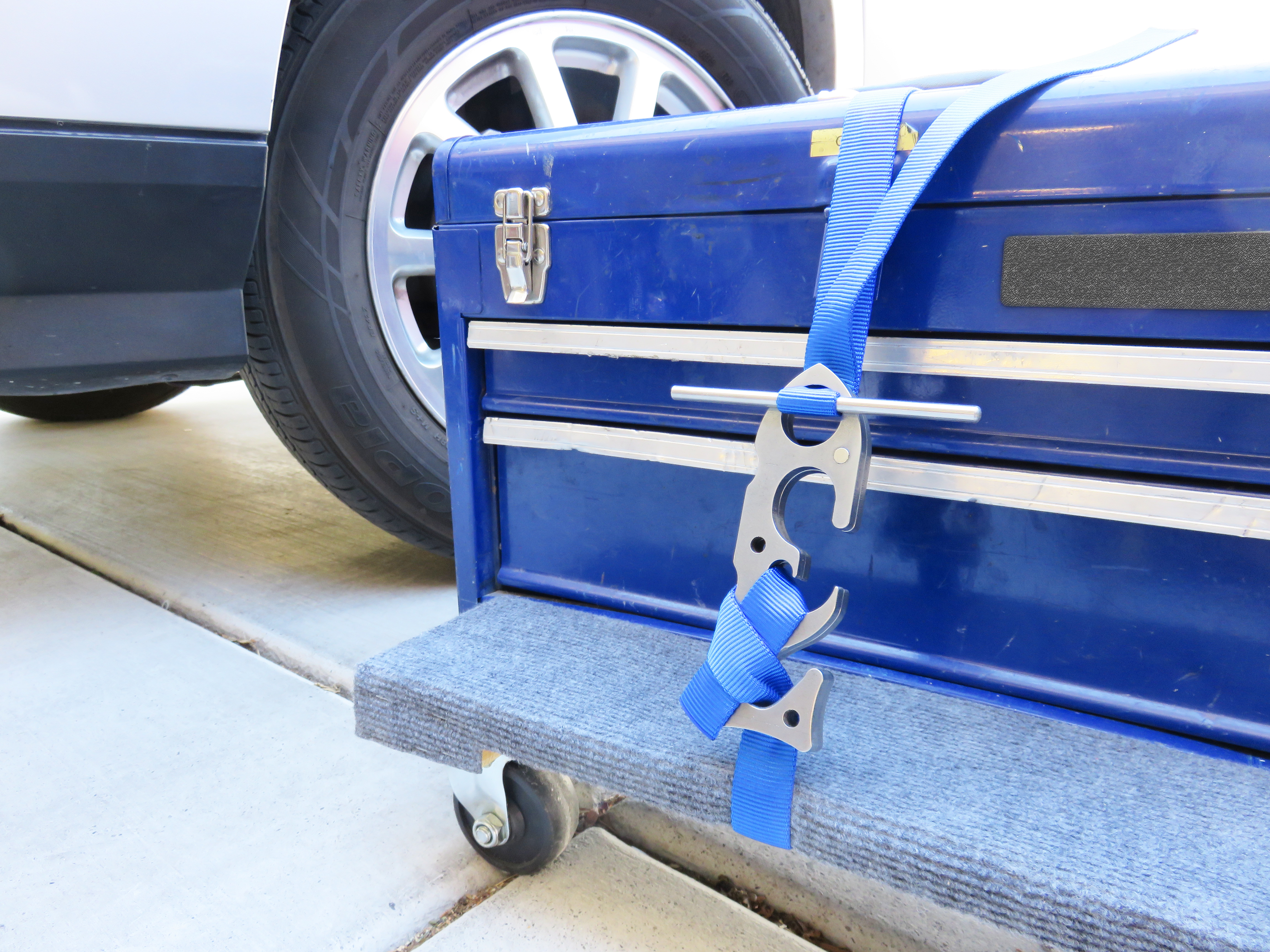

Diesel Fish are gear ties for your truck. Anywhere you would use a knot, you can use Diesel Fish. It's designed for rope 1/2" diameter or smaller and also works with flat webbing. It's so simple you can even tie it wearing boxing gloves!

Two years ago I posted Fish Bone Knotless Gear Tie. Since then I've gotten feedback from friends, perfect strangers, and everyone in between. This design is the sum of that feedback along with what I've learned by myself. This is how I got here...

Diesel Fish is currently funding on Kickstarter! Check it out here.

https://www.kickstarter.com/projects/699604098/diesel-fish-ultimate-rope-tie

Proof of Concept

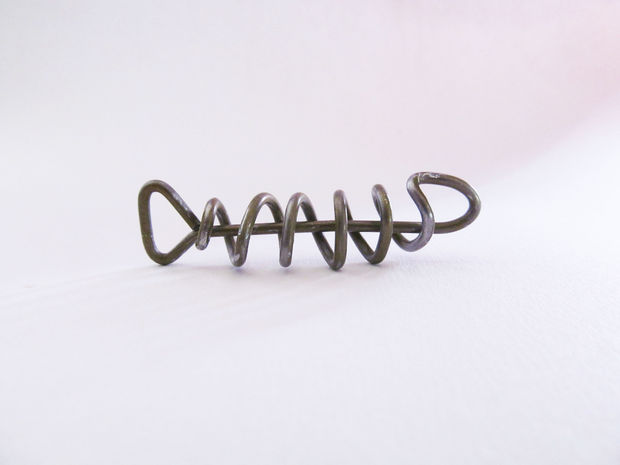

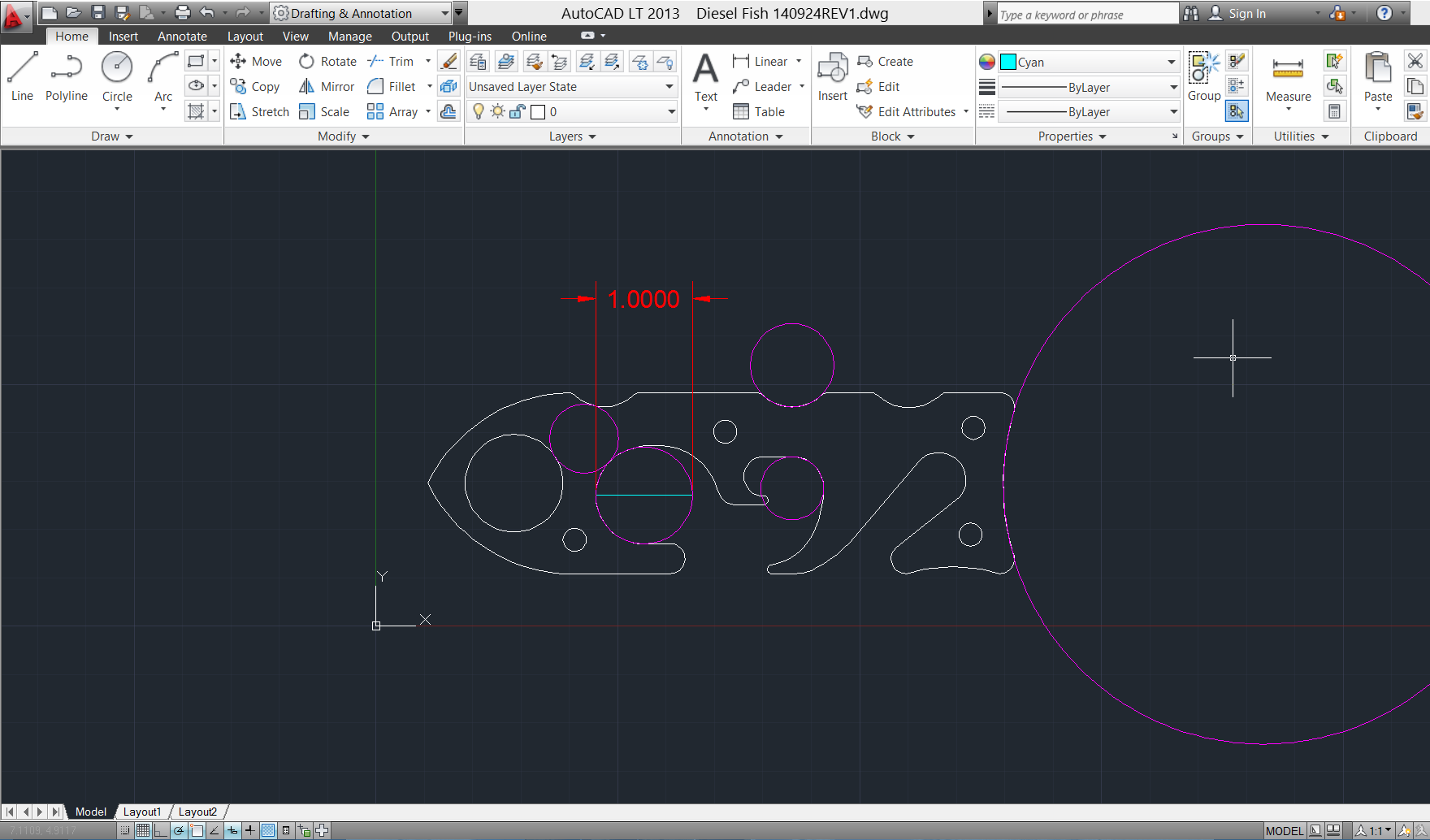

This design started out as a doodle on my Ipad. From there I made it out of a coat hanger. The wire prototype proved the idea but it wasn't very sturdy. So from here, I traced the silhouette onto aluminum and cut it out. Much better.

Research & Development

arrow drawing_edited-1.jpg
wire frame03.png

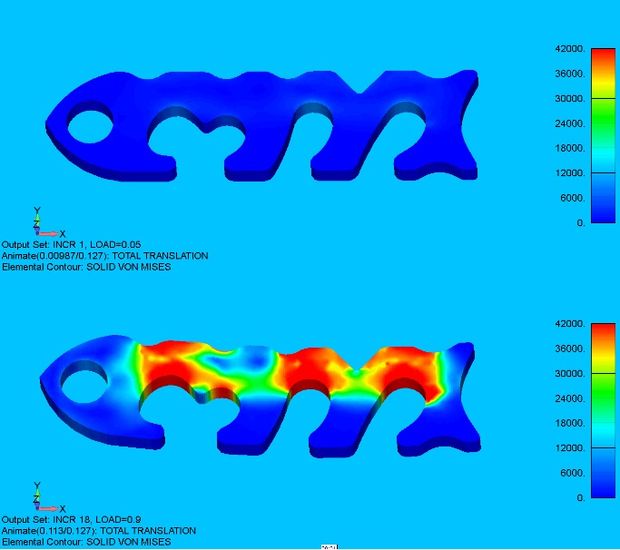

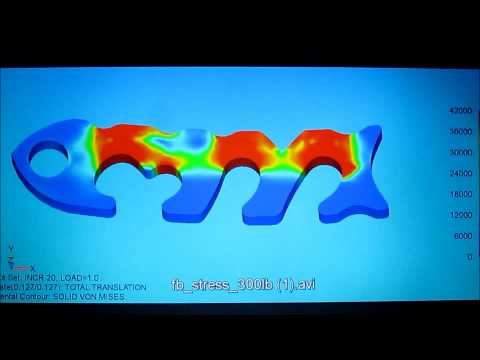

Finite Elemental Analysis

Research. I did a lot of reading. One of favorite references is the Ashley Book of Knots. That book shows you every kind of knot you would need in any situation. What I took away from it was the theory of knots and way they work. Unless your a sailor an 18th

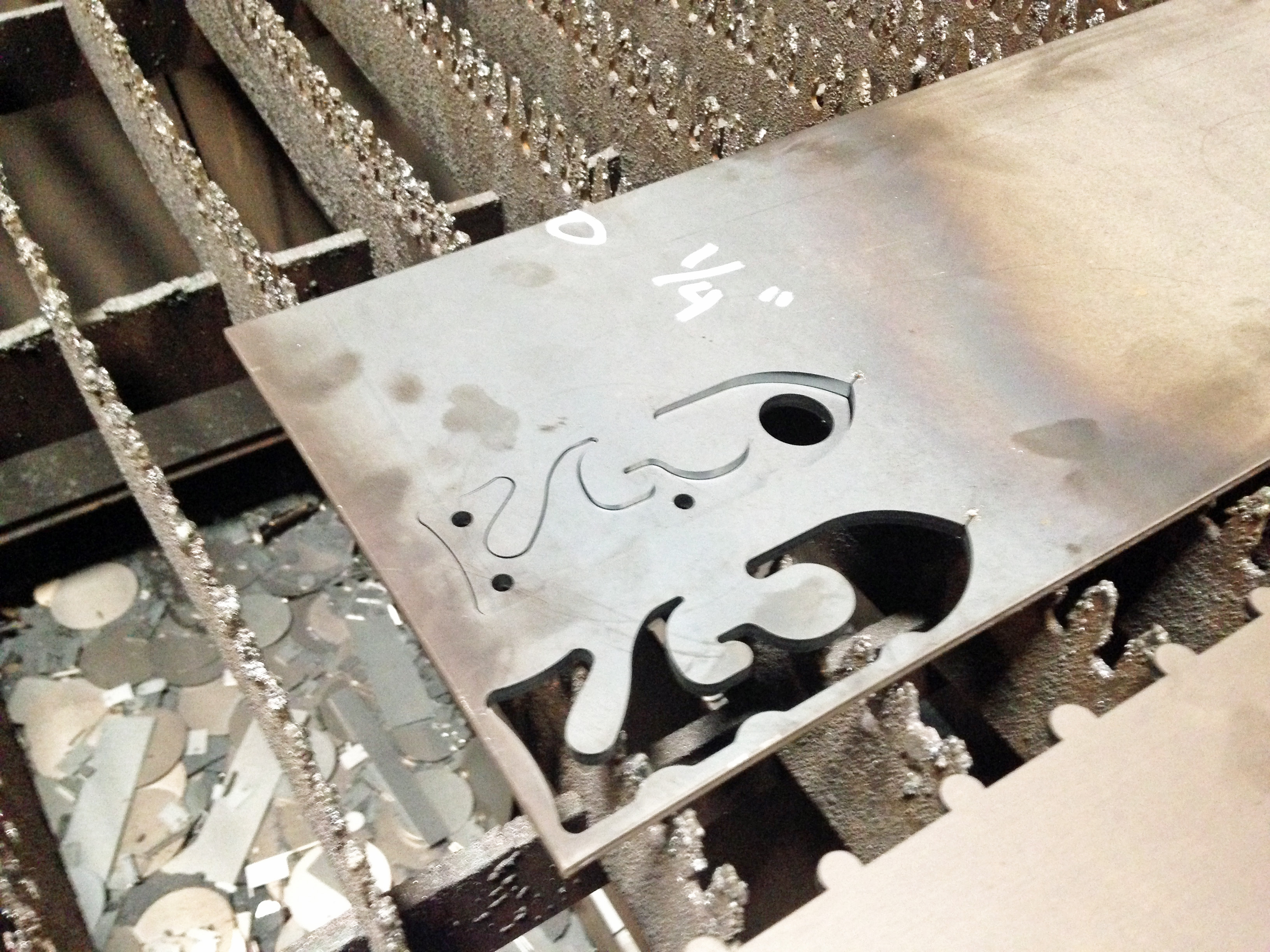

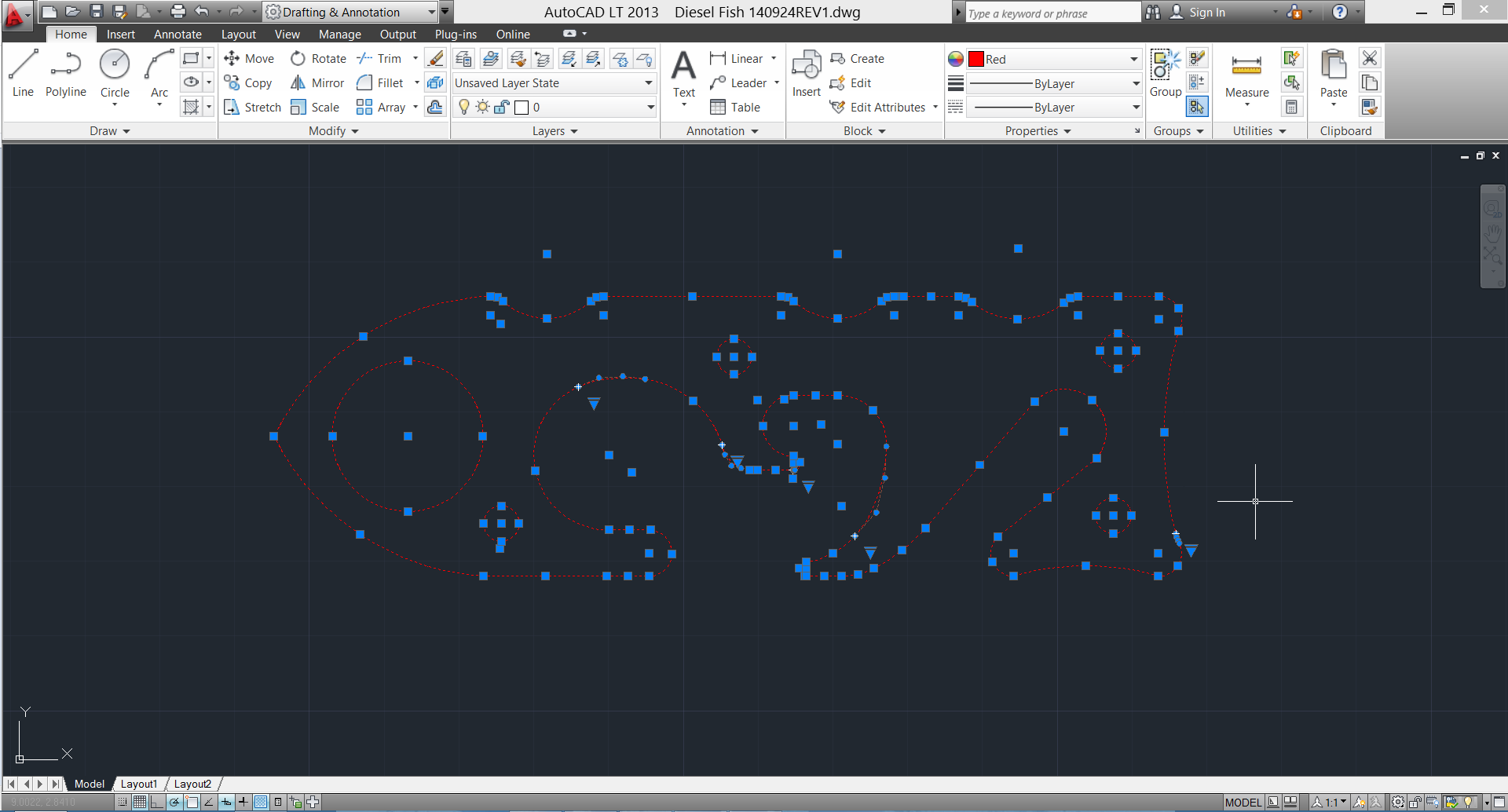

Laser Cutting

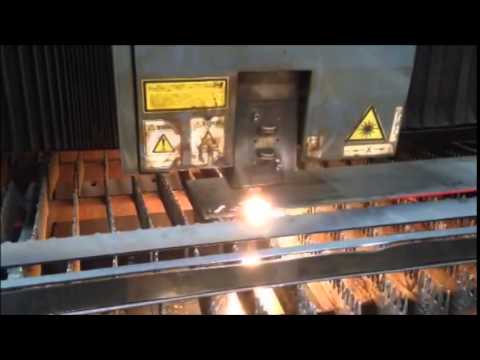

Laser Cutting Diesel Fish
photo (6).jpg
Snapshot 1 (10-3-2014 6-33 PM).png

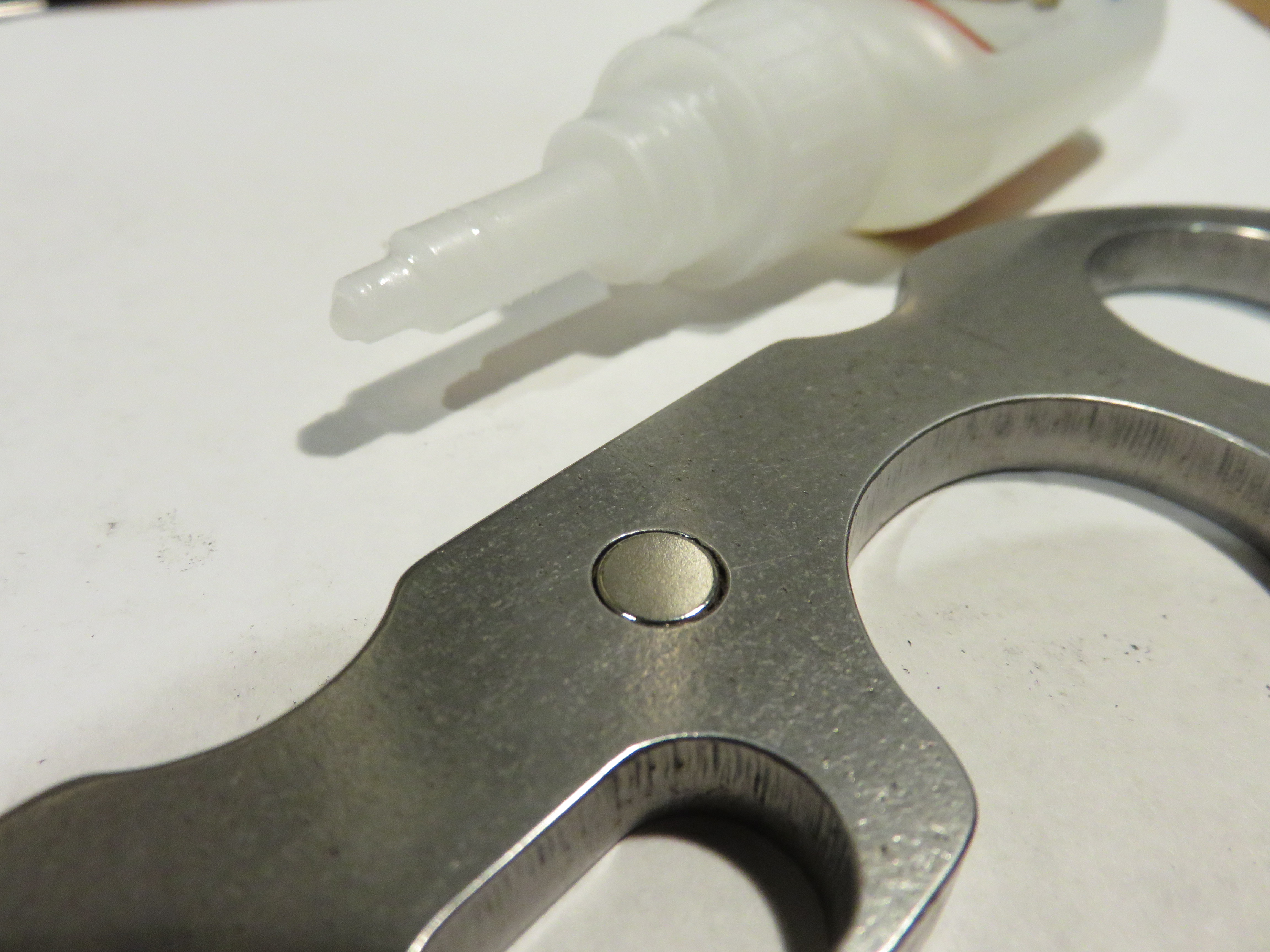

Finishing

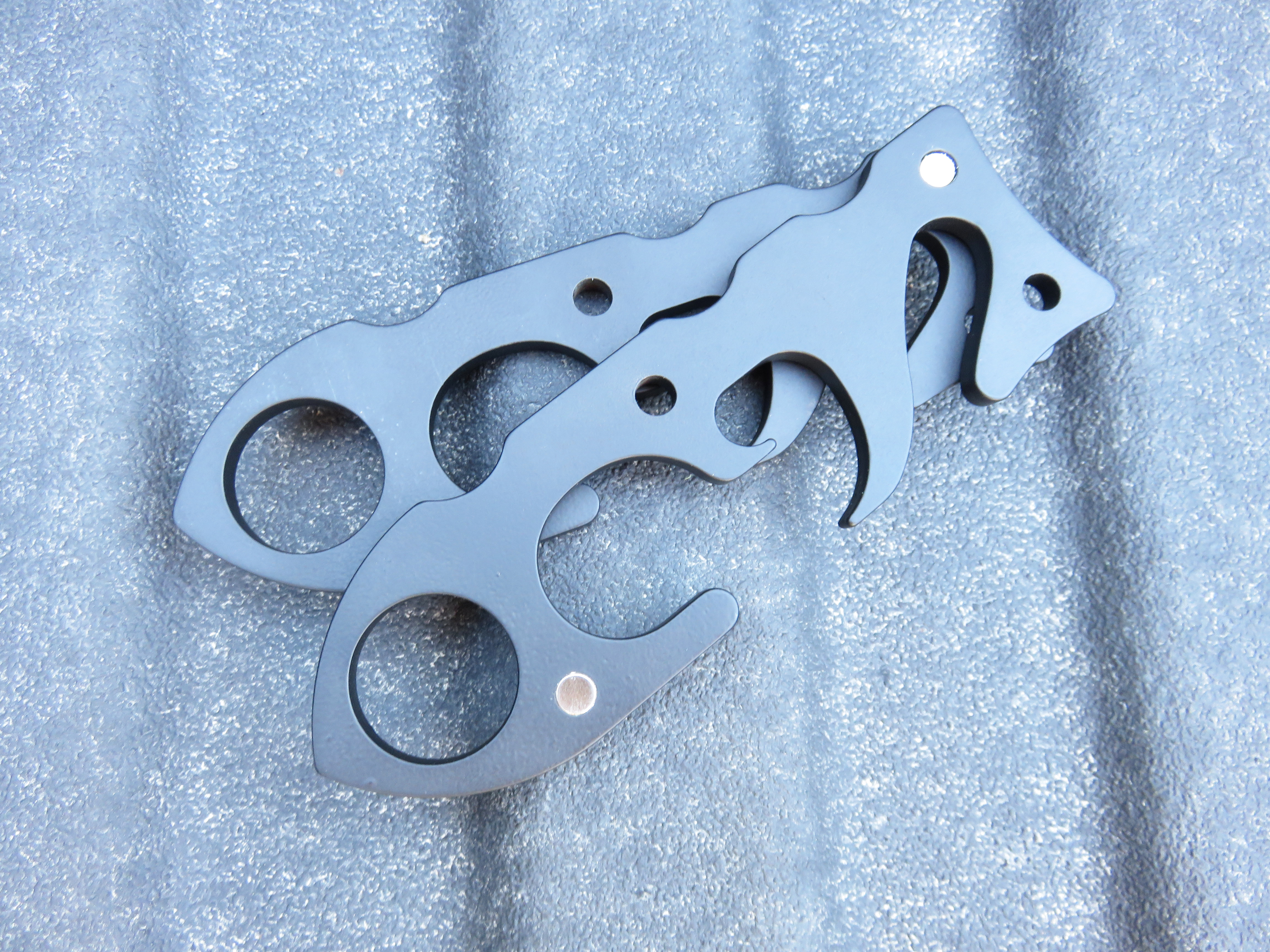

black corr02.jpg

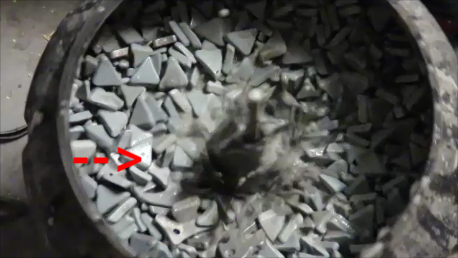

Vibratory Tumbling with Fish Bones.
Snapshot 1 (10-17-2014 8-09 PM).png

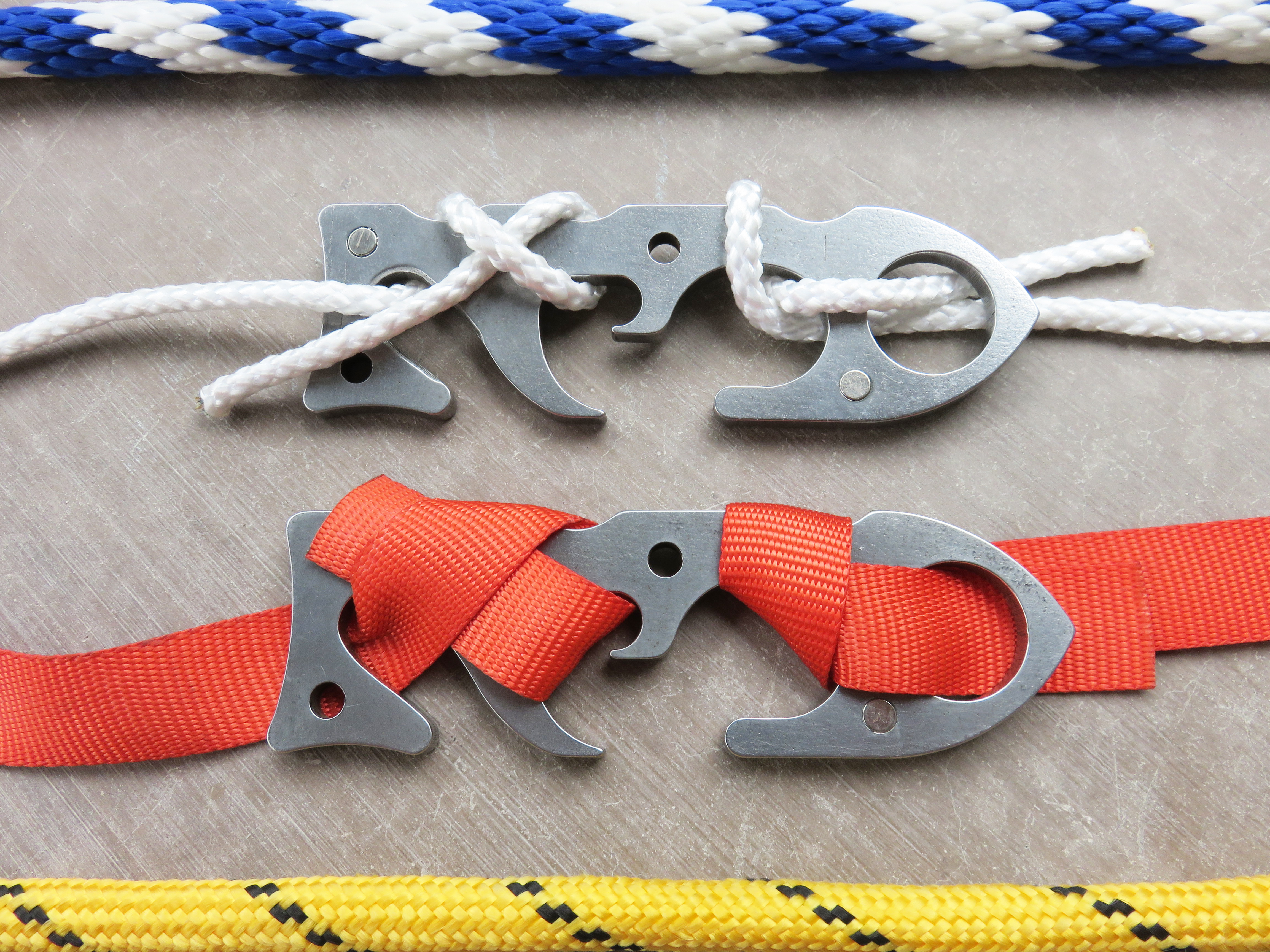

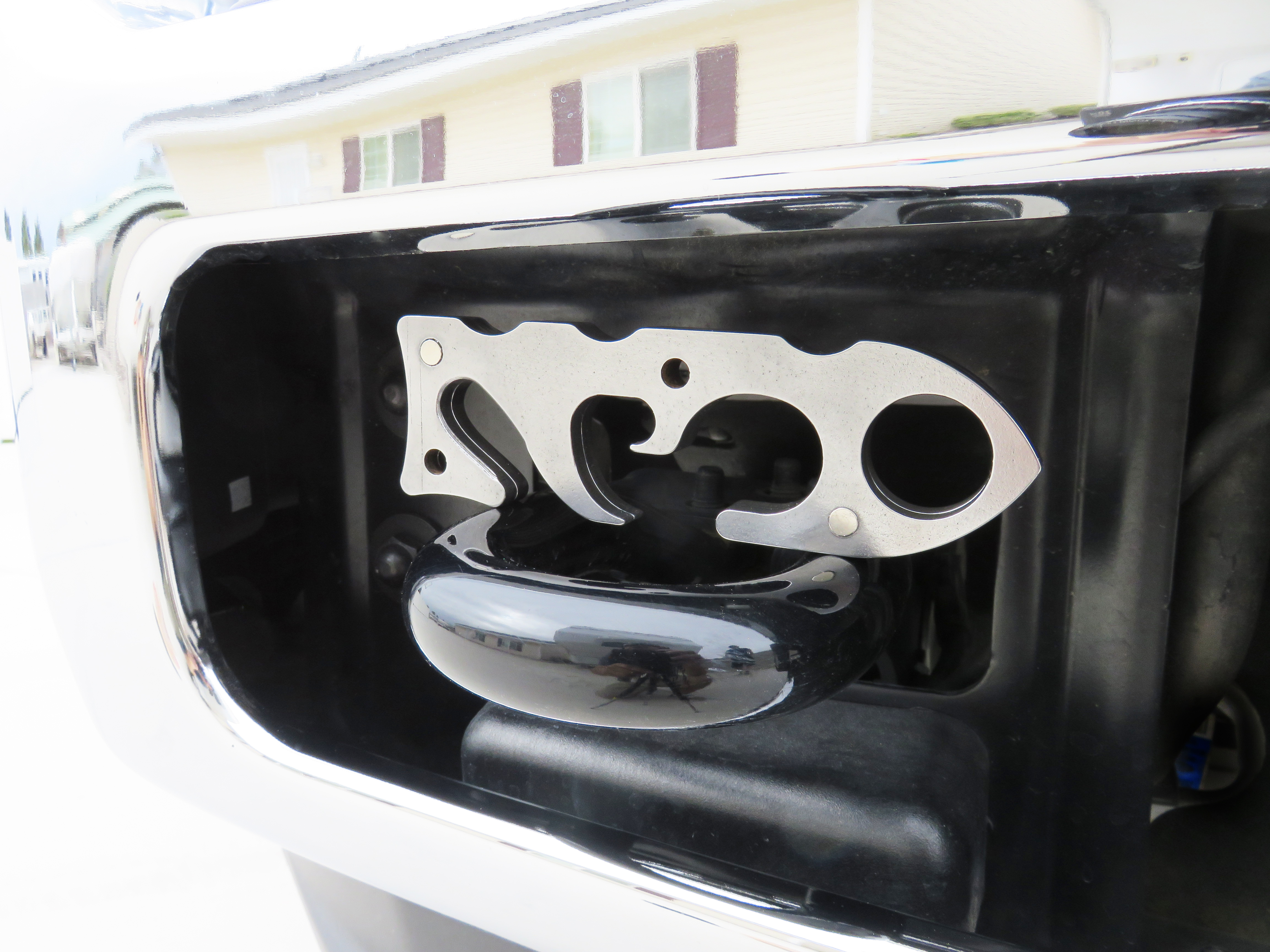

Uses
