Diamond Shape Table Lamp
by ishant777 in Workshop > Laser Cutting
2523 Views, 50 Favorites, 0 Comments
Diamond Shape Table Lamp
![20211019_095403.jpg](/proxy/?url=https://content.instructables.com/F2A/H8WV/KUWOB1K8/F2AH8WVKUWOB1K8.jpg&filename=20211019_095403.jpg)
![20211019_095352.jpg](/proxy/?url=https://content.instructables.com/FCK/Q03Z/KUWOB1K7/FCKQ03ZKUWOB1K7.jpg&filename=20211019_095352.jpg)
![20211019_095633.jpg](/proxy/?url=https://content.instructables.com/FIW/J35R/KUWOB1YH/FIWJ35RKUWOB1YH.jpg&filename=20211019_095633.jpg)
![20211019_095739.jpg](/proxy/?url=https://content.instructables.com/FEP/D0QO/KUWOB23B/FEPD0QOKUWOB23B.jpg&filename=20211019_095739.jpg)
Hello There!
I made this Lamp for my home decoration. I used Local 20W Yellow Light and Some Designing and Lasercutting to make this project.
Now it's your time to make this project at your home and Glow your Space.
I made this Lamp in the shape of a Diamond.
Downloads
Supplies
1>Laptop for designing Your own Lamp
2>Laser cutting material (350mm x250mm x 3.9 mm)
3> Vernier caliper
4> Lasercutter access
5>20W Bulb
6> Bulb Holder
7>Some Wires and Tester with a screwdriver.
8>Adult supervision to Attach Lamp with Electricity
Design Your Lamp in Fusion360
![Screenshot 2021-10-19 101644.png](/proxy/?url=https://content.instructables.com/FMC/Q4MU/KUWOB6WR/FMCQ4MUKUWOB6WR.png&filename=Screenshot 2021-10-19 101644.png)
![Screenshot 2021-10-19 101704.png](/proxy/?url=https://content.instructables.com/F62/4RN3/KUWOB6YK/F624RN3KUWOB6YK.png&filename=Screenshot 2021-10-19 101704.png)
I use Fusion360 as design software to design my lamp and export the Lasercutting files for Cutting and Fabrication.
1>Sketch 200mm vertical Line on Center
2> Draw a Diamond Shape outline from top of the line to the bottom of the line.
3>start from top, draw line 10mm straight on the horizon.then Draw lines 30 degrees down and 60mm long.
4>draw a straight Vertical line to 30mm down.
5> draw a 20mm line from the bottom in the Horizontal direction.
6> join both points from top to bottom.
7>Now you have a closed sketch that looks like Diamond.
8>Use an offset tool to take an offset whole close loop for 15mm inside.
Make Intersection for Plates
![Screenshot 2021-10-19 101806.png](/proxy/?url=https://content.instructables.com/FLS/JOW2/KUWOB6UD/FLSJOW2KUWOB6UD.png&filename=Screenshot 2021-10-19 101806.png)
![Screenshot 2021-10-19 101725.png](/proxy/?url=https://content.instructables.com/FR7/V11B/KUWOB70D/FR7V11BKUWOB70D.png&filename=Screenshot 2021-10-19 101725.png)
1. In the same sketch Draw 10 x 5 mm rectangle placed at 5mm below the top line.
2> Copy paste Rectangle and Move 10mm below m
3>Copy paste the same Rectangle and move it down straight and place it above 5mm from the bottom line.
4> Extrude this shape and you have the 1st piece of your lamp ready.
5>Use the Circular Pattern tool to make
6 >copies of your Diamond shape Lamp.
Design Circular Intersection Plate
![Screenshot 2021-10-19 101745.png](/proxy/?url=https://content.instructables.com/FTW/VGJH/KUWOB6PM/FTWVGJHKUWOB6PM.png&filename=Screenshot 2021-10-19 101745.png)
![Screenshot 2021-10-19 101834.png](/proxy/?url=https://content.instructables.com/FSV/2LUV/KUWOB6WQ/FSV2LUVKUWOB6WQ.png&filename=Screenshot 2021-10-19 101834.png)
1> Construct a plane on First Intersection’s top plane.
2> Draw Circle 50mm and another circle 20mm inside.
3>Project Interaction of all Circular pattern parts on the Same plane.
4> Extrude sketch to 3.9mm to fit inside Intersection.
5> Copy the same plate 2 times and place it below Intersections.
Export .DXF File
![Screenshot 2021-10-19 102040.png](/proxy/?url=https://content.instructables.com/FQA/T5SQ/KUWOB8CO/FQAT5SQKUWOB8CO.png&filename=Screenshot 2021-10-19 102040.png)
1> We have 2 sketches in the design tree.
2>right click on 1st sketch and Select Export dxf file and save it appropriate Location
3>repeate this for the 2nd Sketch.
Laser Cutting Design in MDF
![20211008_153442.jpg](/proxy/?url=https://content.instructables.com/FP4/YWV3/KUWO9JHD/FP4YWV3KUWO9JHD.jpg&filename=20211008_153442.jpg)
![20211008_154106.jpg](/proxy/?url=https://content.instructables.com/F6B/16N6/KUWO9JPC/F6B16N6KUWO9JPC.jpg&filename=20211008_154106.jpg)
![20211008_154703.jpg](/proxy/?url=https://content.instructables.com/FJ9/T6BZ/KUWO9ILY/FJ9T6BZKUWO9ILY.jpg&filename=20211008_154703.jpg)
![20211008_154707.jpg](/proxy/?url=https://content.instructables.com/F7O/6AMR/KUWO9ITI/F7O6AMRKUWO9ITI.jpg&filename=20211008_154707.jpg)

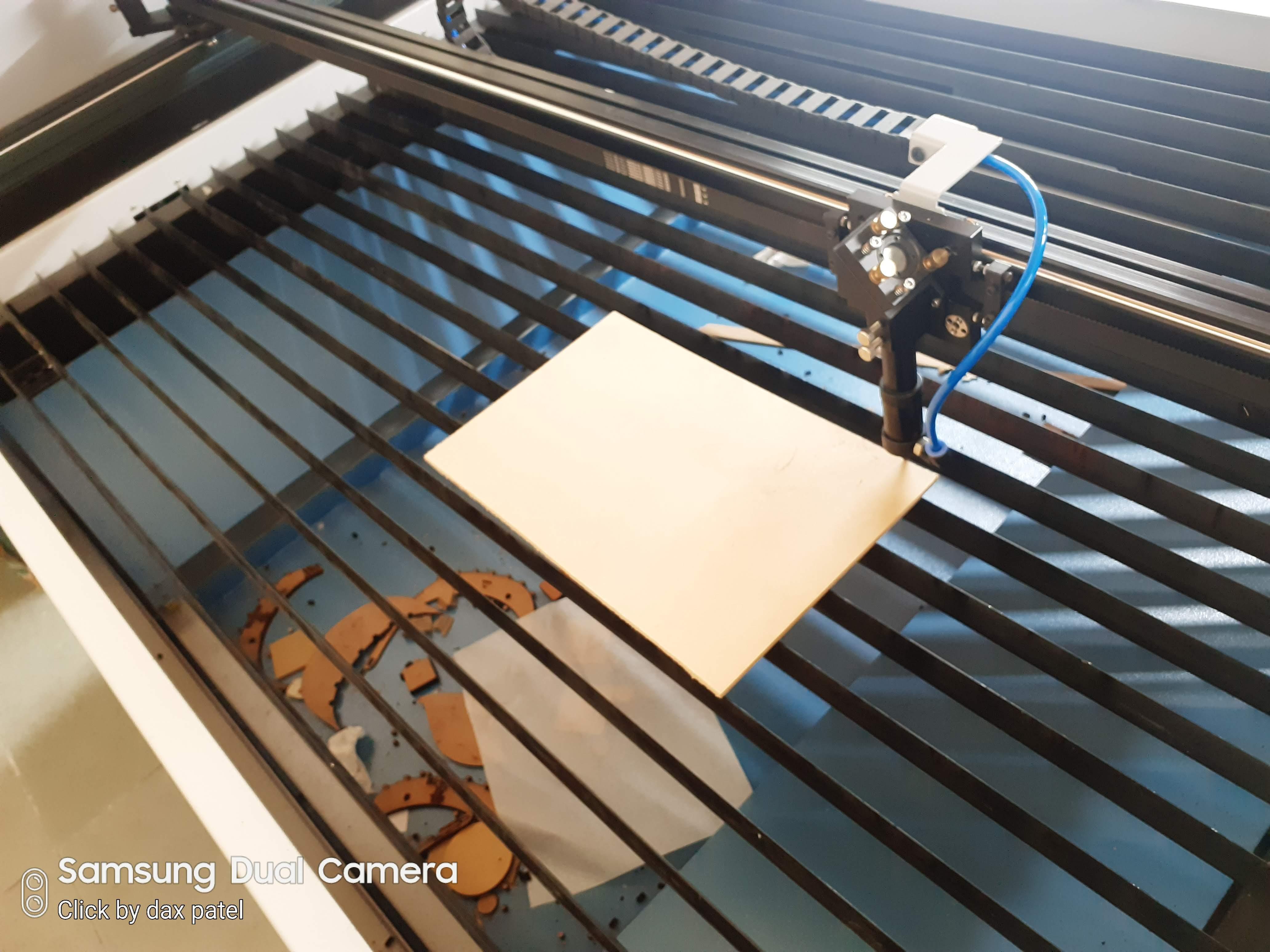

I have access to a 100-watt laser cutting machine.
I import a dxf file in cutting software and add cutting parameters as per material thickness.
Set material on origine, check Z-height for proper cutting. Don't forget to close Lid of the machine and start the exhaust to catch all smoke from the inside machine.
Start Laser cutting.
Assembly
![20211008_155029.jpg](/proxy/?url=https://content.instructables.com/FRQ/PT15/KUWO9J5F/FRQPT15KUWO9J5F.jpg&filename=20211008_155029.jpg)
![20211008_155026.jpg](/proxy/?url=https://content.instructables.com/FXN/SKZI/KUWO9J07/FXNSKZIKUWO9J07.jpg&filename=20211008_155026.jpg)
![20211008_155036.jpg](/proxy/?url=https://content.instructables.com/FP6/EHL3/KUWO9JAN/FP6EHL3KUWO9JAN.jpg&filename=20211008_155036.jpg)
After cutting we have 9 cutting parts.
Assemble circles and side strips according to Intersection draw in Design
Electric Connection
![20211019_094817.jpg](/proxy/?url=https://content.instructables.com/F4B/70WH/KUWOB1K5/F4B70WHKUWOB1K5.jpg&filename=20211019_094817.jpg)
![20211019_095445.jpg](/proxy/?url=https://content.instructables.com/F04/MOP1/KUWOB1NS/F04MOP1KUWOB1NS.jpg&filename=20211019_095445.jpg)
![20211019_095821.jpg](/proxy/?url=https://content.instructables.com/F6Y/GB8H/KUWOB29X/F6YGB8HKUWOB29X.jpg&filename=20211019_095821.jpg)
![20211019_095804.jpg](/proxy/?url=https://content.instructables.com/FRY/C5CH/KUWOB27Q/FRYC5CHKUWOB27Q.jpg&filename=20211019_095804.jpg)
Take the Bulb holder and place it inside the Lamp.
Circular cutting will hold the bulb holder.
Use 2 standard cables to connect it to the Bulb Holder.
Connect Wires to Electric supply.

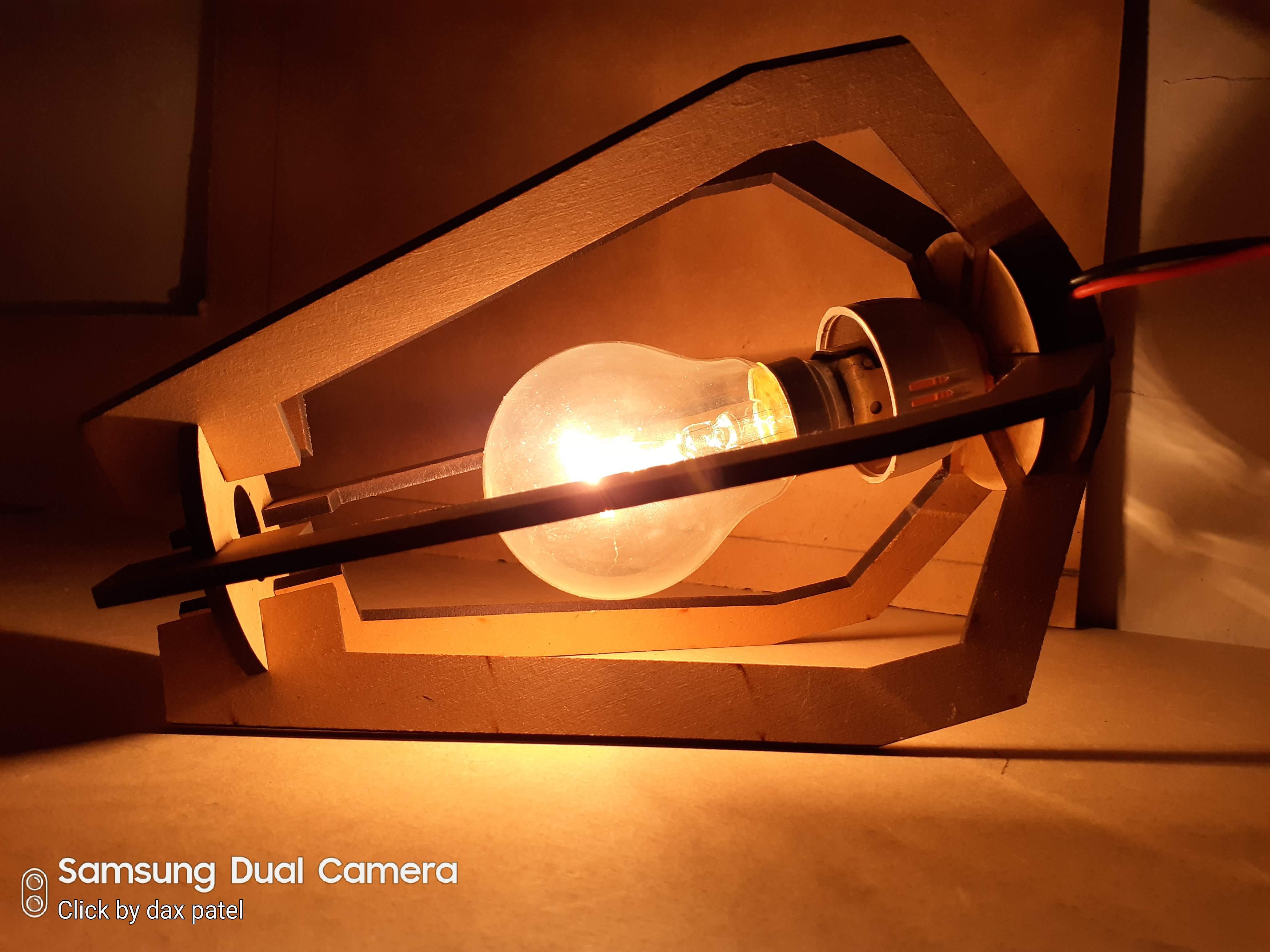

Add bulb in Holder and Switch on the Power supply.
Ta….da….
It’s Light it Up.
