DiY Solar Panel & Measure Datas
by Istvan Kabai in Circuits > Soldering
1027 Views, 5 Favorites, 0 Comments
DiY Solar Panel & Measure Datas

Test equipment: one solar panel, 12V12AH battery, 10A solar charger. The aim of the research is to develop a power supply solution that can power our measuring and Lora GW devices in the long run. in stage 2, we continuously measure and record the voltage of the solar cell and the battery for 1 year together with the temperature and humidity data. The results of the tests, I will be made public. Anyone can use it.

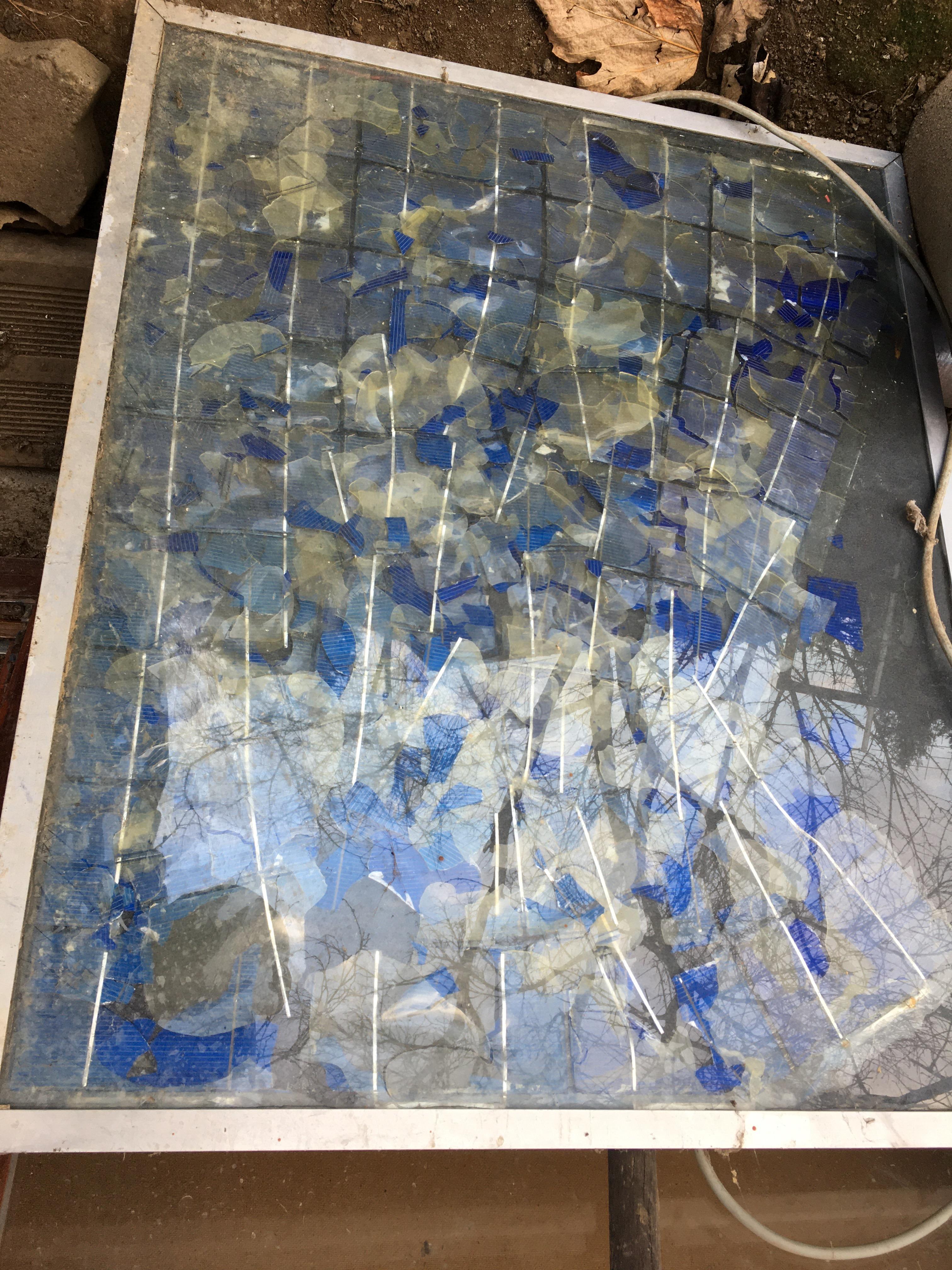

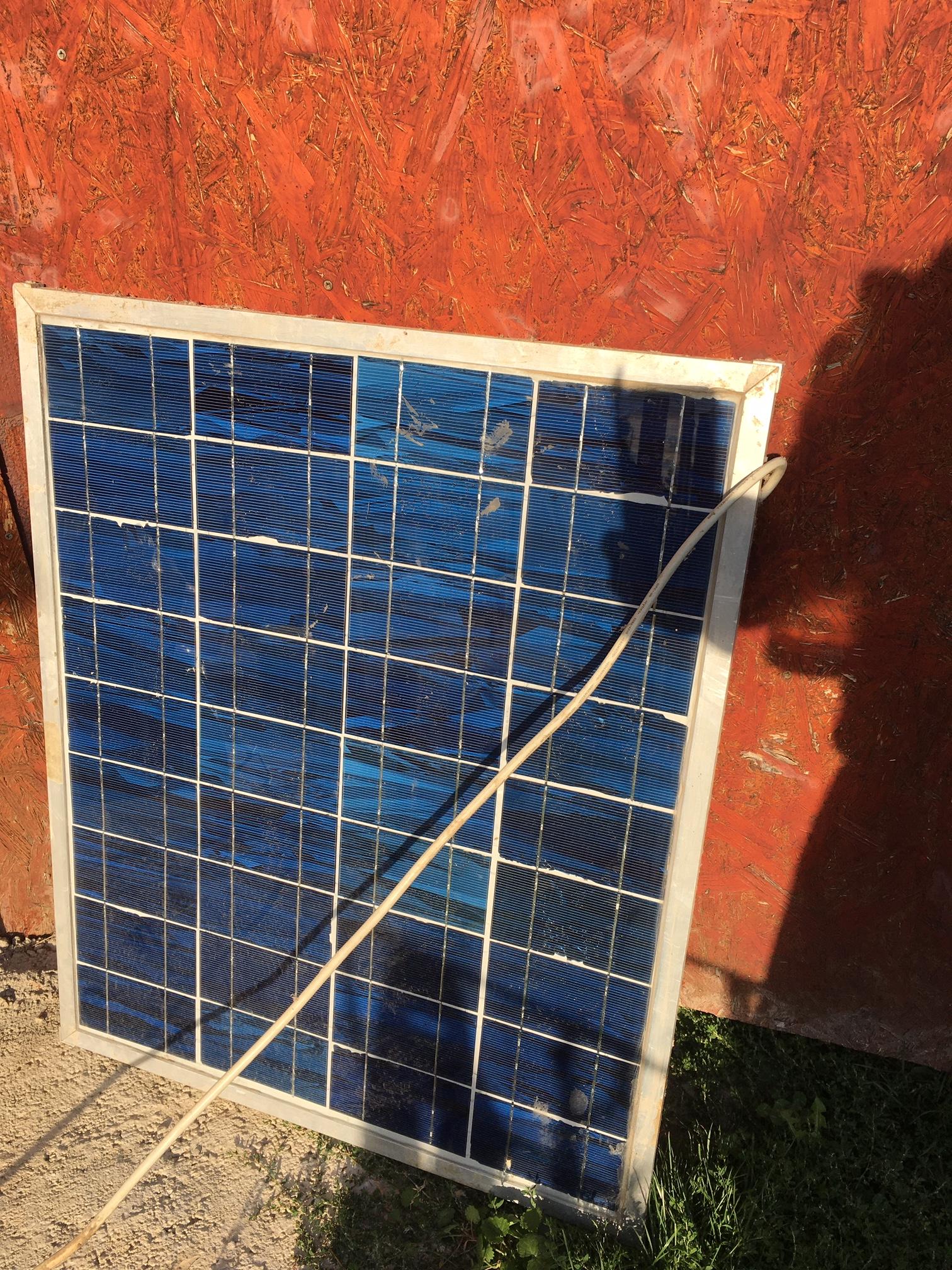

The picture shows a solar cell, DIY made 7 years ago. The goal was to find the right impregnator -20 +40 °C

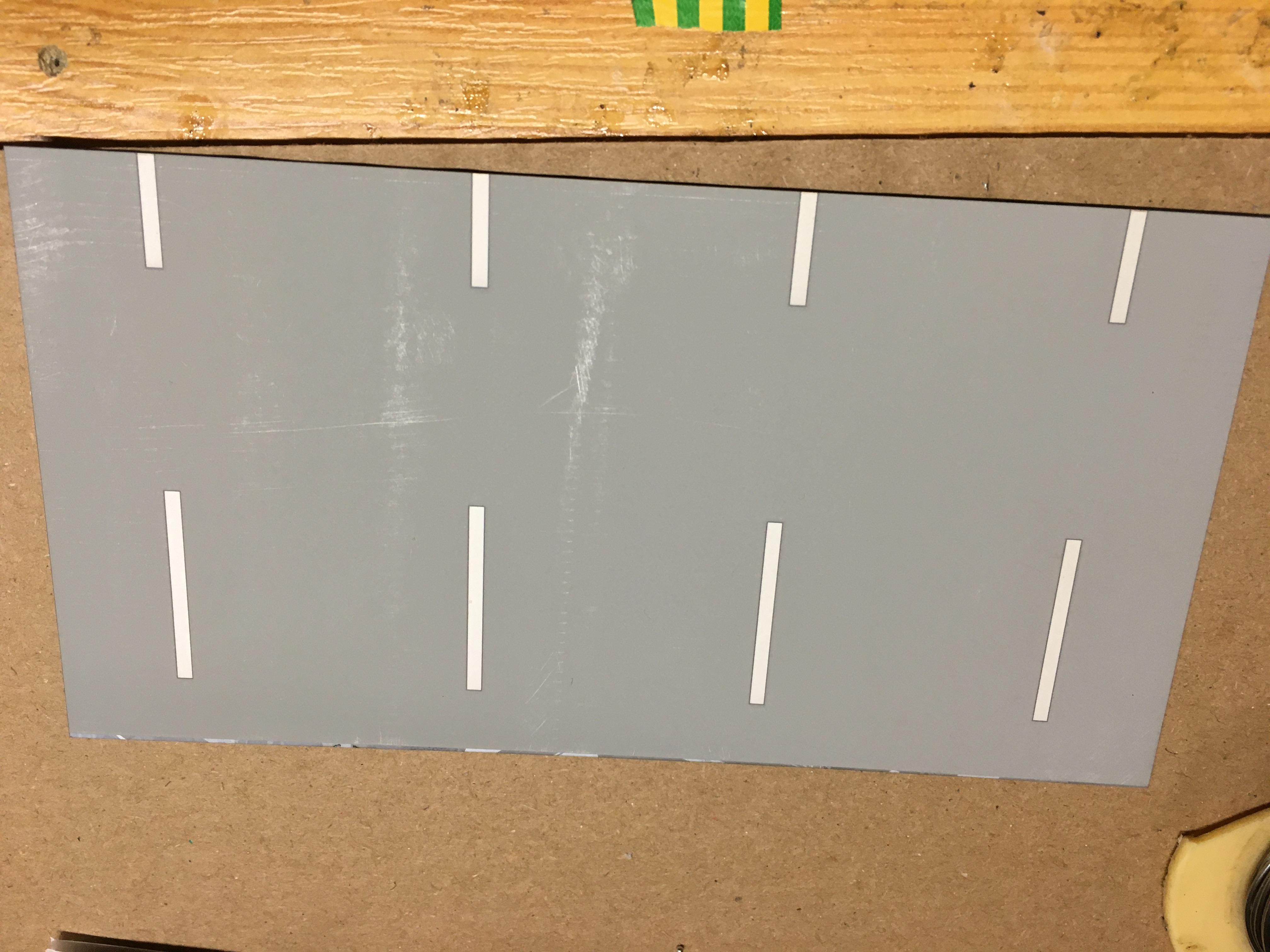

The Cell

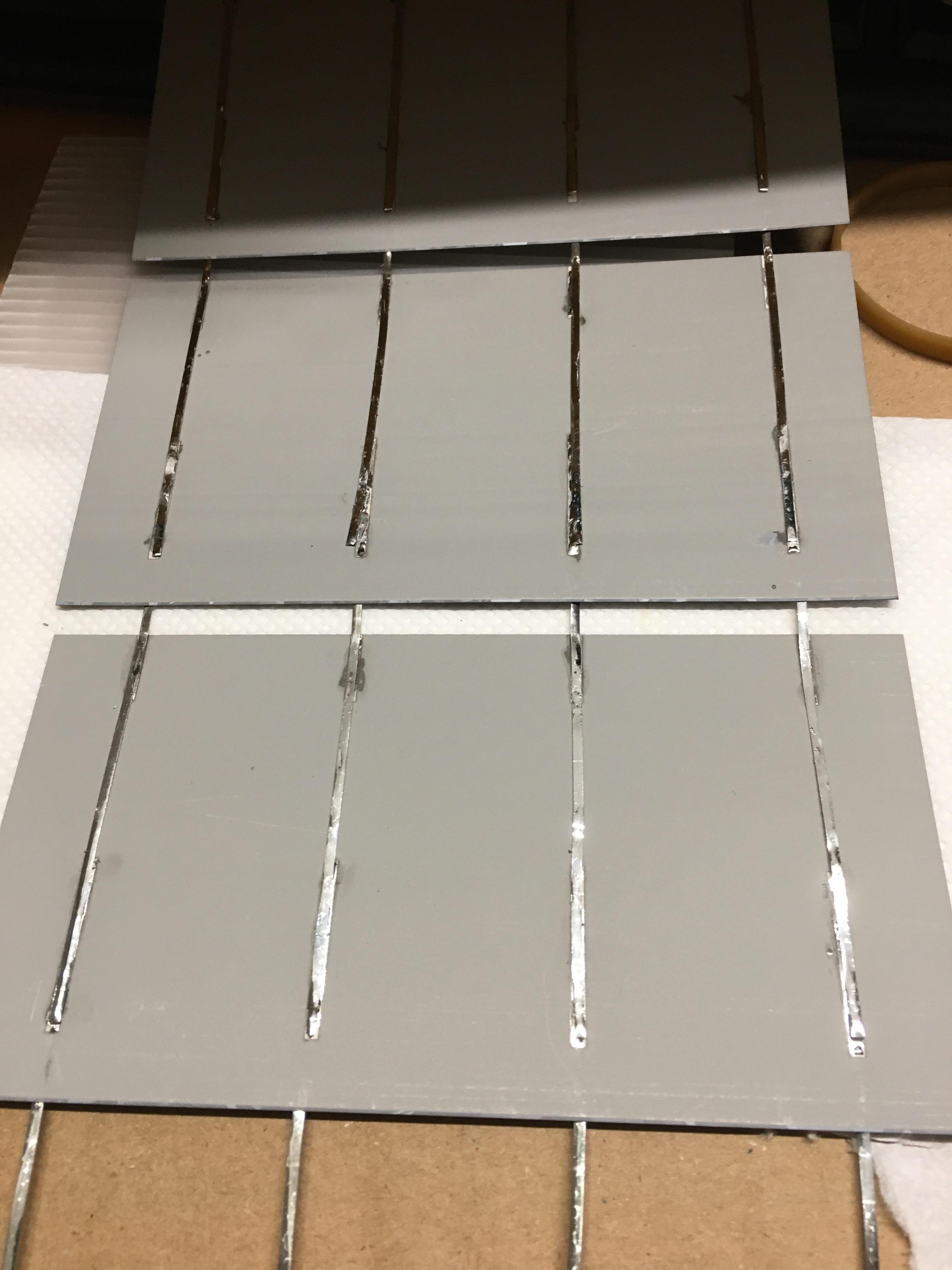

Making the Panel Soldering




Making the Panel Soldering

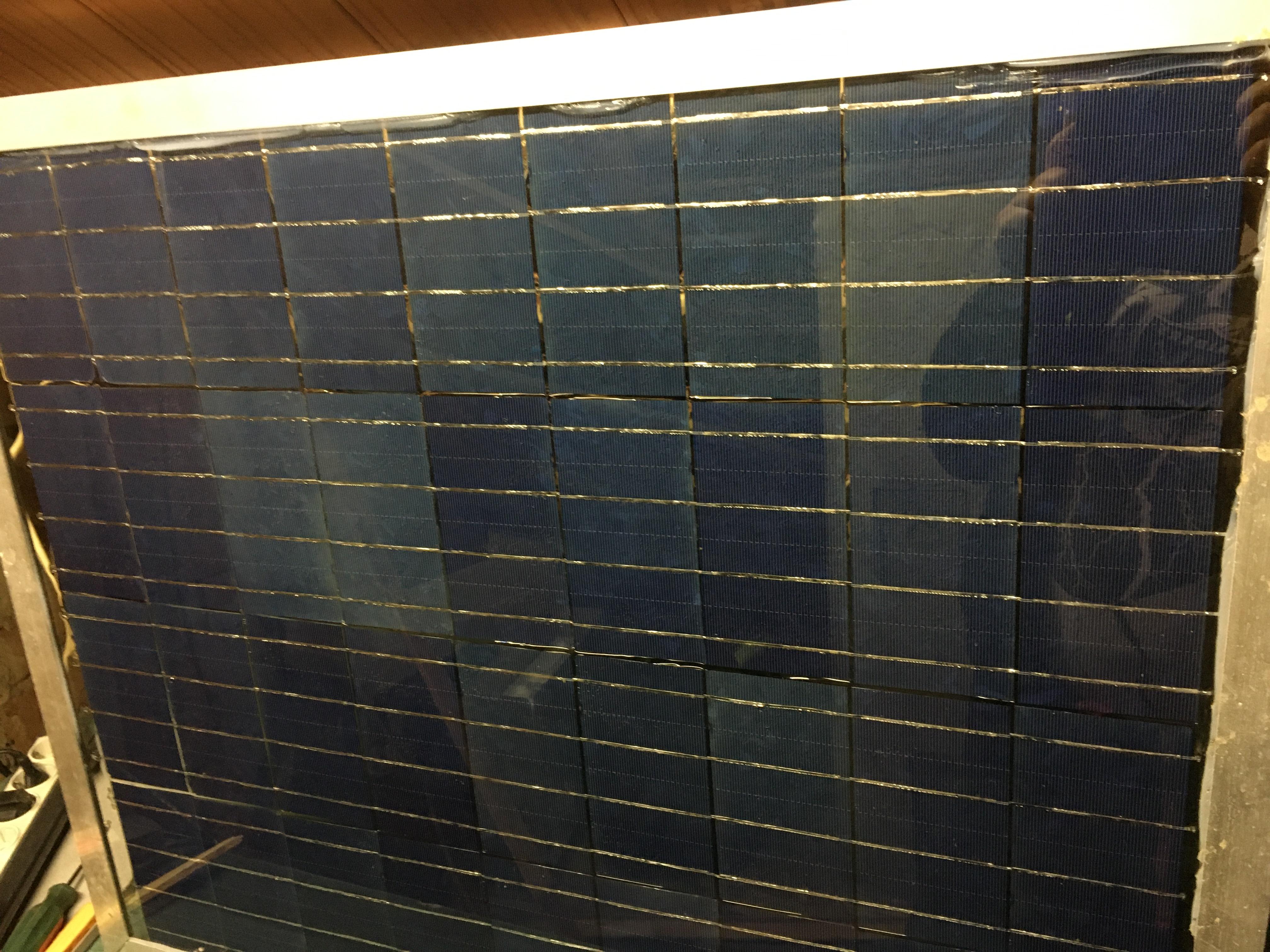

The Panel

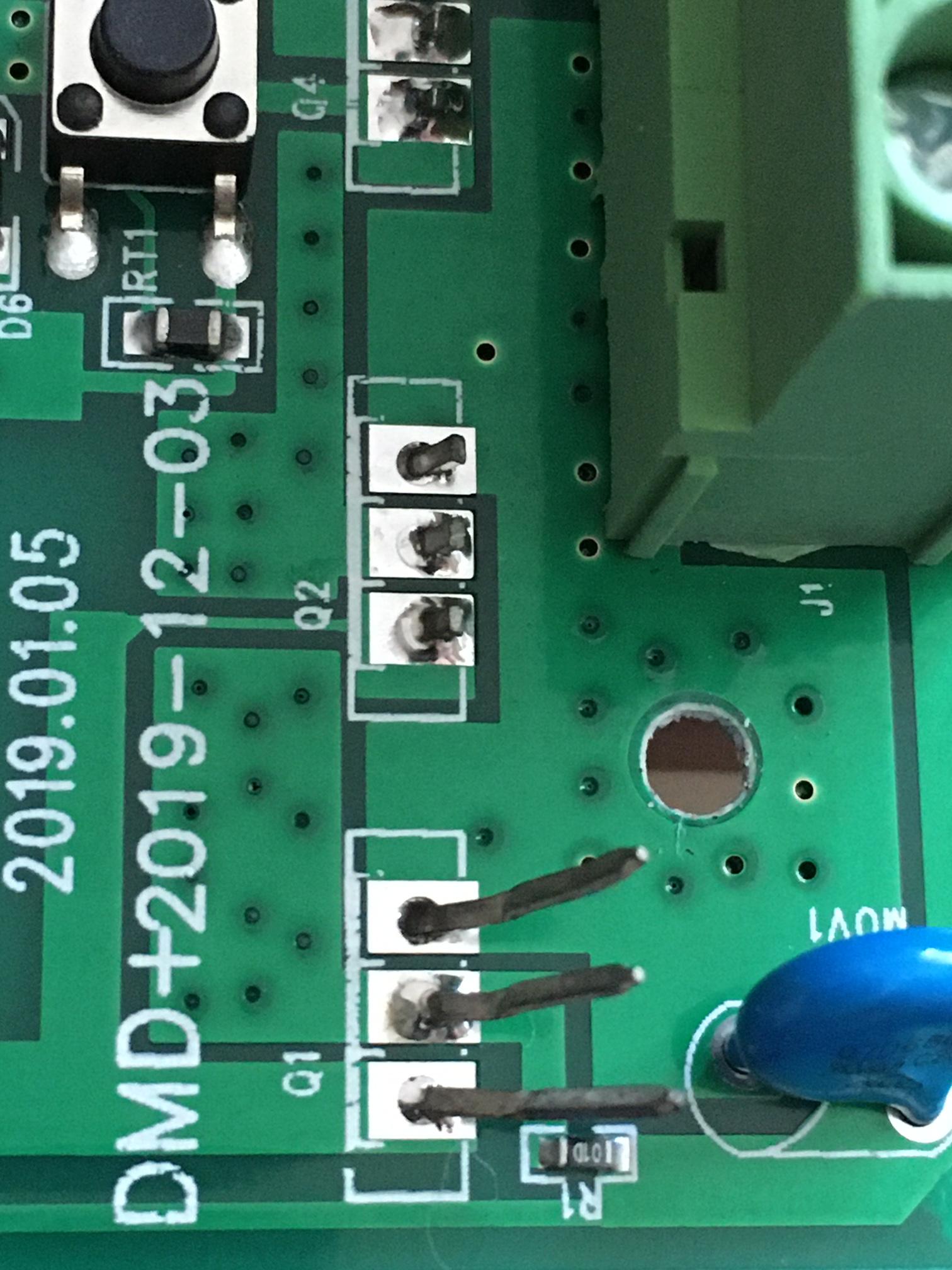

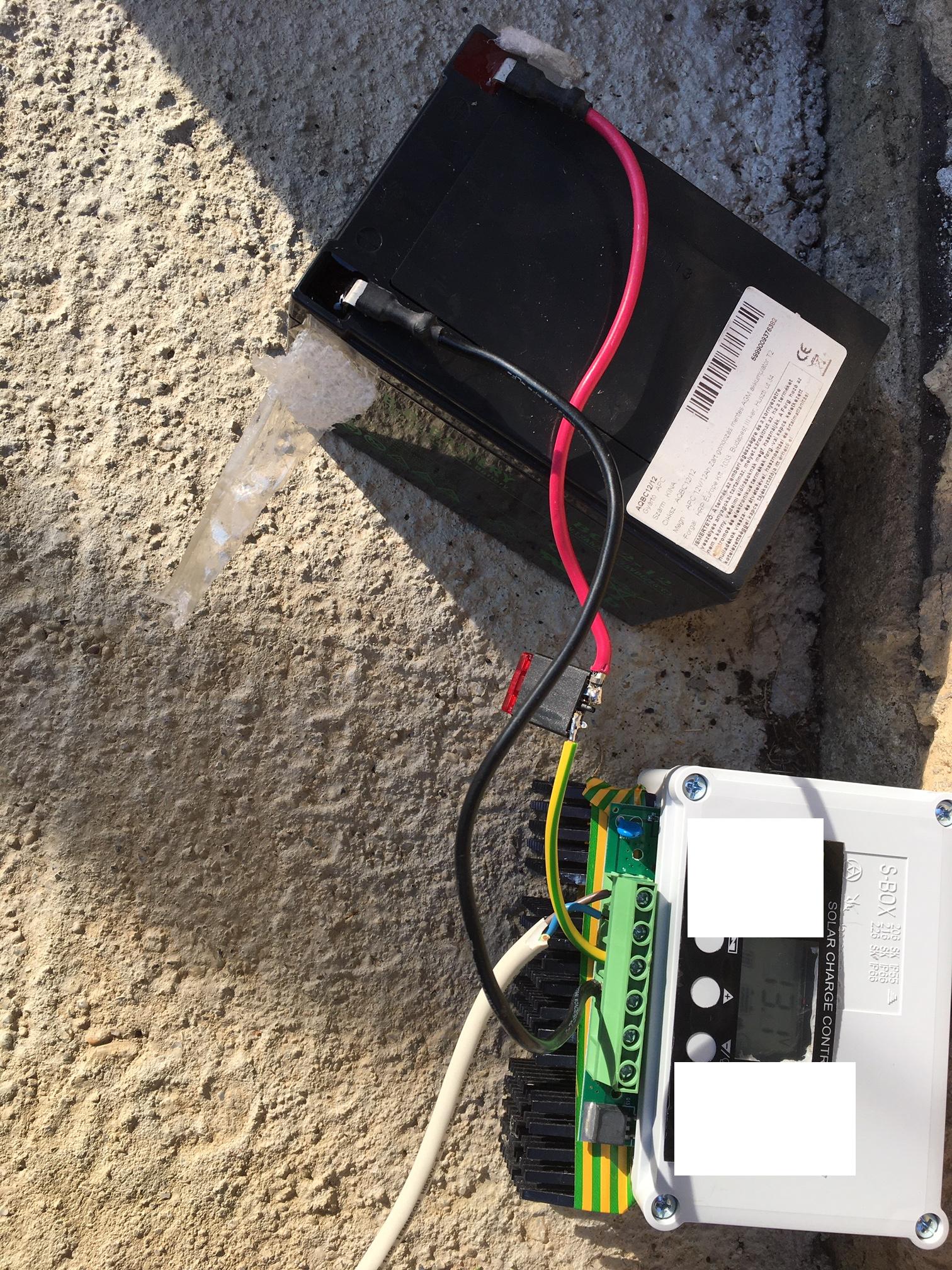

Charge Controller


Mistake


When colleague Chen had a really bad day in work ;)
First Test

battery voltage
The LoRa Gateway Is Working!

Charging Process

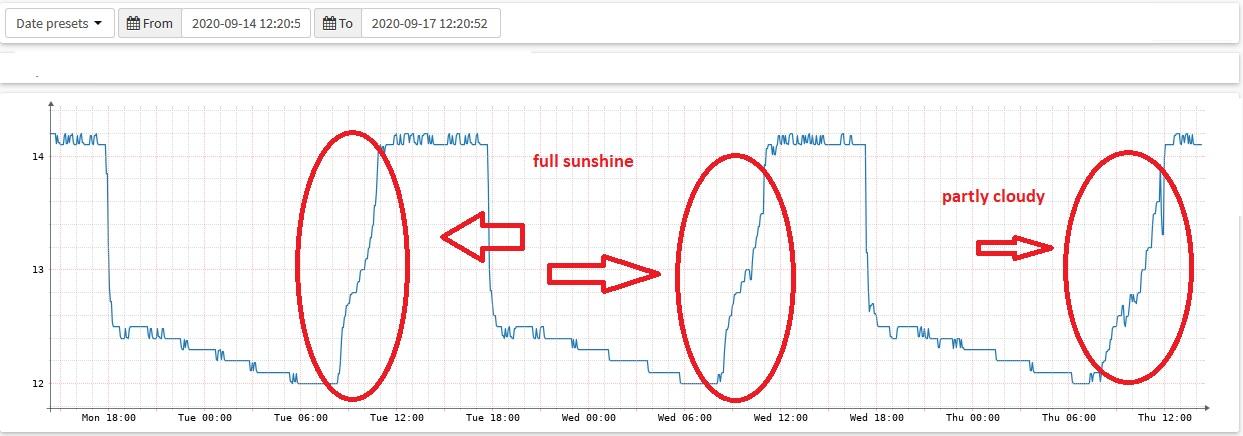

Full Sunshine Partly Cloudy

I Added 12v 12Ah Battery

Measuring Difference Between 12v 12Ah and 12v 24Ah Battery

Cloudy Weather

Measurements




Fog on Week

Family Side Effect, Night Lighting From Solar Charged Battery

The bottles on the desk, tomatoes bottles..
Mistakes


1, pushed hard the solder
2, first try impregnator: epoxy resin
