Detouchable Converter Board for ESP-07 and 12 With Pogo Pins


I made a Detouchable Converter Board.

For example, a converter for 2mm pitched SMD ESP-07 or ESP-12.

It can mount on 2.54mm pitched breadboard as a 16 pins DIP.

http://neo-sahara.com/wp/detouchable_esp8266

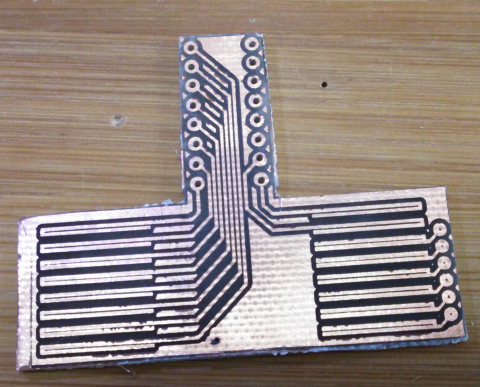

Double sided PCB.


These are the Pogo Pins.

They will be solderd on the PCB.


Pogo Pins and pin headers are soldered.

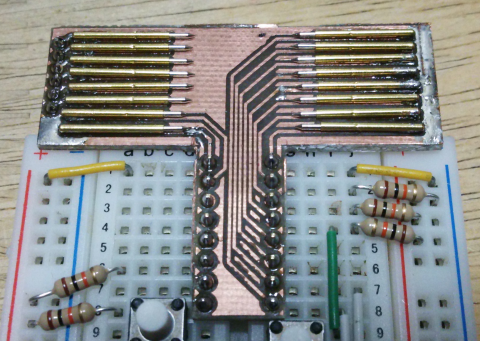

The Detouchable Converter Board set on a breadboard need only the space as 16pins DIP.


ESP-07 is mounted on the board and can be unmounted easily.

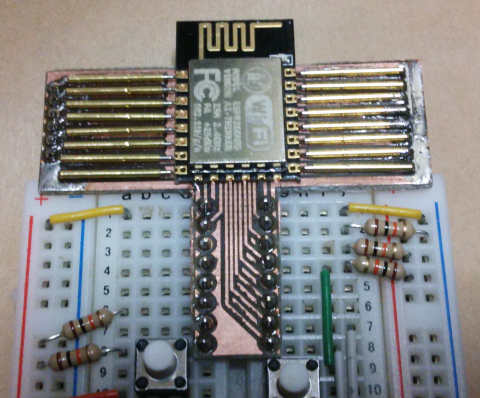

ESP-12 can be also mounted.


How to mount a module.


How to unmount.

http://neo-sahara.com/wp/detouchable_esp8266
