Desk Lamp and Fan From Old Fibre-tip Pens

by Salman Naveed in Workshop > Lighting

828 Views, 8 Favorites, 0 Comments

Desk Lamp and Fan From Old Fibre-tip Pens

Desk Lamp  (27).JPG

I had a bunch of old fibre-tip pens (we'll call them Dollar Pointers, because this is how they're known here) lying around, so instead of throwing them away, I decided to reuse them. And this is what I made! A desk lamp + fan! This creation of mine will be useful during the summer, when I sit at my desk for long hours - reading, tinkering, e.t.c.

So let's begin!

Getting Started: Things You'll Need

Desk Lamp  (1).JPG
Desk Lamp  (6).JPG
Desk Lamp  (2).JPG
Desk Lamp  (3).JPG
Desk Lamp  (4).JPG
Desk Lamp  (5).JPG
Desk Lamp  (9).JPG
Desk Lamp  (7).JPG
Desk Lamp  (8).JPG

Here is a list of things required for making this desk lamp + fan.

  1. Fiber-tip pens (I used 3 of them)

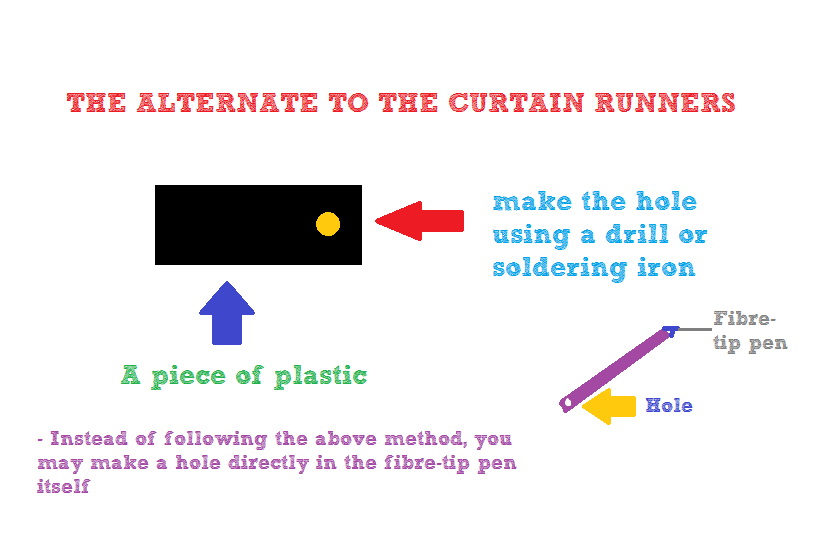

  2. Curtain runners (they are obsolete, so you may use pieces of plastic, or you may make a hole in the pens themselves.)
  3. The cap of a jar or the cover of a box (This will serve as a base for the lamp, so it has to be broad and balanced)
  4. Connecting Wires

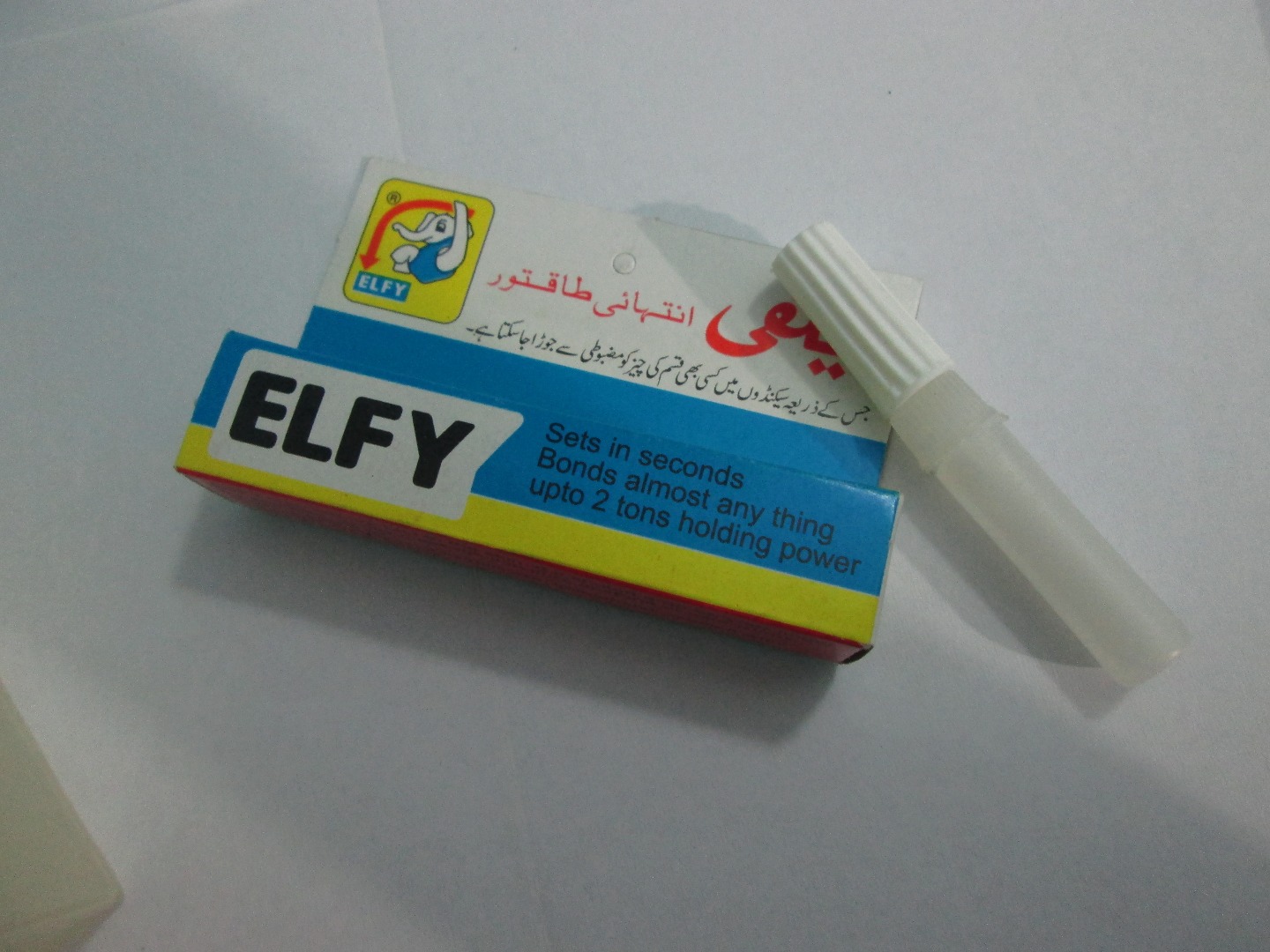

  5. Super glue
  6. Soldering iron

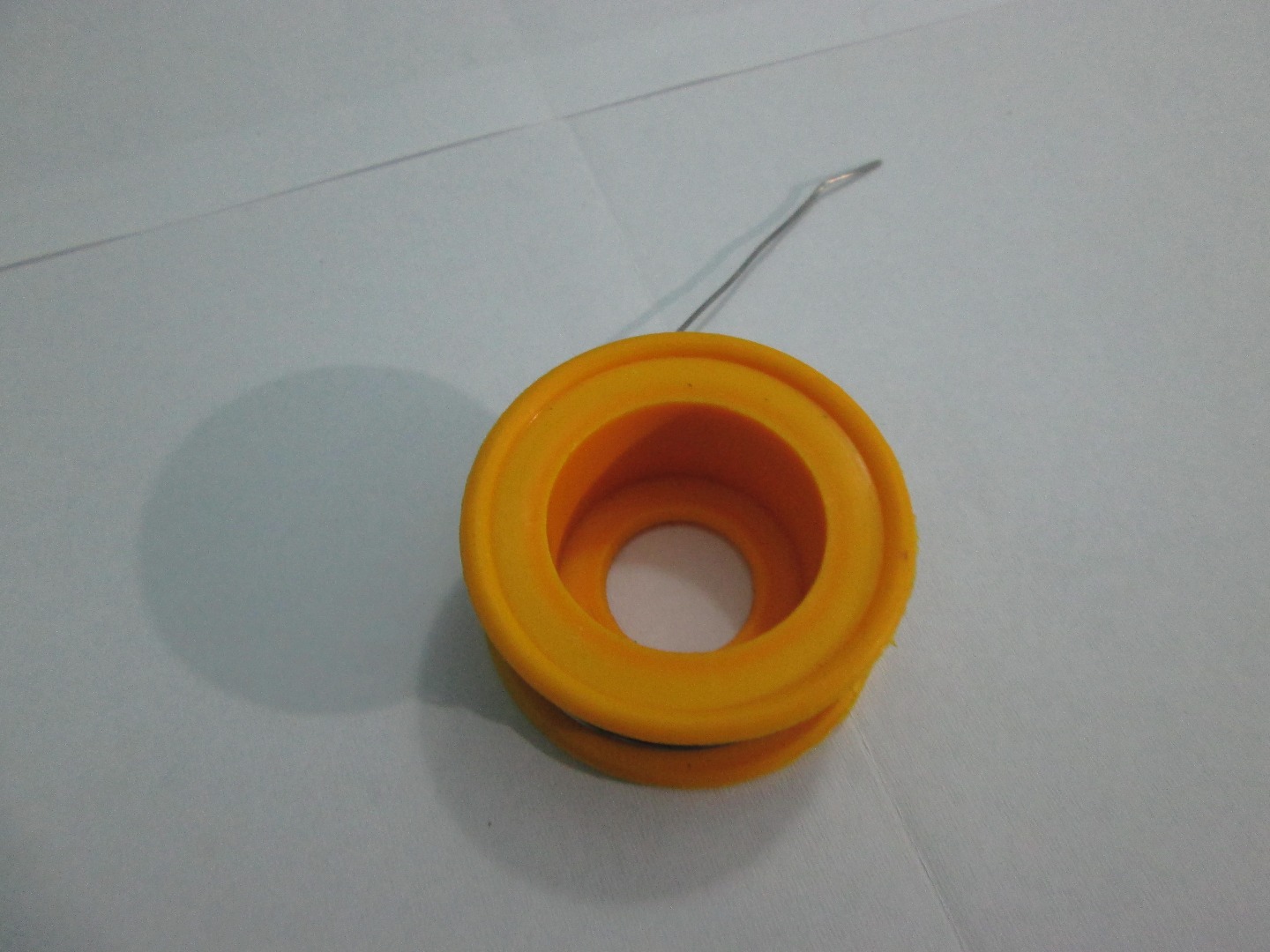

  7. Solder wire
  8. Battery (I used a 4V/1.3A one) or an adapter of suitable specifications
  9. White LEDs (Any type will do, make sure you do not use a battery or adapter which gives a higher voltage than what is required by the LEDs)
  10. Regular DC motor
  11. A bendy steel strip or a tin can
  12. A fan blade (any type will do)
  13. 3-4 screws + nuts

Preparing the Adjustable Arms

Desk Lamp  (10).JPG
Desk Lamp  (11).JPG
Desk Lamp  (12).JPG
Desk Lamp  (13).JPG
Desk Lamp  (14).JPG
  • We will use three fibre-tip pens (two of them with a curtain runner at one end and the other with runners at both ends)

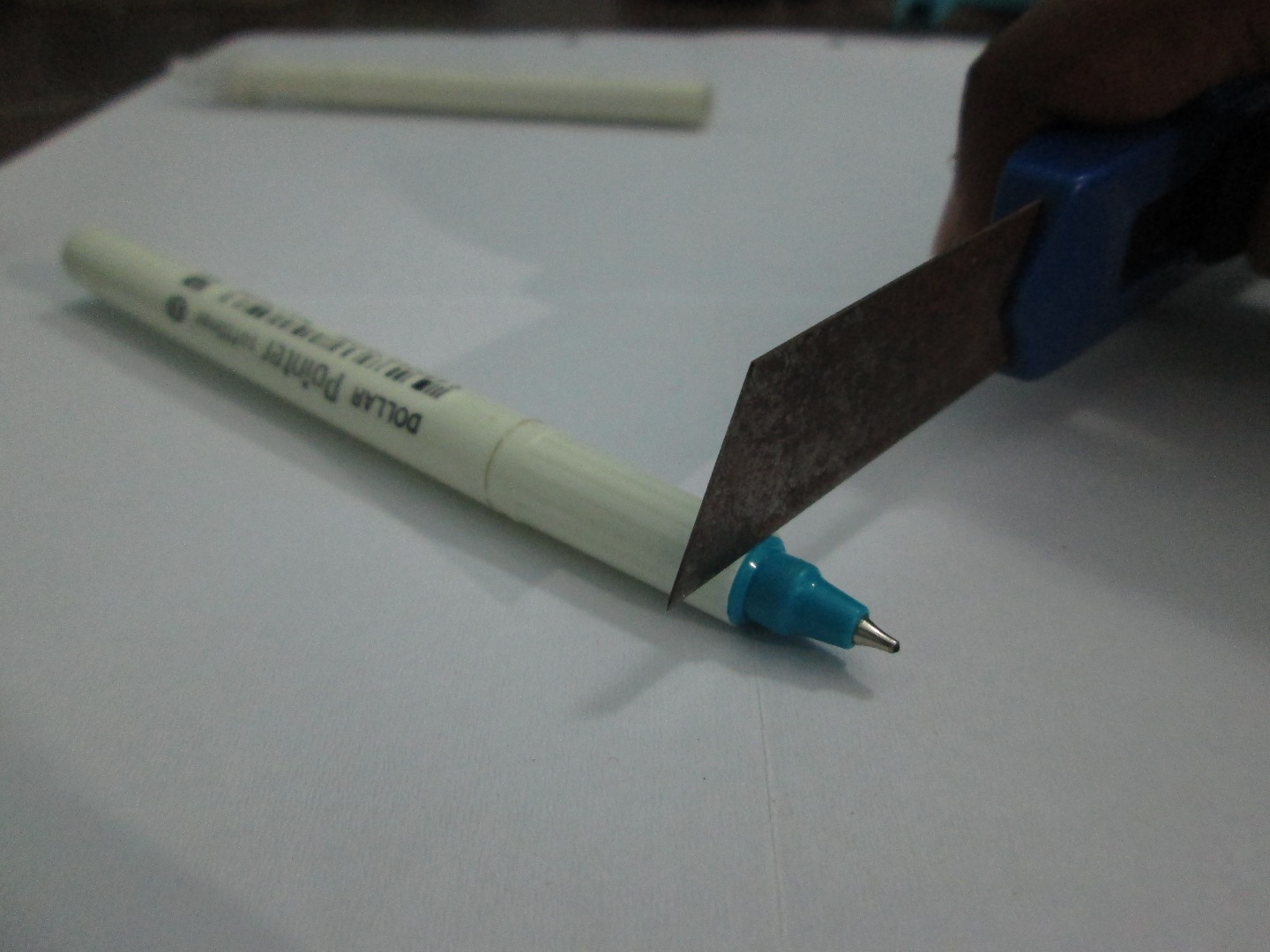

  • Take a fibre-tip pen (referred to as a pen from now on) and cut off the area around its nib/point.
  • Repeat this step with the other two pens.
  • Now fix the curtain runners or pieces of plastic at the end and add a few drops of super glue.
  • Allow it to dry.
  • Repeat this step with the other two pens.
  • On the third pen, fix a runner or piece of plastic at the other end and glue it as well.
  • The arms of our lamp + fan are ready as shown in the 4th picture.
  • Now fix a runner or a piece of plastic to the LEDs as shown in the picture with the help of super glue.

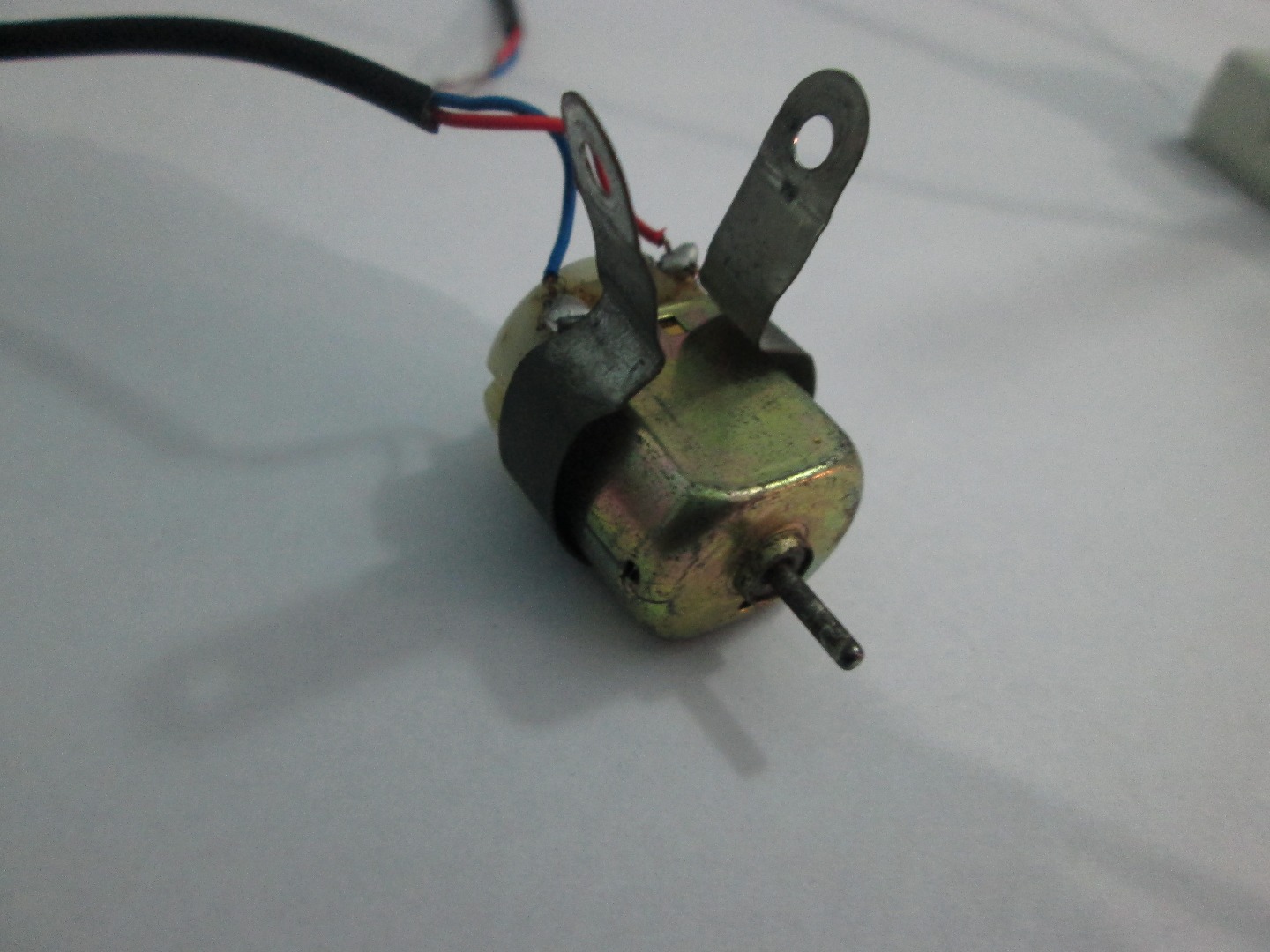

  • Bend the steel strip around a motor to make a motor mount as shown in the picture.
  • Or if you do not have a steel strip, then cut a thin strip out of a tin can and repeat the above step. (WARNING: THE CAN MAY CUT YOUR HANDS, SO EXERCISE CAUTION!)

Finishing Off!

Desk Lamp  (15).JPG
Desk Lamp  (16).JPG
Desk Lamp  (17).JPG
Desk Lamp  (18).JPG
Desk Lamp  (19).JPG
Desk Lamp  (20).JPG
Desk Lamp  (21).JPG
Desk Lamp  (22).JPG
Desk Lamp  (23).JPG
Gizmo Dynamics - Desk Lamp+Fan Wiring Diagram.png
Desk Lamp  (25).JPG
Desk Lamp  (24).JPG

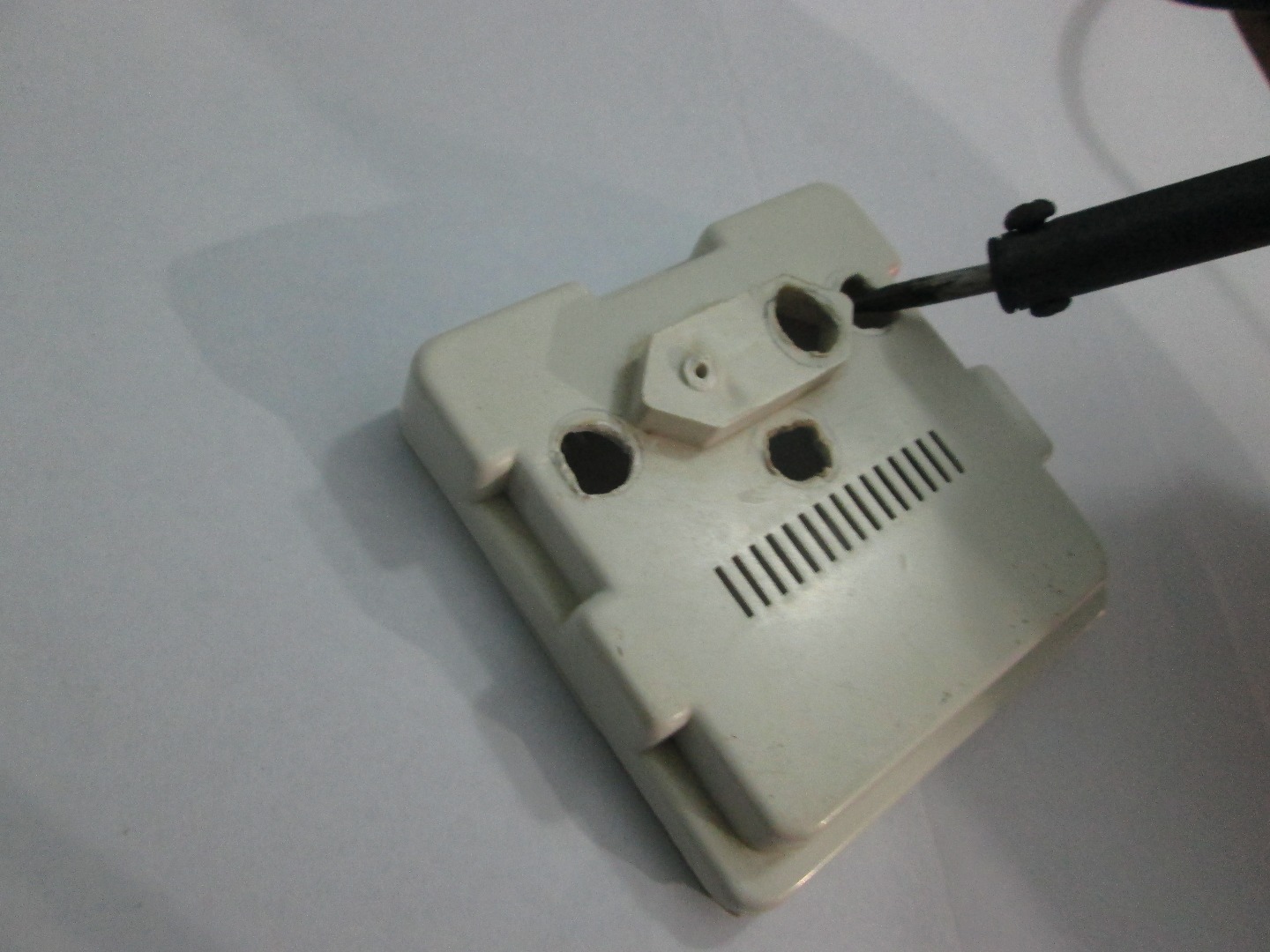

  • First of all, we need to make two holes in the base/platform in order to fix the pens/arms.

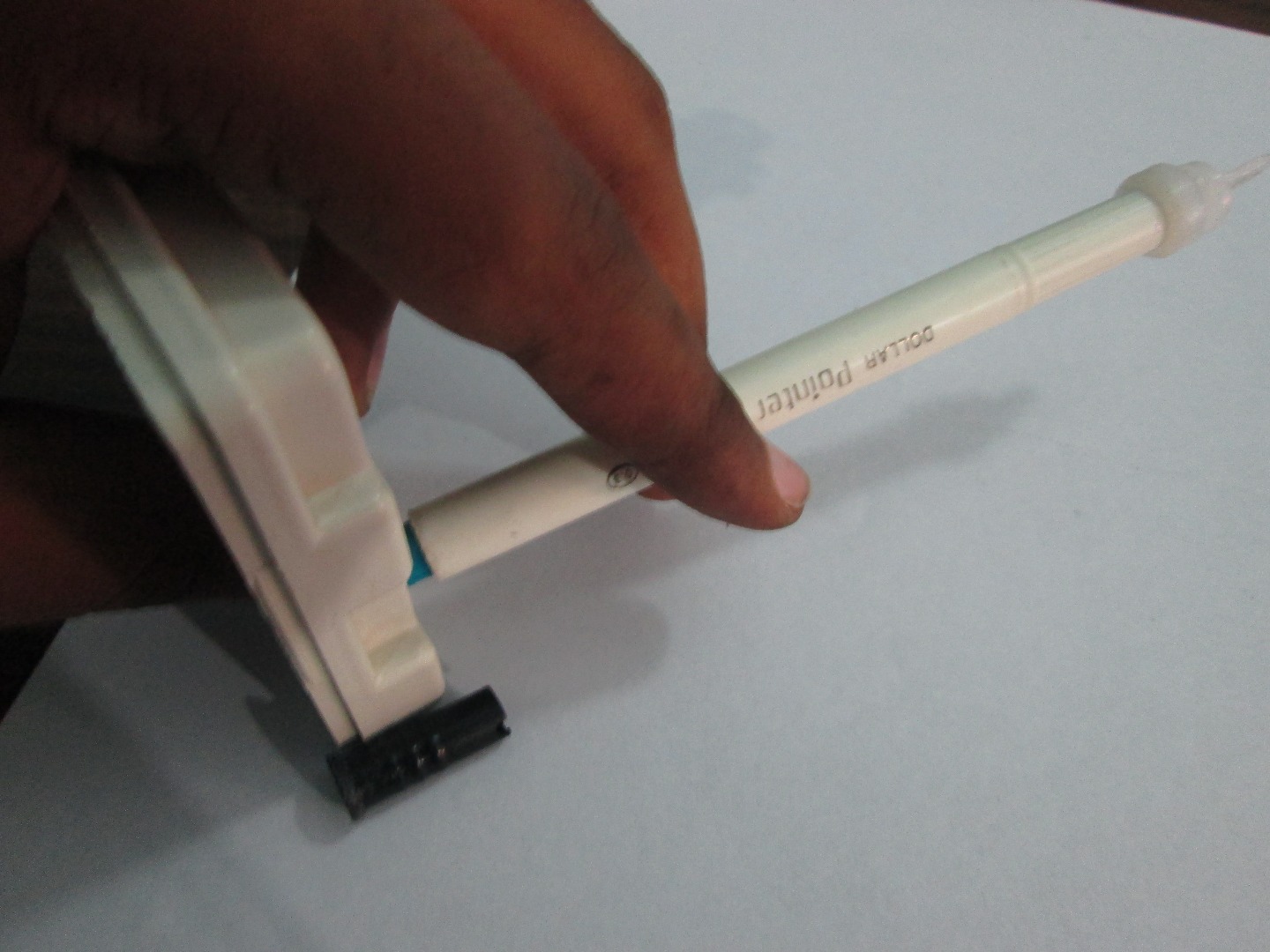

  • Insert the stopper in the hole from the underside of the base and fix the pen from the top.
  • Repeat this step for the second pen.
  • Now attach the third arm (pen) to the second one, using a nut and screw as shown in the picture.
  • Fix the LED strip in a similar manner.
  • Then secure the DC motor in the motor mount that you have made from a tin can or a metal strip and attach it to the second pen (arm) with a screw and nut.
  • Ensure that you have already soldered the wires to both the LEDs and the motor.

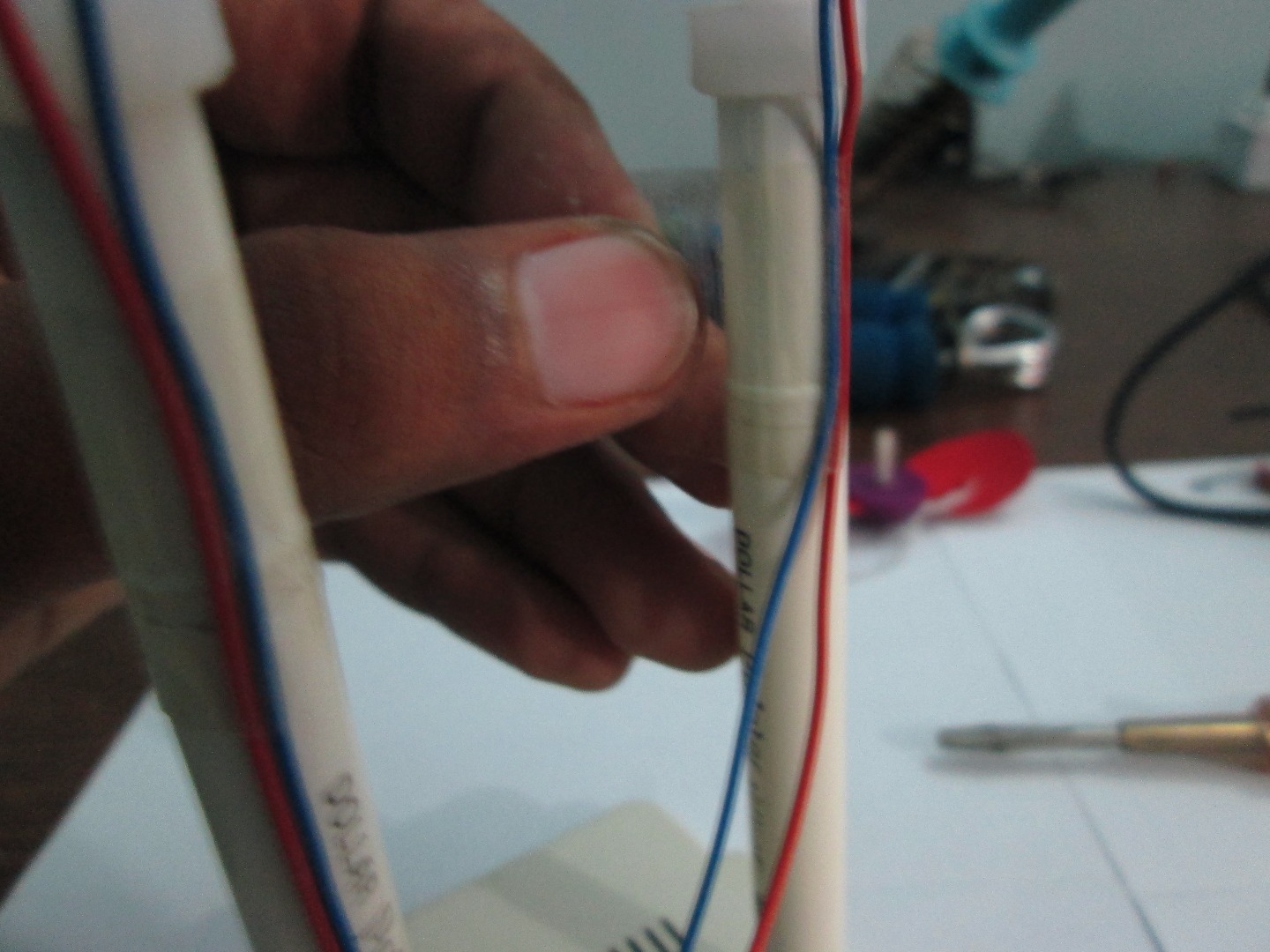

  • Neatly tape the wires to the arms but leave some slack in them so that the arms can be moved easily.

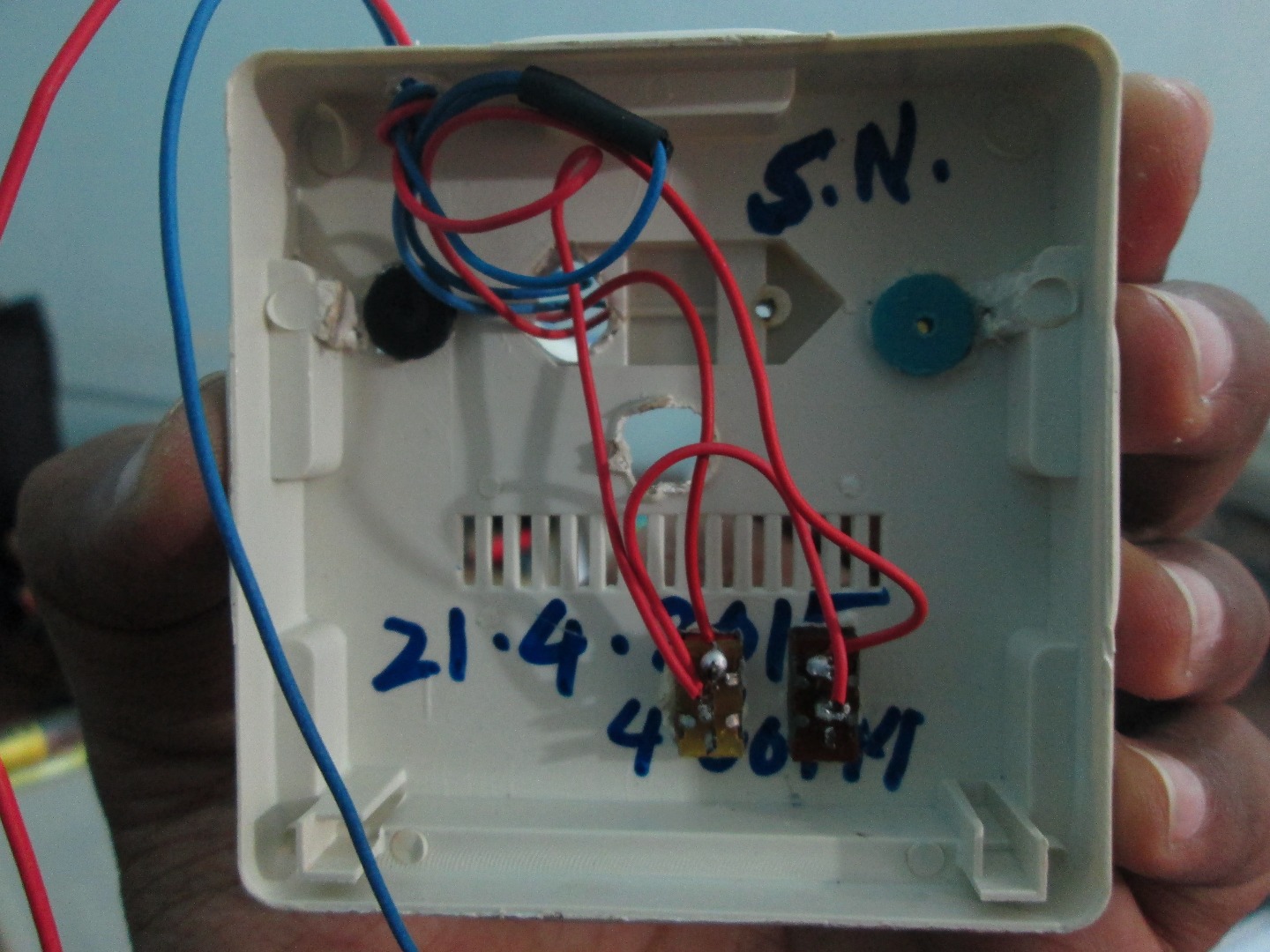

  • The wiring diagram can be used as a reference while making the connections to the switches.
  • You may use a dremel or a soldering iron to make holes in the base for the switches, or you may make a direct connection to the battery/adapter, eliminating the use for a switch.
  • Now check the circuit by turning it on. If everything works then move on to the next step. If it doesn't. then check your connections and the powers source.

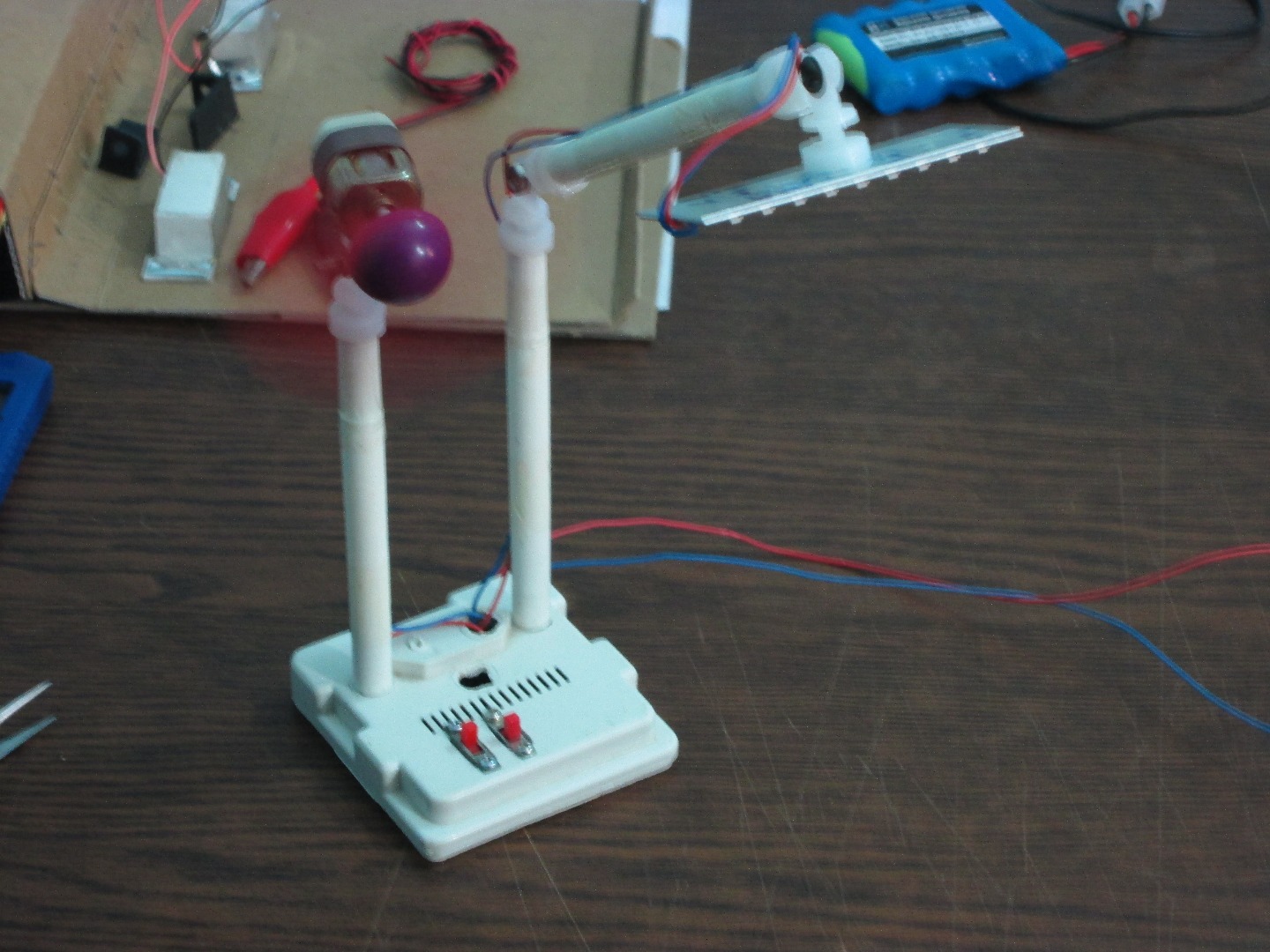

  • Your own desk lamp + fan is ready!

Enjoy!

Desk Lamp  (27).JPG
Desk Lamp  (26).JPG

Set it up on your desk or workplace and enjoy the light and the breeze!

Good Work!

(NOTE: I didn't turn on the light while taking the pictures because of its sharp glare which would have made the picture useless. But I assure you it works fine!)
