Designer Clock 30cm
![kello allku.jpg](/proxy/?url=https://content.instructables.com/F9V/O3QM/LJSL8177/F9VO3QMLJSL8177.jpg&filename=kello allku.jpg)
this is simple one day build. idea for the shape came from pienterest i think. its made out of birch.
Supplies
- laser cutter (to mark out specific shapes)
- Optional: jointer and planer (if you prefer to make it from scratch)
- A solid wood panel (birch is a suitable choice)
- A clock mechanism (you can find examples of clock mechanisms on here)
Glue the Panel
![kello2.jpg](/proxy/?url=https://content.instructables.com/FCA/M9K7/LJSL81FM/FCAM9K7LJSL81FM.jpg&filename=kello2.jpg)
Using a jointer and planer, I get the panel to be 16mm thick so that the mechanism can stick out a little.

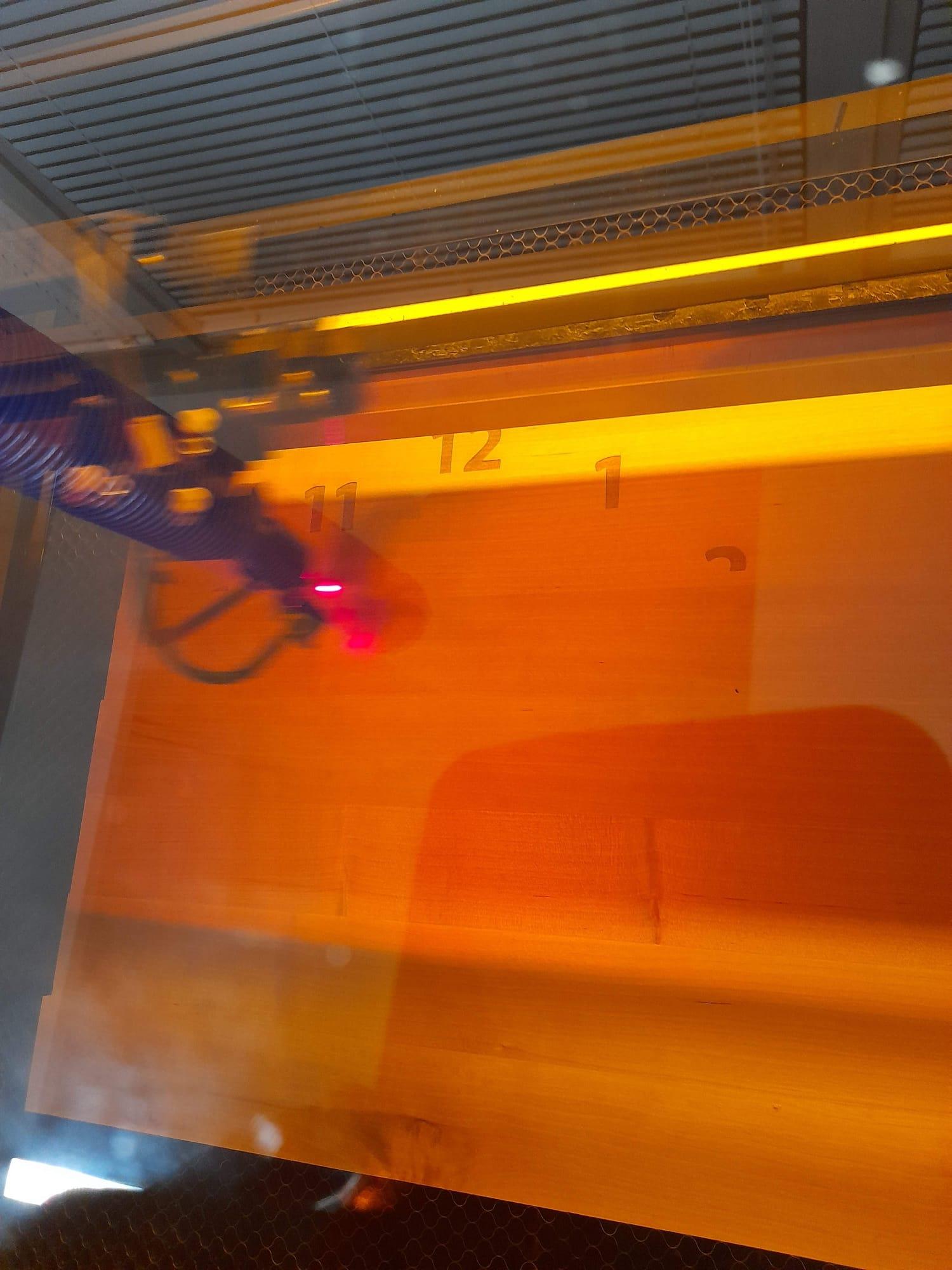

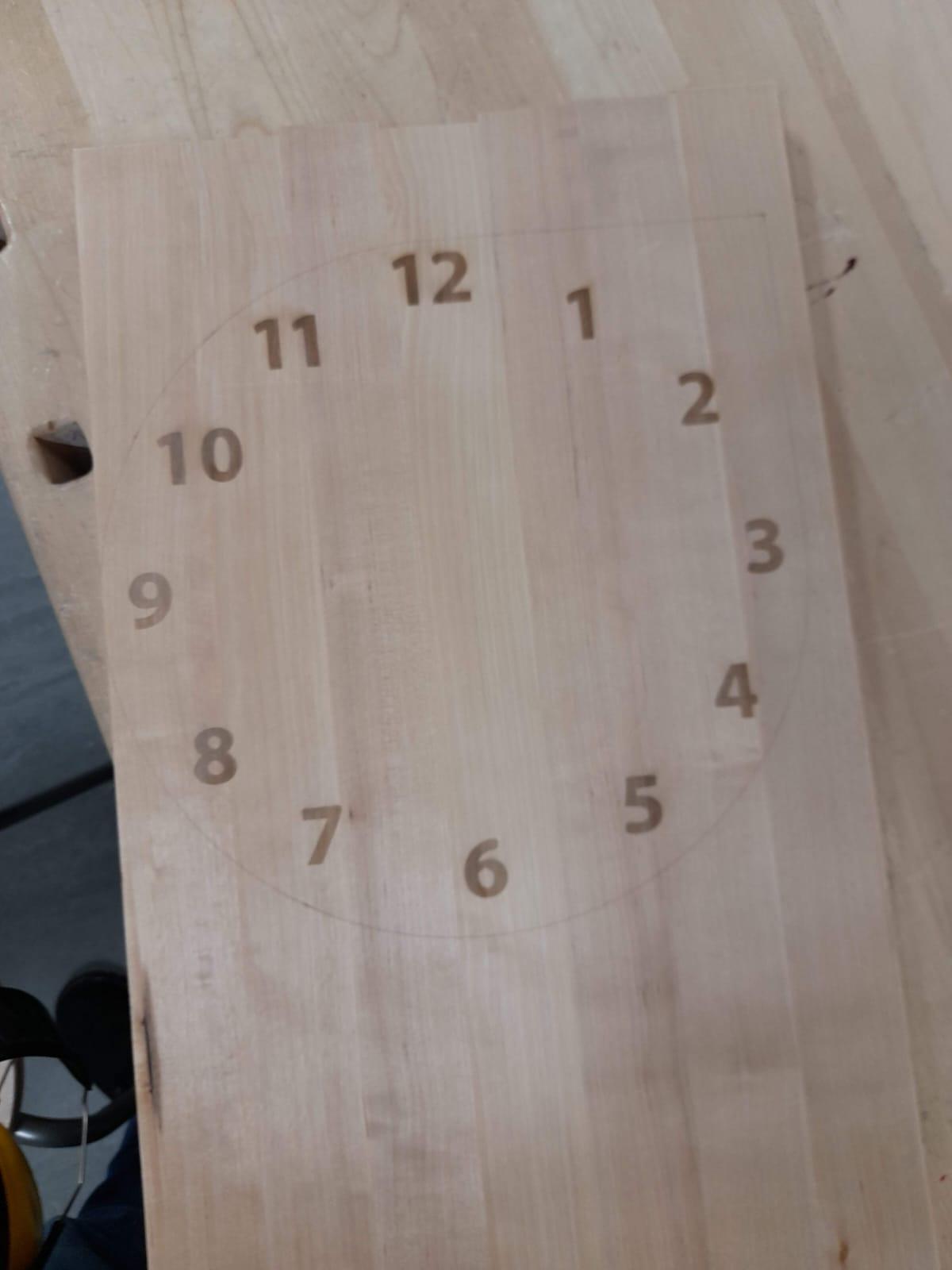

Laser Cut the Clock Design.
![kello1.jpg](/proxy/?url=https://content.instructables.com/FNJ/1JW1/LJSL81GL/FNJ1JW1LJSL81GL.jpg&filename=kello1.jpg)
![kello2.jpg](/proxy/?url=https://content.instructables.com/FSM/H6CH/LJSL81GM/FSMH6CHLJSL81GM.jpg&filename=kello2.jpg)
Cut the Clock Design
![FCAM9K7LJSL81FM.jpg](/proxy/?url=https://content.instructables.com/F88/H06S/LJSL81X8/F88H06SLJSL81X8.jpg&filename=FCAM9K7LJSL81FM.jpg)
![kello3.jpg](/proxy/?url=https://content.instructables.com/FQ8/DGIP/LJSL81I2/FQ8DGIPLJSL81I2.jpg&filename=kello3.jpg)
Cut close to the circle using a jigsaw or bandsaw. Then, use a sander to get it to the final size.

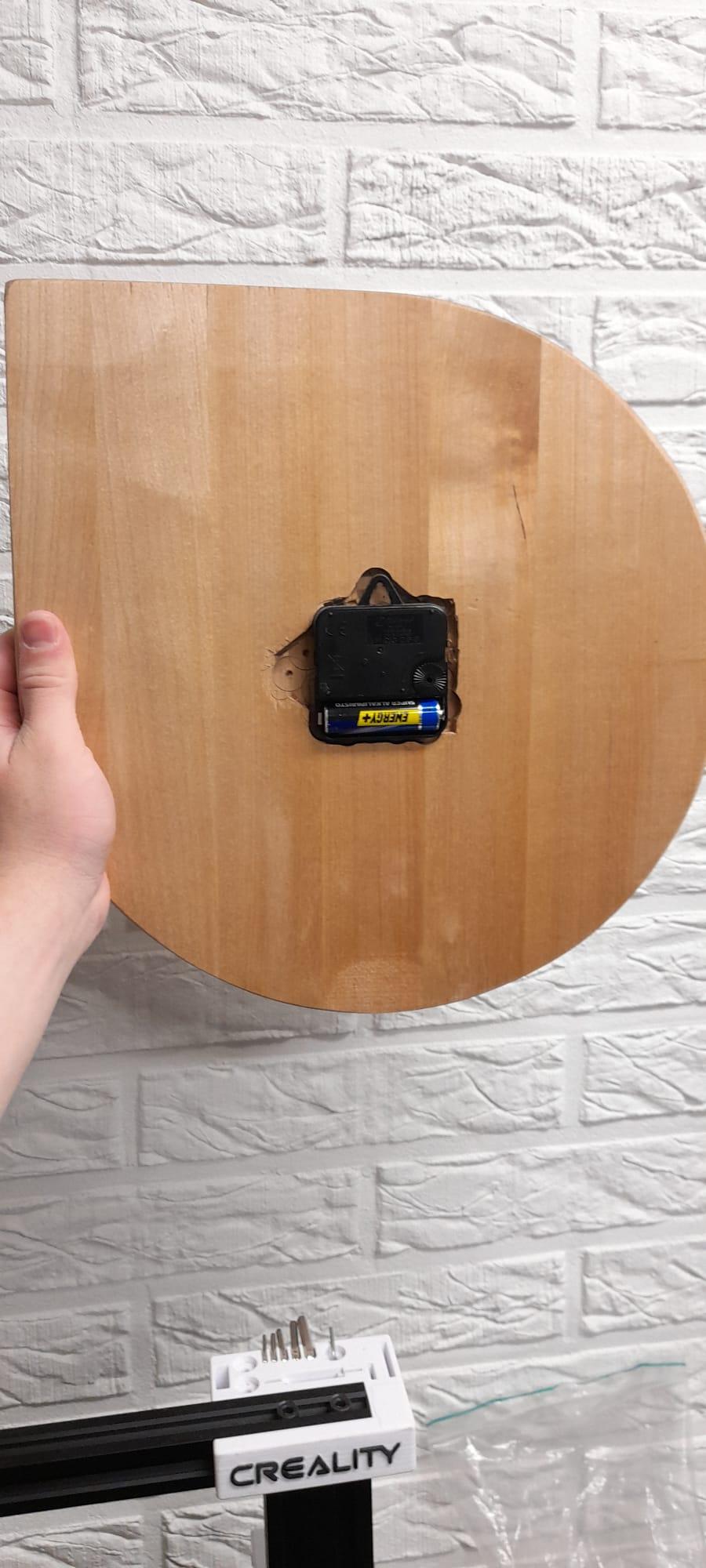

Make Space for the Clock Mechanism
![kello takaa.jpg](/proxy/?url=https://content.instructables.com/FCQ/SWYB/LJSL81KV/FCQSWYBLJSL81KV.jpg&filename=kello takaa.jpg)
Use a Forstner bit to remove the most material. Then, use a chisel to clean it off. Make sure that the screw has enough space.
Finish
![kelllo käsittely.jpg](/proxy/?url=https://content.instructables.com/F8B/NY3E/LJSL81MG/F8BNY3ELJSL81MG.jpg&filename=kelllo käsittely.jpg)
I think I used somekind of beewax. Tip: Don't put too much, or the clock will get a little darker.

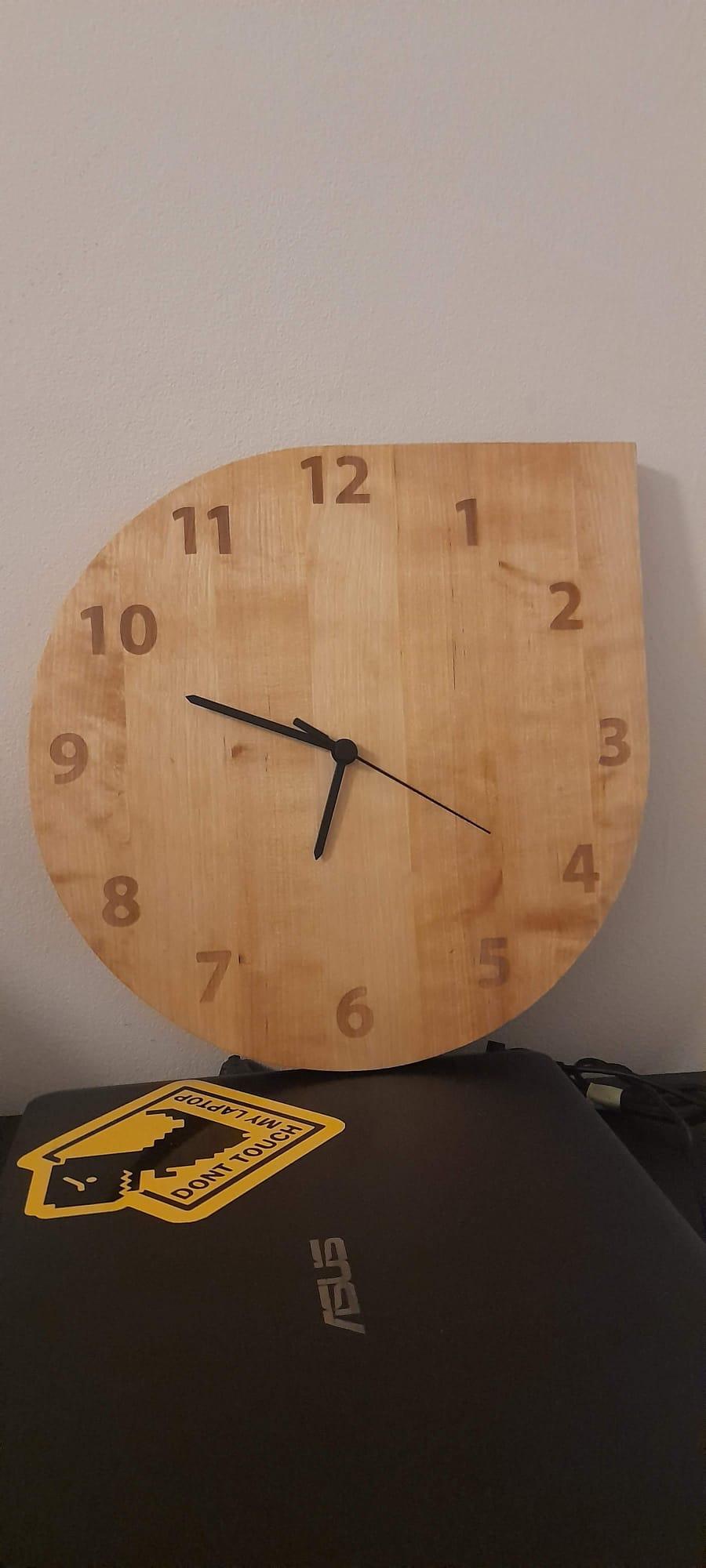

Ready
![kello koneen.jpg](/proxy/?url=https://content.instructables.com/F7B/3JY4/LJSL81NS/F7B3JY4LJSL81NS.jpg&filename=kello koneen.jpg)
![kello allku.jpg](/proxy/?url=https://content.instructables.com/F7C/5TL6/LJSL81NT/F7C5TL6LJSL81NT.jpg&filename=kello allku.jpg)
Now it's ready. Now you can give yourself a pat on the back and hang the clock on the wall.
