Design Max232 PCB Using Eagle

by Izzat Kawadri in Circuits > Microcontrollers

840 Views, 0 Favorites, 0 Comments

Design Max232 PCB Using Eagle

MAX232 PCB.png

Max 232 is an Integrated Circuit (IC) embedded in a single chip and act as a voltage level converter.

MAX 232 is capable of converting 5V TTL Logic level to TIA/EIA-232-F level and can take up to +-30V input.

It is normally used for the communication between microcontroller and Laptop/PC.

Downloads

max232.txt

Supplies

To Build Max232 We Need To Use The Components in : max232.txt (BOM)

The Schematic :


Downloads

max232.sch

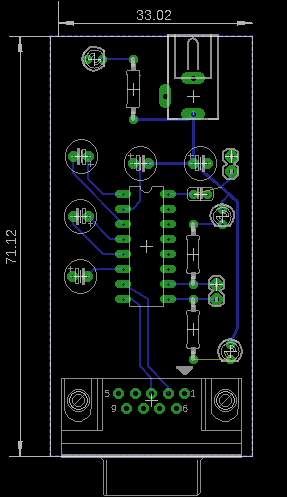

The Board Design :

max232 board.png

Downloads

max232.brd

After Printing the Circuit :


Putting the Components :


The Circuit Soldering:

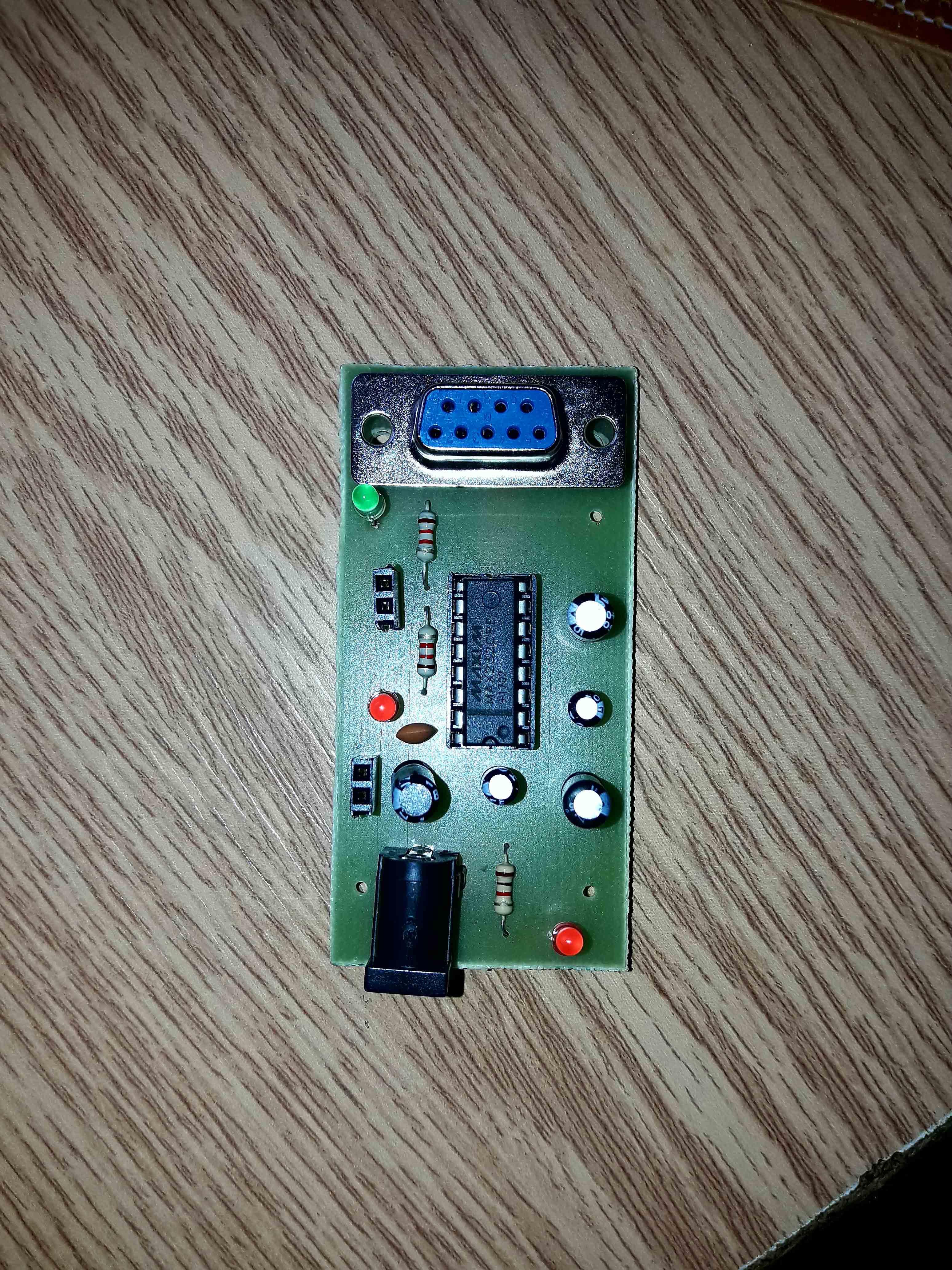

Max232 Is Done
