Decorative Lamp GirlsGoIT
by Catalina Morozovschi in Circuits > LEDs
202 Views, 0 Favorites, 0 Comments
Decorative Lamp GirlsGoIT
![Screenshot 2021-08-14 121034.png](/proxy/?url=https://content.instructables.com/F1T/NNPJ/KSAJ8PXA/F1TNNPJKSAJ8PXA.png&filename=Screenshot 2021-08-14 121034.png)

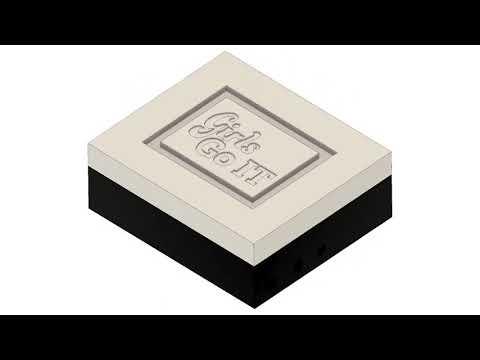

As part of the "GirlsGoIT" Summer Program, we decided to make a decorative lamp with the logo of this program.
Supplies
- Breadboard 800 points
- Arduino UNO R3
- Red LEDs
- Orange LEDs
- Yellow LEDs
- Resistor 220 ohm
- Dupont cables
- Plastic budy
- Push button
Design on Sheet
![image.png](/proxy/?url=https://content.instructables.com/FR6/QLUV/KSAJ8QAE/FR6QLUVKSAJ8QAE.png&filename=image.png)
The lamp will be in the form of a cuboid with dimensions: 180mm×155mm×66mm
Design on 3D
![Screenshot (409).png](/proxy/?url=https://content.instructables.com/FA3/M9GD/KSAJ8SDC/FA3M9GDKSAJ8SDC.png&filename=Screenshot (409).png)
![Screenshot (412).png](/proxy/?url=https://content.instructables.com/FWK/CY1S/KSAJ8SDD/FWKCY1SKSAJ8SDD.png&filename=Screenshot (412).png)
![Screenshot (407).png](/proxy/?url=https://content.instructables.com/FRE/7OLU/KSAJ8SEH/FRE7OLUKSAJ8SEH.png&filename=Screenshot (407).png)
On the 3D design side, I used the Autodesk Fusion 360 application to create the decorative lamp sketch. The steps in this application were as follows: first I saved the project, added a new component and created a sketch choosing the bottom plan, the most used was the toolbar. The project contains 2 components + breadboard + arduino + push button.
Circuit Design
![Screenshot 2021-08-14 160137.png](/proxy/?url=https://content.instructables.com/F2R/QHX2/KSBSFZYS/F2RQHX2KSBSFZYS.png&filename=Screenshot 2021-08-14 160137.png)
To write the code for Arduino I used Tinkercad. Tinkercad is a free online 3D modeling program that runs in a web browser.
I used 6 red LEDs, 6 yellow LEDs, 9 orange LEDs, 7 resistors, a breadboard, a pushbutton and an Arduino UNO R3 board.
Mode of operation:
- If we press the pushbutton once the LEDs will light up.
- If we press the pushbutton a second time, the LEDs will light up and go out one by one.
- If we press the pushbutton a third time, the LEDs will light up and go out slowly.
- If we press the pushbutton a fourth time, the LEDs will go out.
The Code for Arduino UNO R3
![Code 1.png](/proxy/?url=https://content.instructables.com/F1G/YLJL/KSBSG015/F1GYLJLKSBSG015.png&filename=Code 1.png)
![Code 2.png](/proxy/?url=https://content.instructables.com/FME/LSZK/KSBSG016/FMELSZKKSBSG016.png&filename=Code 2.png)
![Code 3.png](/proxy/?url=https://content.instructables.com/FSC/IZJH/KSBSG017/FSCIZJHKSBSG017.png&filename=Code 3.png)
![Code 4.png](/proxy/?url=https://content.instructables.com/FTR/JJ2E/KSBSG018/FTRJJ2EKSBSG018.png&filename=Code 4.png)
![Code 5.png](/proxy/?url=https://content.instructables.com/FIW/7PVI/KSBSG019/FIW7PVIKSBSG019.png&filename=Code 5.png)
![Code 6.png](/proxy/?url=https://content.instructables.com/F0B/QQKG/KSBSG01A/F0BQQKGKSBSG01A.png&filename=Code 6.png)
Final
![Lightbox - Catalian si Nica](/proxy/?url=https://content.instructables.com/FXG/NGL9/KSAJ8SPL/FXGNGL9KSAJ8SPL.jpg&filename=Lightbox - Catalian si Nica)
We thank the GirlsGoIT Summer Camp for their training and support.
