Dark Activated Night Light

by Luigi Pizzolito in Circuits > LEDs

8705 Views, 63 Favorites, 0 Comments

Dark Activated Night Light

13 11:58.jpg
13 11:58.jpg
13 11:58.jpg
13 11:58.jpg
A dark activated night light.

Please also see this one by H4ZZ498
It's the same thing, he made it first thogh.

Materials

13 11:58.jpg
13 11:58.jpg
13 11:58.jpg
13 11:58.jpg
13 11:58.jpg

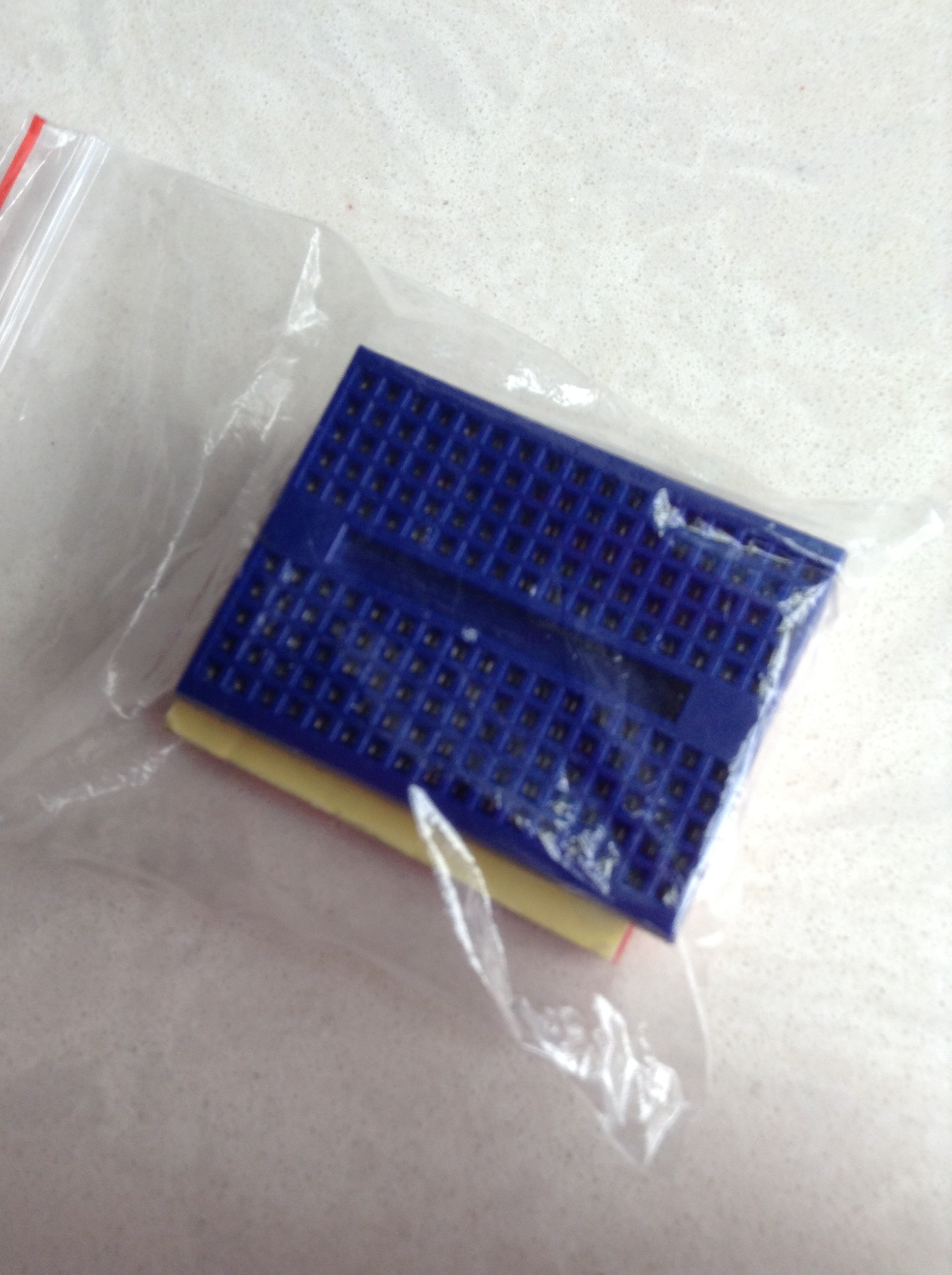

Breadboard (You could make a PCB if you want)
Any NPN transistor

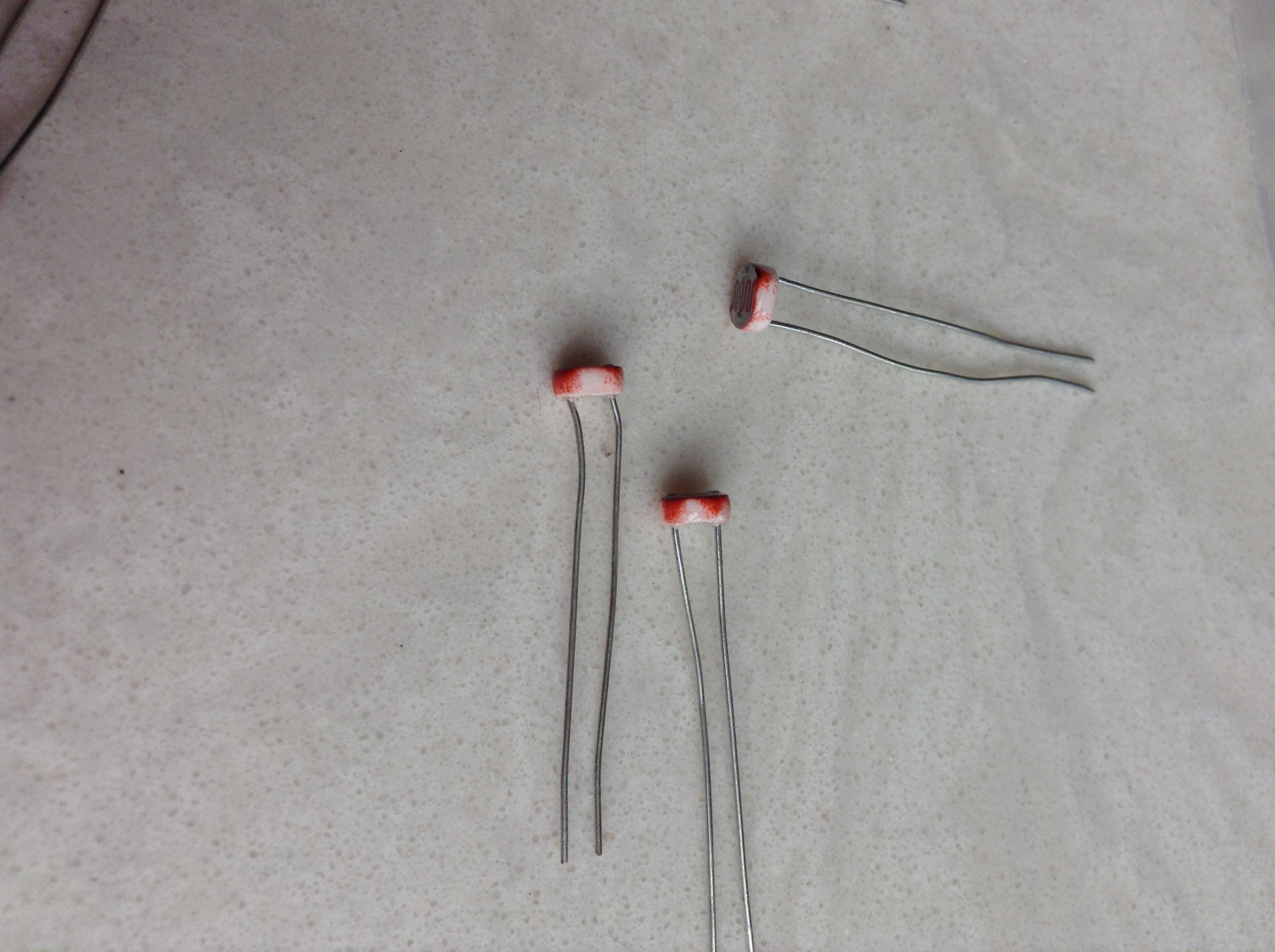

One LDR
10k resistor ( Or trimpot for variable sensivity)
A LED ( You choose the color)
2X AA battery pack or any 3v battery

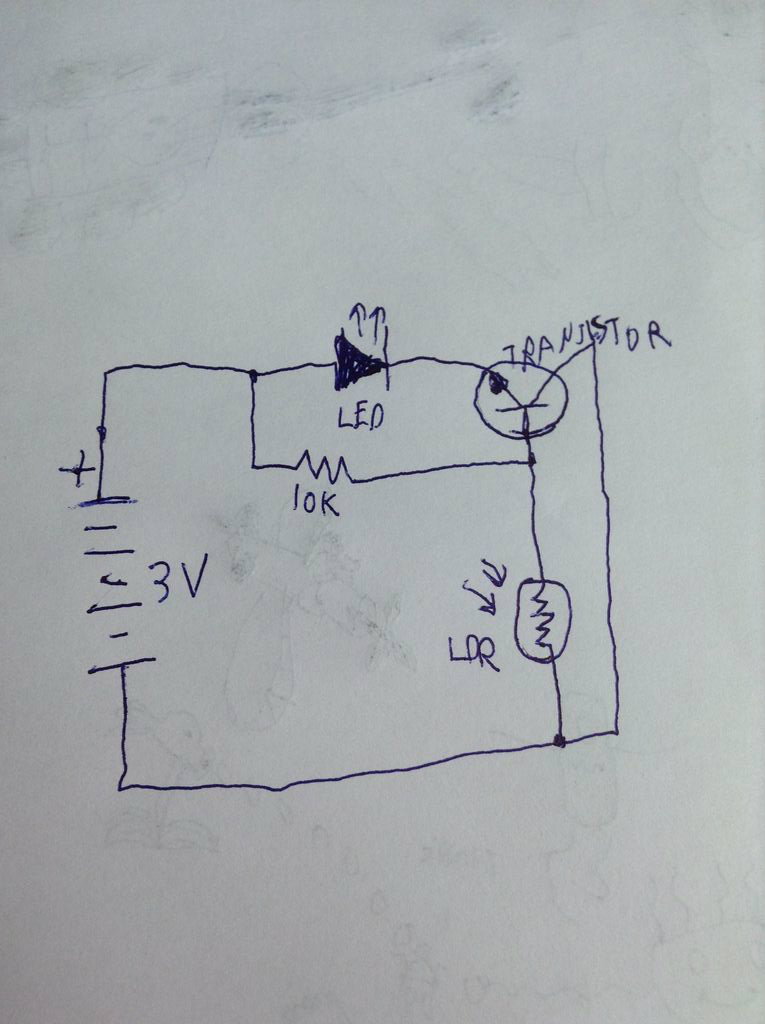

Build the Circuit

Build the circuit on the breadboard!

Done!

13 12:08.jpg

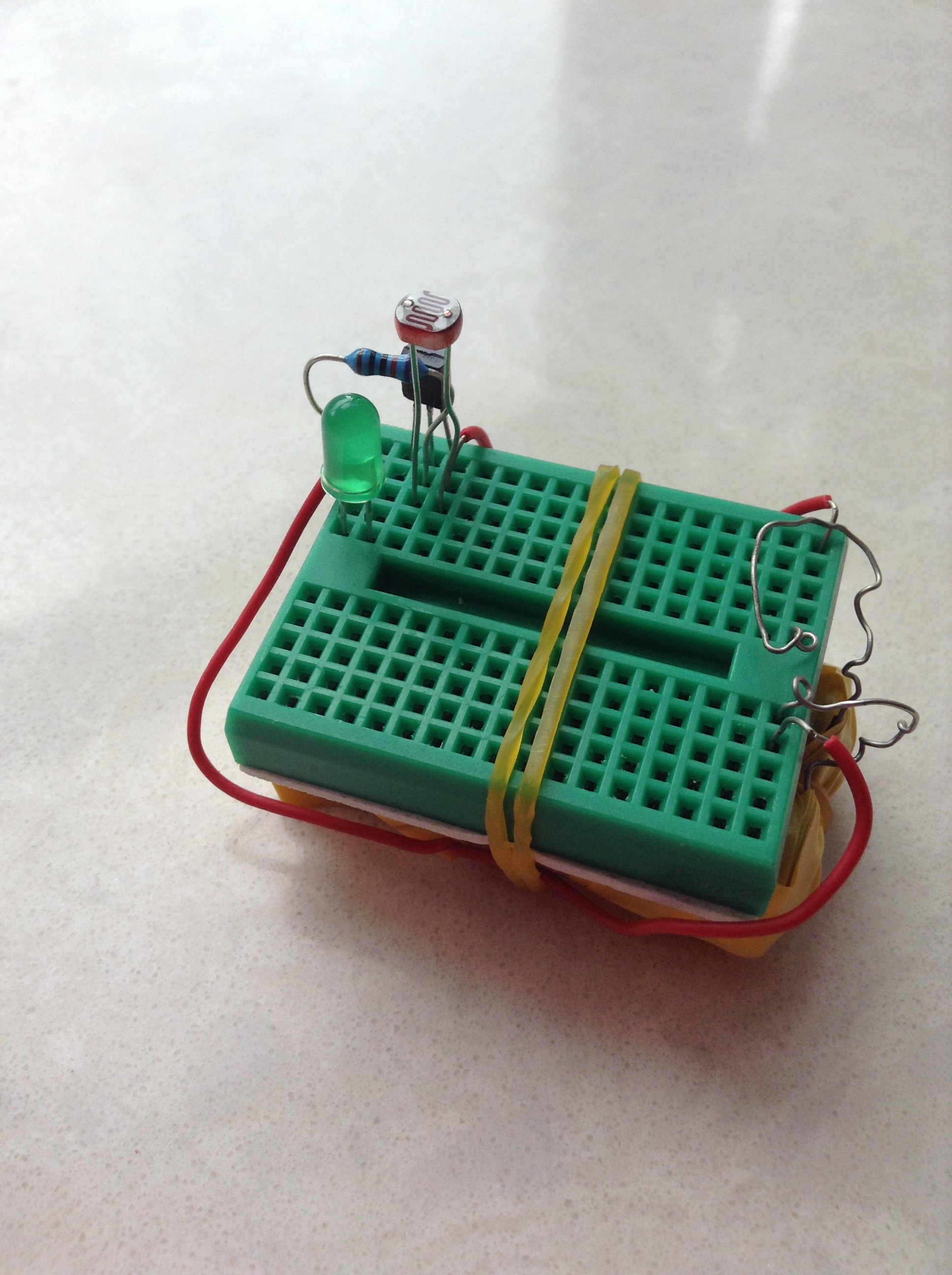

Done! Now turn off the lights and it should light up.

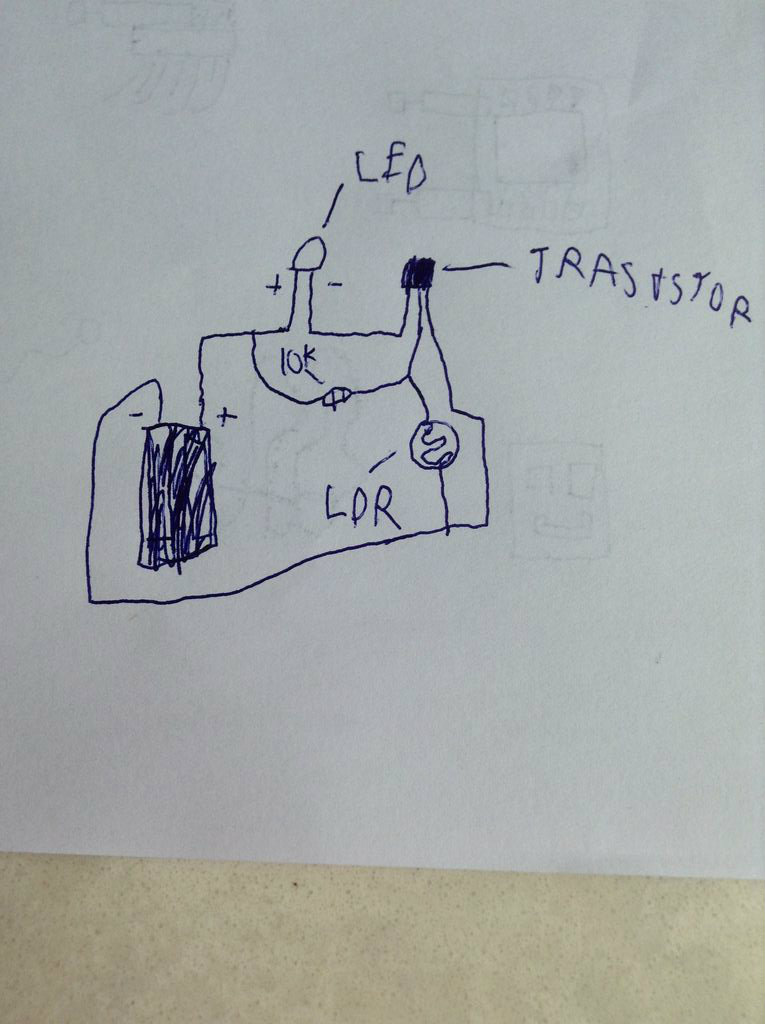

Stripboard Version
