Daisy Pattern

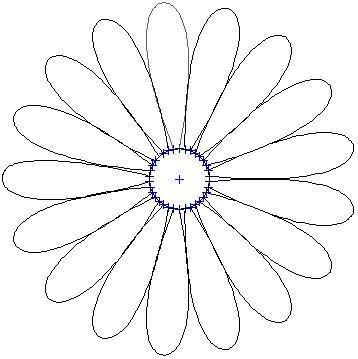

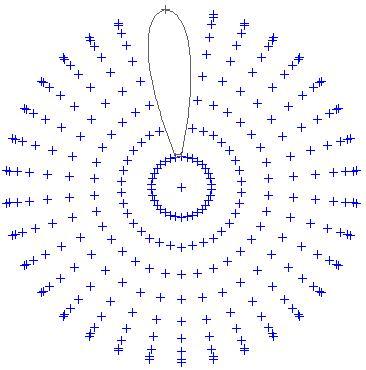

It started out in CADKEY. I made a 17 point sphere mesh, both 17 latitude, and 17 longitude. Origin set at X=0, Y=0, Z=0. Made lines to 3 point arcs using bisected points in the middle of the petals. Made 3 point arcs from the inner circle of points to the very outer point on the petals. Deleted all the points when finished.
The orphan, was made like the other daisy petals eventually. For now, we will leave out the original orphan, to make way for a better daisy.

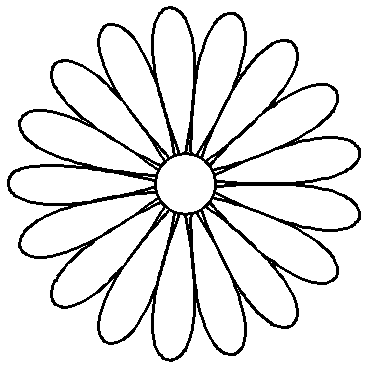

Once I was happy with the end result, a Bold Daisy, I saved it as a .Gif file.
I took it to InkScape, to make the .svg file needed for making a 3D image of it.
