DSLR Flash Light Magnetic KIT

by focamonca in Circuits > Cameras

1449 Views, 3 Favorites, 0 Comments

DSLR Flash Light Magnetic KIT

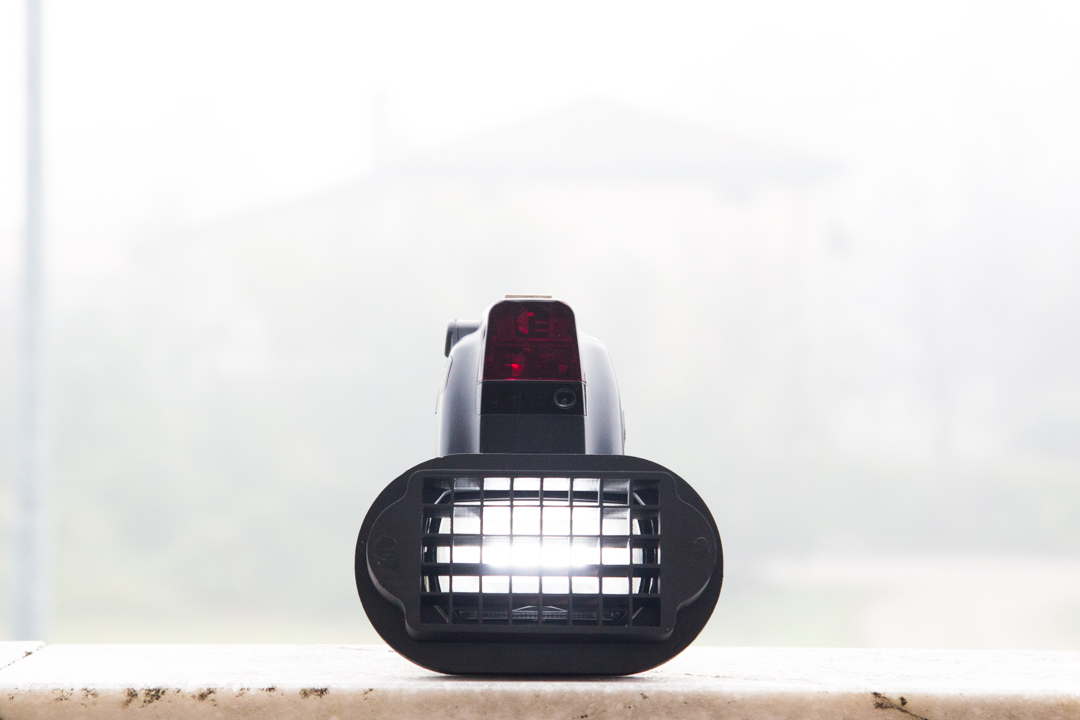

Today we will learn How to save a lot of MONEY building OUR CUSTOMIZABLE flash modifier inspired to the LASTOLITE© strobo kit and MagMod MagGrid © kit

Print your parts to achieve a professional look to your pictures and save a lot of money

Magnetic LOCK with 6mmx3mm magnets from Geomag©

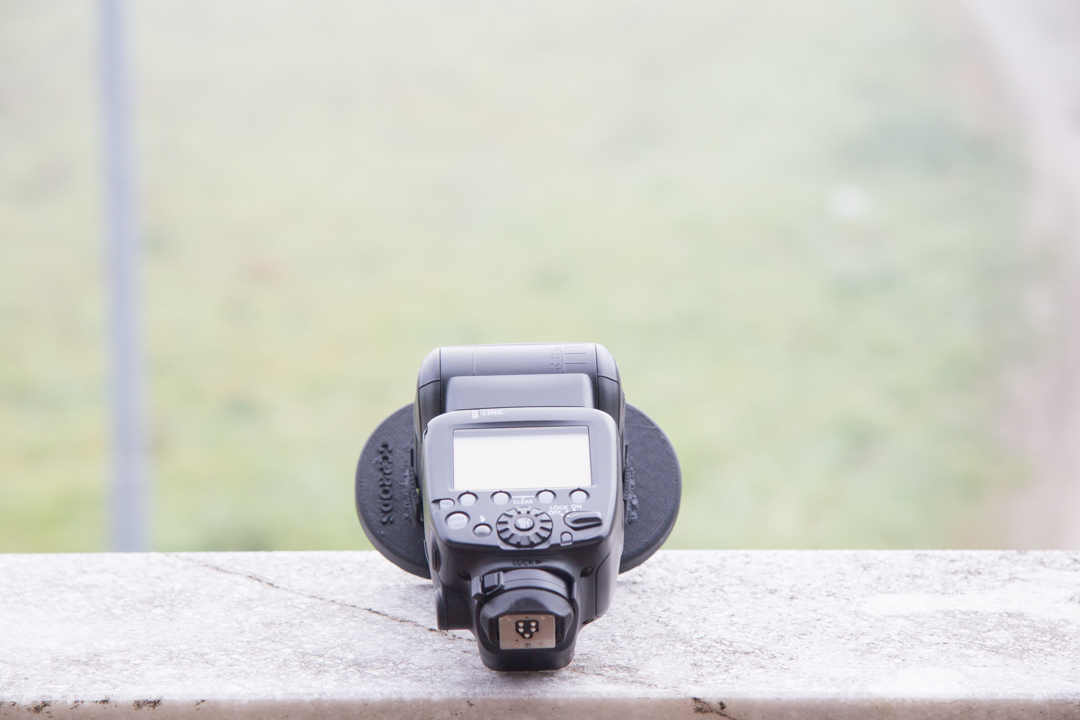

It's designed for my Canon Speedlite 600 ex rt Flash but it may fits also other Speedlites

Let's Print

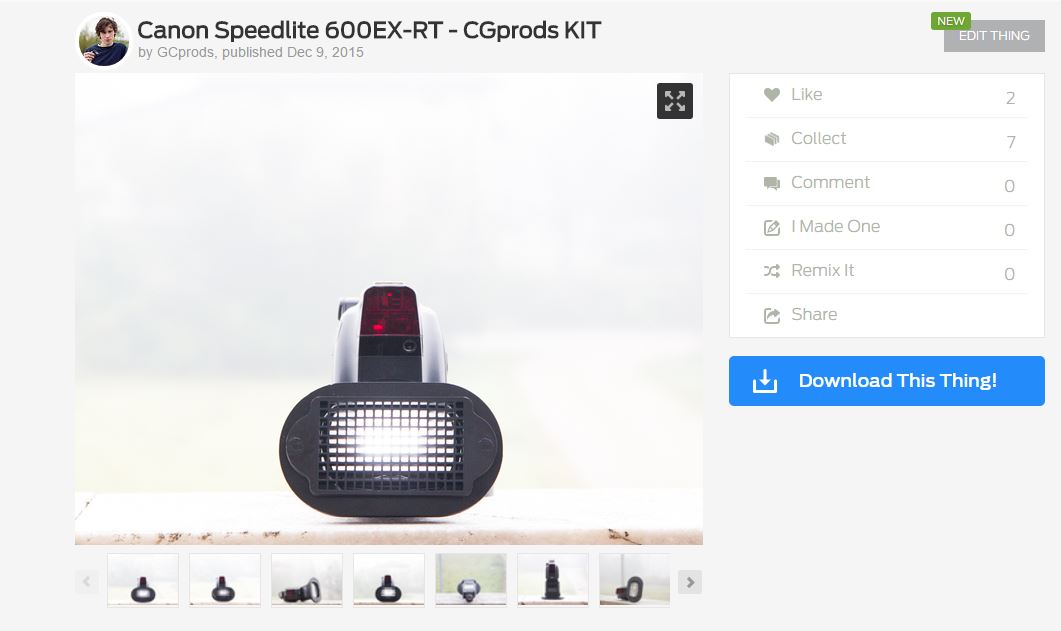

Grab the MAIN STL from my page on thingiverse: http://www.thingiverse.com/thing:1185771

And the other accessories:

Download the 5 mm GRID: http://www.thingiverse.com/thing:1188362

Download the 10 mm GRID: http://www.thingiverse.com/thing:1188378

3D PRINT IT


Start 3D printing with your favourite printer

I used a 0.2 Layer (I have a 0.5mm nozzle)

15% infill

The color it's your choice. It's gonna be painted Matte Black

Magnets


Use your favourite TOOL to tear down a Couple of GEOMAGs ©

cut the palstic to reveal the neodimium magnets

After that Push the MAgnets into the holes on the Printed Part and spill a drop of cyanoacrylate glue to lock it

TAKE CARE OF THE POLARITIES !

Paint It With Matte BLACK


Paint it with Matte BLACK to have a better effects on light and prevent flares

That's IT


Check this video to Learn HOW light MODIFIERS WORKS:

If you like this video subscribe to my Instructables PAGE and to my Thingiverse Account
