DRONE X5
the idea of these instructions is to create a platform-based DRONE flying wing X5, here is specifying the instructions and materials needed to carry the project to a successful conclusion, this drone x5 will have as main ojetivo the ability to carry a camera photograph and make mapping.
The Parts Needed to Build the X5 DRONE
1- Airframe X5 with servos
http://www.hobbyking.com/hobbyking/store/__27131__Skywalker_X_5_FPV_UAV_Flying_Wing_1180mm.html
http://www.hobbyking.com/hobbyking/store/__27131__Skywalker_X_5_FPV_UAV_Flying_Wing_1180mm.html
The Parts Needed to Build the X5 DRONE
The Parts Needed to Build the X5 DRONE
The Parts Needed to Build the X5 DRONE
4- motor 1000-1400 kv and 350 watts-450 watts
https://www.aero-model.com/8_66_880/Motors_Hacker-Brushless-A30-12M/A30-12M%20V2.html
https://www.aero-model.com/8_66_880/Motors_Hacker-Brushless-A30-12M/A30-12M%20V2.html
The Parts Needed to Build the X5 DRONE
5- speed controller 40 - 50 Amp.
http://www.hobbyking.com/hobbyking/store/__2165__TURNIGY_Plush_40amp_Speed_Controller.html
http://www.hobbyking.com/hobbyking/store/__2165__TURNIGY_Plush_40amp_Speed_Controller.html
The Parts Needed to Build the X5 DRONE
6- Radio with more than 6 channels.
radio options there are many options on the market, I specifically use Futaba 12FG
radio options there are many options on the market, I specifically use Futaba 12FG
The Parts Needed to Build the X5 DRONE
7-Propeller apc 9x6
Configuration Instructions
Configuration Instructions
2- install mission planner
This presentation should be installed and executed after
This presentation should be installed and executed after
Configuration Instructions
3- connect APM 2.5 to PC.
Configuration Instructions
4- install the latest firmware on the APM 2.5
The following image shows the specific values of the PID for the wing X5 for firmware 2.71
The following image shows the specific values of the PID for the wing X5 for firmware 2.71
Configuration Instructions

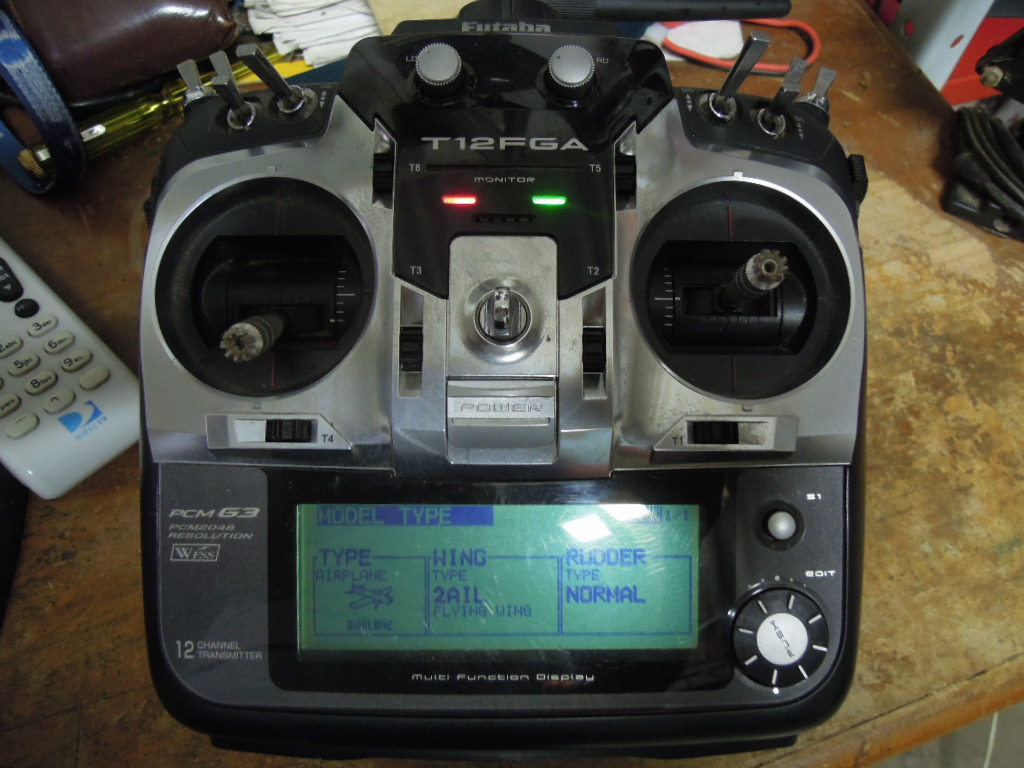

5- set your radio to the option to fly wing.

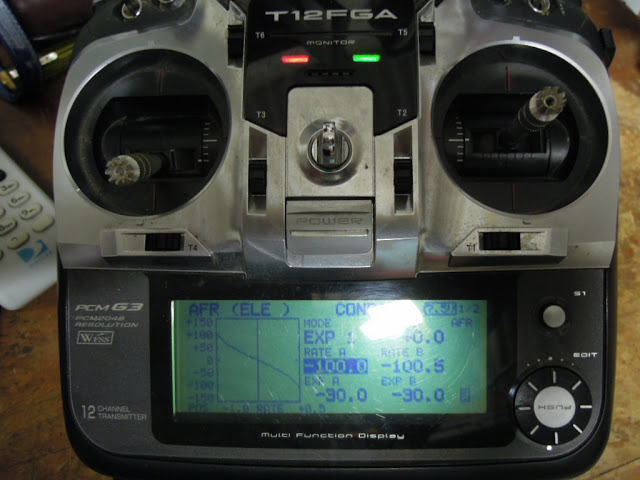

a- elevator exponential -30

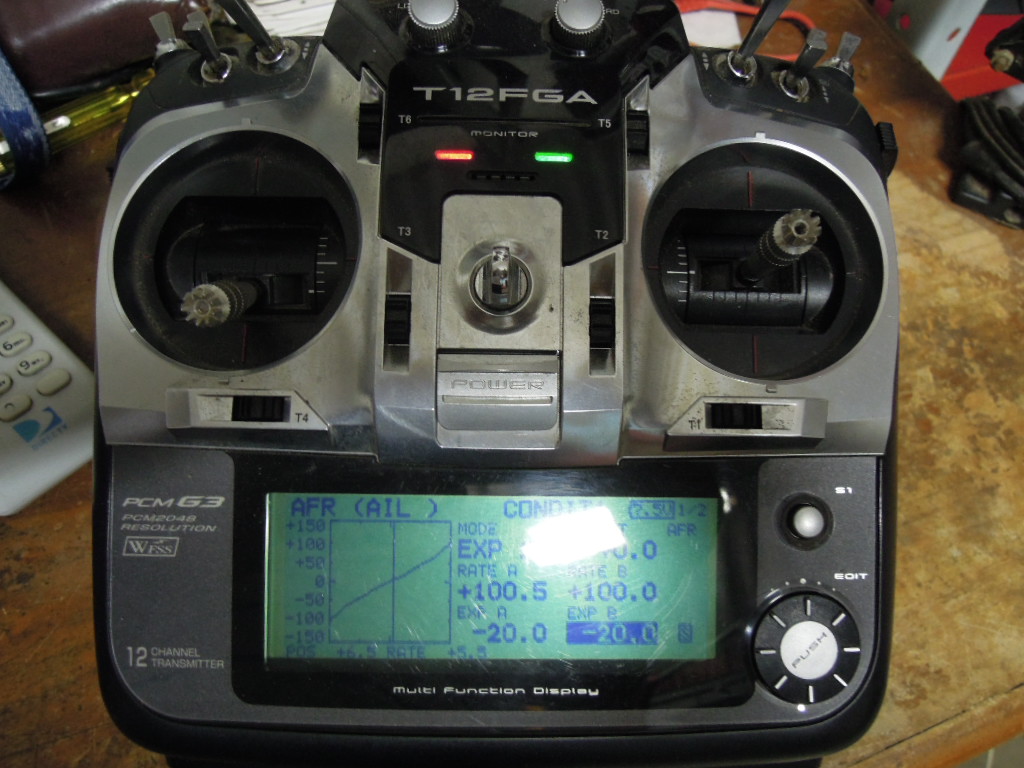

b- aileron exponential -20
a- elevator exponential -30
b- aileron exponential -20
Configuration Instructions

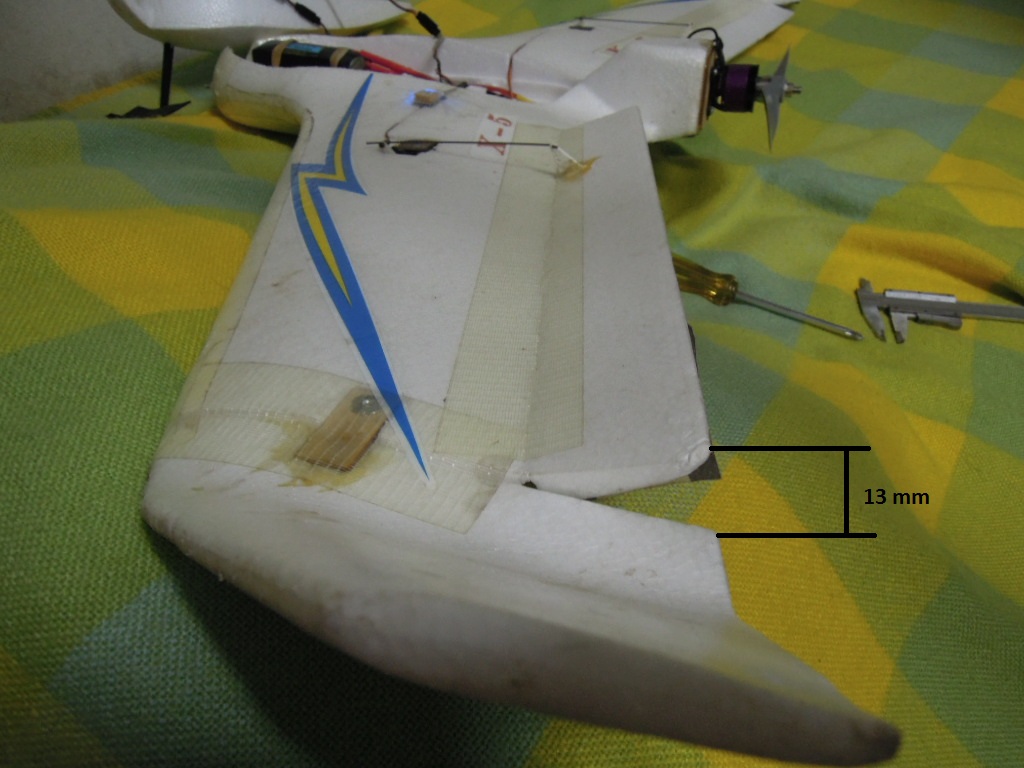

6- adjusting the movement of the servo as shown below. 13 mm up and down
Configuration Instructions

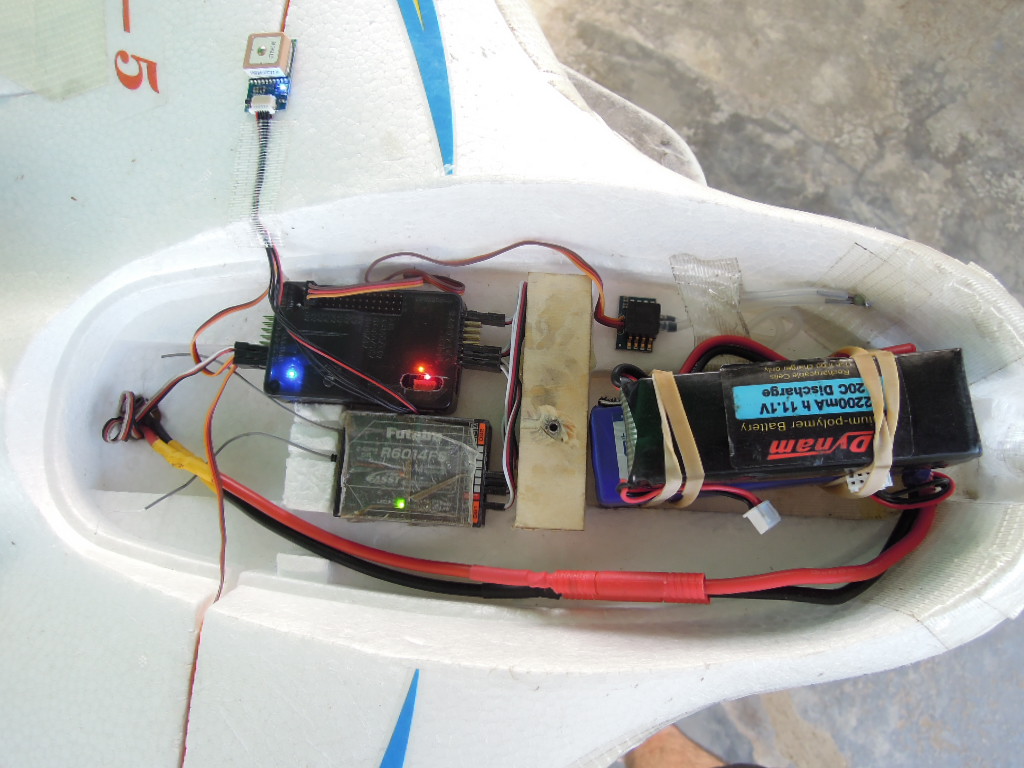

the entire assembly
Flight Test
