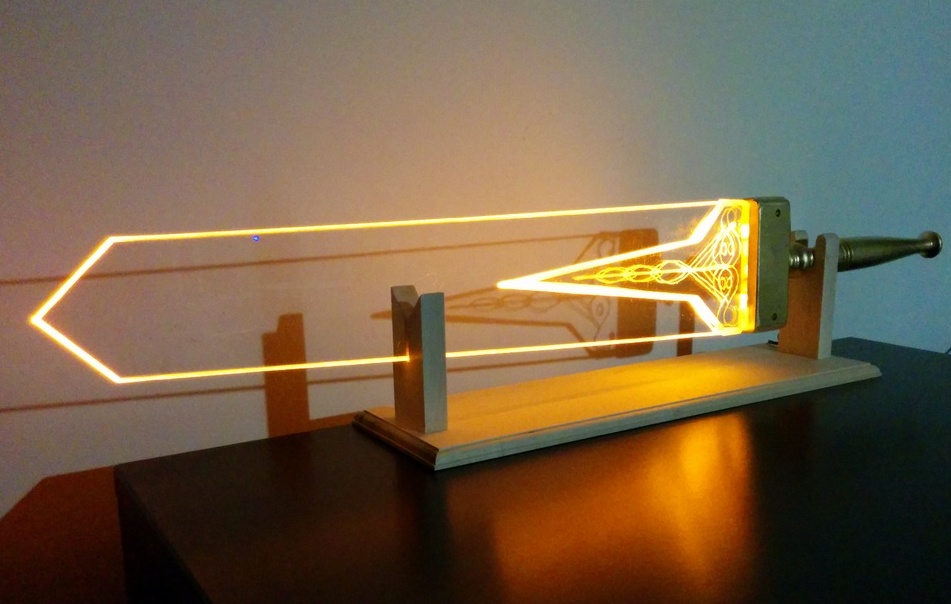

This is my version of the legendary Radiance from the Valve game DOTA2. Inspired by the "burning effect" this sword glows when placed on its stand. It's made from acrylic and maple hardwood with orange and yellow LEDs built into the crossguard.

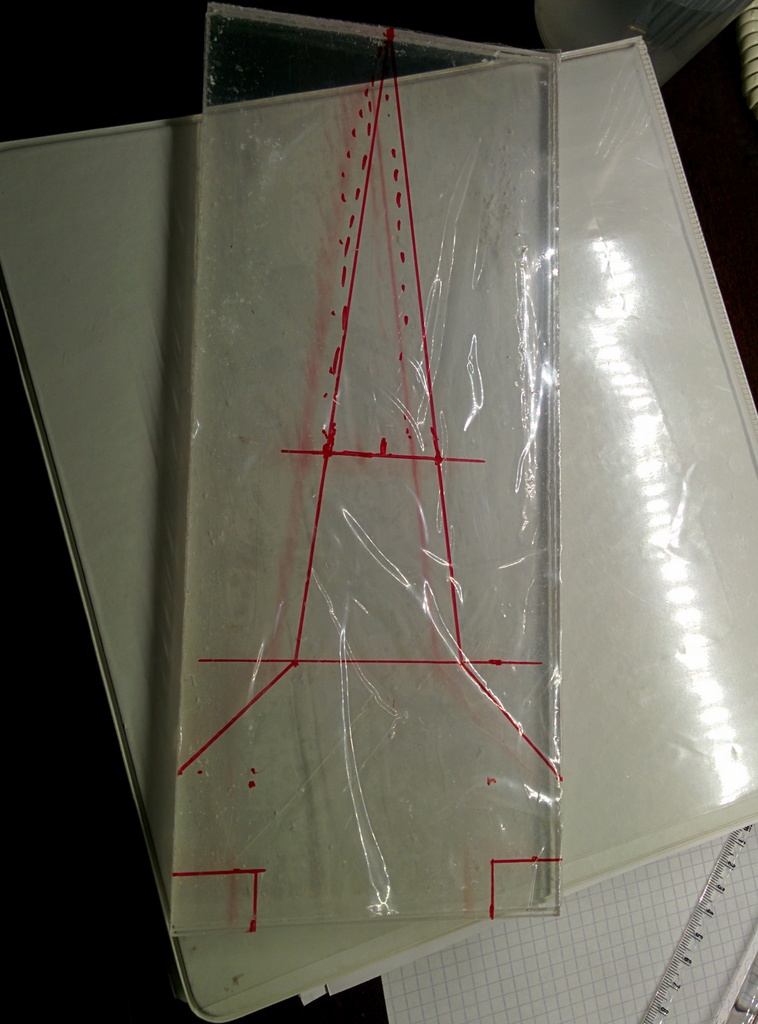

My first step was to acquire the thickest acrylic sheet (.22") for the blade. Rip to 5" wide, and shape the tip and bottom where it will attach to the hilt. I tried working with the protective film in place, but it was too cumbersome so most work was with it removed being careful not to scratch it too much.

I used a band saw to give the tip a slight taper. Then routed a 45 degree angle chamfer bit at the front and back to give the blade a "sharp" edge. This edge is where the light leaks and appears to glow.

These "fullers" were cut 5" wide by 12" long. It was very difficult routing a 45 degree chamfer edge on these without burning the plastic or misshaping them. I tried making them identical since the blade would be transparent and irregularities would be visible.

After testing with 3 blue LEDs I decided to light the main blade and each fuller individually for maximum brightness.

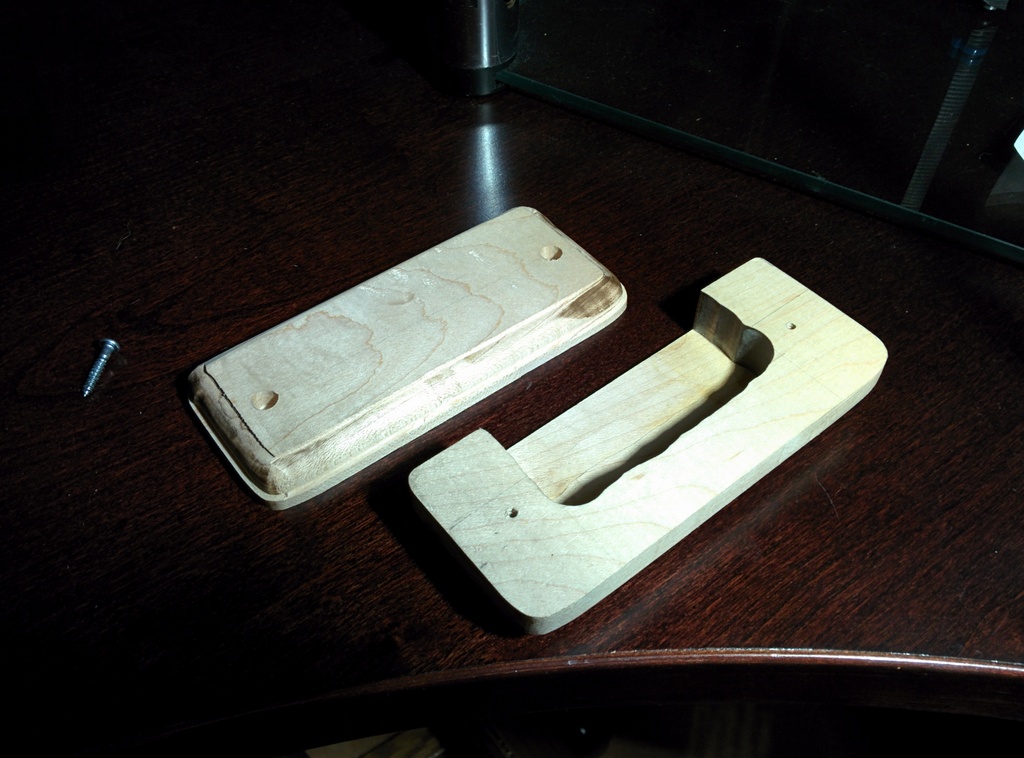

Using artistic license this part of the handle is from 3/4" maple on the bottom and 1/2" maple for the top. Routed a .66" slot for the blade to be sandwiched. This was mostly done freehand which is why it looks messy. Countersunk screws are used to secure the halves.

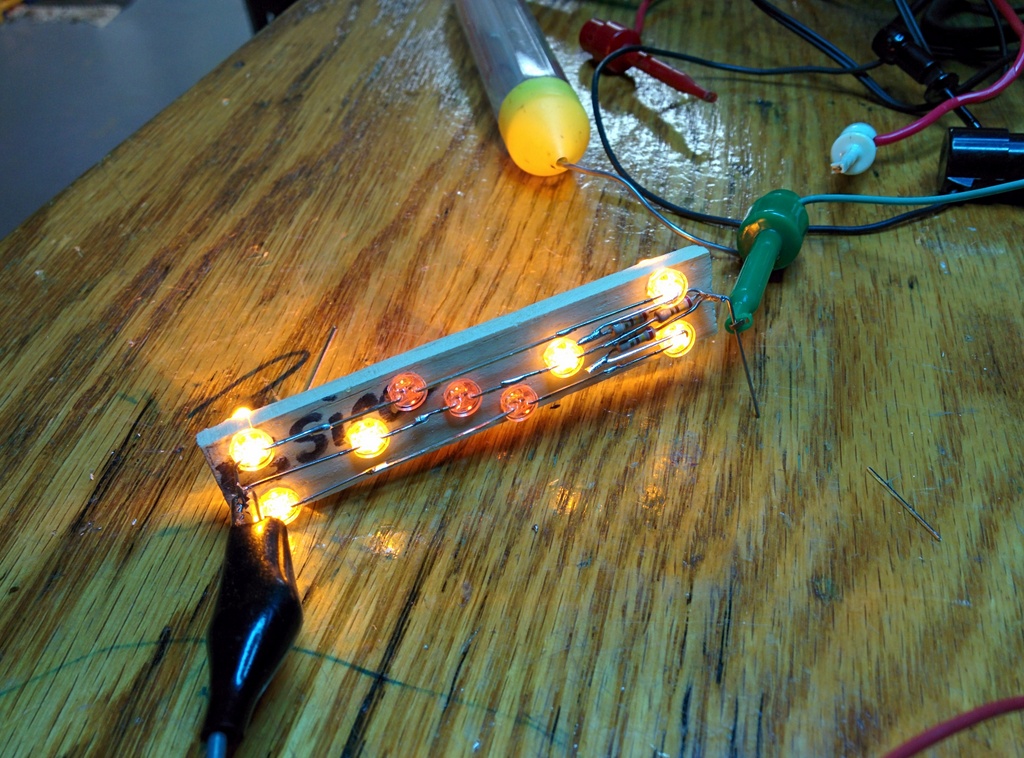

I created a light bar with 3 parallel rows from individual LEDs. Each row would contain one orange and two yellow LEDs to simulate a golden glow. Used a 10V DC switching power supply to drive less than 20mA current through each row of 3 LEDs and a 240ohm resistor. This provided high brightness with low power.

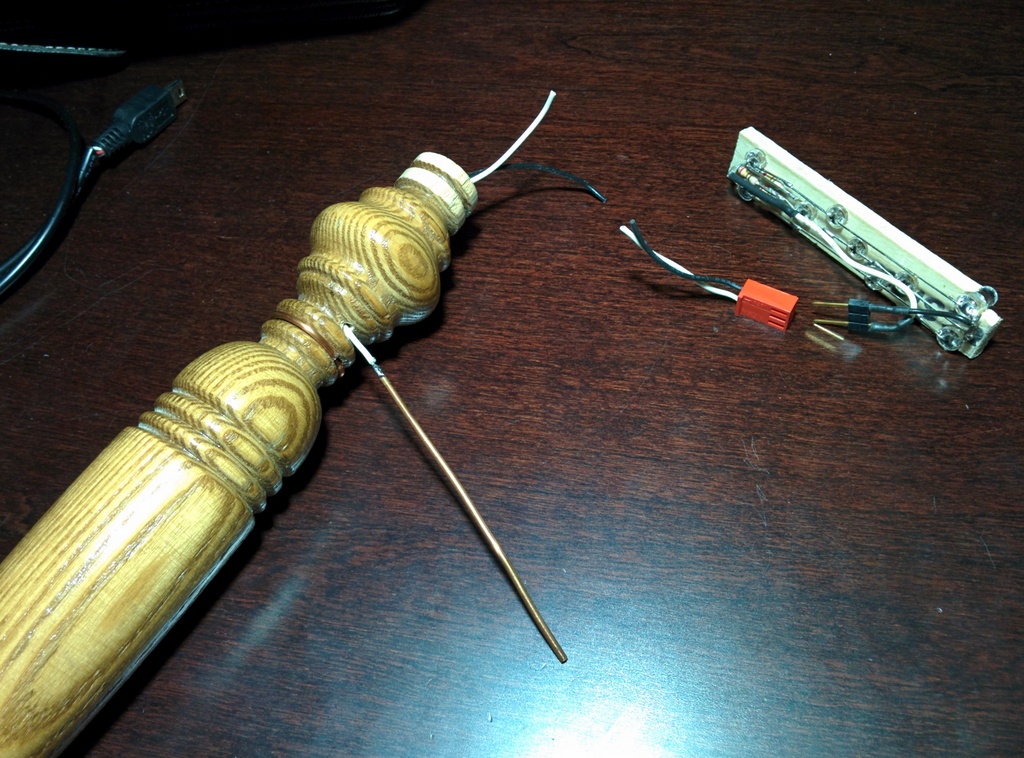

The grip was from an old crib railing. A 1/4" hole was drilled down the center and small holes were drilled sideways. The positive and negatives wires routed through these holes and attach to the light bar with molex connectors. Solid copper wire wraps around the handle to make a conductive ring. This is what makes contact to the power supply when placed on its stand.

Based on the low resolution image of the Radiance sword, I used my best guess and designed a pattern on graph paper. This was traced onto the fullers with overhead projector markers and etched by hand with an abrasive point Dremel rotary tool. A laser cutter would have made this much easier (and neater).

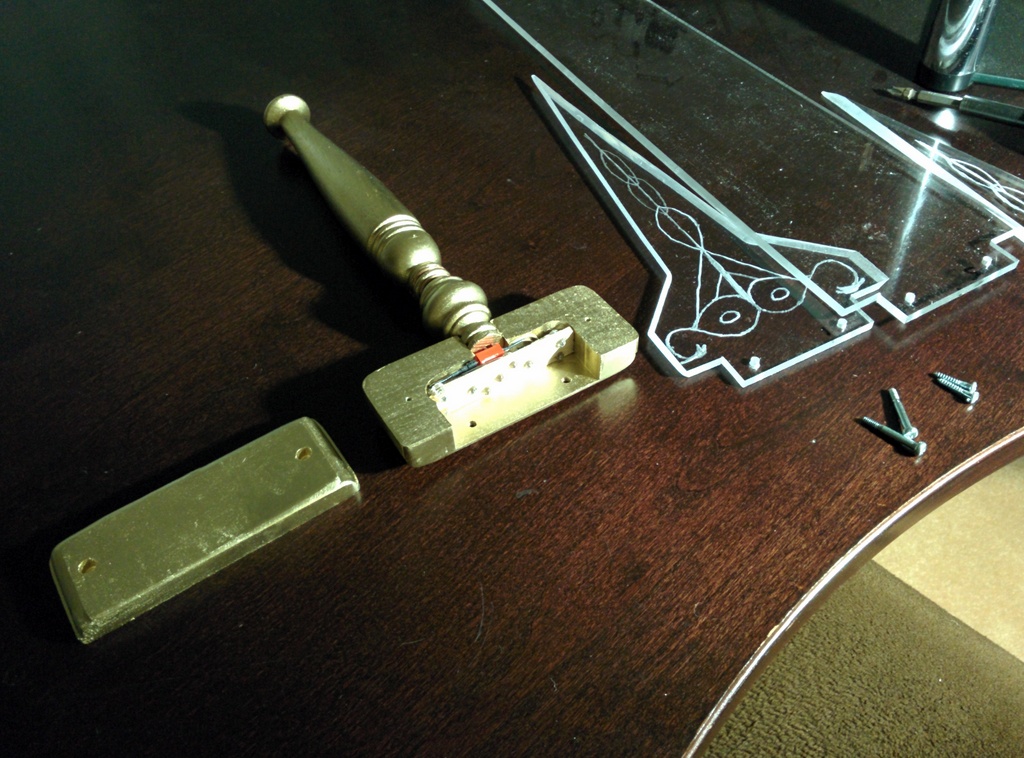

Holes were drilled for screws to hold the acrylic blades in place. The wood was sanded and painted gold. A 3/4" hole was drilled and the handle press fitted in place. This provided a tight enough fit so no other mechanical fasteners were needed.

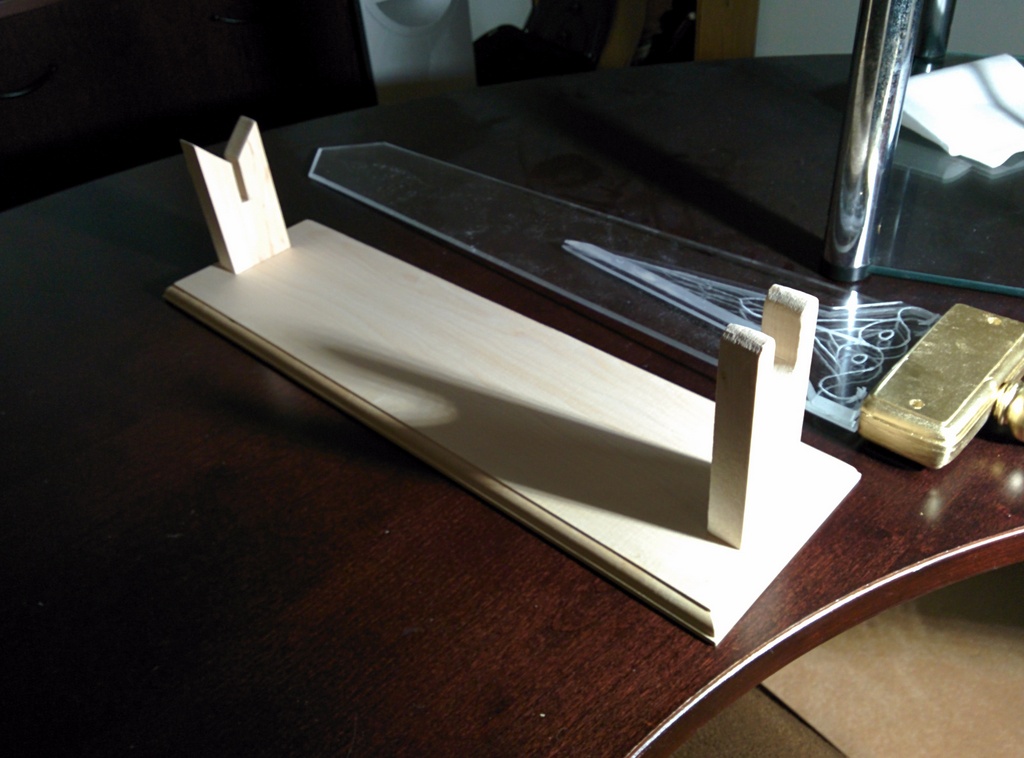

Using scrap maple leftovers from a previous project, a simple stand was built. The base was routed with a beading bit. The blade mount has a slot to hold the blade upright. The hilt mount contains 2 gold plated contacts drilled from the rear. These have a bit of springiness to make good contact with the 2 copper rings on the grip. A 10V power supply was soldered and routed down the stand.
