DMX-512 RGB LED Wash Light Control Board


A full featured driver board to control Red, Green, & Blue LEDs. When paired with the correct output board, it can control any arrangement of LEDs. Common Cathode, Common Anode, single color LEDs. From 1/8 watt LEDs to 3 watt LED arrangements.

4 stand-alone modes. Fade & Flash with speed adjustment via potentiometer. Manual color select via the same potentiometer. Sound reactivity with sensitivity adjustment and secondary adjustment.

Full DMX-512 addressing. Connect to a DMX Controller or a DMX computer program. 5 channels for Red, Green, Blue, Function, Speed.

Easy to control, a 3 position switch, a potentiometer for adjustment, and another potentiometer for sound sensitivity. 10 position DIP switch, 1-9 for DMX address, DIP 10 is for standalone controls.

Datasheet Can Be Found Here, For More Files and Updates Visit My Main Website

With the supplied breakout boards, upwards of 40 watts per color channel can be achieved.

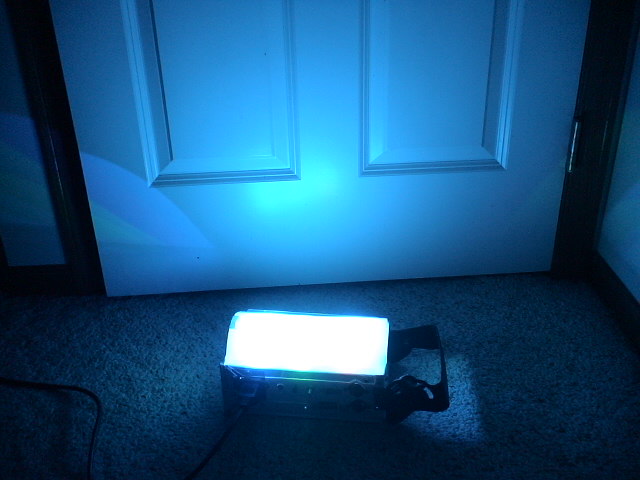

Shown below is a 36 Watt RGB LED Wash Light built using this driver.

View My Other Projects on My Profile

*Note some of the images show the V.1 PCB, and the diagrams show the V.2, the only difference is trace width and RHEO&MIC share a 3-pin header instead of two 2-pin headers.


UPDATE: This kit is discontinued, Please View my new DMX-512 LED Controller with LED Display. All of the same features except sound reaction, in a smaller, cheaper, easier to use form.

Kits for this Entire Project can Purchased in My Store
Kits including a 3 watt RGB LED Can Be Found Here

If not all the parts are required, ex. No DIP Switch, XLRs, sound control
Please Contact Me and I can put together a customized Kit.

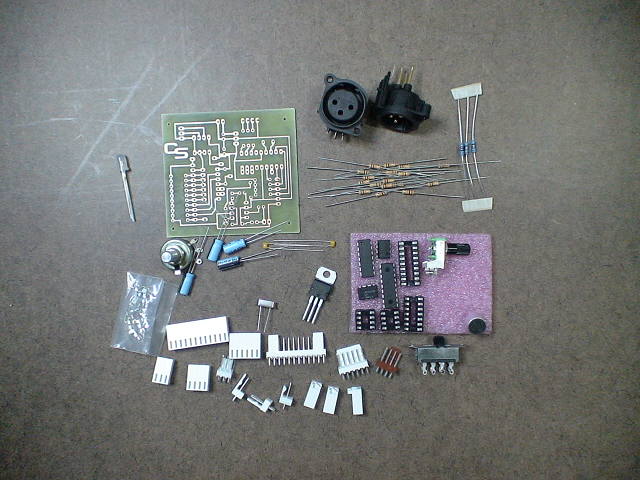

Parts:
- PCB
- PIC 16F688, programmed
- PIC 16F88, programmed
- LM386
- 20 mhz Series Oscillator
- 8-pin socket
- 14-pin socket
- 18 pin socket
- 10 position DIP Switch, DMX address selection
- Triple Pole Triple Pole Switch, Stand-Alone Mode Selection
- 15x 10k 1/4w Resistors
- 1x 1k ohm 1/4w resistor, R2
- 7805, TO-220 Voltage Regulator
- 1x 1uF 100v Capacitor, C1
- 1x 1uF 25v Capacitor, C2
- 2x 10uF capacitor, C6 & C7
- 2x 0.1uF disc Capacitor, C4 & C3
- 1x Panel Mount Male XLR
- 1x Panel Mount female XLR
- 1x Electret Microphone
- 1x 10k ohm Logarithmic Potentiometer
- 1x Common Cathode RGB LED for Testing.
- 1x 2-pin Header & Housing
- 2x 3-pin Header & Housing
- 1x 4-pin Header & Housing
- 1x 6-pin header & Housing
- 1x 12-pin Header & housing
- Crimps
- A Breakout board, chosen for the correct use. Just Ask
    Or a different form of current regulation that accepts TTL PWM, such as BuckPlus Line

Part Images and Description

.

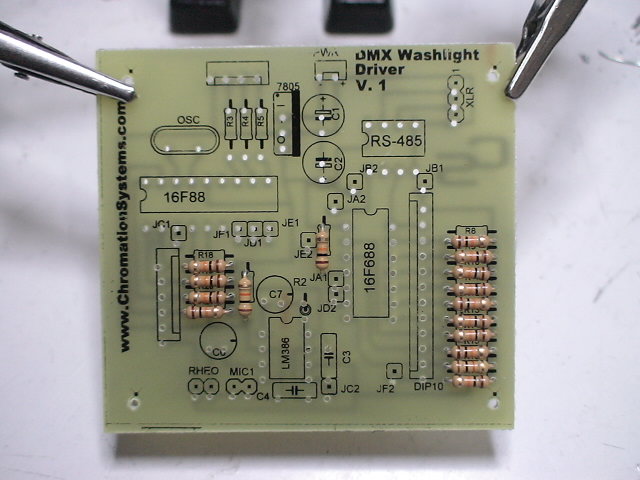

Resistors first.

• R1 is 10k ohm, Brown - Black - Orange - Gold

• R2 is 1k ohm mounted vertically, Brown - Black - Red - Orange

• R7 - R21 Are all 10k ohm 1/4w, Brown - Black - Orange - Gold

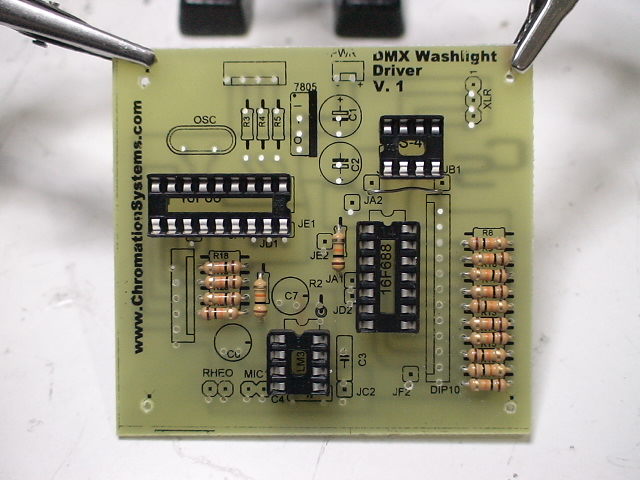

There is a 16 pin, 14 pin and 8 pin socket to place. Align the notch on the socket to the notches on the top-side illustration.

• Carefully align the pins with their holes, check all the pins will go in and press the socket in firmly.

Oscillator:

- Find the 20mhz oscillator and solder it into OSC. It has no polarity but Make sure its a good solder joint.

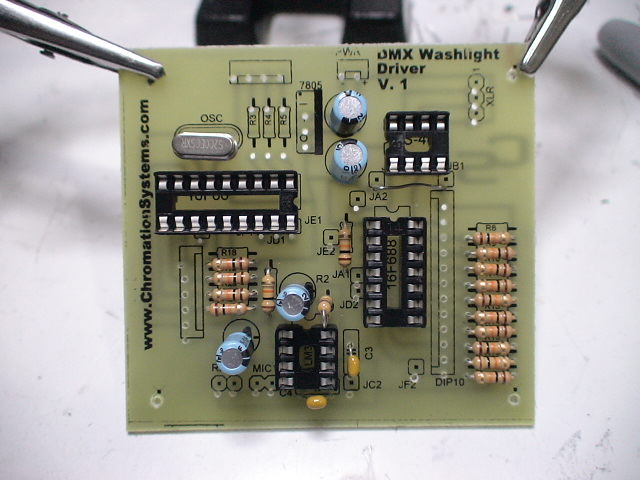

Capacitors Next.The top-side illustration shows their polarity, the black solid stripe is the negative lead.

- Find the two 1uF caps that will be soldered into C1 & C2. They do have polarity, the side with the stripe is the negative lead.

- Place the two 10uF capacitors next. C6 & C7. Again mind the polarity.

- Finally place a 0.1uF disc capacitor in C3 & C4. They have no polarity and can go in either way.

A mistake was made on the part naming and there is no C5.

Polarized headers allows wires to be plugged and unplugged from the PCB easily. This project has a lot of switches, potentiometers, mic, that aren't on the board and have wires running to them. The wires are connected to crimps and the crimps are slid into the housings, more details on Step 6

Depending on kit variation some or all of these headers may be included. They are not necessary but make things easier. With out them the wires of the switches ect will need to soldered directly onto the board, making installation harder.

I would recommend to try not to use a header and just solder the wires in directly to the PCB where possible.

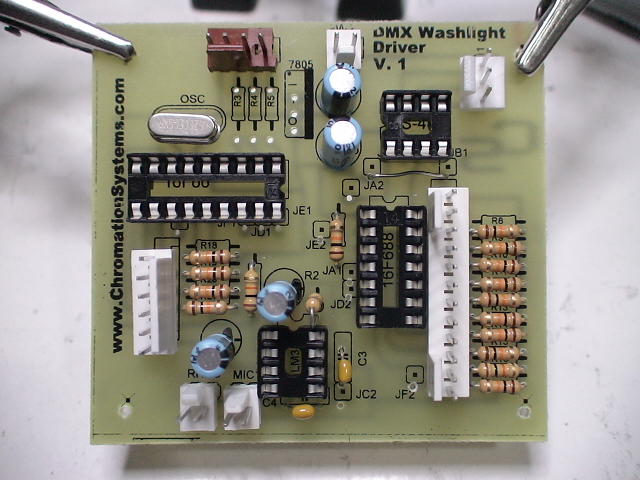

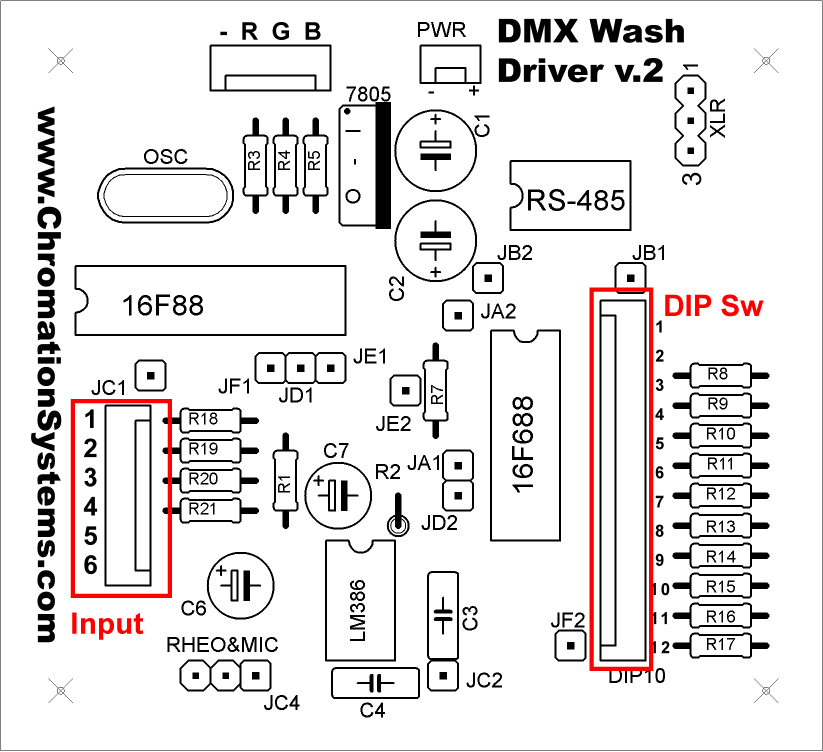

There is an illustration of how the headers should be placed on the board. They have a polarized friction lock so a switch or voltage input cannot be plugged in backwards later.


There is a 12-pin, 6-pin, 3-pin, and 3x 2-pin headers to solder.

Press them firmly in, flush with the PCB and start soldering. Careful not to bridge solder joints.

- The 12-pin is for the 10-position DIP switch for DMX Address Selection and Mode Select.

- The 6-pin header is for the Mode Switch and Speed Potentiometer.

- The 3-pin is for XLR hook-ups

- A 2-pin header labled PWR is for voltage input, polarity marked on the PCB
*UPDATE: The polarity markings are reversed on the PCB

- The last two 2-pin headers are for sound input(rheostat and microphone), it is optimal to not install these headers and to wire the rheostat and mic directly PCB.

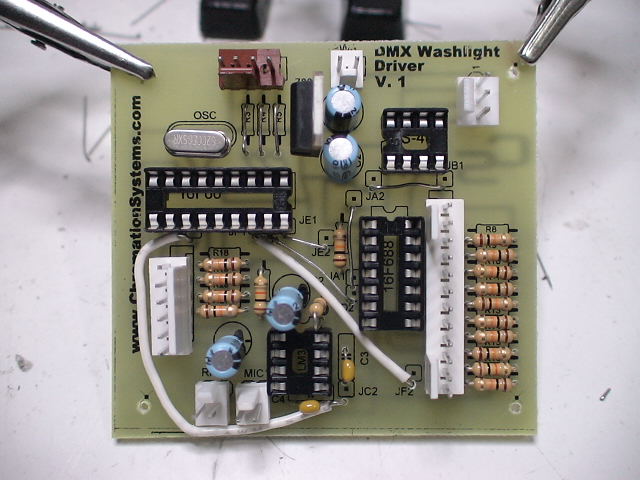

Now that almost all the rest of the components are placed, its a good time to do all the jumpers. Which are used instead of dual-layer PCBs.

Use some solid-strand wire and carefully find a route for the jumpers to follow, the path shouldn't ever cross over another jumper wire.

The jumpers are as follows:

JA1 goes to JA2
JB1 goes to JB2
JC1 goes to JC2

continues to JF1&2

*Note: JC4 is a misprint, ignore it.

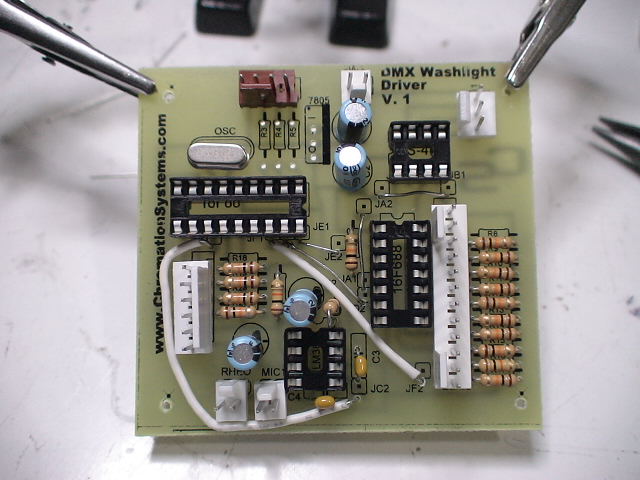

Final Jumpers: if the output doesn't need the resistors to be used, jump the resistors R3, R4, and R5

Finally Place the 7805 as pictured. Solder it in well.

If board interconnects are being not being used skip this step. To continue the rest of the steps some interconnects will need to be wired. Part Pictures and Explaination

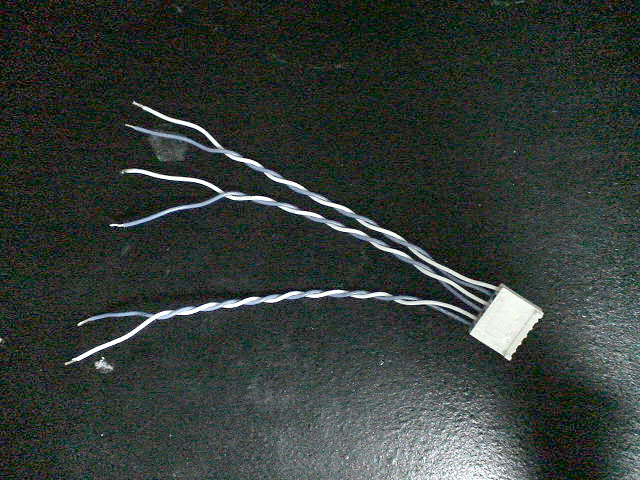

To start this step you will need to know how long you will want your wires for the various attachments. All of them are all made pretty much the same so I will only explain how to make the 6-wire interconnect with dual stranded wire. As pictured below.

- Start with 3 equal lengths of dual stranded wire.  Total of 6 wires.

- Strip a 1/8" of insulation off the ends of the strands.

Crimps will have to be attached to one end of the wires.
I have an External Crimp Tutoral Page Covering the Process

Once you have 6 wires with one crimp on each wire. Get a housing that is the right size.

Each crimp should slide into the housing and snap into it. They only fit in one way. Just press them in until they "snap"

The rest of the interconnects, power, mic, sound potetiometer, DIP Switch are all made the same but with a different size housing.

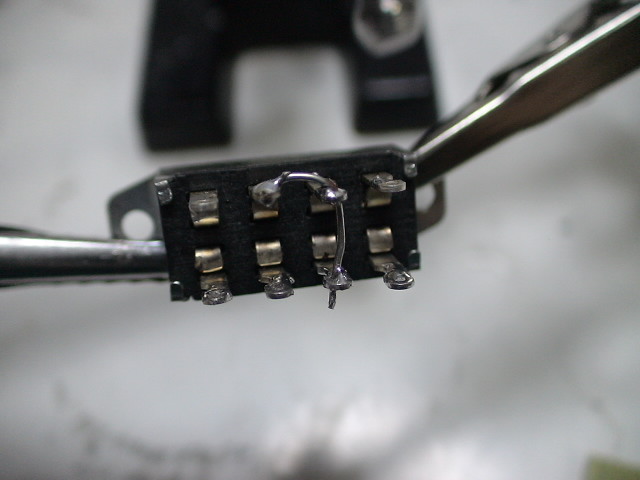

Start with the switch, the mode switch included in the kit is a double pole, triple throw and it needs to get jumped so it can act as a 3 position switch. It is used for stand-alone function selecting.

- Just use a resistor clipping and solder in as pictured.

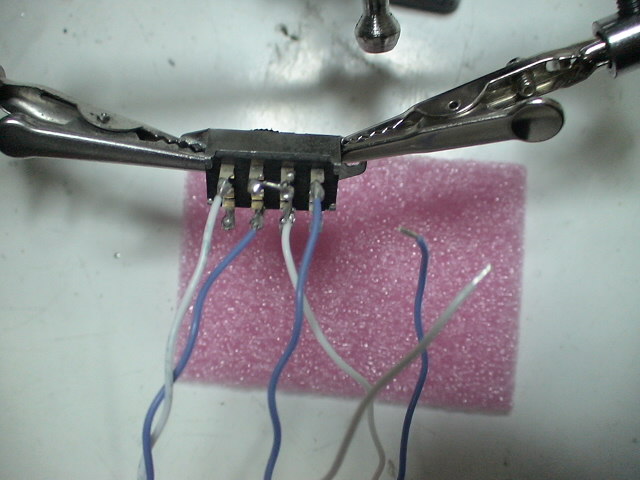

Next the 6-pin interconnect for the previous step needs to be soldered to the switch. Reference the top-side illustration and the chart below to figure out what wires will need to go where on the mode switch or the speed pot.

6 Pin Header Pinout for Mode Switch
1. Control Pot. Center Tap
2. DMX Select
3. Auto Select
4. Manual/Audio Select
5. Negative, 0 volts
6. Positive, +5 volts

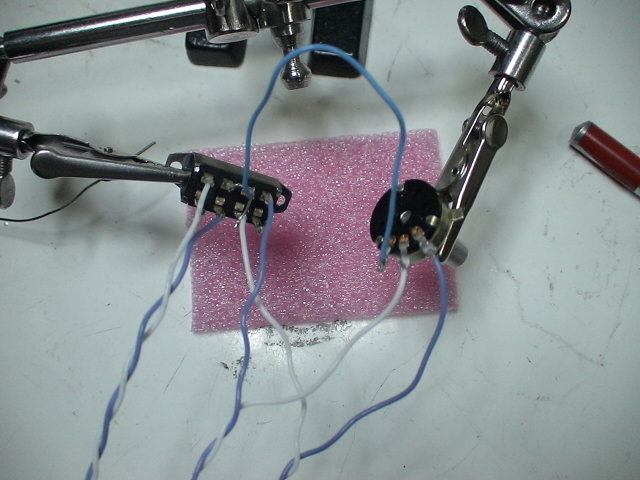

- DMX Select, Auto Select and Manual select are soldered to a position on the switch.

- Negative gets soldered to the pins on the switch that were jumped, and another strand of wire is used to go from negative to a side lug on the control pot.

- Control Pot is soldered to the center lug on the 2.5k ohm panel mount potentiometer.

- Positive is soldered to the remaining lug on the control pot.

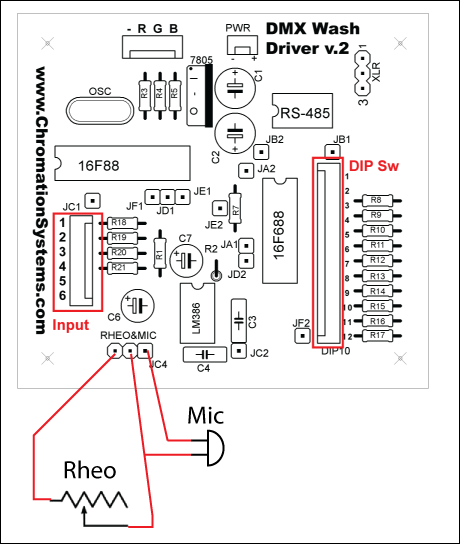

The RHEO&MIC is used for Sound Input Controls, the left hole is for the Rheostat, center hole is shared between one lead of the rheo and one lead of the MIC, right hole is for the MIC.

Sound Potentiometer - Adjusts Sound Reactive Sensitivity

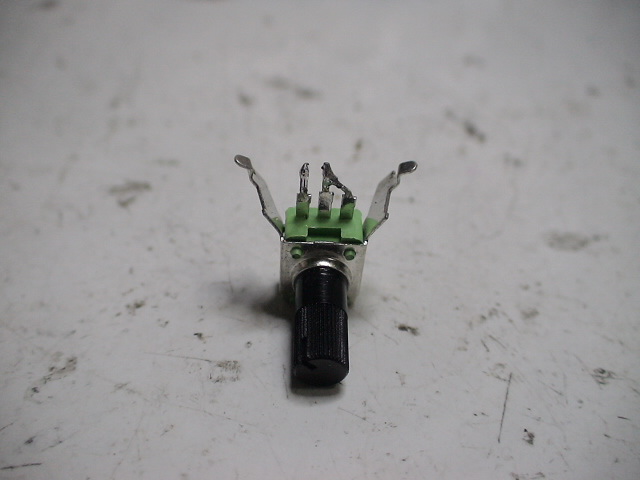

- The potentiometer needs to be used as a Rheostat for this part.

- One of the outer leads on the potentiometer should be soldered to the center lead. See Image

- One lead goes to the Rheo Hole, the other connection goes to the shared center hole.

Microphone - Listens for sound input.

- The electret mic has 2 solder pads, One is soldered to the MIC hole and the other is soldered to the shared center hole.

DIP Switch - 9 Positions are used for DMX Address and One is used for Stand-Alone Control. All the positions are pulled-up with the 10k resistors. And are "ON" when connected to GND.

DIP1 on the PCB is Positive and not needed
DIP2 is Ground, one side of the DIP switch will be wired to Ground
DIP3 is Binary 1
DIP4 is Binary 2
DIP5 is Binary 4
DIP6 is Binary 8
DIP7 is Binary 16
DIP8 is Binary 32
DIP9 is Binary 64
DIP10 is Binary 128
DIP11 is Binary 256
DIP12 is for Stand-Alone Mode Selection.

- There are 2 rows of pins on the DIP Switch, one side/half of the pins are all connected together and attached to Ground(DIP2 on the PCB)

- The other row of pins each needs to be connected to its proper place on the PCB.

A Panel Mount Male and Female XLR Connectors are included with the kit.

Before doing this step, figure out how long the wires will need to be to connect the XLRs.

The pins on the connectors are labeled 1, 2 & 3. They are connected as follows.

PCB PIn 1 connects to XLR 2
PCB Pin 2 connects to XLR 3
PCB Pin 3 connects to XLR 1

Both the male and female are connected the same.

There are 4 ICs to plug into their sockets. Line up the dot near pin 1 on each of the ICs with the notch on the end of the IC sockets.

- Align all the pins of each IC with their socket and press in firmly.

- Plug in all the ICs

To power anything more substantial than a single RGB LED, a breakout  board is used.

A board is chosen depending on the LED setup to be used. They come in Resistor regulated Common-Anode, Resistor regulated Common Cathode Configuration and Constant-Current Regulated board.

The Supplied Resistor Regulated boards are meant for multiple small LEDs or a few high-wattage LEDs, R4, R5, & R6 are large enough for a 2 or 3 watt Resistors. MOSFETs included with the boards can handle up to 46 watts each.

For very large units, I have had good success with the BuckPlus Line of constant current regulators. See Here

When ordering a kit, either decide what kind you will need or Contact Us for Help choosing.

Testing:

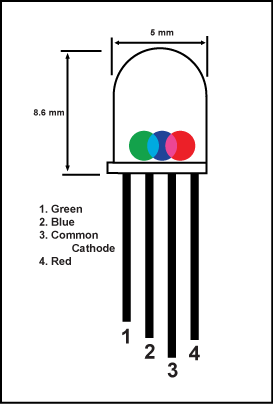

To test if the PCB is working properly attach the included Common Cathode RGB LED to the
" - R G B" Header.

- First Attach a 100-500 ohm resistor in series with the common cathode( ground, its longest lead)
- Then wire up the rest of the leads to the correct header pin. See Diagram.

I have built a 36 watt(12 watts per color) Wash Light and a few smaller 9 watt Wash Lights using 3 watt Single Color LEDs, and one of these drivers.

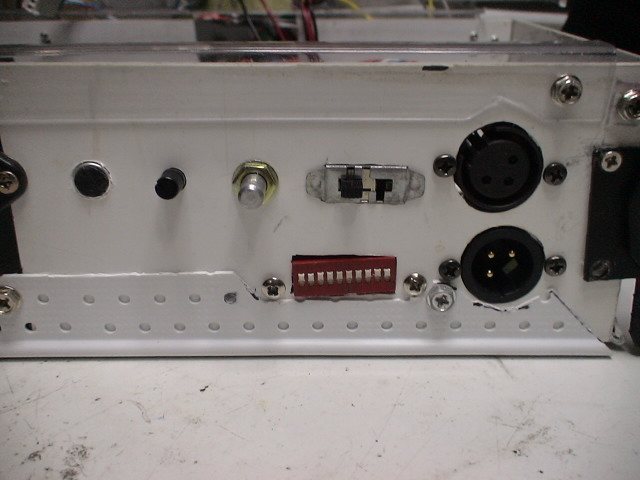

The 36 watt is pictured. Completely custom case, with all the user controls on one side. Some 07023-D-E-700 Buck-pucks from LuxDrive power the strings of 4x 3 watt LEDs per channel in series. A 24v @ 2.7A PSU is used to power it all. I really like the Buckpucks for simplicity and they are easy to adjust the colors for that perfect mixture. But they are on the expensive side.

Information on my Main Site

 I plan on building a new 9 watt can utilizing 3 watt LEDs 1 of each color, and a Constant-Current Breakout board. I will post it up on Instructables when it is complete.
