DIY Telegraph

by straw hat pirate in Circuits > Tools

18644 Views, 29 Favorites, 0 Comments

DIY Telegraph

C:\Documents and Settings\Maggie\My Documents\My Pictures\100_3703.JPG
Morse code is one of the most known codes in the world. Here's how to make an inexpensive telegraph to send messages in code. I did this for a science project. I got a low mark cause it dosen't qualify as a "simple machine". I hope it goes to better use out here.

Connection

C:\Documents and Settings\Maggie\My Documents\My Pictures\Picture 8.jpg
C:\Documents and Settings\Maggie\My Documents\My Pictures\Picture 8.jpg
I. Connect the negative wire of the battery to the negative wire of the buzzer

Buzzer

C:\Documents and Settings\Maggie\My Documents\My Pictures\Picture 9.jpg
C:\Documents and Settings\Maggie\My Documents\My Pictures\Picture 9.jpg

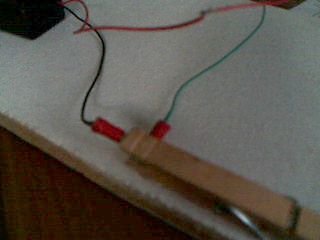

II. Attach an alligator clip to the positive wire of the buzzer and the battery to the clothes pin

Two Way Calling

C:\Documents and Settings\Maggie\My Documents\My Pictures\Picture 10.jpg
C:\Documents and Settings\Maggie\My Documents\My Pictures\Picture 10.jpg
If you want to chat to someone with a telegraph, make another one and connect the buzzers with a long wire. Then when you type a message your buzzer and the buzzer at the other telegraph will make the same message.
