DIY Cheap Waterproof LED Lamp
by NewAge-2014 in Circuits > LEDs
9555 Views, 36 Favorites, 0 Comments
DIY Cheap Waterproof LED Lamp

LED lamps are long lasting and very economical. But they are still expensive. Here's how I made a 12V LED lamp, using a LED strip and discarded plastic jar. The lamp costed less than $1 to make and is bright enough to read a book and light up a room!
Parts

Here are the parts you need: plastic jar, wooden stick, some wire and LED tape. The LED tape is seld-adhesive, you can buy it on Ebay or any electronics store. In my case I used half a meter V-tac 3528 that costed $0.80
Wrap the LED Strip


The LED strip is self-adhesive. Solder the wire to the end of the strip and wrapp the led strip around the wooden stick.
Fixing the Stick



Fix the wooden stick to the cap with a screw. Run the wire through a hole on top. You can put some silicone on both places to make it waterproof.
Testing the Lamp

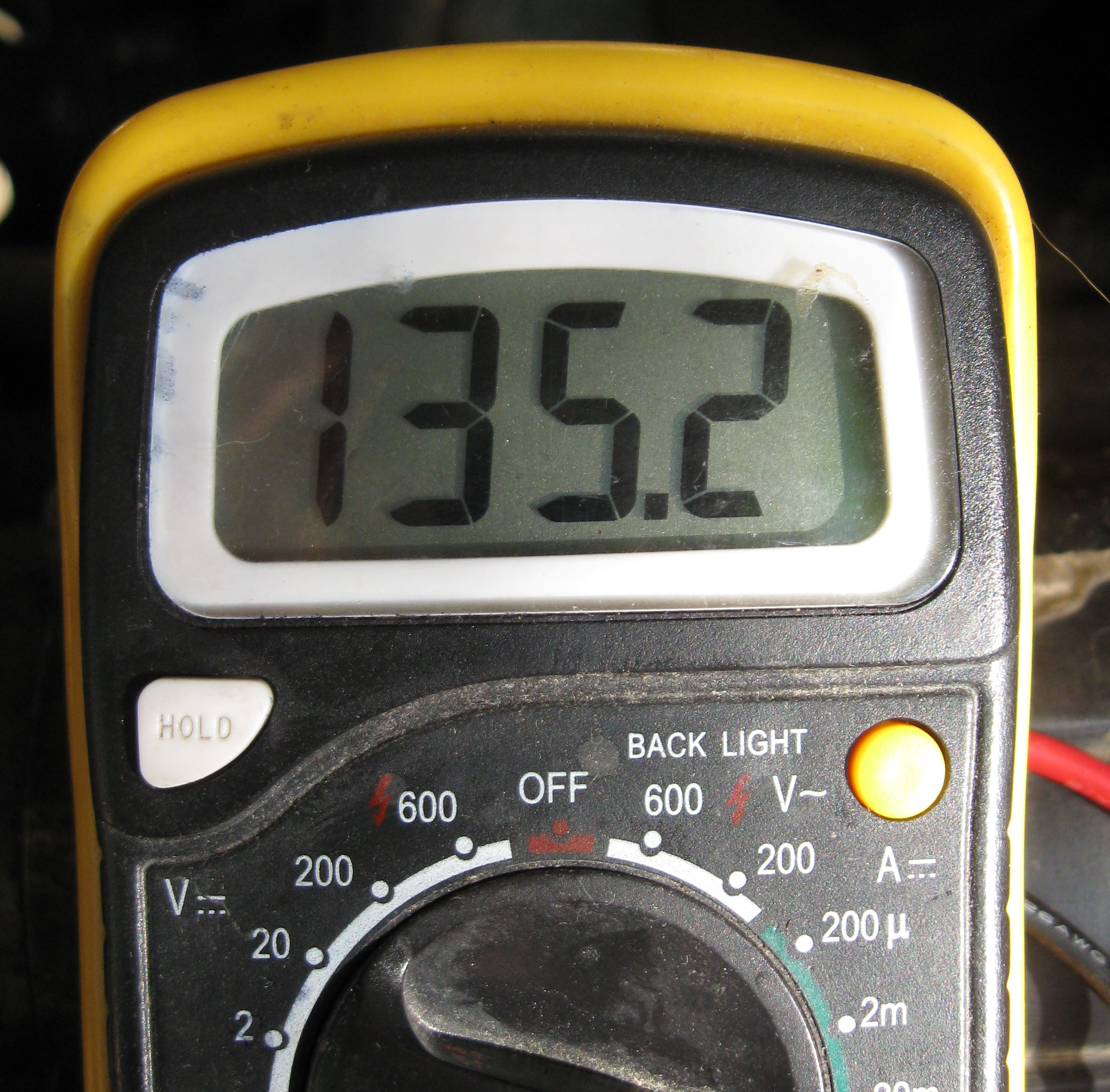

Here's how the stick and the finished lamp glows into the dark. It consumes just 12V/135.5 mA! You can use it as 12V camping light attached to the car battery, or at home, with 12V adaptor.
