DIY - a New Floater for My Bee-Oil-Lamp

Hello and welcome. Some time ago I had such a little plastic floating disc. You insert a wick, put it in a glass, vase or jar with water and salad oil - inflame it and you've a lamp for hours to run.

Unfortunatley I've lost or misplaced the little plastic floater. Fortunatley I have a 3D-printer.

I started to design the floater from memory and ended with a little help of the internet's omniscience.

I've decided to go for a bee-themed project - because I like bees.

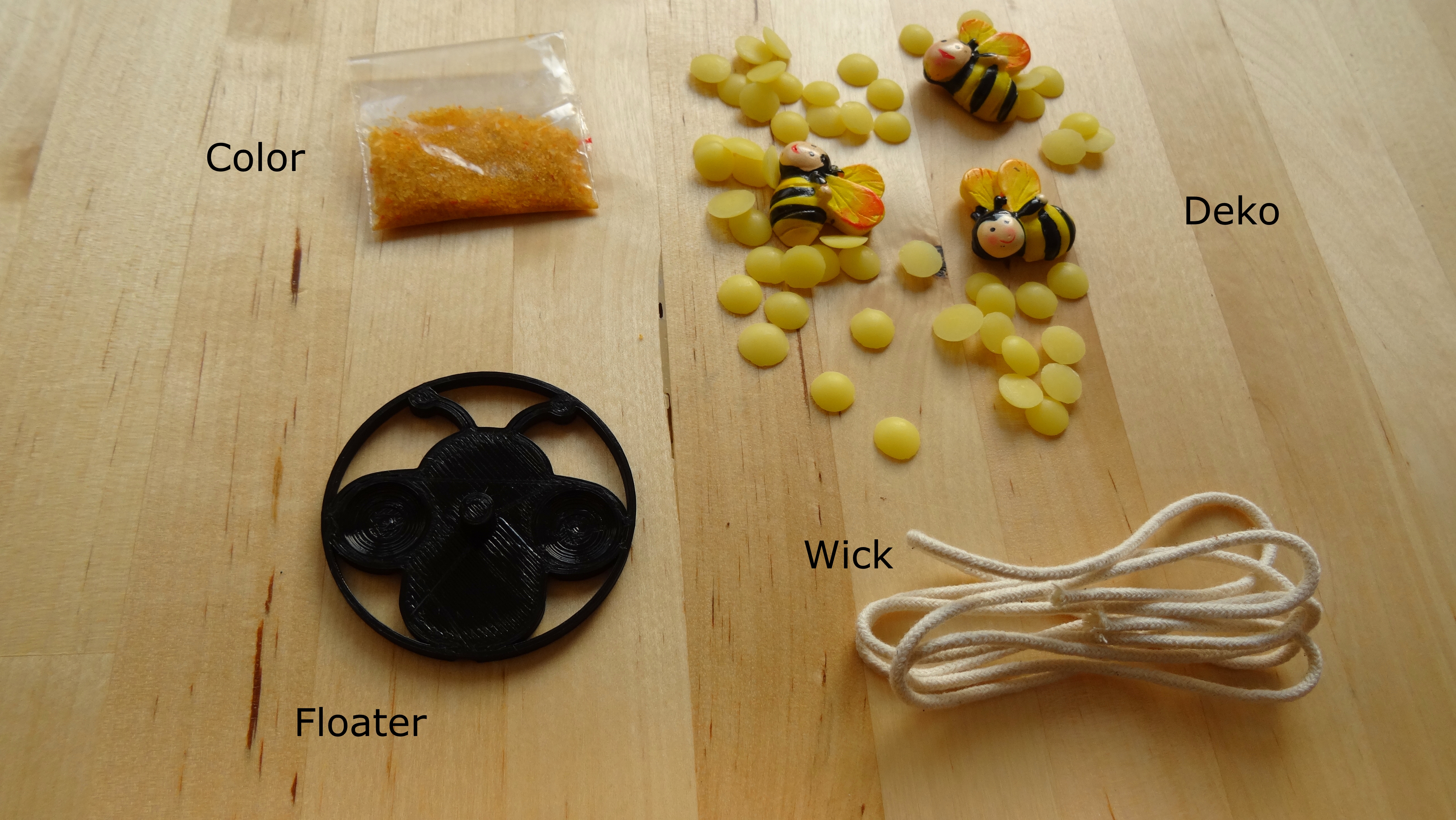

• 3D-printed Floater
• Honey Jar/Glass
• Water
• Food coloring (yellow)
• Oil (rapeseed/canola oil)
• Wick

• Sissors
• Lighter
• Infrared Thermometer
• Tweezer

• 3D Printer
• PLA Filament (black)
• Software: Tinkercad, ideaMaker, paint.net

Please

• take all necessary safety precautions while working with heat, sharp objects, electricity, vapors or resulting gases, bright light and whatever could endanger your health.
• never leave open fire/flames unattended.

I've found a cute bee model on thingiverse (Bee) - which I don't want to deprive you -.

I just took the rough shape as my basis and remixed it for my purposes in Tinkercad.

Well, after all it almost looks more like a six (?) leaf clover on the topside. It's fine - I like my clover bee floater.

I've 3D printed my model in black PLA-Filament on the Ender 2 with 15 % infill.

I quickly tested it's floating qualities. Since it has not fallen, everything is fine.

First I've prepared the floater. I inserted the wick into the little holder of the floater and cut off +/- 15 mm of the wick.

Second, I have this nice large honey jar and

• added a little bit of the yellow food coloring
• I filled it up with water
• poured between 5 to 8 mm of the rapeseed oil on the water
• placed the floater carefully on the oil surface *)
• made sure the wick absorded the oil.

*) The floater will descend till it hits the water surface.

I was wondering if the PLA-Filament could stand the hot oil, water and glass. I measured the temperature on the oil surface with an infrared thermometer at the start, after 30 minutes and after 60 minutes. I extinguished the light and immediately extracted the floater via a tweezer.

Condition:

Straight after extracting, the floater has been in a steady, sturdy and solid condition. I consider that a success.

... for reading, watching and paying attention.

I'm so happy with my new floater and certainly will print a few more in different designs and colors.

Please let me know if you've made one as well.

Hopefully Auf Wiedersehen in one of my next instructables.
