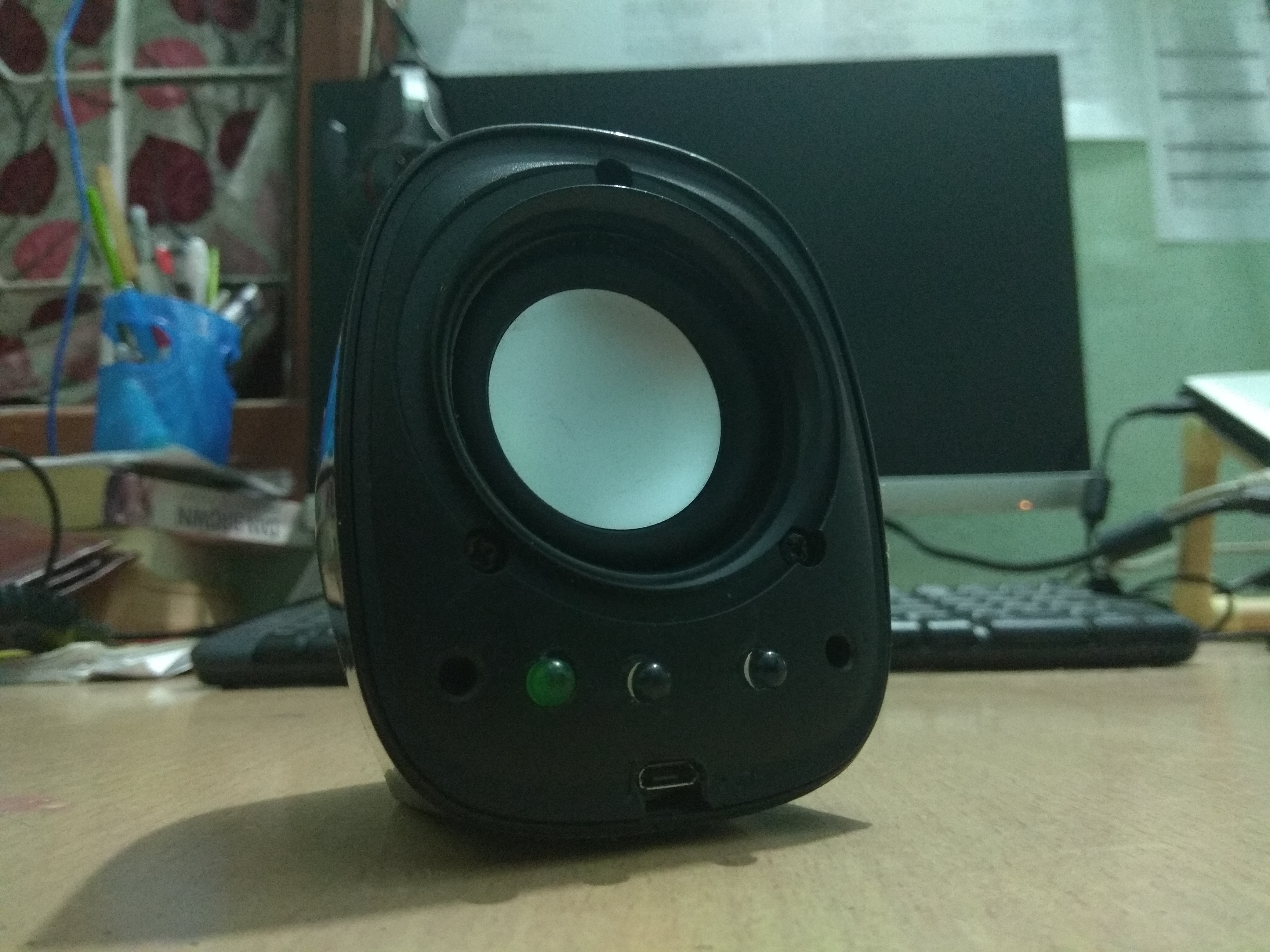

DIY a Bluetooth Speaker


I always wanted to make my own Bluetooth speakers, so in this build, I made a Bluetooth Seapker from very few components.It has a battery backup facility that can last up to 48hrs.

The Build process is simple, as there is a board available which is a Bluetooth audio module and has integrated class D amplifier built into it.

Can provide power to drive two 3W speakers.

So let's get started.!

Gathering the Components.


This Build requires few components and some electrical tools.

  • Segolike DC 5V Bluetooth Power Amplifier Board Micro USB Digital Amplifier Module Audio Receiver 2*3W Audio Amplifier http://amzn.to/2BJEFBL

  • TP 4056 Micro USB 5V 1A 18650 Lithium Battery Charger PCB Board TP4056 With Protection Module http://amzn.to/2ny7yf5

  • DC-DC Step Up Ultra Small Power Module Booster http://amzn.to/2nxBkRk

  • Speakers: I found mine from the old speaker box. You can get them too from the old speaker box.

  • A toggle switch http://amzn.to/2DR6sGm

  • A Lithium-Ion Battery 18650 http://amzn.to/2FxXZnP, I have got it from old laptop battery pack.

  • Some wires, Soldering Iron, Soldering wire and patience.

Complete Circuit Diagram


The Connections are Simple and easy, just follow the diagram and it will be cool.

Placing the Components in the Case


I have used the earlier speaker case to hold the components inside.

Also, I have removed the TP4056 module's LEDs with regular ones, and also the Bluetooth Led to a regular one.

Note:

One thing that sometimes speaker won't wake up even when turned on, coz the lithium-ion goes to sleep due to low current consumption by the board. So to wake up the box, just plug the charger into it and it will wake up.

And With that, it is complete.

Great You made your Own Bluetooth Module.
