DIY Wooden Toys Domino
by Nikolaiwood87 in Workshop > Woodworking
1541 Views, 9 Favorites, 0 Comments
DIY Wooden Toys Domino
![2.jpg](/proxy/?url=https://content.instructables.com/FJ0/UOA6/JB2S26VO/FJ0UOA6JB2S26VO.jpg&filename=2.jpg)
![1.jpg](/proxy/?url=https://content.instructables.com/FRC/36U3/JB2S272A/FRC36U3JB2S272A.jpg&filename=1.jpg)
![15.jpg](/proxy/?url=https://content.instructables.com/FU4/KVA1/JB2S25XN/FU4KVA1JB2S25XN.jpg&filename=15.jpg)
![23.jpg](/proxy/?url=https://content.instructables.com/FKT/NZHE/JB2S2680/FKTNZHEJB2S2680.jpg&filename=23.jpg)
![22.jpg](/proxy/?url=https://content.instructables.com/FRS/XVYZ/JB2S26IJ/FRSXVYZJB2S26IJ.jpg&filename=22.jpg)
![21.jpg](/proxy/?url=https://content.instructables.com/FJC/A8GF/JB2S26F8/FJCA8GFJB2S26F8.jpg&filename=21.jpg)
Trim a planed 25x86 mm hardwood plank into three 450 mm long pieces using a miter saw.
Trim them across the width (55mm) using a circular saw, then cut them across the length into 10 mm thick slats; make sure there is also a 12 mm slat for a support.

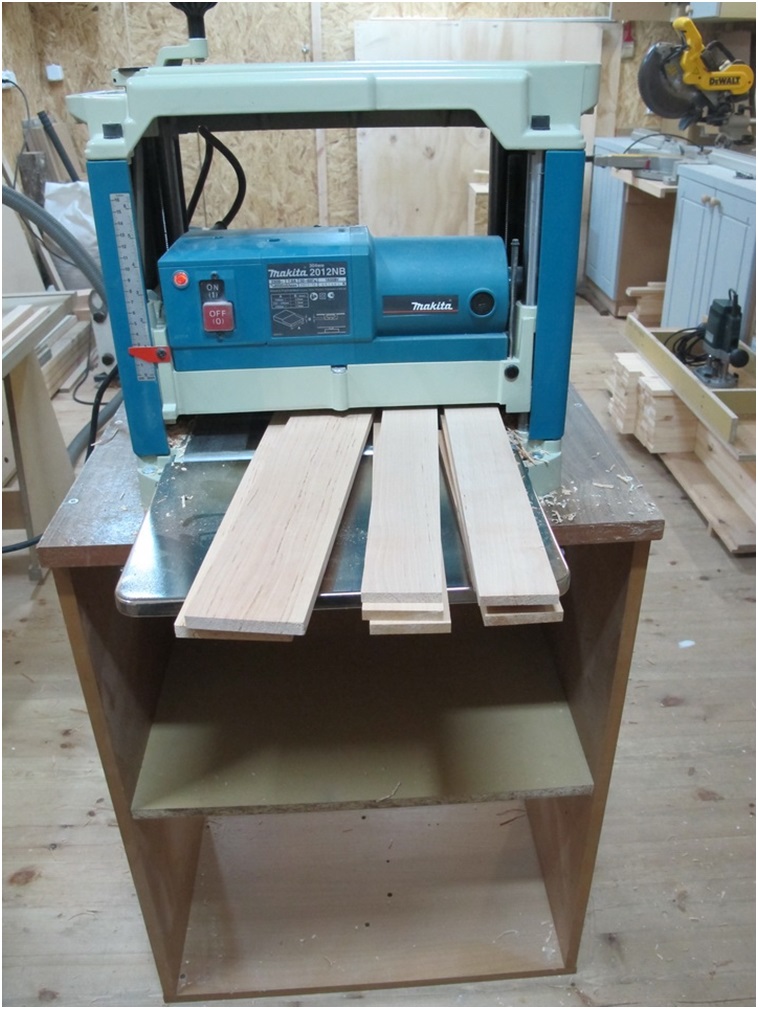

Plane the slats until they are 8 mm thick and 50 mm wide using a thickness planer. The support slat should be 70 mm wide and 10 mm thick.
Squares
![20.jpg](/proxy/?url=https://content.instructables.com/FQ5/WF1G/JB2S264N/FQ5WF1GJB2S264N.jpg&filename=20.jpg)
![19.jpg](/proxy/?url=https://content.instructables.com/FLR/DWY7/JB2S264E/FLRDWY7JB2S264E.jpg&filename=19.jpg)
![18.jpg](/proxy/?url=https://content.instructables.com/FWM/EMO4/JB2S26F7/FWMEMO4JB2S26F7.jpg&filename=18.jpg)
![17.jpg](/proxy/?url=https://content.instructables.com/FKQ/5BTO/JB2S26F6/FKQ5BTOJB2S26F6.jpg&filename=17.jpg)
![16.jpg](/proxy/?url=https://content.instructables.com/F9S/NRNP/JB2S260Y/F9SNRNPJB2S260Y.jpg&filename=16.jpg)
Cut the slats into 50x50 mm squares. The support plank should be 310 mm long.
Mark the squares. Make a template for marking and cutting through-holes
using a hand tool. Each hole should be 8 mm in diameter. Cut 6 mm holes in the support plank.
Make pegs out of a wooden pin (6 mm in diameter). Glue them into the 6 mm holes.
Do the final polishing. Trim the pins.
How to Make a Box
![24.jpg](/proxy/?url=https://content.instructables.com/FVI/L62Q/JB2S2681/FVIL62QJB2S2681.jpg&filename=24.jpg)
![14.jpg](/proxy/?url=https://content.instructables.com/FZ8/YT91/JB2S26F5/FZ8YT91JB2S26F5.jpg&filename=14.jpg)
![13.jpg](/proxy/?url=https://content.instructables.com/FRV/VQIE/JB2S26EY/FRVVQIEJB2S26EY.jpg&filename=13.jpg)
![11.jpg](/proxy/?url=https://content.instructables.com/FKQ/QVM0/JB2S25R0/FKQQVM0JB2S25R0.jpg&filename=11.jpg)
Trim a planed 25x86 mm hardwood plank into three 450 mm work-pieces using a miter saw.
Cut them into 12 mm thick slats using a circular saw.
Plane the slats until they are 10 mm thick and 84 mm wide using a thickness planer.
Trim the slats to achieve appropriate size.

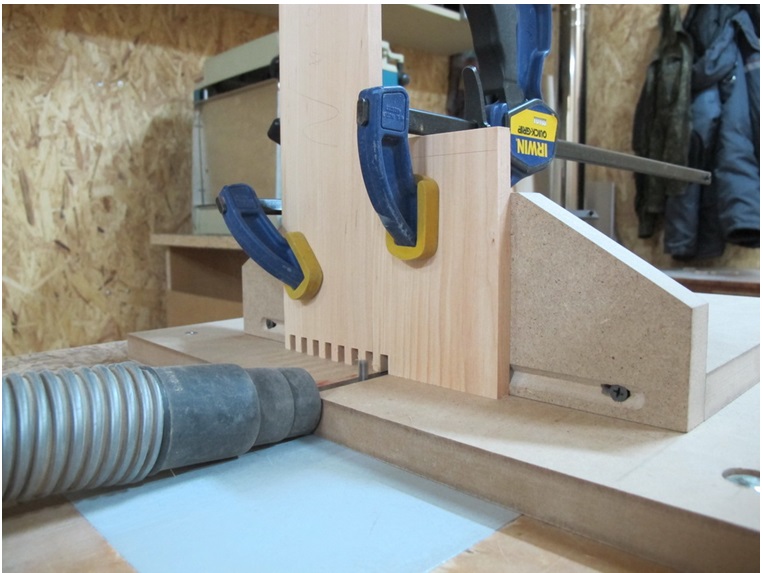

Cut tenons at the work-pieces’ ends on a router table equipped with a tenon cutter and a 6 mm grooving milling cutter. The pitch is 6 mm, and tenon length is 10.2 mm.
Continue...
![12.jpg](/proxy/?url=https://content.instructables.com/F4Q/UR1F/JB2S25UC/F4QUR1FJB2S25UC.jpg&filename=12.jpg)
![10.jpg](/proxy/?url=https://content.instructables.com/FHU/RWJ1/JB2S26EW/FHURWJ1JB2S26EW.jpg&filename=10.jpg)
![9.jpg](/proxy/?url=https://content.instructables.com/FBP/GWL8/JB2S26ET/FBPGWL8JB2S26ET.jpg&filename=9.jpg)
![8.jpg](/proxy/?url=https://content.instructables.com/F3S/GL6L/JB2S25NN/F3SGL6LJB2S25NN.jpg&filename=8.jpg)
Put the box together without using glue. Check the dimensions and the tenon joints: they should be firm, but assembly/disassembly should be easy.
Trim bottom and lid grooves (4 mm wide and 5 mm deep). Cut the bottom and lid out of a 4 mm thick piece of veneer. Finish all parts.
Glue..
![7.jpg](/proxy/?url=https://content.instructables.com/FF9/OB5Z/JB2S25NM/FF9OB5ZJB2S25NM.jpg&filename=7.jpg)
![5.jpg](/proxy/?url=https://content.instructables.com/FIO/1MAI/JB2S26BF/FIO1MAIJB2S26BF.jpg&filename=5.jpg)
![6.jpg](/proxy/?url=https://content.instructables.com/F1H/KKZD/JB2S26BI/F1HKKZDJB2S26BI.jpg&filename=6.jpg)
![3.jpg](/proxy/?url=https://content.instructables.com/FEL/W32V/JB2S28UX/FELW32VJB2S28UX.jpg&filename=3.jpg)
Glue all pieces together. Check the angles using a try-square. Remove excess glue with a damp sponge.

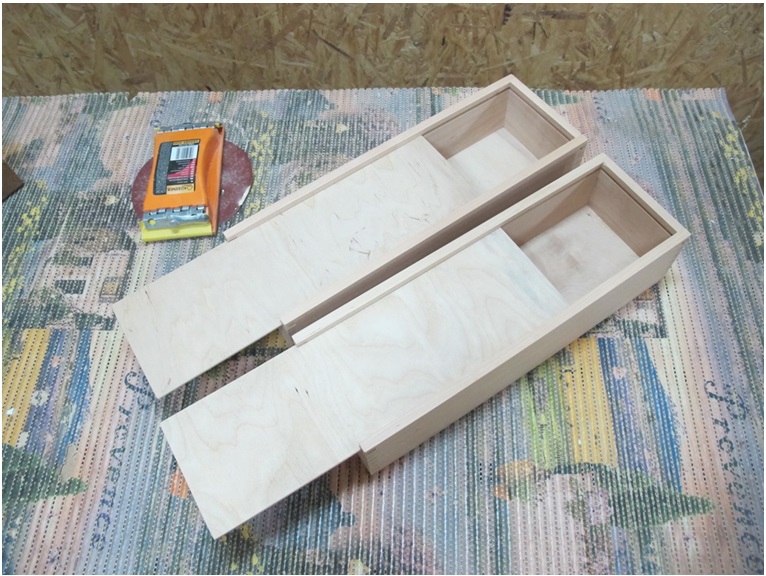

Finish your boxes. Trim the lid according to the box’s size.
Finishing
Coat the domino and boxes with a layer of leak oil. Use a soft and clean napkin and oil it evenly. Wait 20-25 minutes to let the oil evenly saturates the wood. Remove excess oil with a napkin. Leave it until it dries completely.
There it is!
