DIY Wooden Bluetooth Speaker + FM + PowerBank

by MUHAMMATH ASHIK FARHAN in Circuits > Speakers

977 Views, 1 Favorites, 0 Comments

DIY Wooden Bluetooth Speaker + FM + PowerBank

images (8).jpeg
Hello Everyone,
Here I made a Wooden Bluetooth Speaker + FM and also a Power Bank. I used Scrap parts from My Old Creative Speakers and Battery from Old Laptop Battery.

Gather the Parts

images (1).jpeg
images (9).jpeg
images (5).jpeg
images (7).jpeg
dzs-elec-2pcs-mini-dc-dc-adjustable-boost-converter-voltage-regulator-2v-24v-to-5v-28v-2a-step-up-us__51YPt9_rHpL.jpg
images (6).jpeg
images (3).jpeg
images (4).jpeg
Components :
1)- Bluetooth MP3 Decoder Board
2)- PAM8403 Audio Amplifier

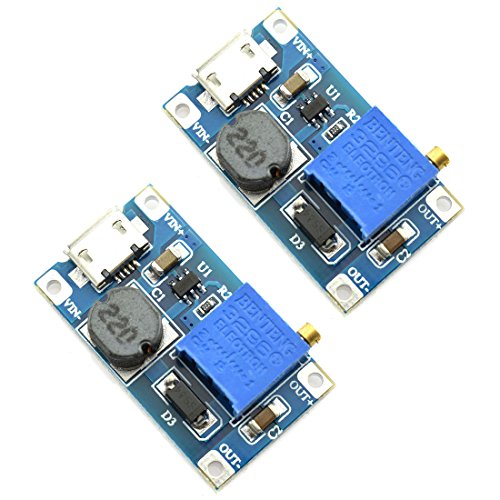

3)- DC - DC Converter
4)- Power Bank Module
5)- LiIon / LiPo Battery (Scrap)
6)- Speakers (Scrap)
7)- Antenna (Scrap)
8)- Wooden Pieces (For Box)
9)- Speaker Wires

Connection

Car-DC12V-Bluetooth-MP3-Decoder-Board-Hands-Free-Multi-format-Lossless-Audio-FLAC-MP3-WMA-WAV.jpg_q50.jpg
For 5V Power Supply, I use LiPo / LiIon Battery with DC-DC Converter adjusted to 5V Output.
PAM8403 Input Audio Connected to Bluetooth Decoder Board AUDIO Output.

Making the Box

Material : Teak Wood 8mm

Dimensions : 200mm x 100mm x 70mm

I bought it from a local wood shop

Front Panel : Hold the Speaker & Wrapped by Cloth

Box : Hold the Other Components

Holes : BT Decoder Board, Power Bank Output, Charging Port, Button & Antenna and Also for Air Ventilate

Paint :
✓ Sanded with 180 grit
✓ Two Coats of Wood Primer
✓ Sanded with 220 grit
✓ Two Coats of Brown Wood Paint

I covered the Inside of Box with Thin Sheet of Sponge.

Final Product

Use Glue Gun or DoubleSide Tape to stick the Components Inside the Box.
Troubleshoot : Check Every Connection & Power Supply if It not Working properly.
Use Capacitor of 16V 100uf Parallel to Power Supply for Constant Power Supply.
I use Glue Gun to form button for Bottom Grip.
Test It?? Enjoy It!!.

Testing

Testing : BT Speaker PowerBank
Test : My First Bluetooth Handmade Wooden Speaker

✓ Test the Charging Port

✓ Test the PowerBank Output

✓ Test the Speaker

Test It?? Enjoy It!!
