DIY Wireless Power Meter | 100VDC 100A
by Steve Willson Kujur in Circuits > Electronics
9714 Views, 39 Favorites, 0 Comments
DIY Wireless Power Meter | 100VDC 100A
.jpg)
Hey! everyone, My name is Steve
Today I’m gonna show how I build this Power Meter Using ESP8266 & INA226 Current Sensor
The Screen seems to fluctuate it’s just due to the camera in real it’s normal
I’ve built the Codes with ESPHome
These can measure current 1mA to 100Amp and Voltage up to 100VDC, and it’s very precise
And yes it can also measure negative current
And I also have added DHT11 So it can measure Temperature & Humidity

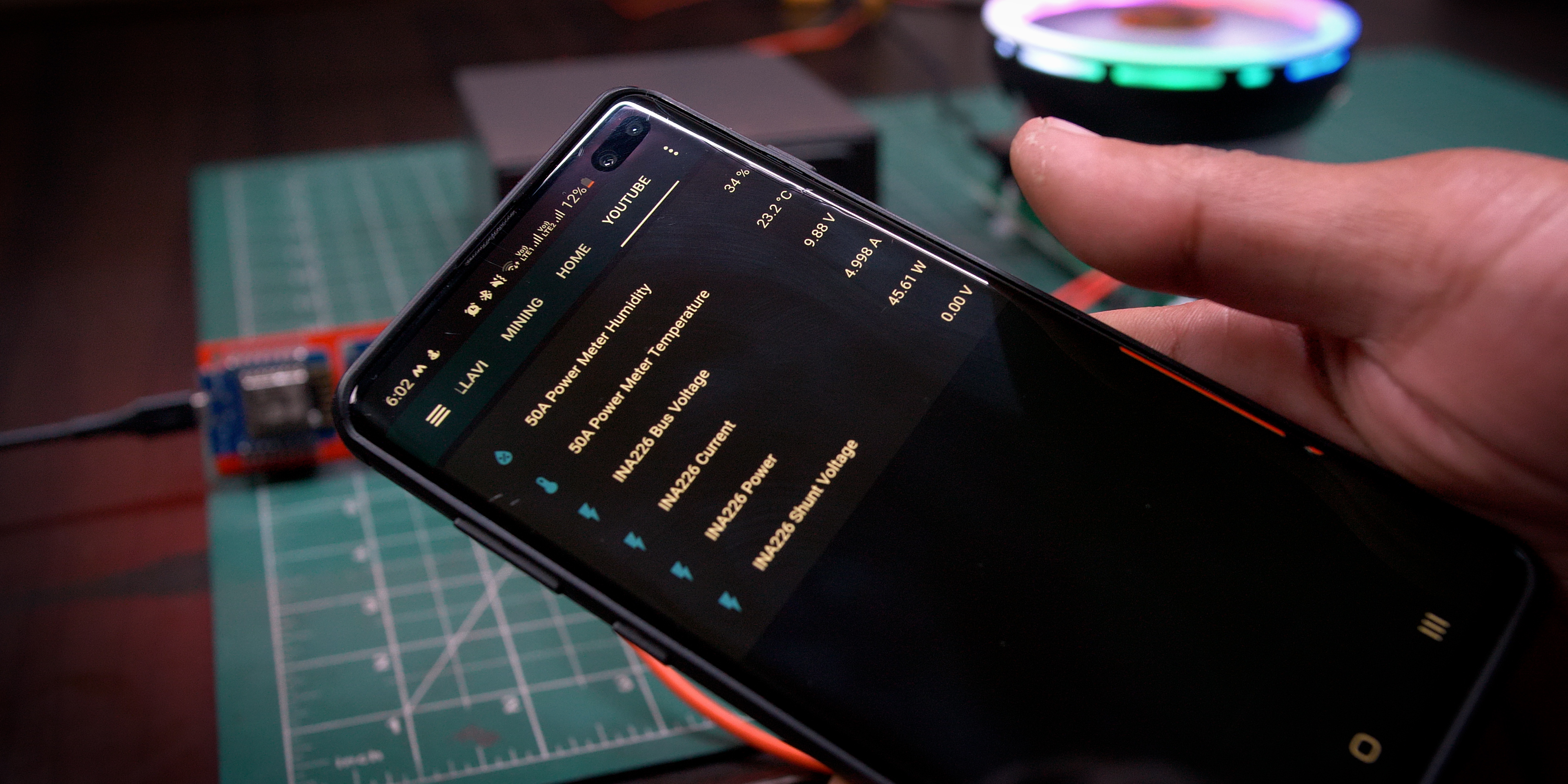

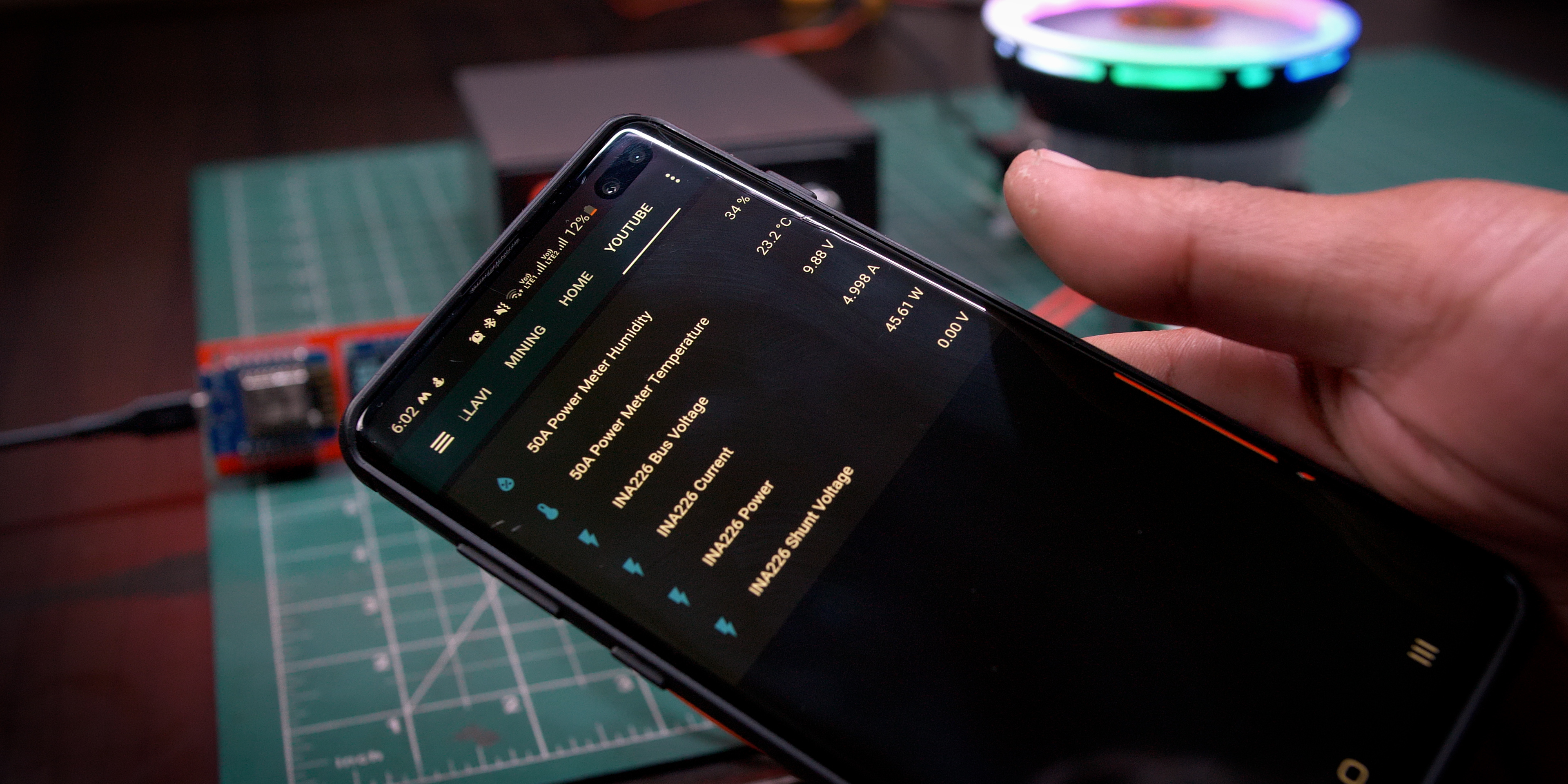

It can also be integrated with your Home Assistant and you can see it wirelessly I’ll mostly use this for capacity testing Lifepo4 Battery
This is the First Version I’ve made there are so many things to improve
Let's Start
Features
.jpg)
.jpg)
.jpg)
Input Power
- 5V DC
Measurement
- 0-100VDC
- 0-100A
Built-in Features
- 0.96" Oled
- OTA Update
- Temperature & Humidity Read
- Wireless
- Extra Ports for Future Expandability
Precesion Samples
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

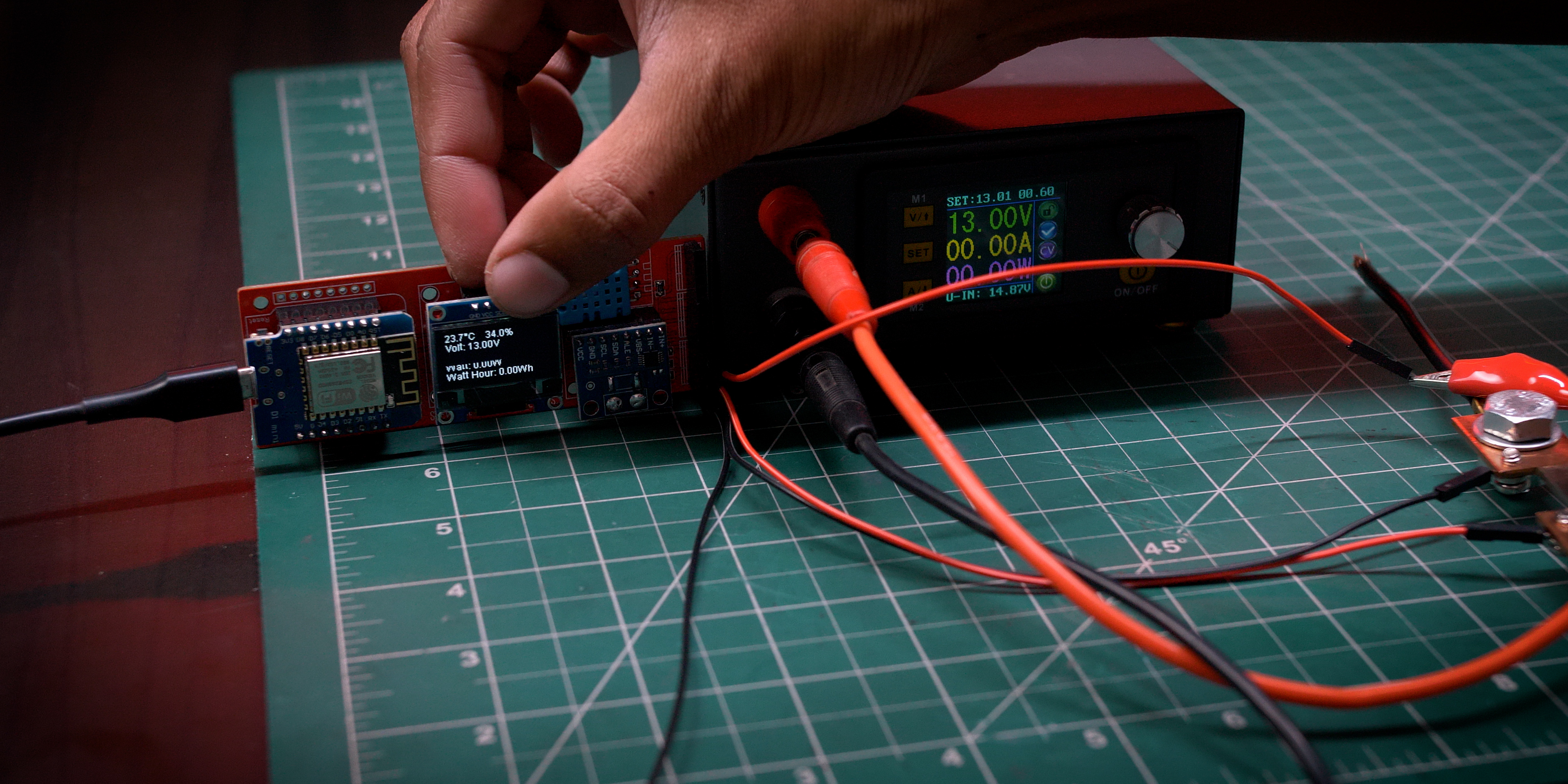

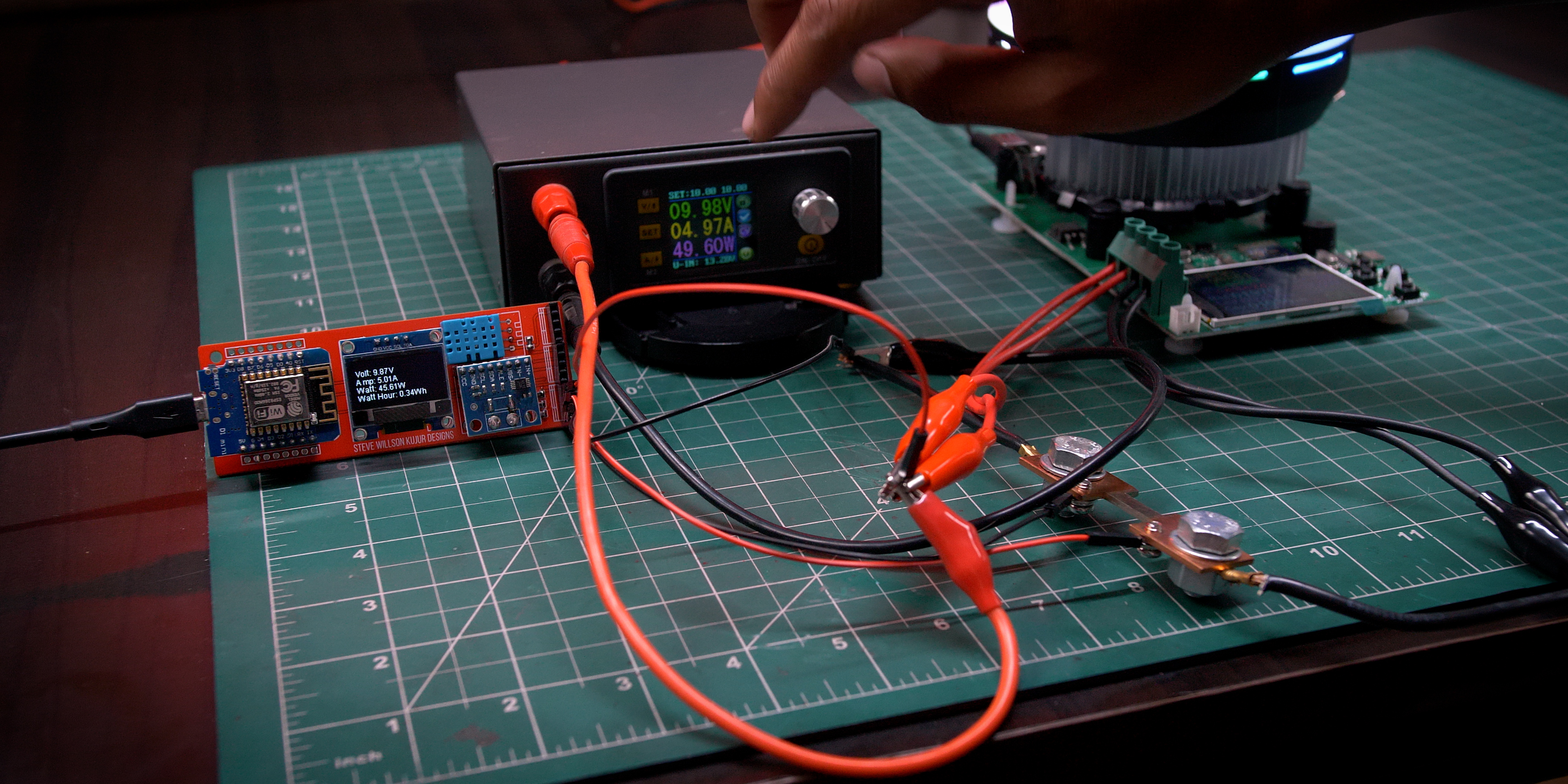

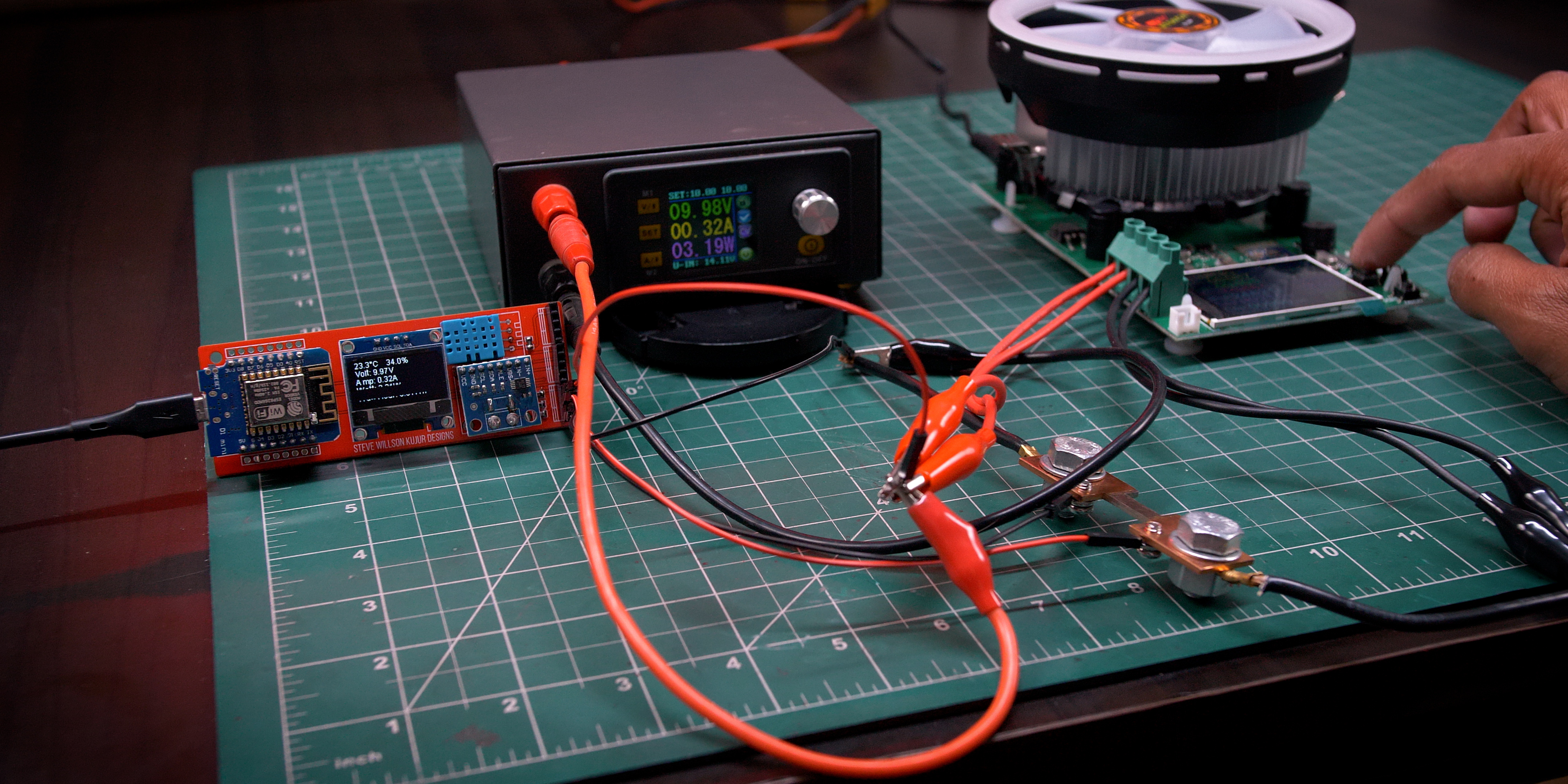

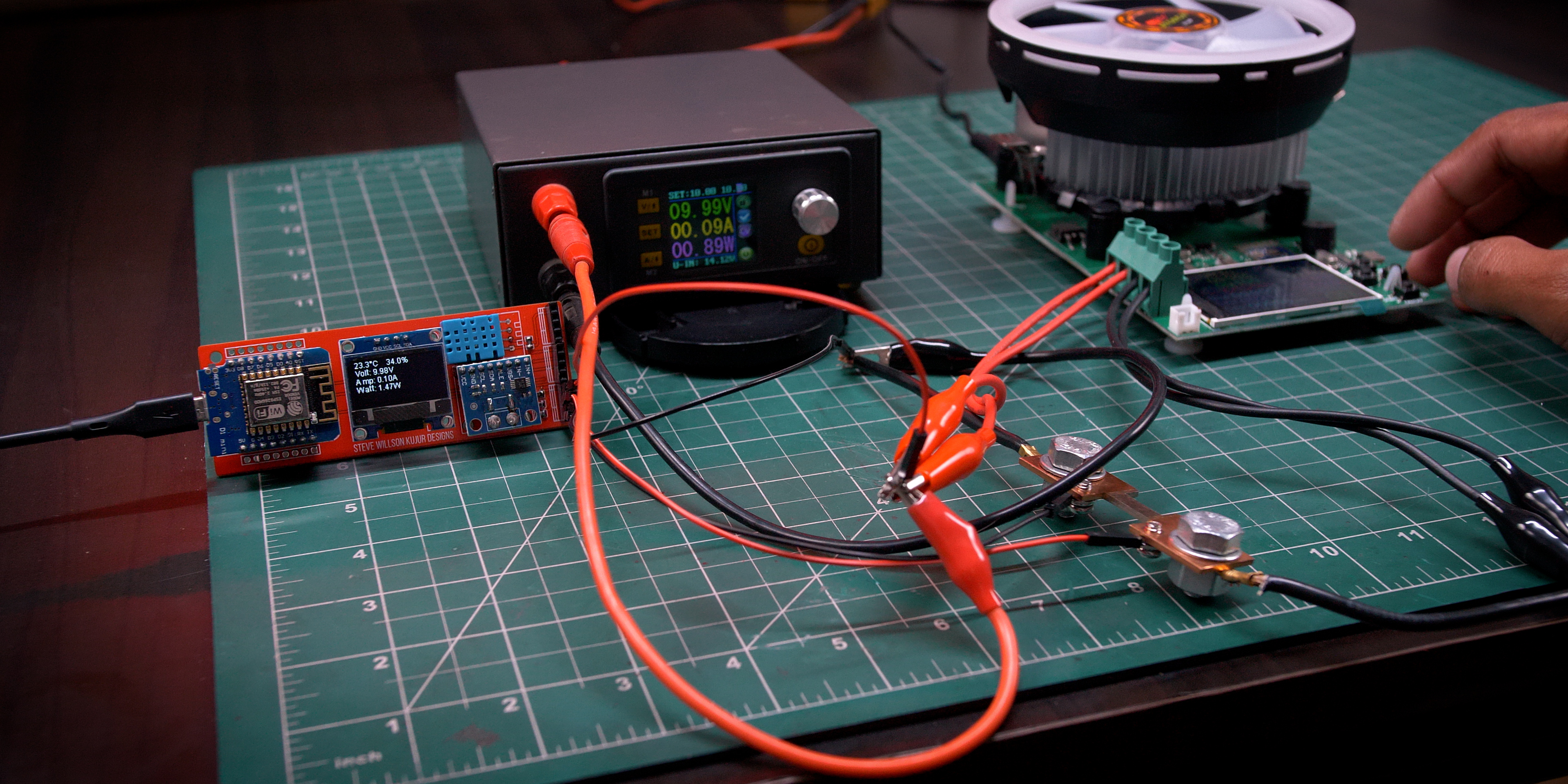

I used my lab bench power supply to test it and it seems very accurate there are very few errors and you can always calibrate it
Thing I've Used
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Aliexpress

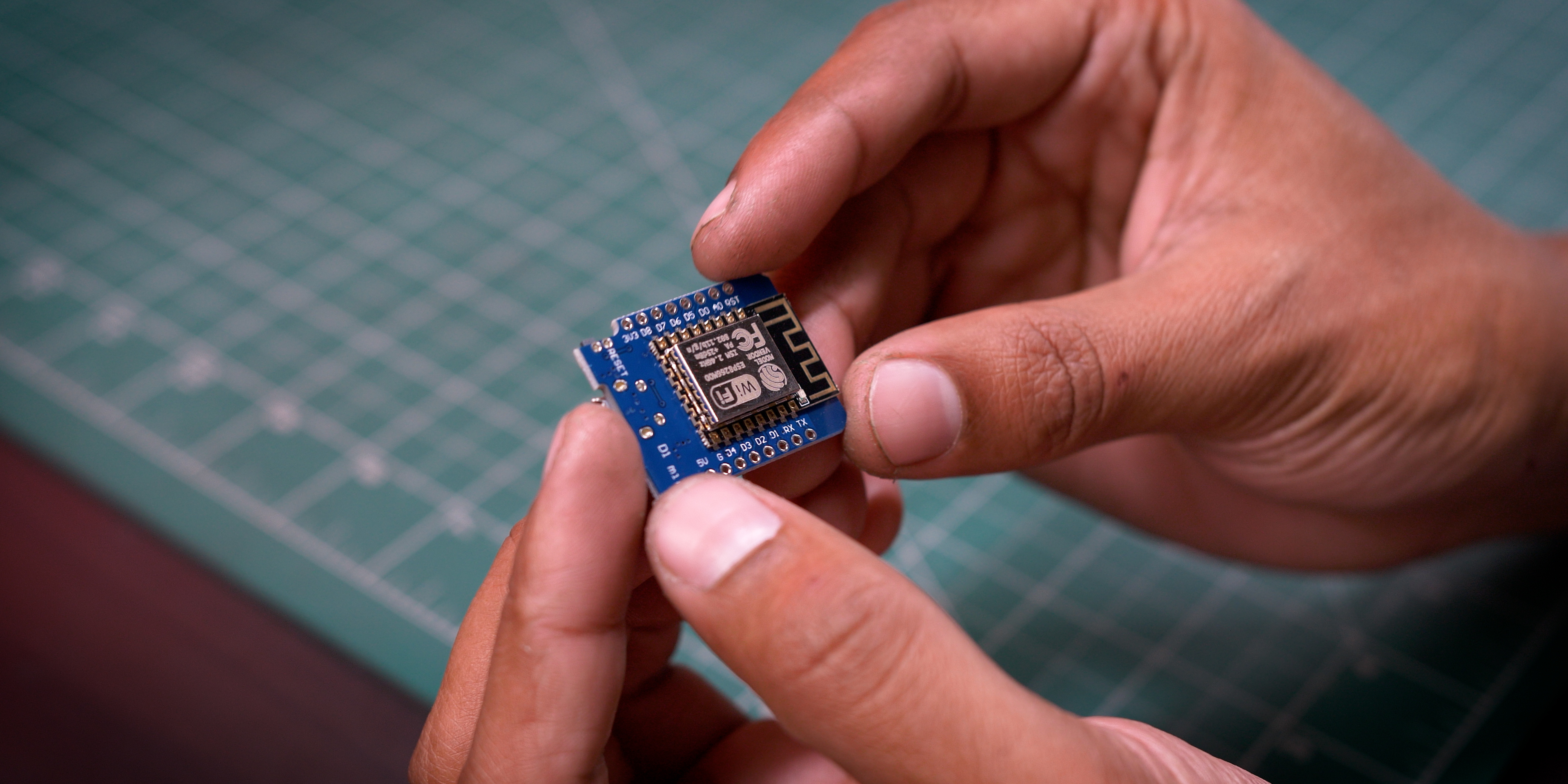

- Wemos D1 Mini - http://bit.ly/37x3Jie
- INA226 Current Sensor - http://bit.ly/3k2OUZO
- DHT11 - http://bit.ly/3k2OUZO
- 0.96 Inch Oled Display - http://bit.ly/3k2OUZO
- SMD Resistance - http://bit.ly/3k2OUZO
- SMD Capacitors - http://bit.ly/3k2OUZO
- Female Headers - http://bit.ly/3k2OUZO
- 100A Shunt - http://bit.ly/3k2OUZO
- Load Tester - http://bit.ly/3k2OUZO
- TS100 Soldering Iron - http://bit.ly/3k2OUZO
- Wemos D1 Mini - http://bit.ly/3k2OUZO
- INA226 Current Sensor - http://bit.ly/3k2OUZO
- DHT11 - http://bit.ly/3k2OUZO
- 0.96 Inch Oled Display - http://bit.ly/3k2OUZO
- SMD Resistance - http://bit.ly/3k2OUZO
- SMD Capacitors - http://bit.ly/3k2OUZO
- Female Headers - http://bit.ly/3k2OUZO
- 100A Shunt - http://bit.ly/3k2OUZO
- Load Tester - http://bit.ly/3k2OUZO
- TS100 Soldering Iron - http://bit.ly/3k2OUZO

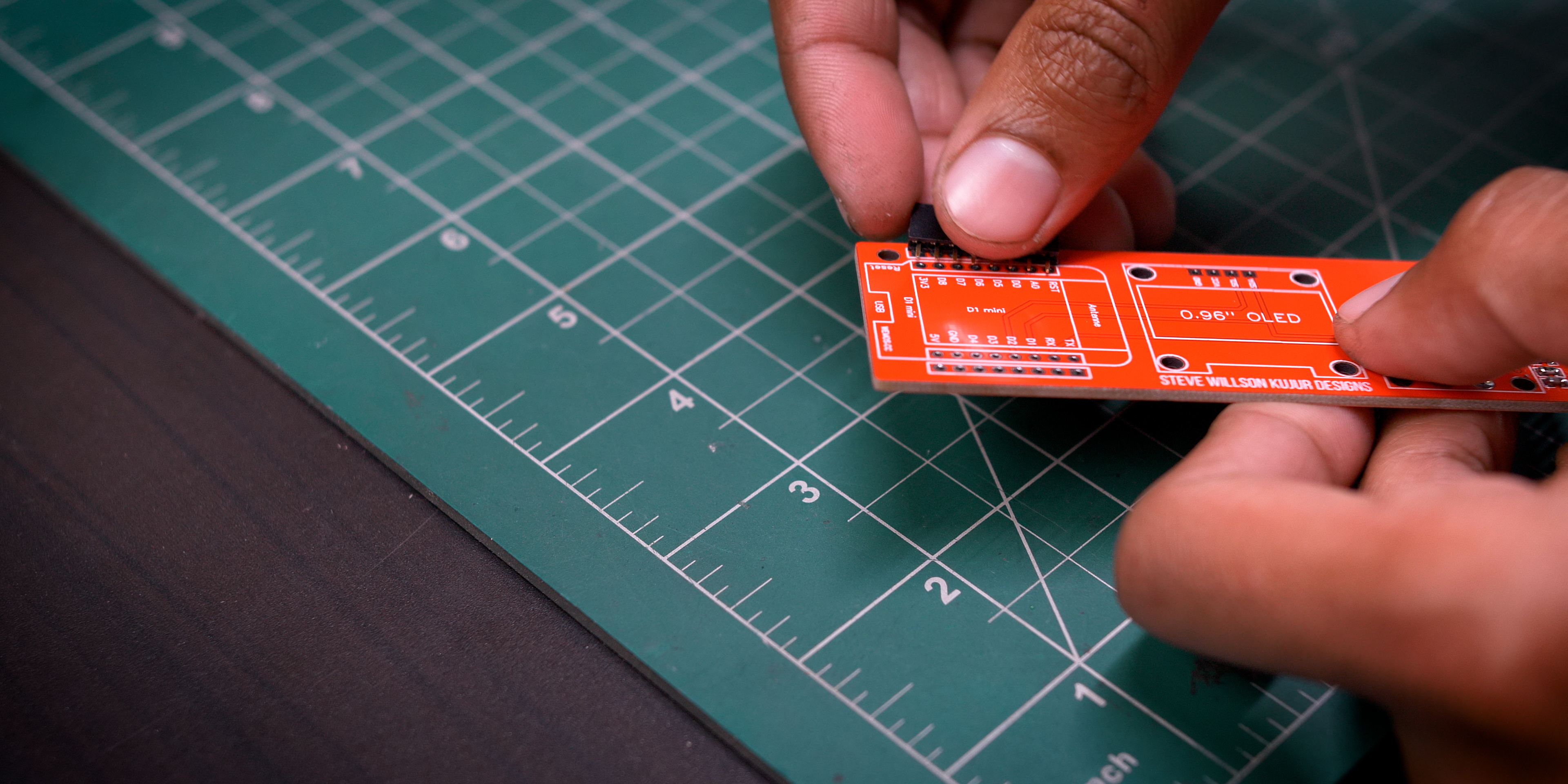

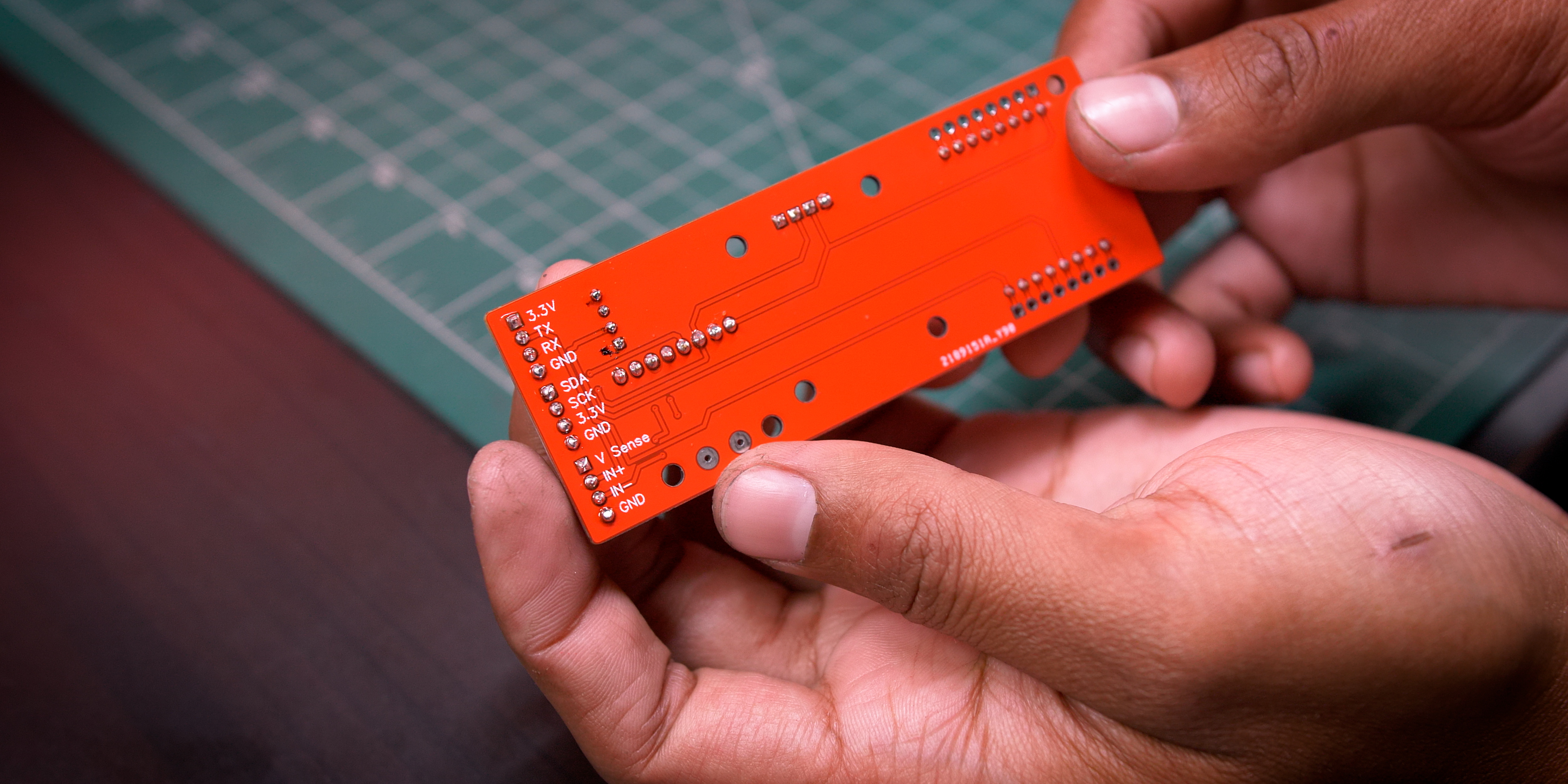

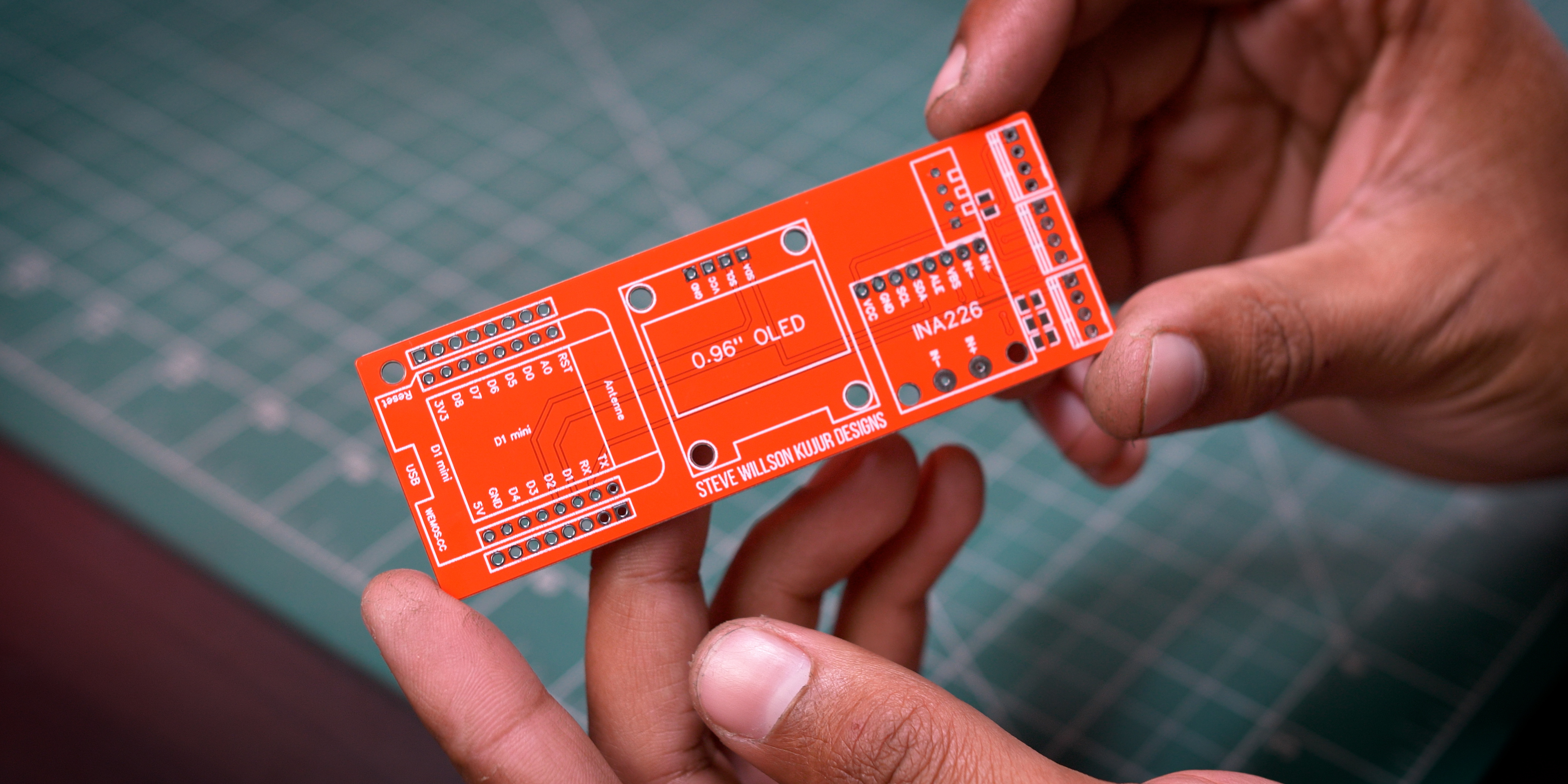

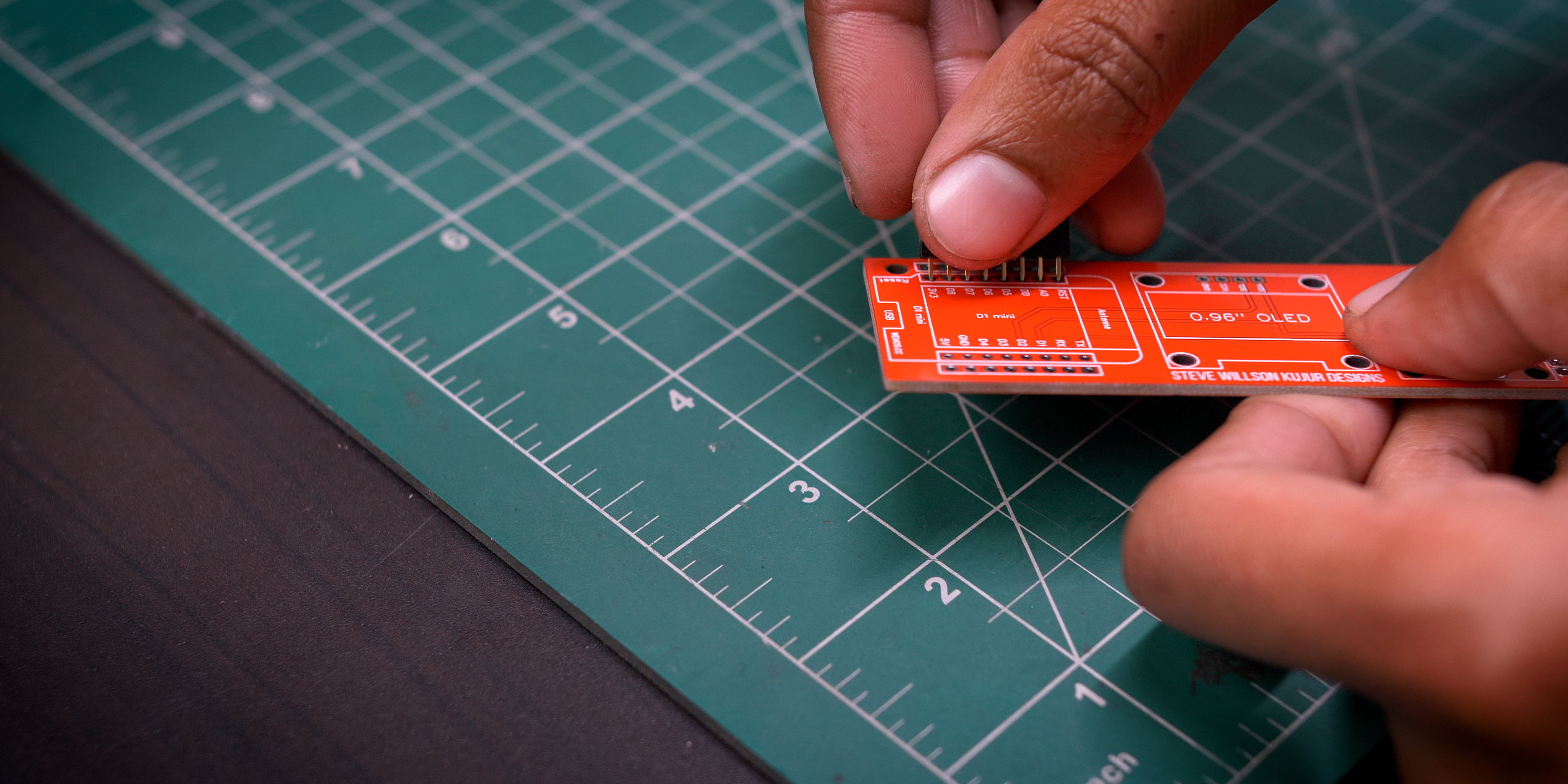

Making PCB
.png)
.jpg)

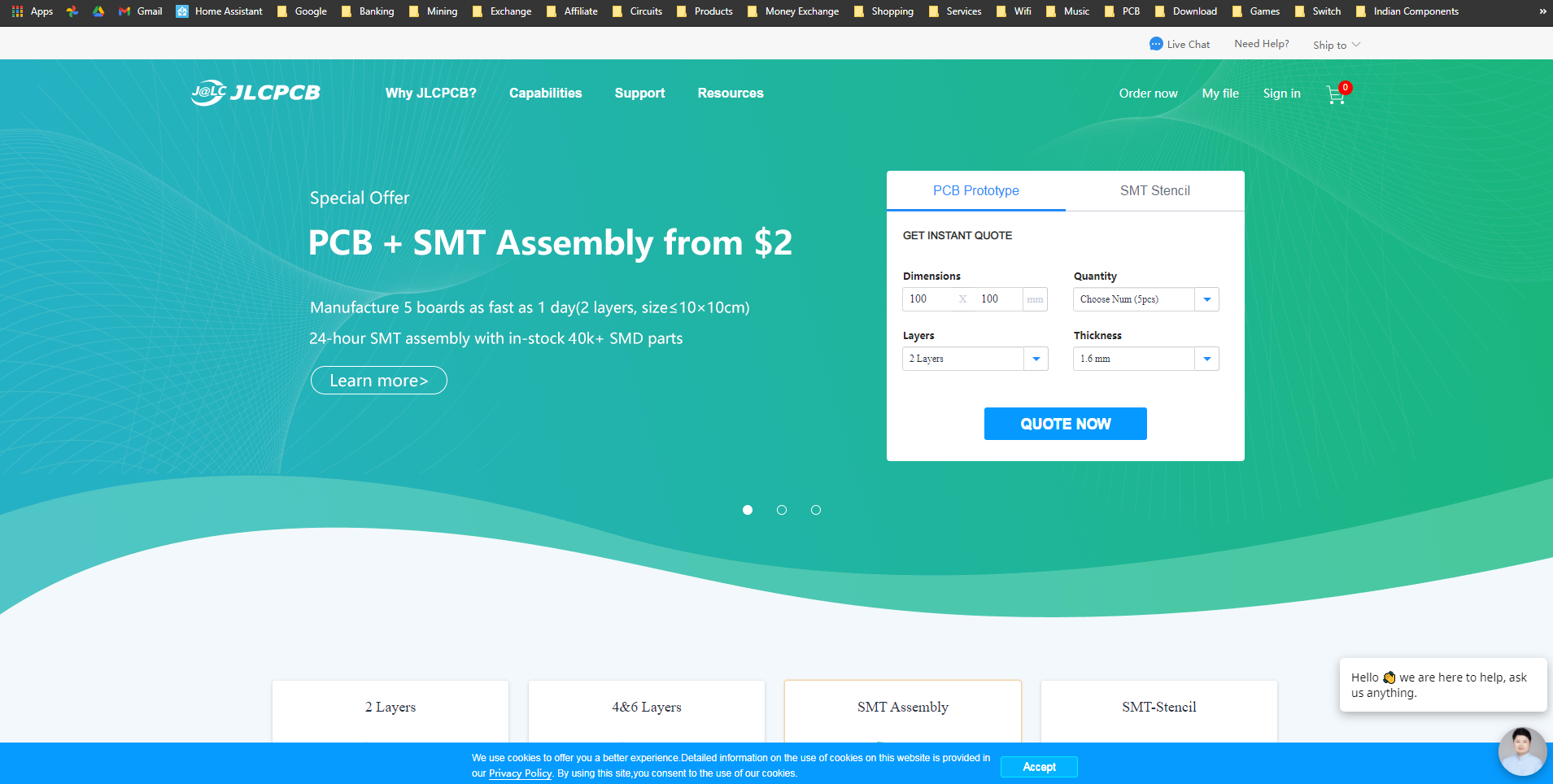

I generally try to make everything professionally so I use JLCPCB to make my dream come true.
Talking about JLCPCB it's the world largest PCB manufacturing company and provide very fantastic results
You can see the above image as a reference
Now, JLCPCB are offering
- $2 for 2Layer, 5pcs
- $5 for 4Layer, 5pcs
Gerber & Schmitics - Download
Why ESPHome
.png)
.jpg)
I use Home Assistant to run ESPHOME it's very easy to work with and gives wireless capabilities
It uses YAML and the coding is very user friendly
SMD
.jpg)
I generally use SMD Resistance and Capacitors Book it's easy to work with everything is well sorted
After Gathering All the Parts
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

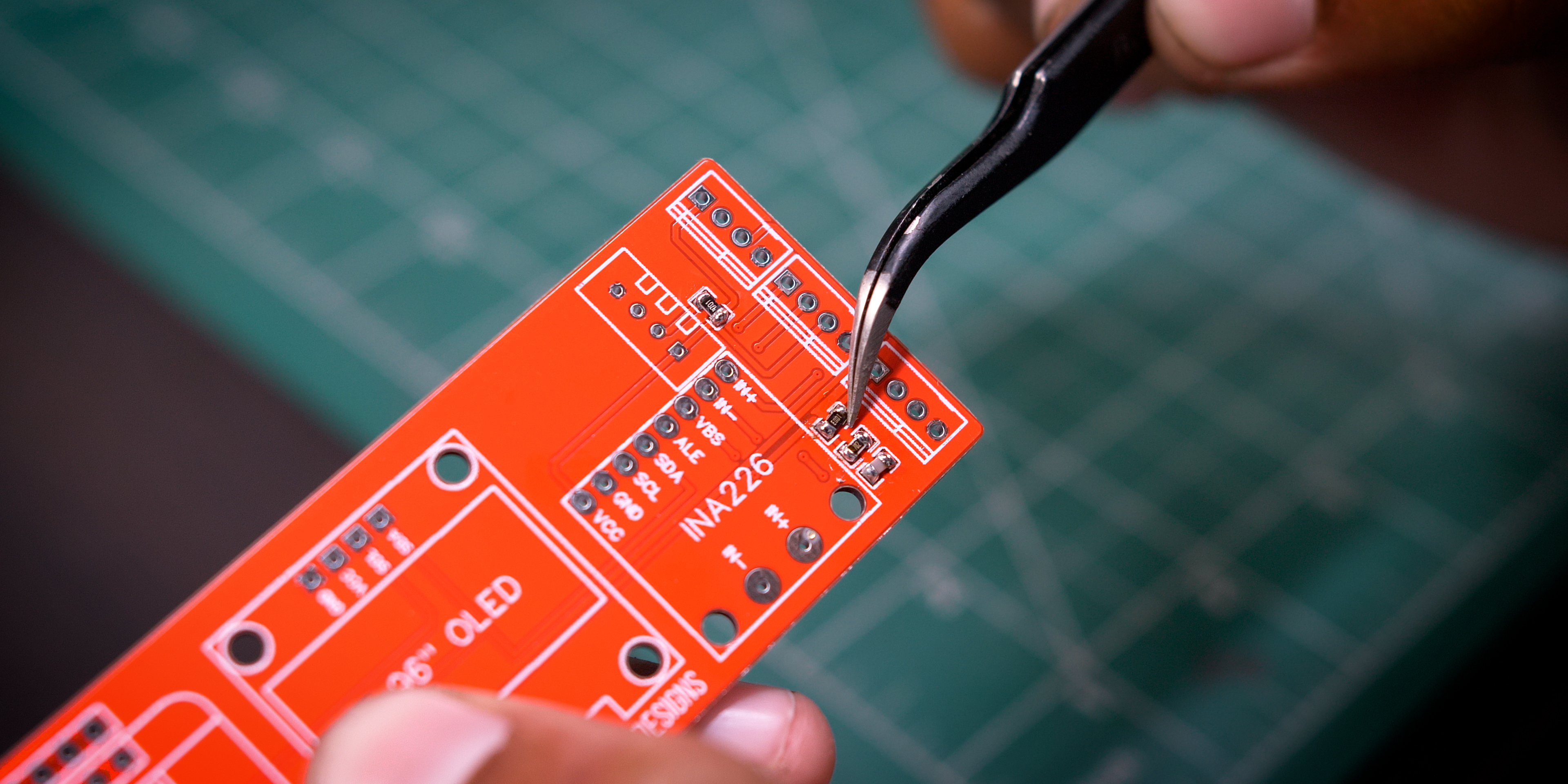

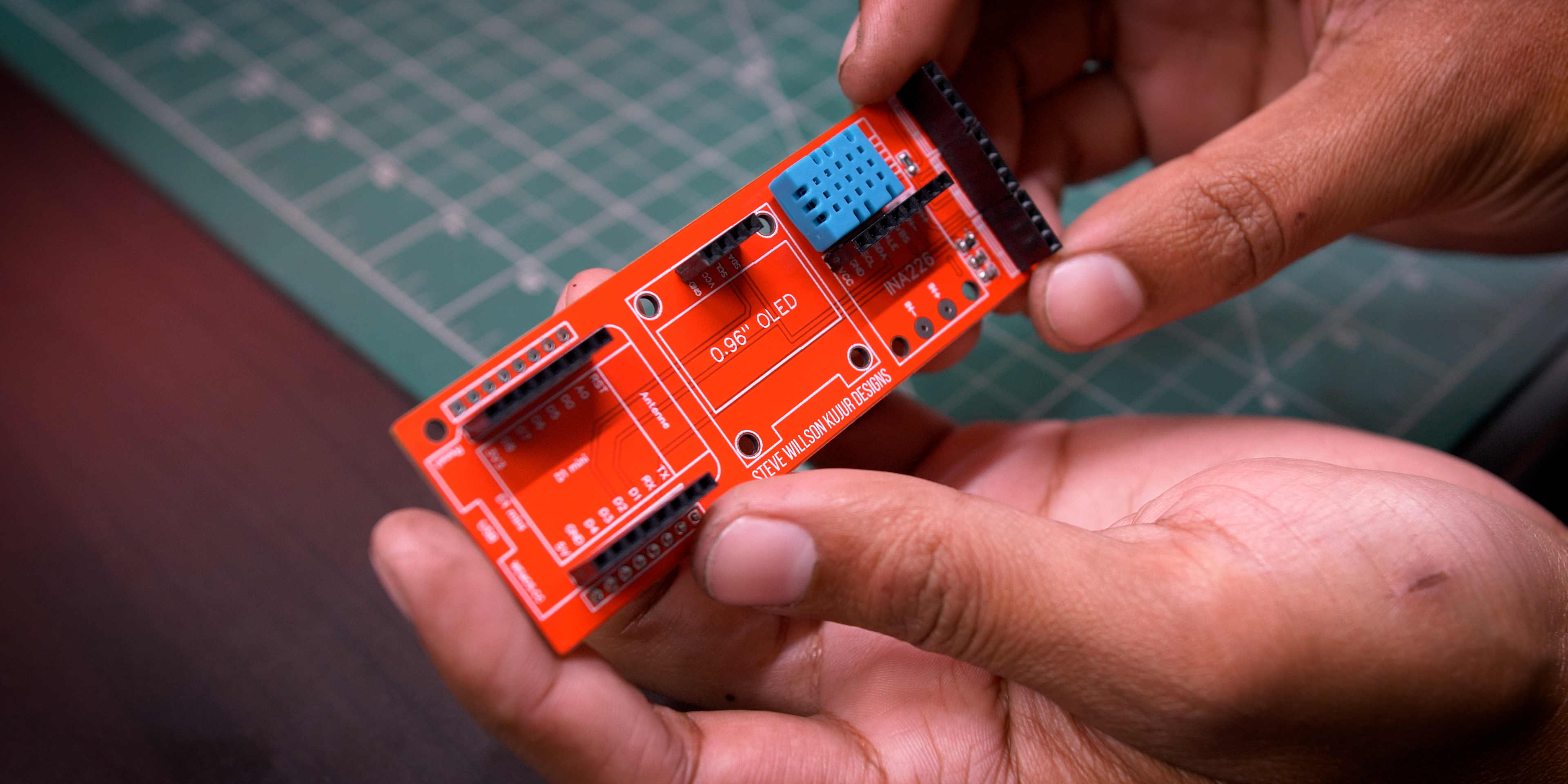

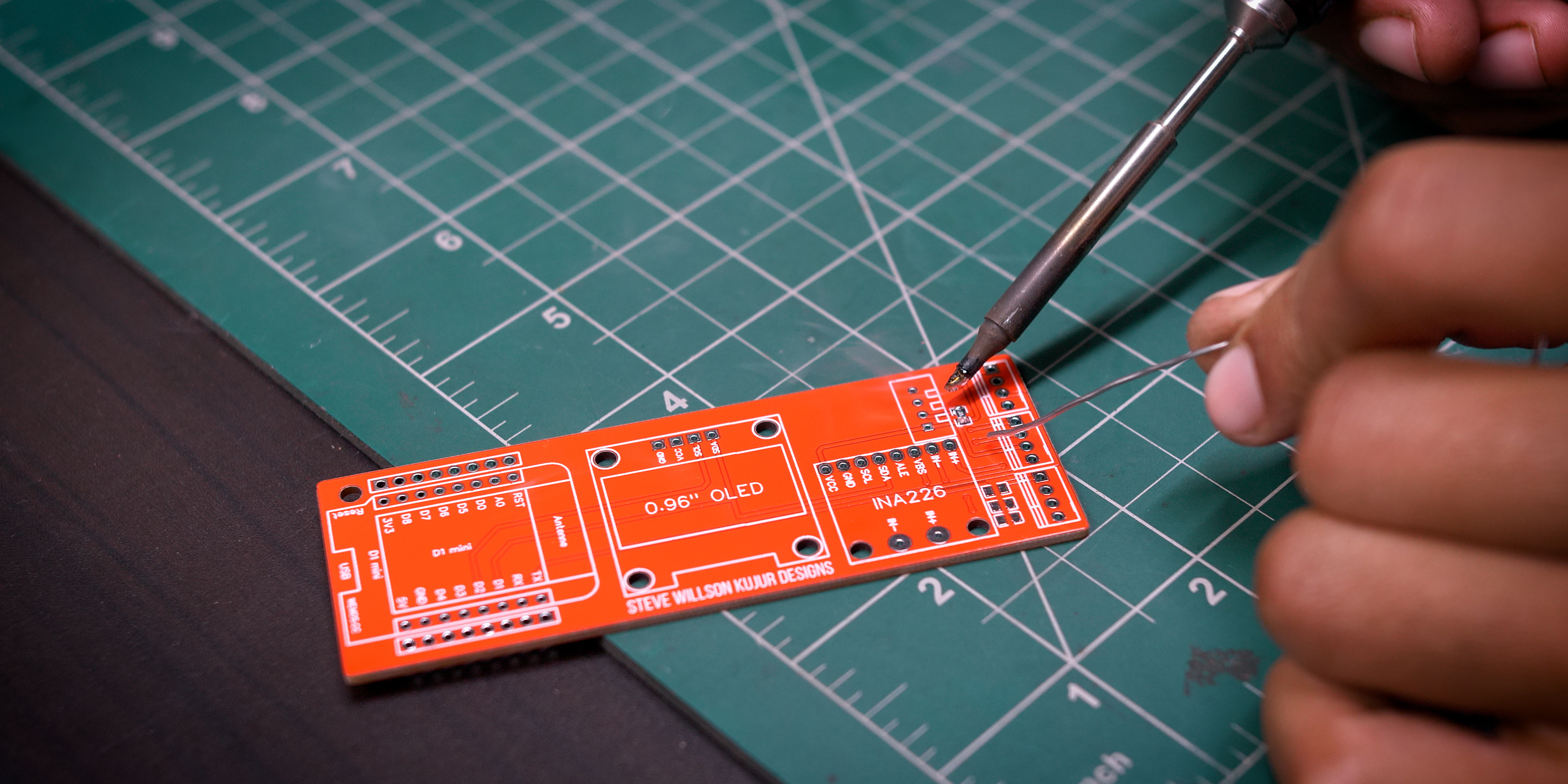

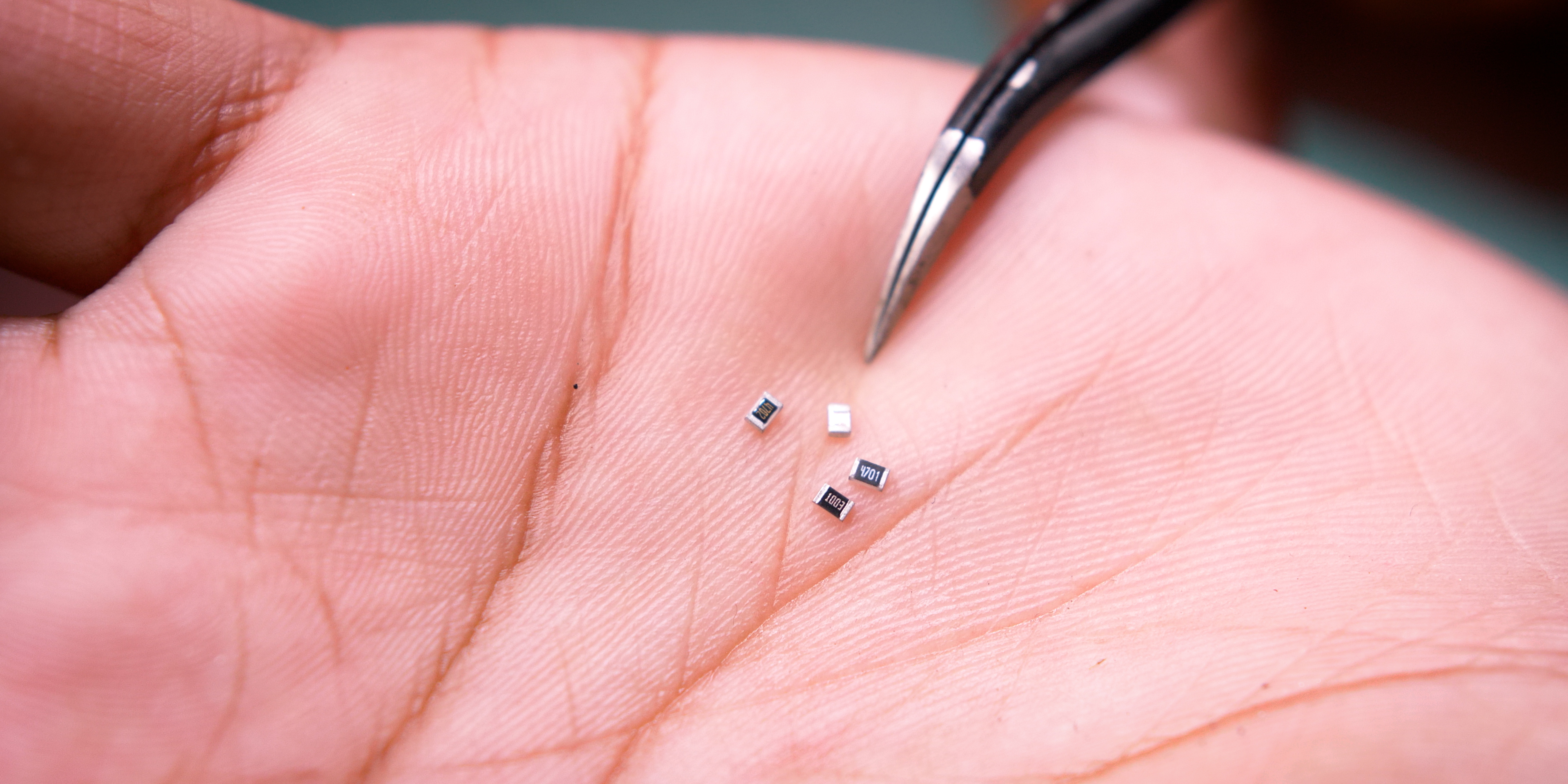

Started Soldering 4 Resistance and 1 Capacitor.

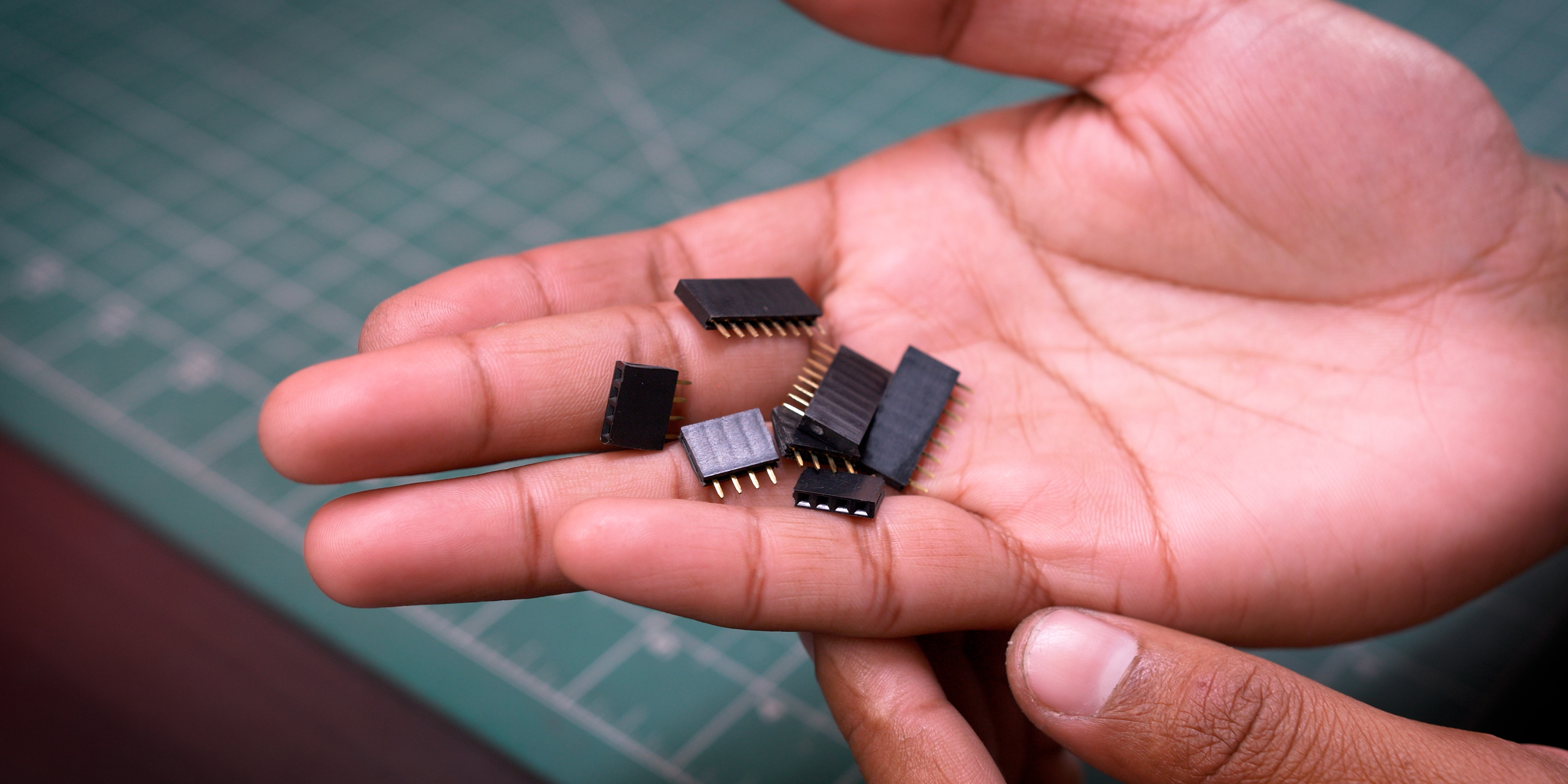

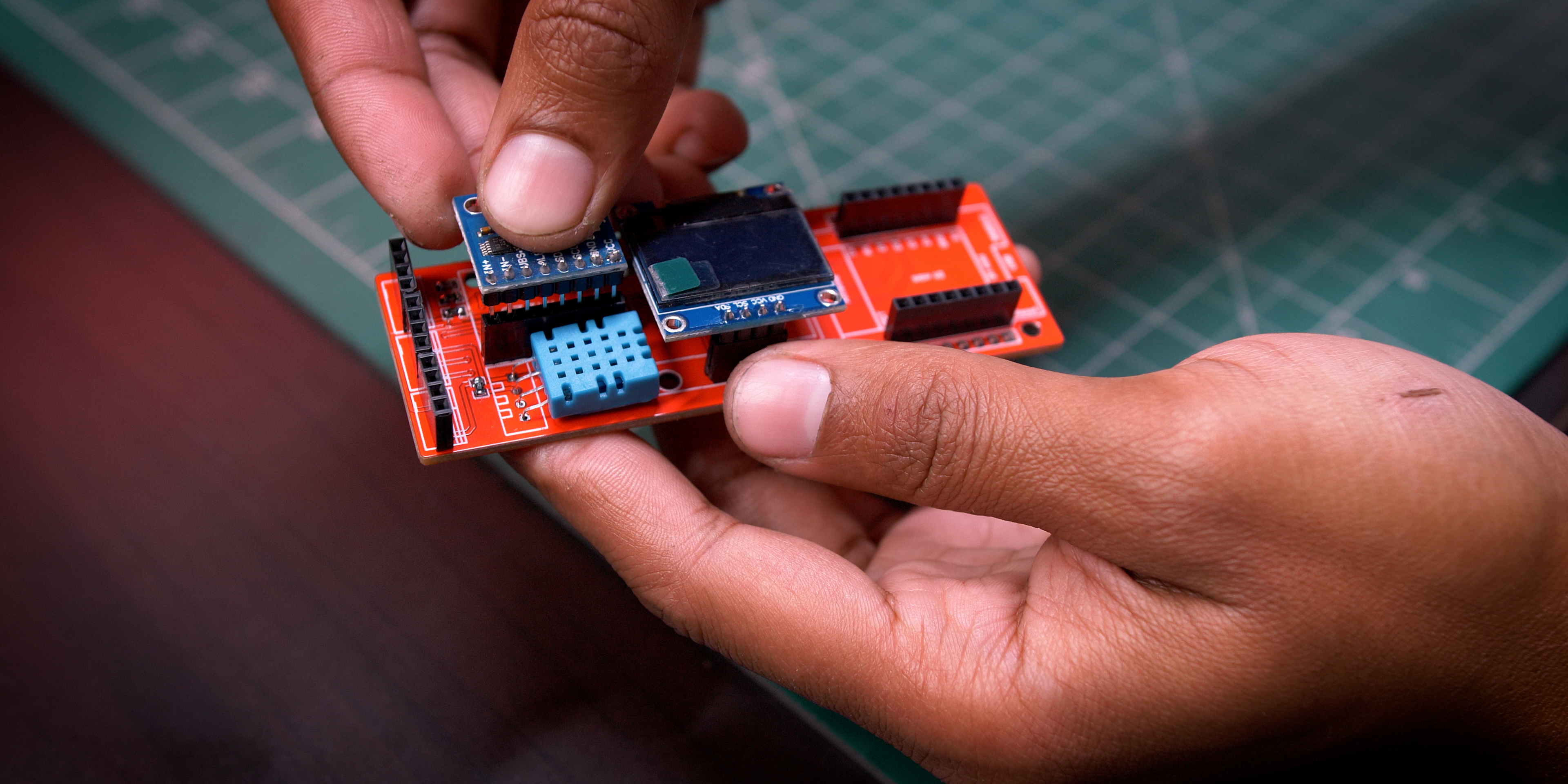

Then soldered the female headers yes it gives height but gives easy replaceability

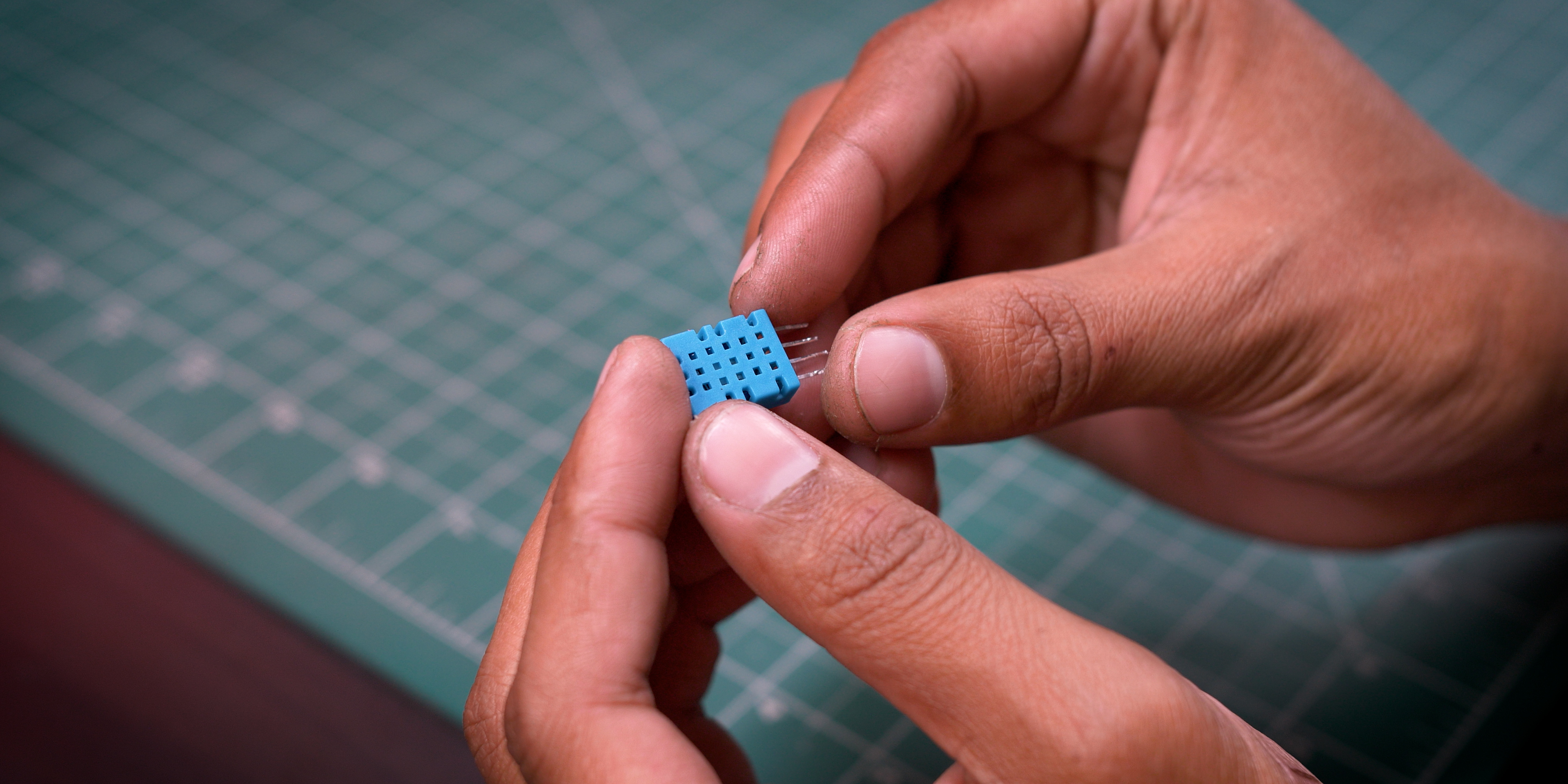

And soldered DHT11
Note - Please see the images for better understanding
Assembly
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

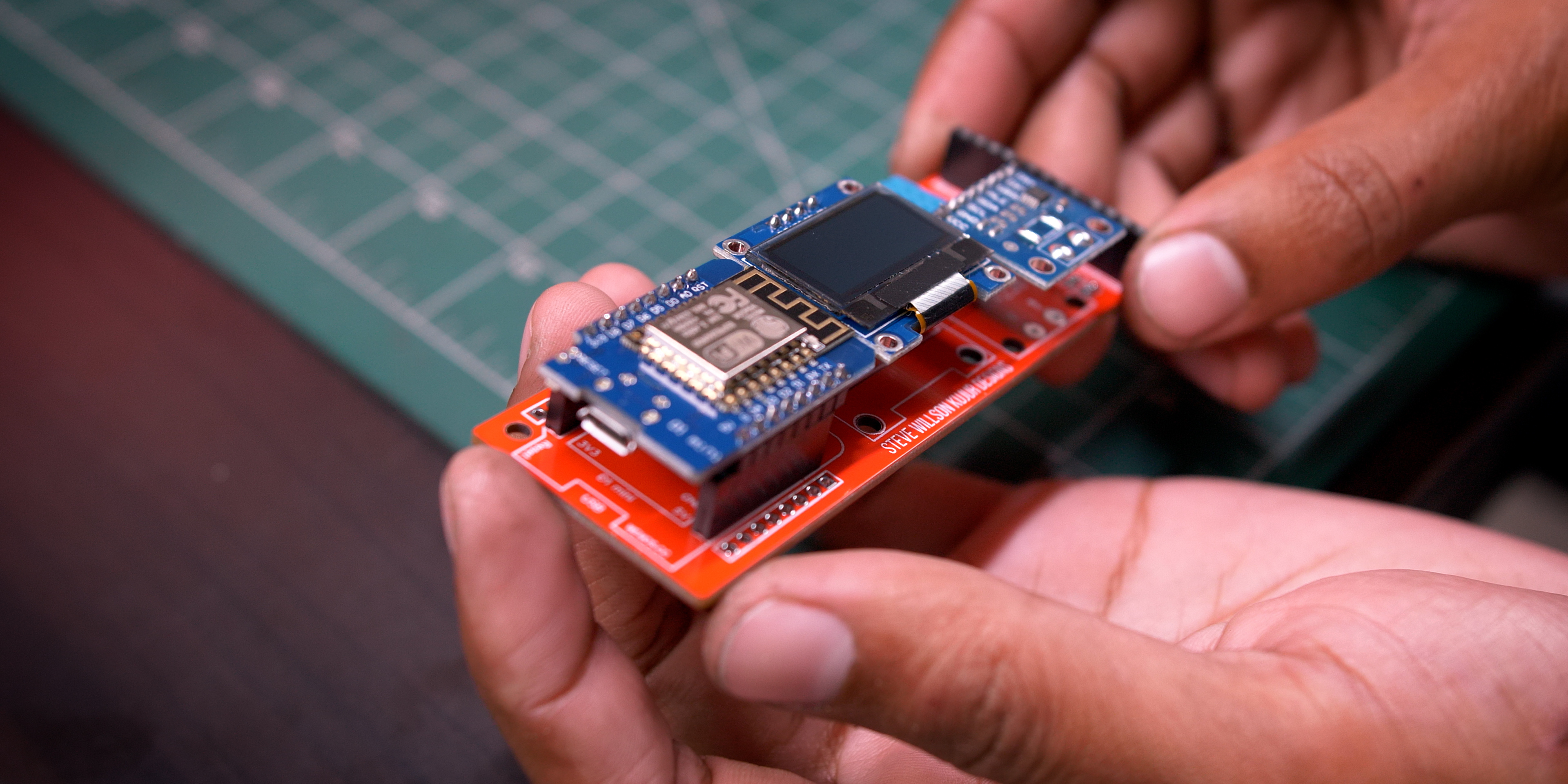

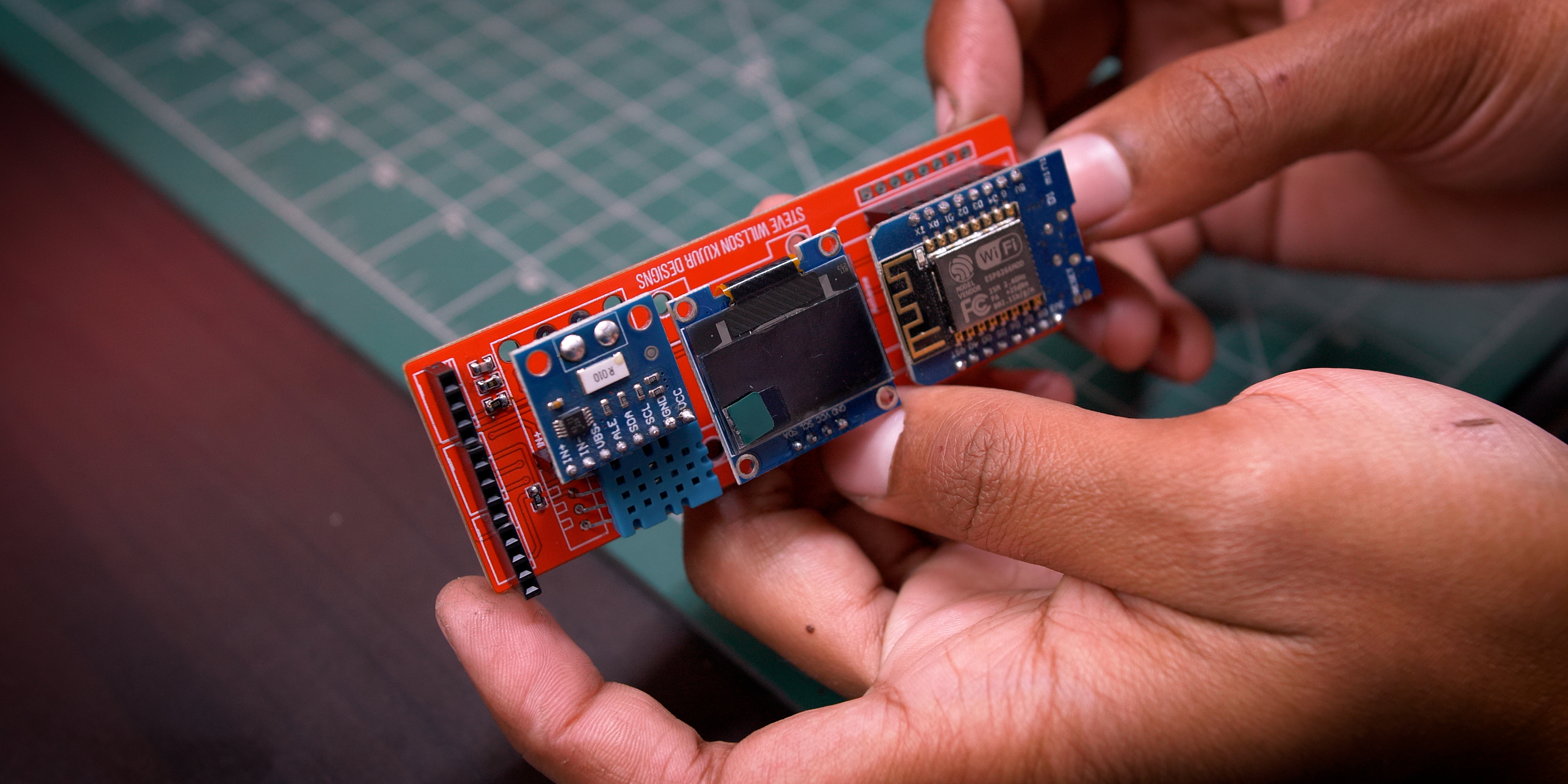

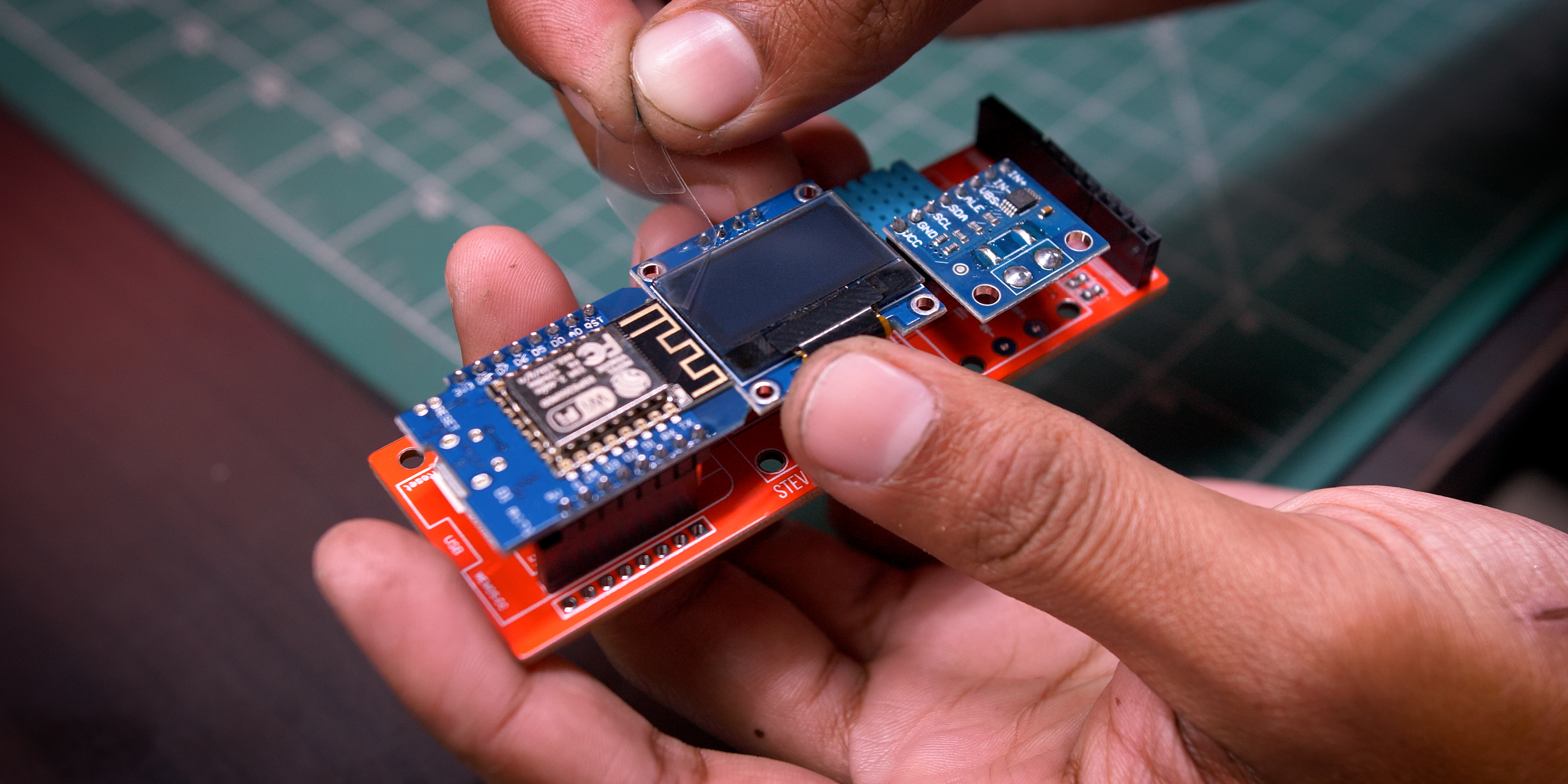

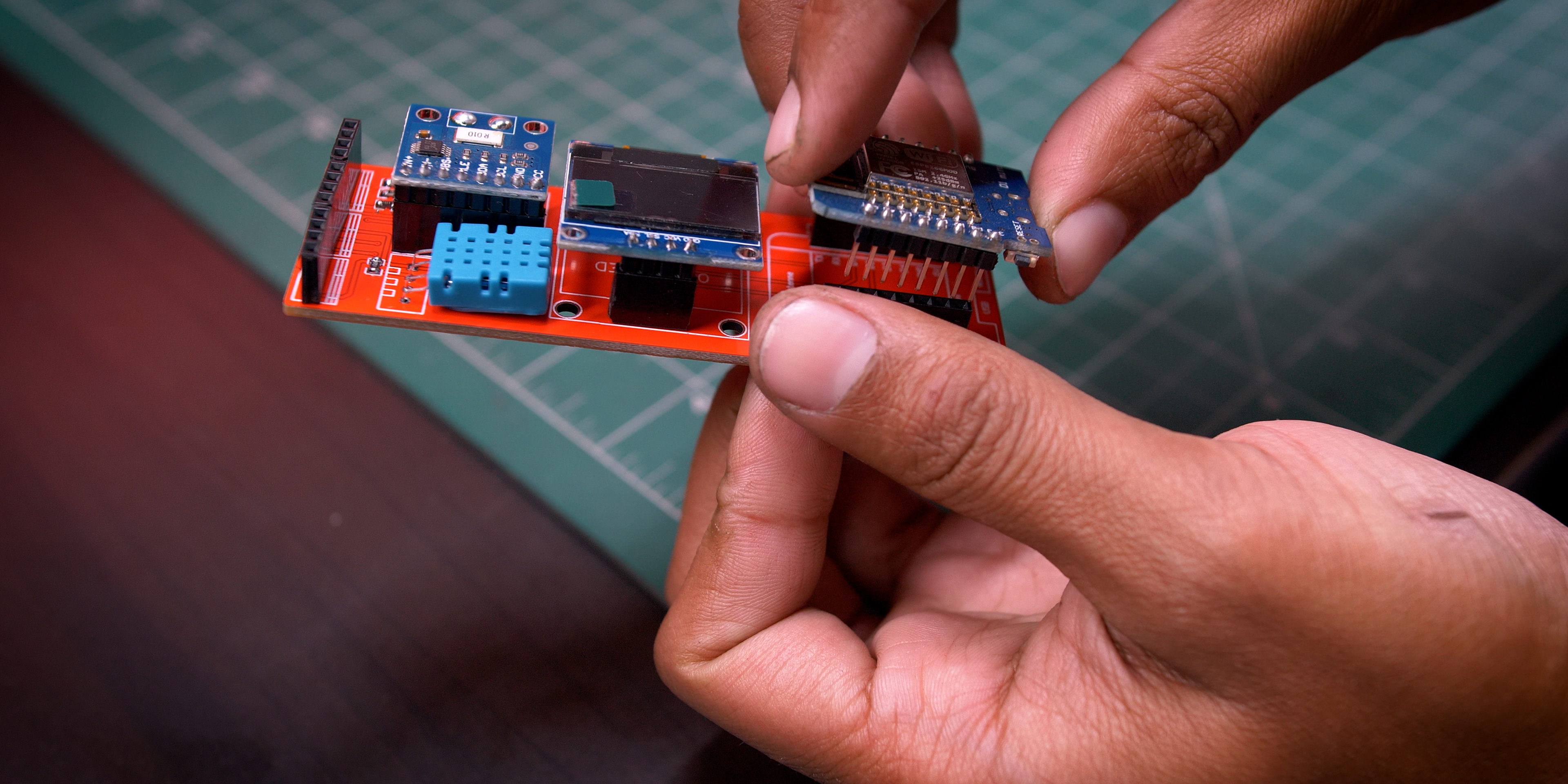

Started with mounting the Old then INA226 and then ESP8266 Module
Note - Please see the images for better understanding

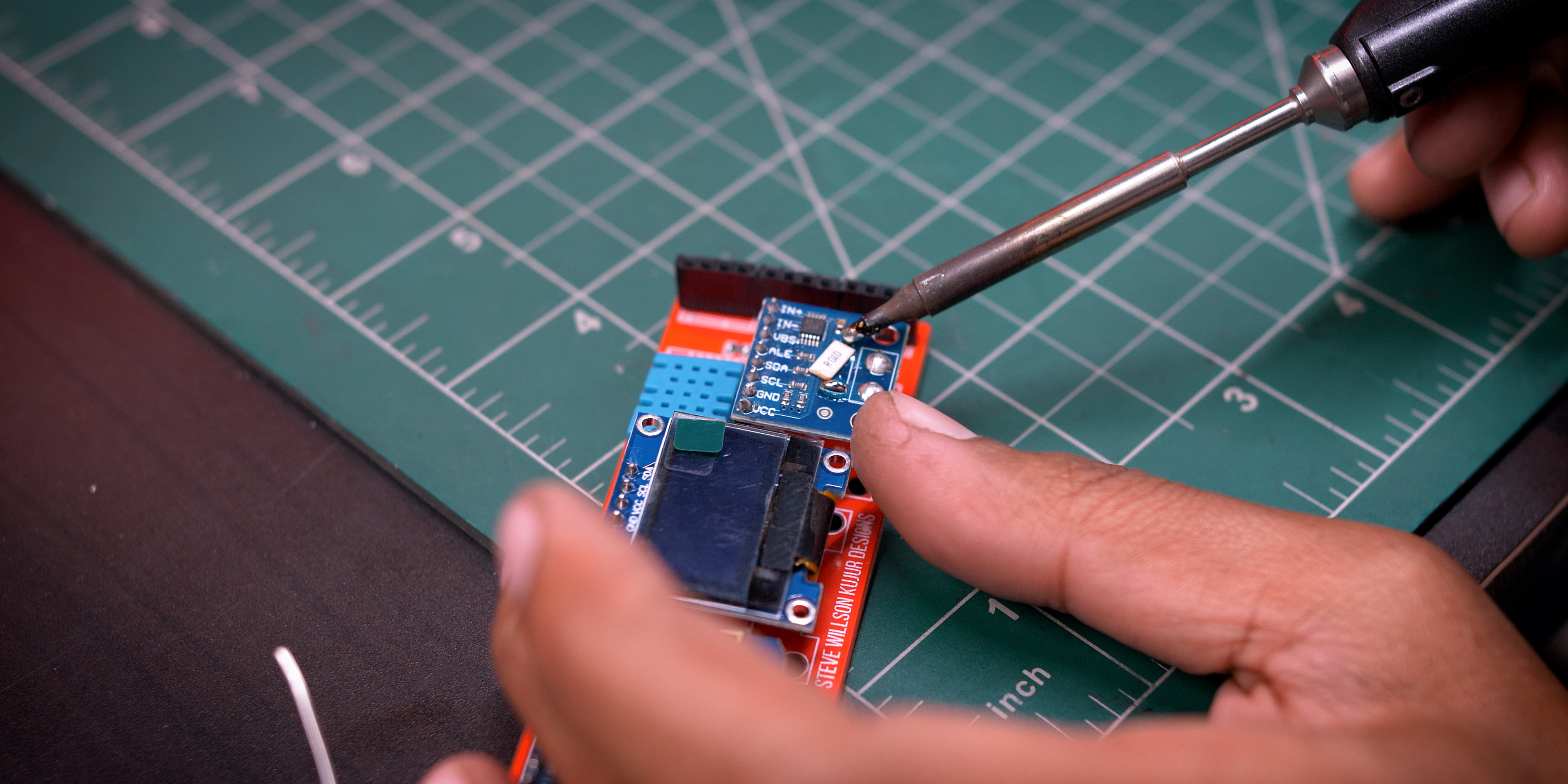

Removing the OLD Shunt Resistance
.jpg)
.jpg)
.jpg)
It's very necessary to remove the On-Board resistance later we are gonna use a 100A Shunt
Note - Please see the images for better understanding
Unnecessary Stuff :p
.jpg)
.jpg)
Pealing off the protective film is fun :p

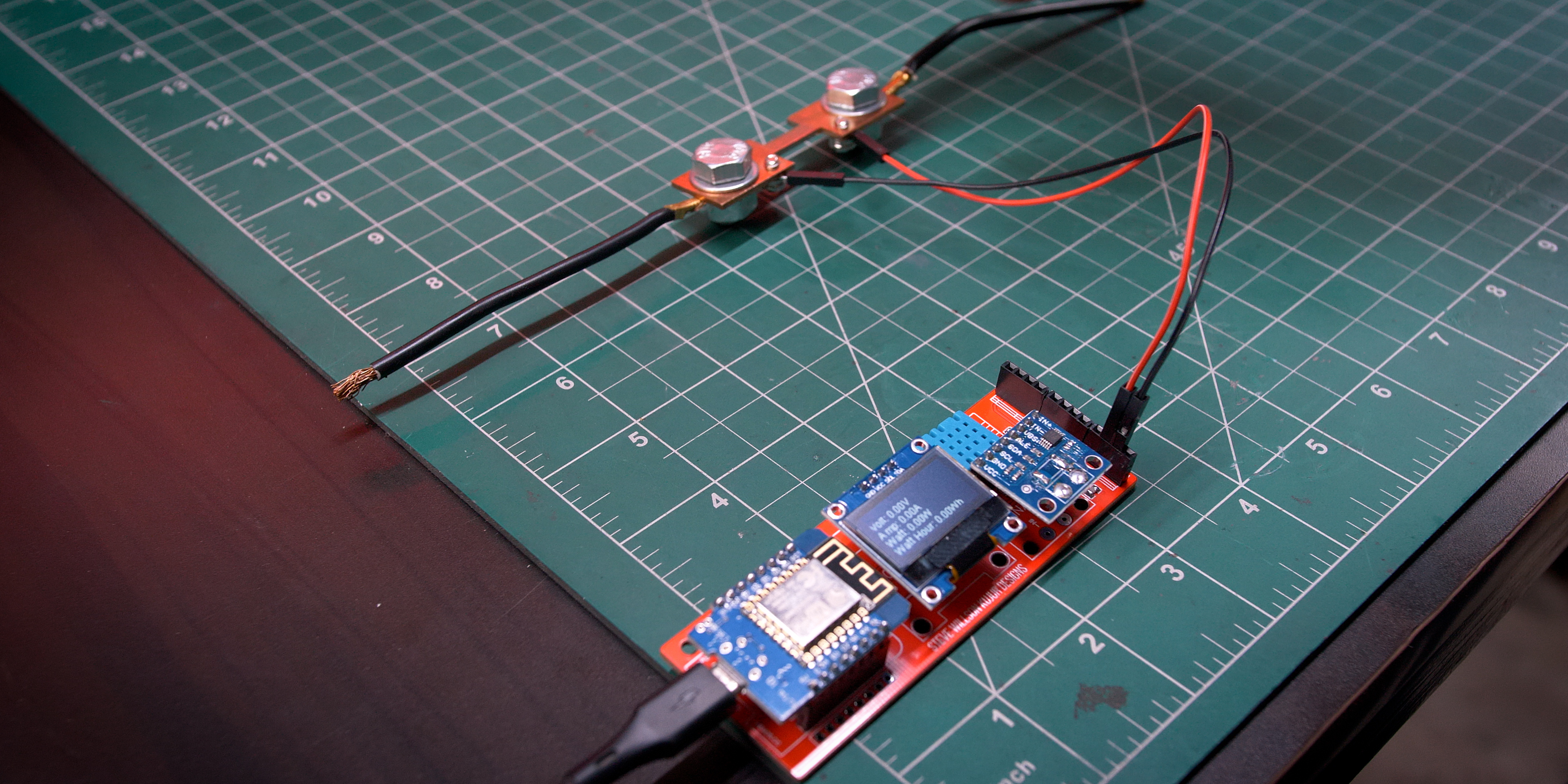

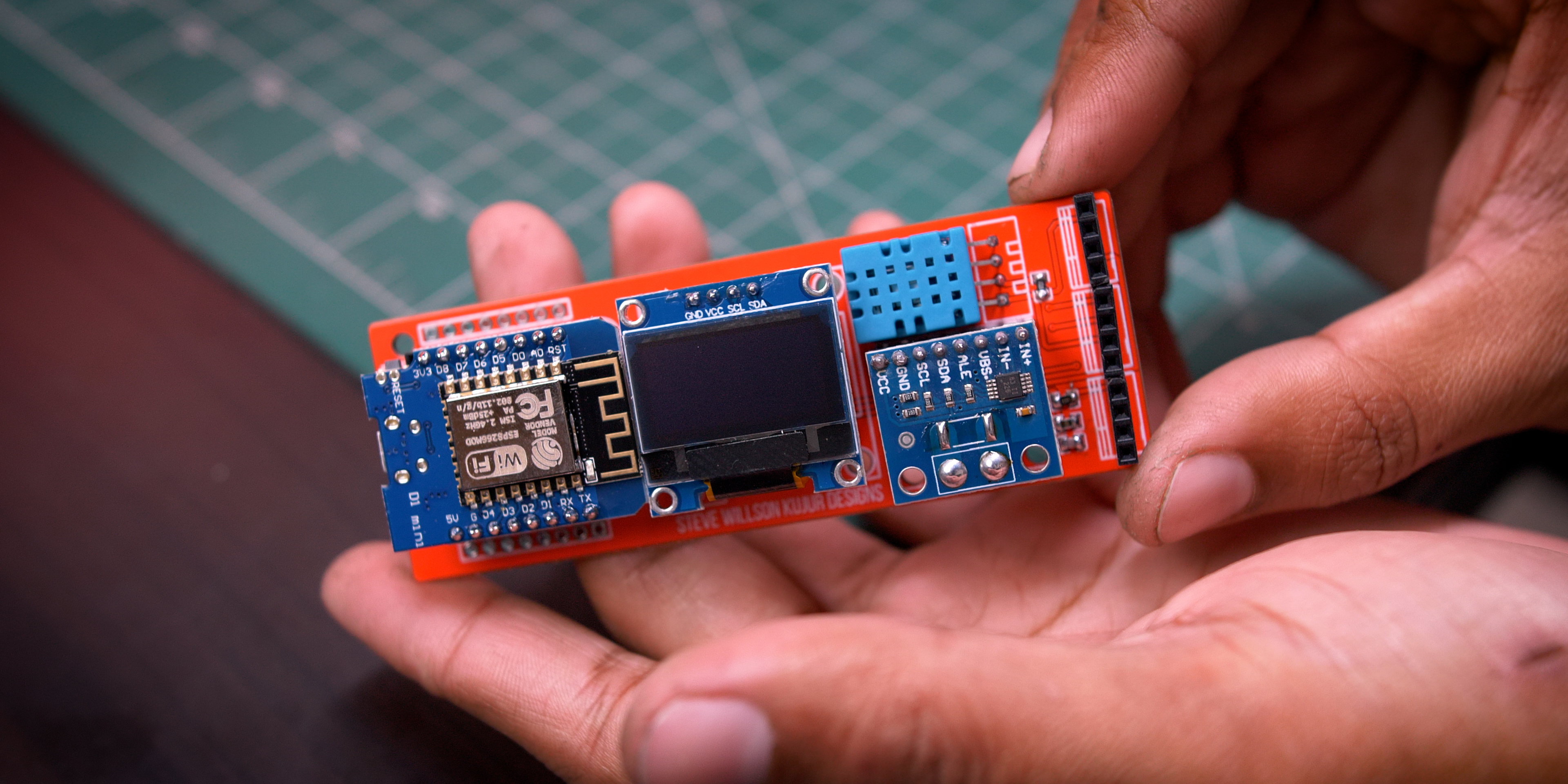

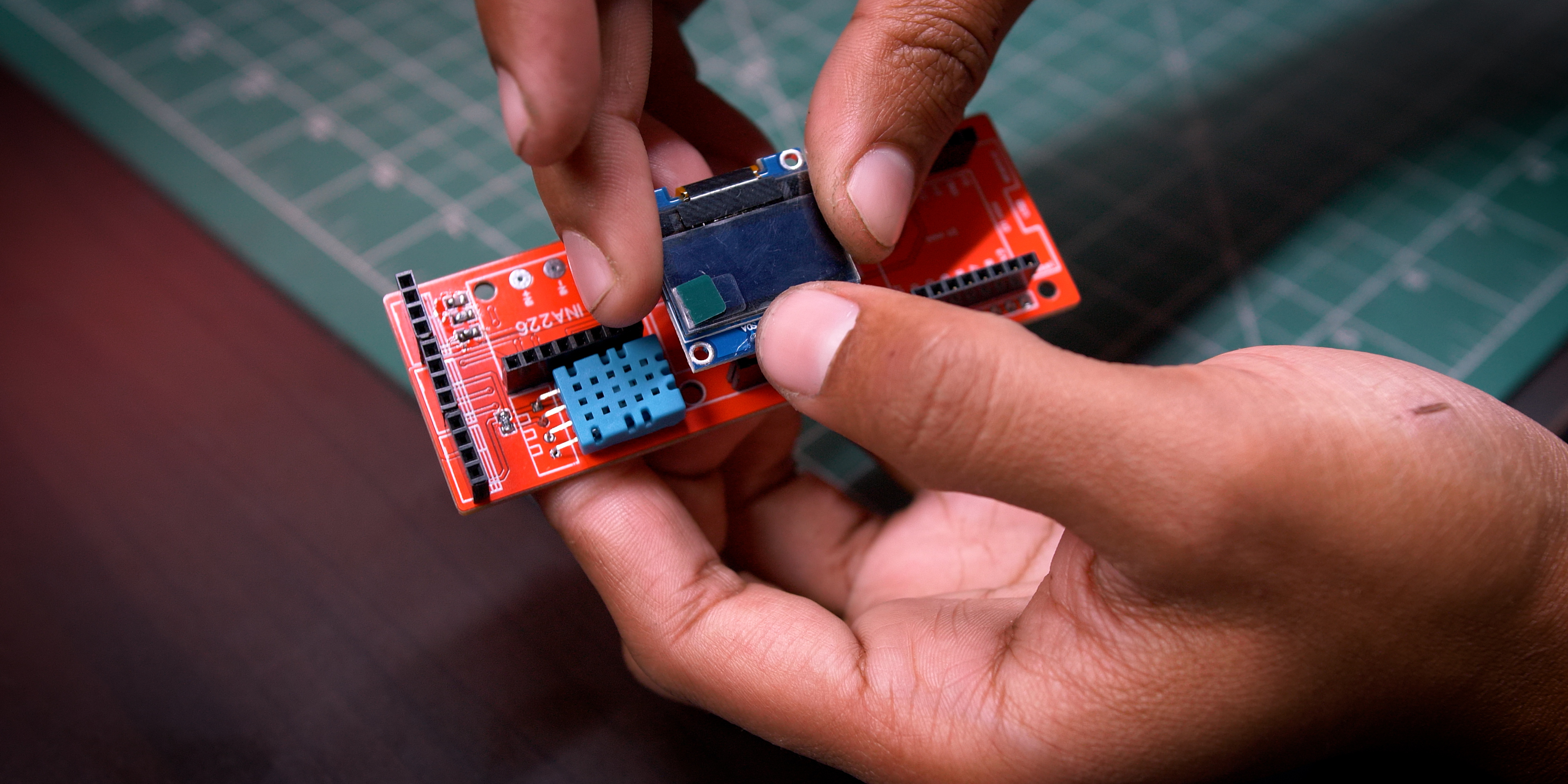

Finished PCB
.jpg)
.jpg)
.jpg)
All set for Programming
Programming
.jpg)
.png)
After Plugging the USB into the computer I use Tasmotizer to Flash .bin files

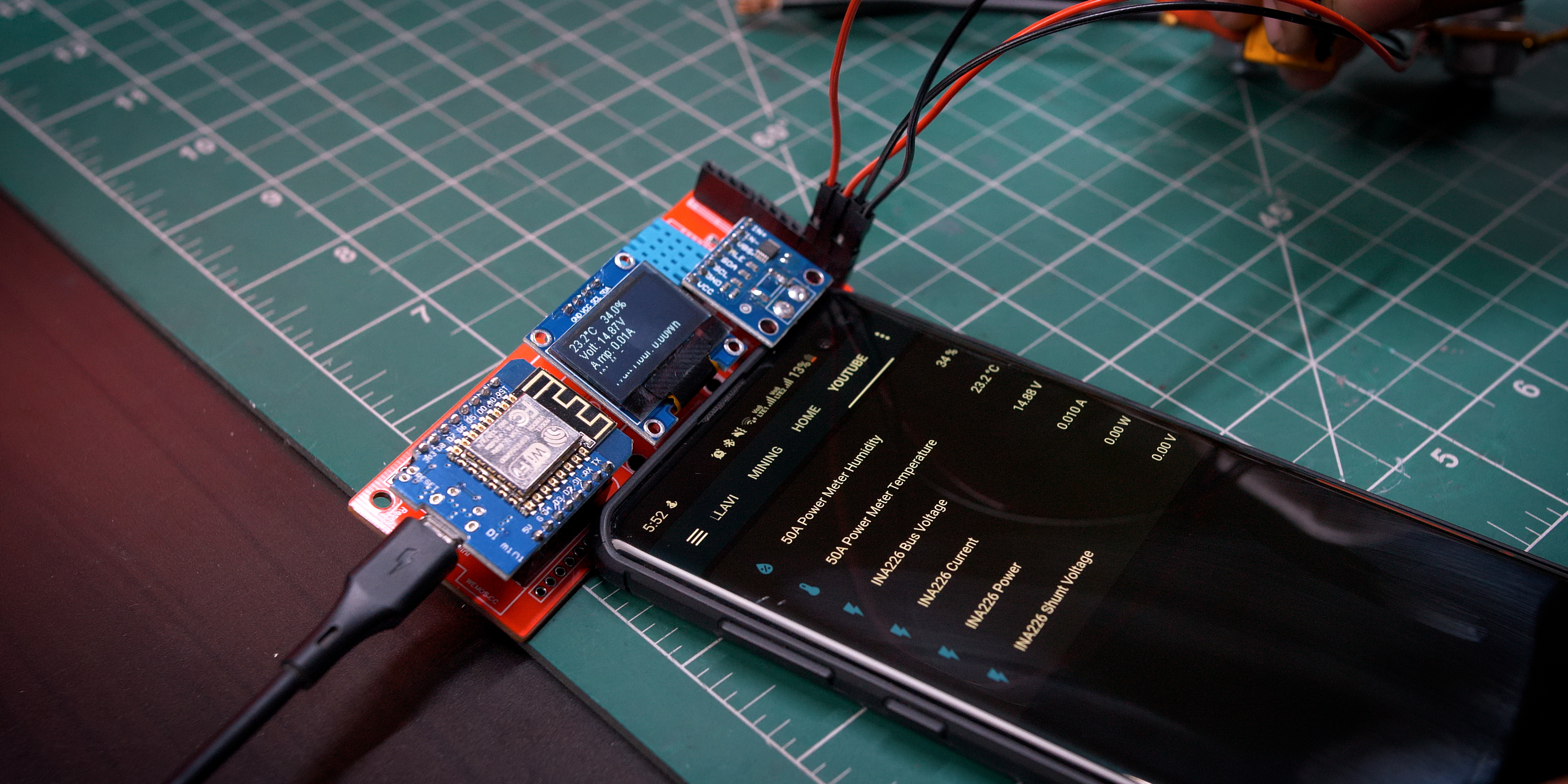

First Boot Up
.jpg)
.jpg)

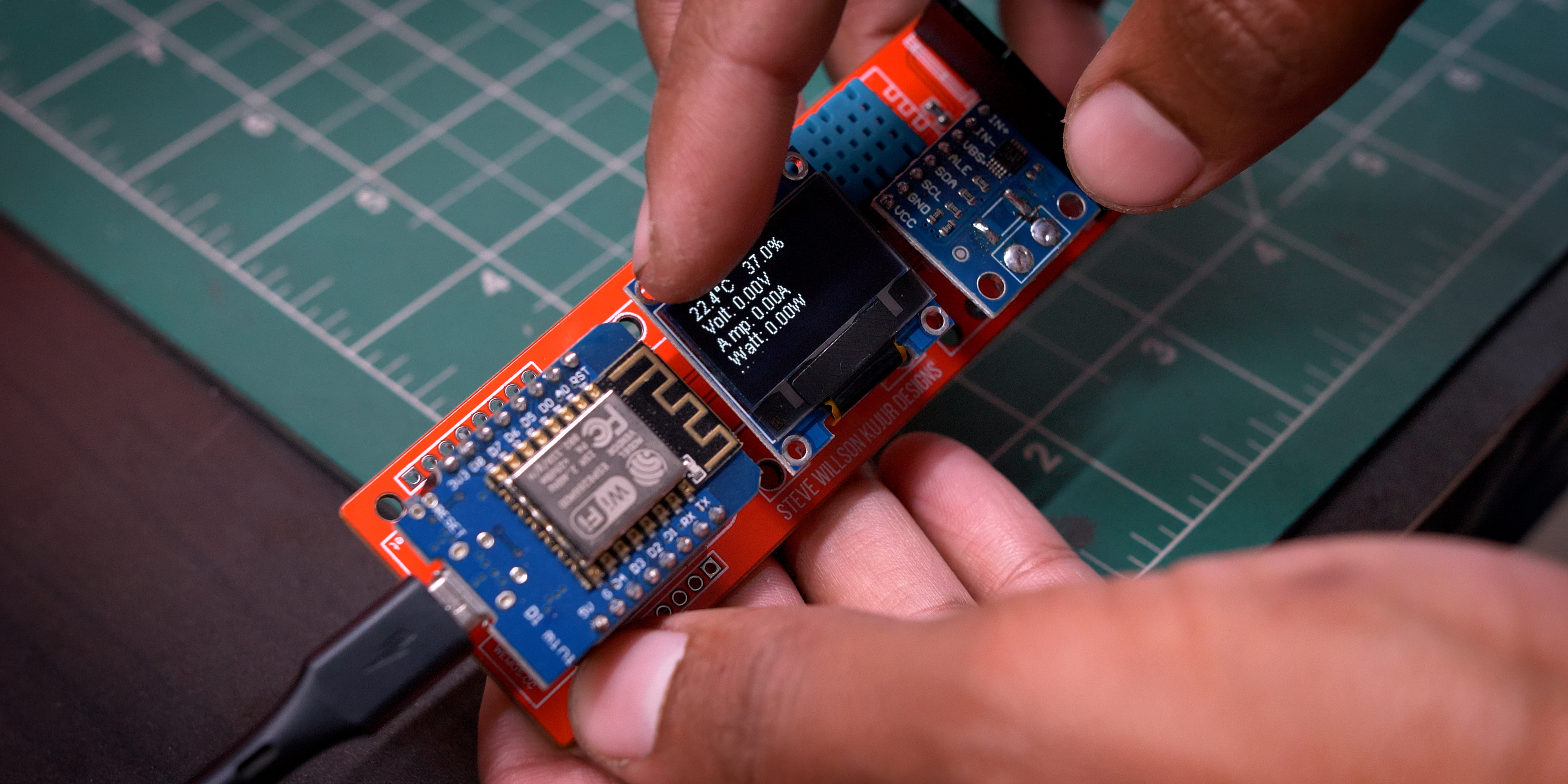

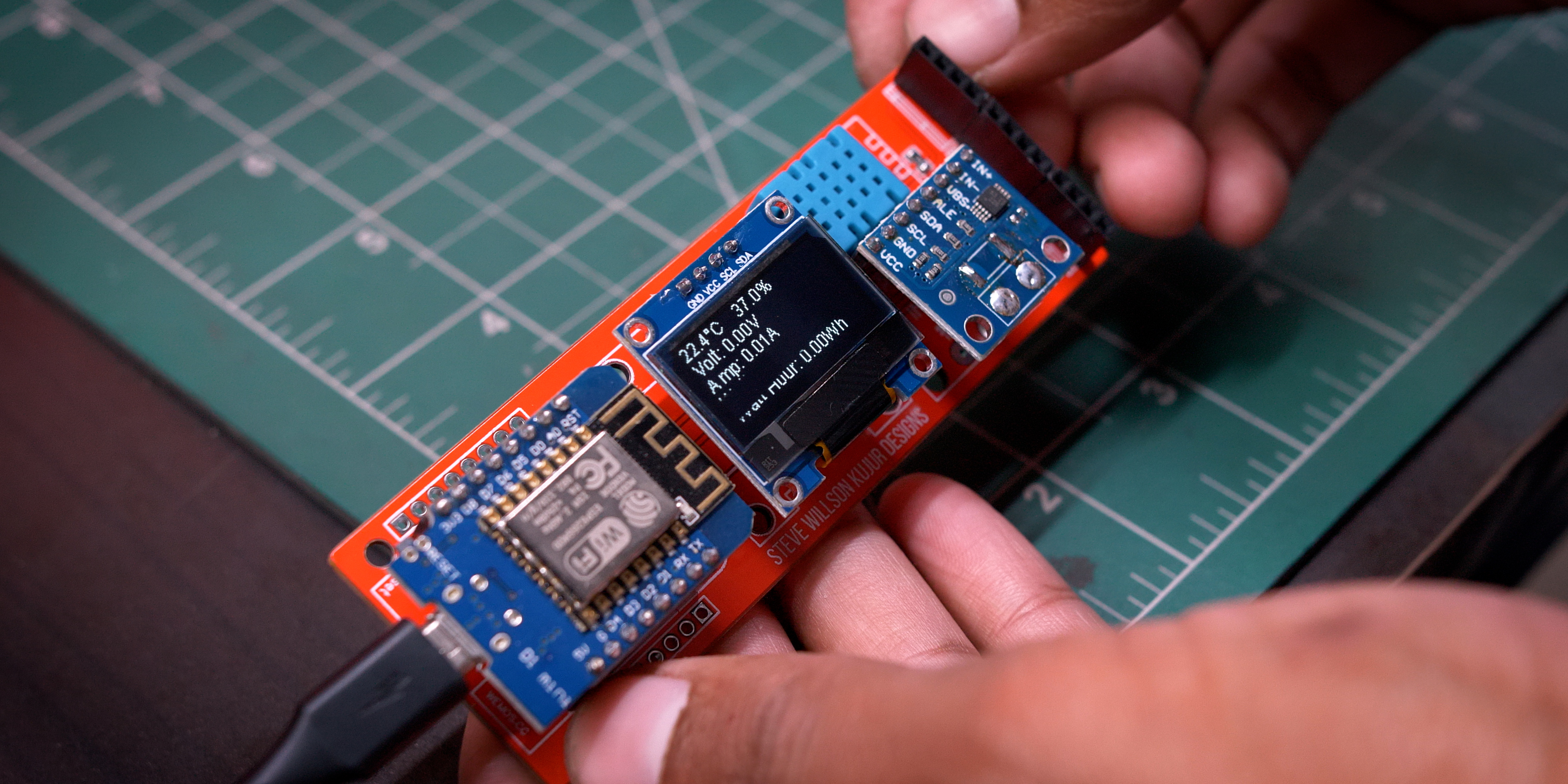

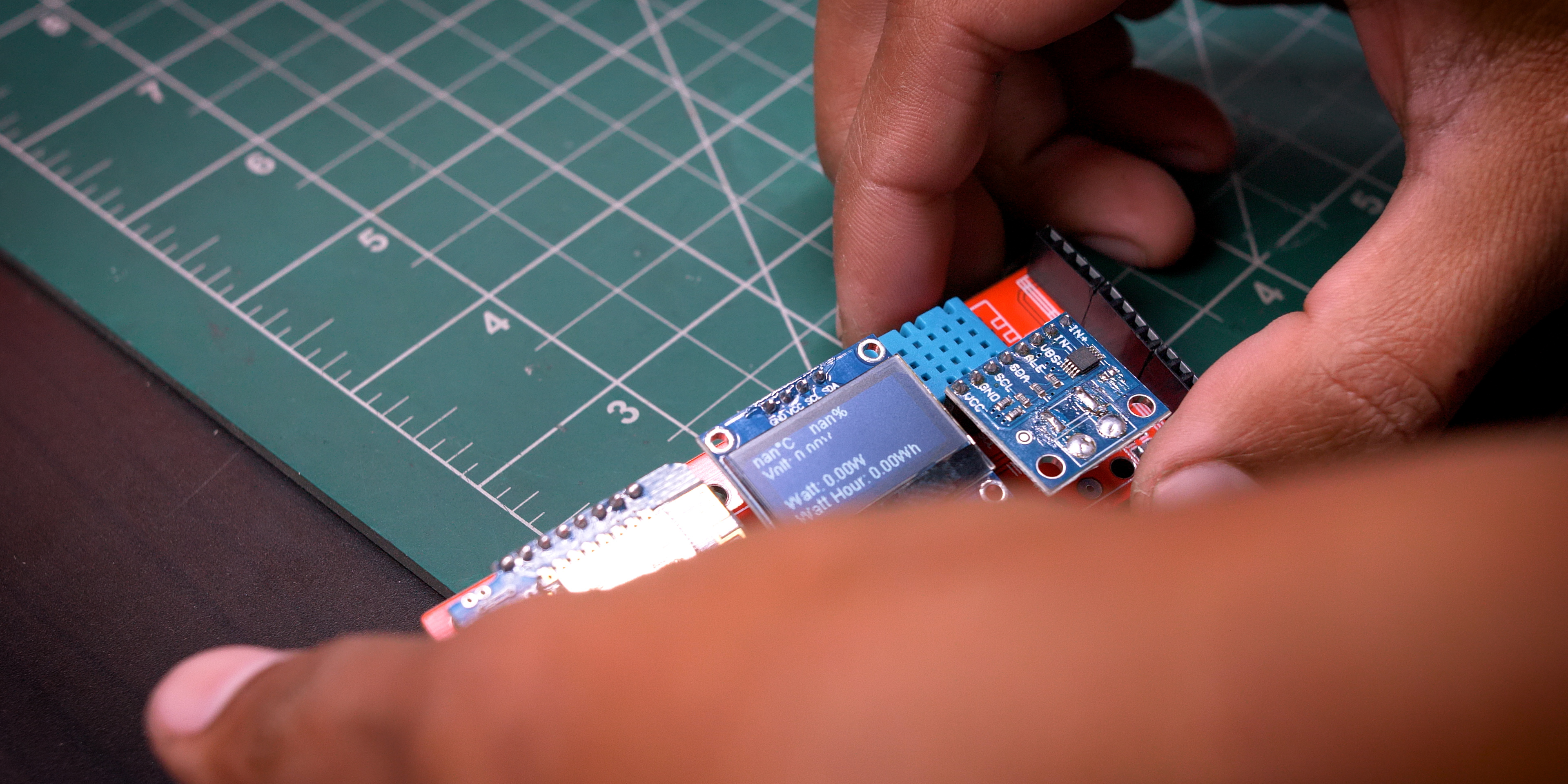

You'll be welcomed with cute little 0.96" Oled showing data
Wait for 30 Second and you'll see Current Temperature & Humidity
Wiring Diagram

Note - Please see the images for better understanding

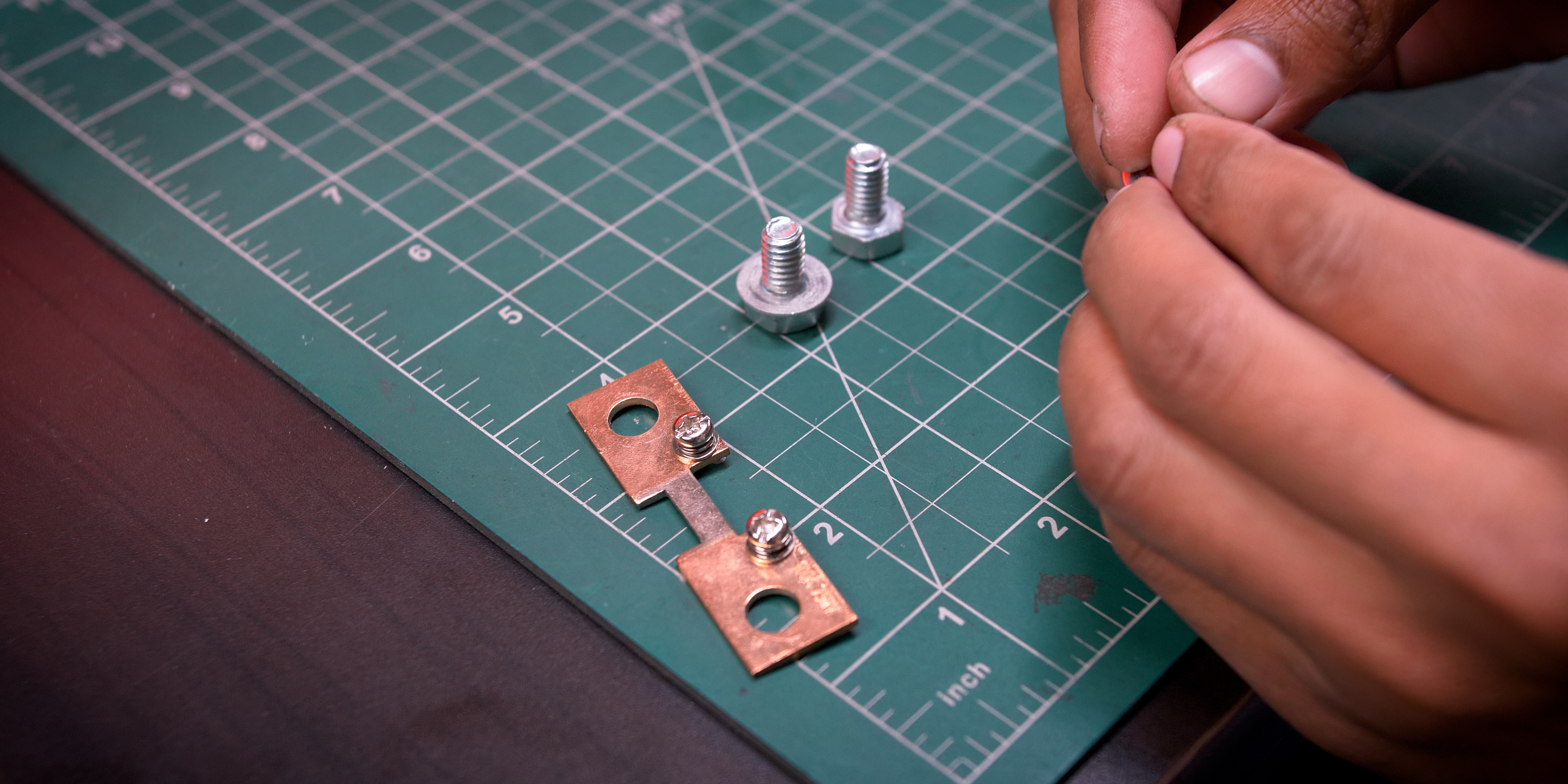

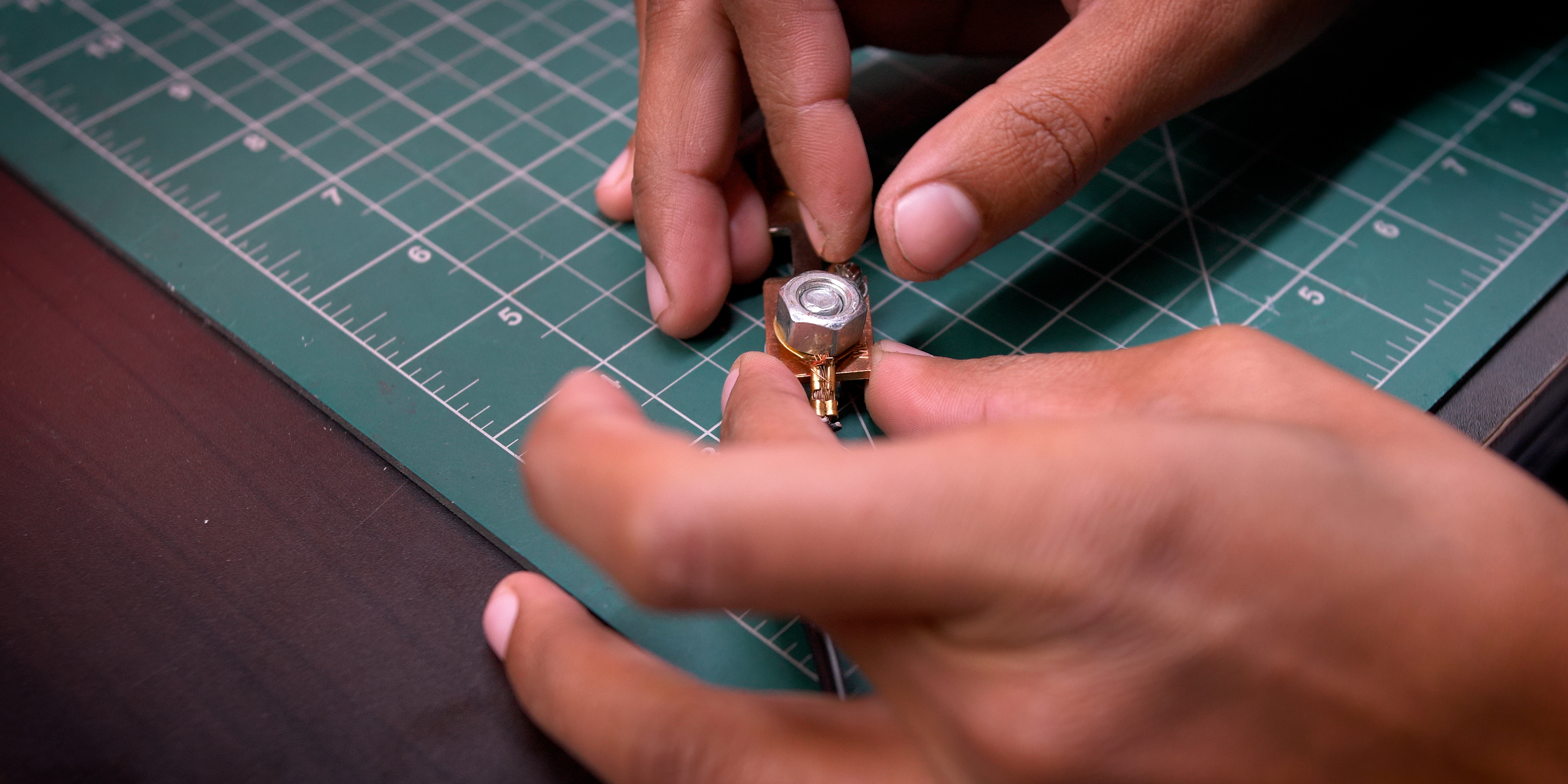

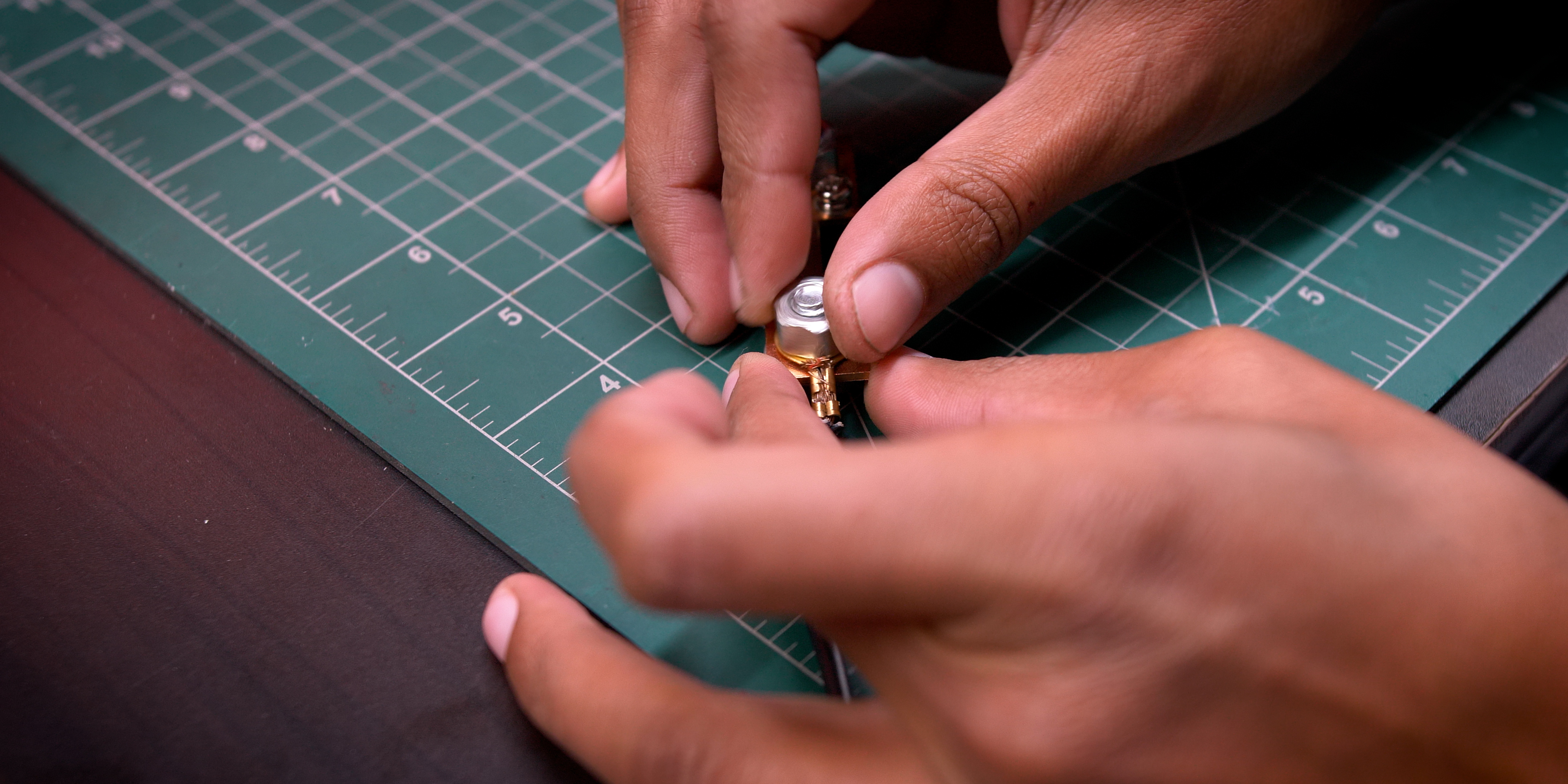

Preparing Shunt
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Note - Please see the images for better understanding
Finishing Up
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

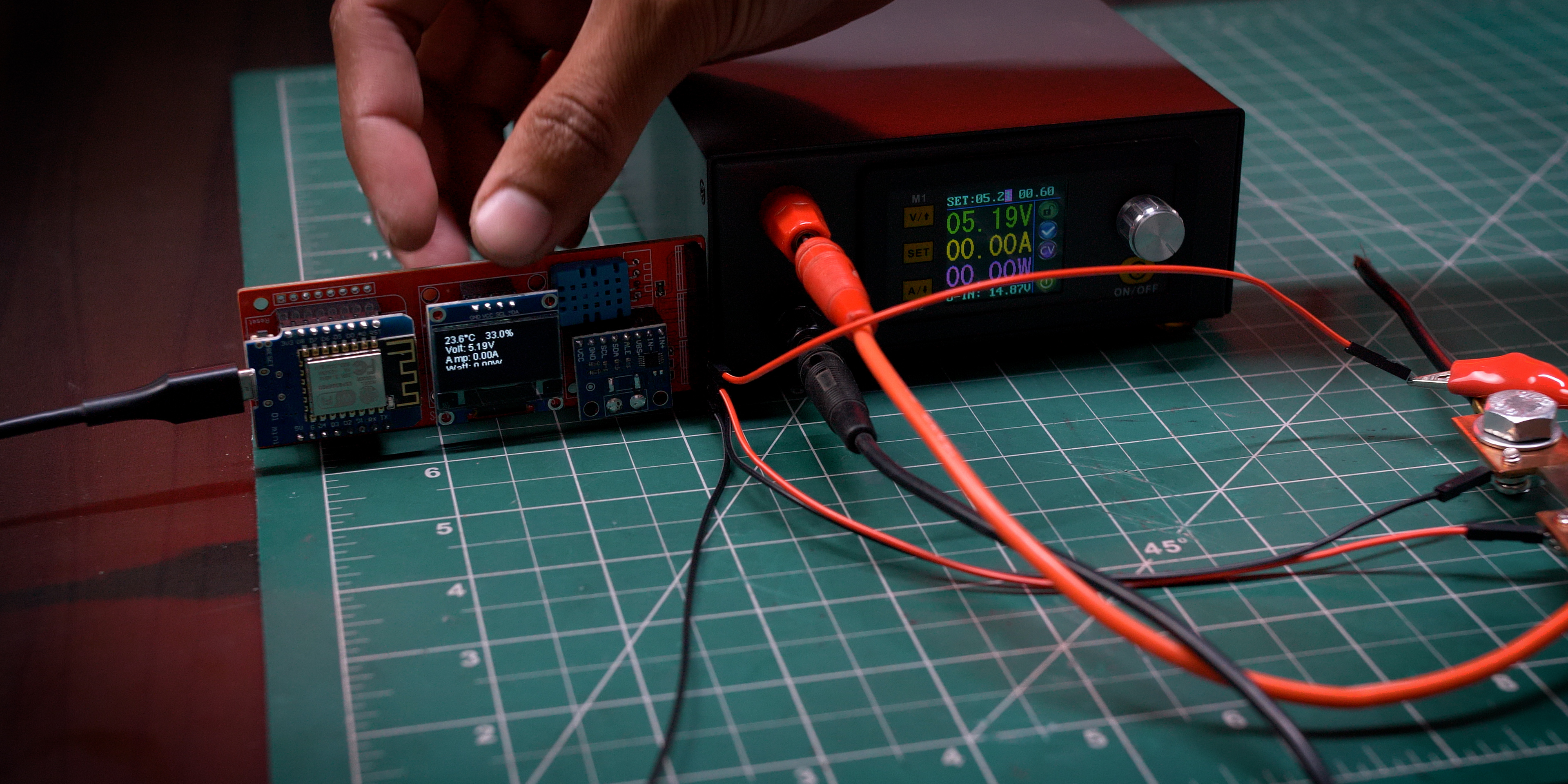

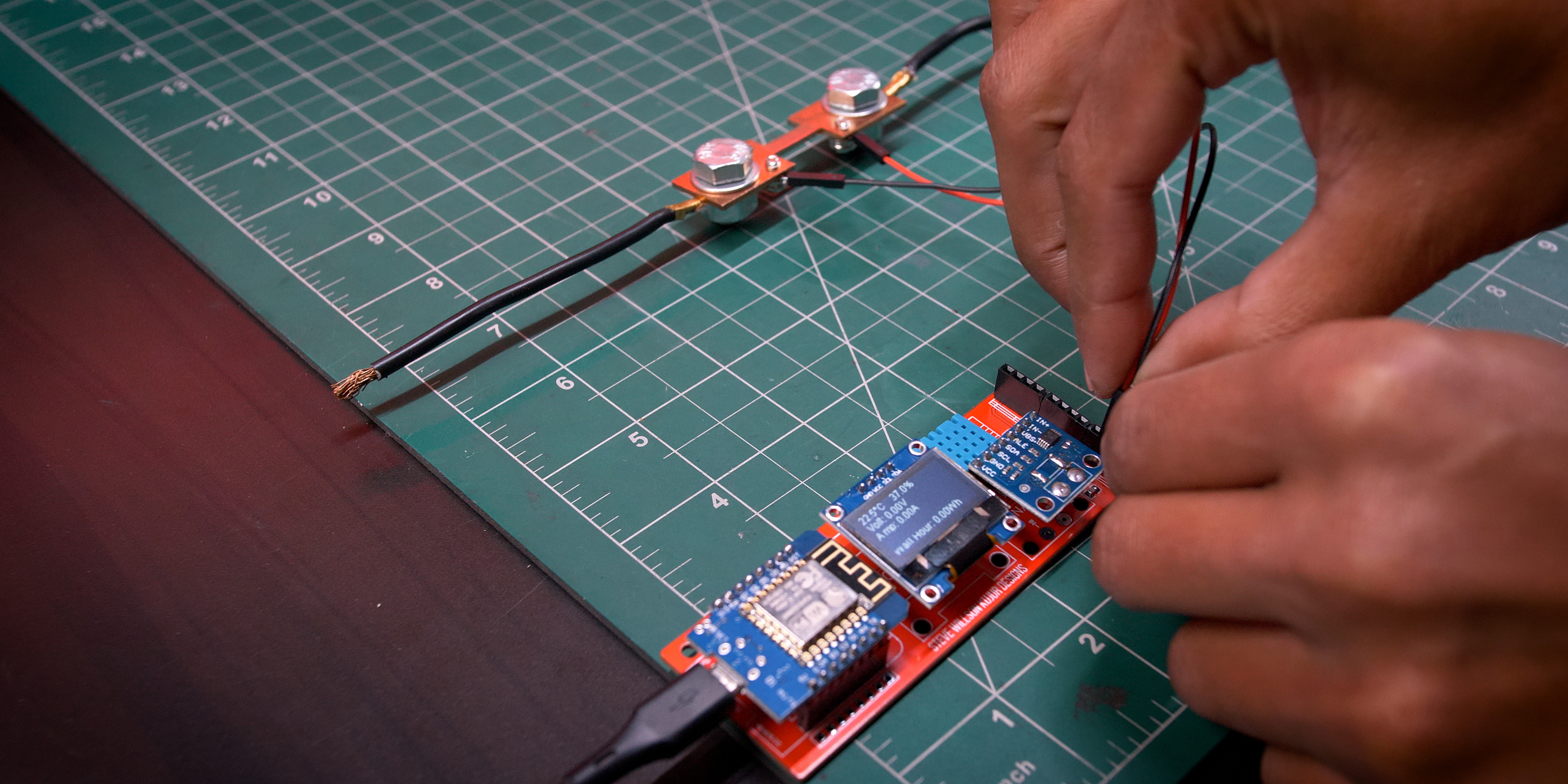

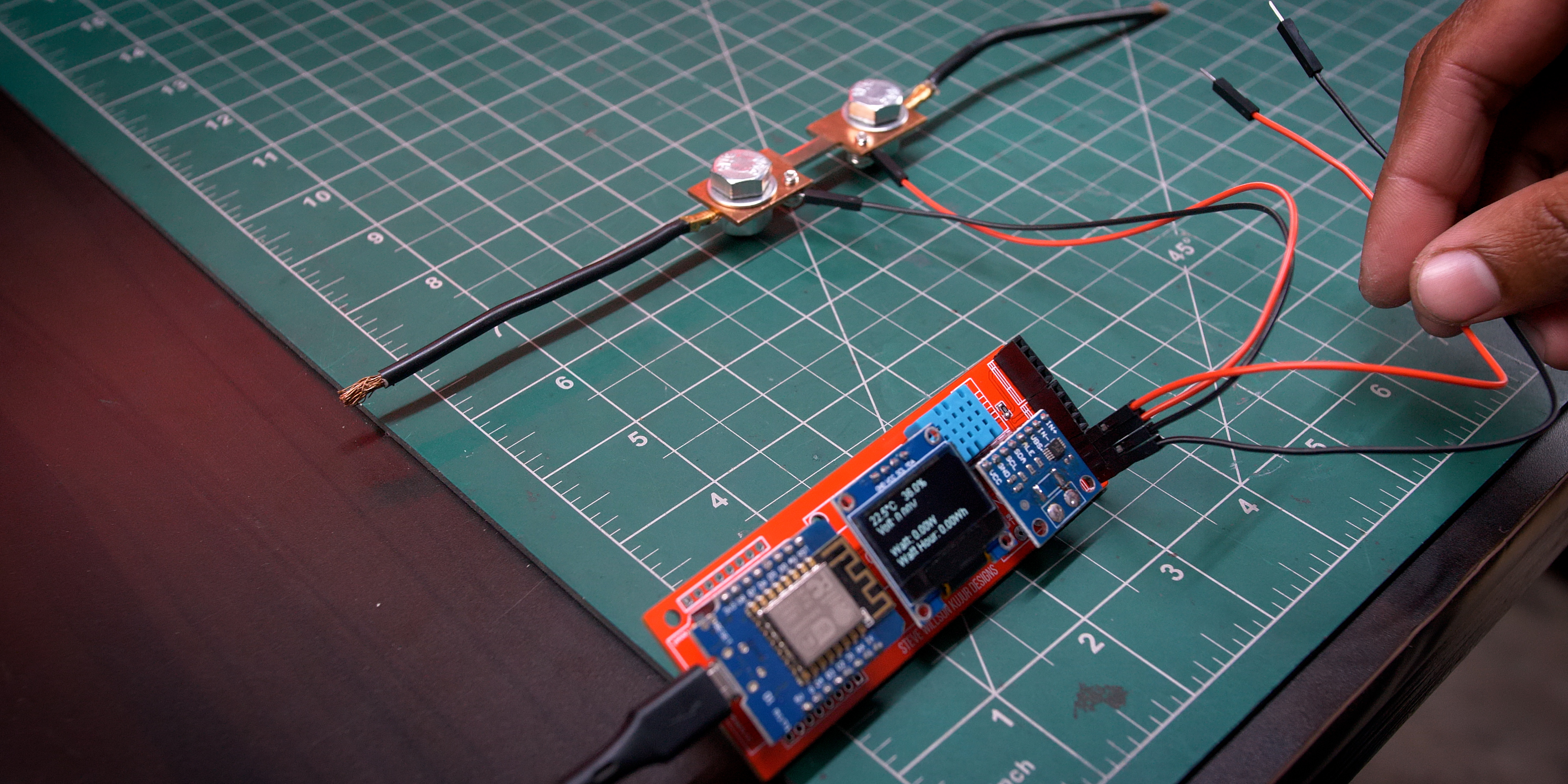

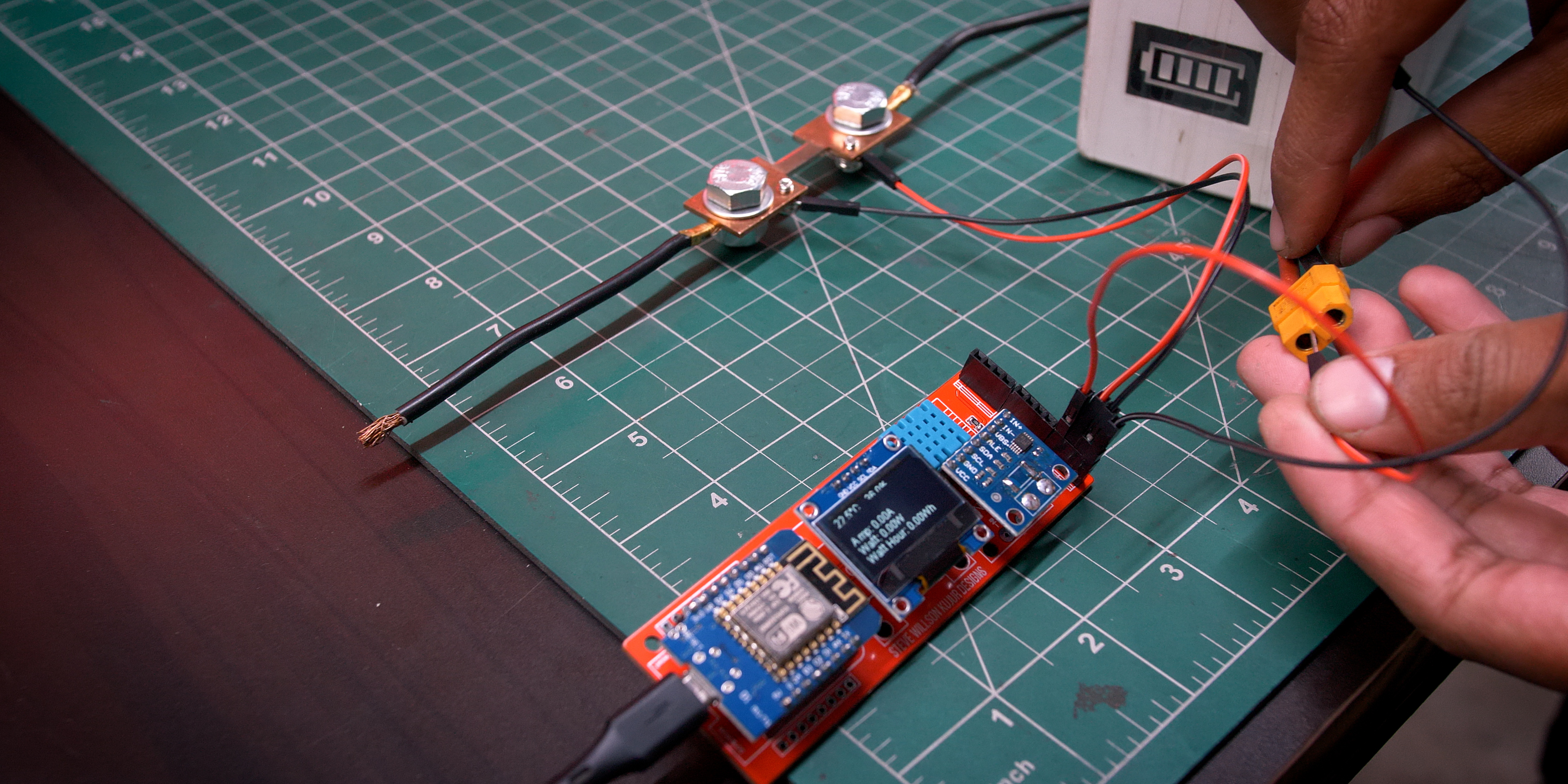

You can see everything is working and precise
That's all for today guys!
Click Here to See The Video
You Just Made It Thank you for visiting my Instructables Stay tuned for the next Projects
