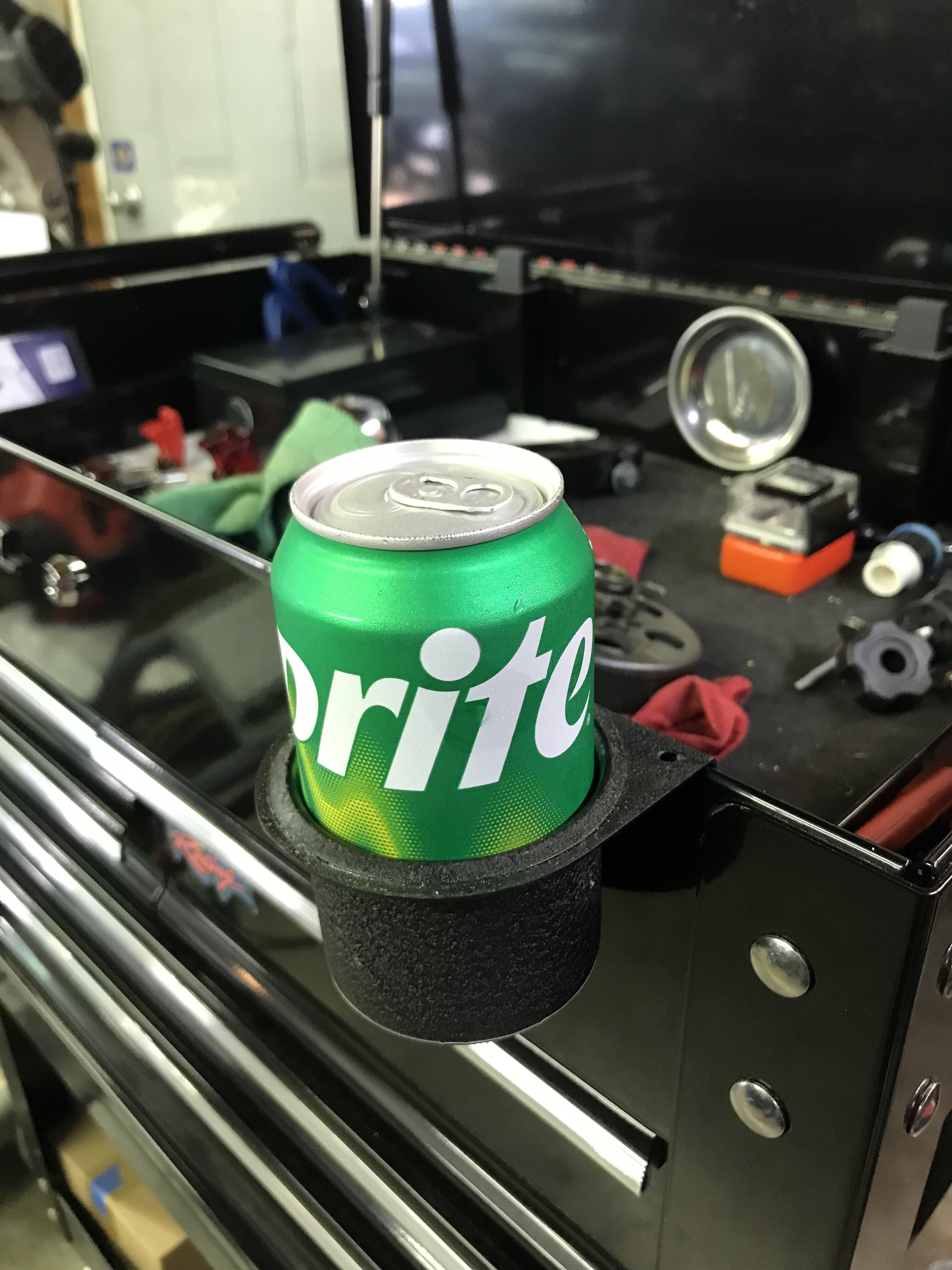

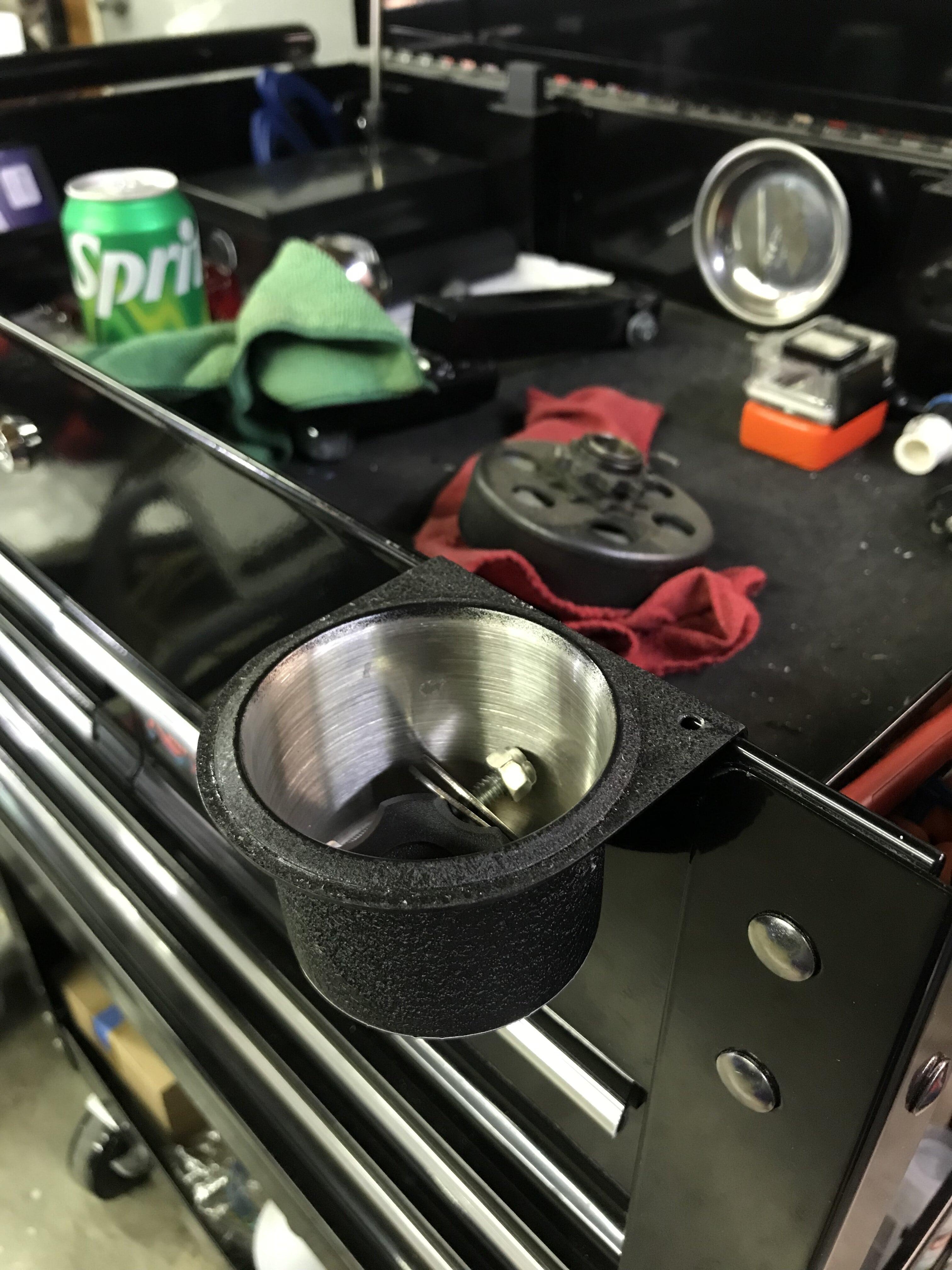

This is a cup holder or hardware holder that can be hung or bolted in many different places
Supplies
Tools-----
- Grinder
- Cutting Wheel
- Flap Disc 80 Grit
- Drill
- Hole Saw 2-3/4
- Various Size Drill Bits
- Belt Sander
- 80 Grit Paper
Materials-----
- 16 Gauge Sheet Metal (steel)
- Cup Holder from Amazon
- https://www.amazon.com/dp/B00911UWSE?psc=1&ref=ppx_yo2ov_dt_b_product_details
- Sillicone
- https://www.amazon.com/Loctite-Silicone-Waterproof-2-7-Ounce-908570/dp/B0002BBX3U/ref=asc_df_B0002BBX3U/?tag=hyprod-20&linkCode=df0&hvadid=167125555111&hvpos=&hvnetw=g&hvrand=13881743712138975504&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9013530&hvtargid=pla-314973164092&psc=1
- Optional- Spray Paint
- https://www.autozone.com/paint-and-body/high-heat-paint/p/vht-black-wrinkle-plus-high-heat-paint-11oz/516837_0_0
Design & Sketch
![IMG_9884.jpg](/proxy/?url=https://content.instructables.com/FFS/30RO/LJ00F2KA/FFS30ROLJ00F2KA.jpg&filename=IMG_9884.jpg)
![IMG_9885.jpg](/proxy/?url=https://content.instructables.com/FPT/E5YH/LJ00F2KB/FPTE5YHLJ00F2KB.jpg&filename=IMG_9885.jpg)

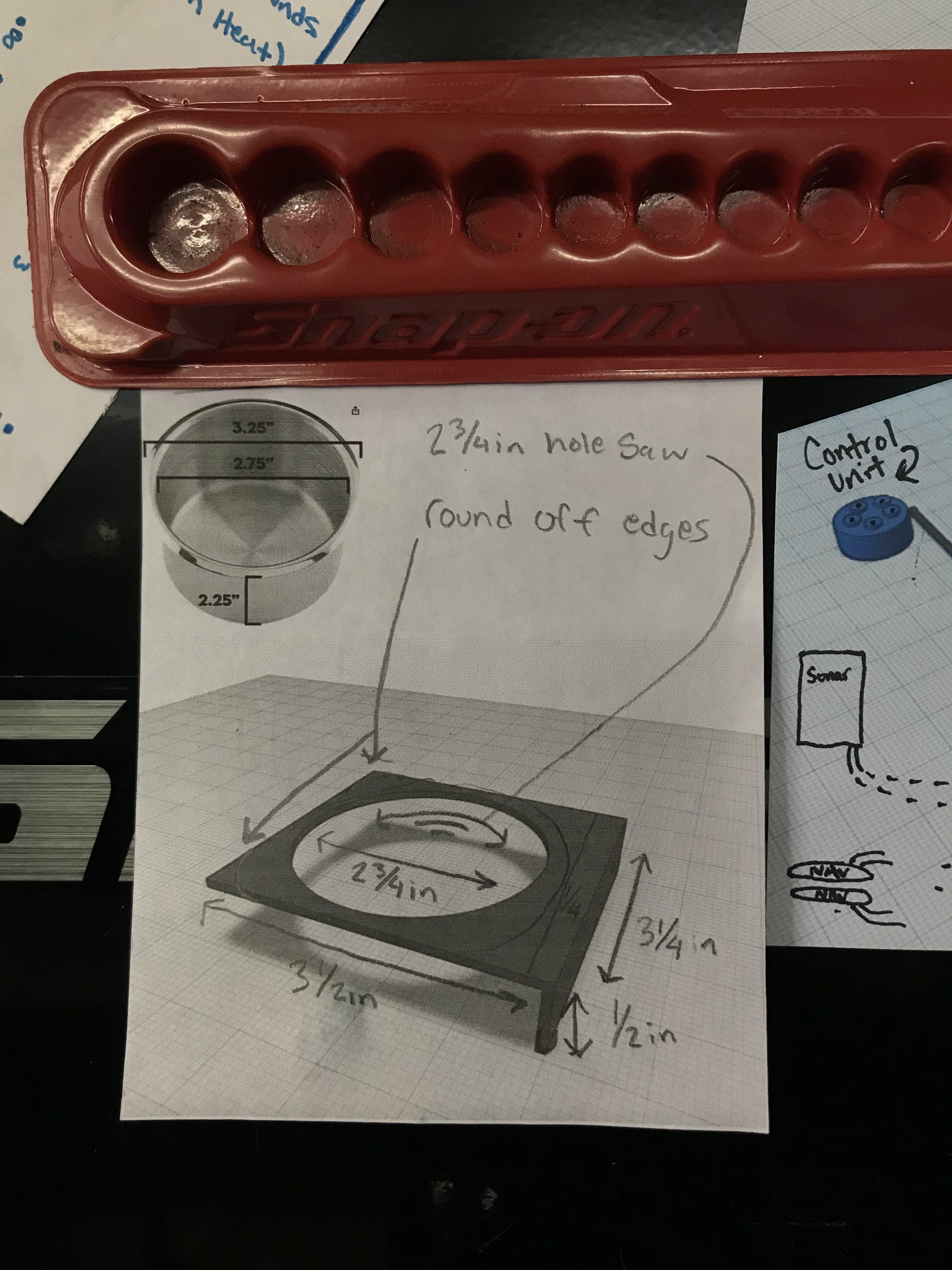

I designed a CAD version of the cup holder on Tinkercad, I then printed that out and sketched it on the metal.
Cut Out the Cup Holder
Using a grinder and cut disc cut out the rough shape
Sand Out the Shape
Using a belt sander sand the metal to you have a shape you like
Drill Out the Hole
using a hole saw 2-3/4in drill out the hole
Bend Metal to a 90* Angle
![IMG_9879.jpg](/proxy/?url=https://content.instructables.com/FS2/RBWF/LJ00F2LB/FS2RBWFLJ00F2LB.jpg&filename=IMG_9879.jpg)
Using a vice and hammer bend the metal to 90*
(optional)- If you want to now would be the time to roughly sand the metal with 220 grit sandpaper using orbital sander
Silicon the Cup Holder Into the Hole
Paint
![IMG_9880.jpg](/proxy/?url=https://content.instructables.com/F5Z/FX2L/LJ00F2KT/F5ZFX2LLJ00F2KT.jpg&filename=IMG_9880.jpg)
I used VHT Wrinkle paint to protect it from rust
