DIY VR HEADSET FOR $80

My initial goal was to do this for under $150(USD), however after shopping around and changing some parts out for alternatives I managed to get this down to around $80. So let us get started.

The parts required are:

• Toggle Flick Switch
• 2x LED
• 1x resistor 150 Ohm
• 1x Micro USB cable (at least 2 meters long)
• 1x HDMI Cable (thin ones work best as they hinder movement less, also at least 2 meters long)
• Some jumper wires
• DC Adapter plug 5V 3A (Raspberry Pi compatible one works great)
• Push Button
• Google Cardboard Compatible VR Headset (I recommend one with a phone compartment door that opens as it gives better access than the ones which uses a tray that slides in)
• 6DOF MPU 6050 3Axis gyroscope and accelerometer
• Arduino Micro (can use off-brand alternative)
• 5inch RaspberryPi LCD Screen 800×480 with HDMI interface

• Toggle Flick Switch
• 2x LED
• 1x resistor 150 Ohm
• 1x Micro USB cable (at least 2 meters long)
• 1x HDMI Cable (thin ones work best as they hinder movement less, also at least 2 meters long)
• Some jumper wires
• DC Adapter plug 5V 3A (Raspberry Pi compatible one works great)
• Push Button
• Google Cardboard Compatible VR Headset (I recommend one with a phone compartment door that opens as it gives better access than the ones which uses a tray that slides in)
• 6DOF MPU 6050 3Axis gyroscope and accelerometer
• Arduino Micro (can use off brand alternative)
• 5inch RaspberryPi LCD Screen 800×480 with HDMI interface

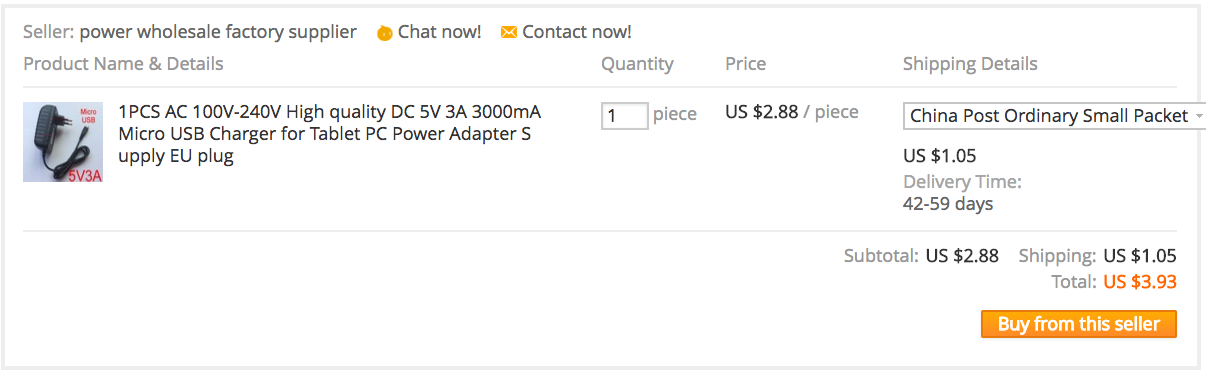

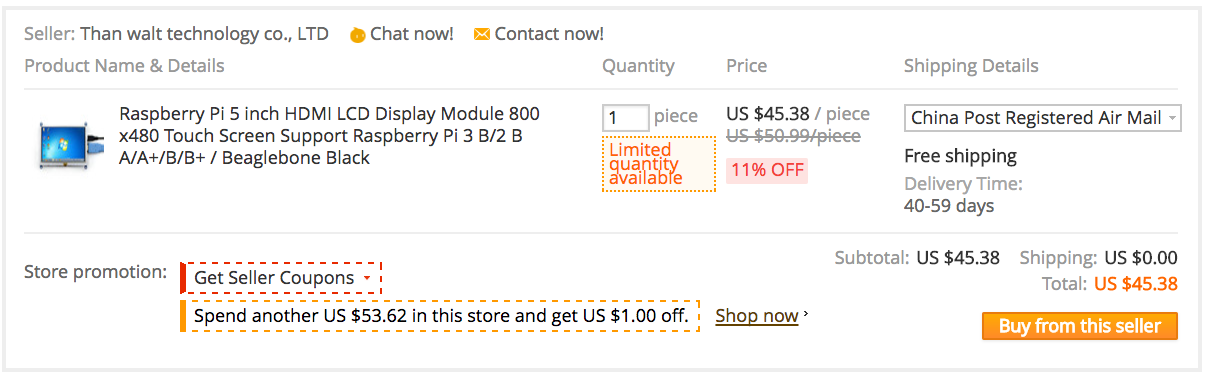

All of these parts can be acquired on AliExpress for about $80 ($82.78 to be precise), as can be seen in images.

You will also require Tridef3D or similar software (there are some free alternatives, but I have not had a chance to give them a try at present). Tridef3D is used to convert any Direct X 9/10/11 game into stereoscopic 3D. Tridef3D offers a 14-day free trial, which is plenty to give this a try. The full version of Tridef3D retails for $39.99.

Now that we have all the required components, let us begin with the assembly.

The assembly comprises of 3 main elements:

1. The Arduino Micro circuit (containing the MPU 6050, push button and led)
2. The Wiring (providing connectivity to Arduino Micro and power to Screen)
3. Inserting the screen in the headset and connecting the micro USB cables as well as the HDMI cable.

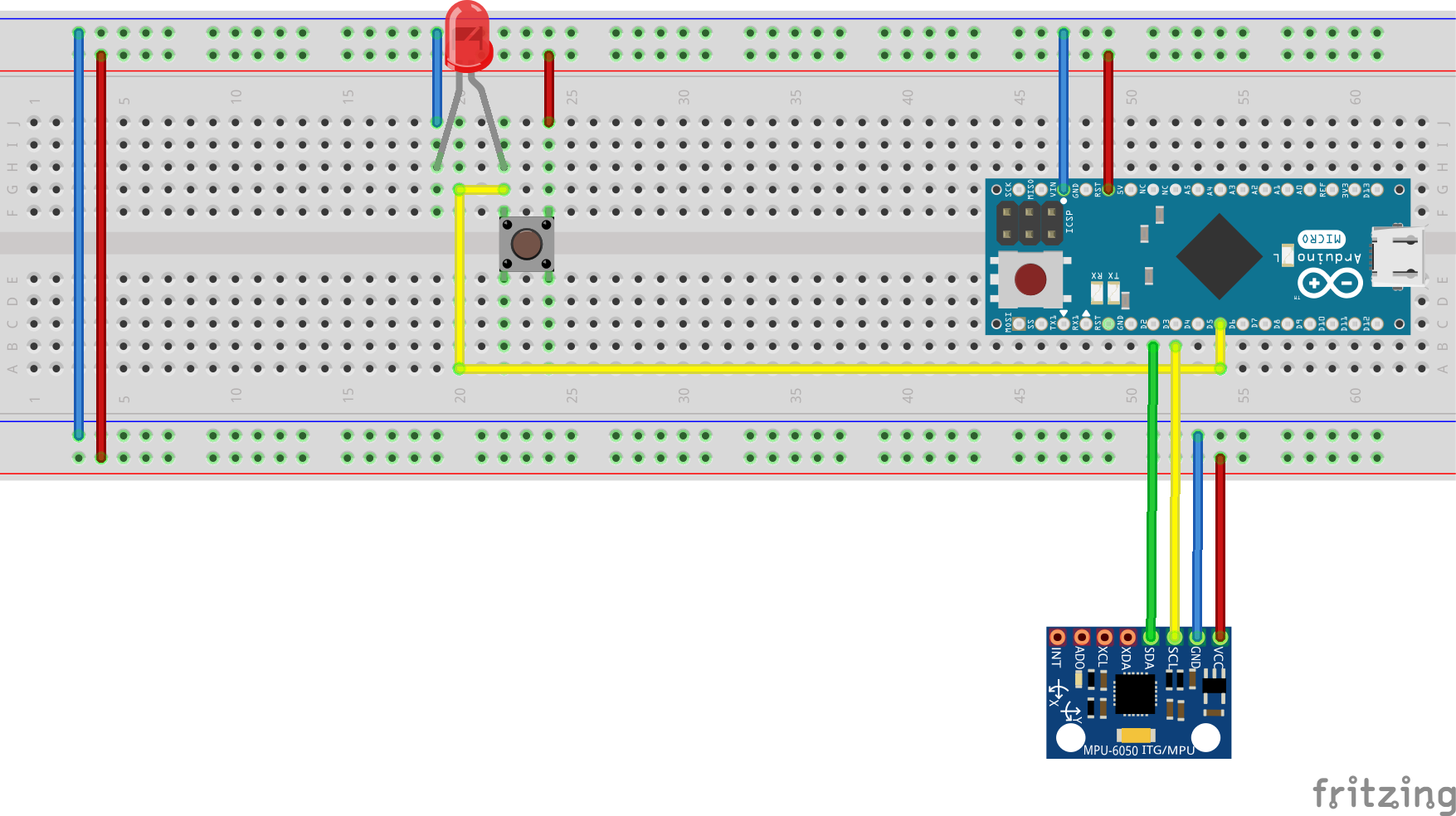

The diagram illustrates how the different components need to be connected to the Arduino Micro.

The push button uses digital pin 5 and the MPU 6050 is connected to the Arduino Micro as follows:
– MPU 6050 SCL pin to Digital Pin 3 on Arduino

– MPU 6050 SDA pin to Digital Pin 2 on Arduino

– MPU 6050 VCC to 5V pin on Arduino

– MPU 6050 GND to GND pin on Arduino

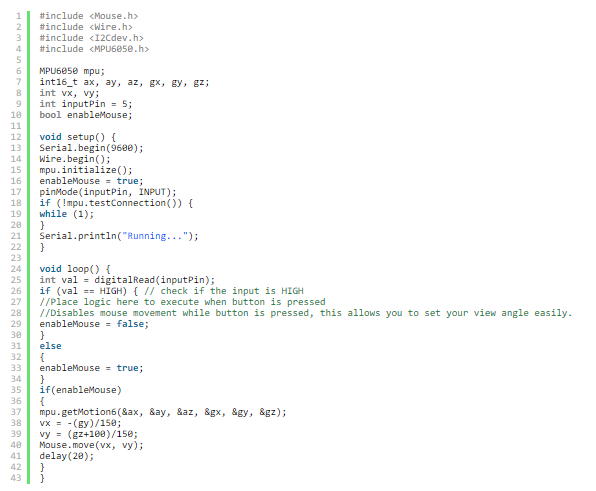

Here is the code that needs to be loaded on the Arduino.

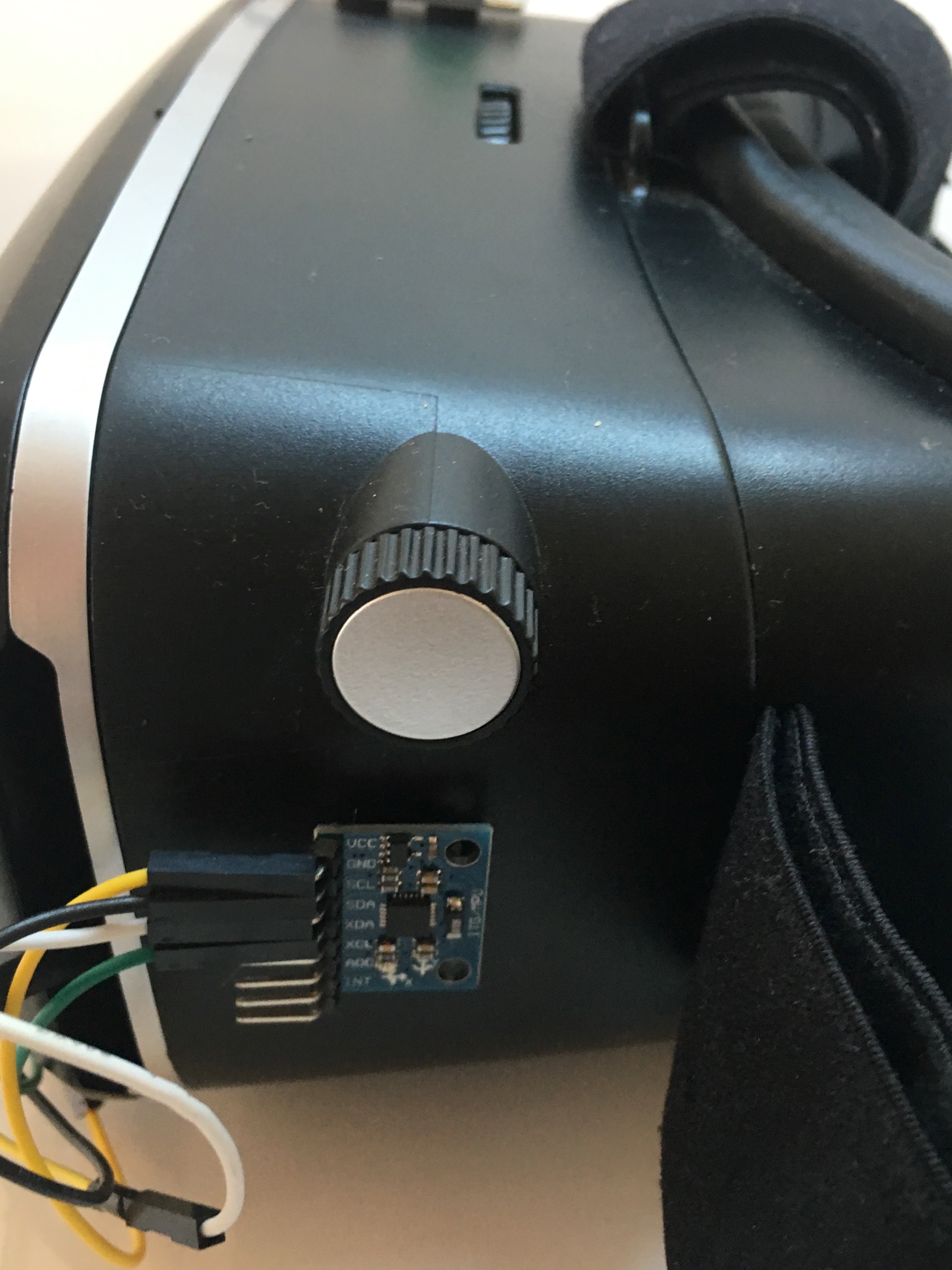

Just note that the orientation of the MPU 6050 makes a difference to which of the axis of the gyroscope will be used. For the above code the MPU 6050 was mounted on the side of the headset as shown in the pictures.

In the event of the MPU 6050 being mounted with a different orientation, you might have to substitute between the gx, gy and gz values until the desired configuration is achieved.

For my configuration, I am rotating around the Y and Z axis.

Also the numbers associated with calculation of vx and vy might have to be tweaked to get the results (movement speed etc.) you desire.

I also added a push button, that when pressed temporarily disables the gyroscopic mouse movement. This is useful when you want to reset you point of view in games.

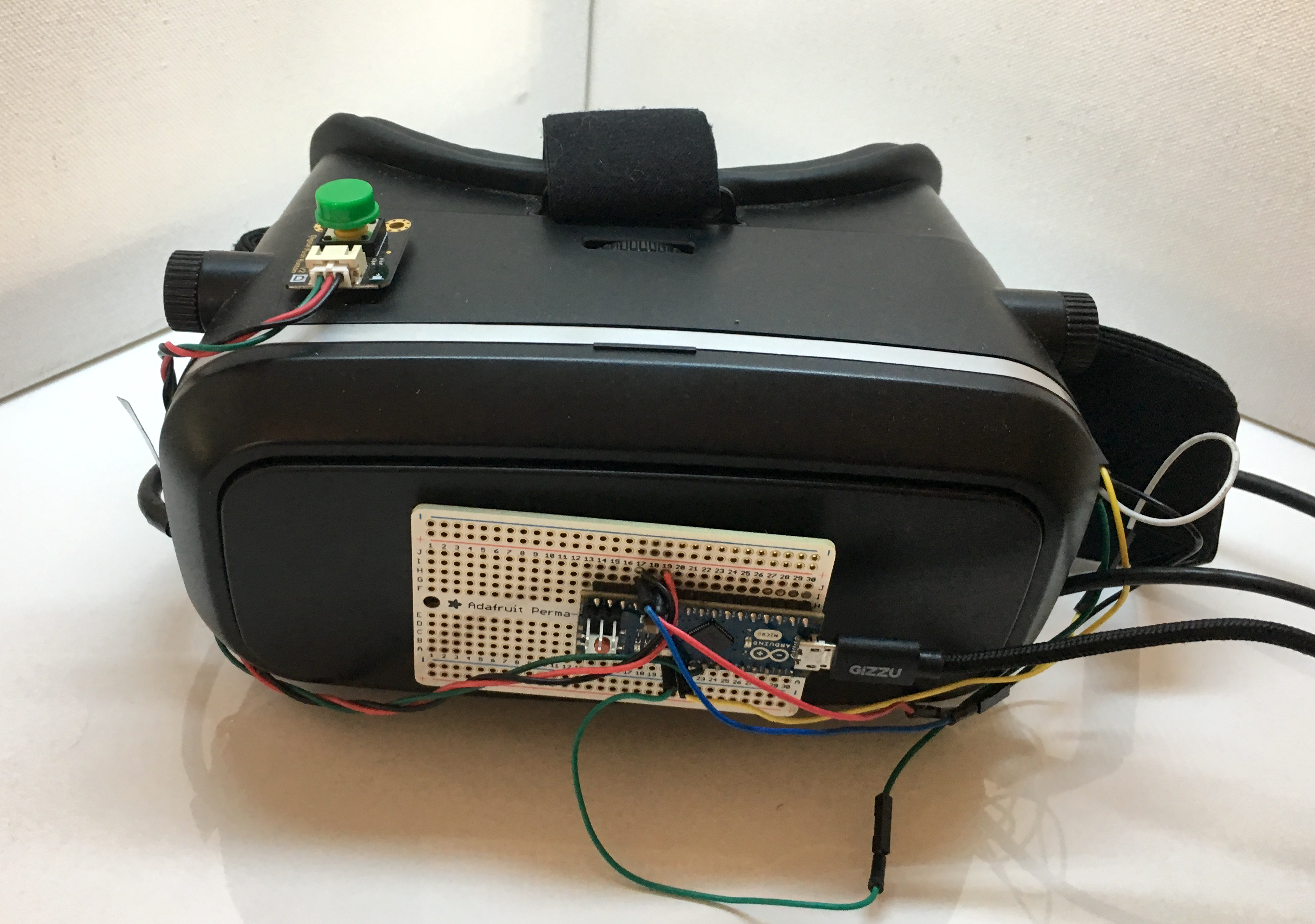

I attached all the parts of this circuit to the VR Headset using double-sided tape.

In order to have as few cables as possible connecting to the VR headset I modified the USB cable so that it pulls external power from a DC power adapter (a single USB port will not be able to power both the Arduino and the 5 inch LCD) as well as splitting into 2 micro USBs on one end (one only provided power to the LCD and the other one both power and connectivity to Arduino.) the below diagram shows how the wiring is connected.

For reference a USB cables contains 4 wires:

• Red wire – +5V DC
• White or Yellow – Data connectivity
• Green – Data Connectivity
• Black – GND

I also included a switch to turn the power on and off (this is useful to turn off the mouse functionality until it is needed, otherwise it will interfere with mouse movement when it is not desired), as well as an, LED to show when the headset is powered on.

The LCD screen is held in place by the clamps in the headset used to hold a phone (it is a snug fit). Then simply connect the 2 micro USBs to the LCD and Arduino respectively (ensuring the plug with the data connections is plugged into the Arduino and that the power only micro USB is plugged into the power socket on the LCD display). Try to run the cables in the extra spaces in the Headset around the screen in order to keep them out of the way.

Lastly connect the HDMI cable to the LCD.

The assembly is now complete.

To connect the headset to your PC do the following:

1. Plug the DC adapter into mains power.
2. Plug the USB connector into an available USB port in your PC.
3. Connect HDMI cable into and available HDMI port on your PC graphics card (You can use a DVI port with an adapter)

Go to display settings and click on detect displays, then set Multiple displays to “Duplicate these Displays” and make sure your resolution is set to 800×480.

Open up Tridef3D and start-up a game. You might have to play around with each individual games graphical settings as well as mouse sensitivity to get the best results.

For future enhancements, I will look at getting a higher definition LCD screen and also work on head movement tracking by using infrared LEDs and a Wiimote (Wiimote used as an IR Camera).

And there you have it a DIY VR Headset for $80.

Give it a try.
