DIY Touch-less Doorbell

by dreamkit in Circuits > Electronics

381 Views, 8 Favorites, 0 Comments

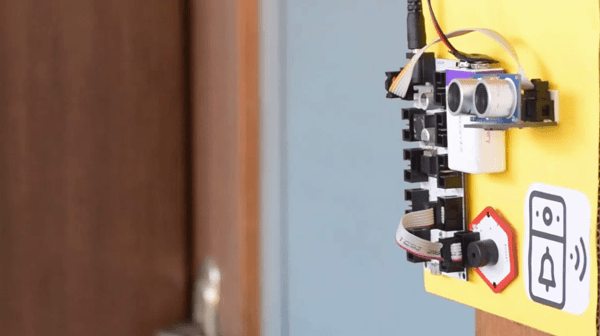

DIY Touch-less Doorbell

Hnet-image (13).gif

We are all having a very tough time keeping ourselves and our belongings sanitized on a regular basis due to the covid-19 pandemic. A number of people visit our homes, so sanitizing ourselves is a must. But, why sanitize all starting from the doorbell and to what not? So irritating right?

We have something for you. With this idea of the touchless doorbell take a break from sanitizing your doorbell repeatedly and also stay safe and happy!

Supplies Required:

STARTER INVENTION KIT.jpg

  1. Dreamkit
  2. Glue gun
  3. Cardboard sheet
  4. Double-side tape
  5. Chart paper
  6. Markers
  7. Pair of scissor
  8. Gum tape

How It Works

The distance sensor module emits a beam of ultrasonic waves which the human eye cannot see. When this emitted beam hits any object, it gets reflected onto a small sensor in the module, thus measuring the distance.

Buzzer is a simple output module. All that it does is make noise when an input signal is given to it. Connect the distance sensor and the buzzer module. The buzzer module beeps whenever the distance is less. So, on waving your hand in front of the distance sensor the buzzer starts beeping.

Connections

conn (2).gif

Programming Dream Kit With DK Studio

pasted image 0.png

Connect the HUB to your computer using a USB cable. Open DK studio software in your computer choosing the correct port number and click on ‘Connect’. Place the blocks as shown above and click on ‘Upload’.

Click here to download the DK Studio Software

Build Your Model

  1. First, we’ll cut a cardboard and chart paper piece of 12*12 cm.

Use Glue to Stick the Chart Paper to Cardboard

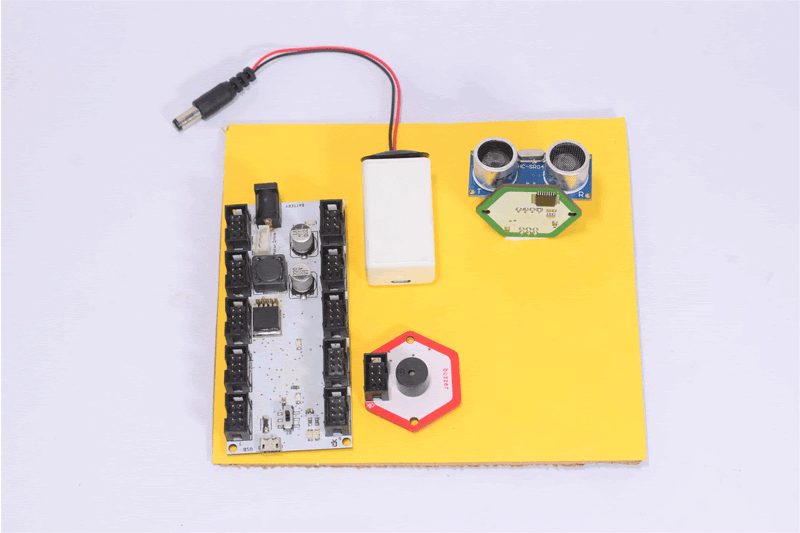

Place and Connect the Hub, Modules As Shown Below

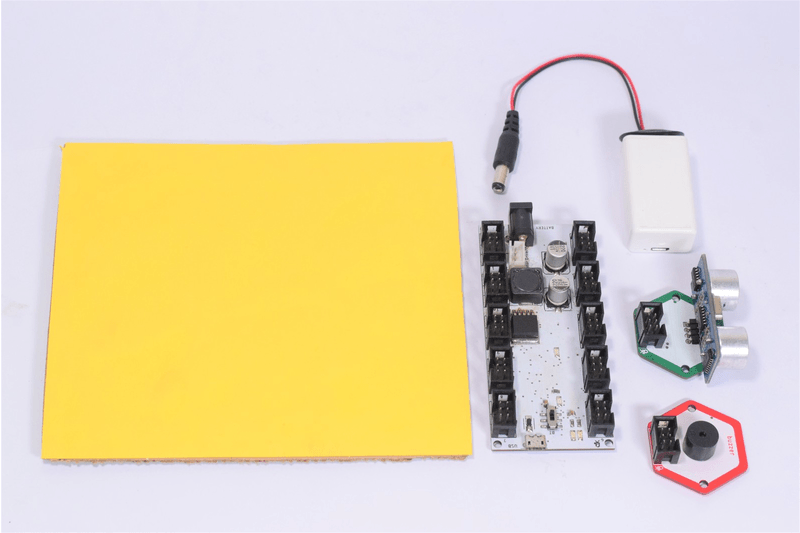

Connect the Modules to the Hub and Power It.

conn (1).gif

Upload the Program to the Hub and Power It

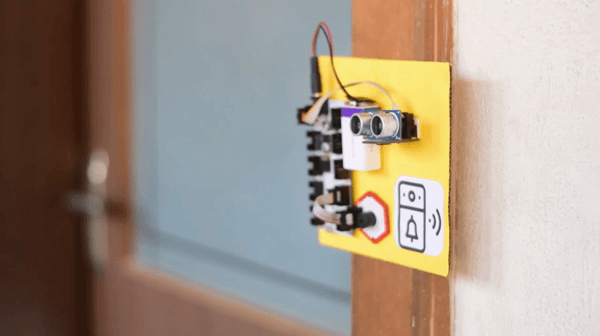

Anymore there’s no need to press any button for the doorbell. Just hold your hand in front of the distance sensor and the buzzer starts beeping.

Awesome!!! You Have Created Your Own Touchless Door Bell :)

Hnet-image (14).gif

Once you complete the project share it on Instagram with Tag #dreamkit and #CreatedWithDreamKit

Happy creating !!!
