DIY Touch Sensor

This is a short instructable on how to use the Qprox IC (QT113G) as a touch sensor. Using this IC, you can essentially turn any object into a touch switch. This simple circuit may be hooked up to a microcontroller (in this case I used the MAKE controller board).

1. QT113 - can be ordered at Digikey DigikeyDigikey. Each one costs around $2.
2. 10mF capacitor
3. Wires
4. LED
5. breadboard or perfboard (if you choose to perf, you will obviously need a soldering iron and some solder)

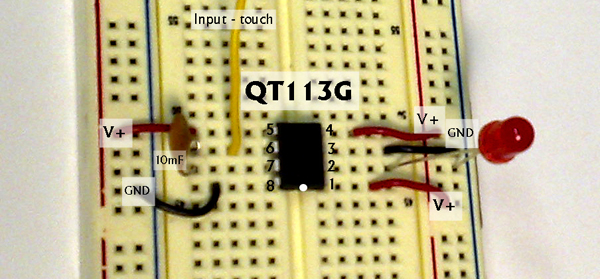

wire up your circuit according to the following diagram:

pin 1: Power (3.3-5V)
pin 2: Output (in this case I used a red LED)
pin 3: Ground
pin 4: Power
pin 5: Power
pin 6-7: 10 micro Farad capacitor. These pins also connect to the input wire.
pin 8: Ground

Strip the tip of the wire and embed it into or behind an object or the surface which you want to act as a touch switch. when connected to a conductive metal sheet, or mesh this works really well. When doing multiple switches, it is important to make sure the surfaces are surrounded by ground, so as to protect each distinct touch surface.

You can see how the light turns on and off when my finger touches the wire.

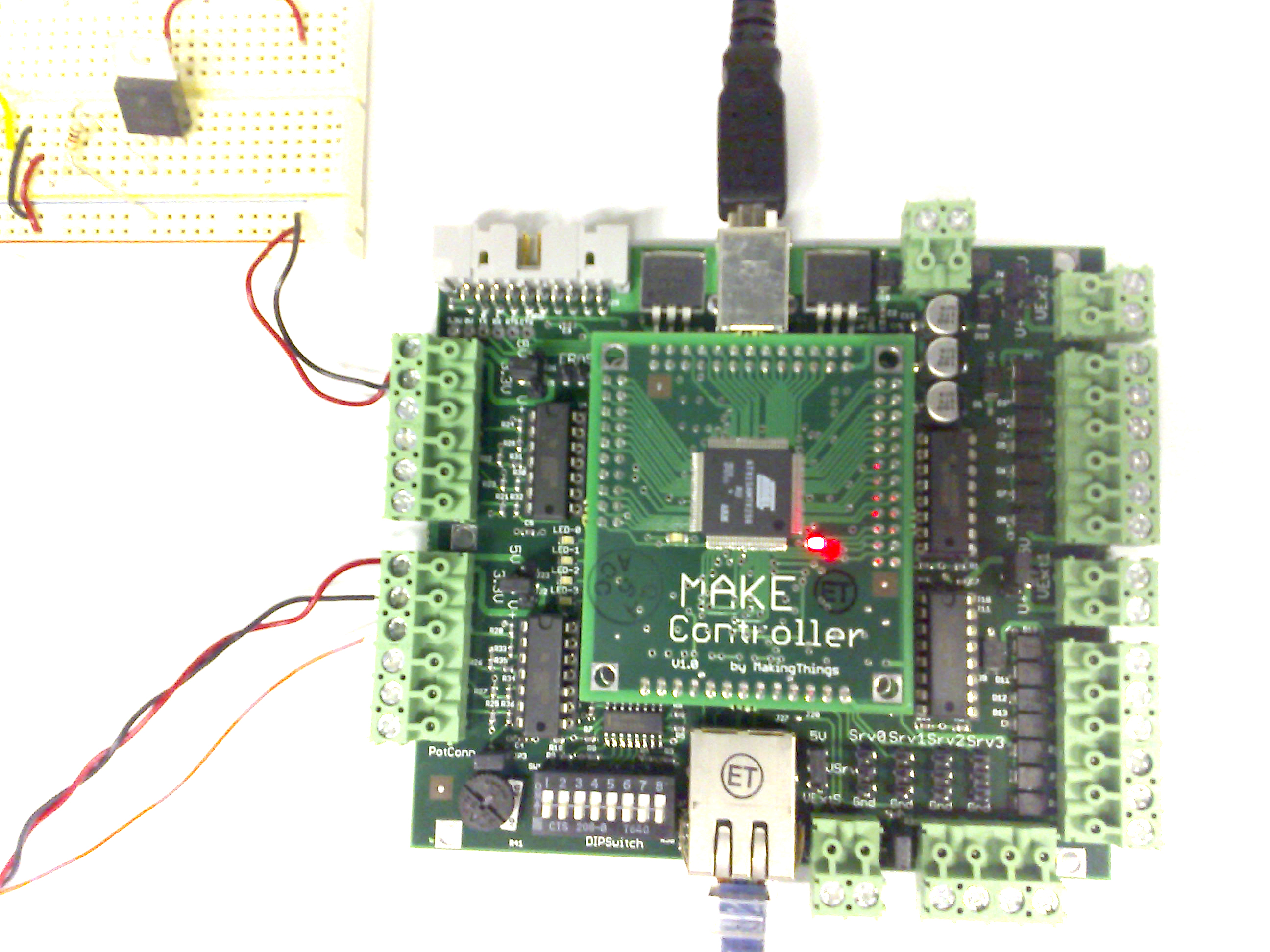

In this case I used the MAKE controller - connected the output wire from Step 2 (which was an LED there) into the 4th Input pin of the controller board. When touched, the pin goes low, otherwise its state is high.
In this example, I used the NET connect software to create a flash animation that changes its shape according to a user's touch.

Good Luck!
