DIY Termal Paper Laser CNC Ploting Machine

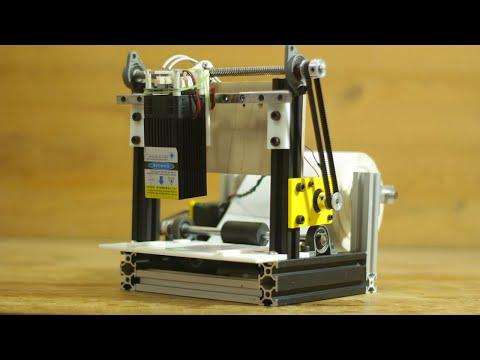

This is the mini Laser CNC plotting machine. it plot and cut the graphics on Thermal paper

thermal paper is the type of paper which react with the heat.

A DIY laser-based CNC plotter machine is an exciting project that combines creativity, precision, and technology. This machine allows you to create intricate designs, engrave materials, and even cut through various materials using a laser. Here are a few words to introduce and highlight some key aspects of this project:

"Building a DIY Laser-Based CNC Plotter Machine"

Unlock your creative potential with a DIY laser-based CNC plotter machine. This innovative project blends the power of computer numerical control (CNC) with the precision of laser technology, enabling you to bring your designs to life with impeccable accuracy and intricate detail.

1. 5W Laser diode
2. 20x20 aluminium extruision

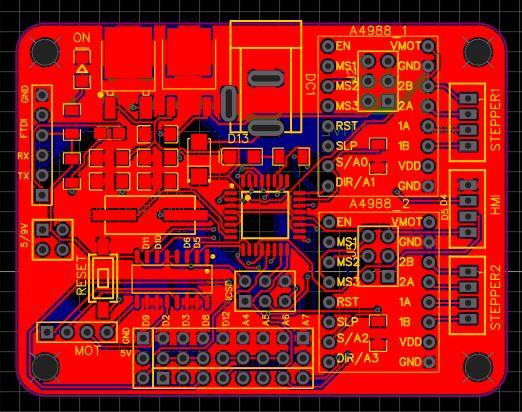

3. custom PCB

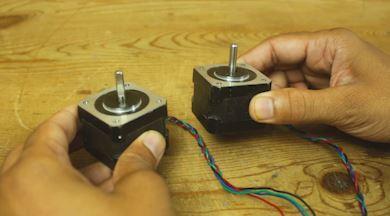

4. 2 nos. nema17 stepper motor
5. A4988 stepper driver
6. 24V DC power supply

Building the frame for a CNC plotter using 20x20 aluminum extrusion profiles and 8mm smooth rod rubber rollers requires careful planning and execution. Here are the steps to help you create a sturdy and reliable frame for your CNC plotter:

Begin by creating a detailed design for your CNC plotter frame. Determine the size and layout of the frame, considering the dimensions of your work area, the desired stability, and any specific requirements for your project.

Measure and cut the aluminum extrusion profiles according to your design. Ensure the cuts are precise and square to create a stable frame. A miter saw or a hacksaw with a miter box is suitable for this task.

Lay out the cut extrusion profiles to create the base of your CNC plotter. Use corner brackets and T-nuts to secure the profiles together, ensuring they are square and level. This base will serve as the foundation for the rest of the frame.

Determine the locations for your linear motion smooth rods and install them. You may need additional brackets to support and secure the smooth rods along the frame. Ensure they are level and parallel to each other.

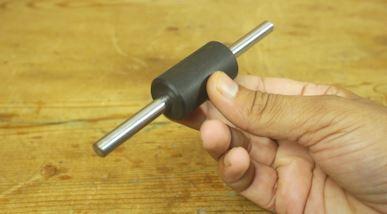

Attach the rubber rollers to the frame, aligning them with the smooth rods. These rollers will provide support and guidance for the motion of the CNC plotter. Make sure they are properly spaced and adjusted for smooth movement.

To enhance the stability of the frame, install cross braces between the extrusion profiles. These braces will help prevent any unwanted flexing or wobbling during operation.

Building a frame for a CNC plotter using 20x20 aluminum extrusion profiles and 8mm smooth rod rubber rollers is a significant step in creating a precise and reliable machine. Pay close attention to detail and alignment to ensure your CNC plotter performs as expected.

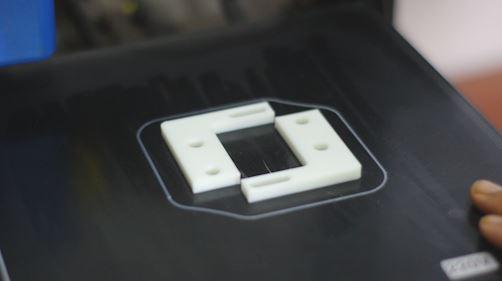

1. 3D Printed Bracket for Linear Slider Rail:
2. I've designed and 3D printed a custom bracket to securely hold the linear slider rail in place. This bracket ensures stability and precision in the movement of the CNC machine.

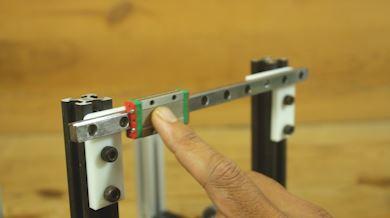

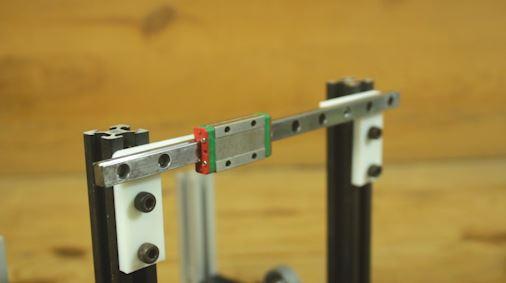

3. Linear Slider Installed on the CNC Frame:
4. The linear slider is now installed on the front-top part of the CNC frame. This strategic placement provides smooth and controlled motion for the machine, allowing for accurate and repeatable results in various CNC applications.

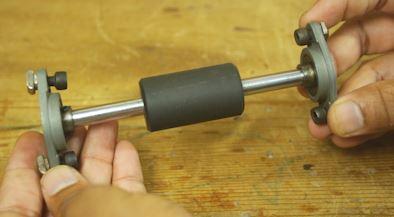

5. Utilizing Flange Bearings for 8mm T-Nut:
6. To facilitate effortless movement, I've incorporated two 8mm flange bearings. These bearings allow the 8mm T-nut to rotate freely within the bracket, reducing friction and ensuring a consistent and reliable performance in the CNC setup.
7. Then I install the laser diode on the linear slode.

In this way the mechanical construction of CNC machine is completed now it timw to install the electronics parts.

Unlock Innovation with JLCPCB - Your Ultimate PCB Solution

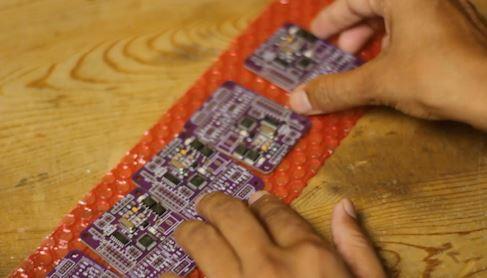

We're excited to introduce our latest project, made possible with JLCPCB's exceptional PCB service. We ordered our PCBs from JLCPCB, and the results have been outstanding.

One PCB, Infinite Possibilities

Our multipurpose PCB is a game-changer, designed to serve a multitude of projects. With JLCPCB's top-quality boards, you can now rely on a single PCB for a wide range of applications. Say goodbye to the hassle of designing new PCBs for every project.

Quality Meets Affordability

JLCPCB is our trusted partner because they offer the best in PCB quality without breaking the bank. The precision and reliability of their boards are unparalleled, making our projects run seamlessly every time.

Your Projects, Simplified

No matter your project - be it electronics, automation, or innovation - our multipurpose PCB, crafted with JLCPCB's expertise, will be your go-to solution. It's the smart choice for streamlining your work and reducing costs.

Experience Excellence with JLCPCB

Join the league of innovators who rely on JLCPCB for the best quality PCBs at incredibly affordable rates. Get ready to take your projects to new heights with JLCPCB as your trusted PCB partner.

so order the best quality PCB visit the link

JLCPCB 1-20 Layer PCB from $2, Sign up to Get $54 Coupons here: https://jlcpcb.com/?from=MrI

GRBL, or "G-code Real-time Interpreter and Machine Controller," is a game-changing open-source software that revolutionizes CNC (Computer Numerical Control) machining. With GRBL, you can transform your CNC machine into a precise, efficient, and versatile tool.

https://github.com/grbl/grbl

LightBurn is a comprehensive software solution designed for laser engravers and CNC machines. With a focus on user-friendliness and powerful features, it's become a go-to choice for both hobbyists and professionals in the world of laser cutting and engraving.

link to download light burn software

https://lightburnsoftware.com/pages/trial-version-try-before-you-buy

In this way the construction of the cnc laser machine is completed

you can watch the video for more details.

if you like our project please like share our project.
