DIY Switch Adapted Bubble Tube

by delaneyb in Circuits > Assistive Tech

42 Views, 1 Favorites, 0 Comments

DIY Switch Adapted Bubble Tube


This project is designed to adapt a bubble tube so that it has switch access.

Supplies

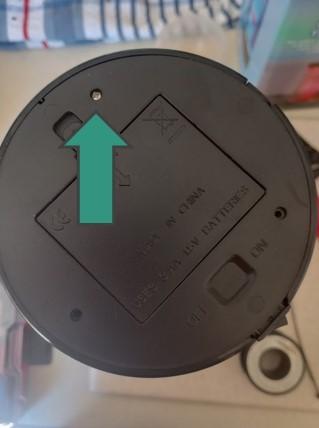

Remove Screws


Remove screws from the bottom of the toy.

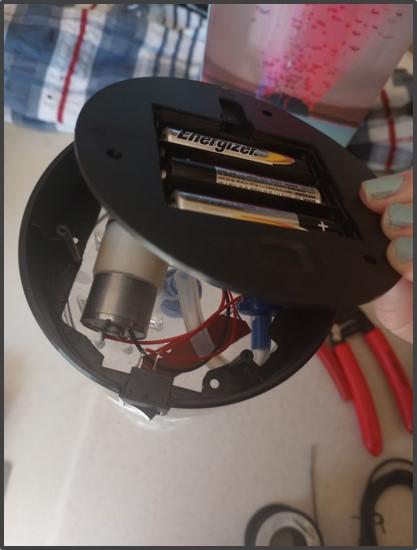

Remove Bottom


Remove bottom of toy.


OPTIONAL: Adding batteries to the toy before starting to allow for easy testing throughout the adaption process.

Cut Cable


Cut the end of the cable. (We will be using the female end for this adaption).

Strip Cable


Strip the cable so that the wires from both the red and white cables are showing.

Solder


Add solder to the ends of both red and white cables.

Add Hole


Melt or drill hole into the side of the toy.

Thread Cable


Thread cable through the hole in the toy. Either tie or zip tie the cable inside the toy so that the cable cannot be pulled out.

Solder


Solder one cable to each of the areas marked in the photos. (The prongs off the on/off switch)

Reassemble


Reassemble toy.

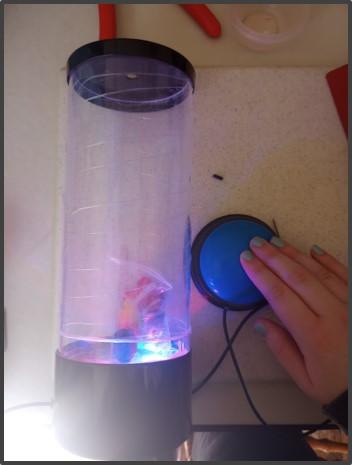

Enjoy!


Add switch, water, and toy fish. Enjoy playing!
