DIY Switch Adapted Automatic Dice Roller

by delaneyb in Circuits > Assistive Tech

41 Views, 1 Favorites, 0 Comments

DIY Switch Adapted Automatic Dice Roller


This project is designed to adapt an automatic dicer roller so that it has switch access.

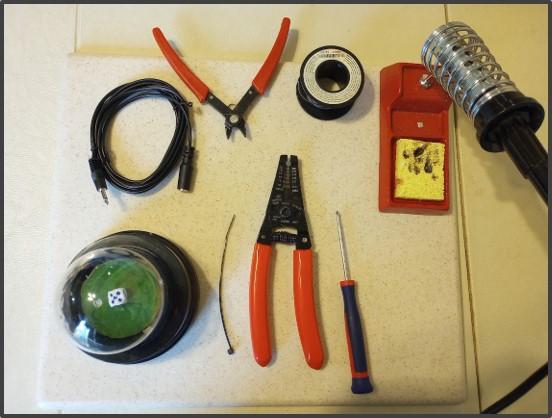

Supplies


Remove Screws


Remove screws from the bottom.

Separate Toy


Carefully separate the bottom of the toy.

Add Hole


Melt or drill hole into side of toy.

Cut Cable


Cut end of cable. (We will be using the female end of this adaption)

Strip Cable


Strip cable so that both the red and white cables are showing.

Add Solder


Add solder to the ends of both the red and white cables.

Thread Cable


Thread cable through the hole. Either tie the cable in the toy or add a zip tie to prevent the wire from being pulled out.

Cut Cables

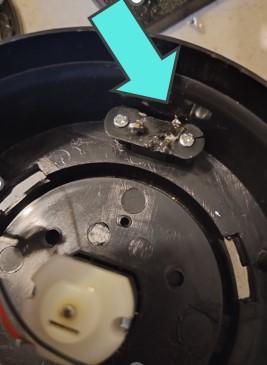

Cut cables from the area shown in photo.

Solder Cables


Solder cables as show in the photo. (Wires should both be soldered to different black cables.

Reassemble Toy

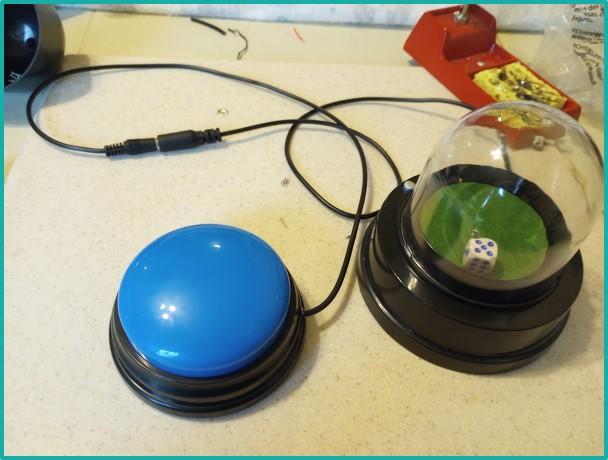

Reassemble toy, add a switch and enjoy!
