Hey! everyone My name is Steve.
Today I'm going to show you How to Make 30 Watt Portable Amplifier in a Very Simple Way
Let's Start
Features
![TDA2050 (15).00_07_37_06.Still002.jpg](/proxy/?url=https://content.instructables.com/F9T/75A8/JVH3HUSG/F9T75A8JVH3HUSG.jpg&filename=TDA2050 (15).00_07_37_06.Still002.jpg)
Output Power
- 35 Watt x 1 @ 4Ohms
Input Power
- 16 - 24V DC
Built-in Protection
- Over Load Protection
- Short Circuit Protection
- Over Heat Protection
Thing I've Used
![Screenshot (16).png](/proxy/?url=https://content.instructables.com/FA0/DL74/JVH3I52Q/FA0DL74JVH3I52Q.png&filename=Screenshot (16).png)
![Screenshot (17).png](/proxy/?url=https://content.instructables.com/FHD/2GOD/JVH3I55F/FHD2GODJVH3I55F.png&filename=Screenshot (17).png)
![Screenshot (18).png](/proxy/?url=https://content.instructables.com/FS4/5VTO/JVH3I56G/FS45VTOJVH3I56G.png&filename=Screenshot (18).png)
![Screenshot (19).png](/proxy/?url=https://content.instructables.com/FJU/TS53/JVH3I58Q/FJUTS53JVH3I58Q.png&filename=Screenshot (19).png)
![Screenshot (20).png](/proxy/?url=https://content.instructables.com/F0U/0XXZ/JVH3I5AN/F0U0XXZJVH3I5AN.png&filename=Screenshot (20).png)
![Screenshot (21).png](/proxy/?url=https://content.instructables.com/FZ4/CVJH/JVH3I5C7/FZ4CVJHJVH3I5C7.png&filename=Screenshot (21).png)
![Screenshot (22).png](/proxy/?url=https://content.instructables.com/FA0/N8YD/JVH3I5DY/FA0N8YDJVH3I5DY.png&filename=Screenshot (22).png)
![Screenshot (23).png](/proxy/?url=https://content.instructables.com/FU2/0CEQ/JVH3I5F6/FU20CEQJVH3I5F6.png&filename=Screenshot (23).png)
![Screenshot (24).png](/proxy/?url=https://content.instructables.com/FB8/FA1H/JVH3I5F8/FB8FA1HJVH3I5F8.png&filename=Screenshot (24).png)
LCSC
----------------------------------------------------------------------
- TDA2050 - http://bit.ly/2VfWTJ5
- 22K - http://bit.ly/2VfWTJ5
- 680R - http://bit.ly/2VfWTJ5
- 2.2R - http://bit.ly/2VfWTJ5
- 0.47uF - http://bit.ly/2VfWTJ5
- 100uF 25V - http://bit.ly/2VfWTJ5
- 22uF 25V - http://bit.ly/2VfWTJ5
- 2.2 50V - http://bit.ly/2VfWTJ5
- 1000uF 25V - http://bit.ly/2VfWTJ5
----------------------------------------------------------------------
Banggood
----------------------------------------------------------------------
- 24V SMPS - https://bit.ly/2DXQ5Yq
- Soldering Iron - https://bit.ly/2DXQ5Yq
- Flexible Arms - https://bit.ly/2DXQ5Yq
----------------------------------------------------------------------
Amazon
----------------------------------------------------------------------
- 24V SMPS - https://amzn.to/2BvUejG
- Soldering Iron - https://amzn.to/2BvUejG
- Flexible Arms - https://amzn.to/2BvUejG
----------------------------------------------------------------------
Aliexpress
----------------------------------------------------------------------
- 24V SMPS - http://bit.ly/2Vva3P9
- Soldering Iron - http://bit.ly/2Vva3P9
- Flexible Arms - http://bit.ly/2Vva3P9
----------------------------------------------------------------------
Sponsor
![Screenshot (50).png](/proxy/?url=https://content.instructables.com/FGU/3WPZ/JVH3HVOH/FGU3WPZJVH3HVOH.png&filename=Screenshot (50).png)
Today's Article is Sponsored by lcsc.com
They are the Largest Electronics Components Supplier From China Ready to Ship within 4 Hours and they ship World Wide
Circuit Diagram
![Screenshot (25).png](/proxy/?url=https://content.instructables.com/FH2/JCM5/JVH3I4J1/FH2JCM5JVH3I4J1.png&filename=Screenshot (25).png)
You can see the circuit diagram to make it easier
Soldering
![Screenshot (26).png](/proxy/?url=https://content.instructables.com/F9I/JZ2R/JVH3I4JQ/F9IJZ2RJVH3I4JQ.png&filename=Screenshot (26).png)
![Screenshot (27).png](/proxy/?url=https://content.instructables.com/FCD/T251/JVH3I4KN/FCDT251JVH3I4KN.png&filename=Screenshot (27).png)
![Screenshot (28).png](/proxy/?url=https://content.instructables.com/FV6/OGOL/JVH3I4LG/FV6OGOLJVH3I4LG.png&filename=Screenshot (28).png)
![Screenshot (29).png](/proxy/?url=https://content.instructables.com/FKO/KEIF/JVH3I4MH/FKOKEIFJVH3I4MH.png&filename=Screenshot (29).png)
![Screenshot (30).png](/proxy/?url=https://content.instructables.com/FZE/YWTE/JVH3I4NU/FZEYWTEJVH3I4NU.png&filename=Screenshot (30).png)
![Screenshot (31).png](/proxy/?url=https://content.instructables.com/FRB/DWNV/JVH3I4OW/FRBDWNVJVH3I4OW.png&filename=Screenshot (31).png)
![Screenshot (32).png](/proxy/?url=https://content.instructables.com/FIK/629D/JVH3I4QM/FIK629DJVH3I4QM.png&filename=Screenshot (32).png)
![Screenshot (33).png](/proxy/?url=https://content.instructables.com/FW6/4HP3/JVH3I4S5/FW64HP3JVH3I4S5.png&filename=Screenshot (33).png)
![Screenshot (34).png](/proxy/?url=https://content.instructables.com/FRT/YG5Q/JVH3I4SZ/FRTYG5QJVH3I4SZ.png&filename=Screenshot (34).png)
![Screenshot (35).png](/proxy/?url=https://content.instructables.com/FHH/QJ0V/JVH3I4TJ/FHHQJ0VJVH3I4TJ.png&filename=Screenshot (35).png)
![Screenshot (36).png](/proxy/?url=https://content.instructables.com/FZV/P6XG/JVH3I4U1/FZVP6XGJVH3I4U1.png&filename=Screenshot (36).png)
![Screenshot (37).png](/proxy/?url=https://content.instructables.com/FNG/K9U5/JVH3I4VF/FNGK9U5JVH3I4VF.png&filename=Screenshot (37).png)
![Screenshot (38).png](/proxy/?url=https://content.instructables.com/FID/S34V/JVH3I4WN/FIDS34VJVH3I4WN.png&filename=Screenshot (38).png)

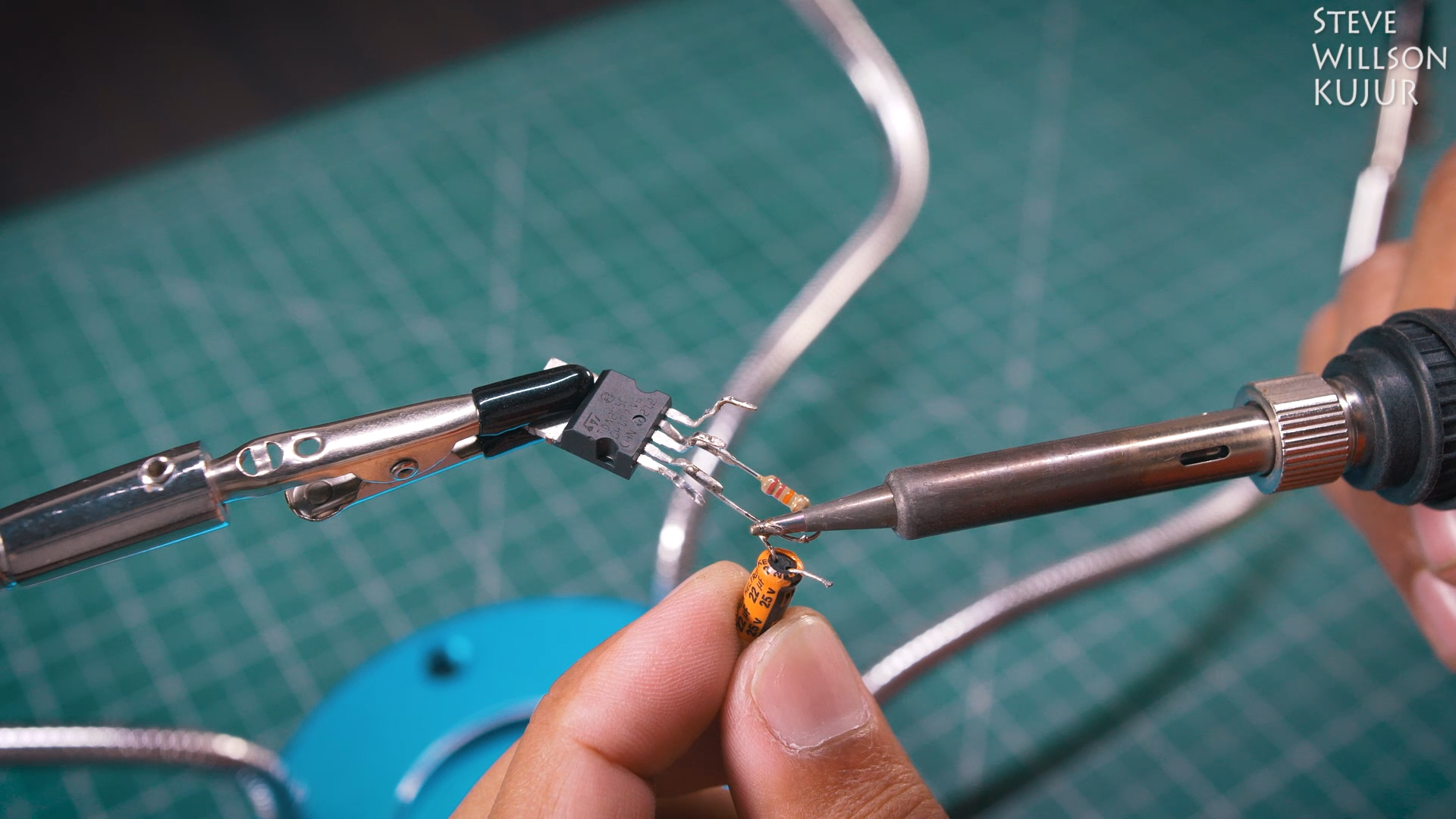

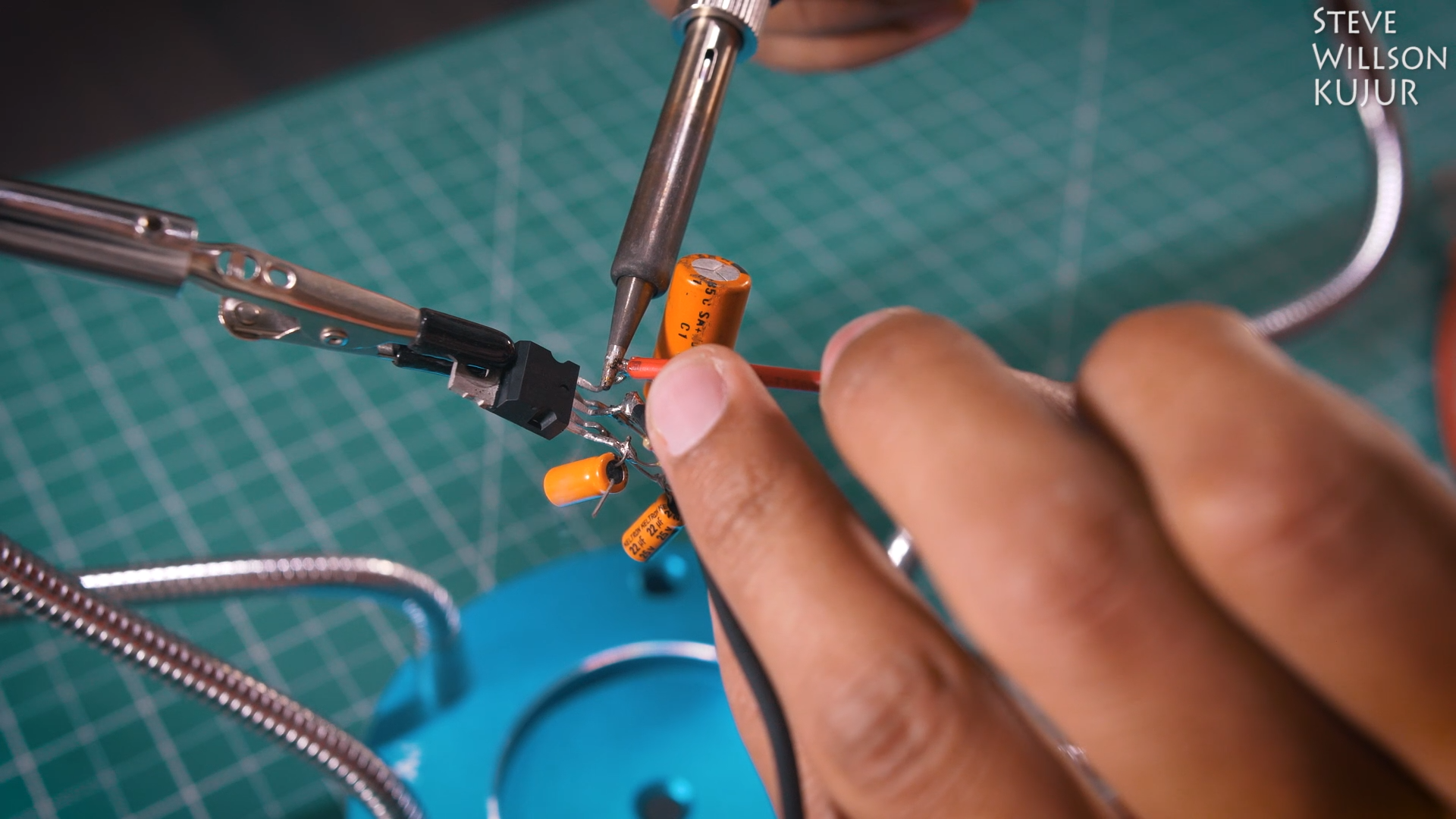

You can see the image it looks messy, you can easily use perf board but in this video, I'm doing this in an easy way
- First I've connected 22K Resistance to 2 and 4 Pin of TDA2050
- I've connected a 22uf capacitor to the 2nd pin of TDA2050
- 680 Ohms Resistances to the 3rd pin of TDA2050 and the negative pin of the 22uf capacitor
- 3 22K Resistances to pin 1,3 and 5 Pin of TDA2050 and connected all the Resistance together " see the image "
- Negative Pin of 100uf Capacitor to the 3rd pin of TDA2050 and the positive pin to the 3 Resistances
- 2.2 Ohms Resistance to the 4th pin of TDA2050
- 0.47uf capacitor to the 3rd pin of TDA2050 and 2.2 Ohms Resistance " see the image "
- Negative Pin of the 2.2uf capacitor to the 1st pin of TDA2050
- Positive pin of the 1000uf capacitor to the 4th pin of TDA2050
Connection
![Screenshot (39).png](/proxy/?url=https://content.instructables.com/FWE/YQT8/JVH3I4X2/FWEYQT8JVH3I4X2.png&filename=Screenshot (39).png)
![Screenshot (40).png](/proxy/?url=https://content.instructables.com/F0O/OZNN/JVH3I4XW/F0OOZNNJVH3I4XW.png&filename=Screenshot (40).png)
![Screenshot (41).png](/proxy/?url=https://content.instructables.com/FDW/HZS7/JVH3I4YE/FDWHZS7JVH3I4YE.png&filename=Screenshot (41).png)
![Screenshot (42).png](/proxy/?url=https://content.instructables.com/FQH/BZKC/JVH3I4YZ/FQHBZKCJVH3I4YZ.png&filename=Screenshot (42).png)
Red and Black wire to 3rd and 5th Pin of TDA2050
- Green wire to Negative of the 1000uf capacitor
- Signal wire to Positive of the 2.2uf capacitor
Input Power
- The black wire is ground and Red wire is Positive
Speaker Output
- Green wire is Speaker Output with Ground
Source Input
- Signal wire is for signal input with Ground
Heat Dissipation
![Screenshot (43).png](/proxy/?url=https://content.instructables.com/F4K/F81K/JVH3I4ZJ/F4KF81KJVH3I4ZJ.png&filename=Screenshot (43).png)
![Screenshot (44).png](/proxy/?url=https://content.instructables.com/FAJ/OT9R/JVH3I4ZU/FAJOT9RJVH3I4ZU.png&filename=Screenshot (44).png)
![Screenshot (45).png](/proxy/?url=https://content.instructables.com/F7Y/Q1NF/JVH3I500/F7YQ1NFJVH3I500.png&filename=Screenshot (45).png)
![Screenshot (46).png](/proxy/?url=https://content.instructables.com/F58/RLAR/JVH3I50D/F58RLARJVH3I50D.png&filename=Screenshot (46).png)
- I used a medium size Heat Shink for Heat Dissipation with a little bit of thermal compound
Setup and Enjoy
![Screenshot (47).png](/proxy/?url=https://content.instructables.com/FVS/P61B/JVH3I50R/FVSP61BJVH3I50R.png&filename=Screenshot (47).png)
![Screenshot (48).png](/proxy/?url=https://content.instructables.com/FCX/V6J6/JVH3I51L/FCXV6J6JVH3I51L.png&filename=Screenshot (48).png)
- I've used a 24V SMPS to power the Amplifier
- And used a bookshelf speaker
Thank you for visiting my Instructables Stay tuned for next Projects
