DIY Speaker Reusing 3D Filament Spool

Everyone wants the speaker in Room or on the Desk. When you own a 3D printer you deal with an empty filament spool, however not every time throw in the garbage, use for storage or wires reel. Let make the Speaker using an Empty 3D Filament spool.

In this project, Reusing the 3D Filament Spool for making Speaker. Here I use a high-quality speaker with a Bluetooth circuit and some RGB LED strips. This project is very easy to make, hope you enjoy it to make.

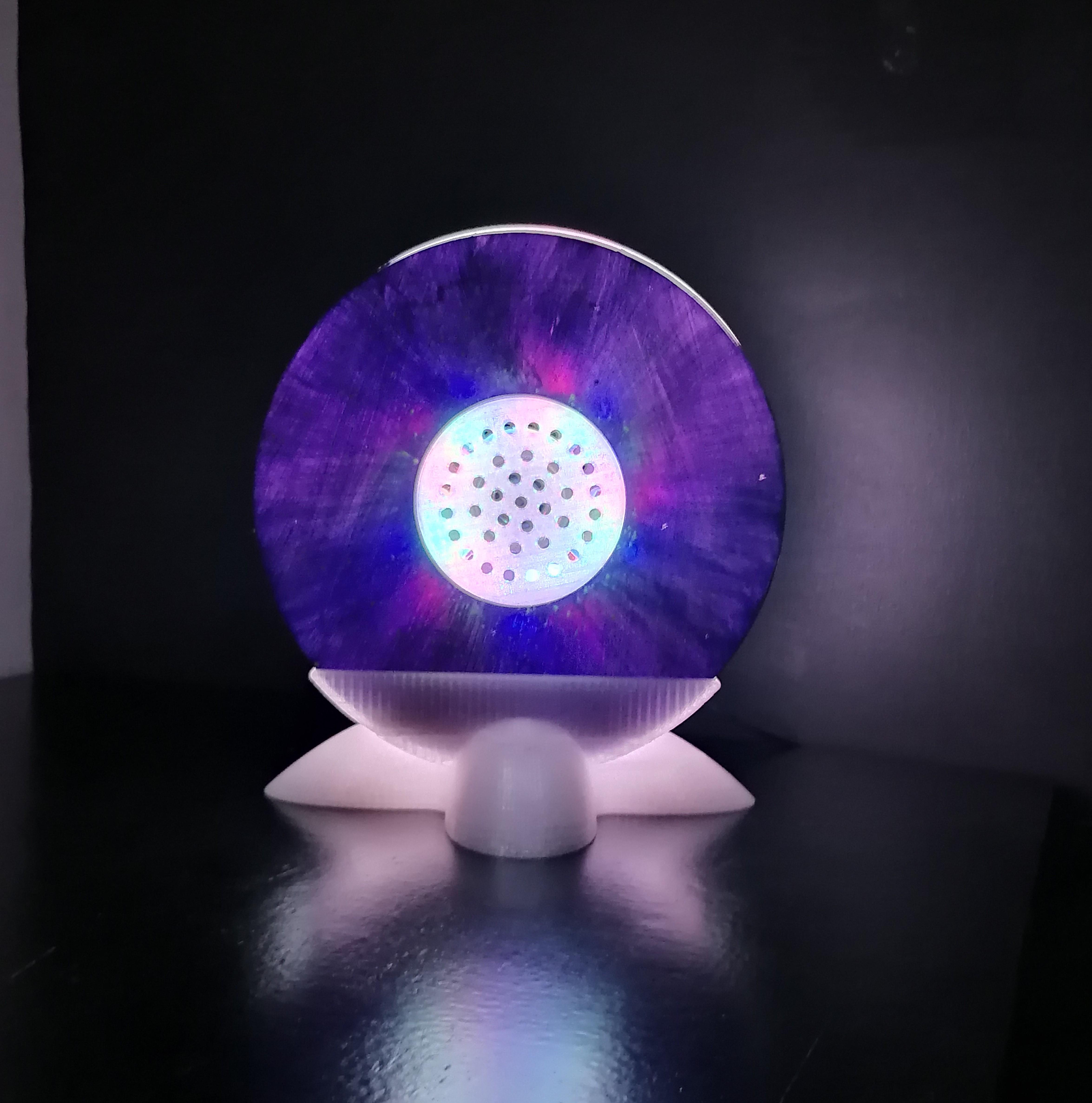

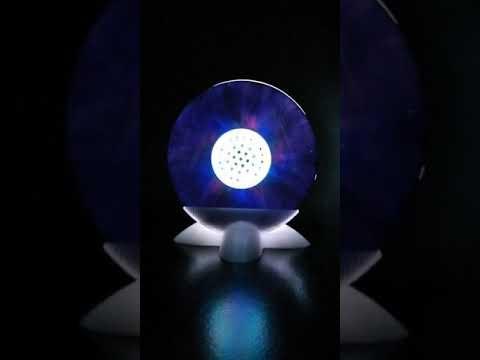

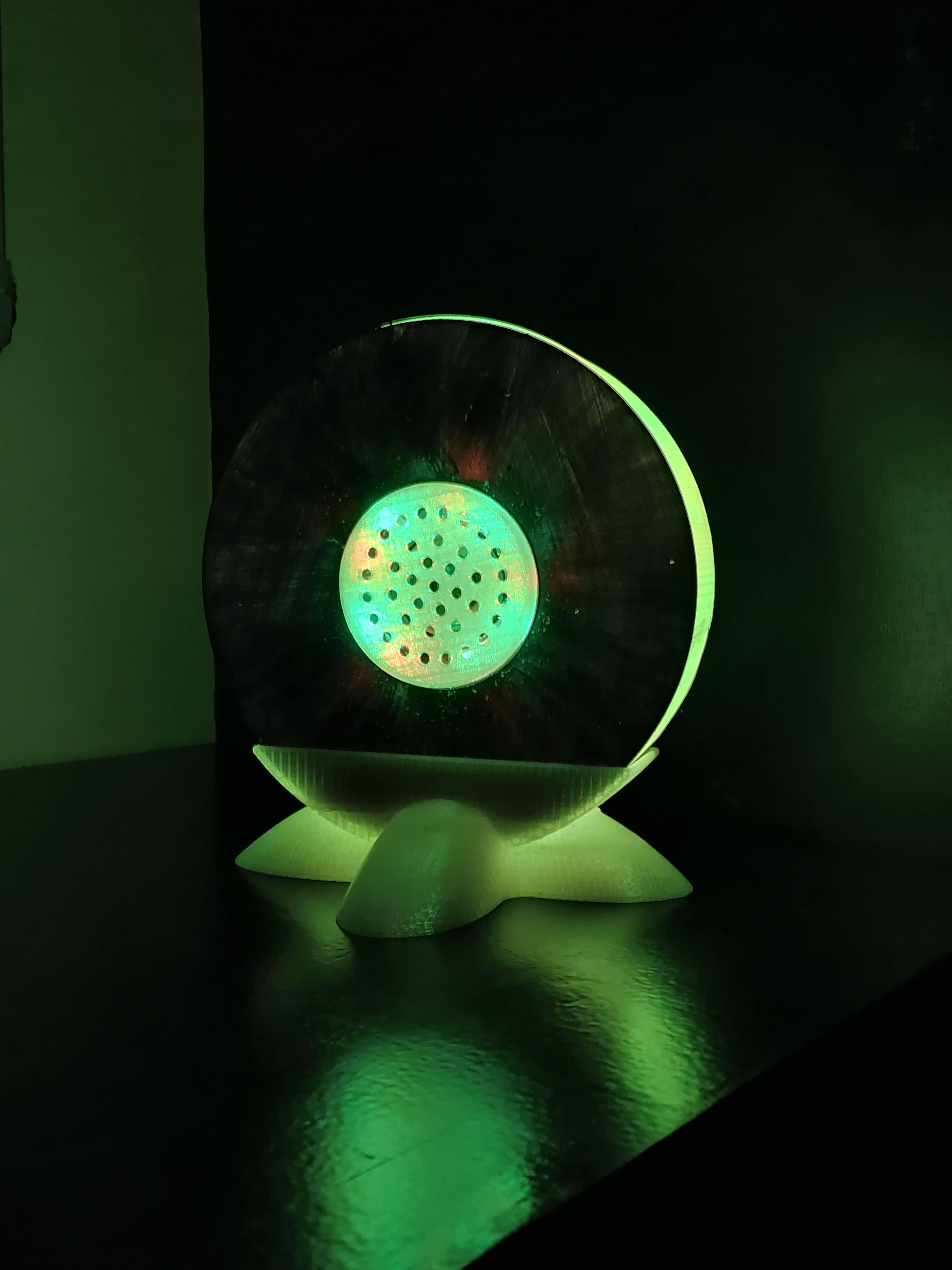

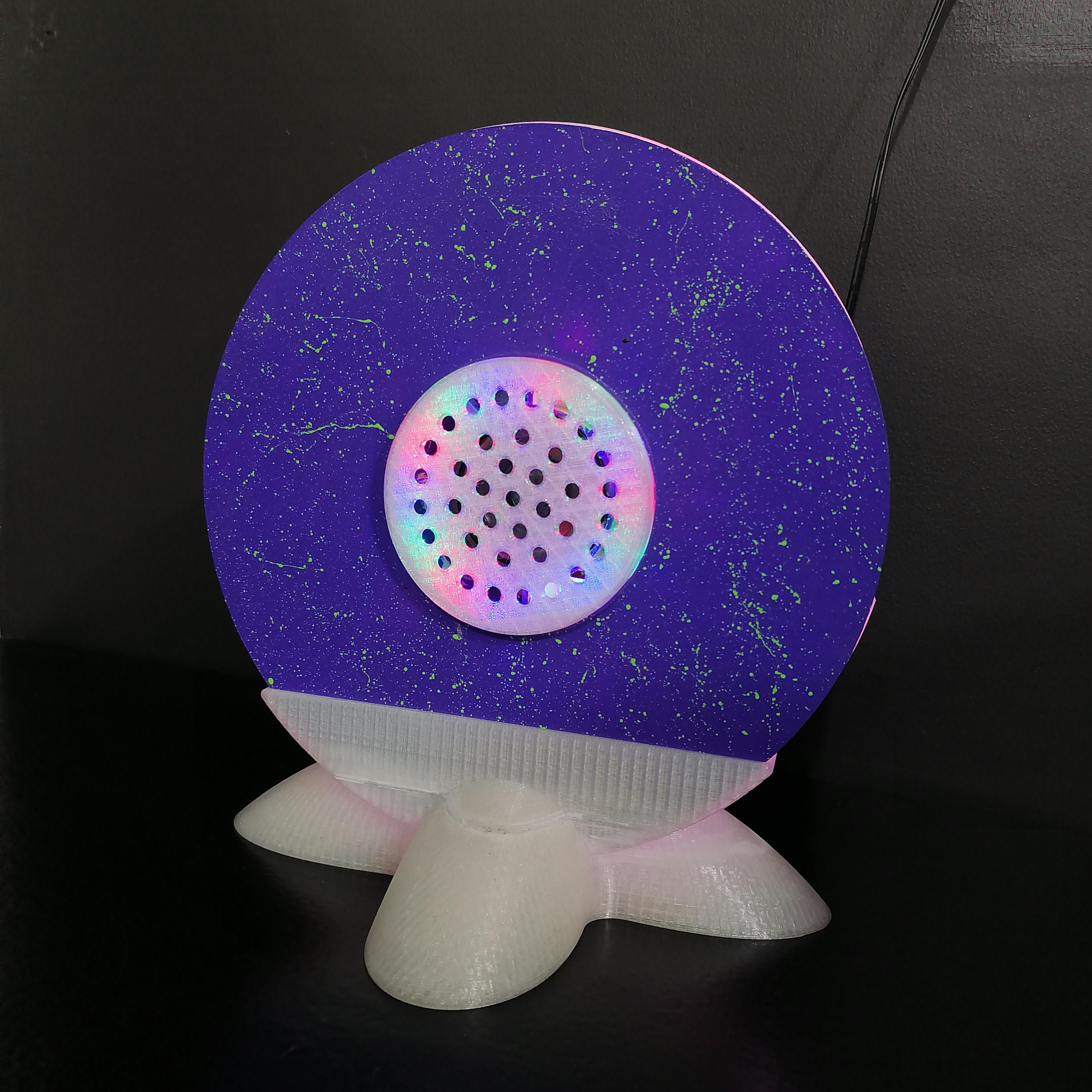

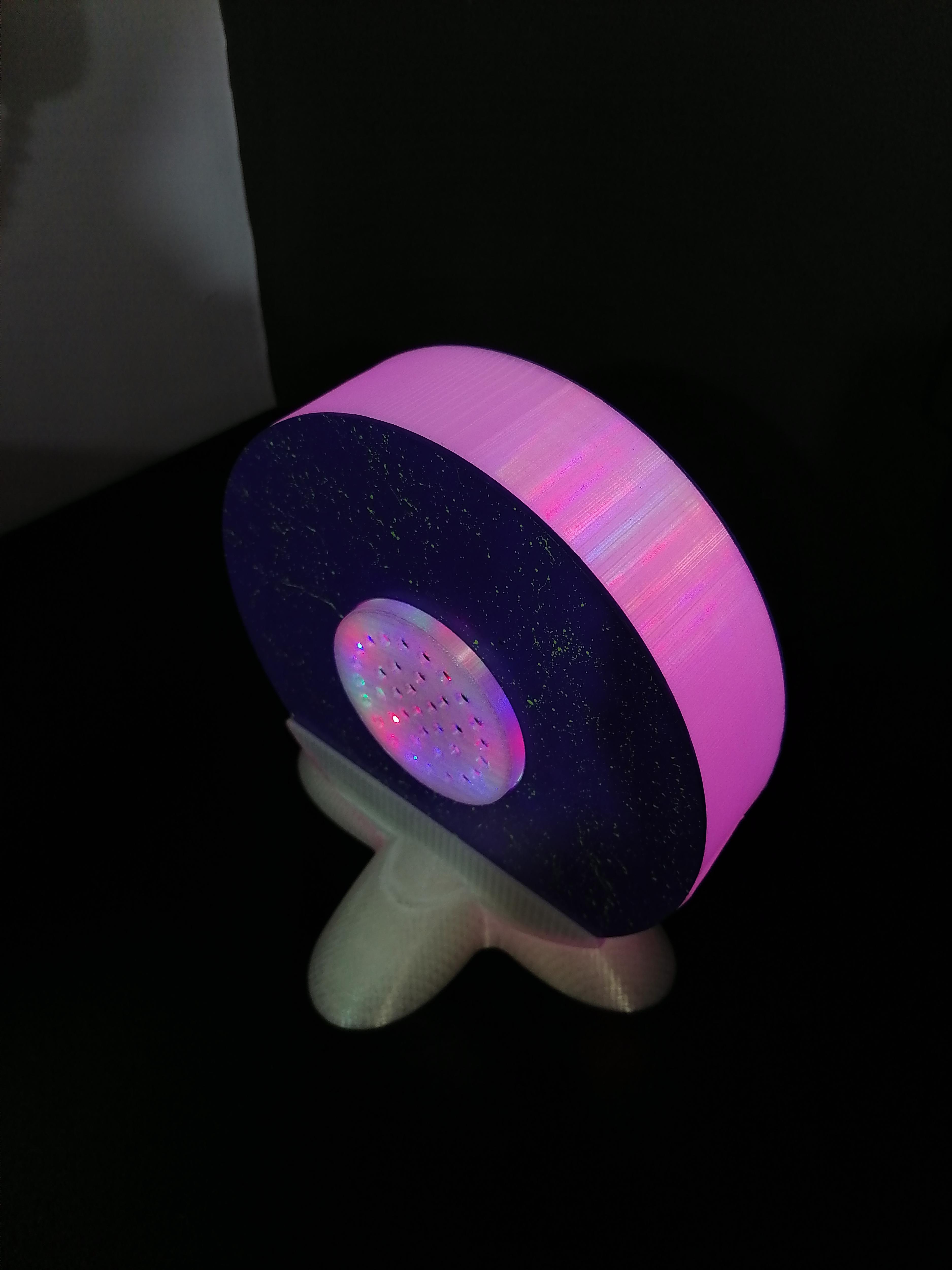

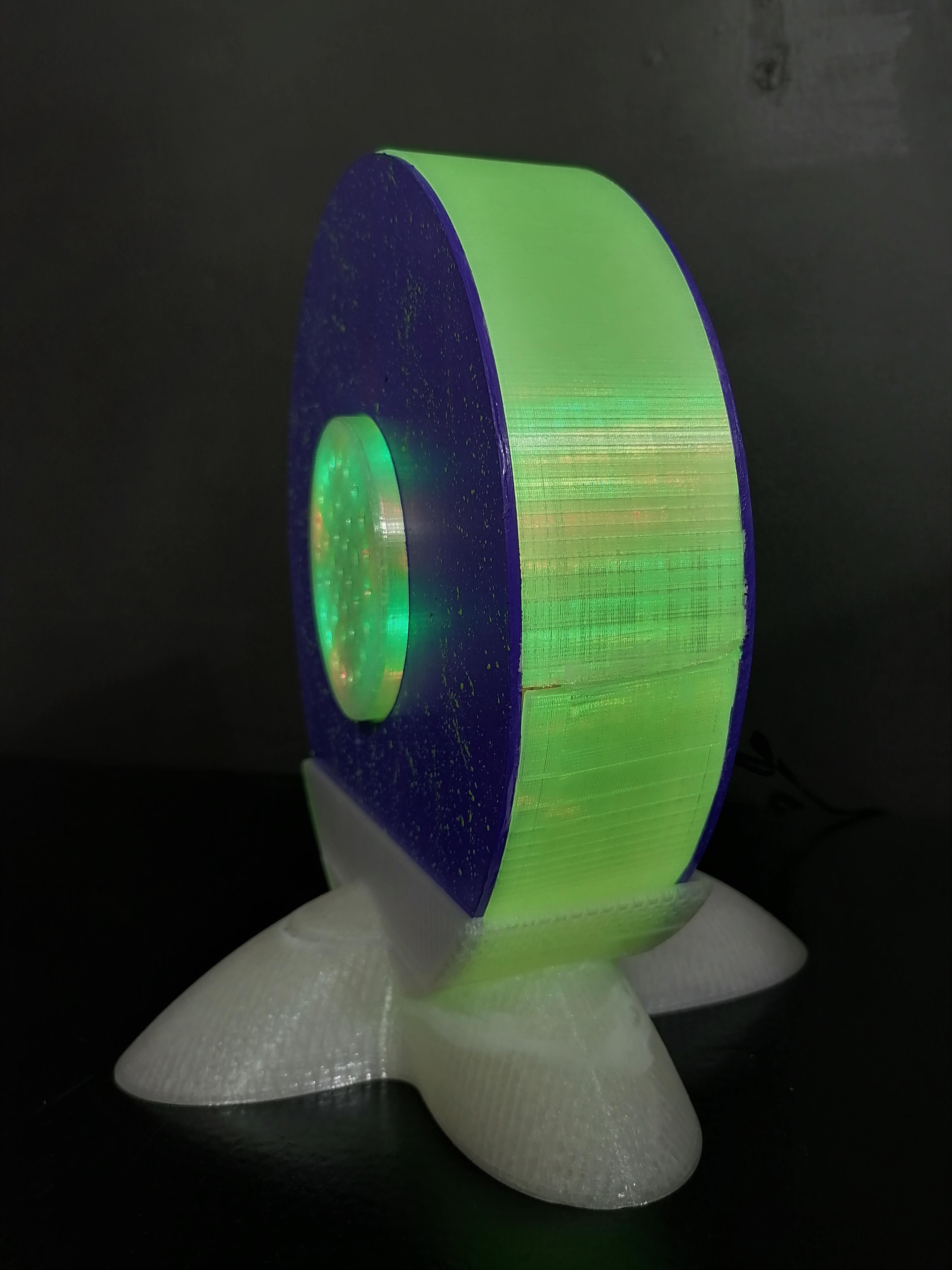

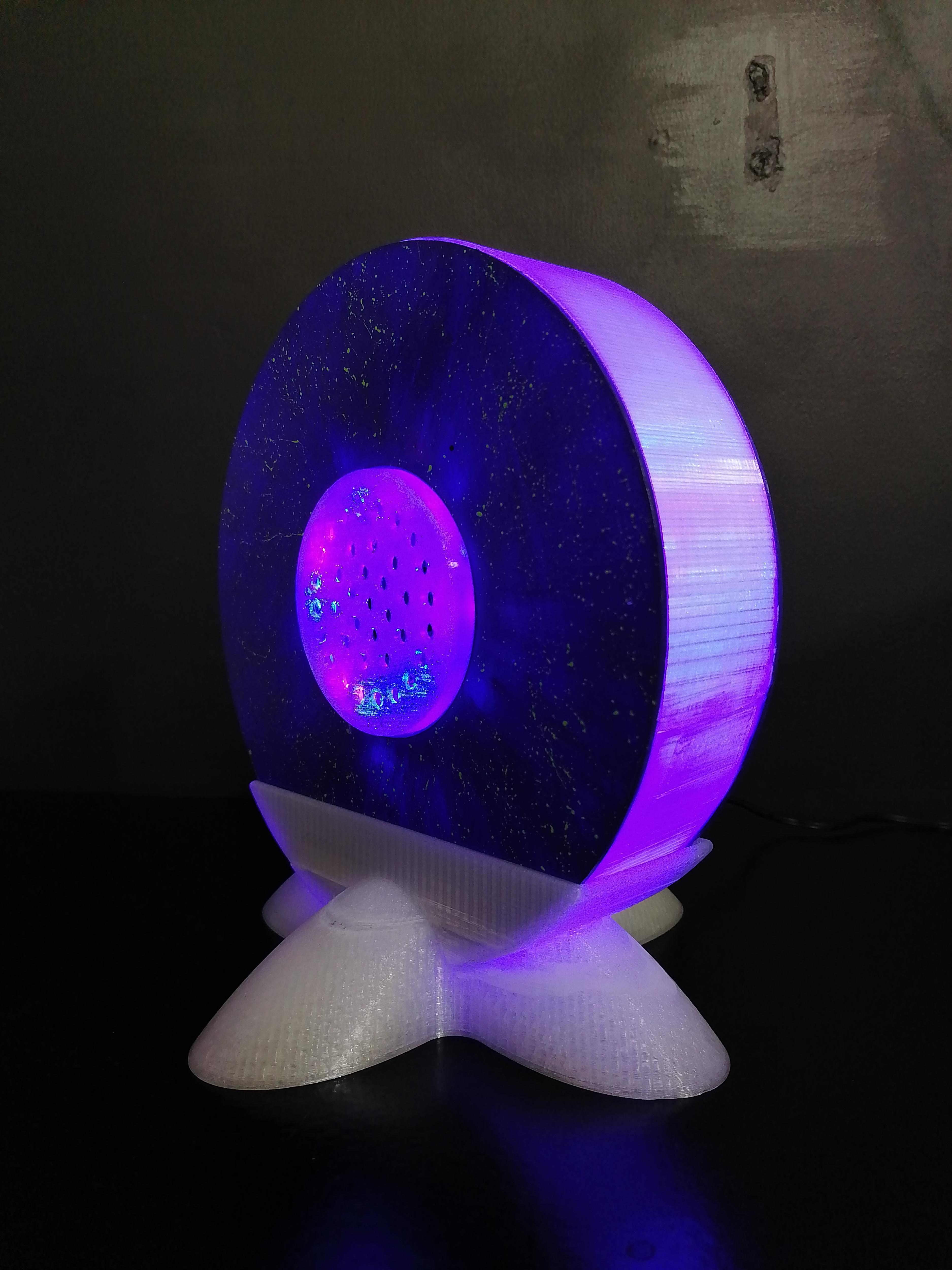

The result came out was amazing !!!

1. Empty 3D Filament spool (22cm outer diameter and 5cm inner diameter).
2. RGB LED Strip (1.5 meter).
3. Speaker (4 watt). (5cm in diameter)
4. Bluetooth Circuit 12v (only 1).
5. 7805 IC (only 1).
6. DC Jack (only 1). (13mm diameter)
7. Switch (only 1). (13mm diameter)
8. Arduino pro mini. (only 1).
9. 12v adapter (only 1).

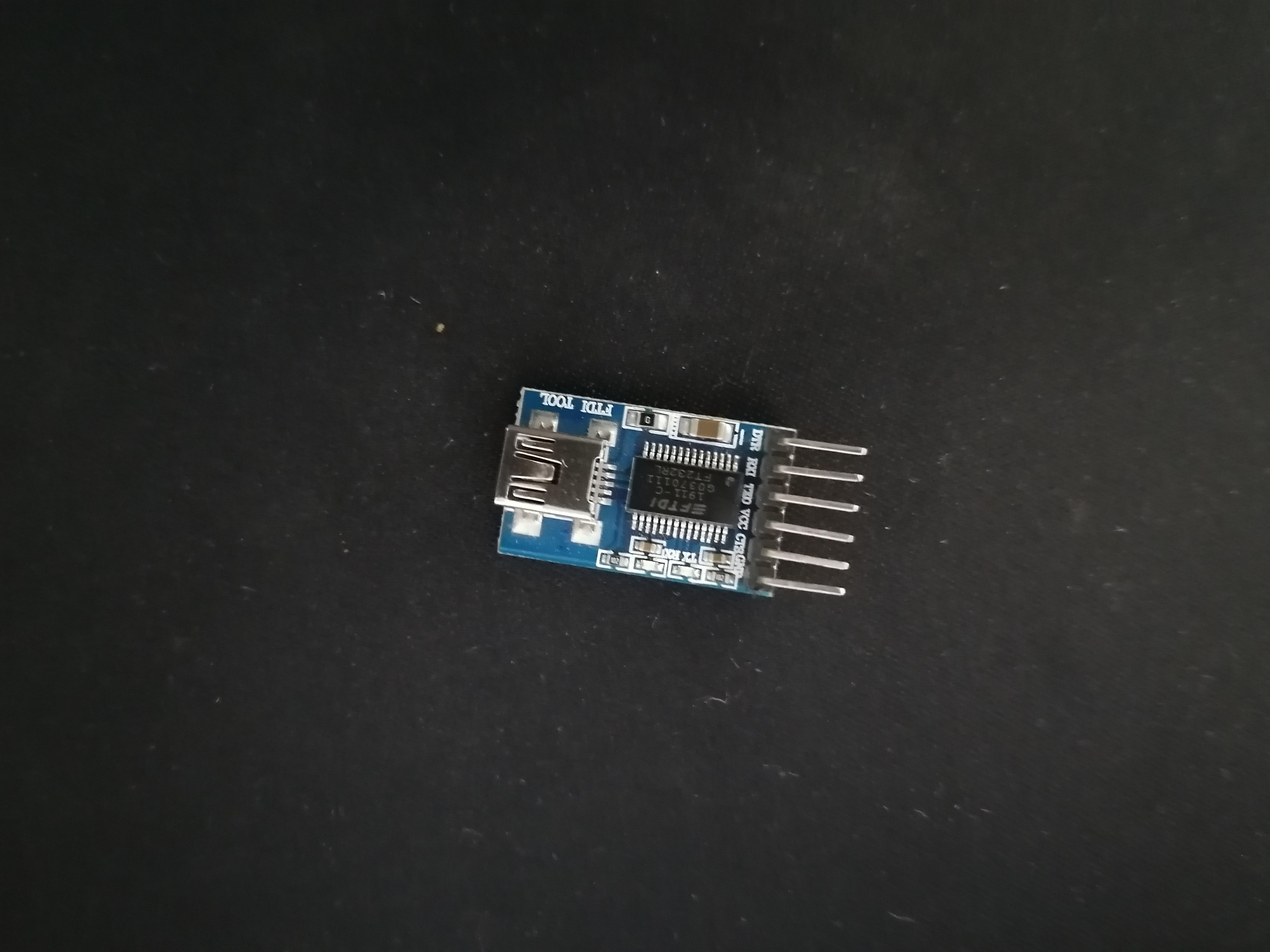

10. TTL to USB - FT232RL (only 1).
11. Wires (multi color).
12. 3D printed parts.

Note: Buy Speaker size according to inner diameter of filament spool.

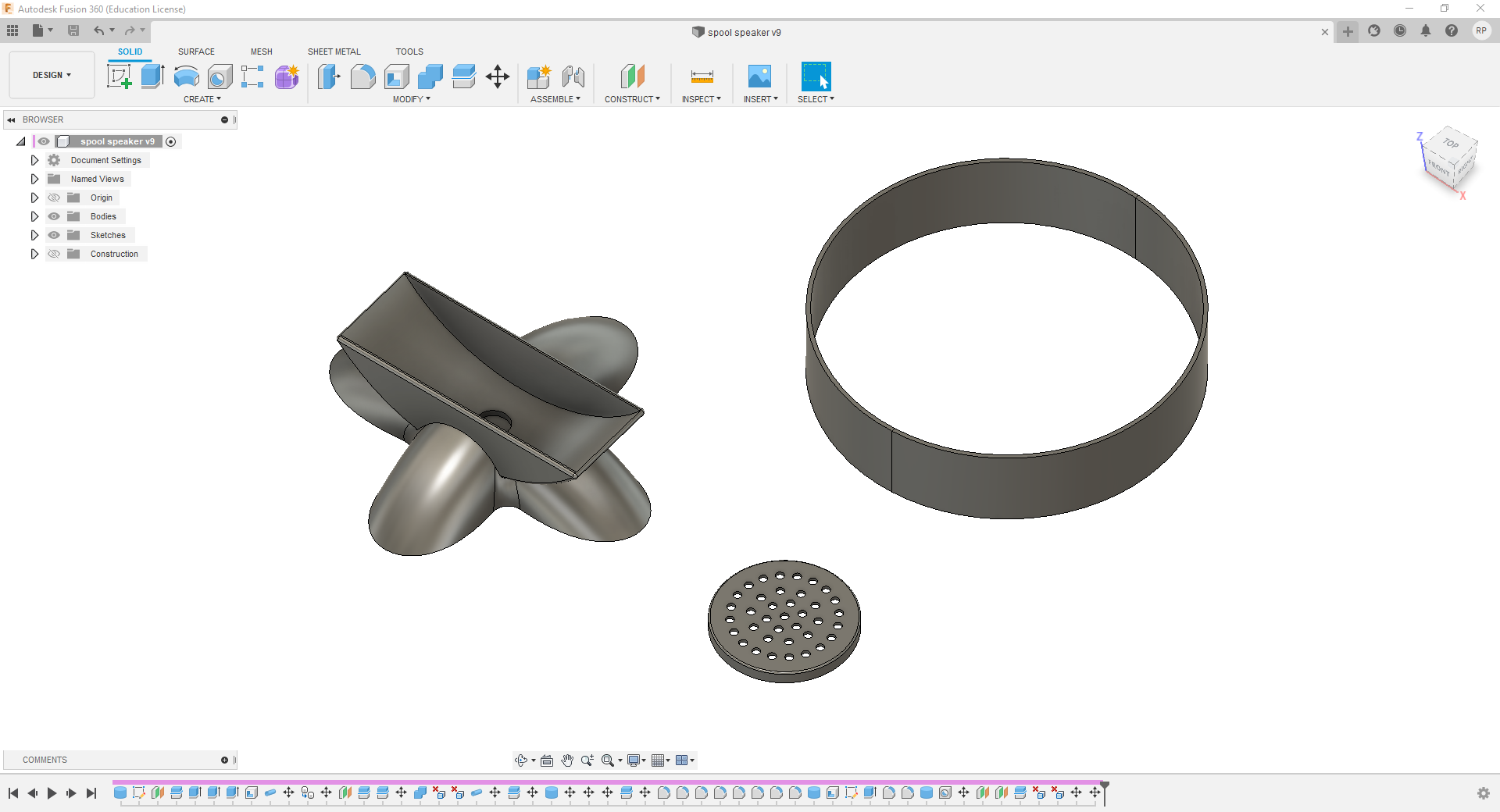

Edit Fusion360 (f3d) file according to your requirement. download it below.

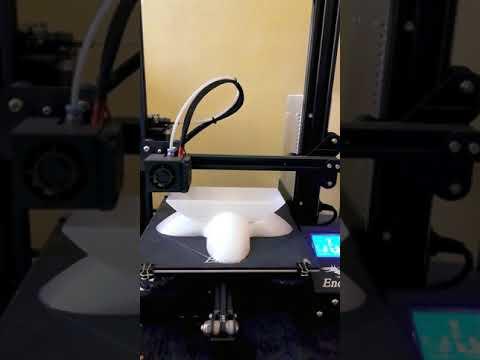

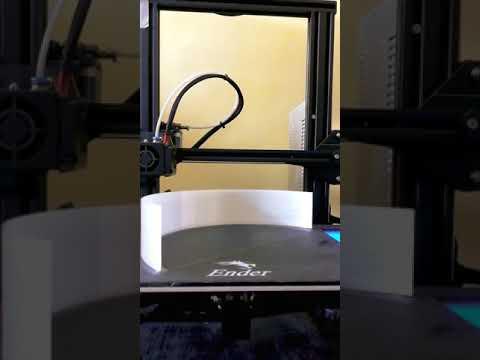

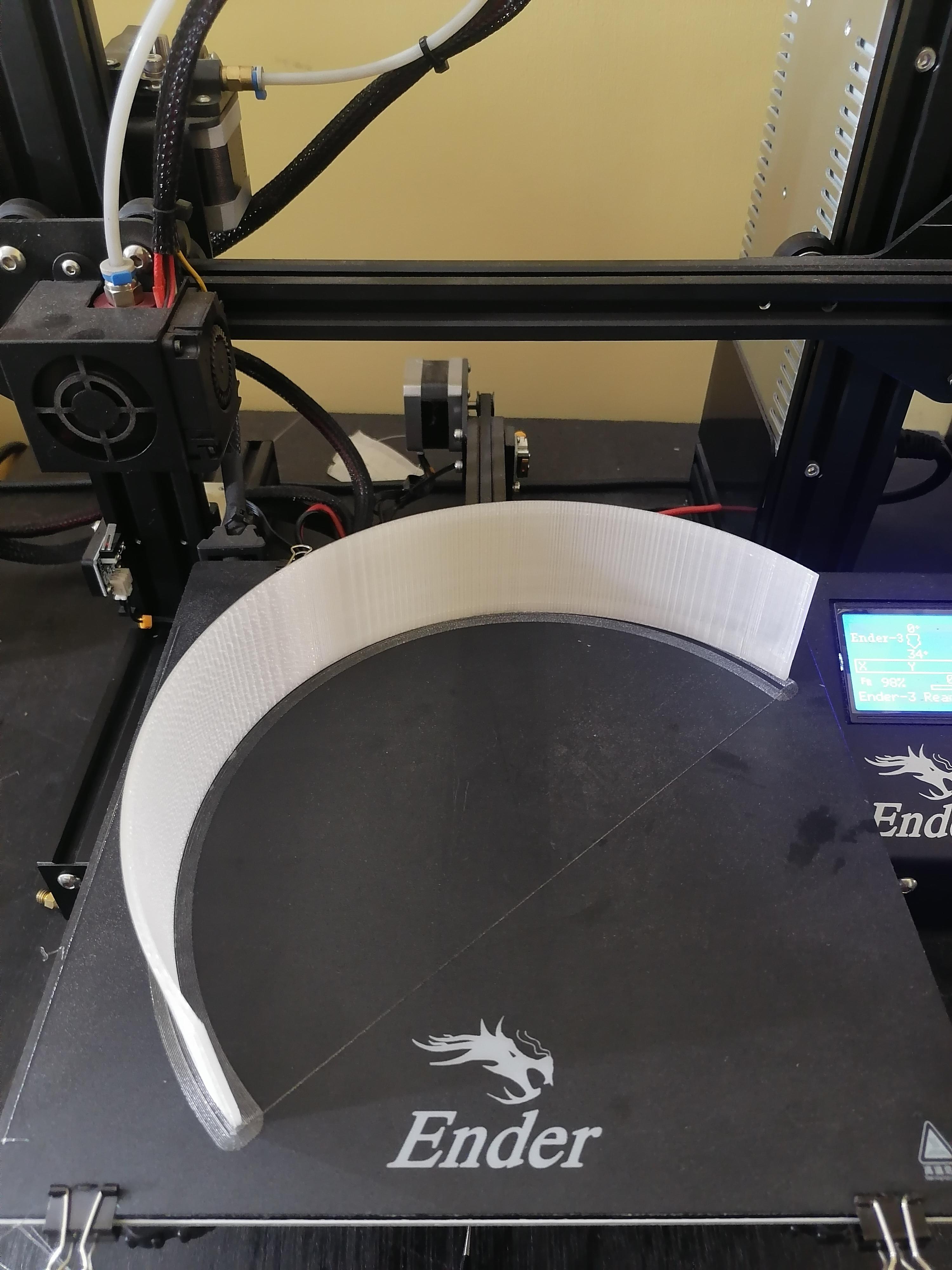

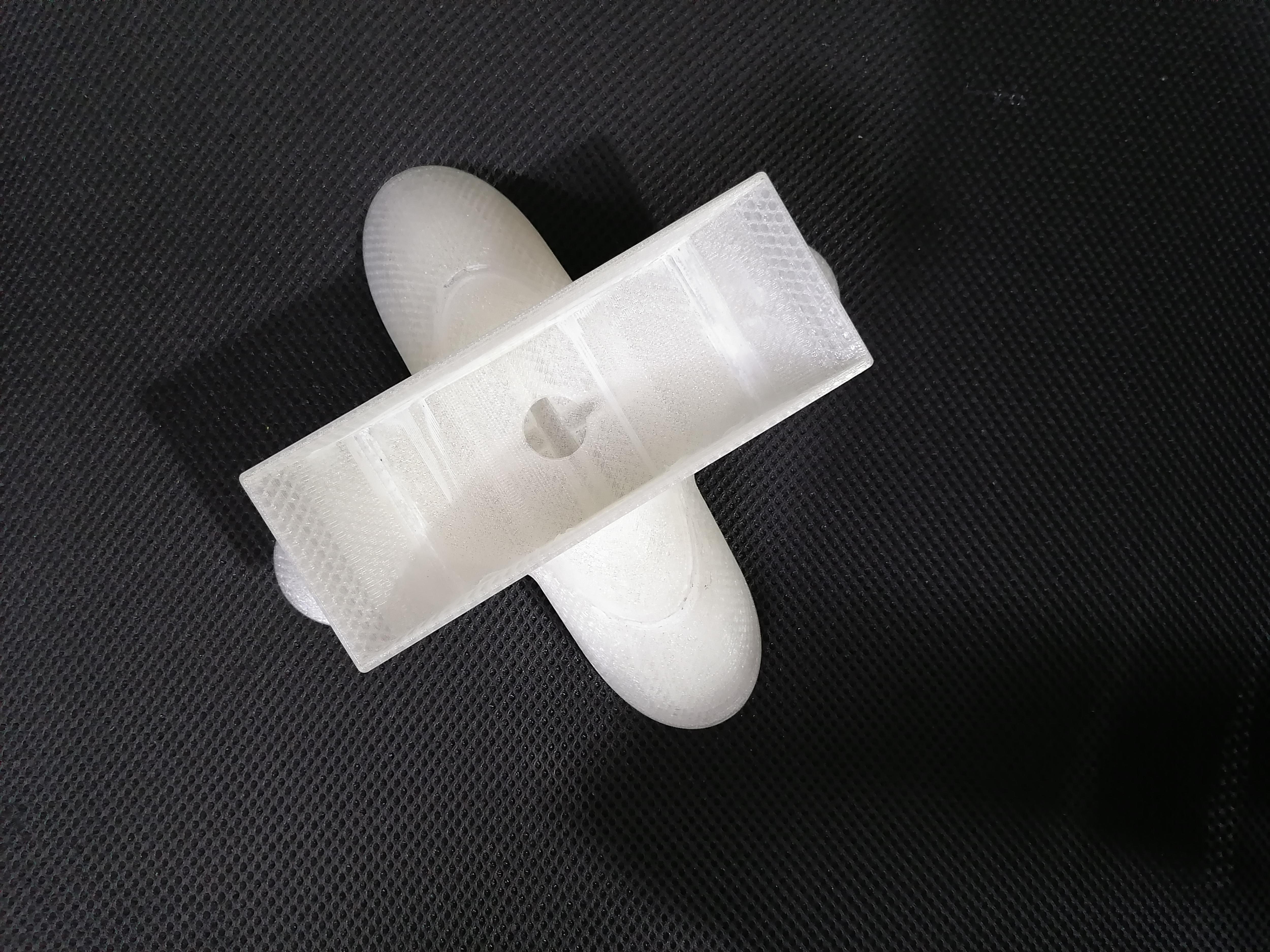

Print all parts in Transparent filament.

Note: Print Hole Plate - 2 quantity.

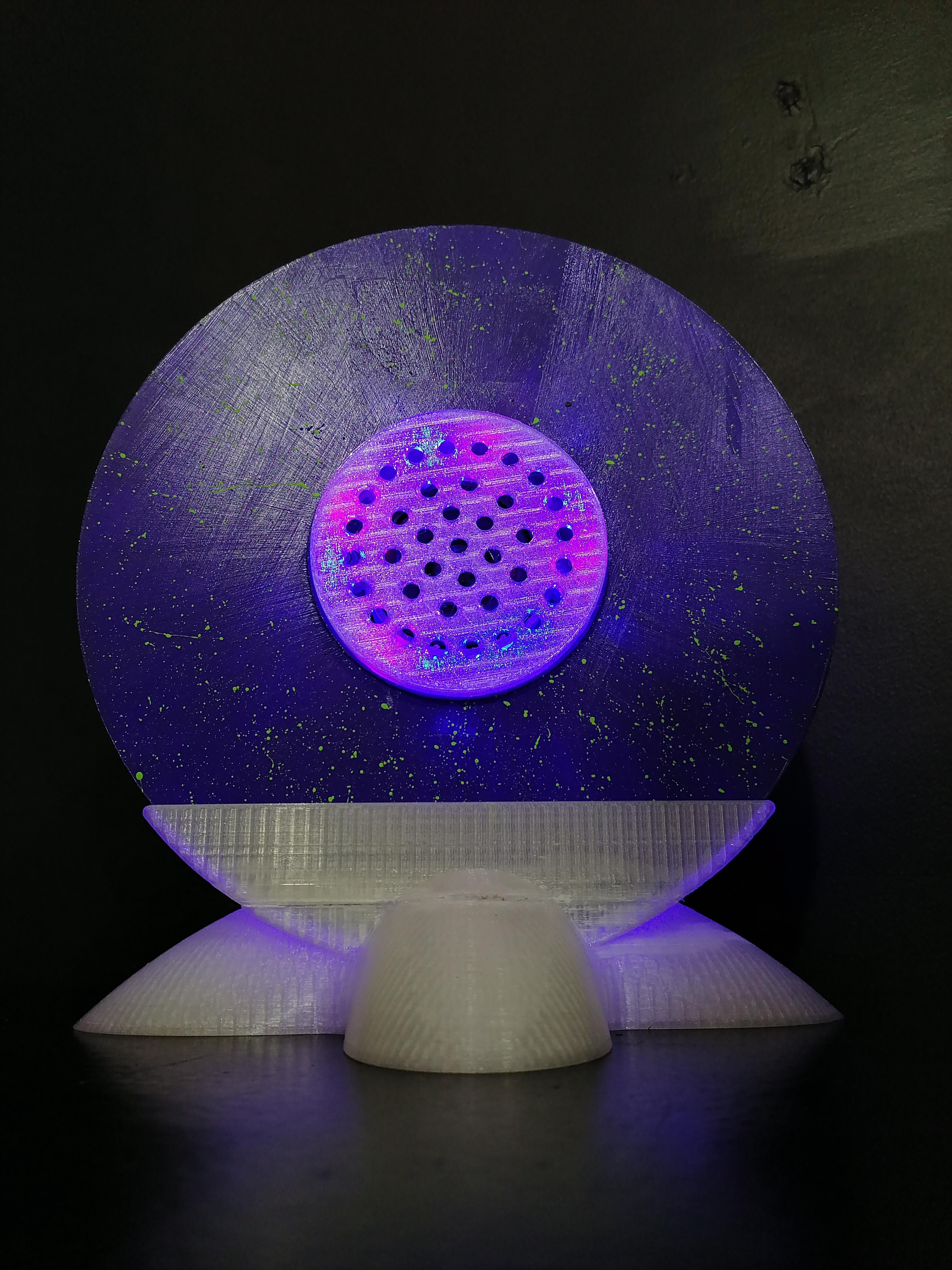

Tips: Coat main color on spool then sprinkle some color on it using brush.

Solder wire of LED Strip, Jack, Switch and Speaker.

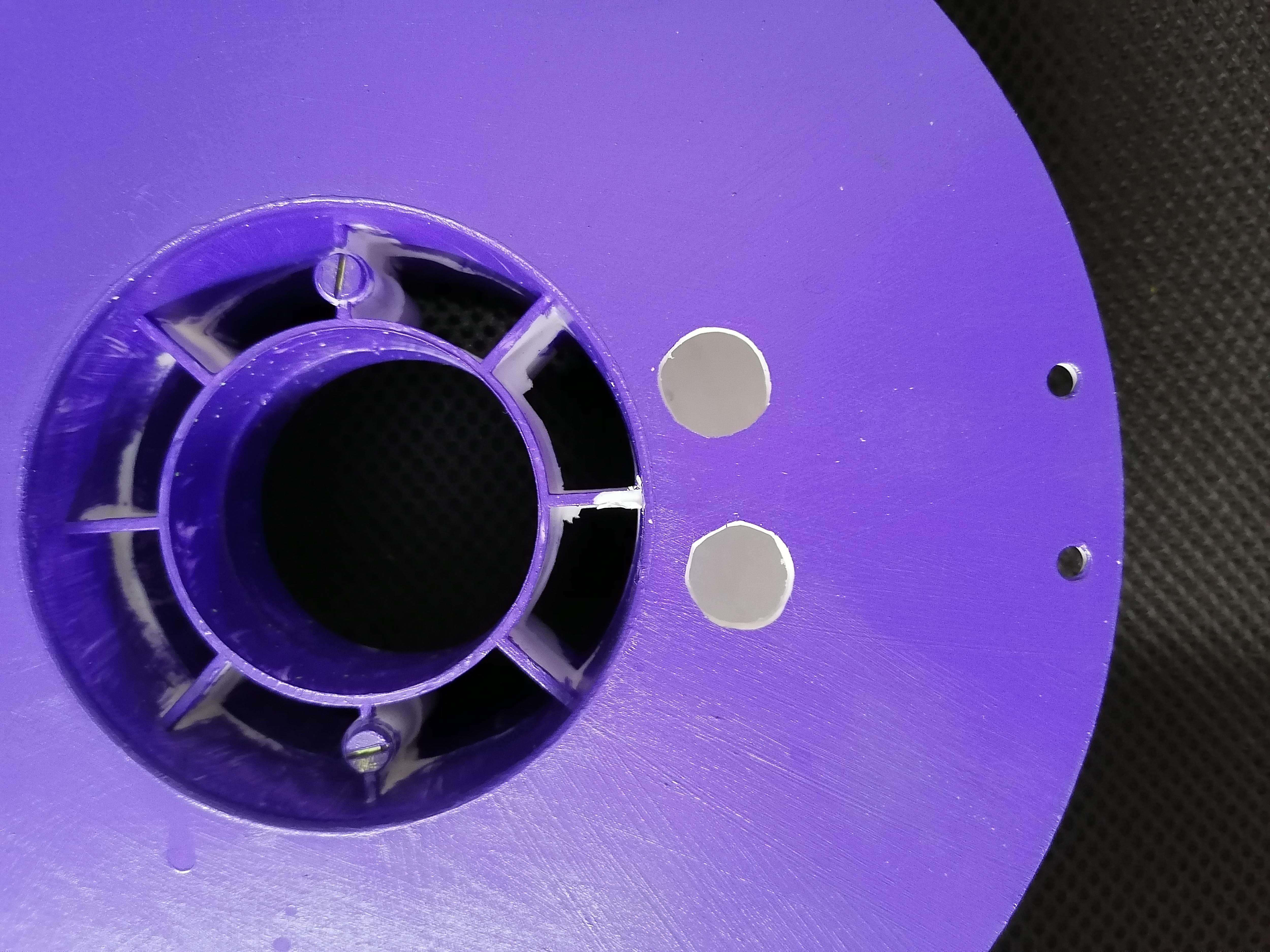

Drill two holes at back of spool of 13mm diameter.

Check note in image.

Note: Refer above image hole position.

Check note in image.

Check note in image.

Note: Pass Wire Through 3mm Hole

Glue the speaker with spool and speaker should faced front.

Glue the hole plate with spool.

Glue the hole plate with spool.

Connect TTL FT232RL to Arduino pro mini. Then upload the code.

Refer above image for wire connection.

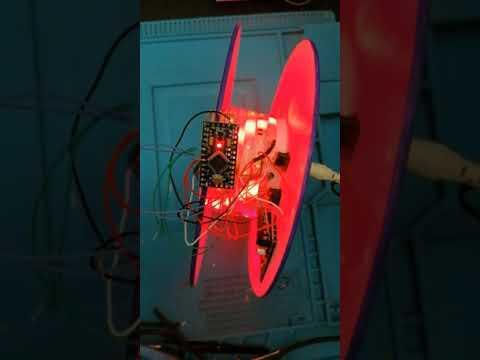

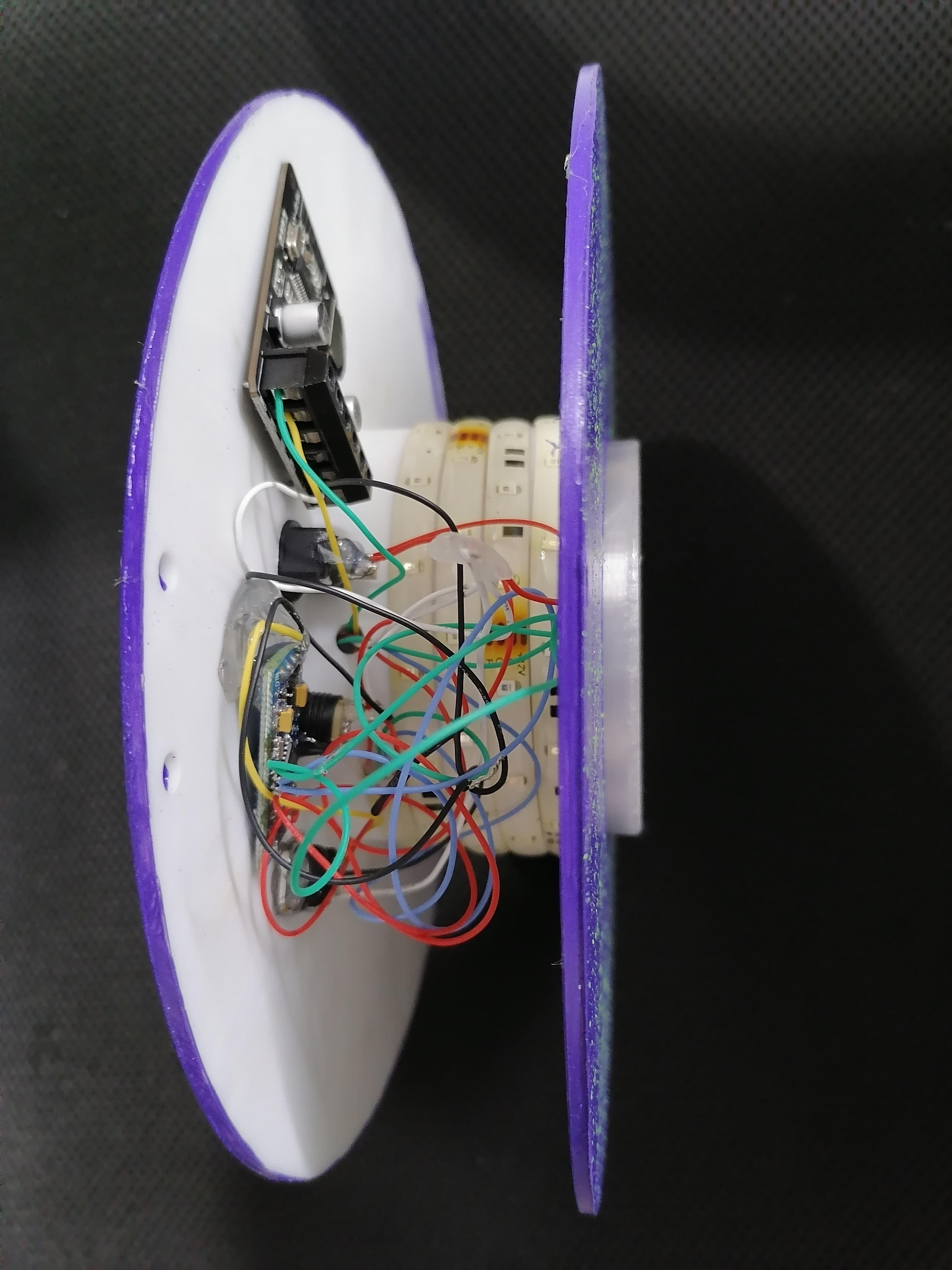

Stick all Circuit on the inner side of spool.

"Hope you Enjoy to make this project" If you like this project please let now in comment.....

If any question about this project just let me know in comment box!!
