Hello reader,

This is a cheapest amplifier based on 8002 ic which is easily available in market.

Actually I found the IC in my old speaker but you can buy it online.

Cheap Bluetooth speaker or Aux speaker are based on 8002 IC.

_________________

• I have found my old speaker and it is not working properly may be there is mistake in circuit.
• So let's disorder the IC or you can buy it online.
• Search for 8002 IC in google.

1. A 8002 IC
2. A small zero PCB.
3. Two 104 (0.1uf) capacitor
4. Two 10K resistor
5. One 100K resistor
6. A 3.5mm or 2.5mm audio jack
7. A speaker of 4 ohm 2Watt.

• IC is not fit into the zero PCB So
• Remove two pads as shown in image and

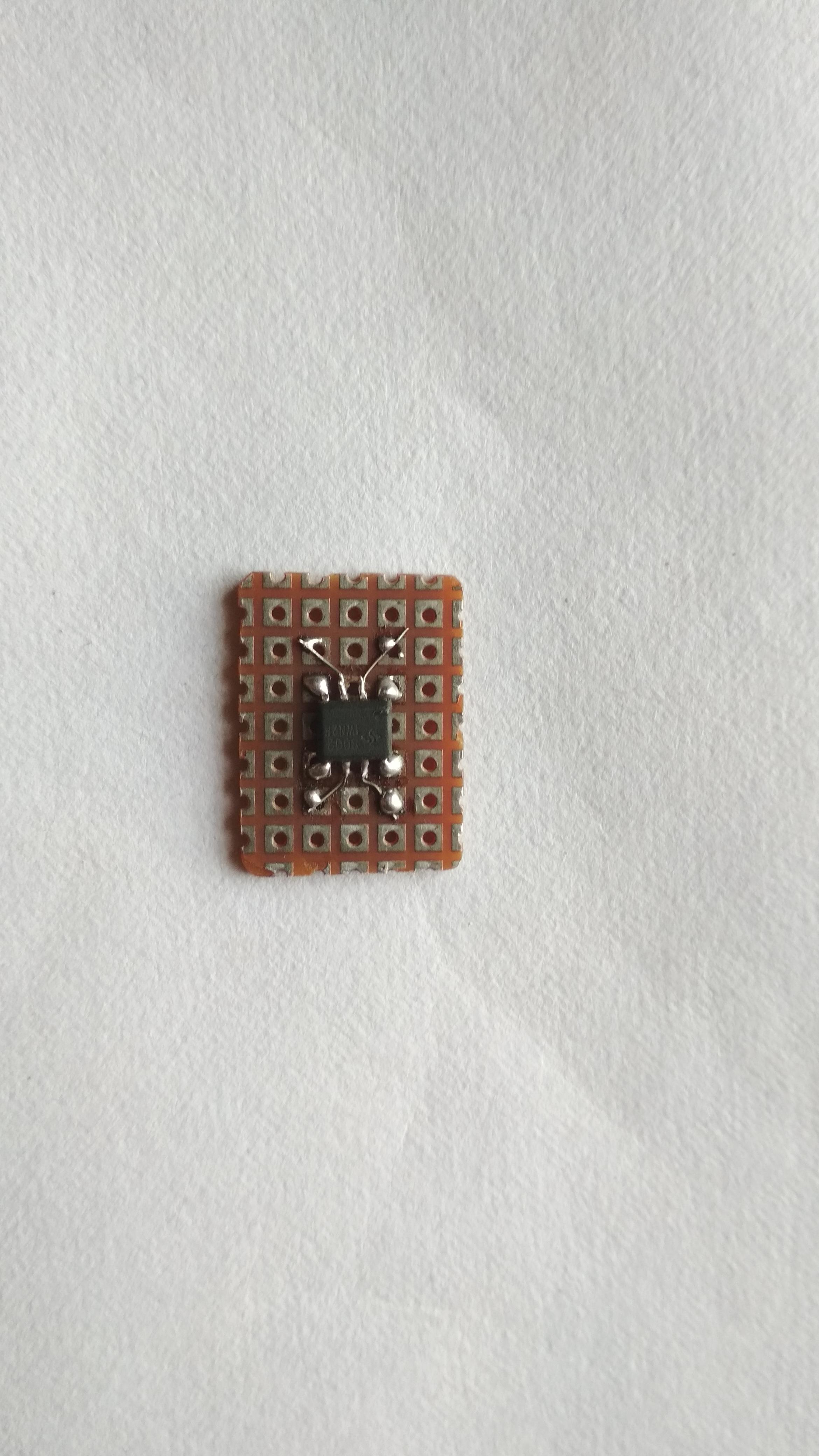

• solder ic like spider shown in image.

• Connect the circuit as shown in image
• I have replaced 47K to 100K to increase the Sound and it works greate.

• pack all the things in a beautiful box and it's done.
