DIY Solid Wood Bookshelf

With the increase in books and other items, I still have a lot of books without a place to put them. I have always wanted to change it to a new one. I went to the market to check it. It was either the wrong size or the wrong price. If customized, the price/performance ratio would be amazing. In fact, the tribesigns bookshelves that I like, they have many kinds of bookshelves and their brands are popular among people. but I still want to make bookshelves by myself. So I decided to make the bookshelf myself.

1. The wood uses laminated lumber, that is, solid wood finger joint board, which has the advantage of being environmentally friendly and durable.

2. Wood wax oil is used for wood surface treatment, which is environmentally friendly, easy to operate, and maintains the original color of solid wood.

3. Purchase the corresponding tools and materials as needed. Mainly buy from the Internet, the advantage is that it saves trouble, the disadvantage is that it is not intuitive.

4. For wood cutting, please have a manufacturer with a precision sliding table saw. The reason is that panel furniture has a high requirement for the fineness of the size, and the error should not exceed 1mm.

5. The wooden board is connected by a round dowel method. The advantage is that it is strong, no metal parts are used, and the disadvantage is that it is troublesome, and the processing accuracy is higher. Once the general direction is determined, the size of the drawing can be determined. The drawing is carried out using the Sketch Master software. It is also one of the learning results of the past six months, which is not too difficult.

Wood wax oil is purchased online in advance. According to the recommendations of the merchant, in order to prevent the deformation of the board (the more solid wood, the easier it is to deform, which has little to do with the quality of the wood), it is necessary to apply it before cutting the board.

After that, the board was handed over to the merchant to help cutting. The processing fee for each board was 100 yuan. Considering the huge gap between the cost of the bookshelf and the price purchased in the market, there was no counter-offer with the merchant, and he was only required to cut it. Good, accurate cutting.

A few days later, the manufacturer notified me to pick up the goods, and I was already unable to bear it, and I immediately went to pull the sheet enthusiastically. Very satisfied after inspection, the manufacturer cuts very accurately and finely.

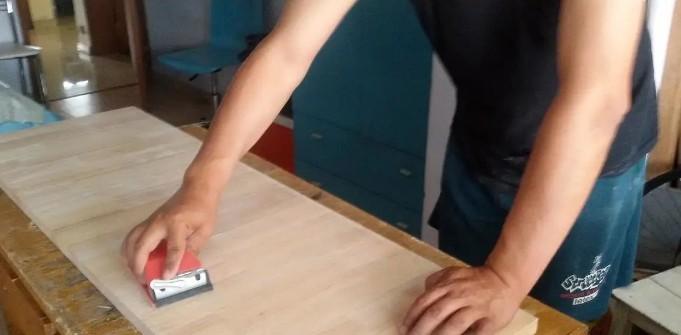

When I got home, I immediately sanded it with sandpaper of various meshes according to the knowledge I learned, and then applied wood wax oil again. This way, one is to prevent the wood from being deformed, and the other is to punch the board once. Since wood wax oil has been used before, I didn't use much oil this time, and even less than half of the last time I used it.

In this process, I once again realized the subtlety of the sentence "If you want to be good at work, you must first sharpen your tools". In order to ensure that the bookshelf can be made successfully this time, I specially bought tools, materials and accessories such as round dowel locators, scribes, pliers, etc., and they are still expensive. These easy-to-use tools have indeed greatly improved the work efficiency and machining accuracy, allowing me to experience endless fun in the process of making bookshelves.

For high efficiency, two drills are used, one for drilling and one for self-tapping. It's very convenient

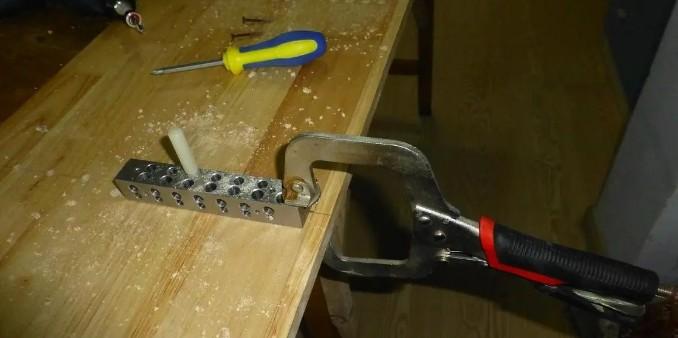

Fortunately, I bought a powerful pliers, which is very convenient when fixing the positioner, which greatly improves the work efficiency.

I encountered a small problem when drawing the side line. Due to the limitation of the scribe, the length of about two or three centimeters on both sides of the side could not be drawn. What should I do? The line on the side is a very important mark. If it is not there, the accuracy of the punching on the side of the board cannot be guaranteed.

After thinking about it, I haven't come up with a good solution, such as drawing an extension line with a straightedge. I always feel that this method is not very good and is prone to errors. Regardless of him, I have a habit of letting go first when encountering difficulties. Do something else or rest. My experience is: Over time, either a solution to the difficulty will be figured out, or the difficulty can be circumvented, or the difficulty is no longer difficult or even non-existent. You can try my method, but don't blame me if it doesn't work. Sure enough, after half a day, I figured out my solution. The solution is to put the two boards together so that the original edge of the seam is in the middle, and the line can be marked with a scribe. Below are the pictures below, so everyone can see it more clearly.

In this way, the problem of the accuracy of the marking of the edge of the board is smoothly solved. After the line is marked, important work must be carried out. The side of the board is punched.

Because there is no other locator to compare, this locator is generally easy to use, especially in terms of skin texture and accuracy. The disadvantage is that it is a little troublesome to adjust. I don’t know if it can be improved in the future, especially The snap ring is very inconvenient to disassemble and assemble, and I think it will be easy to loosen in the future.

The center line should be strictly aligned, so that the splicing will be smooth in the future

Put it on the well-made wooden board and try it out. It's easy to insert it. At this time, I began to have confidence in the smooth completion of the splicing of the bookshelf in the future.

My wife came to help me personally and helped me with the work of polishing and applying wood wax oil. Facts have proved that women have an innate advantage in doing such patient, meticulous, and repetitive tasks, at least compared to me.

My son came back from the holiday, and he was able to lay hands on me. The child’s hands-on skills were relatively strong and he understood very quickly. He immediately knew my thoughts and gave me some suggestions. Sometimes I even laid hands on him. NS. With the help of his son, the progress suddenly accelerated.

It will soon enter the assembly stage. Maybe it's because of the better control of accuracy before, the assembly process is extremely smooth

Considering the importance of the back plate, it was decided to use wood screws to fix it. First, it is easy to operate, and the other is that the back plate is thin, and the use of round wooden dowels may not be able to secure it. Wood screws are also expensive to buy, containing steel, and the density of the screws has also increased a lot.

When I set up the bookshelf, I was relieved. The bookshelf is relatively stable and does not move. It's just that the bookshelf is too heavy. It is very difficult for me and my son to erect the bookshelf.
