DIY Solar Air Car Under 10$


Hello Readers i'm here with my new instructable showing you how to make solar powered air car under 10$,and the Best Part Here is Most of the Building Materials is Recycled..

What is Solar air Car?

It is a car in which Solar Panel Powers the DC Motor to Which Propeller is attached and by the thrust generated by propeller Vehicle will move forward

Applications

  • Best Education Tool For Students
  • Science Fair Project
  • Understand Working Principle

Advantages

  • No Need of Batteries
  • Clean Energy
  • No Switching Circuits

Disadvantages

  • Solar Power is Nature Depended Which is Beyond Human Control
  • Unable to use In Night

Easy Tutorial Showing How to Make Solar Air Car

How i Made my own SOLAR AIR CAR under 10$

Step by Step instructions needed to build this is shown in video

Materials

Snapshot 1 (3-13-2018 12-09 AM).png
Snapshot 2 (3-13-2018 12-10 AM).png
Snapshot 3 (3-13-2018 12-10 AM).png
Snapshot 4 (3-13-2018 12-10 AM).png
Snapshot 5 (3-13-2018 12-10 AM).png

  • 4x Old CD
  • Solar Panel

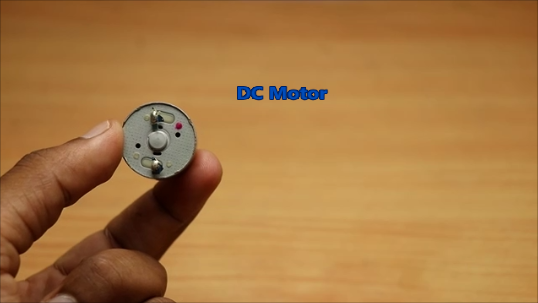

  • DC Motor
  • Propeller

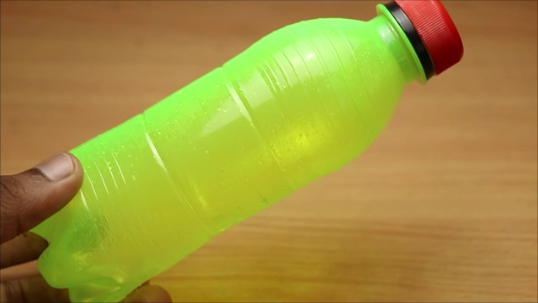

  • Empty Plastic Bottle
  • Popsicle Sticks

Building Phase 1

Snapshot 6 (3-13-2018 12-10 AM).png
Snapshot 7 (3-13-2018 12-10 AM).png
Snapshot 8 (3-13-2018 12-10 AM).png
Snapshot 9 (3-13-2018 12-11 AM).png
Snapshot 10 (3-13-2018 12-11 AM).png
Snapshot 11 (3-13-2018 12-11 AM).png
Snapshot 12 (3-13-2018 12-11 AM).png

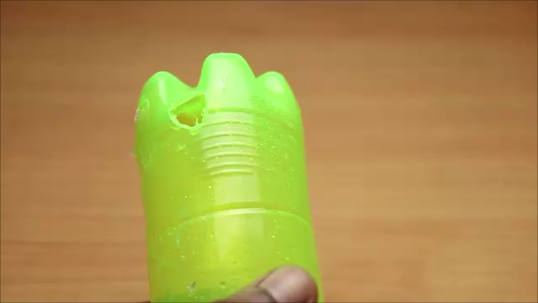

  • Hole is Made at bottom end of bottle to hold the shaft

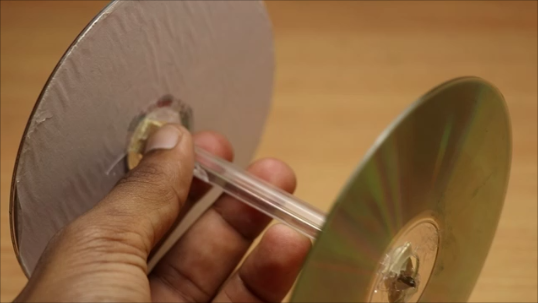

  • Plastic pipe is used to hold the shaft
  • Hot Glue is Used

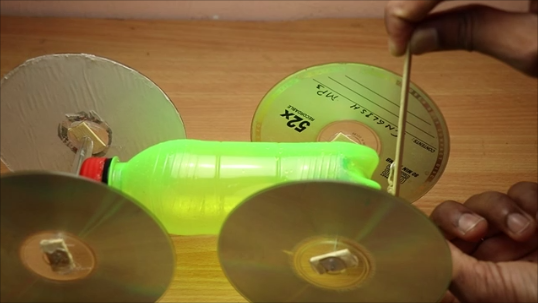

  • Popsicle Stick is used to Connect CD and Shaft Tightly

Building Phase 2

Snapshot 13 (3-13-2018 12-11 AM).png
Snapshot 14 (3-13-2018 12-11 AM).png
Snapshot 15 (3-13-2018 12-12 AM).png
Snapshot 19 (3-13-2018 12-12 AM).png
Snapshot 16 (3-13-2018 12-12 AM).png
Snapshot 17 (3-13-2018 12-12 AM).png
Snapshot 18 (3-13-2018 12-12 AM).png
  • Do it For Both the Sides
  • Make Wheel for Front Part
  • Glue it to the Cap
  • Connect DC Motor to Solar Panel
  • Attach it to Car Body

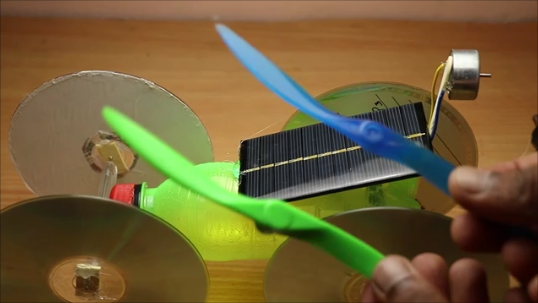

  • Select the Propeller Color!
  • Connect To Motor Shaft
  • Take it Outside in Bright Sunshine and Have Fun!
