DIY Smartphone Video Rig
![How to make a Smartphone Video Rig - Stabilizer](/proxy/?url=https://content.instructables.com/FTL/14PT/KAI7YEDV/FTL14PTKAI7YEDV.jpg&filename=How to make a Smartphone Video Rig - Stabilizer)
![Skärmavbild 2020-05-23 kl. 13.15.37 (2).png](/proxy/?url=https://content.instructables.com/FX4/71TS/KAI7YEEX/FX471TSKAI7YEEX.png&filename=Skärmavbild 2020-05-23 kl. 13.15.37 (2).png)

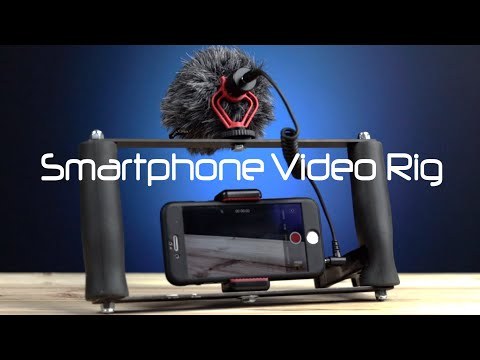

In this video I'm showing how to make a DIY Smartphone/iPhone Video Rig.
On this Rig you can mount your microphone and other accessories and this will also help you to film more stabilized.
Part list:
- Aluminum Flatbar 20x3mm L=260mm (2 pcs)
- M6 threaded rod L=145mm (2 pcs)
- Bicycle grips
- M6 nut (4 pcs)
- M12 nut (4 Pcs)
- M6 nyloc nut (4 pcs)
- 1/4" bolt + washer (2 pcs)
- Smartphone mount https://www.amazon.com/Manfrotto-Universal-Smartp...
Aluminum Flat Bar
![Skärmavbild 2020-05-27 kl. 19.30.22 (2).png](/proxy/?url=https://content.instructables.com/FJJ/EH6Z/KAPD3ME7/FJJEH6ZKAPD3ME7.png&filename=Skärmavbild 2020-05-27 kl. 19.30.22 (2).png)
![Skärmavbild 2020-05-27 kl. 20.50.09 (2).png](/proxy/?url=https://content.instructables.com/FTI/194R/KAPPEJ87/FTI194RKAPPEJ87.png&filename=Skärmavbild 2020-05-27 kl. 20.50.09 (2).png)
Cut to two pieces of the aluminum flatbar. L=260mm
Drill one 6,5 mm hole in each end and one hole in the middle.
Round the Edges With a File.
![Skärmavbild 2020-05-27 kl. 19.30.30 (2).png](/proxy/?url=https://content.instructables.com/FZ7/UQAI/KAPD3M97/FZ7UQAIKAPD3M97.png&filename=Skärmavbild 2020-05-27 kl. 19.30.30 (2).png)
![Skärmavbild 2020-05-27 kl. 19.30.32 (2).png](/proxy/?url=https://content.instructables.com/FRA/VCOZ/KAPD3M8T/FRAVCOZKAPD3M8T.png&filename=Skärmavbild 2020-05-27 kl. 19.30.32 (2).png)
Paint the Flat Bars and Let Them Dry
![Skärmavbild 2020-05-27 kl. 19.30.50 (2).png](/proxy/?url=https://content.instructables.com/FSU/Q9Y8/KAPD3M89/FSUQ9Y8KAPD3M89.png&filename=Skärmavbild 2020-05-27 kl. 19.30.50 (2).png)
Nut in Nut
![Skärmavbild 2020-05-27 kl. 19.30.51 (2).png](/proxy/?url=https://content.instructables.com/FJT/NYIJ/KAPD3M88/FJTNYIJKAPD3M88.png&filename=Skärmavbild 2020-05-27 kl. 19.30.51 (2).png)
![Skärmavbild 2020-05-27 kl. 19.30.53 (2).png](/proxy/?url=https://content.instructables.com/FLN/30M6/KAPD3M5F/FLN30M6KAPD3M5F.png&filename=Skärmavbild 2020-05-27 kl. 19.30.53 (2).png)
![Skärmavbild 2020-05-27 kl. 19.30.55 (2).png](/proxy/?url=https://content.instructables.com/FJ4/8S8T/KAPD3M55/FJ48S8TKAPD3M55.png&filename=Skärmavbild 2020-05-27 kl. 19.30.55 (2).png)
![Skärmavbild 2020-05-27 kl. 19.30.56 (2).png](/proxy/?url=https://content.instructables.com/FS3/RPXH/KAPD3M4Q/FS3RPXHKAPD3M4Q.png&filename=Skärmavbild 2020-05-27 kl. 19.30.56 (2).png)
Put the M6 nut in the M12 nut and hitt is with a hammer or press it with a vise.
Cut the Threaded Rod
![Skärmavbild 2020-05-27 kl. 19.31.10 (2).png](/proxy/?url=https://content.instructables.com/F9F/TNXW/KAPD3M4N/F9FTNXWKAPD3M4N.png&filename=Skärmavbild 2020-05-27 kl. 19.31.10 (2).png)
![Skärmavbild 2020-05-27 kl. 20.01.07 (2).png](/proxy/?url=https://content.instructables.com/FKT/K9B7/KAPD3ODM/FKTK9B7KAPD3ODM.png&filename=Skärmavbild 2020-05-27 kl. 20.01.07 (2).png)
Cut two pieces of the M6 threaded rod about 20 mm longer than the bicycle grips and screw on the M6 / M12 nuts, one at each end, to match the length of the grips.
Put on the Grip
![Skärmavbild 2020-05-27 kl. 19.31.14 (2).png](/proxy/?url=https://content.instructables.com/F1W/G9Z8/KAPD3M49/F1WG9Z8KAPD3M49.png&filename=Skärmavbild 2020-05-27 kl. 19.31.14 (2).png)
![Skärmavbild 2020-05-27 kl. 19.31.22 (2).png](/proxy/?url=https://content.instructables.com/FRJ/V4HC/KAPD3M2Y/FRJV4HCKAPD3M2Y.png&filename=Skärmavbild 2020-05-27 kl. 19.31.22 (2).png)
![Skärmavbild 2020-05-27 kl. 19.31.24 (2).png](/proxy/?url=https://content.instructables.com/FHB/KJME/KAPD3M2X/FHBKJMEKAPD3M2X.png&filename=Skärmavbild 2020-05-27 kl. 19.31.24 (2).png)
Attach the Flat Bars to the Grips
![Skärmavbild 2020-05-27 kl. 19.31.29 (2).png](/proxy/?url=https://content.instructables.com/FRL/FNOS/KAPD3M2G/FRLFNOSKAPD3M2G.png&filename=Skärmavbild 2020-05-27 kl. 19.31.29 (2).png)
![Skärmavbild 2020-05-27 kl. 19.31.31 (2).png](/proxy/?url=https://content.instructables.com/F8T/V2II/KAPD3M2F/F8TV2IIKAPD3M2F.png&filename=Skärmavbild 2020-05-27 kl. 19.31.31 (2).png)
![Skärmavbild 2020-05-27 kl. 19.31.39 (2).png](/proxy/?url=https://content.instructables.com/FKW/00CE/KAPD3M2E/FKW00CEKAPD3M2E.png&filename=Skärmavbild 2020-05-27 kl. 19.31.39 (2).png)
Attach the Phone Holder With the 1/4" Screw
![Skärmavbild 2020-05-27 kl. 19.31.56 (2).png](/proxy/?url=https://content.instructables.com/FLH/04BD/KAPD3M2B/FLH04BDKAPD3M2B.png&filename=Skärmavbild 2020-05-27 kl. 19.31.56 (2).png)
![Skärmavbild 2020-05-27 kl. 19.31.55 (2).png](/proxy/?url=https://content.instructables.com/F93/R3QR/KAPD3M2C/F93R3QRKAPD3M2C.png&filename=Skärmavbild 2020-05-27 kl. 19.31.55 (2).png)
![Skärmavbild 2020-05-27 kl. 19.31.52 (2).png](/proxy/?url=https://content.instructables.com/FIU/CFPD/KAPD3M2D/FIUCFPDKAPD3M2D.png&filename=Skärmavbild 2020-05-27 kl. 19.31.52 (2).png)
Attach the Microphone Holder With 1/4 "screw
![Skärmavbild 2020-05-27 kl. 19.31.59 (2).png](/proxy/?url=https://content.instructables.com/FRZ/UEE1/KAPD3M2A/FRZUEE1KAPD3M2A.png&filename=Skärmavbild 2020-05-27 kl. 19.31.59 (2).png)
![Skärmavbild 2020-05-27 kl. 19.32.01 (2).png](/proxy/?url=https://content.instructables.com/FLN/7N7I/KAPD3M1W/FLN7N7IKAPD3M1W.png&filename=Skärmavbild 2020-05-27 kl. 19.32.01 (2).png)
Attach the Phone and Microphone
![Skärmavbild 2020-05-27 kl. 19.32.08 (2).png](/proxy/?url=https://content.instructables.com/FK4/8MSW/KAPD3M1V/FK48MSWKAPD3M1V.png&filename=Skärmavbild 2020-05-27 kl. 19.32.08 (2).png)
![Skärmavbild 2020-05-27 kl. 19.32.11 (2).png](/proxy/?url=https://content.instructables.com/FVL/NR2F/KAPD3M1U/FVLNR2FKAPD3M1U.png&filename=Skärmavbild 2020-05-27 kl. 19.32.11 (2).png)
Finished
![Skärmavbild 2020-05-27 kl. 19.32.19 (2).png](/proxy/?url=https://content.instructables.com/F09/KBVT/KAPD3LWN/F09KBVTKAPD3LWN.png&filename=Skärmavbild 2020-05-27 kl. 19.32.19 (2).png)
