DIY Smart Dustbin With Arduino

by AhsanQureshi in Circuits > Arduino

25561 Views, 47 Favorites, 0 Comments

DIY Smart Dustbin With Arduino

maxresdefault (1).jpg

Here we will make a Smart Dustbin by using arduino and ultrasonic sensor.
I hope you guys enjoy learning this project.

Supplies

Arduino Uno
Ultrasonic Sensor
Servo Motor
Dustbin

Preparing the Opening


Take a plastic sheet and cut fraw a circle with the help of dustbin and but it off from plastic sheet and then cut the circle in half and join them again with the help of scotch tape or plastic tape.

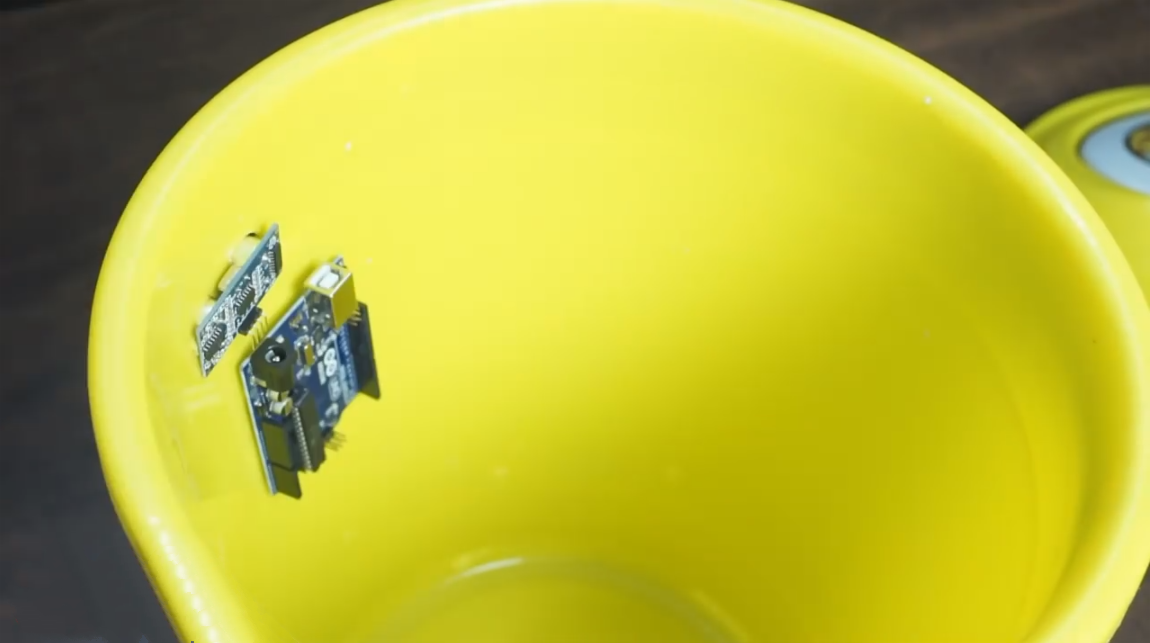

Place the Ultra Sonic Sensor


Place the ultra sonic sensor in the dustbin as shown in the picture and move on to the next step.

Programming


Connect the arduino and upload the given program on your arduino uno and place the arduino in the dustbin with the help of double tape and move on to the next step.

Wiring


Now Place the 9 Volt Battery and Wire the circuit as shown in the picture above and then move on to the next step.

Place the Plastic Circle


Now Place the Plastic circle that we had cut in the second step and and glue the half circle on the dustbin and take the servo motor and place it on the circle with fix it with the help of some glue as shown in the pictures.

Take a string and a metal Washer and tie a not with the string as shown in the picture and make an hole and pass it through the plastic circle and again tie a not with servo motor.

Wiring the Servo Motor Final Task


Now Wire the Servo Motor according to the given Diagram and you have complete the project.

Hope you enjoy making it have some difficulties watch the video here : https://userstube.com/watch/di3aUPQo1m3gQQw
