DIY Simple Arduino Frequency Meter Up to 6.5MHz
Today I will show you how to build simple Frequency counter capable to mmeasure frequences of reactangular, sine or triangular signals up to 6.5 MHz
Description
The device presented in the video is a frequency meter made using an Arduino Nano microcontroller. It can measure the frequency of signals with rectangular, sinusoidal and triangular shapes.
This Project was sponsored by NextPCB. You can help support me by checking them out at one of these links:
Only $7 for SMT Order: https://www.nextpcb.com/?code=Mirko
Reliable Multilayer Boards Manufacturer: https://www.nextpcb.com/?code=Mirko
PCB Boards 10pcs for Free: https://www.nextpcb.com/?code=Mirko
20% off - PCB Orders: https://www.nextpcb.com/?code=Mirko
Its measurement range is from a few hertz to 6.5 Megahertz. Three measurement time intervals are also available - 0.1, 1 and 10 seconds. If we measure only rectangular signals, then there is no need for a shaping amplifier and the signal is fed directly to the digital pin 5 from Arduino. The code is very simple thanks to the "FreqCount" library which you can also download below. The device is very simple and consists of several components:

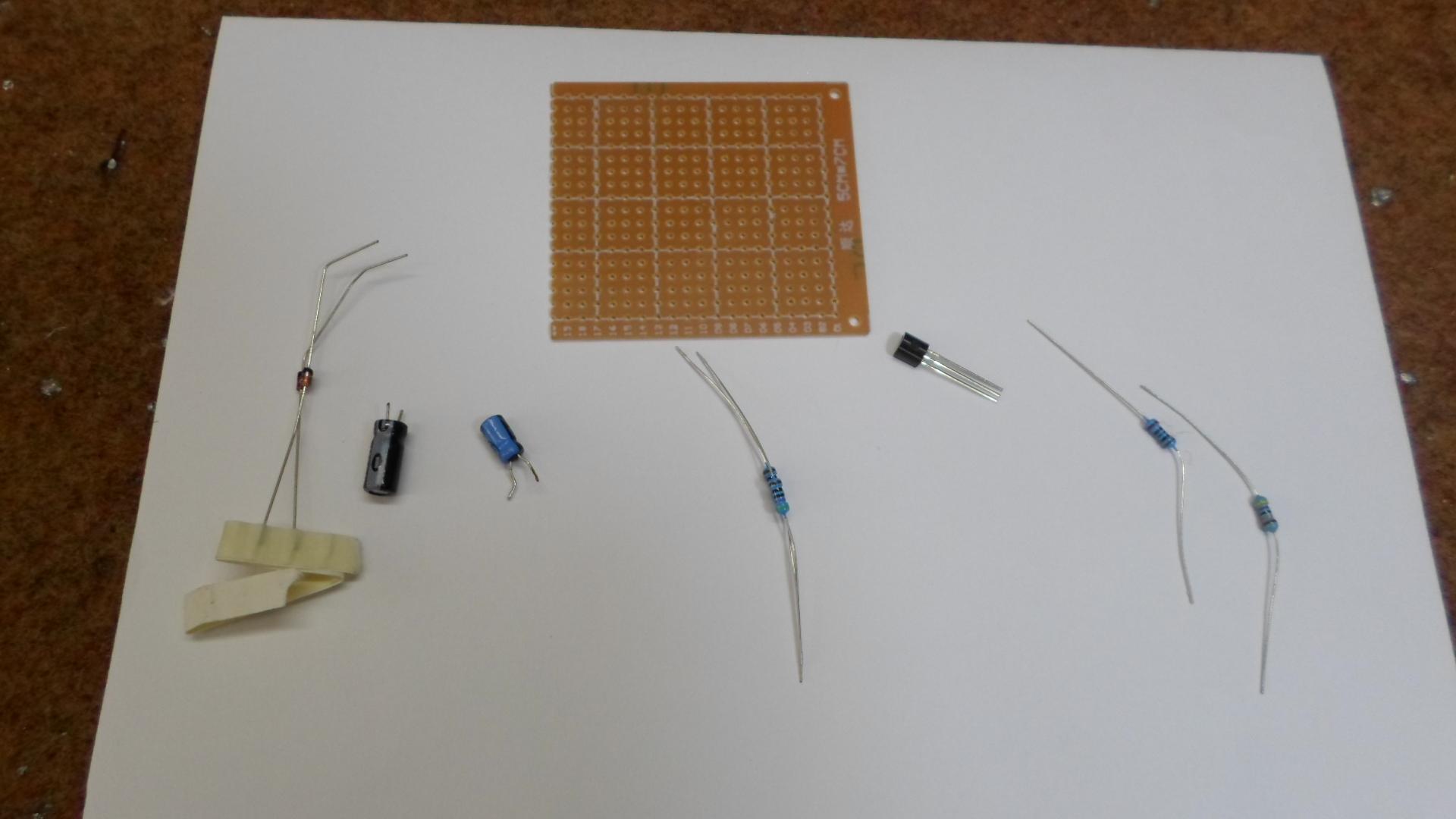

- Arduino Nano microcontroller

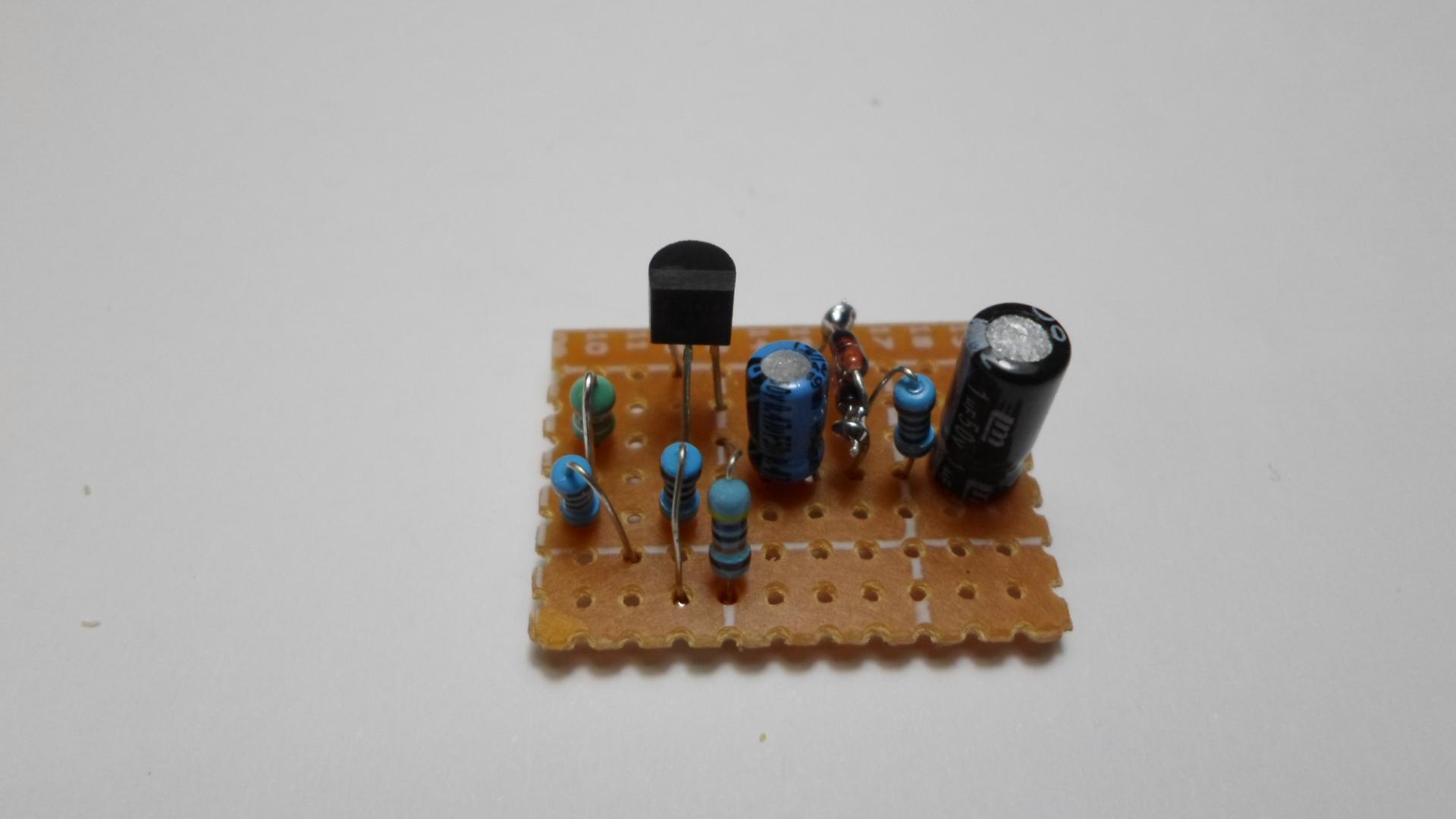

- Shaping amplifier board
- LCD display
- Input signal shape selector
- Input JACK
- and Time interval switch : we can choose three intervals 0.1 -1 -and 10 seconds .
Building
As you can see in the video, the instrument is very precise in the whole range, and we can also calibrate the frequency meter with the simple procedure described below:
In the Arduino libraries folder find the FreqCount library, in the FreqCount.cpp file find the lines: #if defined (TIMER_USE_TIMER2) && F_CPU == 12000000L float correct = count_output * 0.996155; and replace them with: #if defined (TIMER_USE_TIMER2) && F_CPU == 16000000L float correct = count_output * 1.000000; where 1.000000 is your correction factor, the correction must be carried out by applying 1 MHz to the input of the frequency meter. After changing the file, upload a new sketch to the Arduino board.
Schematic and Arduino Code

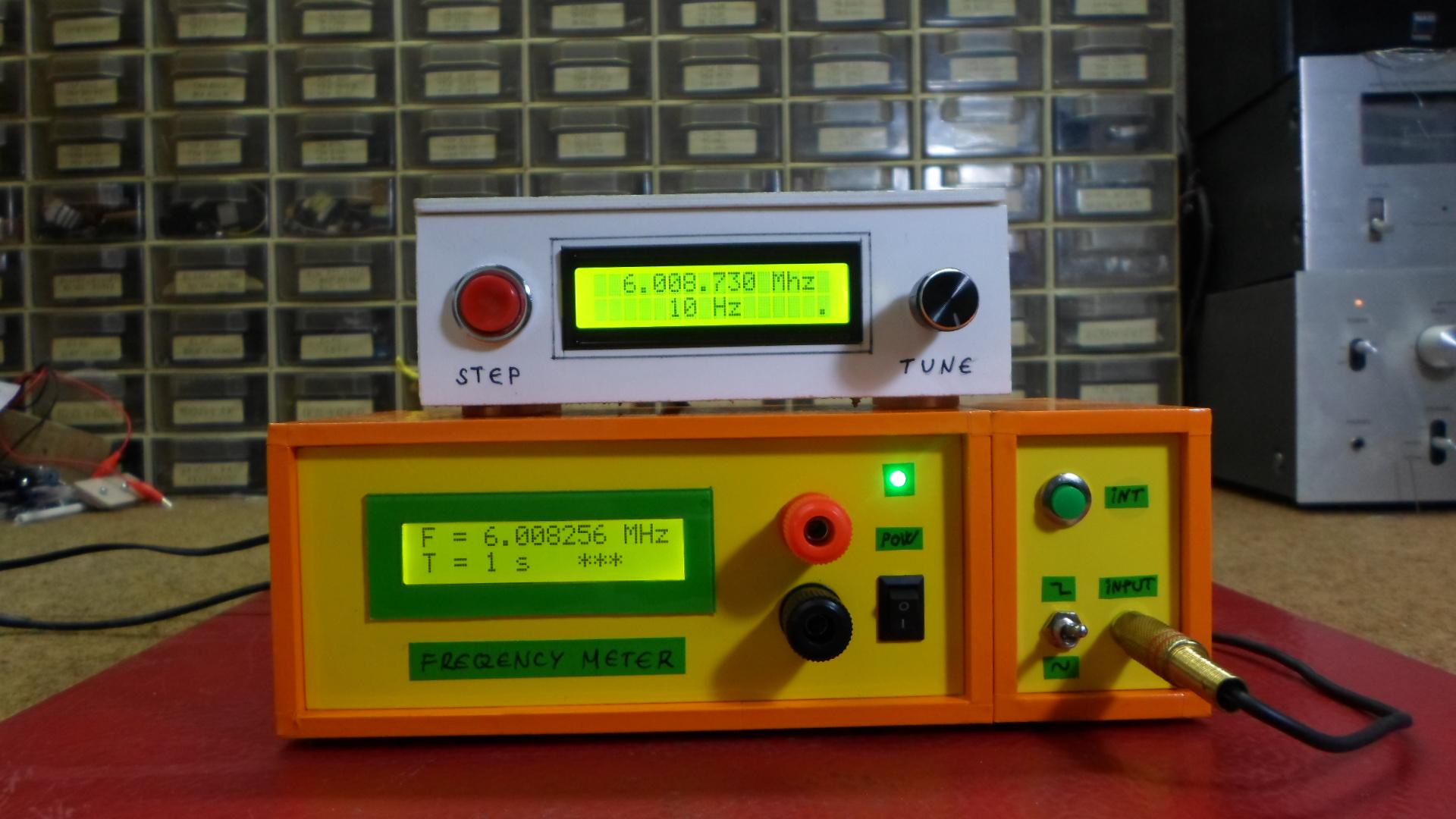

Finally, the frequency meter is built into a suitable plastic box and is another useful instrument in the electronic laboratory.
